Build a 6m Band Dipole Antenna
Six metres is the magic band — HF propagation modes (sporadic-E, F2, meteor scatter, transequatorial) opening in a VHF antenna package small enough to mount on a light push-up mast or swing from a garage eave. A simple half-wave dipole on 6 m costs under £15, takes an hour to build, and gives you a credible first antenna for the most unpredictable and exciting band in amateur radio.
The 50–54 MHz band occupies a unique position in the spectrum — too high for reliable HF propagation modes and too low to behave like a conventional VHF band. The result is a band that sits dormant for weeks then suddenly erupts into transatlantic or transpacific openings via sporadic-E, F2 propagation, meteor scatter, or the mysterious transequatorial propagation (TEP) that links stations across the equator on summer evenings. The 6 m operator learns patience and opportunism in equal measure.
At 50–54 MHz, a half-wave dipole is only 2.72 m long — short enough to mount horizontally between two fence posts, hang from a loft beam, or extend from a single support as an inverted-V. The compact dimensions make the 6 m dipole ideal as a first beam project, a portable antenna, or an omnidirectional reference while planning a Yagi upgrade. Its 2.15 dBi gain is modest but its omnidirectional (in azimuth) pattern means you never miss an opening just because you were pointed the wrong way.
Horizontal dipole (H-pol)
Best for SSB and CW contacts with other fixed stations — the conventional 6 m DX polarisation. Mount horizontally, elevated as high as possible. The figure-8 pattern sends maximum signal broadside to the elements — orient the antenna perpendicular to the direction of most interest.
Vertical dipole (V-pol)
Better for mobile, portable, and FM contacts where the distant station may be a whip antenna. Also preferred for meteor scatter where polarisation is randomised by the meteor trail. Simple to mount on a mast with the coax running down the support.
Inverted-V compromise
Single mast support with arms sloping down at 30–45°. Slightly reduces gain in the broadside direction and makes the pattern more omnidirectional. Feed point impedance drops slightly (45–55 Ω). Practical for portable operations and limited support sites.
| Frequency (MHz) | Use | Each arm (m) | Each arm (in) | Total (m) | Total (ft) |
|---|---|---|---|---|---|
| 50.100 | SSB calling | 1.428 | 56.2" | 2.855 | 9.37' |
| 50.150 | CW/SSB DX | 1.427 | 56.2" | 2.853 | 9.36' |
| 50.313 | FT8/FT4 | 1.423 | 56.0" | 2.845 | 9.33' |
| 51.000 | FM simplex | 1.402 | 55.2" | 2.804 | 9.20' |
| 52.000 | US FM / ATV | 1.375 | 54.1" | 2.750 | 9.02' |
| 52.525 | US FM calling | 1.361 | 53.6" | 2.723 | 8.93' |
| 53.000 | ATV / digital | 1.349 | 53.1" | 2.698 | 8.85' |
6m Dipole Length Calculator

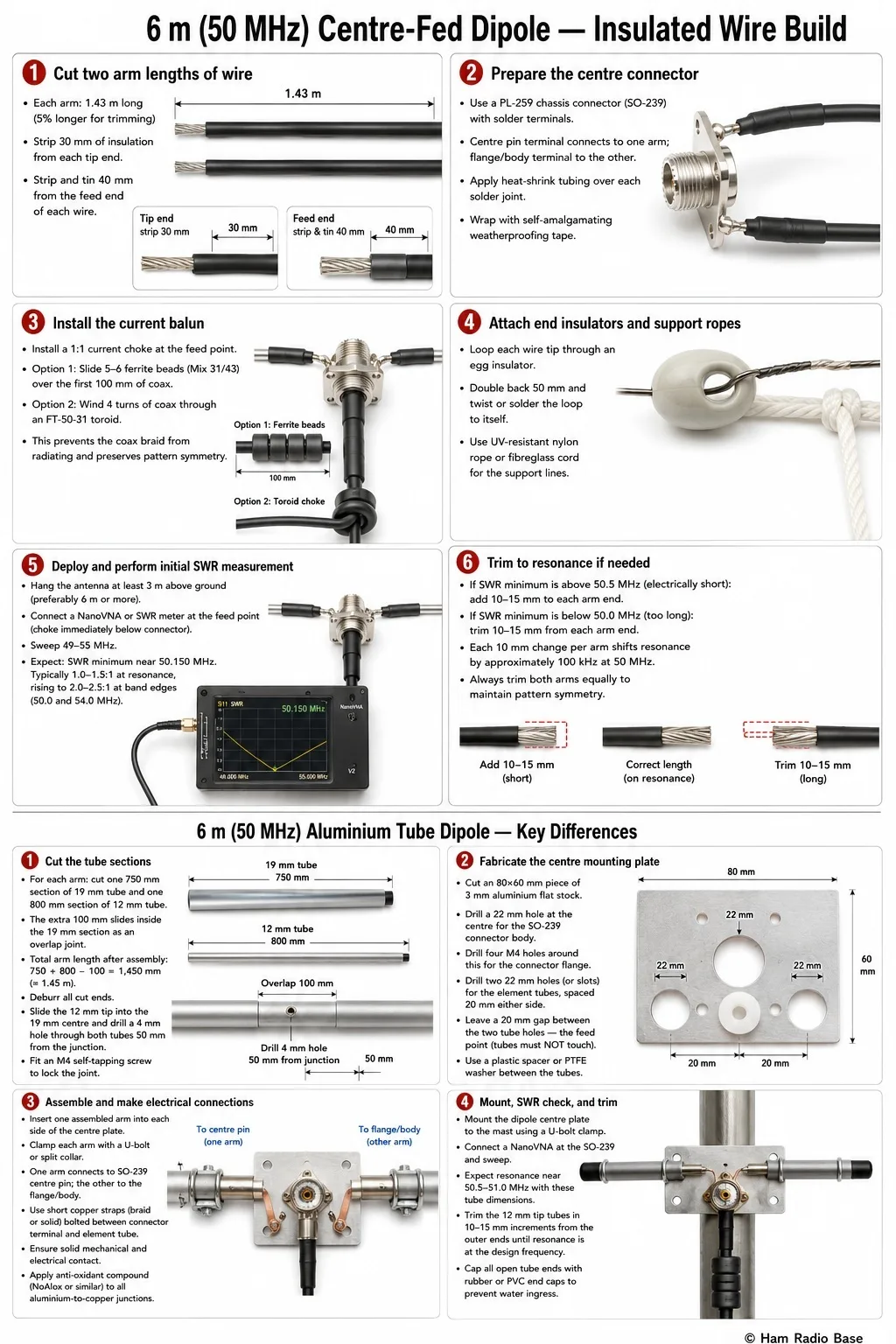

Option 1: Wire dipole — fastest build
The simplest 6 m dipole uses bare copper or insulated wire, a central feed point connector, and two end insulators. Total build time is under 30 minutes. Cut two arm lengths of wire (1.427 m each for 50.150 MHz), solder them to a PL-259 or SO-239 chassis connector at the centre, and support the ends with egg insulators. The wire version is ideal as a first 6 m antenna, for portable operations, and for attic or indoor temporary use. Its flexibility means it can be deployed in an inverted-V from a single support, spread horizontally between two poles, or wrapped around a balcony railing.
Option 2: Aluminium tube — permanent installation
For a permanent outdoor dipole, aluminium tube is the preferred material. A stepped-diameter design using 19 mm OD outer sections tapering to 12 mm OD tip sections produces a rigid, self-supporting element that clamps directly to a mast. At 6 m the total element length is only 2.85 m, making a rigid all-aluminium dipole entirely practical — no support wires needed. The feed point uses a standard split-boom mounting plate with an SO-239 connector. Total element weight under 0.5 kg.
Option 3: Coaxial dipole — no balun required
A coaxial dipole (sleeve dipole) uses the feedline coax itself as one arm of the dipole and a metal sleeve or choke as the return element. This design requires no separate balun because the sleeve provides the common-mode isolation. It is particularly useful for a vertical 6 m antenna on a mast where the coax naturally hangs below the feed point. The sleeve is typically made from a section of aluminium tube of the correct length (1.427 m at 50.150 MHz) through which the coax passes, with the sleeve connected to the coax outer at the top.
Parts List — Wire VersionWire 6m dipole at 50.150 MHz
Aluminium tube 6m dipole (additional materials)
For 50.150 MHz using insulated wire (K = 0.97): each arm = 71.5 × 0.97 / 50.150 = 1.383 m. Cut two pieces 1.43 m long — deliberately 5% long to allow trimming. Strip 30 mm of insulation from each tip end, and strip and tin 40 mm from the feed end of each wire.
Use a PL-259 chassis connector (SO-239 panel mount) with solder terminals, or a commercially available dipole centre insulator with two screw terminals. For the SO-239 type, the centre pin terminal connects to one arm and the flange/body terminal to the other. Apply heat-shrink tubing over each solder joint before applying self-amalgamating weatherproofing tape.
A 1:1 current choke at the feed point is strongly recommended for the 6 m dipole. At 50 MHz, even a short length of coax braid radiates efficiently — without a choke, the coax braid becomes part of the antenna, distorting the pattern and causing RF to appear on station equipment. Thread 5–6 ferrite beads (Mix 31 or 43, suitable for 50 MHz) over the first 100 mm of coax below the connector, or wind 4 turns of coax through an FT-50-31 toroid. The beads or toroid cost under £5 and make a measurable difference to pattern symmetry.
Loop each wire tip through a small egg insulator, double back 50 mm, and twist or solder the wire loop to itself. The insulator provides a clean mechanical attachment point for the support rope without stressing the solder joint at the connector. Use UV-resistant nylon rope or fibreglass cord for the support lines.
Hang the antenna at its operating height — at least 3 m above ground for reasonable pattern quality at 50 MHz, preferably 6 m or more. Connect a NanoVNA or SWR meter at the feed point (via a short coax lead only — the choke should be immediately at the connector). Sweep 49–55 MHz. The SWR minimum should appear near the design frequency. At 50.150 MHz with a correctly cut antenna, expect SWR of 1.0–1.5:1 at resonance, rising to 2.0–2.5:1 at the band edges (50.0 and 54.0 MHz).
If the SWR minimum is above 50.5 MHz (antenna is electrically short), add 10–15 mm to each arm end and re-measure. If the minimum is below 50.0 MHz (antenna too long), trim 10–15 mm from each arm and re-measure. Each 10 mm change per arm shifts resonance by approximately 100 kHz at 50 MHz. Always trim both arms equally to maintain the pattern symmetry that the balun is preserving.
For each arm: cut one 750 mm section of 19 mm tube and one 800 mm section of 12 mm tube (the extra 100 mm slides inside the 19 mm section as an overlap joint). Total arm length after assembly: approximately 750 + 800 − 100 = 1,450 mm = 1.45 m — slightly longer than needed, allowing fine trimming. Deburr all cut ends. Slide the 12 mm tip into the 19 mm centre and drill a 4 mm hole through both tubes 50 mm from the junction. Fit a stainless M4 self-tapping screw to lock the joint.
Cut an 80×60 mm piece of 3 mm aluminium flat stock. Drill a 22 mm hole at the centre for the SO-239 connector body. Drill four M4 holes around this for the connector flange. Drill two 22 mm holes (or elongated slots) for the element tubes, spaced 20 mm either side of the connector hole — leave a 20 mm gap between the two element tube holes (this gap is the feed point, and the two tubes must NOT touch). Separate the two tube entry points with a plastic spacer or PTFE washer.
Insert one assembled element arm into each side of the centre plate. Clamp each arm with a U-bolt or split collar. The inner arm (19 mm section nearest the feed point) connects to the SO-239: one arm to the centre pin, the other arm to the connector flange/body. Make these connections with short copper straps bolted between the connector terminal and the element tube — ensure solid mechanical and electrical contact. Apply anti-oxidant compound (NoAlox or similar) to all aluminium-to-copper junctions.
Mount the dipole centre plate to the mast using a U-bolt clamp. Connect a NanoVNA at the SO-239 and sweep. With 19/12 mm aluminium tubing at the dimensions given, expect resonance near 50.5–51.0 MHz — the larger tube diameter lowers the K-factor slightly below the wire value. Trim the 12 mm tip tubes in 10–15 mm increments from the outer ends until resonance falls at the design frequency. Cap all open tube ends with rubber or PVC end caps to prevent water ingress.
The 6 m allocation varies by country. In most ITU Region 1 countries (Europe, Africa, Middle East), the allocation is 50.000–52.000 MHz. In North America (Region 2), it is 50.000–54.000 MHz. Some Region 1 countries have only 50.000–50.500 MHz or 50.000–51.000 MHz. Check your national allocation before building — a dipole designed for 52 MHz is outside the allocation of most European stations, though a 50.150 MHz design covers the primary DX portion used worldwide.
| Frequency range | Mode | Activity |
|---|---|---|
| 50.000–50.100 MHz | CW | CW calling and DX; beacon sub-band 50.000–50.050 |
| 50.090 MHz | CW | International CW calling frequency |
| 50.100–50.300 MHz | SSB/CW | Primary DX window; intercontinental contacts |
| 50.150 MHz | SSB | International SSB calling frequency |
| 50.285–50.320 MHz | FT8/FT4 | Digital modes — most active on 6m during openings |
| 50.400–50.600 MHz | Mixed | MS, EME activity; 50.550 = SSTV calling |
| 51.000–51.100 MHz | FM | FM simplex (Region 1) |
| 52.525 MHz | FM | North American FM calling channel |
Once you have worked a few sporadic-E openings on the 6 m dipole and caught the six-metre bug, the natural next steps are a 3- or 5-element Yagi for more gain toward specific DX directions, or a pair of crossed Yagis for EME (Earth-Moon-Earth) weak-signal work. At 50 MHz, a 5-element Yagi can be built from standard aluminium stock with a boom of approximately 6–7 m — substantial but entirely feasible on a light push-up mast or rooftop mount. The 6 m Yagi offers enough gain that 100 W into a 5-element Yagi gives the station an effective output comparable to 500–800 W into a dipole during a good propagation opening.
Many 6 m operators also add a low-noise preamplifier at the antenna to improve the signal-to-noise ratio on weak-signal contacts. At 50 MHz the sky noise is low enough that the preamp's noise figure dominates — a good GaAs FET or PHEMT preamp with 0.5–1 dB noise figure can dramatically improve the received signal quality on EME and meteor scatter contacts. The preamp mounts at the antenna feed point and the DC supply is injected through the coaxial feedline using a bias tee at the shack end.
Frequently Asked QuestionsHow high does a 6m dipole need to be?
At 50 MHz, half a wavelength is 3 m. A horizontal dipole at 3 m height (0.5λ) shows a take-off angle of about 30° — acceptable for sporadic-E DX. At 6 m (1λ) the angle drops to around 15° — noticeably better for long-distance contacts. Even at 1–2 m above a rooftop the antenna works surprisingly well for sporadic-E, since the ionospheric enhancement of 20–40 dB overwhelms any height-related deficit.
Do I need a balun on a 6m dipole?
Yes — strongly recommended. At 50 MHz the coax braid is electrically significant (half a wavelength of coax is only 2 m), and without a current choke at the feed point the braid acts as a third antenna element. This distorts the pattern and can cause RF feedback into audio equipment. Even five clip-on ferrite beads (Mix 31) on the coax immediately below the connector make a measurable improvement at 50 MHz.
Can a 6m dipole work on other bands?
A 6 m dipole is approximately 3λ at 150 MHz (2 m band) — it has multiple lobes and presents a poor impedance match at 2 m. Without a tuner it will not function effectively on 2 m. For multi-band operation on 6 m and 2 m, a dedicated antenna for each band is far better than trying to force one antenna to cover both. The operating styles, propagation modes, and practical considerations of the two bands are quite different.
What is sporadic-E propagation on 6m?
Sporadic-E (Es) occurs when patches of unusually ionised plasma form in the E-layer of the ionosphere at approximately 100 km altitude. These patches reflect radio waves at frequencies normally too high for ionospheric propagation — including 6 m and sometimes even 2 m. The ionisation is intense enough to provide low-loss, often surprisingly strong signal returns over single-hop distances of 800–2,500 km and double-hop paths to 4,000–5,000 km. Sporadic-E on 6 m peaks from May–July and November–January in the northern hemisphere, though it can occur at any time.
Should I use horizontal or vertical polarisation on 6m?
For SSB and CW DX contacts with other fixed stations, use horizontal polarisation — this is the universal convention for 6 m DX. For FM simplex and repeater contacts, use vertical polarisation — matching the typical FM station antenna. For meteor scatter and EME, vertical polarisation is often preferred because it reduces ground reflection fading compared to horizontal at low elevation angles. The polarisation convention is well established — departing from it costs you 20+ dB of cross-polarisation loss.
How do I know when 6m is open?
Monitor 50.150 MHz SSB and 50.313 MHz FT8/WSJT-X. The PSKReporter.info website shows real-time FT8 reception spots worldwide — if stations 1,500 km away are suddenly appearing on 6 m FT8, the band is open. Many 6 m operators also monitor their local 6 m beacon reception to detect propagation — a beacon 500 km away suddenly becoming S9 is a reliable indicator of an Es opening in that direction.
