Build a Beverage Receive Antenna

The Beverage antenna — named for Harold Beverage W2BML who described it in 1922 — remains one of the most effective directional receive antennas ever devised for the low HF bands. A single wire stretched low over the ground, terminated at the far end with a resistor to ground, it achieves a cardioid receive pattern that dramatically suppresses signals arriving from the direction opposite to the wire's orientation. On 160m and 80m, where contest and DX operators face intense noise and interference from all directions, a pair of Beverage antennas pointing toward the main DX targets can transform the received audio from barely intelligible to completely clear. This guide covers the theory, wire length, termination, feedpoint transformer, preamplifier, switching, and installation of a practical Beverage receive antenna system.

Receive onlyNever used for transmit
160m–40mPrimary operating range
15–25 dBFront-to-back ratio
500–1000 ftTypical wire length

The Travelling Wave Receive Antenna

The Beverage operates on travelling-wave principles fundamentally different from a resonant dipole or vertical. The wire is stretched horizontally very close to the ground — typically 6–10 feet high — for a length of several wavelengths at the operating frequency. The ground beneath the wire is an essential part of the antenna system, not just a mechanical support:

Beverage antenna operating principle: A horizontally polarised wave arriving from the direction the wire points toward induces a voltage in the wire that travels along the wire in the same direction as the incoming wave — toward the feedpoint. These voltages add constructively along the wire length, producing a signal at the feedpoint. A wave arriving from the opposite direction (toward the terminated end) also induces voltages, but they travel toward the terminating resistor, where they are absorbed. Very little reaches the feedpoint. Result: strong directional discrimination: Front (toward feedpoint end): maximum gain Back (toward terminated end): 15–25 dB suppression Sides: moderate suppression (~10 dB) The ground beneath the wire: Ground losses ARE the mechanism — the wire's proximity to lossy ground creates a slow-wave structure where the wave velocity along the wire is lower than free-space velocity. This velocity reduction is what makes the wave from the desired direction add constructively along the wire length. Sandy or dry ground (higher resistivity) works better than wet clay (lower resistivity) for Beverage antennas — counterintuitive but correct.

Wire Length — Longer Is Better, to a Point

The Beverage gets more directional gain and better front-to-back ratio as the wire gets longer — up to a practical limit. Most low-band DX operators consider a minimum of one wavelength at the operating frequency to be the practical starting point for a useful Beverage:

Beverage length vs performance: Minimum useful length: 1 wavelength at operating frequency At 1.83 MHz (160m): 1λ = 536 ft (163 m) At 3.65 MHz (80m): 1λ = 269 ft (82 m) At 7.10 MHz (40m): 1λ = 138 ft (42 m) Recommended length for good performance: 2–3 wavelengths at the lowest operating frequency For a 160m Beverage: 1000–1600 ft (300–490 m) For an 80m Beverage: 500–800 ft (150–245 m) For a dual 160m/80m: 500–600 ft is a good compromise Front-to-back ratio vs length (approximate): 0.5λ: ~8 dB F/B — marginal 1.0λ: ~15 dB F/B — useful 2.0λ: ~20 dB F/B — good 3.0λ: ~25 dB F/B — excellent 4.0λ+: ~25–30 dB F/B — diminishing returns Practical constraint: Most amateur stations don't have 1600 ft of open land in one direction. A 500–600 ft Beverage pointing toward Europe (for a US station) or toward the Pacific is a realistic and highly effective installation.

Wire Height and Ground Requirements

The Beverage's proximity to the ground is fundamental to its operation. Wire height affects the antenna's impedance, directivity, and the frequency range over which it performs best:

  • Optimum height: 6–10 feet above ground. Lower is not necessarily better — below 4 feet the wire interacts too strongly with the ground and loss increases. Above 15 feet the slow-wave mechanism weakens and directivity degrades.
  • Height consistency: the wire should maintain a consistent height above ground along its entire length. Sections that dip too close to the ground or rise too high disturb the uniform slow-wave propagation and degrade the pattern.
  • Ground type: drier, sandier ground (higher resistivity, lower conductivity) actually performs better for a Beverage than wet clay or salt marsh. If you are on highly conductive ground, the Beverage may underperform theoretical expectations — but it still works.
  • Terrain variation: slight hills and terrain changes along the Beverage run are acceptable — the antenna does not require perfectly flat ground. Maintain wire height above the local terrain rather than keeping the wire at a fixed absolute height above sea level.
  • Wire route: the Beverage must run in a straight line pointed toward the desired receive direction. Bends, turns, or curves degrade the pattern. Plan the wire route before installation — it is difficult to straighten a deployed Beverage.

Impedance, Feedpoint Transformer, and Preamplifier

The Beverage antenna's characteristic impedance over real ground is typically 400–600 Ω — determined by wire height, wire diameter, and ground conductivity. The feedpoint requires a transformer to match this to the 50 Ω coax running to the receiver:

Feedpoint system requirements: Beverage impedance: 400–600 Ω (typical) Coax impedance: 50 Ω Required transformation: 9:1 (450 Ω → 50 Ω) → Use a 9:1 unun (unbalanced-to-unbalanced) → Or a 4:1 unun if wire impedance is nearer 200 Ω Homebrew 9:1 unun: Core: FT-140-43 or FT-240-43 ferrite toroid Wind 3 trifilar turns (9:1 impedance ratio) Banana-plug terminals for wire connections SO-239 for coax connection Enclose in weatherproof ABS box Signal level from Beverage: A Beverage produces very low signal levels — typically 20–40 dB below a vertical or dipole on the same frequency. A preamplifier is almost always required between the Beverage feedpoint and the receiver. Recommended preamplifier: 12–20 dB gain, low noise figure (<3 dB) at the feedpoint end (remote mounting) Beverage preamp kits: Wellbrook, LZ1AQ, DX Engineering, or homebrew 2N5109-based designs. Power supplied via coax (bias-T) or separate wire.
Band Minimum (1λ) Good (2λ) Excellent (3λ) F/B at good length Termination resistor Wire height
160m (1.83 MHz)536 ft (163 m)1072 ft (327 m)1608 ft (490 m)~20 dB390–560 Ω to ground6–10 ft
80m (3.65 MHz)269 ft (82 m)538 ft (164 m)807 ft (246 m)~20 dB390–560 Ω to ground6–10 ft
40m (7.10 MHz)138 ft (42 m)276 ft (84 m)414 ft (126 m)~18 dB390–560 Ω to ground5–8 ft
160m/80m dual500 ft compromise600 ft compromise~18 dB on both470 Ω to ground7–9 ft

Materials for a 500–600 ft Beverage antenna for 160m and 80m receive

📡#14 AWG solid or stranded copper wire, 620 ftSingle conductor along full length; solid wire is easier to keep at consistent height; add 10% for sag allowance
🏗️Support stakes or fence posts, 1 per 30–50 ftWooden stakes, T-posts, or fibreglass rods; 8–10 ft tall to support wire at 6–8 ft height; non-conductive preferred
🔌9:1 unun transformer at feedpointHomebrew on FT-140-43 or FT-240-43 toroid; or commercial unit from Balun Designs, DX Engineering
🔌Terminating resistor — 470 Ω, 2WAt far end of wire to ground; low power needed — receive only; standard carbon film or metal film acceptable
🏗️Ground stakes at both ends — 3 per endCopper-clad steel ground rods, 4 ft minimum; driven at feedpoint and termination end
🔌Preamplifier, 12–20 dB gainRemote-mounted at feedpoint; low noise figure; powered via coax bias-T or separate DC wire
🔌RG-6 or RG-58 coax, feedpoint to shackFrom preamp output to receiver; RG-6 (75 Ω) is fine for receive — very low loss and inexpensive
🔌Antenna switch (TX/RX changeover)Allows switching between Beverage (receive) and transmit antenna; protects Beverage and preamp from TX energy
🔩Insulators for wire support at each stakeSmall egg insulators or homebrew PTFE standoffs; keep wire insulated from metal stakes
🏗️Weatherproof ABS enclosures — 2 piecesOne for feedpoint transformer/preamp, one for termination resistor; seal all cable entries
🪛Solder, self-amalgamating tape, silicone sealantFor all outdoor connections; weatherproof everything exposed to the elements
📻SDR or receiver for pattern testingFor verifying directivity by rotating a signal source or comparing known DX station S-meter readings

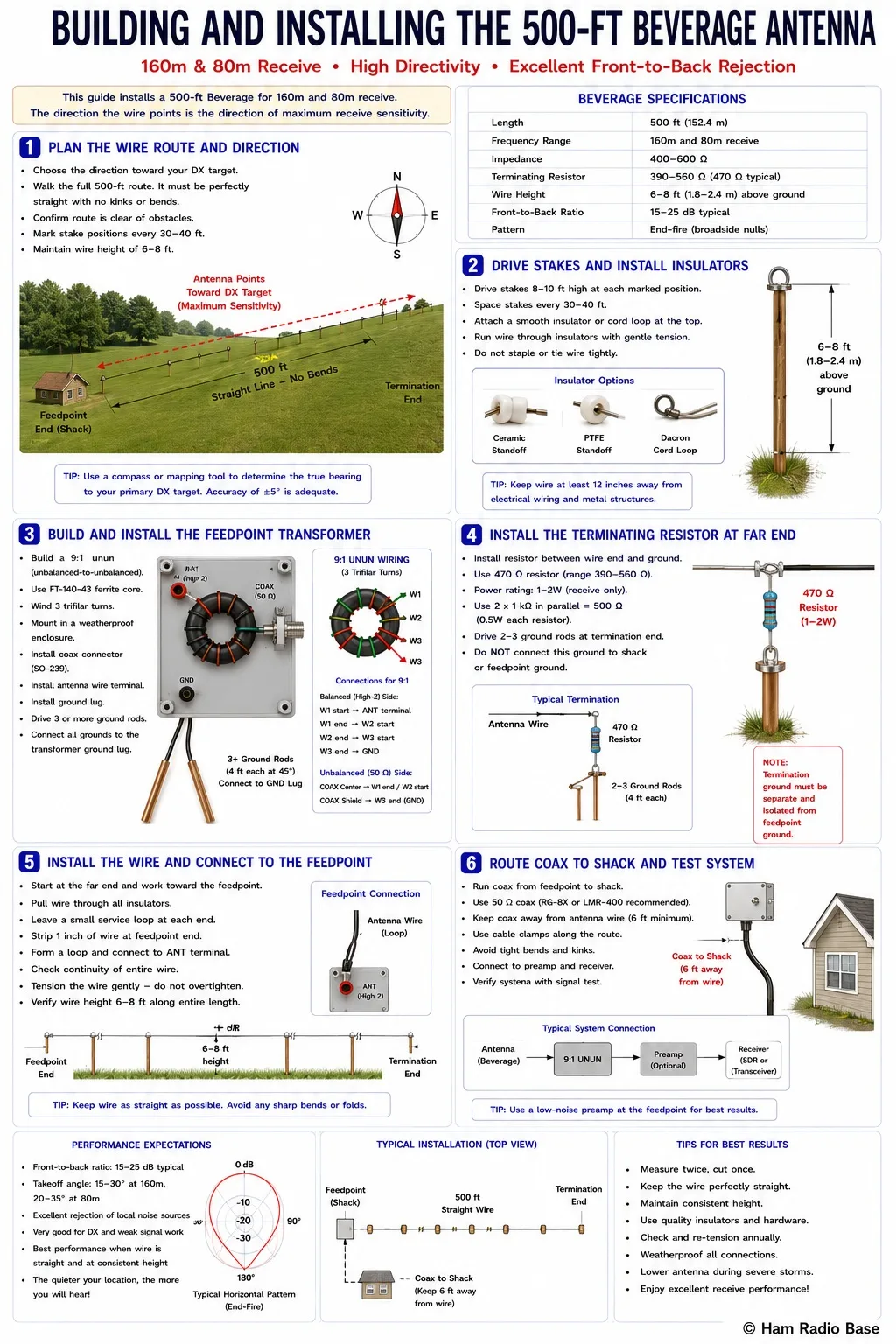

Installing the Beverage Receive Antenna

This guide installs a 500-ft Beverage for 160m and 80m receive. Plan the wire route first — you cannot bend a Beverage. Walk the full route before driving a single stake. The direction the wire points is the direction of maximum receive sensitivity.

1

Plan the Wire Route and Direction

Choose the direction your Beverage will point — this is the direction of maximum receive sensitivity, typically toward your primary DX target. For a US operator targeting Europe, the wire points northeast. For a US operator targeting Japan, the wire points northwest. The wire must run in a perfectly straight line in that direction for its full length.

Walk the full 500-ft route and confirm it is clear of obstacles, trees too close to the ground, fences, and buildings. The wire should have no kinks, bends, or abrupt changes in height. Mark stake positions every 30–40 ft along the route — these will support the wire at its operating height of 6–8 ft. Where the terrain dips, plan to lower the stake height proportionally to maintain consistent wire height above the local ground.

Direction planning for US stations: Target: Western Europe Bearing from Eastern US: 40–50° (NE) Bearing from Midwest US: 45–55° (NE) Bearing from Western US: 25–35° (NNE) Target: Japan Bearing from Eastern US: 320–330° (NW) Bearing from Midwest US: 310–325° (NW) Bearing from Western US: 295–310° (WNW) Target: Caribbean/South America Bearing from Northern US: 150–180° (SSE) Use a magnetic compass corrected for local declination, or use a mapping tool to determine the true bearing to your DX target. Accuracy of ±5° is adequate — the Beverage's beam is broad enough that small pointing errors have negligible impact on performance.
Tip: If you have room for two Beverage antennas, install them at 180° to each other — one pointing toward Europe and one toward Japan (or your two primary DX targets). A simple coax switch selects which Beverage feeds the receiver. Two reversible Beverages cover all compass directions with just two wires.
2

Drive Stakes and Install Insulators

Drive wooden stakes or fibreglass rods at each planned support point. Each stake should extend 8–10 ft above ground so the wire, supported at the top, hangs at 6–8 ft. Use a mallet or fence post driver — do not try to push stakes by hand into firm ground. For stakes that will be in place permanently, use pressure-treated wooden stakes or fibreglass rods that resist rot and weathering.

Attach a small insulator to the top of each stake. A simple method: drill a 1/4-inch hole through the top of the stake horizontally and thread a short length of heavy fishing line or Dacron cord through it — tie this to the wire with a non-slip knot. The wire should rest in the insulator loop with gentle tension, not be tied tightly. This allows the wire to expand and contract with temperature without breaking stakes.

Tip: Use smooth, rounded insulators or cord loops at each stake — sharp contact points abrade the wire insulation over time and can create a connection to the stake that disturbs the antenna's performance. Small ceramic or PTFE standoff insulators are ideal. Avoid stapling the wire directly to wooden stakes — the staple creates a ground path through the wet wood.
3

Build and Install the Feedpoint Transformer

The feedpoint transformer matches the Beverage's 400–600 Ω characteristic impedance to the 50 Ω coax feeding the preamplifier. A 9:1 unun (unbalanced-to-unbalanced transformer) is the standard choice. The feedpoint end of the Beverage is the end closer to the shack — the feedpoint transformer and preamplifier mount here:

Homebrew 9:1 unun construction: Core: FT-140-43 ferrite toroid (Mix 43 preferred for 160m–40m range) Winding: trifilar wind — three wires wound together Wind 3 trifilar turns through the core. Total wire length needed: ~18 inches per wire × 3 Connection for 9:1 unun: Three windings W1, W2, W3: Balanced (high-Z) side: W1 start → antenna wire terminal W1 end connects to W2 start W2 end connects to W3 start W3 end → ground / coax shield Unbalanced (50 Ω) side: Coax centre → junction of W1-end and W2-start Coax shield → W3-end (ground) Mount in weatherproof ABS enclosure. Solder lug terminal for antenna wire connection. SO-239 for coax connection. Ground lug for ground rod connection. Commercial alternative: DX Engineering 9:1 receive transformer, Balun Designs 9:1 unun, or NooElec 9:1 unun kit. These are inexpensive and well-characterised.

Install three or more 4-ft copper ground rods at the feedpoint, driven at 45° angles pointing outward from the feedpoint location. Connect all ground rods to the transformer ground lug with heavy copper wire. This local ground is the return path for the Beverage's signal current — a poor ground at the feedpoint degrades performance more than almost any other factor.

4

Install the Terminating Resistor at the Far End

At the far end of the wire, install the terminating resistor between the wire and a local ground system. The terminating resistor absorbs waves arriving from the back direction, preventing them from reflecting back toward the feedpoint and degrading the front-to-back ratio. The resistor value is typically 390–560 Ω — the exact value can be optimised by measurement but 470 Ω is a reliable starting point for most installations:

Terminating resistor — installation detail: Value: 470 Ω (range 390–560 Ω) Power rating: 1–2W (receive only — no TX power) Standard 1/4W or 1/2W carbon film resistors work. Use two 1 kΩ resistors in parallel = 500 Ω, 0.5W. Ground system at termination end: 2–3 ground rods driven near the termination point. Connect resistor between wire end and ground rods. The termination ground must be a separate ground system from the shack/feedpoint ground — do NOT run a ground wire from termination back to shack. The two grounds must be isolated from each other except through the earth itself. Optimising the termination value: With a receiver monitoring a weak signal from directly behind the antenna (180° from the desired direction), adjust the termination resistor value in 50 Ω steps until the signal is at minimum. This empirically sets the termination for maximum F/B at your location.
Do not connect termination ground to feedpoint ground via a wire: Running a ground wire the full length of the Beverage from the termination back to the feedpoint creates a second conductor that turns the Beverage into a transmission line — the directional pattern is destroyed. The two ground systems must connect only through the earth, not through a wire above ground.
5

Install the Preamplifier

The Beverage produces signal levels far below those of a resonant transmit antenna — typically 20–40 dB lower on a per-frequency basis. A preamplifier at the feedpoint compensates for this and ensures the coax run to the shack does not degrade the signal-to-noise ratio:

Preamplifier specifications for Beverage use: Gain: 12–20 dB Noise figure: ≤ 3 dB (lower is better) Input impedance: 50 Ω (after 9:1 unun) Frequency range: covers 1.8–10 MHz minimum Power supply: 12V DC via coax bias-T or separate small cable alongside coax Recommended designs: DX Engineering RPA-1 remote preamp Wellbrook ALA1530LN loop preamp (adaptable) Homebrew 2N5109 or BFR90 preamp circuit MiniWhip-style preamp (simple and effective) Bias-T for coax power injection: A bias-T passes DC through the coax centre conductor to power the remote preamp while keeping DC off the receiver input. Simple bias-T: 100 µH RF choke in series with coax centre + 100 nF capacitor to block DC at receiver end. Many SDR receivers have built-in bias-T — check your receiver's specs.

Mount the preamplifier inside the feedpoint weatherproof enclosure or in a separate enclosure immediately adjacent to the feedpoint transformer. Connect the transformer output to the preamp input and the preamp output to the coax running to the shack. Seal all enclosure cable entries with silicone sealant and apply self-amalgamating tape to all outdoor coax connectors.

6

Install TX/RX Antenna Switching

The Beverage is strictly a receive antenna — it must never be connected to a transmitter. Even a nearby transmit antenna radiating high power can induce enough voltage in the Beverage wire to damage the preamplifier or receiver front end. An antenna changeover relay switches the receiver between the Beverage (for receive) and the transmit antenna system:

TX/RX switching options: Option 1 — Manual switch: Simple coax switch at operating position. Operator manually selects Beverage for receive, transmit antenna for transmit. Low cost; requires operator discipline. Risk: accidentally transmitting into Beverage. Option 2 — VOX-controlled relay: Relay switches automatically when TX starts. Triggered by RF sense or PTT line from radio. When TX: connects transmit antenna to radio, disconnects and grounds Beverage coax. When RX: connects Beverage to radio receiver. Commercial units: Array Solutions RATpak, DX Engineering Antenna Interface, ICE bandpass filter switching systems. Option 3 — Radio RX antenna input: Many modern transceivers (FTDX10, IC-7610, K3/K4) have a dedicated RX antenna input. Connect Beverage to RX input, transmit antenna to main antenna input. Radio handles switching automatically — cleanest solution. Protect the preamp from nearby TX: Even with the Beverage disconnected during TX, RF from a nearby transmit antenna can couple into the Beverage wire. Add a spark gap or gas discharge tube across the preamp input for additional protection.
Never transmit with the Beverage connected: A 100W transmitter connected to a Beverage antenna will instantly destroy the preamplifier and likely damage the receiver front end. Always verify the Beverage is disconnected from the transmitter before applying RF power. If using a manual switch, establish a discipline — switch position checked before every transmission.
7

Run the Wire and Verify Performance

With all supports, feedpoint, and termination installed, unroll the wire from the feedpoint end to the termination end. Secure the wire to each stake insulator with a loose loop — enough tension to hold the wire at consistent height but not enough to pull the stakes out of alignment. Connect the wire to the feedpoint transformer terminal at the near end and to the termination resistor at the far end.

Connect the coax to the receiver or SDR and tune to a known weak signal from a station in the desired direction. Compare the signal strength on the Beverage versus the transmit antenna — the Beverage will be weaker overall, but the key test is the noise floor comparison. Tune to a frequency where local noise dominates and compare the noise floor between the two antennas. A working Beverage should show a noticeably lower noise floor on the receive audio.

Performance verification procedure: Test 1 — Noise floor comparison: Compare S-meter reading of band noise on transmit antenna vs Beverage on 160m or 80m. Beverage should show 10–20 dB lower noise floor on a quiet part of the band. If Beverage noise floor is similar to transmit antenna → preamp gain too low, or ground problems. Test 2 — Front-to-back ratio: Find a known beacon or CW station in the desired direction (front) and note S-meter. Find a similar signal from exactly opposite direction (back) and note S-meter. Difference = front-to-back ratio. Target: 15–25 dB difference. If F/B is poor (<10 dB): adjust termination resistor value in 50 Ω increments. Test 3 — Rotate a local signal source: Ask a local ham to transmit while you walk a handheld around the Beverage. Signal should peak when source is in front, be minimum when source is behind the wire.

Reversible Beverage — Two Directions, One Wire

A reversible Beverage places a feedpoint transformer and terminating resistor at both ends of the wire, with a switching relay at each end that selects which end is the feedpoint and which is the termination. This gives two directions from one wire — toward Europe or toward Japan, switchable from the shack:

  • Switching: the relay at each end is controlled by a DC voltage sent down the coax — when 12V is applied, one relay configuration is active (end A feeds, end B terminates); when 0V (or reverse voltage), the other configuration is active (end B feeds, end A terminates).
  • Coax: a single coax runs from the shack to end A. The relay at end A either connects the transformer output to the coax (when end A is the feedpoint) or connects the termination resistor to the wire (when end B is the feedpoint). A second coax runs between end A and end B to carry the signal when end B is the feedpoint.
  • Commercial kits: DX Engineering and Array Solutions sell reversible Beverage switching systems with detailed instructions. These are worth considering for a permanent installation — the relay and switching design is non-trivial to get right.
  • Performance: a reversible Beverage at 500 ft covers both the 40°NE (Europe) and 220°SW (southeast) directions. Combined with a second reversible Beverage at 90° to the first (pointed northwest/southeast), four directions are covered.

Multiple Beverages — the DX Station Standard

Serious low-band DX and contest stations often install four to eight Beverage antennas pointing in different directions, fed to a coax switching matrix in the shack. A single knob or push-button selects the receive direction in real time during operating:

  • Typical layout: four Beverages at 90° intervals (N, E, S, W) or eight at 45° intervals covering all compass directions with a maximum pointing error of 22.5°. The 45° interval system requires eight wires of 500 ft each — approximately 4000 ft total wire on a property of roughly 500 × 500 ft.
  • Coax switching: a remote antenna switch (Array Solutions RATpak4, or homebrew relay matrix) selects which Beverage feeds the receiver. Controlled via a rotary switch or software-defined SDR front panel.
  • Shared ground system: all Beverage feedpoints share a common ground system at the centre of the array, with individual ground rods at each termination. The feedpoint grounds can be common; the termination grounds must remain isolated from each other.
  • Practical minimum: even two Beverages at 180° to each other — one northeast and one southwest, or one northwest and one southeast — gives a dramatic improvement in low-band DX receive capability over a single antenna and covers the most common DX directions from a given location.
Symptom Most likely cause Diagnosis Fix
No signal on receiver — Beverage appears deadOpen circuit in wire, failed preamp, or coax faultCheck DC continuity along full wire; verify preamp power supply voltage; check coax connectorsRepair wire break; replace preamp if failed; re-terminate any corroded coax connectors
Signal present but no directivity — same signal level front and backTerminating resistor open circuit or grounding failure at termination endCheck DC resistance from wire end to ground at termination — should read termination resistor value (470 Ω)Replace open termination resistor; improve ground system at termination end with additional ground rods
Poor front-to-back ratio (under 10 dB)Termination resistor value incorrect for local ground conditions; or ground wire running full length of antennaVerify no wire runs alongside the Beverage wire; adjust termination resistor value in 50 Ω stepsTry termination values from 300–700 Ω in steps while monitoring signal from the back direction; select value that minimises back signal
Very noisy receive — worse than transmit antennaPreamp overloading from nearby strong signal; or local power-line noise coupling into wireCheck if noise disappears at night (power-line noise often reduces); try attenuator before preampAdd bandpass filter before preamp on the operating band; re-route wire away from power lines if within 50 ft
Performance good initially, degrades after rainMoisture on insulators creating ground path; water in feedpoint or termination enclosureInspect all insulators visually after rain; check enclosure sealsReplace any cracked insulators; re-seal enclosures; clean insulators with isopropyl alcohol and dry thoroughly
Wire sagging — inconsistent height along runStakes settling, rope stretching, or wire weight pulling down at long spansWalk full wire and measure height at each stakeTighten wire tension; drive additional stakes where needed; replace stretched support cord with Dacron
Preamp burned out after nearby TXTX energy induced in Beverage wire during transmit; switching protection failedCheck preamp for DC short on output; inspect relay switching circuitReplace preamp; add gas discharge tube or spark gap across preamp input; verify switching relay operates before TX key-down

Can I use a short Beverage — 200 ft or less?

A 200-ft Beverage is approximately 0.4 wavelengths on 160m and 0.8 wavelengths on 80m — below the one-wavelength minimum for good performance on 160m but usable on 80m. Front-to-back ratio at 200 ft on 160m will be approximately 8–10 dB, compared to 20 dB for a full-length installation. That is still a useful improvement over an omnidirectional receive antenna in many noise environments. If 200 ft is the maximum available, it is worth building — a short Beverage is significantly better than no Beverage. Orient it carefully toward your primary DX direction and optimise the termination resistor for maximum F/B at 80m rather than 160m.

Does the Beverage work on 40m?

Yes — a 500-ft Beverage is approximately 3.5 wavelengths on 40m, which provides excellent directivity with front-to-back ratios of 25 dB or more. On 40m the Beverage is actually overlong in the sense that the pattern has multiple lobes at very long electrical lengths — but in practice it remains highly directional and very effective. Many 160m/80m Beverage installations also work well on 40m without any changes. The main practical consideration is that 40m noise levels are generally lower than 160m and 80m, so the improvement from a Beverage on 40m is less dramatic — it is still noticeable and useful in competitive contest conditions.

Why does the Beverage have low signal output?

The Beverage wire is close to the ground and operates in the near-field of the earth — ground absorption losses are intentional and are what makes the antenna directional. Signal levels 20–40 dB below a transmit vertical or dipole on the same frequency are normal and expected. The preamplifier compensates for this by raising the signal level to something useful for the receiver, while the key advantage — lower noise floor and directional discrimination — more than offsets the lower signal level. The signal-to-noise ratio of a properly installed Beverage with a quality preamp is significantly better than a vertical or dipole in a noisy urban or suburban environment, even though the absolute signal level is much lower.

Can I use the Beverage for transmit at QRP power?

No — the Beverage is a receive-only antenna and should never be used for transmit at any power level. Even at QRP (5W), the RF voltage at the feedpoint of a very low-impedance, lossy antenna can damage a preamplifier or receiver front end. More importantly, the Beverage's efficiency as a transmit antenna is extremely poor — perhaps 1–5% — making it an ineffective radiator at any power. If space constraints force the question, a resonant transmit antenna of any type is far superior. The Beverage's value is entirely in its receive directivity and low noise floor — characteristics that are irrelevant for transmit.

Do I need a Beverage if I have a good vertical and a quiet location?

In a genuinely quiet rural location with very low ambient noise, a good vertical or dipole on 160m and 80m may already provide excellent receive performance without a Beverage. The Beverage's primary benefit is noise and interference rejection — if local noise is not a problem, the directional discrimination is less critical. However, even at quiet rural sites, experienced 160m DX operators install Beverages because the directional discrimination helps pull weak DX signals out of QRM from stations in other directions. If you regularly find yourself trying to copy weak DX signals with competing signals from other directions, a Beverage will help regardless of your overall noise environment.

What if I don't have 500 ft in the right direction?

Several options exist for limited-space situations. A bent Beverage — where the wire turns up to 30° at the midpoint — sacrifices some front-to-back ratio but can fit in an L-shaped property. A short Beverage of 200–300 ft still provides useful directivity on 80m. If land in the desired direction is not available at all but land in the perpendicular direction is, consider a K9AY loop or a flag antenna — these are small-footprint directional receive antennas that provide similar directional discrimination to a Beverage in a much smaller space, at the cost of some noise rejection performance. The K9AY loop guide on hamradiobase covers this alternative in detail.
