Antenna Gain

Antenna gain is one of the most important — and most misunderstood — concepts in ham radio. When someone says their antenna has "8 dB of gain," what does that actually mean? Is it getting energy from somewhere? Can a passive piece of wire really amplify a signal? The answers are no and yes, in that order, and understanding why reveals some beautiful physics. Antenna gain is about focusing energy — concentrating it in a useful direction rather than spreading it equally in all directions. This lesson explains exactly how that works and how to apply the numbers to your station.

What you will learn: What antenna gain really means, the difference between the isotropic and dipole reference antennas, how to convert between dBd and dBi, and how to calculate effective radiated power (ERP) and effective isotropic radiated power (EIRP) for any station setup.

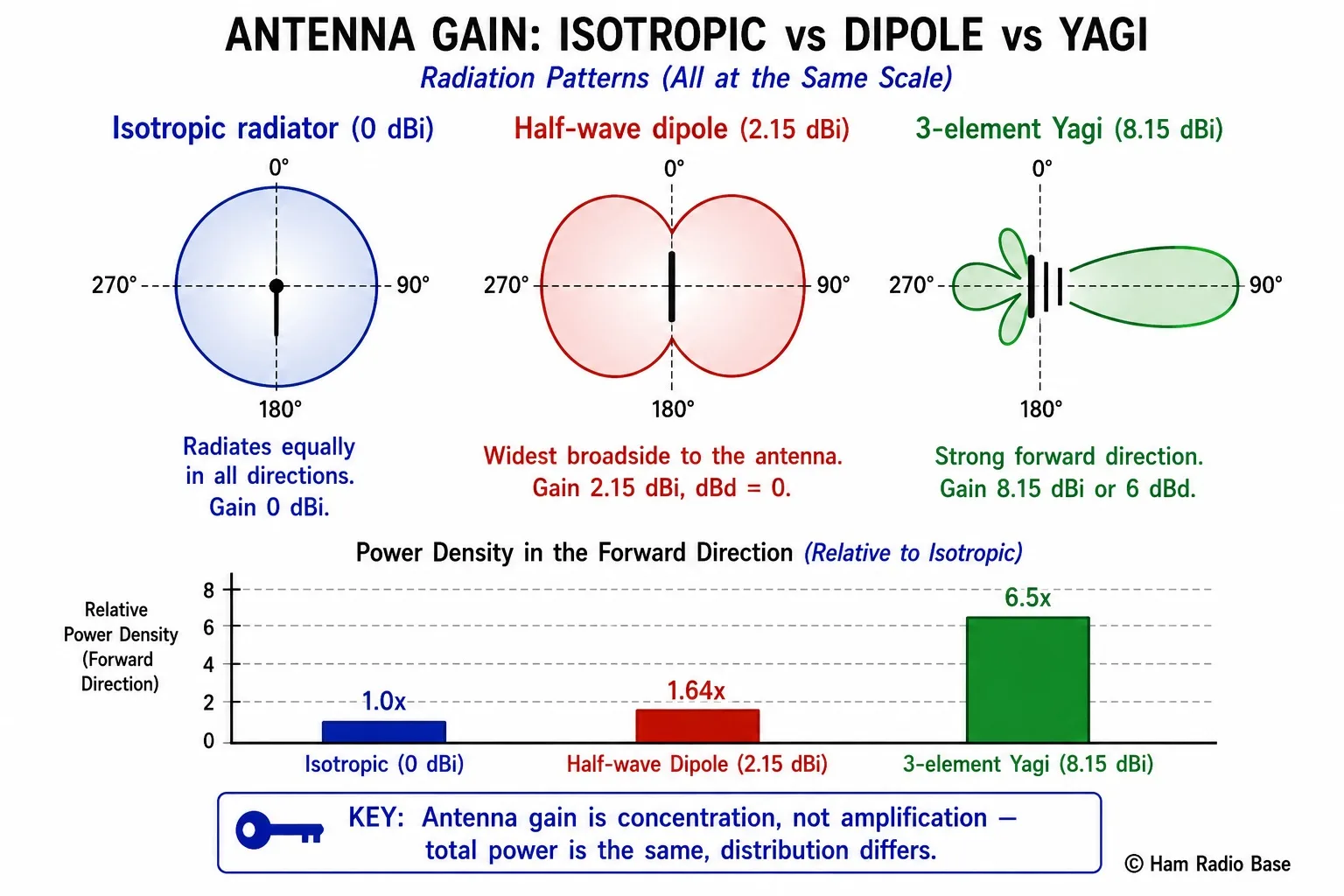

Three radiation pattern diagrams comparing isotropic sphere, dipole figure-8, and Yagi narrow beam showing how gain redirects energy

Antenna gain is not amplification — it is concentration. The same total power is redistributed from a uniform sphere (isotropic) into a narrower beam (Yagi), producing a stronger signal in the favored direction.

View Larger

What Antenna Gain Really Means

Think of a light source in a dark room. A bare light bulb illuminates every wall, the floor, and the ceiling equally — it radiates in all directions. Now put a reflector behind the bulb and aim it at one wall. The total electrical power consumed by the bulb is exactly the same, but the illuminated wall is now much brighter because all the light that was previously going to other surfaces is now being directed toward that one wall. In the direction of the reflector, it seems as if you have a brighter bulb — even though the power is identical.

This is exactly what antenna gain means. A high-gain antenna does not add power. It redirects the available power into a narrower solid angle. In the favored direction, the signal appears stronger compared to what a non-directional antenna would produce with the same transmitter power. In other directions, the signal is weaker (this is the trade-off). The technical term for this concentration is directivity.

Antenna gain in the real world also accounts for the antenna's efficiency. A perfectly efficient antenna has gain equal to its directivity. An antenna with losses (Rloss > 0) has gain slightly less than its directivity. For most practical ham radio antennas that are not severely shortened, the difference is small — directivity and gain are nearly equal. For compact or loaded antennas, the efficiency reduction is significant and gain is much less than directivity.

The formal definition: Antenna gain (G) in a particular direction is the ratio of the power density (watts per square meter) produced by the antenna in that direction, to the power density that would be produced by a reference antenna (isotropic or dipole) driven with the same input power, at the same distance. Gain is always stated relative to a reference antenna.

The Isotropic Radiator

The isotropic radiator is a theoretical antenna that radiates equally in all directions — like a perfectly uniform sphere of light. It has a gain of exactly 1 (0 dB) by definition. No real antenna can be truly isotropic — it is a mathematical abstraction — but it provides a universal reference that allows antennas to be compared on an absolute basis.

The isotropic radiator is useful as a reference because it has no preferred direction. Any real antenna will produce more signal in some directions and less in others compared to the isotropic radiator. By expressing gain in dBi (decibels relative to isotropic), you get a universal, unambiguous number that describes how much better the antenna is in its best direction compared to a perfectly uniform radiator with the same power input.

Because the isotropic radiator spreads its power over an entire sphere (solid angle of 4π steradians), any directional antenna concentrates power into less than a full sphere and therefore has some positive dBi gain in its best direction. Even a simple dipole, which you might think of as non-directional, has 2.15 dBi of gain — because it does not radiate at all along its axis, all the power that would have gone in the axial directions gets redistributed to the equatorial directions, increasing the field strength there.

dBd and dBi: Two Different References

When you read antenna specifications, you will see two different gain units: dBi and dBd. Both are valid; they just use different reference antennas.

  • dBi — decibels relative to an isotropic radiator. The reference is the theoretical isotropic antenna (uniform sphere pattern). This is the absolute, universal reference.
  • dBd — decibels relative to a half-wave dipole. The reference is a half-wave dipole in free space, which itself has 2.15 dBi of gain compared to the isotropic radiator.

Since a dipole has 2.15 dBi of gain, any antenna's gain in dBi will always be 2.15 dB higher than its gain in dBd. This is the crucial conversion factor. It is not an approximation — it is an exact consequence of the dipole's known radiation pattern:

Conversion Formula:
Gain (dBi) = Gain (dBd) + 2.15 dB
Gain (dBd) = Gain (dBi) − 2.15 dB

This distinction matters enormously when comparing antenna specifications. A manufacturer who quotes 8 dBd is advertising a substantially better antenna than one quoting 8 dBi — even though the numbers are the same, the dBd specification actually represents 8 + 2.15 = 10.15 dBi. Conversely, if a manufacturer quotes 8 dBi when a competitor quotes 8 dBd, the competitor's antenna is actually 2.15 dB better. Always check which reference is being used. In the amateur radio world, dBd is traditional for HF and dBi is more common for VHF/UHF and commercial specifications.

dBd / dBi Converter

Convert antenna gain between dBd and dBi. A half-wave dipole has exactly 2.15 dBi of gain, so the conversion is always ±2.15 dB.

Enter a gain value and select the unit, then click Convert.

Converting Between dBd and dBi

Example 1: A 3-element Yagi is rated at 6.0 dBd. What is its gain in dBi?

Gain (dBi) = 6.0 dBd + 2.15 = 8.15 dBi

This Yagi produces a signal 8.15 dB stronger in its favored direction than an isotropic radiator using the same power.

Example 2: A log-periodic antenna is rated at 9.0 dBi. What is its gain in dBd?

Gain (dBd) = 9.0 dBi − 2.15 = 6.85 dBd

This antenna produces a signal 6.85 dB stronger than a half-wave dipole in its favored direction.

Effective Radiated Power (ERP)

Effective Radiated Power (ERP) is the product of the transmitter's output power and the antenna's gain relative to a half-wave dipole. It represents the power you would need from a transmitter into a dipole to produce the same signal strength in the antenna's favored direction. ERP uses the dipole as its reference (dBd).

ERP Formula:
ERP (watts) = Pout (watts) × Glinear (where Glinear = 10^(GdBd/10))

In dB: ERP (dBW) = Pout (dBW) + G (dBd)
or: ERP (dBm) = Pout (dBm) + G (dBd)

ERP is the traditional measure used in broadcast engineering and is often used in FCC regulations for amateur radio (especially for repeater and beacon specifications). When FCC Part 97 or other regulatory documents refer to ERP limits, they mean power referenced to a dipole (dBd).

Worked Example: ERP of a 100W station with a Yagi.

Transmitter output: 100 watts (20 dBW). Yagi gain: 6.0 dBd. Feedline loss: −1.5 dB.

Net power into antenna: 20 dBW − 1.5 dB = 18.5 dBW = 70.8 watts

ERP (dBW) = 18.5 + 6.0 = 24.5 dBW

ERP (watts) = 10^(24.5/10) = 10^2.45 = 282 watts

This station produces the same signal in the Yagi's favored direction as a 282-watt transmitter into a dipole. Even with feedline loss, the beam antenna multiplies the effective power by nearly 3×.

ERP Calculator

Calculate Effective Radiated Power (ERP) referenced to a half-wave dipole.

Enter values above, then click Calculate ERP.

Effective Isotropic Radiated Power (EIRP)

Effective Isotropic Radiated Power (EIRP) uses the isotropic radiator as its reference instead of the dipole. EIRP is more commonly used in modern telecommunications standards, satellite work, and some FCC/ITU regulatory contexts. Because the isotropic reference is 2.15 dB lower than a dipole, EIRP is always 2.15 dB higher than ERP for the same antenna system.

EIRP Formula:
EIRP (dBW) = Pout (dBW) + G (dBi) − Losses (dB)
EIRP (dBW) = ERP (dBW) + 2.15 dB
Worked Example: EIRP of the same 100W station with Yagi (from earlier).

We calculated ERP = 24.5 dBW = 282 watts.

EIRP (dBW) = ERP (dBW) + 2.15 = 24.5 + 2.15 = 26.65 dBW

EIRP (watts) = 10^(26.65/10) = 10^2.665 = 462 watts

EIRP of 462 watts means: in the beam's favored direction, your station would need a 462-watt transmitter into a perfectly isotropic antenna to produce the same signal strength. This is the number that matters for satellite uplink calculations and microwave path budgets.

EIRP Calculator

Calculate Effective Isotropic Radiated Power (EIRP) referenced to an isotropic radiator.

Enter values above, then click Calculate EIRP.

Typical Antenna Gains

Antenna Gain (dBd) Gain (dBi) Power multiplier vs dipole Notes
Isotropic radiator (theoretical) −2.15 0.00 0.61× Reference only; not physically realizable
Half-wave dipole 0.00 2.15 1.00× Standard reference; figure-8 pattern
Quarter-wave vertical (over perfect ground) −1.00 to 0.00 1.15 to 2.15 0.79–1.0× Omnidirectional but lower angle radiation
2-element Yagi 3.5 to 4.0 5.65 to 6.15 2.2–2.5× Driver + reflector; good F/B, limited gain
3-element Yagi 6.0 to 7.5 8.15 to 9.65 4.0–5.6× Driver + reflector + director; most popular beam
5-element Yagi 9.0 to 10.0 11.15 to 12.15 7.9–10× Longer boom; common for VHF/UHF contests
Full-wave horizontal loop −1.0 to +1.0 1.15 to 3.15 0.79–1.26× Slight gain over dipole; lower angle radiation
Log-periodic dipole array (LPDA) 4.0 to 7.0 6.15 to 9.15 2.5–5.0× Broadband; useful for multi-band operation

Applying Gain to Your Station

Understanding gain numbers lets you make quantitative comparisons. A few practical examples:

From dipole to 3-element Yagi: Going from a dipole (0 dBd) to a 3-element Yagi (6 dBd) adds 6 dB in the beam direction. Six dB corresponds to a power ratio of 10^(6/10) = 4.0. This means your 100-watt signal appears to be a 400-watt signal at a receiving station in the beam's direction — without any additional transmit power and without exceeding any legal limit.

Gain vs. transmitter power: To get the same 6 dB improvement from transmitter power alone (without changing the antenna), you would need to increase your power from 100 watts to 400 watts. A 400-watt amplifier costs hundreds of dollars, uses significant electricity, and may exceed legal power limits for some license classes or locations. A 3-element Yagi for 20 meters might cost $100–300 to build from scratch, uses no electricity, and is legal for any license class. Antenna gain is almost always the better investment.

Gain stacks: ERP and EIRP calculations show you can combine gains and losses simply by adding dB values. A 100W (50 dBm) transmitter, into a coax run with 2 dB loss, into an antenna with 8 dBi gain, gives EIRP = 50 + 8 − 2 = 56 dBm = 400 watts. Every dB you recover from feedline loss or add through antenna gain directly increases your EIRP.

Path planning: When planning a VHF or UHF link — for example a simplex contact across a valley — you can estimate whether it will work by calculating both stations' EIRP, applying free-space path loss (covered in Module 15), and comparing against the receiver's sensitivity. This is a link budget calculation, and EIRP is one of the key inputs. Antenna gain directly and linearly enters the link budget.

Key points from this lesson:
  • Antenna gain is the result of concentrating radiated energy in a preferred direction — not amplification.
  • dBi references the isotropic radiator. dBd references the half-wave dipole. Gain (dBi) = Gain (dBd) + 2.15.
  • Always check which reference a manufacturer uses — 8 dBd and 8 dBi are very different numbers.
  • ERP (referenced to dipole) = Transmitter power × Antenna gain (dBd). Used in FCC regulations.
  • EIRP (referenced to isotropic) = ERP + 2.15 dB. Used in modern link budgets and satellite work.
  • A 6 dBd Yagi multiplies your effective power by 4× compared to a dipole. This is equivalent to a 400-watt transmitter into a dipole if you are running 100 watts into the Yagi.

Frequently Asked Questions

My antenna manufacturer says "9 dBi gain" — is that impressive or ordinary?

9 dBi is equivalent to 9 − 2.15 = 6.85 dBd, which is roughly a 3-element Yagi. That is a good, practical antenna with solid directional gain. It is not exceptional (5-element Yagis reach 9–10 dBd), but it represents real performance. The key is always to convert to dBd so you can compare with traditional amateur specifications, or to dBi if you want to compare with commercial specs. Be aware that some manufacturers quote the gain at an ideal angle (maximum gain point) in ideal free-space conditions — real-world performance over actual terrain may be lower.

If a Yagi has gain in one direction, does it reduce performance in other directions?

Yes, necessarily. A directional antenna has a radiation pattern that varies with angle. In the forward direction, gain is high. Off to the sides and behind the beam, gain is lower — sometimes much lower. The front-to-back ratio of a Yagi tells you how much the rear signal is reduced compared to the forward direction. A Yagi with 15 dB front-to-back ratio will produce a signal 15 dB weaker to the rear than to the front with the same input power. This can be a disadvantage (if a station you want to work is behind you) or an advantage (if an interfering station is behind you and you want to reject it).

Does antenna gain apply on receive as well as transmit?

Absolutely — this is the principle of reciprocity from Lesson M14A. A 6 dBd Yagi pointed at a DX station increases the received signal from that station by 6 dB compared to a dipole. It also suppresses signals arriving from other directions (behind and to the sides of the beam) by the same relative amounts. Using a directional antenna improves both your received signal-to-noise ratio (by gaining on the desired signal and rejecting interference from other directions) and your transmitted signal strength in the favored direction.
