Biasing
Before a transistor amplifier can amplify anything, its transistor must be conducting the right amount of collector current at rest — before any signal is applied. This resting condition is called the quiescent operating point or Q-point, and the DC network that establishes it is called the bias network. Getting the Q-point right is not optional. Set it too low and the transistor cuts off on negative half-cycles of signal, creating severe distortion. Set it too high and the transistor saturates on positive half-cycles, clipping the output. Bias it correctly and you have a linear amplifier with maximum undistorted output swing.
Biasing matters even more in ham radio because transistors are not identical — they vary in current gain (β) from unit to unit, and their characteristics shift with temperature. A bias scheme that works at 20°C may place the Q-point dangerously high at 60°C inside a sealed enclosure, or in a summer field day tent. The solution is to design bias networks that make the Q-point independent of β variation and temperature. This lesson shows you how each bias method works, why some are stable and some are not, and how to design a voltage-divider bias network from scratch.
- Why Biasing Matters
- The Q-Point
- Fixed Bias — Simple but Unstable
- Voltage-Divider Bias — The Standard Solution
- Emitter Feedback Bias
- Collector Feedback Bias
- Comparison of Bias Methods
- Q-Point Calculation — Step by Step
- Temperature and β Variation
- Voltage-Divider Bias Calculator
- Experiment: Observe Q-Point Shift with Temperature
- Frequently Asked Questions
Why Biasing Matters
A bipolar junction transistor (BJT) in common-emitter configuration conducts collector current IC in proportion to base current IB: IC = β × IB. With no signal applied, both IC and IB must have specific non-zero values to place the transistor in its active region — the region where it amplifies faithfully.

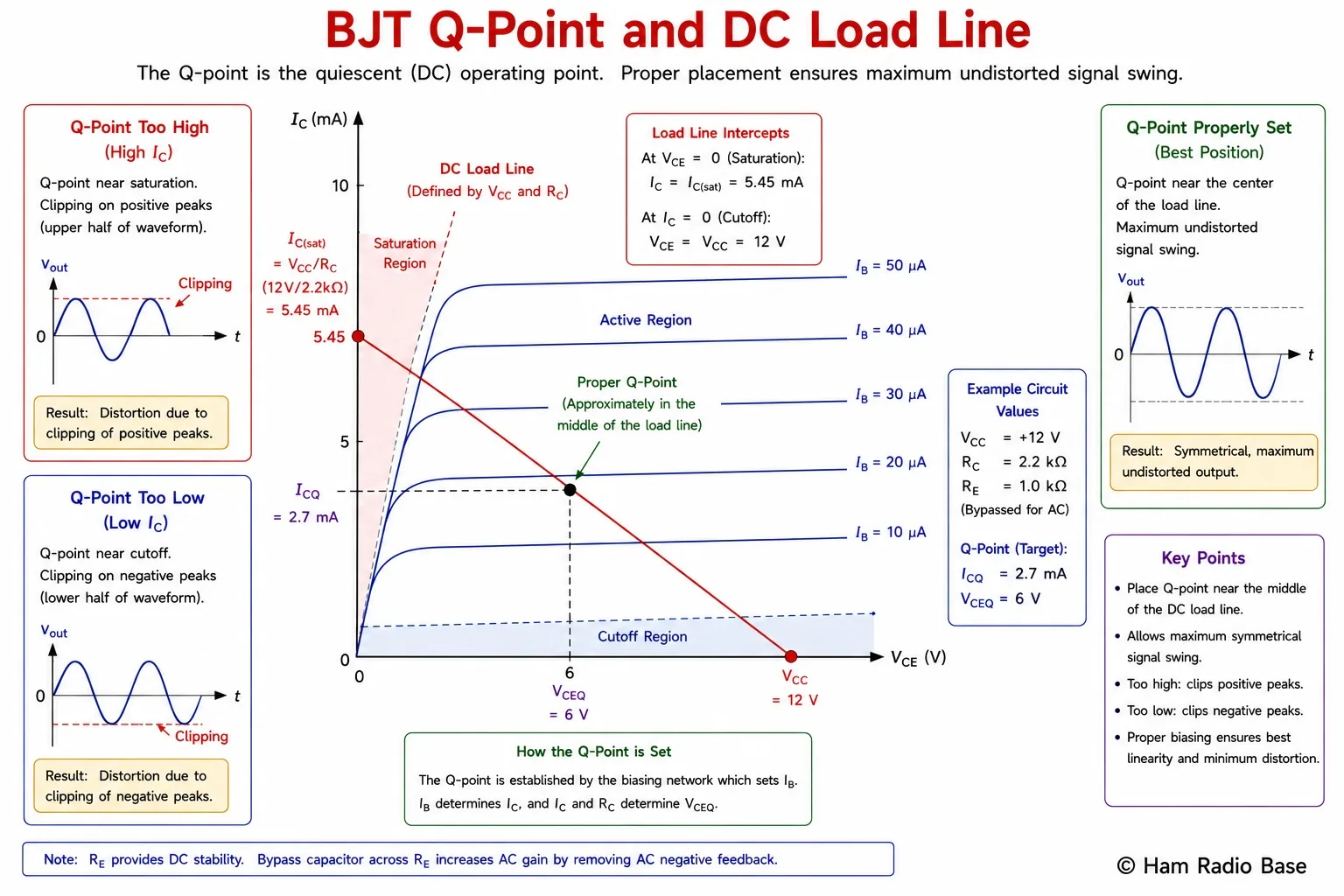

Think of the transistor as needing to sit at a comfortable mid-point on its load line. The load line is a straight line drawn on the transistor's IC versus VCE characteristics, connecting the saturation point (maximum IC, minimum VCE) to the cutoff point (zero IC, VCE = VCC). The Q-point is where the transistor sits on that line at rest.
- If the Q-point is too low (near cutoff): The negative half-cycle of the input signal drives the transistor into cutoff. The bottom of the output waveform is clipped. This is the characteristic distortion of an under-biased amplifier.
- If the Q-point is too high (near saturation): The positive half-cycle drives the transistor into saturation. The top of the output waveform is clipped. In Class A amplifiers this also wastes DC power as heat even when no signal is present.
- If the Q-point is centred on the load line: Both half-cycles have equal room to swing before hitting a limit, giving maximum undistorted output amplitude and, in Class A, symmetrical clipping when the signal is too large.
For Class A amplifiers (the type used in receive preamplifiers, IF amplifiers, and VFO buffers) the ideal Q-point places VCE at approximately VCC/2, leaving equal voltage headroom above and below the quiescent point. The quiescent collector current IC(Q) is then chosen so that the AC output can swing to near zero and to near VCC without distortion.
The Q-Point
The Q-point is defined by two values: IC(Q) and VCE(Q). These are the collector current and collector-to-emitter voltage at rest with no AC signal applied.
For a common-emitter stage with collector resistor RC and emitter resistor RE, and supply voltage VCC:
Cutoff: IC = 0, VCE = VCC
Saturation: IC = VCC / (RC + RE), VCE ≈ 0
Ideal Q-point for Class A:
VCE(Q) ≈ VCC / 2
IC(Q) ≈ VCC / [2 × (RC + RE)]
Once you know the desired IC(Q), you can work backwards to find the base voltage and bias resistors needed to establish it reliably. The challenge is doing this in a way that holds IC(Q) constant when β varies between transistors or when temperature changes.
Fixed Bias — Simple but Unstable
The simplest bias scheme is a single resistor RB connected from the supply rail VCC to the base of the transistor. This is called fixed bias or base-resistor bias.
The base current is:
The collector current is then:
Notice the problem immediately: IC is directly proportional to β. If you design with a transistor whose β = 100 and set RB to give IC = 2 mA, then a different transistor from the same batch with β = 200 will draw IC = 4 mA. The Q-point has moved to twice its intended value. In a warm shack the transistor's β rises further with temperature, causing IC to increase, the transistor to warm up more, β to increase further — a runaway condition called thermal runaway that can destroy the transistor.
Fixed bias is occasionally acceptable in Class C RF power stages where the transistor operates as a switch rather than a linear amplifier, and where the tank circuit handles waveform shaping. It is almost never acceptable in Class A linear stages where Q-point stability is essential.
Voltage-Divider Bias — The Standard Solution
The voltage-divider bias network (also called self-bias or emitter-stabilised voltage-divider bias) is the standard BJT bias circuit used in virtually all ham radio receivers, IF stages, preamplifiers, and audio amplifiers. It consists of four resistors:
- R1: Upper voltage-divider resistor (VCC to base)
- R2: Lower voltage-divider resistor (base to ground)
- RC: Collector resistor (VCC to collector)
- RE: Emitter resistor (emitter to ground)
R1 and R2 form a voltage divider that sets a fixed base voltage VB:
This base voltage is held stable by the stiff voltage divider, which draws a current through R1 and R2 that is much larger than the base current IB. The rule of thumb is to make the voltage-divider current at least 10 times IB so that the base voltage is nearly independent of transistor β. This is the key to stability.
The emitter voltage follows:
The emitter current (≈ collector current since IB ≪ IC):
The collector voltage:
And VCE:
Why is this stable? Suppose temperature rises and β increases, tending to increase IC. A larger IC means a larger voltage drop across RE, which raises VE. Since VB is held fixed by the stiff voltage divider, a higher VE means lower VBE = VB − VE. A lower VBE reduces the base-emitter forward bias, which reduces IB, which reduces IC. This negative feedback loop opposes the original increase in IC and keeps the Q-point nearly constant. The emitter resistor RE is the key to stability — it is the feedback element.
The Stability Factor
The stability factor S describes how much IC changes with transistor β. For voltage-divider bias with a stiff divider:
For practical purposes, the key ratio to remember is that a larger RE relative to RC gives better Q-point stability but also reduces voltage gain (as you learned in the common-emitter lesson — the emitter bypass capacitor restores AC gain without sacrificing DC stability). This is why most amplifier stages use both RE and an emitter bypass capacitor CE in parallel with RE.
Emitter Feedback Bias
Emitter feedback bias uses a single base resistor RB (from VCC to base) together with the emitter resistor RE. This is simpler than voltage-divider bias because it uses one fewer resistor, but provides more stability than pure fixed bias.
The base current is now determined by the voltage across RB:
Since IE ≈ IC = β × IB, solving for IC gives:
When β × RE ≫ RB, IC ≈ (VCC − VBE) / RE, which is independent of β — the ideal case. This requires a large RE relative to RB/β, which limits the circuit's usefulness in high-gain stages because RE limits voltage gain. Emitter feedback bias is sometimes used in class C RF amplifiers and in simple test circuits but is rarely the first choice for a precision linear stage.
Collector Feedback Bias
Collector feedback bias (also called collector-to-base bias) connects the base resistor RB from the collector to the base rather than from VCC to the base. This creates a feedback loop: if IC increases, VC falls (since VC = VCC − IC × RC), which reduces the voltage across RB, which reduces IB, which reduces IC. The negative feedback opposes the change.
When β × RC ≫ RB:
This is independent of β — again good stability. The drawback is that RB is effectively in parallel with the transistor's collector-base junction from an AC signal perspective, reducing the output impedance and introducing some feedback at signal frequencies. At VHF and UHF this can cause stability problems. Collector feedback bias is useful in simple transistor switch circuits and some audio amplifier stages, but voltage-divider bias is preferred for RF work.
Comparison of Bias Methods

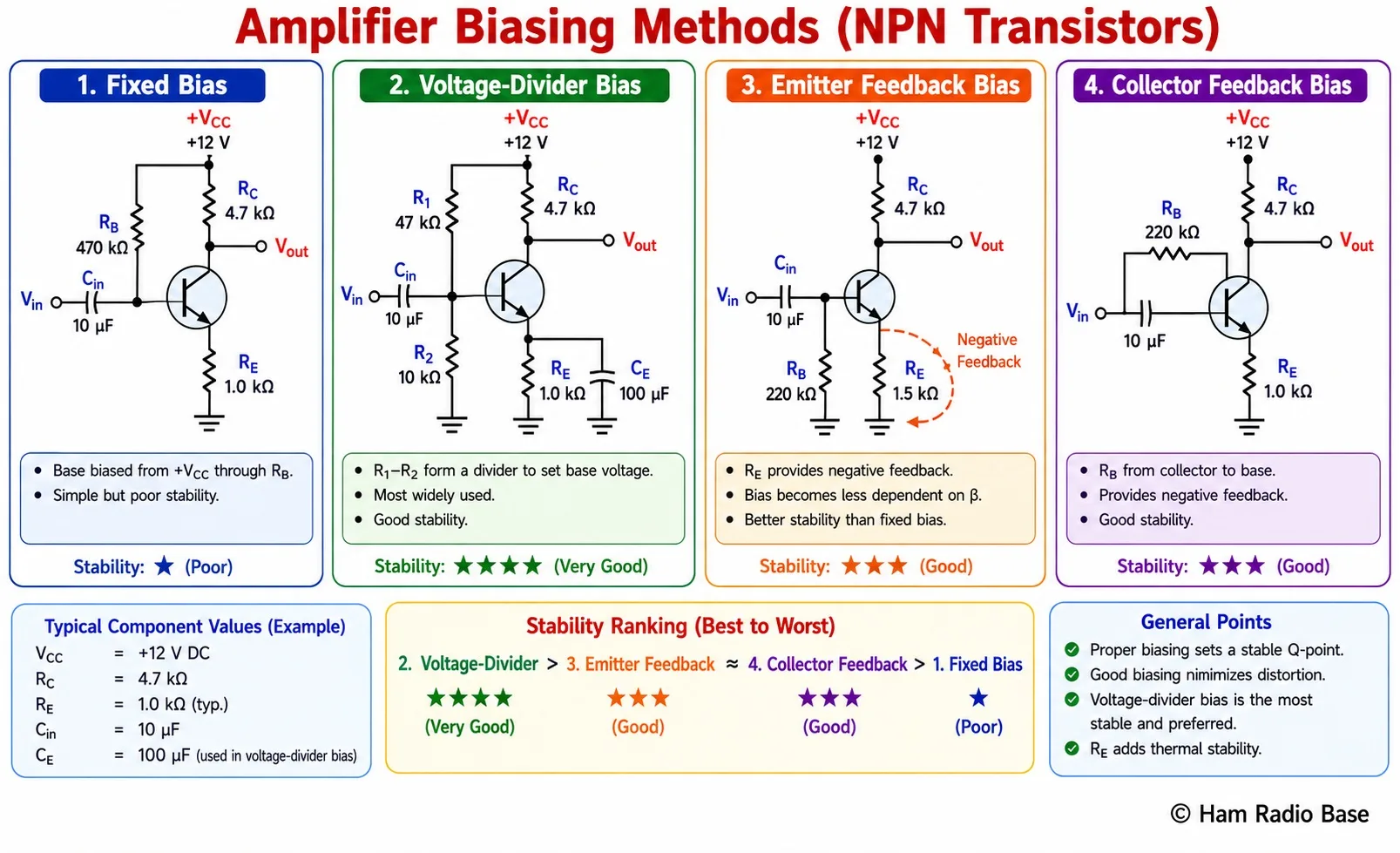

| Bias Method | Stability | Component Count | Ham Radio Use Cases | Drawbacks |
|---|---|---|---|---|
| Fixed bias (single RB) | Poor — IC proportional to β | 1 resistor | Simple Class C RF stages (with tank circuit), switching applications | Thermal runaway risk; Q-point varies with device |
| Emitter feedback bias | Moderate | 2 resistors | Simple linear stages with large RE, test circuits | Large RE needed; reduces gain |
| Voltage-divider bias | Excellent — Q-point nearly independent of β | 4 resistors (+ optional CE) | Receive preamps, IF amplifiers, VFO buffers, Class A driver stages | Two bias resistors draw quiescent current (efficiency penalty) |
| Collector feedback bias | Good | 2 resistors | Audio stages, simple linear amplifiers | RB reduces output impedance; can cause RF instability |
Q-Point Calculation — Step by Step
The following procedure designs a voltage-divider bias network for a specified Q-point. This is the most important design calculation in BJT amplifier work.
Given:
Supply: VCC = 12 V
Transistor: 2N3904, typical β = 150
Desired IC(Q) = 2 mA
Desired VCE(Q) = VCC/2 = 6 V
Signal frequency: 7 MHz
Step 1 — Find total resistance RC + RE:
VCC = IC × (RC + RE) + VCE
12 = 0.002 × (RC + RE) + 6
RC + RE = 6 / 0.002 = 3000 Ω
Step 2 — Choose the split between RC and RE:
For good stability with moderate gain, use RE ≈ 10–20% of (RC + RE).
Let RE = 470 Ω (standard value), RC = 3000 − 470 = 2530 Ω → use 2.7 kΩ (nearest standard E24).
Recalculate with RC = 2.7 kΩ, RE = 470 Ω:
At IC = 2 mA: VRC = 2 mA × 2700 = 5.4 V, VRE = 2 mA × 470 = 0.94 V
VCE = 12 − 5.4 − 0.94 = 5.66 V ✓ (close to 6 V — acceptable)
Step 3 — Find emitter and base voltages:
VE = IC × RE = 2 mA × 470 Ω = 0.94 V
VB = VE + VBE = 0.94 + 0.7 = 1.64 V
Step 4 — Find IB and choose voltage-divider current:
IB = IC / β = 2 mA / 150 = 13.3 μA
Make divider current I_div = 10 × IB = 133 μA (rule of thumb: stiff divider draws ≥10× IB)
Step 5 — Find R1 and R2:
R2 = VB / I_div = 1.64 V / 133 μA = 12.3 kΩ → use 12 kΩ
Voltage across R1 = VCC − VB = 12 − 1.64 = 10.36 V
R1 = 10.36 V / 133 μA = 77.9 kΩ → use 75 kΩ
Step 6 — Verify:
With R1 = 75 kΩ, R2 = 12 kΩ:
I_div = 12 / (75k + 12k) = 137.9 μA
VB = 137.9 μA × 12k = 1.655 V
VE = 1.655 − 0.7 = 0.955 V
IC = VE / RE = 0.955 / 470 = 2.03 mA ✓
VCE = 12 − 2.03 mA × (2700 + 470) = 12 − 6.44 = 5.56 V ✓
Step 7 — Calculate small-signal parameters:
re = 26 mV / IC = 26 / 2.03 = 12.8 Ω
Av (with bypass cap on RE) = −RC / re = −2700 / 12.8 = −211 (gain of 211, inverting)
Av (without bypass cap) = −RC / (re + RE) = −2700 / (12.8 + 470) = −5.59
Final bias network values:
R1 = 75 kΩ, R2 = 12 kΩ, RC = 2.7 kΩ, RE = 470 Ω
Q-point: IC = 2.03 mA, VCE = 5.56 V
This Q-point is stable — a transistor with β = 75 gives IC ≈ 1.8 mA; β = 300 gives IC ≈ 2.2 mA. The variation is only ±10% over a 4:1 β range.
Temperature and β Variation
Two effects threaten Q-point stability in practical circuits:
Temperature Dependence of VBE
The base-emitter voltage VBE decreases at approximately −2 mV/°C as temperature rises. A circuit designed at 25°C will see VBE drop by about 70 mV at 60°C. In a voltage-divider biased stage, this means VB − VBE increases slightly, raising VE and IC slightly. The emitter resistor RE partially corrects for this: a higher IC drops more voltage across RE, which partially cancels the VBE change. The larger RE is relative to the source impedance, the more correction you get.
β Variation Between Transistors
Even transistors from the same reel can have β values ranging over 3:1 or 4:1 within the specified range. A 2N3904 is specified at β = 100–300. With voltage-divider bias and a stiff divider (divider current ≥ 10 × IB), IC is determined primarily by VB/RE, making it nearly independent of β:
Since VB is set by the voltage divider and does not depend on β, and VBE changes only slightly with β, IC stays close to its design value even when substituting transistors with different β values.
Practical Rule of Thumb
In any Class A linear stage you build for ham radio, always include an emitter resistor RE ≥ 100 Ω, always use voltage-divider bias with divider current ≥ 10 × IB, and always bypass RE with a capacitor CE sized to pass the lowest signal frequency with XCE ≤ RE/10. These three rules give you a stable, linear, well-behaved amplifier that will work with any transistor of the correct type.
Voltage-Divider Bias Calculator
Voltage-Divider Bias Calculator
Enter supply voltage, desired Q-point, transistor beta, and resistor values. The calculator solves for all bias voltages, currents, and small-signal parameters. You can use this in two modes: Analyse (enter known resistor values to find the Q-point) or Design (enter desired IC and VCE to find suggested resistor values).
Experiment: Observe Q-Point Shift with Temperature
Purpose: See firsthand how fixed bias allows the Q-point to drift with temperature, and how voltage-divider bias holds it stable.
You will need: 2N3904 or BC547 transistor (×2), 12 V power supply, resistors per the two circuits below, multimeter, a hairdryer or hot-air station for warming, and optional — a 470 μF/16 V electrolytic for CE bypass.
Circuit A — Fixed Bias (unstable):
- VCC = 12 V, RC = 2.7 kΩ, RB = 820 kΩ (sets IB = (12−0.7)/820k ≈ 13.8 μA, IC ≈ β × 13.8 μA)
- No emitter resistor, transistor emitter tied directly to ground
- Measure VC (= VCC − IC × RC) at room temperature
Circuit B — Voltage-Divider Bias (stable):
- VCC = 12 V, R1 = 75 kΩ, R2 = 12 kΩ, RC = 2.7 kΩ, RE = 470 Ω
- Measure VC at room temperature — should be near 6.5 V
Procedure:
- Record VC for both circuits at room temperature (≈20°C).
- Use a hairdryer on low heat to warm both transistors gently for 30 seconds — do not overheat.
- Immediately measure VC for both circuits.
- Calculate ΔVC = V_warm − V_room for each circuit.
Expected results:
- Circuit A (fixed bias): VC drops significantly (transistor draws more current as temperature rises and β increases). A drop of 1–2 V is typical.
- Circuit B (voltage-divider bias): VC changes by less than 0.3 V — the emitter feedback stabilises the Q-point against temperature variation.
What to note: If you have a thermometer, log the transistor case temperature at each measurement. You can calculate the Q-point stability in mV/°C for each circuit. The voltage-divider circuit should be approximately 5–10 times more stable than fixed bias.
Frequently Asked Questions
Why does the emitter resistor RE improve Q-point stability?
RE introduces DC negative feedback. When temperature rises and β increases, IC tends to increase. A larger IC means a larger voltage drop across RE, which raises VE. With VB held fixed by the voltage divider, VBE = VB − VE decreases. A smaller VBE reduces base-emitter forward bias, reducing IB and therefore IC. The feedback loop continuously opposes changes in IC, keeping it close to the design value. This is a self-correcting mechanism — the larger RE is (relative to the source resistance), the stronger the correction. The emitter bypass capacitor CE short-circuits RE at signal frequencies to restore AC voltage gain, without affecting the DC feedback that provides stability.
Why do we use a "stiff" voltage divider — what does stiff mean?
A stiff voltage divider is one where the current flowing through R1 and R2 is much larger than the base current IB. The rule of thumb is divider current ≥ 10 × IB. When this condition is met, the base current drawn by the transistor is a small perturbation on the divider current and does not significantly change the base voltage VB. If the divider is not stiff — if IB is comparable to the divider current — then VB depends on β through IB, and the whole point of the voltage-divider bias scheme is undermined. Making the divider stiff does increase quiescent power consumption (R1 and R2 draw a continuous current), but this is a small price for a stable Q-point in a Class A stage.
What happens if I set the Q-point near saturation in a receive preamplifier?
In a receive preamplifier, a Q-point near saturation means the transistor is already conducting heavily. Strong RF signals — from a nearby broadcast transmitter, a nearby ham, or your own transmitter during transmit/receive switching transients — can push the transistor fully into saturation. When saturated, the transistor ceases to amplify and instead generates severe intermodulation products: it mixes two or more incoming signals to produce spurious output frequencies that appear as phantom signals on your receiver. This degrades selectivity, raises the noise floor, and can make a strong local signal appear as interference on multiple frequencies. A well-centred Q-point maximises the dynamic range before saturation distortion occurs.
Can I use FETs instead of BJTs and avoid biasing complications?
FETs (JFETs and MOSFETs) do simplify some aspects of biasing because their gate draws essentially zero current — there is no IB to worry about. This means you do not need a stiff voltage divider to hold the gate at a precise voltage. However, FETs have their own biasing considerations: JFETs require a negative gate-source voltage (VGS) for depletion-mode types, set by a source resistor and sometimes a gate-return resistor to ground. Enhancement-mode MOSFETs need a gate voltage above the threshold VGS(th). And FETs have a wide spread in IDSS (drain-source current with gate shorted) — often 10:1 between devices of the same type — so the Q-point can still vary significantly between units. Self-bias with a source resistor (equivalent to RE in a BJT stage) solves most of this. FETs are widely used in ham radio preamps for their low noise and high input impedance.
What is the emitter bypass capacitor, and how do I choose its value?
The emitter bypass capacitor CE is connected in parallel with the emitter resistor RE. At DC, CE is an open circuit and RE provides full feedback for Q-point stability. At signal frequencies, CE is a low-impedance short circuit, effectively removing RE from the AC signal path. This restores the full voltage gain (Av = −RC/re) that would exist without RE. For CE to work properly, its reactance XCE must be much smaller than RE at the lowest signal frequency of interest — specifically, XCE ≤ RE/10, or equivalently CE ≥ 10 / (2π × f_min × RE). For a 7 MHz preamplifier with RE = 470 Ω: CE ≥ 10 / (2π × 7×10⁶ × 470) = 0.48 nF. A 10 nF ceramic capacitor provides a safety margin and handles the full HF range. For audio or IF stages in the kilohertz range, CE will need to be much larger — typically 47–470 μF electrolytic for audio, or 100 nF–10 μF for IF frequencies.
