Breadboarding and Prototyping

Reading a schematic is one skill; building the circuit it describes is another. Prototyping — building a working version of a circuit to test before committing to a permanent design — is where theory meets practice. The most accessible way to prototype is the solderless breadboard, but there are several other methods used in amateur radio and electronics construction that are worth knowing.

Breadboard Internal Structure

A solderless breadboard (often called just a breadboard) is a plastic block with a grid of holes connected internally by spring clips. Understanding how those internal connections are made is the first requirement for using one correctly.

A standard full-size breadboard has two regions:

• The central component area: Five holes in each row are connected together internally. The row runs horizontally (left to right). A gap runs down the center of the breadboard, dividing the left five-hole group from the right five-hole group. This gap is sized to accept a DIP IC package, with the chip bridging the gap and each row of pins going to a separate set of five holes.
• The power rails: Along the top and bottom edges, two long columns of holes run the full length of the board. Each column is connected internally along its entire length. These are conventionally used for the positive supply (red) and ground (blue) rails.

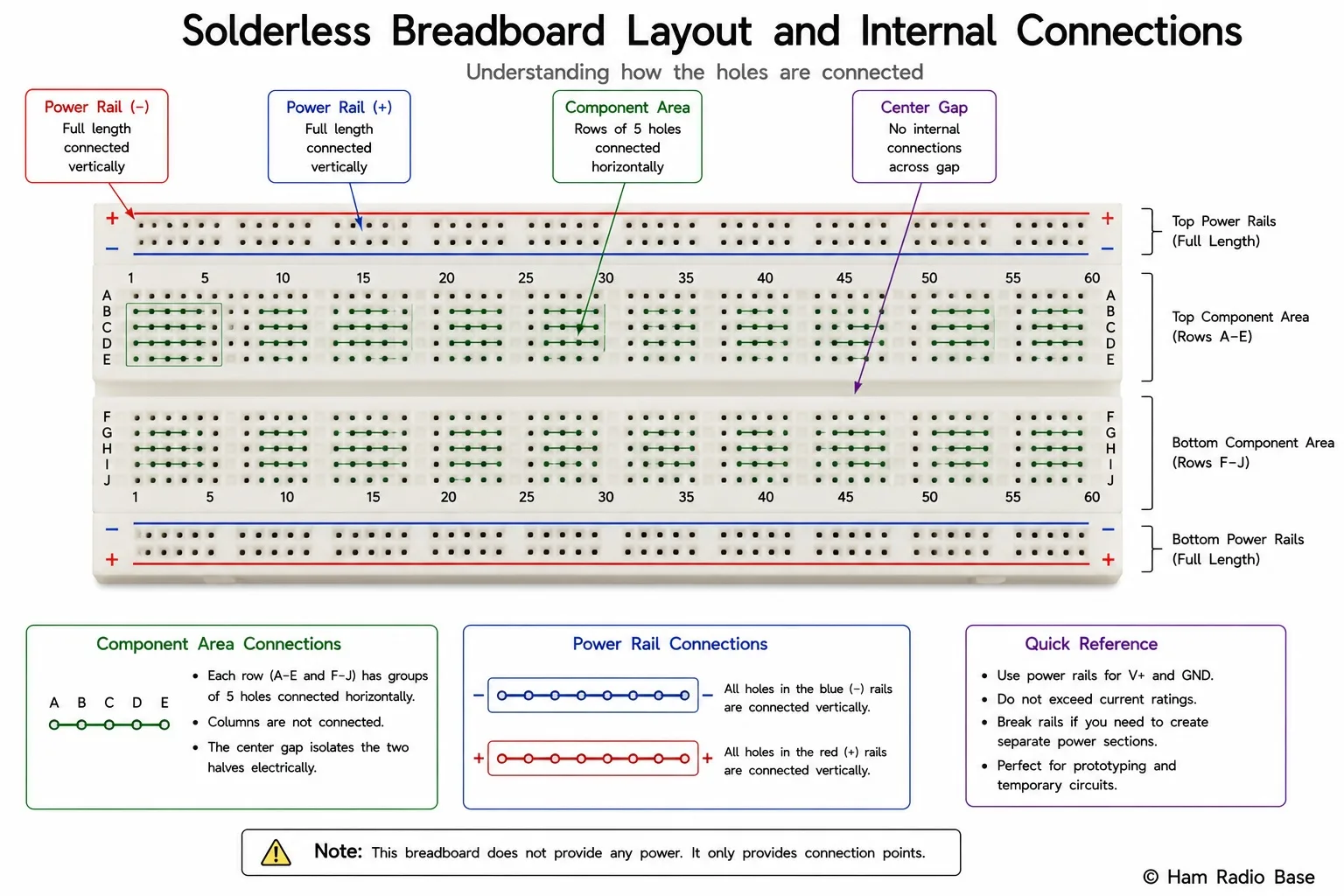

Fig 1 — Internal connection structure of a full-size solderless breadboard. Each shaded group of five holes shares an internal connection. The long rails run the full board length.

View Larger

From Schematic to Breadboard

The process of transferring a schematic to a breadboard is straightforward if done systematically:

1. Connect power and ground first. Use a wire from your supply to the positive power rail and another to the negative/ground rail. Check the voltage at the rails before connecting any components.
2. Place ICs and transistors first. These define the structure of the layout because their pin positions are fixed. Place DIP ICs straddling the center gap.
3. Work through the schematic one component at a time. For each component, find the two (or more) nodes it connects to on the schematic, locate the corresponding rows on the breadboard, and insert the component into those rows.
4. Use short, tidy jumper wires. Long looping wires make debugging difficult. Use pre-cut jumper wire kits or cut your own from solid-core hookup wire.
5. Check each connection before powering up. Use a multimeter in continuity mode to verify that components connect to the rows you intended.

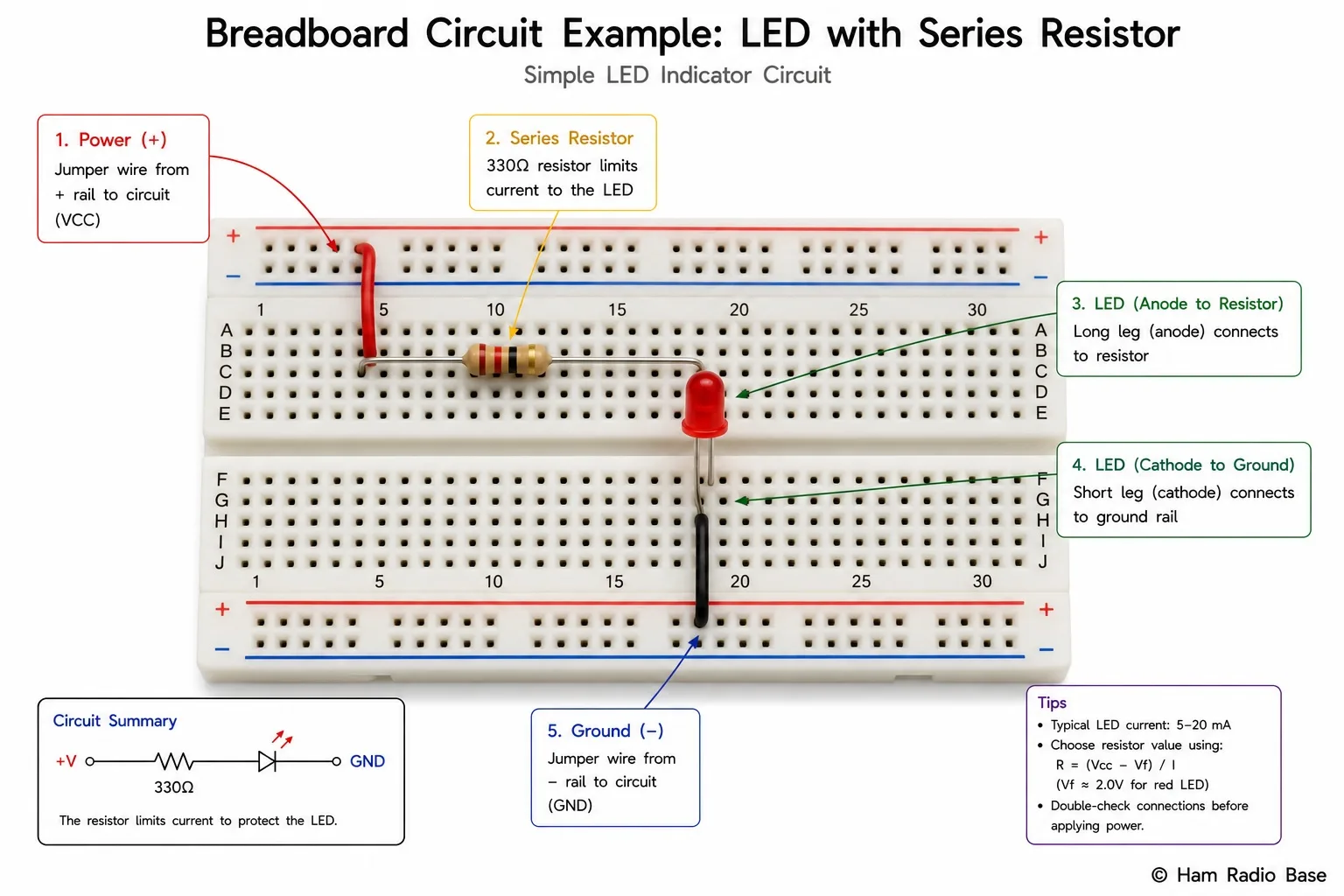

Fig 2 — A simple LED and series resistor circuit on a breadboard. Power connects to the top rail; the resistor and LED are placed in separate rows in the component area.

View Larger

Common Breadboard Mistakes

Most breadboard problems come from a small set of common mistakes:

Limitations of Breadboards

Breadboards are excellent for DC and low-frequency circuits but have significant limitations at radio frequencies:

• High contact resistance and inductance: The spring clips add resistance and inductance at each connection. At HF (3–30 MHz) and above, these parasitics degrade circuit performance.
• Poor grounding: The ground rail is a long thin conductor with significant impedance at RF frequencies.
• Stray capacitance: Adjacent rows are capacitively coupled, which can cause unwanted coupling between stages at high frequencies.
• No RF shielding: An open breadboard radiates and picks up RF, making RF circuit testing unreliable.

For audio (up to ~20 kHz) breadboards work well. For low RF (up to a few MHz) results are variable. For HF and VHF work, Manhattan or ugly construction on a copper-clad ground plane is far more suitable.

Manhattan and Ugly Construction

Manhattan construction (also called ugly construction or dead-bug construction in its simplest form) is widely used in amateur radio for building RF circuits. The technique uses a flat copper-clad board as a ground plane. Small pads (islands of copper-clad material) are glued to the ground plane to provide mounting points for components not connected to ground. Components connect directly between these islands and the ground plane with short leads.

The advantages over breadboarding for RF work are significant: the large copper-clad ground plane is a true RF ground, component leads can be kept very short (reducing stray inductance), and the layout can closely match a well-designed PCB ground plane.

Stripboard (Veroboard)

Stripboard (sold under the trade name Veroboard) is a rigid PCB material with pre-drilled holes on a 0.1-inch grid and continuous copper strips running along one axis. To break the strip between two holes (to prevent an unwanted connection) the copper is cut with a drill bit or special track-cutting tool.

Stripboard allows soldered permanent circuits without a custom PCB. It is suitable for audio and low-frequency digital circuits. Stripboard layouts must be planned before building — many free software tools exist for this purpose. Unlike a breadboard, stripboard construction is not reversible without desoldering.

PCB Prototyping Services

Low-cost PCB manufacturing services (JLCPCB, PCBWay, OSH Park) now make custom PCBs affordable for amateur radio constructors. A simple two-layer PCB designed in free software (KiCad, EasyEDA) can be manufactured in quantities of five for a few dollars, delivered within two weeks.

The workflow is: draw the schematic → assign footprints → lay out the PCB → run design-rule checks → export Gerber files → order from a manufacturer. The lessons in Module 4 have prepared you for the schematic step; PCB layout is covered in the construction module later in this course.
