Chemical Hazards

Soldering and PCB construction, covered in Module 20, are hands-on skills that feel mechanical rather than chemical — you are joining metal, not running a laboratory. But every joint you solder releases fume, and every board you etch involves a genuinely corrosive chemical bath, and the risk from both comes less from any single session and more from cumulative exposure across years of a hobby practiced at a home bench, often without the dedicated ventilation a commercial workshop would have. This lesson covers exactly what is in that fume and that etchant, and what to do about it.

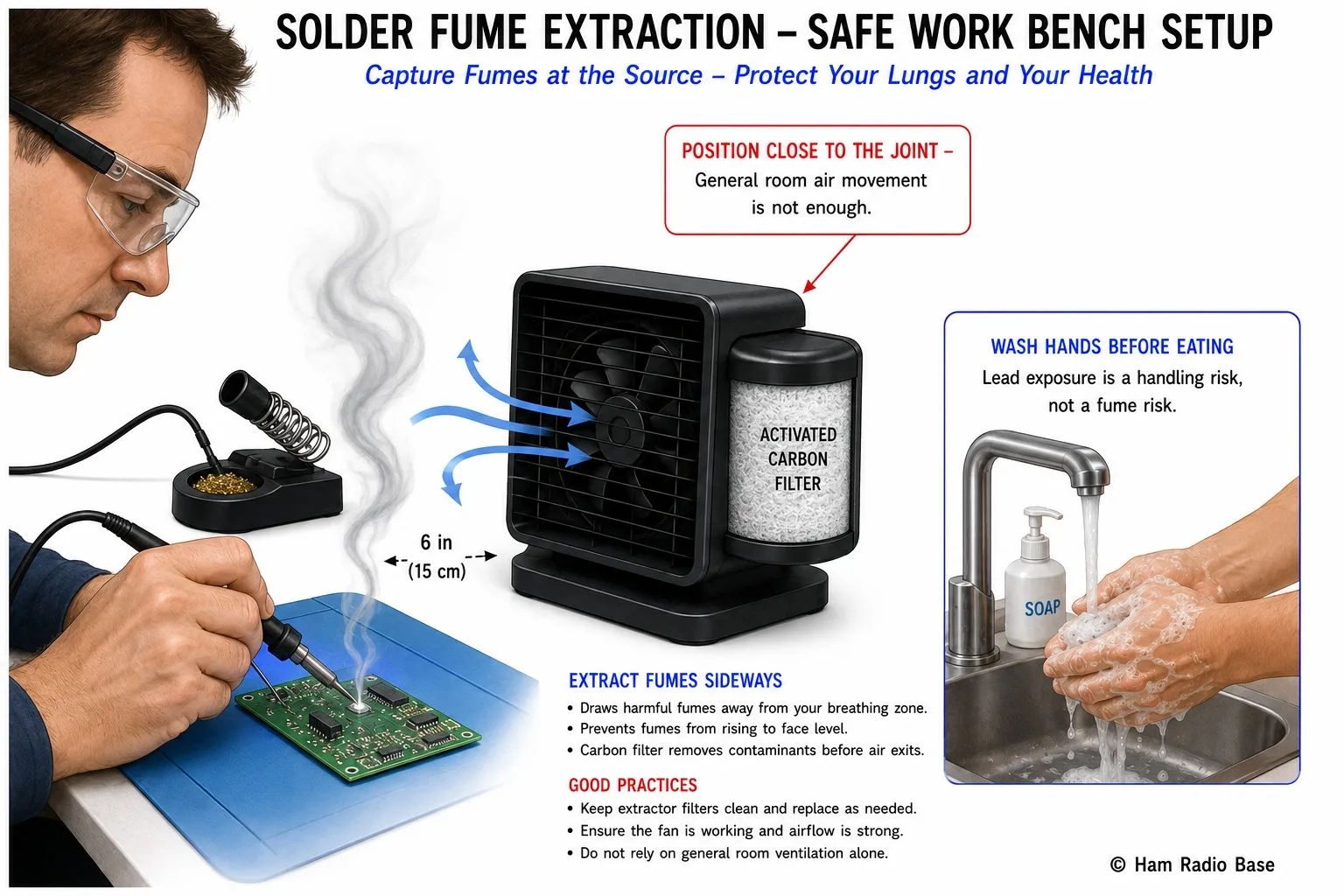

A fume extractor positioned close to the work captures rosin/flux fume before it reaches your breathing zone — general room ventilation alone is not as effective.

View Larger

Solder Fume Composition and Health Risks

What rises from a heated solder joint is overwhelmingly flux fume, not vaporized metal. Lead has a very low vapor pressure at typical soldering iron tip temperatures (commonly 315-370°C), so very little lead actually becomes airborne as vapor during normal soldering — the lead hazard from leaded solder (such as the 60/40 or 63/37 tin-lead alloys covered in Module 20) is predominantly a handling and ingestion hazard, not an inhalation hazard. Fine lead-containing particulate and dross can be transferred from hands to food, drink, or your face if you solder and then eat without washing your hands first, which is why hand hygiene, not a respirator, is the right tool for that specific risk.

The fume you do inhale while soldering comes predominantly from the flux, especially rosin (colophony)-based fluxes, which release a visible, sharp-smelling fume when heated. Rosin/colophony is a recognized respiratory sensitizer: repeated inhalation exposure over time, especially without adequate ventilation, is associated with the development of occupational asthma in sensitized individuals — sometimes called "solderer's asthma" in older industrial hygiene literature — along with general respiratory and eye irritation from routine exposure even in people who do not develop a sensitization response. The risk scales with cumulative exposure, which is exactly why a hobbyist soldering occasionally with good ventilation faces a much lower risk than someone soldering for hours daily without any fume extraction.

Flux Types and Safety

Regardless of flux type, avoid working with your face positioned directly over a hot joint, where rising fume concentration is highest, and avoid touching flux residue directly with bare skin for extended periods, particularly with the more aggressive water-soluble types.

PCB Chemical Etching Safety

Homebrew PCB construction, a natural extension of the Manhattan and ugly construction techniques from Module 20 for anyone wanting an etched, professional-looking board, requires a genuinely corrosive chemical bath to dissolve unwanted copper. The two most common etchants in amateur use are ferric chloride and ammonium persulfate, and both demand real respect, not casual handling.

Ferric chloride is a corrosive solution that will stain skin, clothing, and most surfaces a persistent orange-brown that does not wash out easily — a strong practical reminder of how reactive it is. It will also corrode stainless steel sinks and many other metal surfaces given enough contact time, so it must be mixed, used, and disposed of in plastic or glass containers only, never in or near a metal sink. Skin and eye contact cause irritation and potential chemical burns with sufficient exposure; wear nitrile or similarly rated gloves and eye protection whenever handling the solution, the etching tray, or a board actively being etched.

Ammonium persulfate is a strong oxidizer. Its etching solution generates heat as it reacts (an exothermic process) and can release irritating fumes, particularly as the solution ages, degrades, or is heated to speed up etching. It carries similar skin, eye, and respiratory irritation hazards to ferric chloride and requires the same category of glove, eye, and ventilation precautions.

Ventilation Requirements

For soldering, the most effective approach is local extraction — a small fume extractor fan with an activated carbon filter positioned close to the actual joint being soldered, pulling rising fume away from your breathing zone before it disperses into the room. General room ventilation (an open window, a ceiling fan) helps reduce the overall background concentration in the room over time but is considerably less effective at protecting you in the moment, since the fume concentration is highest in the few inches directly above a hot joint, right where your face tends to be positioned while working.

For PCB etching, work near an open window or under a vented hood if available, since etching fumes can be more acutely irritating on direct exposure than typical solder fume, and etching sessions often involve a tray of solution sitting and reacting for an extended period rather than the brief, localized fume burst of a single solder joint. In both cases, the underlying principle is the same: move the fume away from your breathing zone as close to the source as practical, rather than relying on the room eventually clearing out on its own.

If a Chemical Exposure Happens

For skin contact with flux, ferric chloride, or ammonium persulfate solution: flush the area thoroughly with water, remove contaminated clothing, and seek medical attention if irritation, burning, or discoloration persists. For eye contact with any of these chemicals: flush continuously with water for at least 15 minutes and seek immediate medical attention, treating it with the same urgency as the acid exposure described in M22G. For fume inhalation causing coughing, throat irritation, or breathing difficulty: move to fresh air immediately, and seek medical evaluation if symptoms do not resolve quickly or if breathing difficulty is significant.
