dBm, dBW, dBd and dBi

The decibel on its own is a ratio — it tells you how much bigger or smaller one signal is compared to another. But sometimes you need to express an absolute power level, not just a ratio. That is where dBm and dBW come in. And when you want to describe how well an antenna concentrates its radiated energy, dBd and dBi give you a standard way to do that. All four units appear constantly in ham radio technical specifications, and once you understand what each one references, they are straightforward to use.

What you will learn: The four absolute and reference-based decibel units used in RF work — dBm (decibels relative to 1 milliwatt), dBW (relative to 1 watt), dBd (antenna gain over a dipole), and dBi (antenna gain over an isotropic radiator) — how to convert between them, and when each one is used.

Why we need absolute decibel units

Suppose a datasheet says a receiver has 20 dB of gain. That is useful — it means the output power is 100 times the input power. But it does not tell you the actual power levels. For that, you need a reference point. If the input is −90 dBm, you know the output is −70 dBm. Without the absolute unit, you can only describe ratios, not levels.

In RF work, two absolute power references are in everyday use:

  • dBm — decibels relative to 1 milliwatt. Used for signal levels at any stage in a radio system, receiver sensitivity, and transmitter power for handheld radios.
  • dBW — decibels relative to 1 watt. Used for high-power transmitters, microwave link budgets, and satellite power budgets.

dBm — decibels relative to 1 milliwatt

The formula for converting a power in milliwatts to dBm is:

P(dBm) = 10 × log10(PmW / 1 mW)
which simplifies to:
P(dBm) = 10 × log10(PmW)

To go the other way — from dBm back to milliwatts:

PmW = 10(dBm / 10)

The reference point, 0 dBm, is exactly 1 milliwatt. Values above 0 dBm represent more than 1 mW; values below 0 dBm represent less.

Key dBm values to memorise

Just as with plain decibels, a handful of reference points get you through most calculations without needing a calculator:

dBmPower in milliwattsPower in wattsHam radio context
−120 dBm0.000 000 001 mW1 pW (picowatt)Noise floor of a sensitive receiver
−73 dBm~0.000 05 mW~50 nWS9 signal level (traditional reference)
−30 dBm0.001 mW1 μWWeak signal digital modes
0 dBm1 mW0.001 WReference point; signal generator output
10 dBm10 mW0.01 WQRP transmitter milestone
20 dBm100 mW0.1 WLow-power stage output
30 dBm1000 mW1 WLegal QRP power level
37 dBm5012 mW~5 WTypical handheld transceiver
40 dBm10 000 mW10 WLow-power HF operation
43 dBm20 000 mW20 WPortable HF transceiver
50 dBm100 000 mW100 WTypical HF station (legal limit many countries)
53 dBm200 000 mW200 WMid-range HF amplifier
60 dBm1 000 000 mW1 kWHigh-power HF amplifier

Notice the pattern: every +10 dBm multiplies the power by 10, and every +3 dBm approximately doubles it (because 100.3 ≈ 2). These two facts alone let you work out most dBm values mentally once you know a single reference point.

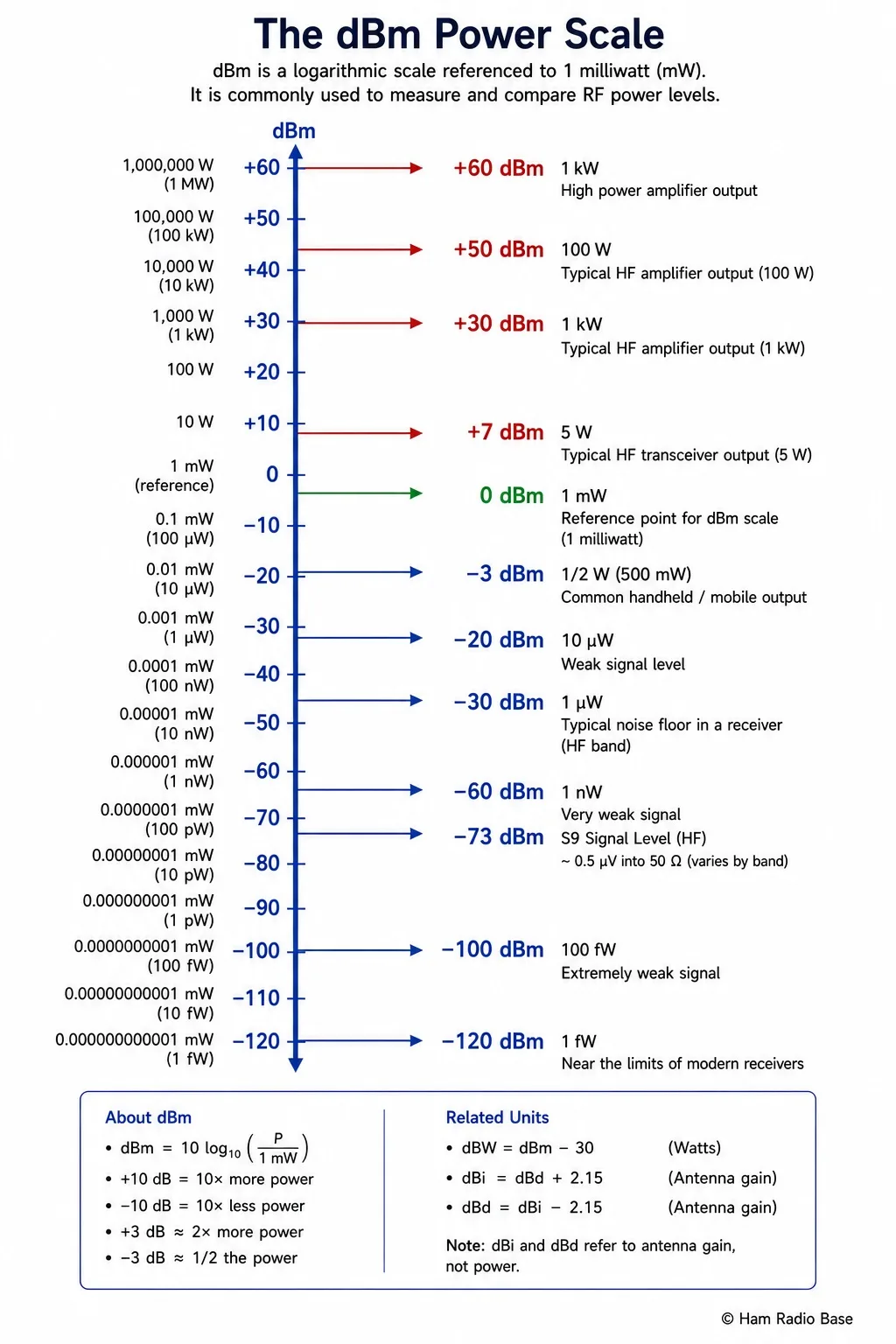

Vertical power scale from -120 dBm to +60 dBm with reference points labelled: noise floor, S9, 0 dBm (1 mW), QRP 1 W, 5 W, 100 W and 1 kW

Key reference points on the dBm scale. The 30 dBm steps (−120, −90, −60, −30, 0, 30, 60) each represent a factor of 1000 in power.

View Larger

Converting between watts and dBm

The conversion steps are:

  1. Convert the power to milliwatts (multiply watts by 1000).
  2. Take log10 of the milliwatt value.
  3. Multiply by 10.
Example: A transceiver outputs 100 W. What is that in dBm?
100 W = 100 000 mW
log10(100 000) = 5
P(dBm) = 10 × 5 = 50 dBm
Example: A receiver sensitivity spec says −110 dBm. What power is that?
PmW = 10(−110/10) = 10−11 = 0.000 000 000 01 mW
= 10 picowatts (pW)

dBW — decibels relative to 1 watt

dBW uses exactly the same formula as dBm, but the reference is 1 watt instead of 1 milliwatt:

P(dBW) = 10 × log10(PW / 1 W)
which simplifies to:
P(dBW) = 10 × log10(PW)

The key relationship between dBm and dBW is straightforward: since 1 watt = 1000 mW = 30 dBm, every dBW value is exactly 30 dB higher in milliwatt terms:

dBW = dBm − 30
or equivalently:
dBm = dBW + 30
Example: 100 W = 50 dBm = 50 − 30 = 20 dBW
Example: 1 kW = 60 dBm = 60 − 30 = 30 dBW

Watts / dBm / dBW Calculator

Watts to dBm and dBW

Enter a power in watts to convert it to dBm and dBW.

Enter a wattage above and press Convert.

dBm to Watts and dBW

Enter a power level in dBm to convert it to milliwatts, watts and dBW.

Enter a dBm value above and press Convert.

dBi — gain relative to an isotropic antenna

An isotropic antenna is a theoretical ideal that radiates equally in all directions, forming a perfect sphere around itself. No real antenna can do this, but it is a useful mathematical reference point. The gain of a real antenna over this ideal is expressed in dBi (decibels relative to isotropic).

A half-wave dipole in free space has a gain of approximately 2.15 dBi. This means it concentrates its radiation slightly more than the theoretical isotropic — not because it amplifies the signal, but because it does not radiate equally in all directions. The energy "saved" from the blind spots (the ends of the antenna) is redirected to the broadside directions.

More directive antennas have higher dBi figures:

  • Isotropic antenna: 0 dBi (by definition)
  • Half-wave dipole: 2.15 dBi
  • 3-element Yagi: approximately 7–8 dBi
  • 5-element Yagi: approximately 9–10 dBi
  • High-gain dish (microwave): 30–50 dBi or more

dBd — gain relative to a dipole

Because the isotropic antenna does not exist in practice, many antenna manufacturers rate their antennas against the more familiar half-wave dipole. This gives dBd (decibels relative to a dipole).

A dipole has 0 dBd by definition. A Yagi that is rated at 5.85 dBd has 5.85 dB more gain than a simple half-wave dipole pointed in the same direction.

Relationship between dBi and dBd

Since a dipole itself has 2.15 dBi, the conversion between the two units is simply:

dBi = dBd + 2.15
dBd = dBi − 2.15
Example: A Yagi rated at 8.15 dBi has how much gain in dBd?
dBd = 8.15 − 2.15 = 6 dBd

Always check which reference unit a manufacturer uses. Quoting 8.15 dBi sounds more impressive than 6 dBd, but they refer to the same antenna. This is not deceptive when stated clearly, but it can cause confusion when comparing specifications from different sources.

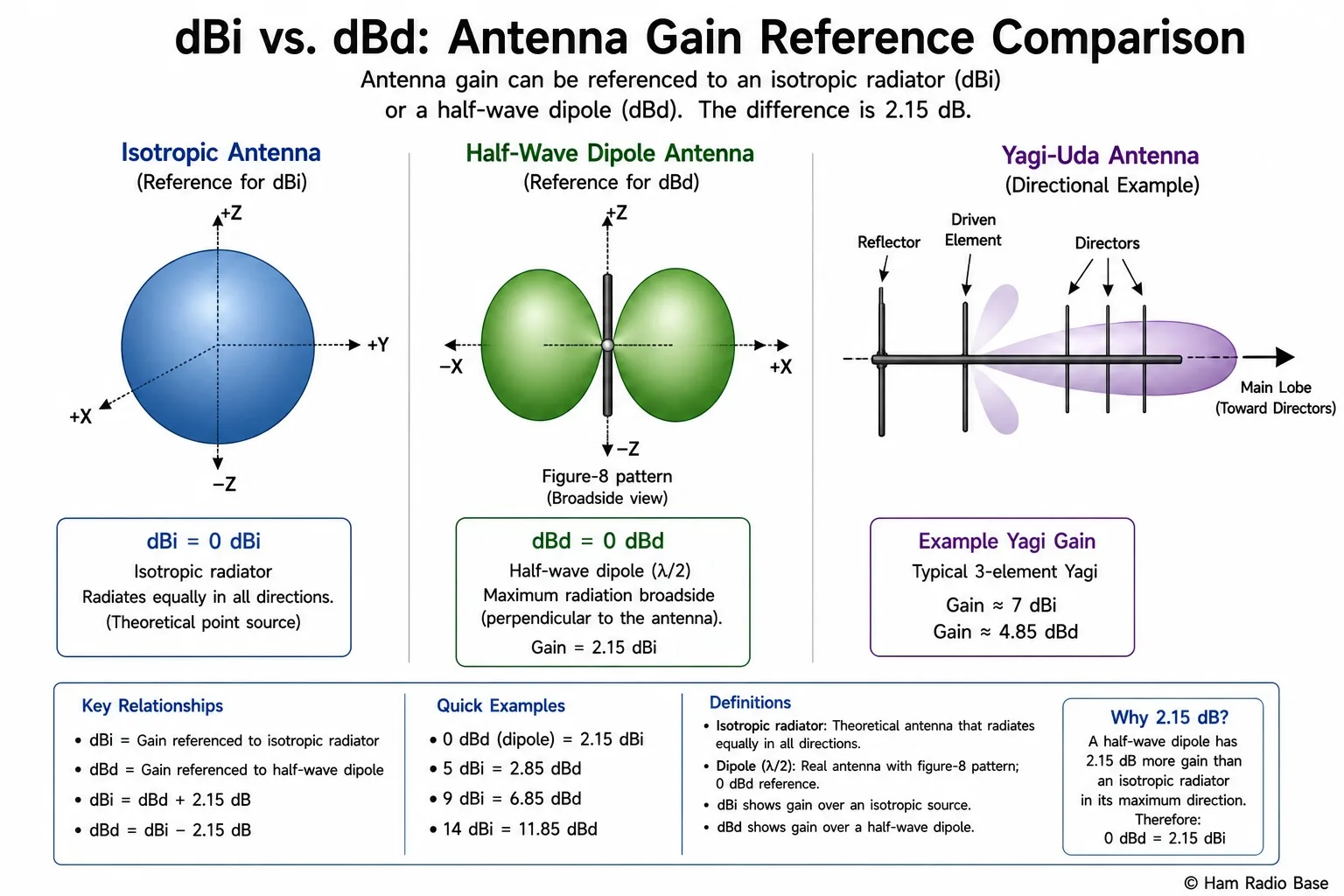

Comparison of radiation patterns: isotropic sphere (0 dBi), half-wave dipole figure-8 pattern (2.15 dBi / 0 dBd), and Yagi elongated pattern (higher dBi and dBd values labelled)

Radiation pattern comparison. The isotropic radiates equally in all directions; the dipole concentrates energy broadside; a Yagi focuses it further in one direction. dBi and dBd express the gain relative to each reference.

View Larger

When each unit is used

UnitWhat it measuresTypical use
dBmAbsolute power (ref: 1 mW)Receiver sensitivity, signal levels at connectors, handheld transmitter power, component datasheets
dBWAbsolute power (ref: 1 W)High-power transmitters, satellite and microwave link budgets, broadcast stations
dBiAntenna gain (ref: isotropic)Technical specifications, antenna modelling software, engineering documents
dBdAntenna gain (ref: dipole)Commercial antenna datasheets, antenna comparisons in ham radio publications

In a radio link budget, you will typically mix these units. For example: transmitter power in dBm, cable losses in dB, antenna gain in dBi, path loss in dB, and received signal level back in dBm. As long as you keep track of what each number references, the arithmetic stays simple.

Frequently Asked Questions

What does −73 dBm mean in ham radio?

−73 dBm is the traditional S9 signal level for HF receivers. It corresponds to approximately 50 nanovolts across a 50-ohm input, or about 50 nanowatts of power. The S-meter scale was standardised so that each S-unit above S9 represents +6 dB, meaning S9+10 dB is −63 dBm and S9+20 dB is −53 dBm.

Why do receiver sensitivity specs use negative dBm numbers?

Because the signal levels involved are far below 1 milliwatt. A typical HF receiver might have a sensitivity of −130 dBm for a 10 dB signal-to-noise ratio. That is 10−13 milliwatts, or 0.1 femtowatts — an inconveniently small number to write out. The negative dBm value is much easier to work with and makes comparisons straightforward.

Can a passive antenna have gain?

Yes — passive antenna gain is real, but it works by concentration, not amplification. A directive antenna focuses its energy in one direction rather than spreading it equally in all directions. You gain in some directions at the expense of others. The total radiated power is the same (minus losses); it is just more concentrated. This is the kind of gain described by dBi and dBd.

Which unit should I quote when reporting my station's effective radiated power?

Effective Radiated Power (ERP) is normally quoted in watts or dBW when dealing with regulators and licence conditions. Some authorities use ERP (referenced to a dipole, the older convention) and others use EIRP (referenced to an isotropic, the more modern convention). EIRP = ERP + 2.15 dBW. Always check which reference your local regulations use.

Test Your Knowledge

Answer the questions below to check your understanding of this lesson. Every answer can be found in the lesson above.

Loading questions...
