Desensitization and Blocking

You're operating on 40 meters, working a weak DX station, when suddenly every signal on the band seems to drop by several S-units. You haven't touched a knob, the DX hasn't moved, and the band conditions haven't changed. What happened? Almost certainly, a strong nearby station — perhaps a contest station, a nearby neighbor with a kilowatt amplifier, or even an AM broadcast transmitter — came on the air and drove your receiver into desensitization.

Desensitization and blocking are two closely related failure modes that occur when a strong off-channel signal overwhelms part of your receive chain. They are among the most common and frustrating interference problems that amateur radio operators encounter, particularly on crowded HF bands and during contest weekends. Understanding exactly what happens — and why — lets you choose the right remedy.

What Is Desensitization?

Imagine your receiver as a person listening for a whisper in a quiet room. They can hear whispers from across the room quite easily. Now someone walks in and starts shouting nearby. The listener instinctively turns down their sensitivity — they cup their ears less, they tune out the background — and suddenly they can no longer hear the whisper even though it hasn't changed. This is desensitization.

In a radio receiver, desensitization (often shortened to "desense") occurs when a strong off-channel signal causes the receiver's automatic gain control (AGC) to reduce the gain of the IF amplifier chain. Because the AGC reduces gain throughout the receiver, all signals — including your desired weak signal — become weaker relative to the noise floor. The noise floor appears to rise. Your desired signal, which was previously readable at perhaps S5, now appears to drop to S1 or disappears entirely, even though the actual signal arriving at your antenna has not changed at all.

The key characteristic of desensitization is that it is AGC-induced. It is the receiver's own gain-reduction circuitry responding to the total power in the IF passband — or sometimes the total power at the RF stage — and reducing gain to prevent overload. The strong interfering signal was never in your passband; it was on an adjacent frequency. But because receiver selectivity is never perfect, some energy from the strong signal leaks into the IF chain, raising the apparent power level, and the AGC responds by cutting gain.

The effect is most pronounced on receivers with fast AGC attack times and wide RF bandwidths at the front end. A receiver with a narrow pre-selector filter ahead of the first mixer will reject most of the off-channel signal before it can trigger the AGC. A receiver with a wide first filter — or no front-end selectivity at all — will be much more susceptible to desensitization from nearby strong signals.

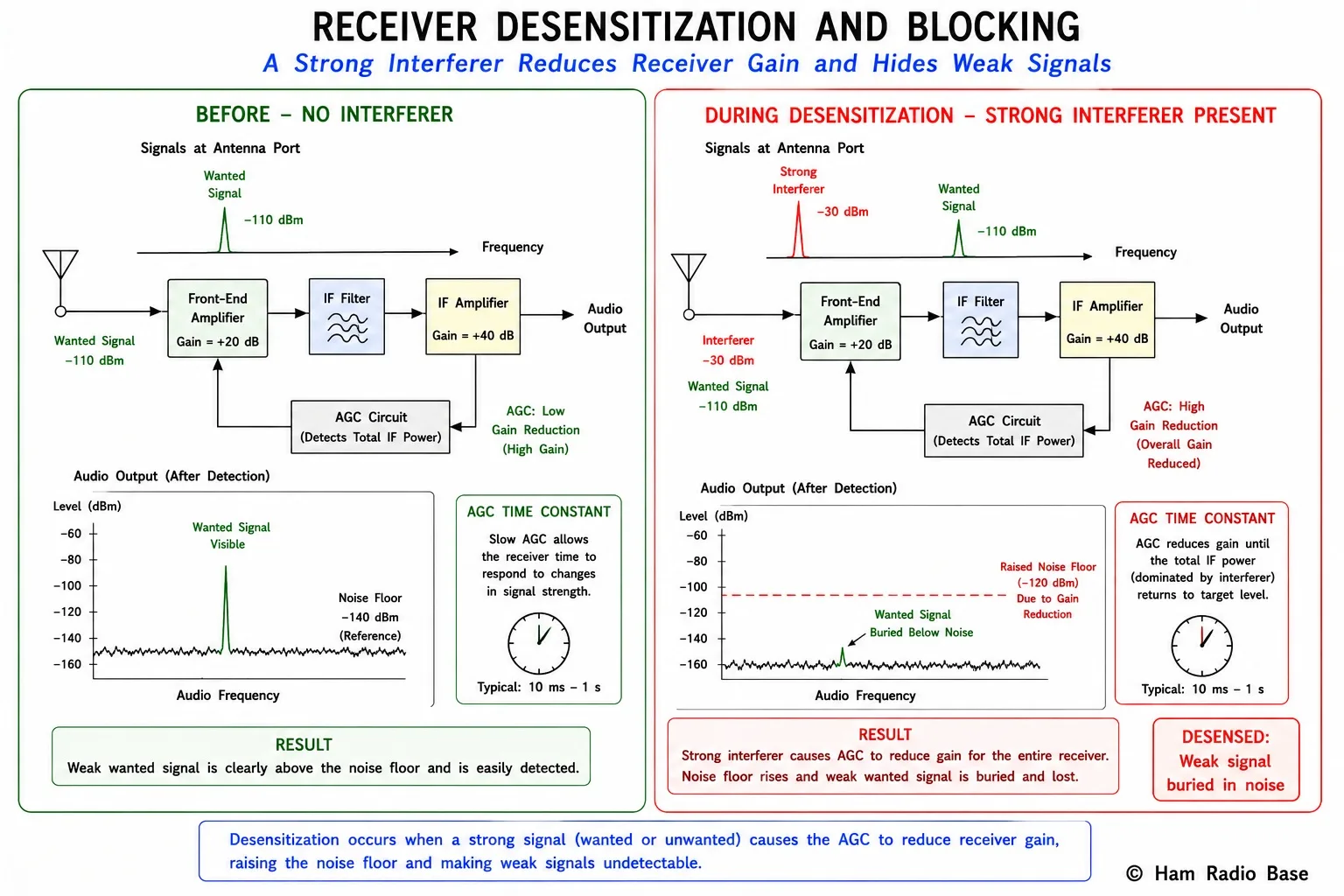

Left: normal operation, desired signal visible above noise floor. Right: strong interferer causes gain reduction, raising the effective noise floor and burying the desired signal.

View Larger

The AGC Mechanism

Automatic gain control is one of the most important features in any radio receiver. Without AGC, a signal that varied from S1 to S9+20 dB in strength would require you to constantly adjust your volume control — the receiver would be distorted and overloaded by the strong signal, and silent on the weak signal. AGC samples the signal level somewhere in the IF chain and feeds back a control voltage that reduces the gain of one or more amplifier stages as signal level increases. The result is an output level that stays approximately constant across a wide range of input signal strengths.

The problem with AGC in the context of desensitization is that AGC responds to total IF power, not just the power of your desired signal. The AGC circuit cannot distinguish between the signal you want to hear and an interfering signal that happens to be leaking through the front-end filter. Both are just power in the IF chain, and the AGC responds to the total.

Here is the sequence of events during desensitization:

1. A strong station comes on the air at a frequency 50 kHz above your operating frequency.
2. Your receiver's front-end filter is not perfect. Some energy from that strong station leaks through into the RF amplifier and mixer stages.
3. The mixer produces output at the IF frequency corresponding to the strong station, which may or may not fall inside your IF passband — but even if it does not, the mixer and IF amplifier are now handling more total power than before.
4. The AGC detects the increased IF power and reduces the gain of the RF amplifier and/or IF amplifier to compensate.
5. Your desired weak signal, now processed by a receiver with reduced gain, appears weaker. Your S-meter drops. Your signal-to-noise ratio decreases. Copy becomes more difficult or impossible.

The AGC is doing exactly what it was designed to do — preventing overload. The problem is that the overload threat comes from a signal you do not want to hear, and the collateral damage falls on the signal you do want to hear. This is the fundamental conflict that makes desensitization such a persistent problem on crowded bands.

AGC time constants matter significantly. A very fast AGC attack — one that responds in microseconds — can reduce gain so rapidly that it briefly suppresses even a desired signal that is switching on. This is called AGC hang or AGC squash. Most modern transceivers provide selectable AGC time constants (fast, medium, slow) for exactly this reason. On crowded HF bands with many signals, a slower AGC may allow brief overload but will not continuously suppress your desired signal as severely as a fast AGC.

Blocking — Compression-Induced Interference

Blocking is related to desensitization but has a different cause. While desensitization is AGC-induced (a controlled, designed-in response), blocking occurs when the front-end mixer or LNA physically saturates — the strong input signal drives the device into nonlinear operation where its gain collapses and it generates large amounts of harmonic and intermodulation distortion.

You learned in the previous lessons about the 1 dB compression point (P_1dB) — the input power level at which the device's gain is reduced by 1 dB relative to its small-signal gain. When a strong signal drives the device to or beyond P_1dB, the device is in compression. In this state:

• The gain for all signals through the device — including your desired weak signal — is reduced
• The device generates strong harmonic and intermodulation products
• The noise figure of the device increases (a compressed amplifier is a noisier amplifier)
• The combined effect makes the desired weak signal effectively disappear

Blocking is often defined operationally as: the level of an unwanted signal that causes the desired signal to decrease by 3 dB. This is the "blocking level" and it is listed in receiver specifications. A typical blocking level for a consumer HF transceiver might be −10 to +20 dBm at the antenna connector. A high-performance DX-grade receiver may reach +30 dBm or better.

The difference between desensitization and blocking in terms of which you experience in practice is often one of degree and timing. Desensitization due to AGC is usually gradual and tracked — as the strong signal's level increases, your receiver progressively reduces gain. Blocking due to front-end compression is more sudden — it can occur very rapidly as the strong signal exceeds the P_1dB threshold of the mixer or LNA. In practice, the two terms are often used interchangeably by operators, and both result in the same symptom: weak signals disappear when strong signals are present.

The blocking dynamic range of a receiver is defined as:

For a receiver with a blocking level of +20 dBm and a noise floor of −130 dBm, the blocking dynamic range is 150 dB. This is a large number, but many modern high-power stations can easily produce signals stronger than −30 or −20 dBm at nearby antennas — which is still 50–60 dB below the blocking level of a good receiver, but only 10–20 dB below the blocking level of a budget radio.

Measuring Desensitization and Blocking

The standard laboratory test for blocking begins with a desired signal at a known level just above the noise floor — typically 3 dB above the minimum discernible signal (MDS). This desired signal is at the operating frequency. An unwanted signal is then applied on an adjacent frequency, typically 20 kHz or 100 kHz away from the desired signal. The level of the unwanted signal is increased until the desired signal degrades by 3 dB. The unwanted signal level at that point is recorded as the "blocking level."

The two most common test offsets are:

• Close-in blocking (±20 kHz): Tests the receiver's ability to handle strong signals on the same band, nearby in frequency. This is the most practical and relevant test for HF operation.
• Far-out blocking (±100 kHz or more): Tests the effect of strong signals further away in frequency. Since front-end filters have more rejection at greater offsets, far-out blocking levels are usually higher (better).

AGC time constants affect these measurements. A receiver with a very fast AGC will show earlier desensitization because the AGC reduces gain as soon as even a small amount of the unwanted signal enters the IF chain. A receiver with slow AGC may allow brief compression but may show a higher "steady-state" blocking level. Receiver reviewers typically measure both and note the time constants used.

The Near-Far Problem in Practice

The "near-far problem" is the name given to a situation where a strong nearby transmitter interferes with reception of a weaker distant transmitter. It is a fundamental challenge in amateur radio, particularly at multi-operator events, hilltop sites, and any situation where amateurs with different power levels operate in close proximity.

To understand how serious the near-far problem can be, consider a quantitative example. You are operating from a hilltop at a Field Day or SOTA activation on 20 meters. Another amateur sets up 200 meters (about 660 feet) away and is running 100 watts into a dipole. How strong is their signal at your receiver?

A signal of +8.6 dBm arriving at a receiver whose blocking level is +10 dBm is very close to the blocking threshold. Any antenna gain on either side, or any reflections, could push the received level above the blocking point. In practice, at 200 meters the neighboring station almost certainly blocks your receiver completely while they are transmitting.

The situation becomes even more extreme at 50 meters separation (which is not unrealistic at a club Field Day site with many stations operating). At 50 meters, the FSPL drops to 20×log10(4π×50/21.4) = 20×log10(29.4) = 29.4 dB, giving a received signal of +50 − 29.4 = +20.6 dBm — well above the blocking threshold of even a good receiver.

This calculation explains why serious contest stations and multi-operator stations spend so much effort on antenna separation, directional antennas, and bandpass filters. Antenna separation is the single most effective remedy because path loss increases as the square of distance — doubling the distance reduces the received power by 6 dB, quadrupling it reduces it by 12 dB. Going from 50 meters to 200 meters gains 12 dB of improvement.

Practical Remedies

Once you understand the causes of desensitization and blocking, the remedies follow logically. Each remedy attacks one or more stages of the problem.

External Bandpass Filters

A bandpass filter placed ahead of the receiver limits the total RF power that reaches the front-end LNA and mixer. If the interfering signal is on a different band, a single-band bandpass filter can provide 40–60 dB of rejection to out-of-band signals. Stub filters (resonant quarter-wave stubs), commercial resonant bandpass cavities, and LC bandpass filters are all used for this purpose. For same-band interference — a common situation at multi-operator stations where two radios operate on the same band — high-Q cavity bandpass filters provide the needed rejection close to the operating frequency.

Physical Antenna Separation

As shown in the near-far example above, increasing physical separation between antennas is highly effective. The free-space path loss increases quadratically with distance. Moving antennas to opposite sides of a building, using directional antennas pointed away from each other, or separating antennas vertically (one on a rooftop, one in the backyard) can each contribute significant improvement.

RF Attenuator

Inserting an RF attenuator ahead of the receiver reduces the level of all signals arriving at the front end, including the interfering signal. A 10 dB attenuator reduces the interfering signal by 10 dB, which — if the interference was causing compression — may be enough to move the receiver out of the compression region. The desired signal also drops by 10 dB, but if the interference was the limiting factor (not noise), the net effect is improved reception. On a crowded 40-meter contest night, experienced operators often find that adding 6–10 dB of attenuation significantly improves copy quality even though it reduces signal strength, because IMD and blocking were degrading the effective SNR more than the attenuation does.

Preamplifier Bypass

Most modern HF transceivers have a switchable preamplifier. The preamp is useful on a quiet band when you need maximum sensitivity for weak signals, but it is actively harmful on a crowded band when strong signals are present. The preamp raises the gain of the first stage, which — as the cascaded IP3 formula shows — worsens the IP3 of the entire receive chain. Turning off the preamp reduces gain by the preamp's gain (typically 10–20 dB), which moves all signal levels down by that amount and significantly improves the dynamic range available for handling strong signals.

RF Gain (Manual Gain Control)

Most HF transceivers have an RF gain control that reduces the gain of the RF amplifier stages. Unlike the attenuator (which precedes the front end), the RF gain control acts on amplifier stages after the first filter and mixer. This means it reduces gain without reducing the signal level presented to the front-end stages — so it does not help with front-end compression. However, it does reduce the overall IF level and therefore reduces the tendency of the AGC to operate in its gain-reduction range. The practical effect is similar to using attenuation in terms of the signal you hear, but the mechanisms are different.

Directional Antennas

A Yagi or other directional antenna provides front-to-back and front-to-side rejection. If the interfering signal comes from a different direction than your desired signal, a directional antenna aimed at the desired signal can reject the interferer by 20–30 dB relative to the main lobe. This is one of the most elegant solutions because it simultaneously improves the desired signal (by antenna gain in that direction) and reduces the interfering signal (by front-to-back ratio).

Blocking in Transmitters and T/R Switching

Desensitization and blocking are primarily receive-path problems, but there are related issues on the transmit side that affect nearby receivers.

When you transmit, your own transmitter output — typically +47 to +50 dBm (50–100 W) — is the strongest signal in your immediate vicinity. Even through 60–70 dB of transmit-to-receive isolation from your antenna switching, diplexers, and any receive filters, the residual transmitter energy reaching your receiver's front end may be high enough to cause blocking. In a well-designed transceiver, the T/R switch and any receive-path protection circuitry handles this. In systems where a transceiver is connected to a separate power amplifier and a different receive antenna, more care is needed.

T/R switching transients are a particular issue for nearby receivers. The moment your transmitter switches from transmit to receive, there is a brief transient — a spike of RF energy — that can reach your own receiver's front end before the T/R switch has fully activated the receive path protection. This transient can ring the AGC, causing a brief period of reduced gain immediately after the transmitter stops — often heard as a slight "clunk" or delayed recovery at the start of the received signal just after you release the PTT. Some transceivers allow you to adjust the T/R delay or AGC hang time to minimize this effect.

For stations running high-power amplifiers, the transmitter's phase noise and broadband noise floor can also desensitize nearby receivers. A 1 kW amplifier has a noise floor approximately 30 dB higher than a 1 W QRP radio — if that noise floor falls within a neighboring station's receive passband, it raises their effective noise floor. This is one reason why some contest stations use "quiet amplifiers" with better phase noise specifications and tighter harmonic filtering.
