Dynamic Range

Think of a camera being used to photograph a dimly lit subject with a bright window in the background. The camera can expose for the dim subject and blow out the window, or expose for the bright window and lose the subject in darkness. It cannot simultaneously render both correctly — its dynamic range is insufficient for the scene. A radio receiver faces exactly the same problem: it must receive an extremely weak DX signal that might be at −120 dBm while simultaneously tolerating a nearby ham transmitting 100 watts just a few kilohertz away — a signal that might arrive at −30 dBm. That is a difference of 90 dB, and the receiver must handle both without either failing to detect the weak signal or being overwhelmed by the strong one.

Dynamic range is not a single specification — it is a family of related measurements, each describing a different aspect of a receiver's ability to handle a wide range of signal levels. Understanding these measurements tells you far more about a radio's real-world HF performance than any specification sheet headline number can convey.

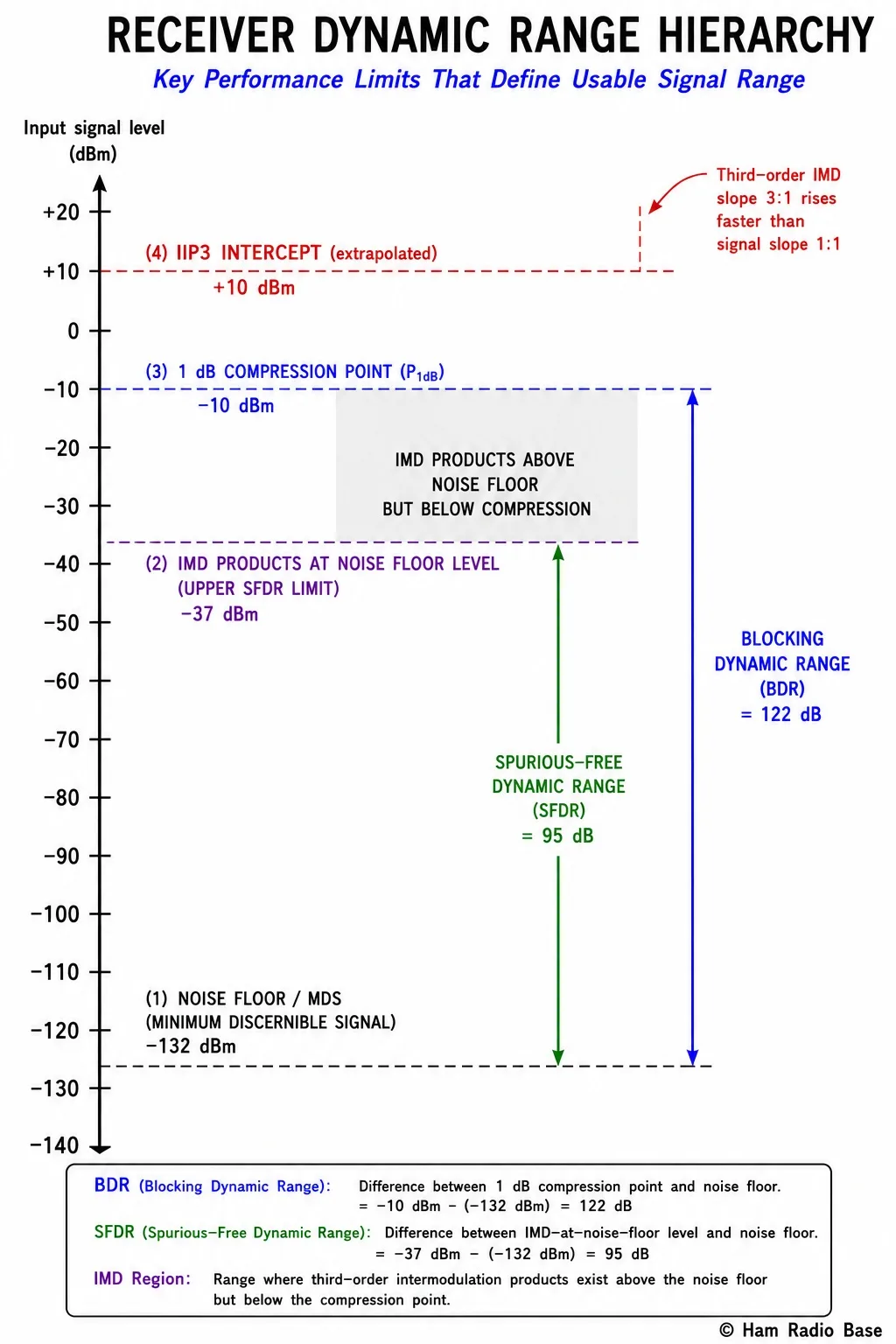

The dynamic range hierarchy of a receiver. The noise floor sets the bottom of the usable range. The spurious-free dynamic range (SFDR) is narrower than the blocking dynamic range (BDR) because IMD products emerge above the noise floor before compression occurs.

View Larger

What is Dynamic Range?

Dynamic range, in the context of a radio receiver, describes the range of signal levels over which the receiver operates properly. A receiver that cannot detect signals weaker than −100 dBm and distorts when input signals exceed −20 dBm has a dynamic range of 80 dB. In practice, both numbers are important — you want the bottom to be as low as possible (sensitive receiver, low noise floor) and the top to be as high as possible (capable of tolerating strong signals).

The complication is that "operates properly" has different meanings depending on what failure mode you are concerned about. Two different large-signal effects limit receiver performance in different ways:

• Compression (blocking): A very strong signal causes the receiver's gain stages to saturate — the gain drops. The weak signal you were trying to receive gets buried even further. This sets the blocking dynamic range.
• Intermodulation distortion (IMD): Two strong signals mix together in the receiver's nonlinear elements (especially the front-end mixer) and create phantom signals at new frequencies. These false signals can fall directly on a frequency you are trying to receive. This sets the spurious-free dynamic range, and it is always the more restrictive limit.

The reason these two failure modes are separate is that IMD products rise much faster with input level than compression. For every 1 dB increase in input signal level, third-order IMD products increase by 3 dB. This means IMD becomes problematic long before the receiver reaches compression, so the spurious-free dynamic range is always less than the blocking dynamic range. On a real HF band, it is almost always IMD, not compression, that limits your ability to hear weak signals in the presence of strong nearby ones.

Blocking Dynamic Range and the 1 dB Compression Point

Blocking dynamic range (BDR) describes how much stronger an interfering signal can be than the minimum detectable signal before the receiver's gain starts to drop significantly. The upper limit is defined by the 1 dB compression point — the input level where the receiver's small-signal gain has dropped by 1 dB due to saturation of active devices.

To make this concrete: a good modern HF transceiver might have the following specifications:

• Noise floor in 500 Hz bandwidth: −132 dBm (this is typical for a well-designed HF receiver)
• Input 1 dB compression point: −10 dBm
• BDR = −10 − (−132) = 122 dB

This means the receiver can tolerate a signal 122 dB stronger than the minimum detectable signal before compression sets in. That sounds impressive — and it is — but notice what it means in practice. If the noise floor is at −132 dBm (a very quiet, sensitive receiver), then compression begins at −10 dBm. And −10 dBm corresponds to about 100 microwatts of RF power at the antenna connector — which is what you would receive from a nearby ham transmitting 100 watts at a distance of perhaps a mile or two.

The ham radio context: near-far problem on HF

The reason BDR matters on HF is the enormous variation in signal levels that appear at the antenna simultaneously. Consider a 40m session during a contest:

• The DX station you want to work: arriving at −115 dBm (about S3–S4)
• A club member 20 miles away on 7.050 MHz: arriving at −40 dBm (S9+33 dB)
• A neighbor running a linear amplifier at 300 watts on 7.020 MHz: arriving at −30 dBm (S9+43 dB)

The range from the DX signal to the local station is 85 dB. If either local station reaches the 1 dB compression point of the receiver, gain to all signals drops. The DX station, which was barely audible at −115 dBm, becomes even more buried. This effect — a strong nearby signal blocking a weak desired signal — is called blocking or desensitization.

High-performance transceivers are designed to keep the 1 dB compression point as high as possible — meaning the front-end circuit can handle larger signals before saturating. A typical mid-range transceiver might have a P1dB of −15 to −10 dBm; a high-performance radio like an Elecraft K3 or Icom IC-7610 achieves P1dB of 0 to +10 dBm or better, adding 10–20 dB of blocking dynamic range.

Spurious-Free Dynamic Range (SFDR)

The spurious-free dynamic range (SFDR) is the more practically important specification on a crowded HF band. It describes the maximum signal level difference between a desired weak signal and two nearby strong signals before the strong signals' intermodulation products rise above the noise floor and create phantom interference.

The factor of 2/3 in this formula arises directly from the 3:1 slope of third-order IMD products. The full derivation is covered in the next lesson (Third-Order Intercept), but the intuition is: because IMD rises 3 dB for every 1 dB of input increase, the IMD products emerge above the noise floor at a signal level 2/3 of the way between the noise floor and the theoretical IP3 intercept point.

Why SFDR is always less than BDR

In the example above, the BDR was 122 dB but the SFDR is only 95 dB. This 27 dB gap is fundamental, not a design flaw. It exists because IMD products grow at three times the rate of the input signals. The 1 dB compression point occurs when the main signal gain drops 1 dB; at this point, the IMD products have long since emerged above the noise floor and are at significant levels.

The practical implication: on a crowded HF band, you will almost always experience IMD-caused phantom signals before you experience blocking. The receiver's front end does not need to be fully saturated to cause problems — just two strong nearby signals are enough to generate false interference that sounds exactly like a real station.

Typical SFDR values for real radios

The 1 dB Compression Point in Detail

Every active circuit — amplifiers, mixers, and the receiver as a whole — has a region of linear operation and a region where large signals cause nonlinear behavior. In the linear region, doubling the input signal doubles the output signal: gain is constant. As the input level increases further, the active devices (transistors, FETs) begin to approach their operating limits. The gain gradually decreases as the devices start to saturate.

The 1 dB compression point (P1dB) is defined as the specific input power level at which the measured gain is exactly 1 dB lower than the small-signal (linear) gain. The "1 dB" is chosen because it is a clearly measurable, well-defined departure from linearity. At this point, the device is running out of headroom — a further increase in input level will cause increasingly severe gain compression and distortion.

Why 1 dB specifically?

One dB is used as the reference because it represents a detectable but not catastrophic departure from linearity. The choice is a balance between:

• A small departure (0.1 dB) would be so close to the linear range that it would be hard to measure reproducibly and would have negligible effect on signals.
• A large departure (10 dB) would represent severe saturation where the device is well into its nonlinear region and producing significant harmonic distortion.

At P1dB, the device is clearly leaving the linear region and approaching saturation, making it a useful and consistent reference. Specifications beyond P1dB are generally not trusted for predictable linear performance.

Typical P1dB values for receiver components

The P1dB of the overall receiver is dominated by the first nonlinear stage — almost always the mixer, and sometimes the LNA if one is fitted at the antenna. A high-quality double-balanced mixer (DBM) operating at Level 17 (LO power +17 dBm) has a much higher P1dB than a Level-7 mixer, contributing directly to higher blocking dynamic range and SFDR.

Large-Signal Performance in Contest and DX Operating

Dynamic range specifications come to life — and matter enormously — during contest and DX pile-up operating. These are exactly the conditions where many strong signals appear simultaneously near the desired receive frequency, stressing the receiver's large-signal handling capability.

The 40m contest scenario

On a typical 40m contest weekend, the band from 7.000 to 7.300 MHz may have dozens of CW and SSB stations operating, many running legal limit power (1500 W in the US). If you are located in the Eastern United States, European stations running 400–1500 W may arrive at your antenna at signal levels of −50 to −30 dBm. US stations on adjacent channels may be even stronger. A 100 W station at your neighbor's QTH 500 feet away could easily produce −20 to −10 dBm at your antenna connector.

With two such strong signals 10–20 kHz apart, third-order IMD products can appear at the difference frequency and its combinations. If those products fall on the frequency of the DX station you are trying to work, you will hear a phantom signal — one that appears to be a real transmission but is actually created inside your receiver. This is one of the most frustrating phenomena in HF operating because the interference disappears when you tune away from either of the two strong stations, making it seem like a real but intermittent QRM source.

High-dynamic-range transceivers

The performance difference between a budget transceiver and a high-performance one is most visible under these conditions. Specifications to look for when comparing radios for contest or DX use:

The difference between an 80 dB SFDR radio and a 100 dB SFDR radio is 20 dB. This means the better radio can tolerate strong signals that are 10 times more powerful (in linear terms) before IMD products appear. In practice, this is the difference between hearing only real stations and hearing phantom signals on a busy 40m evening.

Using attenuators to improve effective dynamic range

One practical technique for improving large-signal performance when strong local stations are present is to deliberately add attenuation at the receiver input. This seems counterintuitive — why would you reduce incoming signal levels? — but the reasoning is sound.

If the noise floor is set by external atmospheric or man-made noise (which is common on HF below 30 MHz), attenuating everything at the antenna connector by 10 dB reduces the strong local stations' signal at the mixer by 10 dB. The desired weak DX signal also drops 10 dB, but so does the external noise — the SNR for the weak signal is unchanged. However, the IMD products drop by 30 dB (because they follow the 3:1 slope). The phantom interference disappears while the DX signal remains readable. Most modern HF transceivers have an RF attenuator (commonly 10 dB or 20 dB) for exactly this purpose.

SDRs and dynamic range

Software-defined radios have become popular for ham radio use, ranging from cheap RTL-SDR dongles to professional-grade receivers. Dynamic range is the critical specification for SDR receivers, and it is where cheap and expensive SDRs diverge most dramatically.

An RTL-SDR dongle uses a low-cost TV tuner chip with an 8-bit ADC. Eight bits gives a theoretical dynamic range of approximately 48 dB — far less than even a basic dedicated HF receiver. When you connect an RTL-SDR to an HF antenna and the band is busy, the strong station signals may fill the ADC's range, leaving insufficient resolution to represent the weak signals. The result is a noisy display with many false signals that are ADC artifacts rather than real transmissions.

Pairing an RTL-SDR with a good front-end that includes a band-pass filter (to reject out-of-band signals), a step attenuator, and a proper impedance match significantly improves the effective dynamic range by preventing the ADC from being overloaded by signals outside the desired band. High-quality SDR receivers like the Flex 6000 series or Anan SDRs use 16-bit ADCs with high-linearity front ends, achieving 90+ dB SFDR comparable to dedicated transceivers.

Interaction with AGC

Automatic Gain Control (AGC) is the receiver circuit that automatically adjusts the gain as signal levels change. When a strong signal arrives, the AGC reduces gain to prevent the audio stages from overloading. When the signal weakens, the AGC restores gain. AGC is essential for comfortable listening — without it, moving from a weak signal to a strong one would blast the operator's ears.

However, AGC has important limitations with respect to dynamic range and large-signal performance that are frequently misunderstood.

What AGC does and does not protect against

AGC protects the IF and audio stages from overload. It acts on stages after the mixer — typically on IF amplifiers before the main filter. This is crucial: the mixer and first RF amplifier (if any) receive signals before the AGC has had a chance to act. Intermodulation distortion created in the mixer by two strong signals is baked into the signal before AGC can do anything about it.

Think of it this way: the mixer is like a food blender. If you put two overpowering ingredients (strong signals) into the blender, the blended mixture (IF signal) will contain unwanted flavors (IMD products) that are now inseparable from the desired signal. The AGC is the volume knob on the speaker — it can make the blended mixture louder or quieter, but it cannot remove the unwanted flavors that were created inside the blender.

AGC attack and decay times and their effect

AGC performance is also characterized by its attack time (how quickly it responds to a sudden increase in signal strength) and decay time (how quickly it releases when the signal drops). These parameters affect both how the radio sounds and how it handles dynamic signal environments.

• Fast attack, fast decay: Responds quickly to signal changes. Can cause pumping or breathing artifacts on fading signals. Used for fast CW.
• Fast attack, slow decay: Reacts quickly to prevent overload, but holds the gain reduction after the strong signal disappears. This "hang" prevents gain from recovering during the brief pauses in SSB speech, reducing the pumping effect. Most radios default to this behavior.
• Slow attack: The first syllable or CW element at a new signal level may be distorted before the AGC catches up. Not desirable for most use.

During CW contest operation with a fast AGC, a very strong signal arriving on your receive frequency during another station's pause can slam the AGC down, momentarily reducing the gain to all signals. The DX station you are trying to copy may drop in level just as the interfering strong station comes on the air. This is another way that poor large-signal performance (expressed through AGC behavior) can degrade operating performance even when neither signal alone would cause a problem.
