Field Effect Transistors
The field effect transistor (FET) is a transistor with a fundamentally different control mechanism from the BJT you studied in the last lesson. Instead of using a base current to control a larger collector current, a FET uses an electric field — a voltage — to control current flow through a channel. Because the control terminal (the gate) draws virtually no current, FETs have an extremely high input impedance. This makes them ideal for the front end of sensitive receivers, audio preamps, and any application where loading the signal source would be unacceptable.
- FET families: JFET and MOSFET
- JFET construction and operation
- N-channel and P-channel JFETs
- Key JFET parameters: pinch-off voltage and transconductance
- Depletion mode operation
- JFETs in ham radio
FET Families: JFET and MOSFET
There are two main families of field effect transistors:
- JFET (Junction FET): Uses a reverse-biased PN junction as the gate. Always operates in depletion mode — current flows when no gate voltage is applied and is reduced by applying gate voltage. Good noise performance at RF. Covered in this lesson.
- MOSFET (Metal-Oxide-Semiconductor FET): Uses a thin insulating oxide layer to separate the gate from the channel. Can operate in depletion or enhancement mode. Dominant in digital logic and power switching applications. Covered in the next lesson.
JFET Construction and Operation
An N-channel JFET consists of a bar of N-type semiconductor (the channel) with two P-type regions diffused into the sides to form the gate junctions. Current flows from one end of the channel (the drain, connected to the positive supply) to the other end (the source, connected to ground or a lower voltage). The gate junction is always reverse-biased, so essentially no gate current flows — the gate input impedance is in the range of hundreds of megaohms.
When the gate is made more negative than the source, the depletion layers around the gate junctions grow inward and begin to squeeze the conducting channel. This is like pinching a hose — less channel area means less current can flow for a given drain-to-source voltage. When the gate voltage becomes negative enough, the depletion layers meet in the middle, completely pinching off the channel and reducing drain current to nearly zero.

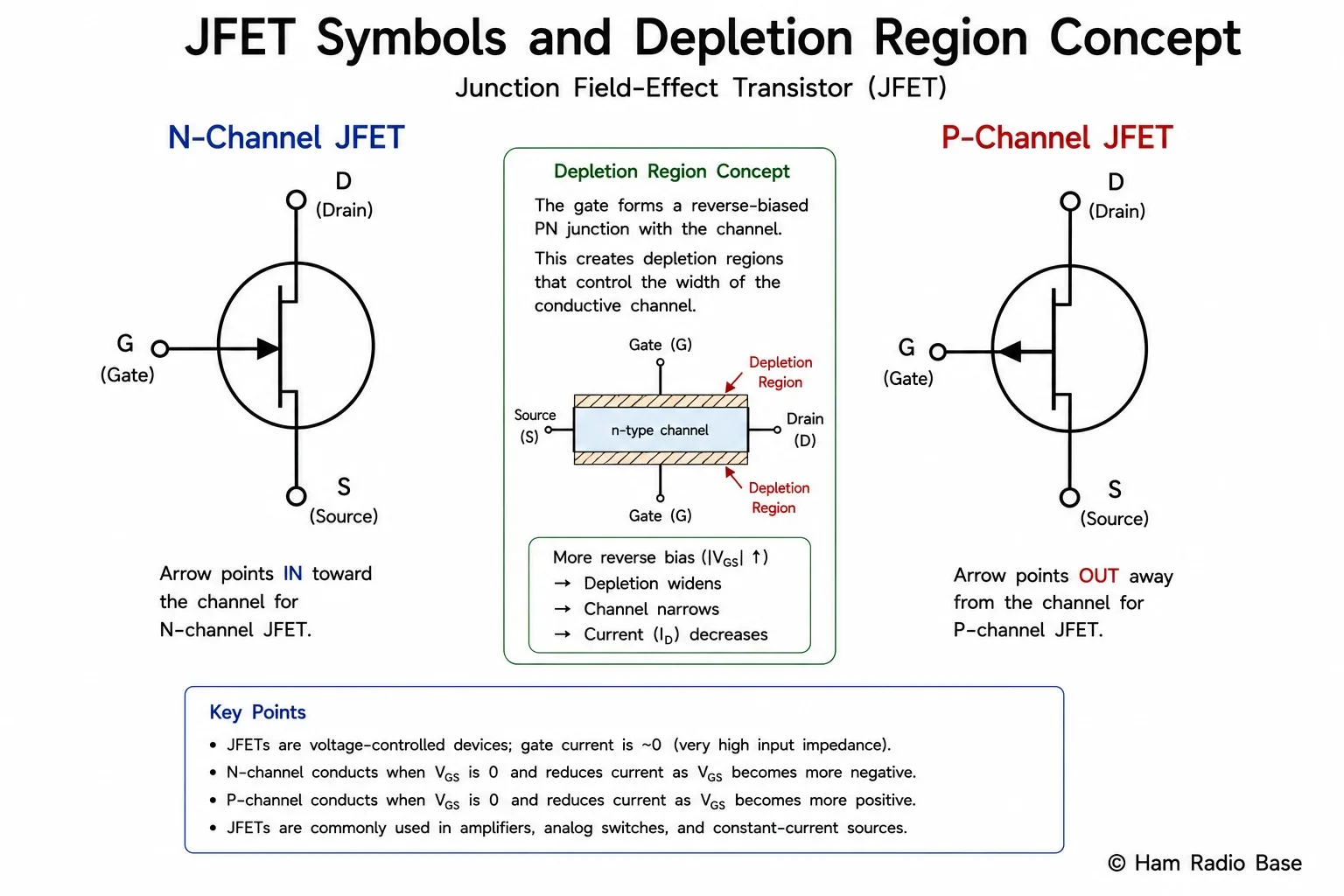

N-channel JFET (left) and P-channel JFET (right). The arrow on the gate indicates the direction of the PN junction — pointing inward for N-channel, outward for P-channel. Gate draws negligible current.
View LargerN-Channel and P-Channel JFETs
Just as with BJTs, JFETs come in two polarities:
- N-channel JFET: Current flows through an N-type channel from drain to source. Gate must be made negative relative to source to reduce channel current. The 2N5457, 2N3819, and J310 are common N-channel JFETs used in RF applications.
- P-channel JFET: Current flows through a P-type channel from source to drain. Gate must be made positive relative to source to reduce channel current. Less common than N-channel in RF work.
Key JFET Parameters
The two most important JFET parameters for circuit design are:
| Parameter | Symbol | Meaning |
|---|---|---|
| Pinch-off voltage | VP or VGS(off) | Gate-source voltage at which drain current falls to nearly zero. Negative for N-channel. Typical range: −0.5 V to −10 V. |
| Drain current at zero bias | IDSS | Drain current when VGS = 0. Maximum drain current for the device at a given drain-source voltage. Typical range: 1–30 mA. |
| Transconductance | gm | The gain parameter: change in drain current per unit change in gate voltage. Units: mA/V or millisiemens. Typical range: 1–15 mA/V. |
Transconductance is the JFET equivalent of the BJT's current gain. A higher gm means more drain current change for a given gate voltage swing, which translates to higher voltage gain in an amplifier stage (Voltage gain Av = gm × RD).
Depletion Mode Operation
The JFET is a depletion mode device: it is normally on with VGS = 0 and is turned off (or reduced) by applying a gate voltage. This is the opposite of enhancement-mode MOSFETs, which are normally off and require a gate voltage to turn them on. The depletion mode characteristic means JFETs can be self-biased with a simple source resistor — no separate negative supply is needed for the gate.
VGS = − ID × RS
A source resistor RS develops a voltage drop equal to the drain current times RS, making the source more positive than the gate (which is held at ground through the gate resistor). This automatically reverse-biases the gate-source junction and sets the operating point without any negative supply rail.
JFETs in Ham Radio
- Receiver front-end preamplifiers: The extremely high input impedance and good noise figure of JFETs make them ideal for the first stage of a receiver. The BF245, J310, and MPF102 are widely used in this role in homebrew HF receivers.
- Crystal oscillators: JFETs in common-gate or common-drain configuration provide stable, low-noise crystal oscillators for VFO and reference frequency circuits.
- Audio preamplifiers: Microphone preamplifiers benefit from the JFET's high input impedance — no loading of the microphone capsule. The 2N5457 is a common choice.
- RF mixer stages: Dual-gate JFETs and MOSFETs are used as balanced mixers in receiver designs because they can accept two RF signals and provide good dynamic range.
- Electronic switching: A JFET with the gate driven to pinch-off acts as a very high-impedance switch — the conducting resistance when fully on can be very low (below 100 Ω), useful for audio signal routing.
Frequently Asked Questions
Why does a JFET draw virtually no gate current?
The gate of a JFET is a reverse-biased PN junction. A reverse-biased junction has an extremely high impedance — only the tiny leakage current flows. This is why JFET gate input impedance is measured in hundreds of megaohms, compared to the few kilohms input impedance of a BJT base. The consequence is that the JFET does not load the signal source — it takes virtually no power from the source to control the drain current.
What is the difference between depletion mode and enhancement mode?
A depletion-mode device (like the JFET) is fully conducting with zero gate voltage and is turned off by applying gate voltage. An enhancement-mode device (like most power MOSFETs and digital logic transistors) is off with zero gate voltage and is turned on by applying gate voltage above a threshold. For a ham radio receiver front end, depletion mode is often preferred because the transistor can be biased with a simple self-bias resistor and does not need an active gate driver circuit.
Why are JFETs preferred over BJTs in some receiver front ends?
Two reasons: input impedance and noise. The JFET's near-infinite input impedance allows the antenna and filter network to present their designed impedance without being loaded by the amplifier input. The JFET also has an intrinsically lower noise contribution at lower frequencies than a BJT in the same role, because there is no shot noise from base current. At HF and below, a well-chosen JFET often gives a lower noise figure than a BJT, improving received signal quality.
