Filter Types Overview

A filter is a circuit that allows some frequencies to pass while blocking others. That simple description covers an enormous range of devices — from a $0.10 capacitor wired across a power rail to a precision crystal filter worth hundreds of dollars machined from quartz, from a two-component audio tone control to a seven-pole bandpass filter protecting a receiver front end from megawatt broadcast stations. Understanding what the different types of filters do and why they are used is the essential foundation before diving into specific filter designs.

In a ham radio station, you interact with filters constantly, even when you aren't aware of them. The harmonic suppression at your transmitter's output is a low-pass filter, required by FCC regulations to reduce spurious emissions. The selectivity that lets you hear one SSB signal in a pile-up while rejecting the station transmitting 3 kHz away is a crystal band-pass filter. The notch that silences a persistent heterodyne on a specific frequency is a band-stop filter. Filters are the guardians of spectral purity and the gatekeepers of selectivity.

The Four Filter Types

Every filter belongs to one of four fundamental categories, defined by which part of the frequency spectrum it passes and which it blocks. These categories apply regardless of whether the filter is built from coils and capacitors, quartz crystals, digital signal processing code, or a metal cavity at microwave frequencies.

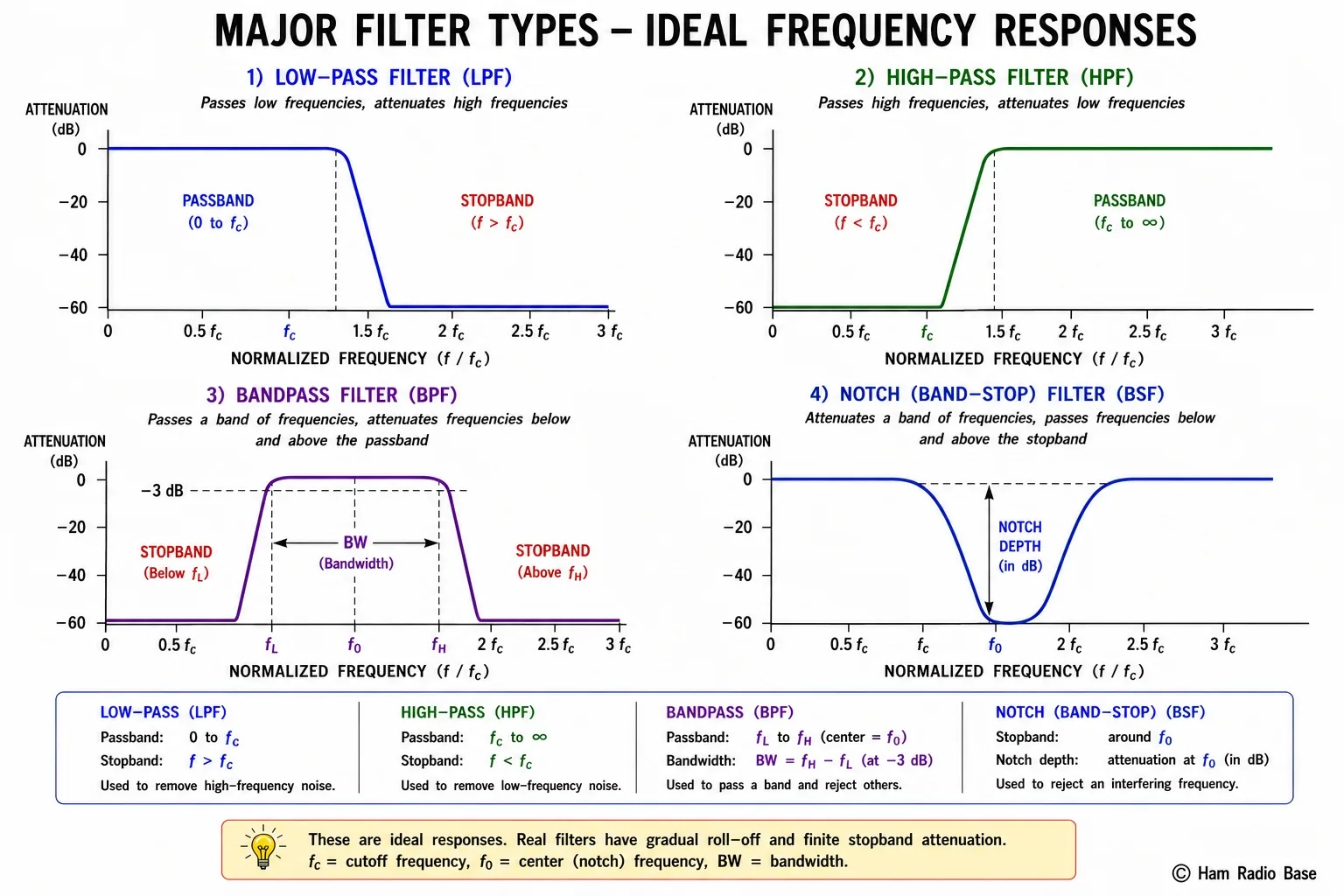

The four fundamental filter types: low-pass, high-pass, band-pass, and band-stop (notch). The shaded regions show the stopband; the flat regions show the passband.

View Larger

Low-Pass Filter (LPF)

A low-pass filter passes signals at frequencies below its cutoff frequency (f_c) and attenuates signals above f_c. Think of it as a drain strainer that blocks large particles but lets water flow freely. In radio, the most important low-pass filter is the harmonic suppressor fitted at the output of every transmitter. When your 100 W HF transmitter operates on 14.100 MHz, it also produces harmonics at 28.200 MHz (second harmonic), 42.300 MHz (third), and so on. The FCC Part 97 rules require that these harmonics be attenuated by at least 43 dB below the carrier power. A low-pass filter with a cutoff frequency just above the operating frequency passes the fundamental signal while rolling off the harmonics.

A practical low-pass filter for a 40m (7 MHz) transmitter would have its cutoff at roughly 10 MHz. Any signal below 10 MHz passes through with minimal loss (typically under 0.2 dB). At 14 MHz (second harmonic) the filter provides perhaps 30–40 dB of attenuation depending on the design and number of poles. The rolloff slope beyond f_c is determined by the filter order: a first-order filter rolls off at 20 dB per decade (6 dB per octave); a third-order filter rolls off at 60 dB per decade; a seventh-order filter at 140 dB per decade.

High-Pass Filter (HPF)

A high-pass filter is the mirror image of the low-pass: it passes signals above its cutoff frequency and attenuates those below. High-pass filters in amateur radio appear most often at the input of VHF and UHF receivers to block strong AM broadcast and HF signals from overloading the front end. A 2-meter receiver located near an AM broadcast tower may see AM signals of +30 dBm or more; without a high-pass filter with its cutoff around 100–130 MHz, those signals saturate the low-noise amplifier and render the receiver deaf.

Another common application is the AC coupling capacitor in an audio amplifier chain. A single capacitor in series with the signal path acts as a first-order high-pass filter; nothing above its cutoff frequency is blocked, but DC bias is rejected and the corner frequency can be set to filter out low-frequency hum or rumble.

Band-Pass Filter (BPF)

A band-pass filter passes a defined band of frequencies and attenuates everything above and below that band. The passband is centered on a center frequency f₀ and has a defined bandwidth, usually measured at the −3 dB points. Band-pass filters are the most important filter type in receiver design. Every superheterodyne receiver has at least one band-pass filter — the IF filter — and usually has a second one at the antenna input (the RF preselector or band filter) to reject image frequencies and large out-of-band interferers.

A typical HF receiver uses a bank of switched band-pass filters at the input, one per amateur band. When you switch from 40m to 20m, a relay selects the 14 MHz bandpass filter, presenting a 3–4 MHz bandwidth centered on 14 MHz. Only signals in the 40m band reach the mixer; strong AM broadcast stations at 1 MHz, shortwave broadcasts at 6 MHz, and VHF signals above 30 MHz are all attenuated before they even reach the first amplifier stage.

Band-Stop Filter (BSF) / Notch Filter

A band-stop filter, also called a notch filter or band-reject filter, attenuates a specific band of frequencies while passing everything above and below. It is the complement of the band-pass filter: the passband is everywhere except in the notch. Ham radio operators use notch filters to eliminate specific interferers — a heterodyne on a fixed frequency, switching power supply hash at a specific frequency, or a persistent interfering carrier from a neighboring station. Most modern transceivers include an audio notch filter (sometimes called an automatic notch filter or ANF) that automatically tracks and eliminates audio-frequency heterodynes.

Notch filters are also used at the antenna input of receivers in high-RF environments. A station located near an AM broadcast tower may need a notch at the broadcast frequency before the receiver front end, even in addition to the band-pass preselector. The notch must be deep — 40 dB or more of attenuation in a narrow bandwidth — to provide sufficient protection without disturbing the desired in-band signal.

Key Filter Parameters

When selecting or designing a filter, several parameters define its performance. Understanding these parameters lets you compare filters intelligently and match the filter to the application.

Cutoff Frequency (f_c)

The cutoff frequency is the boundary between the passband and the transition to the stopband. By convention, it is defined as the frequency at which the filter's insertion loss reaches 3 dB — i.e., where the output power drops to half the input power (or output voltage to 0.707 of input). For a low-pass transmitter filter on 40m, f_c might be set at 9 MHz, comfortably above the highest 40m frequency (7.300 MHz) but well below the second harmonic at 14.600 MHz.

For band-pass filters, the relevant frequency is the center frequency f₀. For a crystal IF filter at 9.0 MHz with 2.4 kHz bandwidth, f₀ = 9.000 MHz, and the 3 dB bandwidth runs from approximately 8.998.8 to 9.001.2 MHz.

Insertion Loss

Insertion loss is the attenuation introduced by the filter in its passband — the signal level reduction from input to output caused by resistive losses in the filter components themselves, not by deliberate signal rejection. A perfect filter would have zero insertion loss in the passband and infinite attenuation in the stopband. Real filters fall short of this ideal because real inductors and capacitors have resistance (the inductor Q is finite, never infinite).

For a high-Q LC filter — such as a 7-pole low-pass filter wound on silver-plated toroidal cores — insertion loss might be as low as 0.1 to 0.3 dB. For a crystal filter, insertion loss is typically 1 to 3 dB. For an active filter using an op-amp, loss in the passband is zero (the op-amp provides gain), but the filter cannot handle the power levels required in a transmitter output stage.

Passband Ripple

An ideal filter would have a perfectly flat response in the passband — the same gain at every frequency within the pass region. In practice, some filter designs intentionally allow the passband response to ripple up and down by a specified amount in order to achieve a sharper transition to the stopband. Butterworth filters have zero passband ripple (maximally flat). Chebyshev filters allow ripple, typically specified as 0.1 dB, 0.5 dB, or 1 dB. Elliptic filters have ripple in both the passband and the stopband. For audio applications, 0.5 dB of ripple is typically inaudible. For a receiver IF filter, even 0.5 dB of in-band ripple causes audible variations in speech quality and is usually undesirable; most communications-grade crystal filters aim for less than 1 dB passband ripple.

Stopband Attenuation

This is how much the filter suppresses signals in the stopband — the region beyond the transition band that the filter is supposed to block. It is measured in dB and must meet the system requirement. For a transmitter harmonic filter, the FCC requires harmonics to be at least 43 dB below the carrier for transmitters producing 5 W or more. A designer therefore needs the stopband attenuation at the second harmonic frequency to be at least 43 dB. Higher is better; practical designs typically aim for 50 to 60 dB of stopband attenuation to provide a comfortable safety margin.

Shape Factor

Shape factor describes how quickly a filter transitions from passband to stopband. It is defined as the ratio of the −60 dB bandwidth to the −6 dB bandwidth:

Shape factor matters most for IF filters where adjacent-channel selectivity is required. A low shape factor means the filter transitions sharply from full output to full attenuation, allowing signals very close to the channel of interest to be rejected without distorting the desired signal. Crystal and mechanical filters achieve the best shape factors; LC filters are generally inferior, which is why they are used for broad harmonic suppression rather than narrow selectivity.

Group Delay and Phase Response

Group delay is the time it takes for different frequency components to travel through the filter. An ideal filter has constant group delay across its passband (linear phase) so that all frequency components of a signal are delayed by the same amount and their timing relationships are preserved. Filters with non-constant group delay introduce phase distortion that can smear transient signals.

For voice SSB, some phase distortion is acceptable because the ear is relatively insensitive to phase. For digital modes and FSK, phase distortion can cause intersymbol interference and degrade bit error rates. Bessel filters have maximally flat group delay (the most constant group delay of any classical filter family) at the expense of gentle rolloff. Butterworth and Chebyshev filters have worse group delay near the cutoff frequency. Elliptic filters have the most uneven group delay. When designing an IF filter for a digital mode transceiver, group delay should be considered alongside stopband attenuation.

The Three Classical Filter Families

Filter theory has produced many different mathematical optimization criteria, each representing a different choice about what to sacrifice and what to preserve. Three families dominate practical radio design, and understanding their trade-offs is essential before diving into component values and design tables.

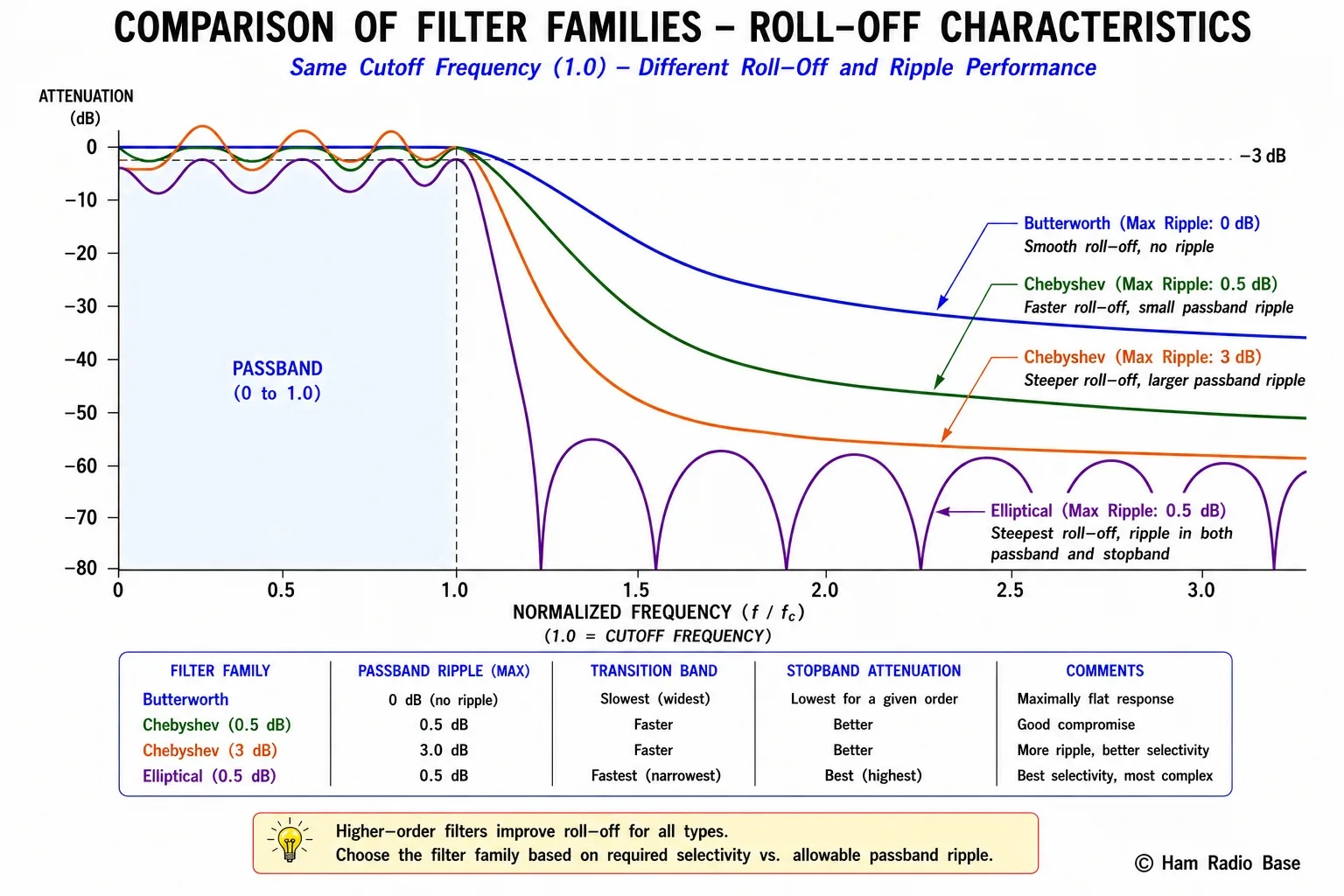

Comparing the three classical filter families at the same filter order. The elliptical filter achieves the sharpest transition but at the cost of ripple in both passband and stopband.

View Larger

Butterworth — Maximally Flat Magnitude

The Butterworth filter, described by British engineer Stephen Butterworth in 1930, optimizes for a perfectly flat passband response. At no frequency within the passband does the response ripple; it decreases monotonically as frequency increases, reaching −3 dB at f_c and then rolling off into the stopband. The rolloff slope in the stopband is −20n dB per decade, where n is the filter order. A third-order Butterworth rolls off at −60 dB/decade; a fifth-order at −100 dB/decade.

The Butterworth filter's great strength — its perfectly flat passband — is also its weakness. By insisting on zero passband ripple, it must use a gentle transition from passband to stopband. For a given order n, it achieves less stopband attenuation at any given frequency ratio than a Chebyshev or elliptic filter. Where simplicity and a clean passband matter more than a sharp cutoff, the Butterworth is the natural choice. Transmitter harmonic filters are a common application: a 5th-order Butterworth low-pass filter for 40m provides adequate harmonic suppression, and because the passband is flat, the fundamental signal passes through with minimal distortion.

Chebyshev — Equiripple Passband

The Chebyshev filter (named after the Russian mathematician Pafnuty Chebyshev) accepts a specified amount of equal-amplitude ripple in the passband in exchange for a significantly sharper transition to the stopband. The passband response oscillates between two bounds — (0 dB and −R_dB) where R is the ripple specification — but outside those bounds, the stopband attenuation is substantially greater than a Butterworth of the same order.

As a concrete example, consider a 5th-order filter protecting a 10m transmitter, with f_c = 35 MHz. At 70 MHz (second harmonic) the normalized frequency ratio is 2:1. A 5th-order Butterworth provides about 30 dB of attenuation at that point. A 5th-order Chebyshev with 0.5 dB passband ripple provides about 42 dB. If you need 43 dB of harmonic suppression and are using a Butterworth, you may need to step up to a 6th or 7th order; the Chebyshev achieves the same result with fewer poles and fewer components.

The practical cost of Chebyshev ripple is modest for most applications. In a transmitter low-pass filter, the 0.5 dB of passband ripple means the filter slightly favors some frequencies over others within the passband — an effect that is negligible for voice SSB. For a precision test signal path or a data modulation where amplitude flatness matters, Chebyshev ripple may be unacceptable, but for protective harmonic filtering it is an excellent trade.

Elliptical (Cauer) — Equiripple in Both Bands

The elliptical filter, also called the Cauer filter after the German mathematician Wilhelm Cauer, goes further still. It accepts ripple in both the passband and the stopband in exchange for the absolute minimum transition bandwidth for a given filter order. Elliptical filters achieve their sharp rolloff by placing transmission zeros — specific frequencies at which the filter output is theoretically zero — in the stopband. These zeros correspond to parallel resonant circuits or bridging elements in the filter topology that create deep notches at specific frequencies.

An elliptic filter can achieve a given attenuation level at a closer frequency ratio than either Butterworth or Chebyshev, meaning you can use fewer components to meet a given specification. For a crystal IF filter needing 60 dB of attenuation within 2 kHz of the passband edge, an elliptic response may permit a 6-pole design where a Chebyshev would need 8 poles. The penalties are complexity (extra bridging components), sensitivity to component tolerances, and non-monotonic stopband response (the attenuation has guaranteed minimum and maximum values, but is not uniformly high across the entire stopband — it is "guaranteed at least X dB everywhere beyond the transition band").

Bessel — Linear Phase

Though less commonly encountered in RF filters, the Bessel filter (named after Friedrich Bessel) deserves mention for completeness. It is optimized for constant group delay across the passband, meaning all frequencies within the passband are delayed by the same amount. This preserves the shape of transient signals passing through the filter — important in pulse and digital applications. The trade-off is a very gentle rolloff, even softer than Butterworth. Bessel filters are rarely used for RF selectivity but appear in anti-aliasing filters for audio ADC inputs where phase response must be flat.

How Filters Are Built

The same mathematical filter response can be physically realized in many different ways, each suited to a different frequency range, power level, and cost point.

LC (Inductor-Capacitor) Filters

LC filters are the workhorses of RF filter design from audio frequencies up through VHF. They consist of inductors and capacitors arranged in a ladder network. Inductors resist changes in current (they pass low frequencies easily but impede high frequencies); capacitors resist changes in voltage (they pass high frequencies but block DC and low frequencies). By arranging inductors in series and capacitors in shunt — or vice versa — you create low-pass or high-pass characteristics. Combining both produces band-pass and band-stop responses.

The primary limitation of LC filters at higher frequencies is inductor Q. A toroidal inductor wound on a high-permeability ferrite core might have a Q of 100 to 200 at HF. At 500 MHz, achieving that Q requires a tiny air-wound coil with only a few turns, and the self-capacitance of the coil begins to dominate at even higher frequencies. Above roughly 200–300 MHz, LC filters become impractically small and their Q inadequate for sharp filtering. For HF transmitter output filtering and receiver preselector filters up to 30 MHz, LC is the dominant technology.

Crystal Filters

Quartz crystals are mechanical resonators that exhibit very high Q — typically 20,000 to 100,000 for AT-cut crystals in a few-MHz to few-tens-of-MHz frequency range. A crystal resonator has both a series resonant frequency and a parallel resonant frequency a few hundred ppm apart, which allows both passband and rejection to be engineered precisely. Crystal filters are used almost exclusively for IF filtering in superheterodyne receivers, where the required bandwidth is too narrow (1 to 10 kHz) to achieve economically with LC components at IF frequencies of 450 kHz to 10 MHz. Most HF SSB transceivers use a 2.4 kHz crystal filter at 9 or 10 MHz. CW transceivers use a 500 Hz crystal filter at the same IF.

Cavity and Helical Filters

Above 100 MHz, the solution is resonant metal structures. A cavity filter uses a hollow metal enclosure (cylindrical or rectangular) whose dimensions are set to resonate at the desired frequency. A helical filter combines a wound coil inside a metal cavity, achieving high Q while being more compact than a pure cavity. At 144 MHz, a properly constructed helical resonator can have a Q of 800–2000, far exceeding what any lumped LC component can achieve. Cavity and helical filters are the standard solution for VHF/UHF duplexers and repeater filters.

Active Filters

Active filters use op-amps or other amplifiers in combination with resistors and capacitors to realize filter functions. They can achieve any desired response up to the bandwidth limit of the amplifier, without using inductors (which are bulky, expensive, and lossy at audio frequencies). Active filters are used in the audio processing chain of transceivers — audio bandpass filters to optimize intelligibility, audio notch filters to kill heterodynes, and de-emphasis networks. They cannot be used at RF frequencies above a few MHz because op-amps run out of gain-bandwidth product, and they obviously cannot be used in a transmitter output where kilowatts of RF must pass through the filter.

Digital / DSP Filters

Software-defined radios (SDR) and modern DSP-based transceivers implement filters in software running on DSP chips or FPGAs. A digital FIR or IIR filter running at 24 bits and 100 kHz sample rate can achieve filter responses that would be physically impossible to build in hardware — a rectangular bandpass filter with perfectly flat passband, perfectly vertical skirts, and unlimited stopband attenuation. The practical limits are the sample rate (which determines the maximum frequency the filter can handle) and the number of taps (which determines sharpness). DSP filtering is covered in Module 18.

Where Filters Appear in a Radio Station

Let's trace the signal path through a complete HF SSB station and identify every filter encountered:

Transmitter Path

Starting at the microphone: an audio bandpass filter shapes the audio spectrum to 300–3000 Hz, removing low-frequency hum and high-frequency hiss before the audio reaches the DSP modulator. After the DSP generates the SSB signal at a low IF, a crystal SSB filter at the first IF frequency removes the unwanted sideband and restricts the bandwidth. The final IF signal is upconverted to the operating frequency and amplified to full power. Between the final power amplifier and the antenna connector, a low-pass harmonic filter (typically 7-pole Chebyshev) provides the FCC-mandated harmonic suppression. Many transceivers include switched filters, one per amateur band, to optimize the cutoff for each band.

Receiver Path

At the antenna connector, a bandpass preselector filter (or switched bank of bandpass filters) limits the input to the current amateur band, rejecting strong out-of-band signals before they reach the mixer. This is followed by the low-noise amplifier (LNA). After the first mixer converts to the first IF (typically 45, 70, or even 455 MHz for modern radios), a roofing filter — a relatively broad bandpass filter (typically 15–30 kHz wide) — limits the bandwidth before the second mixer, preventing strong adjacent signals from causing intermodulation distortion in the IF amplifier chain. After the second mixing to the second IF (typically 9 or 10 MHz), the IF crystal filter provides the final selectivity: 2.4 kHz for SSB, 500 Hz for CW, or 8 kHz for AM. After detection, an audio bandpass filter shapes the audio for the speaker.

Antenna System

Band-pass filters may appear at the antenna feedpoint or at the transceiver's antenna input when operating in a multi-transmitter environment (contest station, multi-op setup). A low-pass filter at the antenna input protects the receiver from TV broadcast signals above 50 MHz. A band-stop notch filter may be inserted to suppress a specific interferrer — for example, an AM broadcast station at 1.0 MHz that is covering the 160m band.

Power Supply

Even the power supply has filters: pi-section LC low-pass filters on the DC output smooth ripple from the rectifier, and bypass capacitors throughout the circuit prevent RF from coupling onto the DC supply lines and causing instability.

How to Choose the Right Filter

When faced with a filtering problem, the selection process follows a logical sequence:

Step 1: Identify the topology. What frequencies must pass and what must be blocked? If you need to suppress harmonics above a certain frequency, you need a low-pass filter. If you need to select one amateur band from all received signals, you need a band-pass filter. If you need to eliminate a single interfering frequency, you need a band-stop notch.

Step 2: Define the requirements. What is the passband frequency range? What is the minimum stopband attenuation at the critical interference frequency? What is the maximum acceptable insertion loss in the passband? What ripple is acceptable?

Step 3: Choose the implementation technology. What frequency range? What power level? What physical size and cost constraints? LC filters work excellently from DC to about 200 MHz at power levels from milliwatts to kilowatts. Crystal filters are required when bandwidth below about 20 kHz is needed at IF frequencies. Cavity and helical filters are required above 100 MHz for high-Q bandpass performance.

Step 4: Choose the filter family. If insertion loss and passband flatness are paramount, use Butterworth. If you need sharper rolloff with acceptable passband ripple, use Chebyshev. If you need the absolute sharpest transition and can accept complex topology, use elliptic. If constant group delay matters, consider Bessel.

Step 5: Determine the required order (number of poles). The order is the minimum number that provides the required stopband attenuation at the specified frequency ratio. Filter design tables (available in textbooks and many online resources) give component values for each order and each family. The next three lessons cover this process in detail for each family.
