How RF Travels

When you press the transmit button, your signal leaves the antenna and begins a journey. That journey might cover 10 kilometers or 40,000 kilometers, travel in a straight line or bounce between Earth and the ionosphere multiple times, hug the ground or soar through the sky. The path a radio wave takes — and whether it reaches its destination at all — depends primarily on one thing: frequency. Understanding which propagation mechanism operates at which frequency is the foundation of strategic operating, and it is what separates operators who know why a contact works from those who simply hope it will.

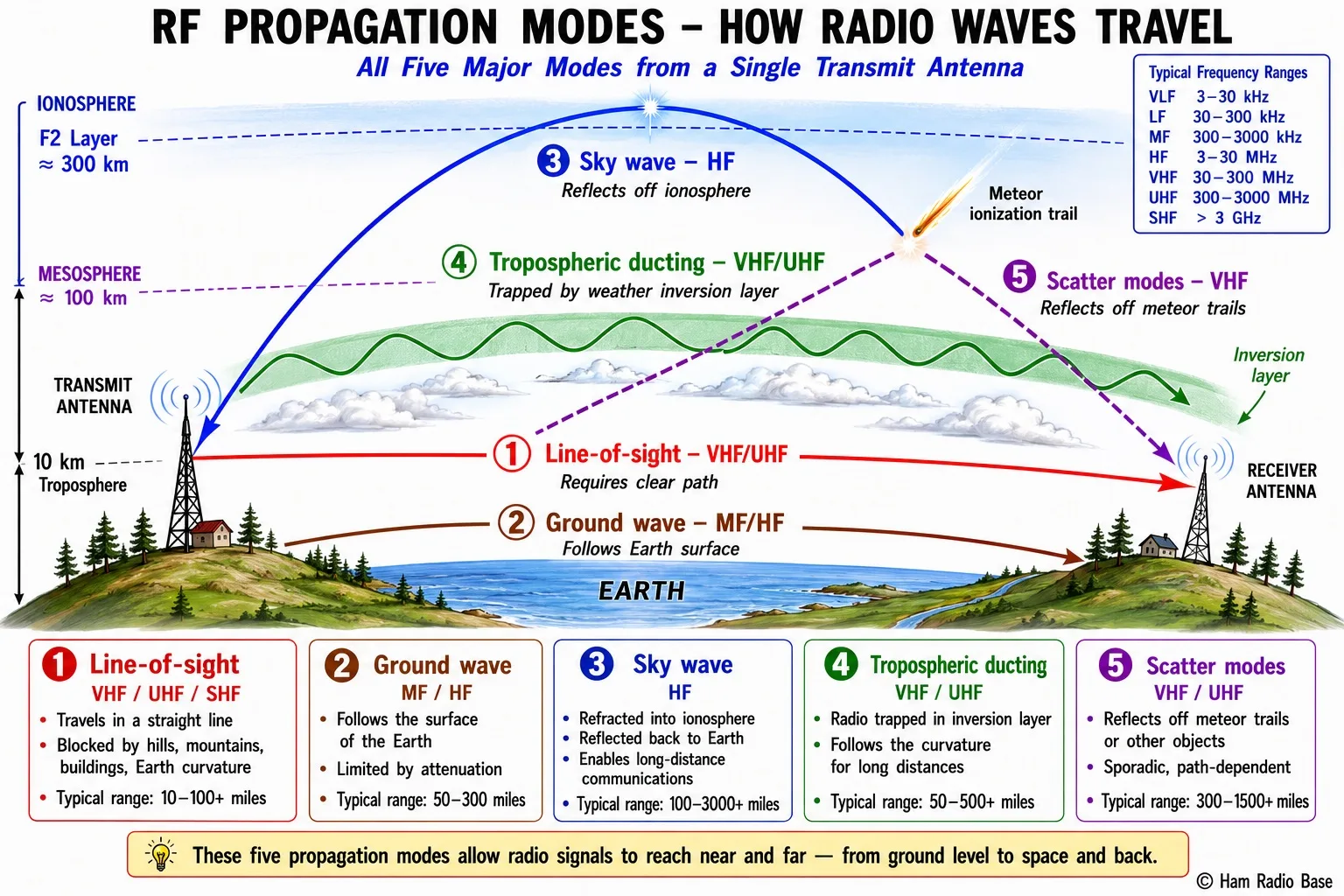

The five main propagation mechanisms: line-of-sight, ground wave, ionospheric sky wave, tropospheric ducting, and scatter modes. Frequency determines which mechanism dominates.

View Larger

The Five Propagation Mechanisms

Radio waves can travel from transmitter to receiver by five distinct physical mechanisms. Understanding each one — its physics, its typical frequency range, and its characteristics — gives you the vocabulary to discuss propagation intelligently and the knowledge to exploit whatever mode is active on a given day.

1. Line-of-sight (LOS): Direct path through the air, with the receiver in the "radio horizon" of the transmitter. Works above about 30 MHz. Subject to physical obstructions.
2. Ground wave: The signal travels along the Earth's curved surface by diffraction. Effective below about 10 MHz. Attenuates rapidly with frequency and distance.
3. Sky wave (ionospheric): The signal is refracted (bent) back to Earth by the ionized upper atmosphere. The workhorse of HF amateur radio. Works roughly 3–30 MHz under good conditions.
4. Tropospheric modes: The signal is bent or ducted by variations in the lower atmosphere (temperature inversions, changes in water vapor). Extends VHF/UHF beyond line-of-sight by tens to hundreds of kilometers.
5. Scatter modes: The signal scatters off irregularities in the atmosphere (troposcatter), ionosphere (ionospheric scatter), meteor trails (meteor scatter), or the Moon (Earth-Moon-Earth). Enables very long paths on VHF and above.

Each mechanism is not exclusive — on many bands, two or three modes operate simultaneously with different delay times, creating multipath propagation. On 10 meters, for example, you might receive a signal via a ground wave component from a local station at the same time as ionospheric sky wave brings in a DX station. On 144 MHz, local contacts use line-of-sight while a duct simultaneously brings in signals from hundreds of kilometers away. Knowing which mode is active — and for which signals — helps you interpret what you are hearing.

Line-of-Sight Propagation

Line-of-sight is the simplest propagation mechanism: the signal travels in a straight line from transmitter to receiver with essentially no interaction with the atmosphere (beyond a small amount of attenuation in humid air at very high frequencies). For this to work, both antennas must be within each other's radio horizon — the maximum distance at which a straight path between them clears the curved surface of the Earth.

Radio waves actually travel slightly beyond the optical line of sight because the atmosphere refracts (bends) them gently downward, following the Earth's curvature. This atmospheric refraction is characterized by a factor k (approximately 4/3 for typical conditions), which effectively makes the Earth appear slightly larger. As a result, the radio horizon is about one-third farther than the optical horizon. The radio horizon distance in kilometers is approximately:

Line-of-sight is the dominant mode from roughly 30 MHz (10 meters) upward, and it is the only reliable mode above a few hundred megahertz for terrestrial contacts under normal conditions. This is why VHF and UHF FM repeaters are placed on high sites (hilltops, tall buildings, towers): maximum height translates directly to maximum radio horizon coverage. A repeater at 300 meters above sea level provides a radio horizon of about 80 km to a mobile at ground level — far more than any ground-level antenna.

Knife-edge diffraction allows some signal to bend around terrain obstacles — mountains and ridges can partially shield a path but do not completely block it if the geometry is right. Highly populated VHF contests include many contacts that depend on knife-edge diffraction over ridgelines, achieving contacts tens of kilometers longer than the line-of-sight distance might suggest.

Ground Wave

Ground wave propagation works by a phenomenon called diffraction — the bending of waves around obstacles, in this case the curved surface of the Earth itself. As a low-frequency radio wave travels along the surface, it continuously diffracts around the Earth's curvature, following it like water flowing over a hill. The wave induces currents in the ground as it passes, and those surface currents help guide and sustain the wave.

Ground wave is effective primarily below about 10 MHz, and it becomes the dominant mode for long-range coverage below 2 MHz. The AM broadcast band (0.53–1.7 MHz), maritime mobile communications (HF and MF), and the 160-meter amateur band (1.8–2.0 MHz) all rely heavily on ground wave for reliable coverage. A 1 MHz AM broadcast station with a powerful transmitter and a good ground system can provide consistent ground wave coverage over a radius of 200–300 km. At 7 MHz (40 meters), the same transmitter power provides ground wave coverage only to perhaps 100–150 km.

Ground wave requires vertical polarization. Horizontally polarized waves are rapidly absorbed by the ground as the horizontal E-field drives currents into the earth. Vertically polarized waves have their E-field parallel to the vertical surface of the Earth, which allows them to travel along the surface with less absorption. This is why medium-wave broadcast stations and maritime antennas are all vertical.

Ground conductivity matters enormously for ground wave range. Seawater is an exceptional conductor (about 4 S/m), and the ground wave range over the ocean is several times greater than over dry land. AM broadcast stations deliberately orient their antennas toward the sea when their service area allows it, to maximize coverage using the superior conductivity of the ocean.

Sky Wave (Ionospheric Propagation)

Sky wave propagation uses the ionosphere — a region of the upper atmosphere from about 60 to 1000 km altitude where solar radiation has ionized gas molecules, creating a layer of free electrons and ions. This ionized layer has a refractive index for radio waves that decreases with altitude as electron density increases, causing radio waves to gradually bend back toward the Earth in a process that looks like reflection but is actually continuous refraction.

The frequency range for sky wave propagation is approximately 3–30 MHz under typical conditions, though the exact limits depend strongly on solar activity, time of day, season, and the specific geometry of the path. At frequencies below about 3 MHz, the D layer (a lower, absorbing layer of the ionosphere that exists during daytime) absorbs the signal before it can reach the reflective F layer. At frequencies above about 30 MHz, the wave passes straight through the ionosphere into space rather than being bent back.

Sky wave is the mechanism that makes worldwide HF communication possible. A single "hop" of sky wave can cover 2,000–4,000 km. Multiple hops — where the signal bounces off the ionosphere, comes back down to Earth, reflects off the ground, and goes back up to the ionosphere — can cover any distance around the globe. Experienced DX operators have worked every country on Earth using sky wave propagation on the HF bands, often at power levels of 100 watts or less.

Sky wave propagation changes constantly. The ionosphere is not a fixed mirror but a dynamic, constantly varying medium that responds to solar events within hours, shows predictable day/night patterns, and follows seasonal and solar-cycle trends over months and years. Learning to work with these variations — choosing the right band for the right path at the right time — is a major part of HF operating skill. The next several lessons of this module are devoted entirely to understanding the ionosphere and how to use it effectively.

Tropospheric Modes

The troposphere is the lowest layer of the Earth's atmosphere, extending from the surface to about 12 km altitude. It contains virtually all weather, water vapor, and most of the atmospheric mass. The troposphere is not uniformly mixed — it contains layers of air with different temperatures, humidity, and density. These variations in atmospheric structure can bend VHF and UHF signals, extending their range beyond the geometric radio horizon.

The most significant tropospheric propagation mode is ducting, which occurs when a temperature inversion (a warm air layer above cooler surface air, the opposite of the normal temperature decrease with altitude) creates a waveguide effect. Signals trapped in the duct can travel hundreds to over a thousand kilometers with surprisingly little loss. Ducting is most common over the ocean and coastal areas, where marine layers create strong, persistent temperature inversions.

Troposcatter — a different tropospheric mode — uses incoherent scattering from turbulence and irregularities in the troposphere to transfer signal energy beyond the horizon. It is not as dramatic as ducting, but it is more consistent and reliable. Troposcatter is used in professional military and government communication systems for beyond-the-horizon VHF links of several hundred kilometers.

Scatter Modes

Scatter propagation covers several mechanisms where the signal does not take a smooth, direct path but instead scatters off some structure in the environment. The scattered energy is much weaker than the incident signal — scatter modes require strong signals and sensitive receivers — but they enable contacts that would otherwise be completely impossible.

Meteor scatter uses the brief ionized trails left by meteors entering the atmosphere at 80–120 km altitude. As a meteor ablates (vaporizes), it ionizes the surrounding air into a column that reflects VHF signals for a fraction of a second to several seconds. Modern digital modes like MSK144 are designed to compress a complete contact into these brief reflective windows, enabling meteor scatter contacts on 6 meters and 2 meters that would be impossible by any other means.

Earth-Moon-Earth (EME or "moonbounce") uses the Moon as a passive reflector. A signal travels 384,000 km to the Moon and another 384,000 km back — a round trip of about 2.6 seconds. The path loss is enormous (about 252 dB at 144 MHz), requiring large antenna arrays, high power, and very sensitive receivers. Yet modern digital modes like JT65 and Q65 have made EME accessible to stations with modest equipment, and a complete worldwide amateur EME community operates on multiple bands from 6 meters through microwave.

How Frequency Determines the Mode

The frequency of a radio wave is the primary factor that determines which propagation mechanism will carry it. This relationship between frequency and propagation mode is fundamental and cannot be overridden by transmitter power or antenna design — it is determined by physics.

The key physical interactions are:

• Below 300 kHz (VLF/LF): The Earth-ionosphere waveguide is the primary mode. The entire space between the ground and the D layer acts as a waveguide, allowing VLF signals to travel globally with high reliability. Used for submarine communication and navigation.
• 300 kHz – 3 MHz (MF): Ground wave dominates during the day. At night, the D layer disappears and sky wave becomes very effective — hence the skip interference on AM broadcast at night, when distant stations suddenly appear.
• 3 – 30 MHz (HF): Sky wave is the primary long-distance mode. Ground wave extends only a few hundred kilometers. Multiple amateur bands occupy this range, and this is where DX operating happens.
• 30 – 300 MHz (VHF): Line-of-sight dominates. Ground wave negligible. Sky wave normally passes through the ionosphere. Tropospheric modes and sporadic E can occasionally extend range dramatically.
• 300 MHz and above (UHF and microwave): Strictly line-of-sight under normal conditions. Tropospheric bending provides modest range extension. Rain attenuation becomes significant above about 10 GHz.
