How to Read a Schematic

Knowing individual symbols is not the same as being able to read a complete schematic. A real circuit diagram can contain dozens of components connected in ways that initially look chaotic. This lesson gives you a repeatable method to approach any schematic and extract the information you need.

Step 1 — Get Oriented

Before you try to understand anything specific, spend a few seconds looking at the schematic as a whole. You are trying to answer three questions:

• How big is this circuit? A handful of components, or dozens?
• Is there a title block? Professional schematics include a title, revision number, date and designer name in the bottom-right corner. This tells you what the circuit is supposed to do.
• Is there a notes section? Notes list assumptions and special requirements — for example, "all resistors 1/4 W unless marked" or "C5 must be a film type."

Schematics are conventionally drawn so that signal flow moves from left to right, just as you read text. The input (antenna, microphone, power switch) is on the left; the output (speaker, transmitter output, display) is on the right. Power enters from the top; ground is at the bottom. This is a convention, not a rule, but the majority of professional schematics follow it.

Step 2 — Identify Power and Ground

Find the power supply connections before anything else. These are the rails that feed every active component in the circuit. Look for:

• Labelled voltage symbols such as +12V, VCC, VDD or V+
• Ground symbols — earth, chassis or signal ground
• A power supply block or voltage regulator near the top or bottom of the diagram
• Decoupling capacitors (small capacitors between supply and ground) near each active component

Once you know where power comes in and where ground is, you have the context for everything else. Every active component (transistor, op-amp, IC) must have a supply voltage and a ground connection to operate. If you cannot find the supply connection for a component, look for a net label — a floating wire end labelled VCC or +5V that connects to the supply by name rather than by a drawn wire.

Step 3 — Identify the Functional Stages

Most practical circuits are built from a series of functional blocks or stages, each performing a distinct job. Common stages in radio and audio circuits include:

Look for the boundaries between stages. They are usually visible as a change in component type, or sometimes as a dashed box drawn around a group of components with a label such as "IF amplifier" or "audio stage." Coupling capacitors — capacitors in series with the signal path — often mark the junction between one stage and the next.

Step 4 — Trace the Main Signal Path

With the stages identified, trace the main signal from input to output. Start at the input connector and follow the wire forward. At each component ask: what does this component do to the signal? Does it amplify it, filter it, shift its phase, change its frequency, or convert it to a different form?

Keep a mental or written note of the signal level as you go. A typical receive chain might start with a weak signal at the antenna, gain 20 dB in the low-noise amplifier, pass through a bandpass filter, gain another 20 dB in the IF amplifier and arrive at the detector at a comfortable level for demodulation.

Watch out for feedback paths — wires that carry a portion of the output signal back to an earlier stage. Feedback is used to control gain, stabilize bias, and in oscillators to sustain oscillation. A feedback path runs from right to left on the schematic (against the normal signal flow direction) and is a deliberate design feature, not an error.

Step 5 — Study the Details

Once you understand the overall signal flow, go back and study individual components in context:

• Resistors — are they setting bias voltages, limiting current, or forming a voltage divider? Check the values.
• Capacitors — are they coupling (series in the signal path, blocking DC), bypassing (shunt to ground, removing unwanted signals), or part of an LC filter?
• Inductors — are they part of an LC filter, an RF choke (blocking RF while passing DC), or a transformer?
• Transistors — what configuration are they in? Common emitter (amplification), emitter follower (impedance matching), or switch?

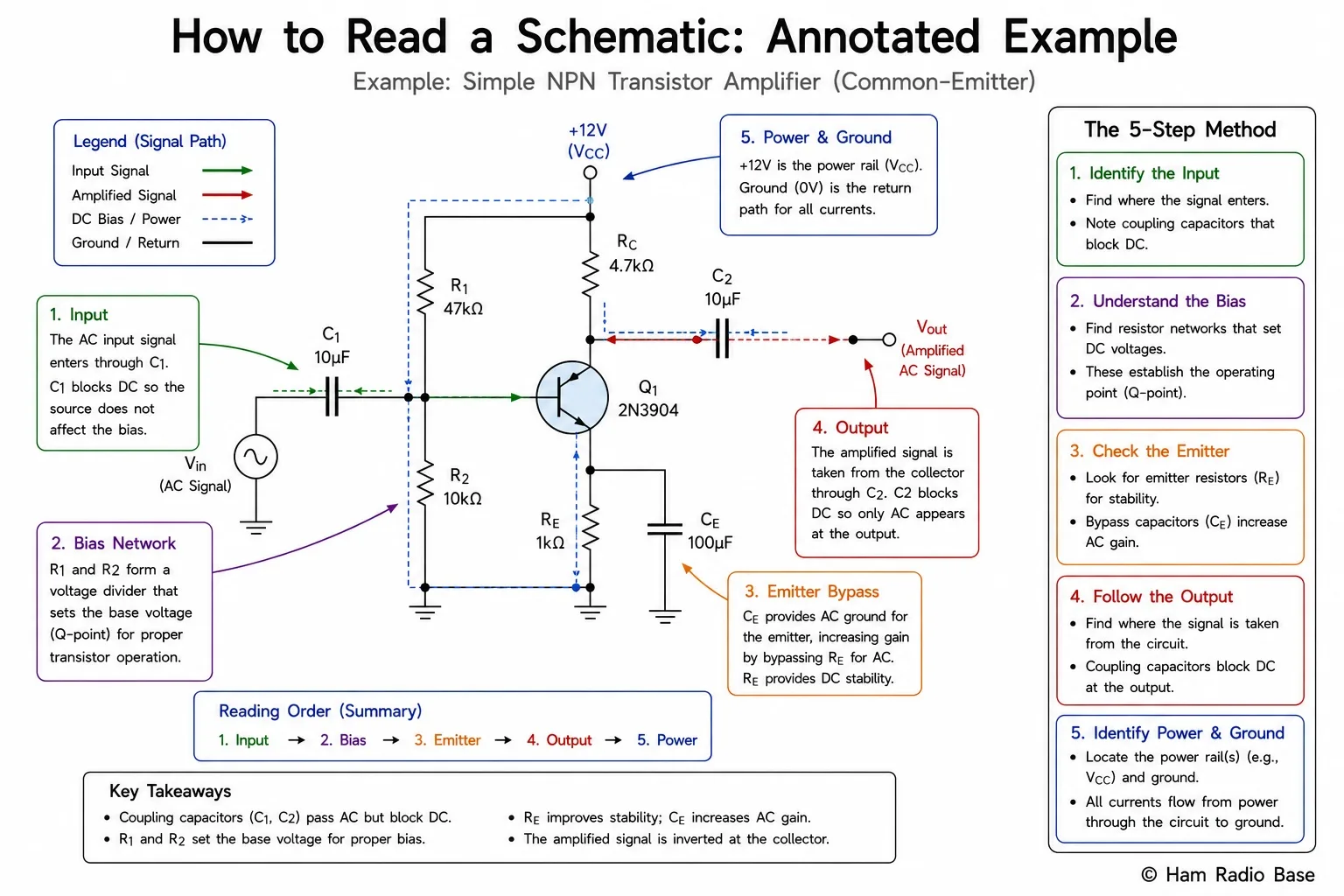

Fig 1 — An annotated schematic showing the five-step reading process applied to a single-transistor amplifier stage.

View Larger

Worked Example

Consider a schematic for a simple crystal-controlled oscillator. Applying the five steps:

1. Get oriented: The schematic is small — about ten components. No title block, but a note says the crystal frequency is 7.040 MHz.
2. Power and ground: +12 V enters at the top-right. Ground symbols appear at the bottom of several components. A decoupling capacitor sits between the supply pin and ground near the transistor.
3. Functional stages: There is one transistor in common-emitter configuration, a crystal in the feedback path and a variable capacitor (trimmer) in series with the crystal.
4. Signal path: The output of the transistor collector feeds back through the crystal to the base. The crystal controls the oscillation frequency. A coupling capacitor on the output takes the RF signal to the next stage.
5. Details: Two resistors form a voltage divider to set the transistor's base bias. An emitter resistor stabilizes the operating point. The feedback capacitor and crystal determine the oscillation frequency.

In five minutes you have understood a complete oscillator circuit, including why every component is present.

Schematic Drawing Conventions

Professional schematics follow conventions that make reading easier once you know them:

• Signal flows left to right in the normal case. Feedback and return paths go right to left.
• Power flows downward — positive rails at the top, ground at the bottom.
• Components are numbered sequentially — R1, R2, R3 in reading order, top-left to bottom-right.
• Values are written horizontally where possible, even when the component symbol is vertical.
• Wires are drawn horizontally and vertically — diagonal wires are rare and indicate a special purpose.
• Junction dots confirm connections — if there is no dot, wires that appear to cross are not connected.
• Net labels replace long wires — two wire stubs with the same label name connect to the same electrical node.
