Lightning Protection

No system described in this lesson makes a station "lightning proof." A direct lightning strike carries currents of tens of thousands of amps and voltages that no practical home-station protection scheme is designed to fully contain. What a correctly designed protection system actually does is manage where that energy goes — directing the overwhelming majority of it safely into the earth rather than through your equipment, your house wiring, or a person — and reduce both the frequency and severity of damage from the much more common near misses: nearby strikes and induced surges, rather than a direct hit on the antenna itself.

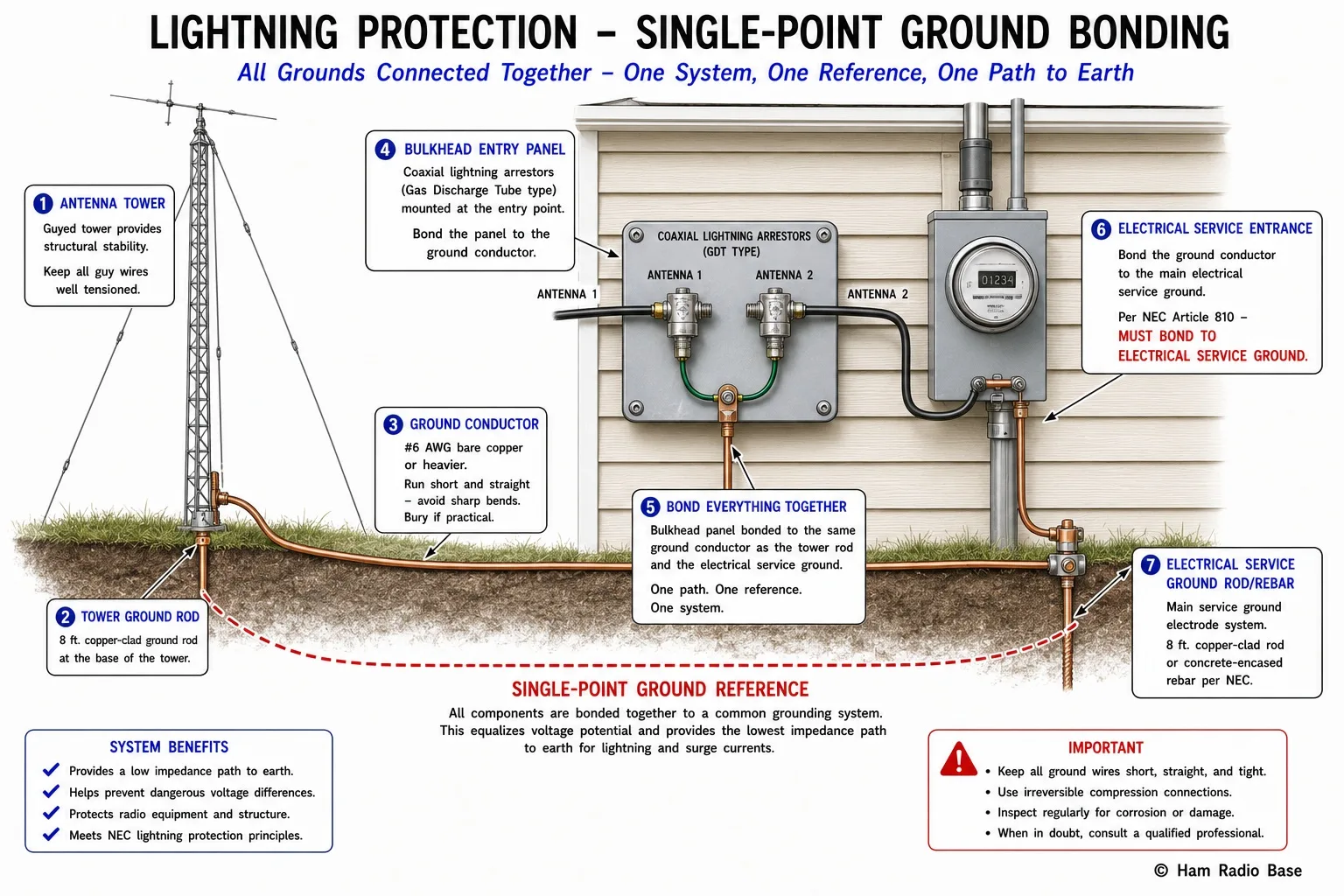

Every ground in the system — tower, arrestor panel, and AC service — must be bonded together to prevent dangerous voltage differences during a strike.

View Larger

Bonding and Grounding Systems

The single most important concept in lightning protection is that all grounds at a property must be bonded together into one electrically common system, rather than left as several separate, unconnected ground rods. This matters because the earth itself has real, measurable resistance, and a massive lightning current flowing through soil creates a genuine voltage gradient radiating outward from the strike point — meaning two ground rods just a few feet apart, if not bonded together, can sit at significantly different potentials during a strike, a condition called ground potential rise. Anything that bridges between those two separately-grounded systems (a person, a cable, a piece of equipment) can experience a dangerous voltage difference across it at the exact moment it matters most.

The National Electrical Code (NEC Article 810, covering radio and television equipment) requires the antenna/tower grounding system to be bonded to the building's main electrical service ground, and good practice (recapping the single-point ground principle from Module 19) extends this to every ground reference at the property — tower, antenna mast, coax entry panel, and station equipment grounds should all ultimately tie back to one common point rather than existing as isolated islands. Bonding conductors for lightning protection should be heavy-gauge copper (commonly #6 AWG or heavier), run in the shortest, straightest path practical, and installed with gentle bends rather than sharp corners or coiled excess length — lightning current rises extremely fast, and that fast rise time means even a few feet of extra inductance from a sharp bend or a coiled-up "service loop" of wire can produce a significant, unwanted voltage spike along the bonding conductor itself.

Coax Lightning Arrestors

A coax lightning arrestor (commonly built around a gas discharge tube, or GDT) is installed at the point where each feedline enters the building — ideally at a dedicated bulkhead entry panel, as introduced in Module 19 — and is bonded to the same common ground system described above. Its job is to clamp the voltage that can develop on the feedline's center conductor relative to ground during a nearby strike or an induced surge, diverting the bulk of that surge current to ground through the arrestor and the bonding system rather than letting it travel further down the feedline into the radio.

An arrestor is a real, valuable layer of protection against the much more common scenario of a nearby strike inducing a transient surge on the feedline, but it is explicitly not a guarantee against a direct strike on the antenna itself, which can carry far more current and energy than any practical arrestor is designed to handle. Treat arrestors as a meaningful risk-reduction measure for routine storm activity in the area, not as a reason to leave equipment connected and unattended during a severe, nearby storm.

Disconnect Procedures Before Storms

This step matters precisely because arrestors and grounding systems manage current that is already flowing through a connected path — they do not eliminate the path entirely. A physical air gap, created by actually unplugging the feedline, is the only way to guarantee no conductive path exists from the antenna system into your operating position during a very close or direct strike. Make disconnecting before a storm a routine habit, not an occasional afterthought remembered only after watching a storm roll in on the radar — many hams keep a simple console or panel specifically to make this a quick, repeatable action rather than a fumble through cables behind the desk in a hurry.

What Ground Rod Systems Actually Achieve

A ground rod system gives lightning current — whether from a direct strike or current diverted by an arrestor — a low-resistance path into the earth, away from the building's structure, wiring, and occupants. A typical installation uses an 8-foot copper-clad steel rod (or multiple rods, spaced and bonded together with heavy copper conductor, where soil conditions or code requirements call for it), driven its full length into the earth. Soil composition and moisture significantly affect how well a given ground rod actually performs — dry, sandy, or rocky soil offers much higher resistance to current flow into the earth than moist, clay-rich soil, which is why some installations require multiple rods or other supplemental grounding measures to achieve an adequately low ground resistance.

If Lightning Strikes a Person

This point is worth emphasizing because the instinct to avoid touching any shock victim, correctly drilled into you by the rest of this module, does not apply to a lightning strike victim, and hesitating to help out of that otherwise-correct instinct can cost critical time in a situation where immediate CPR significantly improves survival odds. Move the person to a safer location only if there is an ongoing, separate hazard (continuing lightning activity, unstable structure, traffic); otherwise begin care where they are.
