Measuring Voltage with a Multimeter
Voltage measurement is the most frequently used multimeter function in radio electronics. Power supply rails, bias points, signal levels, battery voltages — all are checked with the voltmeter. Done correctly it is fast and safe. Done incorrectly it gives wrong results, blows fuses, or in extreme cases creates a shock hazard. This lesson covers the correct technique from first principles.
The Golden Rule — Parallel Connection
A voltmeter is always connected in parallel with the component or section of circuit whose voltage you want to measure. This means connecting across the two points you are interested in — one probe on each side of the component, not breaking the circuit. The voltmeter reads the potential difference between those two points.

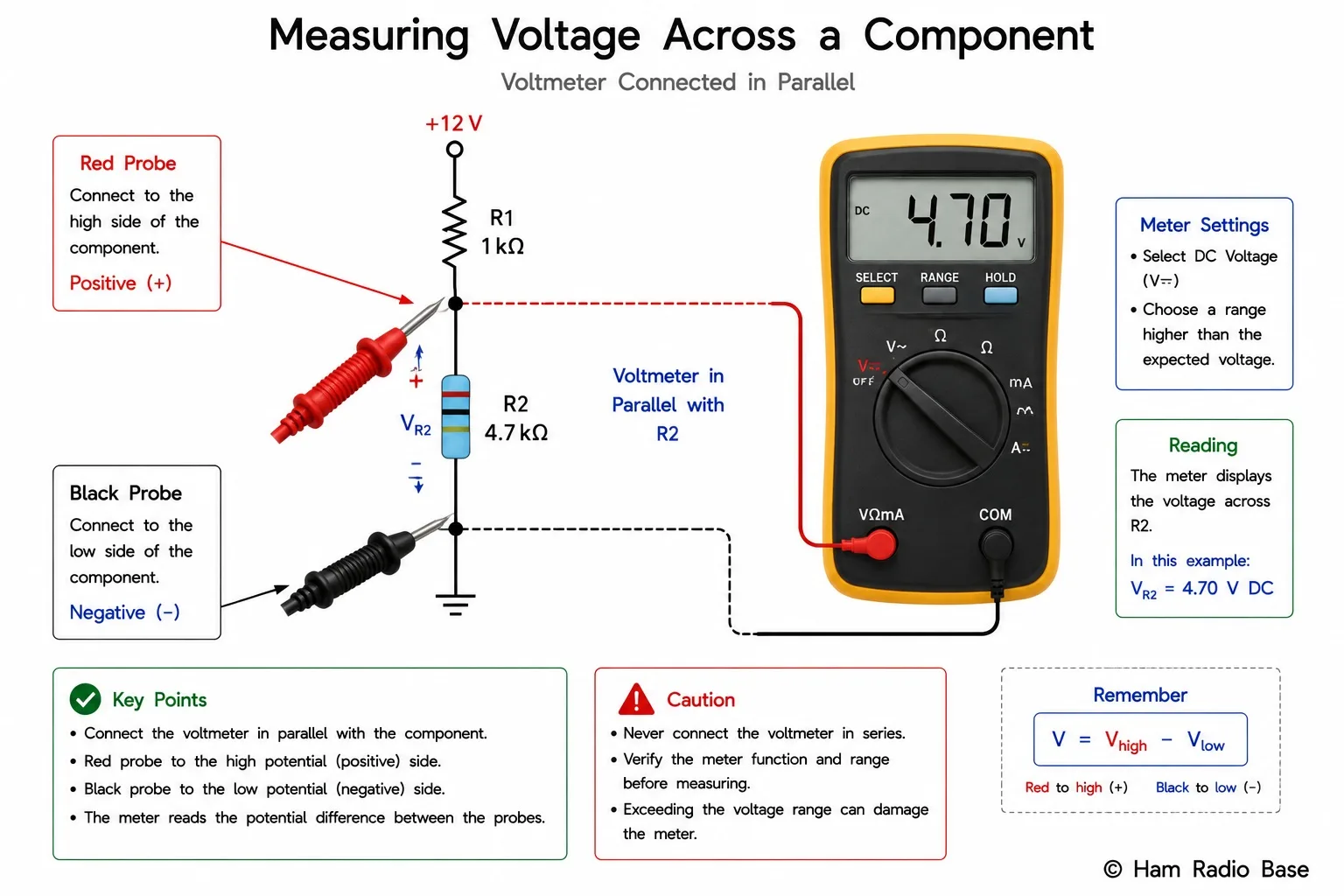

Correct voltage measurement: both probes contact the circuit simultaneously, red to the higher potential point, black to the lower. The circuit is not broken — the meter bridges across the component.
View LargerThis is the opposite of current measurement (which requires breaking the circuit). The distinction matters: accidentally connecting in series when measuring voltage will give a very strange reading and may put the entire circuit voltage across the meter's input — something it will handle on voltage ranges but which could cause problems on other ranges.
Probe Placement and Polarity
The red probe (positive) plugs into the V/Ω jack and is placed at the higher-potential point. The black probe (negative, COM) is placed at the lower-potential point or at circuit ground. For DC measurements, reversed polarity produces a negative reading on a DMM — not a fault, just an indication to swap the probes.
Good probing technique:
- Establish a stable reference first — hook the black (COM) probe to the circuit ground or the reference point, then move the red probe to successive measurement points.
- Use alligator clip adaptors for the COM probe when doing systematic measurements — this frees one hand and keeps the reference connection secure while you move the red probe around.
- Keep probe tips at right angles to the board surface when probing PCB pads — sideways force can lift copper pads or cause the probe to slip and short adjacent pins.
- On densely populated boards, use sharp pointed test probes and move slowly — a slip that shorts two pins together can destroy components instantly.
AC vs DC Selection
Selecting the wrong AC/DC mode is one of the most common voltage measurement errors:
| Signal type | Correct mode | What happens if wrong mode is selected |
|---|---|---|
| Battery, power supply rail, bias voltage | DC Voltage (V⎓) | AC mode reads near-zero (or a small ripple value) — the DC component is blocked by the AC coupling inside the meter |
| Utility supply, transformer secondary | AC Voltage (V~) | DC mode reads zero (or a small asymmetric offset) — you get no useful reading of the AC level |
| Power supply output with ripple | DC for rail level; AC for ripple | DC mode gives the average output; AC mode gives the RMS ripple amplitude — both are useful, measure both |
| Audio signal on a DC-biased node | AC for signal level, DC for bias level | DC mode gives the bias; AC mode gives the signal RMS amplitude |
Most DMMs measure AC voltage as a true RMS value (accurate for all waveforms) or as an averaging rectifier calibrated to display RMS for a pure sine wave (which gives wrong results for non-sinusoidal waveforms like square waves or clipped audio). Check your meter's specification — "True RMS" will be printed if it applies.
Range Selection
On auto-ranging meters, select the function (DC or AC voltage) and the meter selects the range. On manual-ranging meters: start on the highest available range, observe the approximate reading, then step down to get more decimal places. Never go below a range where the reading exceeds the range maximum (OL indication).
Floating Measurements
Most voltage measurements in a radio shack are referenced — one probe connects to the circuit ground, the other to the measurement point. But sometimes you need to measure across a component that is not grounded — such as a resistor in a power supply series pass element, or across a coil winding. This is called a floating measurement.
A floating measurement is straightforward with a DMM: just place one probe on each terminal of the floating component. The meter measures the potential difference between the two terminals regardless of what those terminals are referenced to. This is perfectly safe as long as neither terminal exceeds the meter's input voltage rating.
Common Errors
- Probes in wrong jacks: Current (A or mA) jacks have a fuse-protected shunt inside. Measuring voltage with probes in the current jacks places an almost-short circuit across your voltage source — this blows the internal fuse immediately and can damage the source.
- Wrong mode (AC when measuring DC or vice versa): Both give near-zero readings for the wrong signal type, not an error message. Always verify the display annunciator shows the correct AC/DC symbol before trusting a reading.
- Touching live circuit with bare probe tip: The probe tip is intentionally sharp and exposed. At low voltages this is not dangerous, but habitually probing without attention to where your fingers are is a bad practice to establish. Keep fingers behind the probe tip guards.
- Forgetting to account for diode drops: The voltage across a forward-biased diode is 0.6–0.7 V — not zero. When checking "supply rail at the output of the rectifier" versus "supply rail at the reservoir capacitor", these two readings will differ by 0.6–0.7 V per diode in the path. This is correct circuit behavior, not a measurement error.
- Not allowing settling time for capacitive circuits: In circuits with large capacitors, voltages change slowly after a change in load or supply. Allow several seconds for the voltage to settle before reading it as a steady-state value.
Hands-On Experiment
⚖ Experiment: Measuring Voltage at Multiple Points in a Simple Circuit
Build a simple series circuit with a battery, two resistors and an LED. Then measure the voltage at each node to verify Kirchhoff's Voltage Law — the sum of voltage drops around the loop equals the supply voltage.
- 9 V battery with clip connector
- 470 Ω resistor (R1)
- 1 kΩ resistor (R2)
- LED (any color)
- Breadboard and connecting wires
- Digital multimeter set to DC voltage
- Build the series circuit on the breadboard: battery positive → R1 → R2 → LED (anode) → LED (cathode) → battery negative.
- Attach the COM (black) probe permanently to the battery negative terminal using an alligator clip or a breadboard jumper wire.
- Measure voltage at the junction between R1 and R2 (probe tip on that node). Record the reading.
- Measure voltage at the junction between R2 and the LED anode. Record the reading.
- Measure voltage at the LED cathode (junction with battery negative). This should read very close to 0 V since that point is connected to COM.
- Calculate: V across R1 = supply − (R2 junction voltage). V across R2 = (R2 junction) − (LED anode junction). V across LED = LED anode − 0 V (cathode). Sum all three. Does it equal the supply voltage?
The sum of voltage drops across R1, R2 and the LED will equal the battery voltage (Kirchhoff's Voltage Law). The LED drop will be approximately 2.0–2.5 V. This experiment confirms that voltage measurement in parallel is non-destructive and that multiple reference measurements from the same COM point give consistent results.
Frequently Asked Questions
What happens if I accidentally connect the voltmeter in series instead of parallel?
The 10 MΩ meter is now in series with the circuit. Virtually all of the supply voltage appears across the meter, and the circuit current drops to nearly zero (microamps through 10 MΩ). The circuit ceases to function and the meter reads approximately the supply voltage — which is very misleading. No component is damaged because the current through the 10 MΩ is tiny, but the circuit stops working while the meter is connected.
My meter reads a small voltage (like 0.3 V) on an apparently unpowered circuit node. Why?
This is usually one of three things: stray AC pickup from electrical wiring (the 10 MΩ input acts as an antenna in areas with strong 50/60 Hz fields), residual charge on a capacitor in the circuit, or ground offset from a second instrument connected nearby. Ground the node briefly and re-measure. If it reappears immediately it is AC pickup; if it stays near zero after grounding, it was capacitor charge.
Can I measure RF voltage with my multimeter?
No. A DMM is designed for DC and low-frequency AC (up to around 1 kHz for basic meters, up to a few hundred kHz for wide-bandwidth models). RF signals at MHz frequencies are far too fast for the ADC and the meter will read a random or near-zero value. Use an oscilloscope with an appropriate probe, or an RF voltmeter / diode probe, for RF voltage measurements.
Test Your Knowledge
Answer the questions below to check your understanding. Every answer can be found in the lesson above.
