Parallel Circuits

Imagine a motorway that splits into three lanes through a toll plaza, then merges back into one lane on the other side. Every lane starts at the same point and ends at the same point. A car entering any lane travels between exactly the same two places — but the lanes operate independently. A blockage in one lane does not stop traffic in the others. That is the essence of a parallel circuit.

In electronics, a parallel circuit is any arrangement where two or more components share the same two connection points. Each component forms its own independent branch between those points. Because every branch connects between identical nodes, every branch sees the same voltage. Current, however, splits — more flows through lower-resistance branches, less through higher-resistance branches. The total current drawn from the supply is the sum of all branch currents.

Parallel circuits are everywhere in electronics. Every electrical outlet in your home is wired in parallel. Every component in a transceiver is powered from parallel rails. Antenna matching networks use parallel elements to transform impedance. Understanding parallel circuits from the ground up is not optional — it is essential.

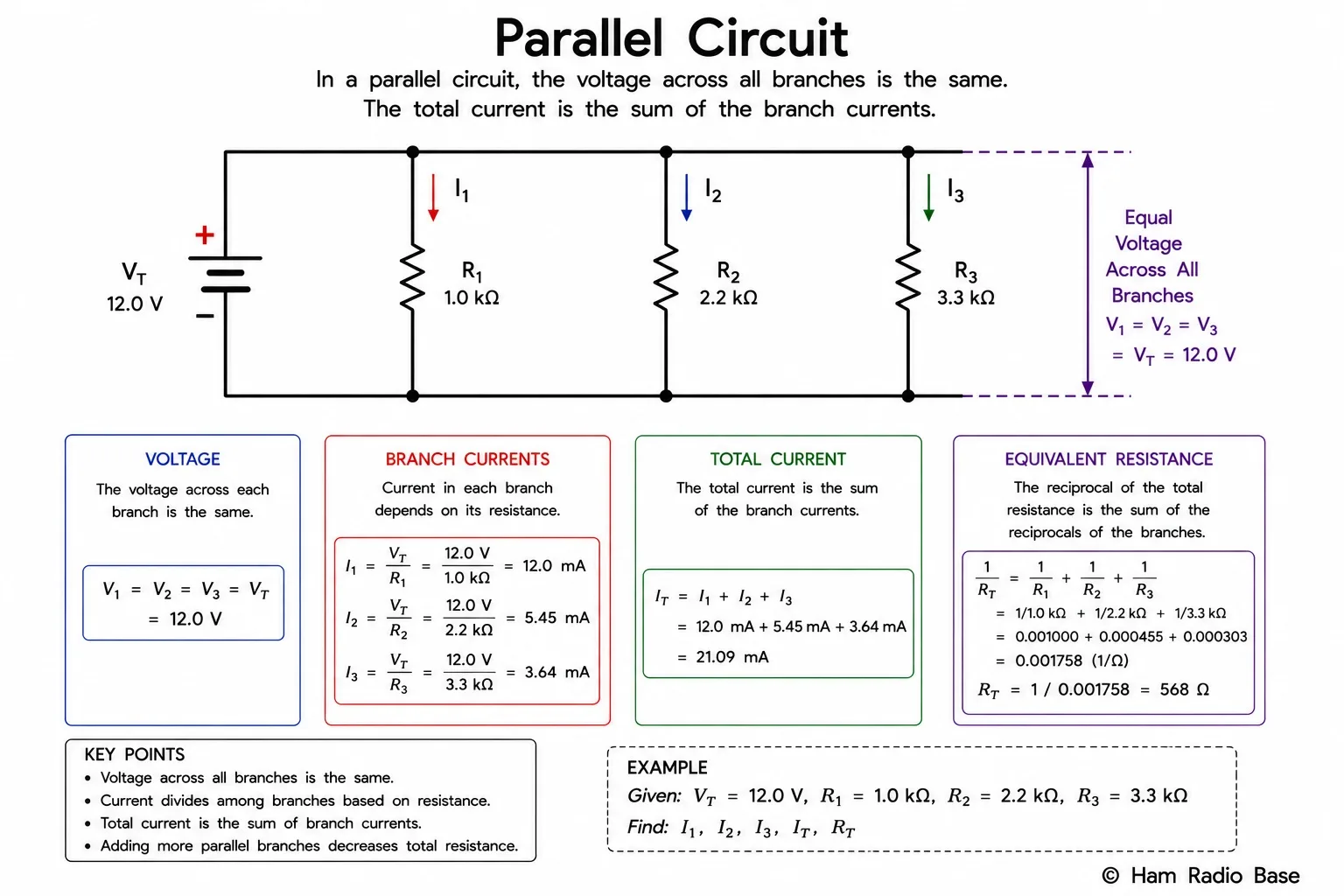

A parallel circuit: all branches share the same two nodes, so all branches see the same voltage. Current splits between branches according to each branch's resistance.

View Larger

What Makes a Circuit Parallel?

Before you can apply the parallel rules, you need to be able to identify a parallel connection when you see one — whether in a schematic, on a breadboard, or inside real equipment. The definition is precise: two components are in parallel if and only if both terminals of one component connect directly to both terminals of the other, with nothing else in between.

In a schematic, parallel branches appear as side-by-side paths between the same two wires or nodes. In real wiring, parallel components share the same pair of connection points with no other components between them and the nodes. The key test is this: can you trace a path from the positive terminal of the supply through each component and back to the negative terminal that does not pass through any other component? If yes for each branch independently, those branches are in parallel.

Where beginners often go wrong is confusing a parallel branch with a series connection. A series string has only one path — electrons must flow through every component in sequence. A parallel arrangement has multiple paths — electrons choose one path to follow. If removing one component would stop current in another, they are in series. If removing one component leaves the others still connected and operating, they are in parallel.

Another helpful check: in a parallel circuit, if you place a voltmeter across each branch in turn, every reading should be identical (equal to the supply voltage). If readings differ, something is not truly in parallel — there may be resistance in the wiring, a bad connection, or a component in series with one branch.

Rule 1: Voltage Is the Same Across Every Branch

This is the most fundamental rule of parallel circuits, and it follows directly from what a voltage actually is. Voltage is a difference in electrical potential between two points. In a parallel circuit, every branch connects between exactly the same two points — the same positive node and the same negative node. Since all branches connect between identical endpoints, they all see the same potential difference. There is no way for the voltage to be different across branches that share the same nodes.

This is completely different from a series circuit, where voltage divides across each component in proportion to its resistance. In a parallel circuit, every branch gets the full supply voltage regardless of its resistance. A 10 Ω branch and a 10 kΩ branch both connected in parallel across a 12 V supply will each have exactly 12 V across them — the 10 Ω branch will just carry far more current.

This rule has a very practical consequence: you can add or remove branches from a parallel circuit without changing the voltage seen by the remaining branches. Plug in a second lamp in your house — the first lamp's brightness does not change, because both lamps see the same line voltage. Switch off one branch of a transceiver — the other stages continue running at exactly the same supply voltage.

The rule also gives you a powerful diagnostic tool. If you measure different voltages across branches that should be in parallel, something is wrong. The most common cause is resistance in the wiring itself (especially in old or corroded connectors), which effectively puts a hidden series resistance in the line to one branch, creating a voltage divider. A poor solder joint, a bad switch contact, or a corroded connector can all cause this.

Rule 2: Total Resistance Is Less Than Any Branch

This rule surprises many beginners. Surely adding more resistors must increase resistance? In a series circuit, yes — adding resistors in series always increases total resistance. But in a parallel circuit, the opposite is true. Adding any additional branch always decreases total resistance.

Here is the physical reason. Resistance is the opposition to current flow. Adding a new branch provides an additional path for current. More paths means more current can flow for the same applied voltage. If more current flows for the same voltage, then by Ohm's Law (R = V / I), the effective resistance of the combination must be lower. You cannot add a path and make it harder for current to flow — you can only make it easier.

Think of it with conductance. Conductance is the reciprocal of resistance: G = 1 / R, measured in siemens (S). Conductance measures how easily current flows, rather than how much it is opposed. In a parallel circuit, conductances add directly — just like series resistances add directly. Every additional branch contributes its conductance to the total. The total conductance of a parallel circuit is:

And since total resistance is the reciprocal of total conductance:

Notice that adding any term to the right side of that equation makes the sum larger, which makes 1/R_total larger, which makes R_total smaller. No matter how large the branch resistance is, adding it reduces total resistance — even if only by a tiny amount. Two 1 kΩ resistors in parallel give 500 Ω. Three give 333 Ω. Add a 1 MΩ resistor to a 10 Ω resistor in parallel and the result is still slightly below 10 Ω (about 9.9999 Ω) — the million-ohm branch barely contributes but it does contribute.

This is directly opposite to series circuits, where resistance always increases. Memorise which rule applies to which circuit type, and you will never confuse them:

Rule 3: Total Current Is the Sum of Branch Currents

Current entering the junction at the top of a parallel circuit must equal current leaving the junction at the bottom. This is a statement of charge conservation — electrons do not accumulate at a junction or disappear from one. Every electron that arrives must leave. The total current from the supply splits between the available branches and all recombines at the far junction.

This is actually a statement of Kirchhoff's Current Law (KCL), which you will study in depth later in this module. For now, the key point is that each branch current is completely independent of the others. The current in the R1 branch does not depend on what R2 or R3 are doing — it depends only on the voltage across R1 (which is the supply voltage) and the value of R1 itself. Each branch obeys Ohm's Law independently:

This independence is a crucial advantage in practice. In a series circuit, adding a component changes the current through every other component. In a parallel circuit, adding a new branch does not change the current through any existing branch — it only adds to the total current from the supply. Each branch operates as if it were alone across the supply.

This is why your home's lighting and power sockets are wired in parallel, not in series. When you switch on an additional light, the other lights do not dim — each branch is independent. In a transceiver, switching on the transmitter section (which draws large current) does not starve the receiver's voltage regulator — both are parallel loads across the supply rail.

Three Methods for Calculating Total Resistance

There are three methods, each suited to different situations. Knowing all three saves time and reduces errors.

Method 1: The Reciprocal Formula (works for any number of resistors)

This is the general method. You calculate the reciprocal of each resistance, add them up, then take the reciprocal of the result. It is always correct but involves more steps.

Method 2: Product-Over-Sum (two resistors only)

For exactly two resistors, there is a much faster shortcut that avoids the reciprocal steps entirely:

This formula is used so frequently — every time you combine two branches in a step-by-step reduction of a complex circuit — that you should memorise it. It only works for two resistors at a time, but you can apply it repeatedly to reduce a multi-branch parallel combination down to a single equivalent resistance.

To reduce three resistors using this method: combine any two first using product-over-sum to get a single equivalent, then combine that equivalent with the third resistor using product-over-sum again.

Method 3: Equal Resistors (R divided by N)

If all resistors in the parallel combination are identical, the total resistance is simply one resistor's value divided by the number of resistors:

This method also explains why a dummy load (a precision 50 Ω resistive load used for testing transmitters) can be built from multiple higher-value resistors in parallel. Ten 500 Ω resistors in parallel give exactly 50 Ω. This allows you to spread the power dissipation across many small resistors instead of needing one large 50 Ω high-power component.

Worked Example: Step by Step

Let us work through a complete problem showing every step. A 9 V battery supplies three parallel branches: R1 = 330 Ω, R2 = 560 Ω, R3 = 1 kΩ (1000 Ω). Find the total resistance, each branch current, and the total current.

More Practice Examples

Power in Parallel Circuits

Each branch dissipates power independently. Since every branch sees the full supply voltage, you can calculate power in each branch using P = V² / R — the same voltage applies to every branch, making this formula particularly convenient.

The total power delivered by the supply equals the sum of all branch powers, which also equals V_supply × I_total. You can verify your calculations by summing branch powers and checking against the total.

This has a practical consequence for component selection. In a parallel circuit, the lowest-resistance branch carries the most current and dissipates the most power. Always check the power rating of your lowest-resistance component. If you are paralleling power resistors to increase power handling, the parallel combination helps — each component now handles only a fraction of the total power.

For example, a dummy load for a 100 W transmitter built from ten 500 Ω resistors in parallel: each resistor dissipates 100 / 10 = 10 W. So you need ten 10 W resistors rather than one 100 W resistor. High-power resistors at 10 W are far more readily available and cheaper than 100 W units.

What Happens When Things Go Wrong

Understanding failure modes is just as important as understanding normal operation. Parallel circuits fail in two principal ways, and the outcomes are very different from each other — and very different from what happens in a series circuit.

Open-Circuit Failure (One Branch Breaks)

An open-circuit failure means one branch stops conducting — perhaps a resistor burns out, a wire breaks, or a switch opens. In a parallel circuit, the other branches are completely unaffected. They still connect between the same two nodes with the same supply voltage. They continue to operate exactly as before.

The only changes are: the total resistance increases (one fewer parallel path), and the total current drawn from the supply decreases (the broken branch no longer draws current). If you were to measure voltage across the open branch, you would read the full supply voltage — because the open branch still connects between the two supply nodes, just with no current flowing through it.

This is the key advantage of parallel wiring for loads that must continue operating even if one fails. House lighting is wired in parallel for exactly this reason — a burnt-out bulb does not take out the rest of the lights. Aircraft and spacecraft wire critical systems in parallel (often with redundancy) so that a single failure cannot disable a function.

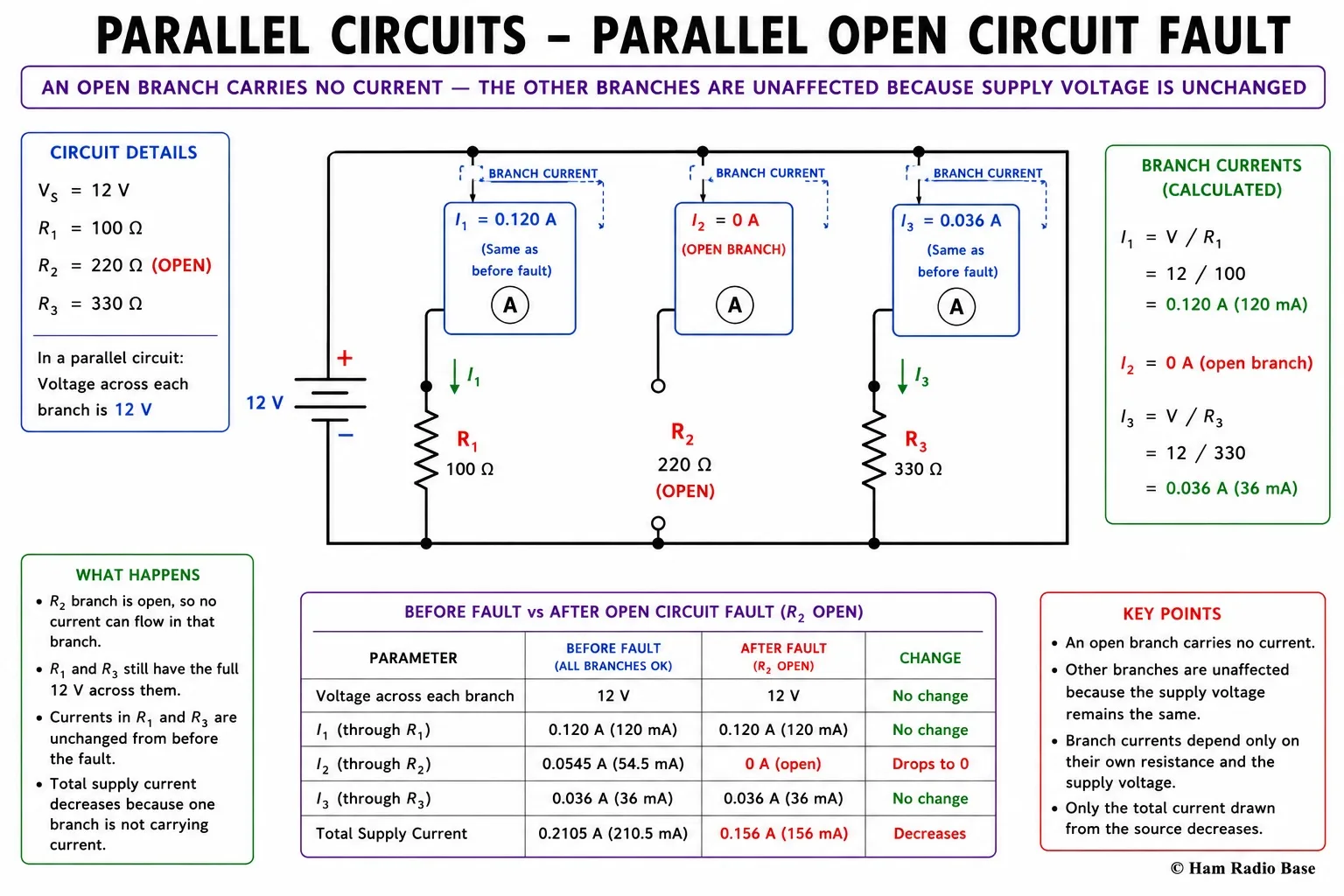

Open-circuit fault in a parallel branch: R1 and R3 continue operating normally. Full supply voltage appears across the open branch, but no current flows through it.

View Larger

Short-Circuit Failure (One Branch Collapses to Zero Resistance)

A short-circuit failure is the opposite — and far more dangerous. If one branch collapses to near-zero resistance (a failed capacitor, a shorted semiconductor, an insulation breakdown), it connects the two supply rails through essentially no resistance at all. This has catastrophic consequences.

By Ohm's Law, if resistance approaches zero and voltage is fixed, current approaches infinity. In practice, current will only be limited by the supply's internal resistance, the wiring resistance, and any protective device (fuse or circuit breaker). The supply voltage collapses because all of it appears across the near-zero resistance of the short, leaving nothing for the other branches.

Short-circuit failures are the most dangerous electrical fault. Every power rail in electronics equipment must be protected by a fuse or circuit breaker rated appropriately. Fuses in parallel-fed circuits must be rated for the total expected current, not just the current of one branch. A single shorted branch can blow the supply fuse and disable the entire circuit — even though parallel circuits normally offer independent operation between branches.

In ham radio equipment, the most common short-circuit faults in parallel circuits are: failed electrolytic bypass capacitors that develop an internal short; shorted output transistors in audio amplifiers (which present a near-zero impedance load across the supply rail); and shorted rectifier diodes in power supplies. All of these will blow the main fuse if one is fitted.

Parallel Circuit Solver

Parallel Circuits in Ham Radio

Power distribution rails

In a transceiver, every stage — receiver front end, IF amplifier, audio output, display, microprocessor — is connected in parallel across the DC supply rails (typically 13.8 V for a mobile rig). Adding or removing a stage does not change the supply voltage seen by the other stages, because all stages are independent branches across the same two rails. The power supply must deliver the sum of all branch currents. This is why transmit current draw is much higher than receive current draw — the power amplifier stage (a high-current parallel branch) is only active during transmission.

Bypass and decoupling capacitors

Bypass capacitors are connected in parallel with the DC supply at critical points on a circuit board. Their function is to provide a low-impedance AC path in parallel with the supply's wiring impedance. At RF or audio frequencies, the capacitor's reactance is very low — it behaves like a near-short circuit for AC. The parallel combination of the wiring inductance and the capacitor forms a low-impedance local reservoir of charge. When a transistor suddenly demands a burst of current during a signal peak, the capacitor supplies it instantly without the supply rail dropping. You will encounter decoupling capacitors (100 nF ceramic in parallel with 10 µF electrolytic) on virtually every amplifier stage in every piece of modern radio equipment.

Antenna matching networks

Shunt elements in L-match, pi-match, and T-match antenna tuner networks are components in parallel with the signal path. A shunt capacitor in an L-network, for example, presents a parallel impedance that transforms the load impedance seen at the input. The quarter-wave matching stub used on VHF/UHF antennas is a parallel resonant circuit. Analysing these networks requires confident handling of parallel impedances. You will revisit this topic extensively in the AC Circuit Theory module and the Filters and Impedance Matching module.

Dummy load construction

A high-power 50 Ω dummy load for a 100 W transmitter is typically built from multiple resistors in parallel. Ten 500 Ω, 10 W resistors in parallel give 50 Ω total resistance and handle 100 W total (10 W each). The parallel resistance formula R_total = R / N applies directly: 500 / 10 = 50 Ω. If you wanted a dummy load rated for 200 W with the same 500 Ω resistors, you would use 20 of them: 500 / 20 = 25 Ω — too low for a standard 50 Ω dummy load but useful for other impedances.

Speaker loads

Many ham transceivers provide a speaker output and a headphone socket wired in parallel. Two 8 Ω speakers in parallel present a 4 Ω load. If the audio amplifier's minimum load impedance is 8 Ω, connecting both simultaneously will push it below specification and may cause overheating or distortion. Knowing the parallel resistance formula lets you calculate the combined load immediately: (8 × 8) / (8 + 8) = 64 / 16 = 4 Ω — well within danger territory for a minimum-8 Ω amplifier.

Parallel capacitors in filter circuits

Capacitors wired in parallel have their values added directly (C_total = C₁ + C₂ + ... + C_n). This is the opposite of resistors — capacitor paralleling rules mirror series resistor rules, and series capacitor rules mirror parallel resistor rules. This sometimes causes confusion. The key is to think in terms of the fundamental quantities: capacitors in parallel present more plate area to charge, so total capacitance increases. Variable capacitors in tunable circuits are sometimes replaced with a fixed capacitor in parallel with a smaller trimmer — this allows fine adjustment of total capacitance within a small range around the fixed value.
