Pi, L and T Networks
Impedance matching is one of the most important skills in radio engineering. Your transmitter has an output impedance of 50 Ω. Your antenna might present 200 Ω, or 20 Ω, or 600 + j300 Ω. Simply connecting them together means maximum power is not transferred — some reflects back, raising SWR, reducing efficiency, and potentially damaging the transmitter's output stage. The solution is an impedance matching network: a circuit of reactive elements that transforms the antenna impedance into the 50 Ω the transmitter expects.
Pi, L, and T networks are the three fundamental impedance matching topologies. They use only inductors and capacitors — no resistors — so they introduce no dissipative losses. They transform impedances while simultaneously filtering harmonics, making them doubly useful in transmitter output stages. Understanding how these networks work, and how to calculate their component values, is the culmination of everything you have learned in this module about AC circuits, reactance, impedance, and resonance.

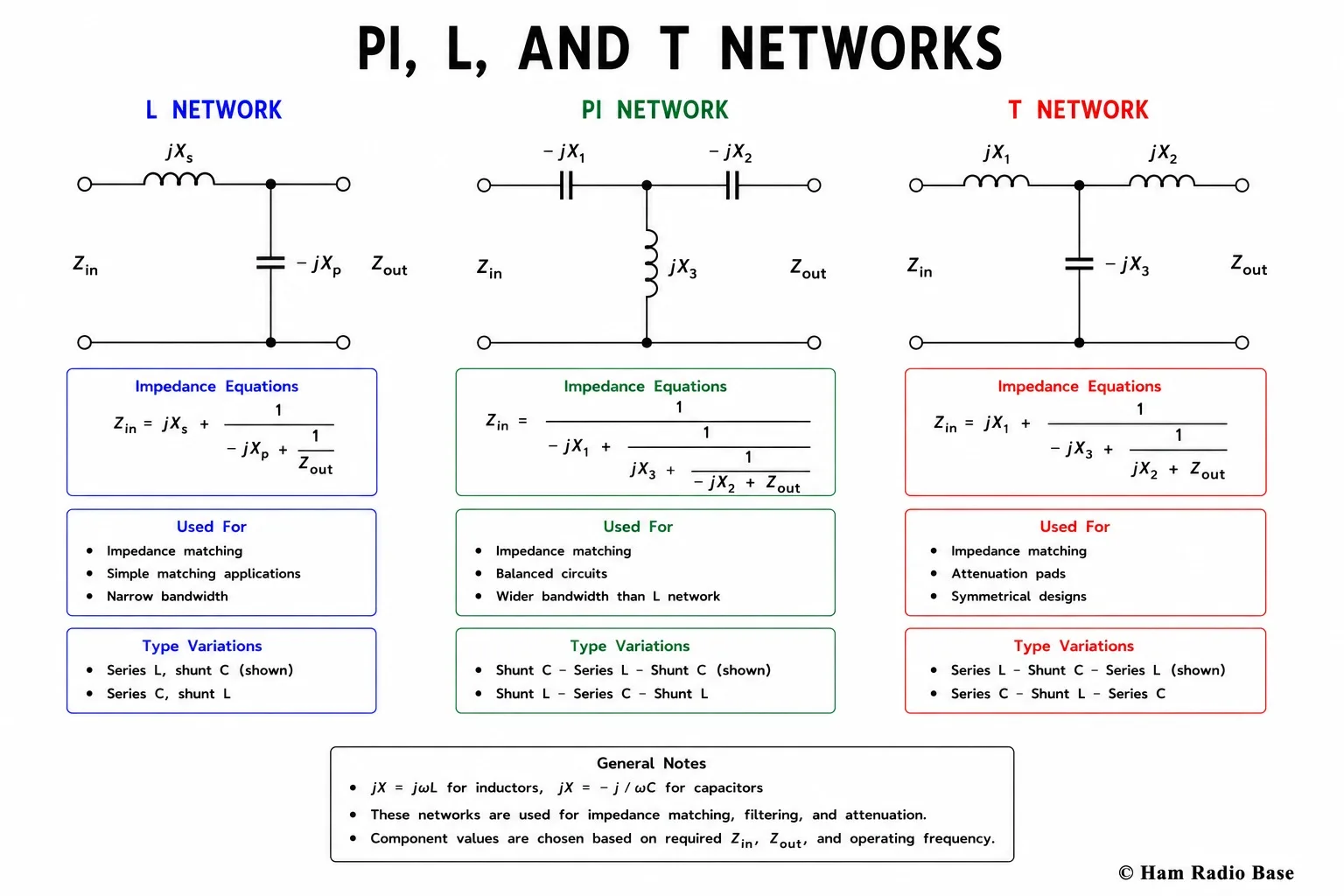

The three fundamental impedance matching networks. The L network uses two reactive elements. The Pi network uses three elements (named for its resemblance to the Greek letter π). The T network also uses three elements (named for its T-shape). All three can transform impedances without dissipating power.
View LargerWhy Impedance Matching Is Necessary
The maximum power transfer theorem states that maximum power is transferred from a source to a load when the load impedance equals the complex conjugate of the source impedance. For a purely resistive source with RS = 50 Ω, maximum power transfer occurs when Rload = 50 Ω.
When impedances are mismatched, some power is reflected from the load back toward the source. The ratio of reflected to forward power is determined by the reflection coefficient Γ:
Γ = (Zload − Zsource) / (Zload + Zsource)
SWR = (1 + |Γ|) / (1 − |Γ|)
Power reflected = |Γ|² × forward power
Example: 200 Ω load on 50 Ω source: Γ = 150/250 = 0.6, SWR = 4:1, reflected power = 36%
A 4:1 SWR means 36% of transmitter power never reaches the antenna — it reflects back into the transmitter. Modern solid-state transmitters automatically reduce power when they detect high SWR to protect the transistors, so the actual output power drops further. A good impedance matching network between the transmitter and the mismatched antenna eliminates the reflected power, presenting the transmitter with 50 Ω regardless of what the antenna actually presents.
Impedance matching is not about making the source and load impedances physically equal — it is about transforming the load impedance so it appears equal to the source impedance at the source terminals. The antenna still has its natural impedance; the matching network creates the illusion of 50 Ω for the transmitter.
The L Network
The L network is the simplest impedance matching network, consisting of just two reactive elements arranged in an L shape: one in series with the signal path and one in shunt (parallel) with either the source or the load. It can match any two resistive impedances with a specific Q factor determined by the impedance ratio.
For matching a higher impedance RH (the "high" side) to a lower impedance RL (the "low" side), the Q factor of the L network is:
Q = √(RH/RL − 1)
The component values at frequency f are:
Xshunt = RL × (RH/RL − 1) / Q = RH / Q
Wait — simplified: Xshunt = RH / Q and Xseries = RL × Q
The shunt element goes on the high-impedance side; the series element goes on the low-impedance side.
The L network has a fixed Q determined entirely by the impedance ratio. You cannot choose Q independently — it comes with the territory. This is a key limitation: for an impedance ratio of 4:1 (50 Ω to 200 Ω), Q = √(4 − 1) = √3 = 1.73. For a ratio of 100:1, Q = √99 ≈ 9.95. Higher impedance ratios automatically give higher Q (narrower bandwidth), which is useful for harmonic rejection but means the network must be retuned as you move across a band.
The L network has two configurations — shunt element on the input side (low-pass L) or shunt element on the output side (high-pass L). The low-pass L is more common in transmitter applications because it inherently attenuates harmonics.
Design a low-pass L network to match a 50 Ω transmitter to a 200 Ω antenna at 7.1 MHz.
Step 1 — Q:
Q = √(RH/RL − 1) = √(200/50 − 1) = √(4 − 1) = √3 = 1.732
Step 2 — Shunt element (on high-impedance / antenna side):
Xshunt = RH / Q = 200 / 1.732 = 115.5 Ω
This is a capacitor in shunt on the antenna side (for low-pass L).
Cshunt = 1 / (2π × 7.1×10⁶ × 115.5) = 1 / (5,161,880) = 193.7 pF ≈ 200 pF
Step 3 — Series element (in series on transmitter / low-impedance side):
Xseries = RL × Q = 50 × 1.732 = 86.6 Ω
This is an inductor in series.
Lseries = 86.6 / (2π × 7.1×10⁶) = 86.6 / 44,611,890 = 1.94 µH ≈ 2 µH
Result: 2 µH series inductor (transmitter side) + 200 pF shunt capacitor (antenna side) matches 50 Ω to 200 Ω at 7.1 MHz with Q = 1.73. Bandwidth = f0/Q = 7.1/1.73 = 4.1 MHz — the entire 40-meter band and more.
L Network Calculator
L Network Impedance Matching Calculator
Enter the source impedance (low side), load impedance (high side), and frequency. The calculator outputs the series and shunt reactances with component values.
The Pi Network
The Pi network is the most popular impedance matching network for transmitter output stages in tube amplifiers and many QRP designs. It consists of three reactive elements: a shunt capacitor on the input side, a series inductor in the middle, and a shunt capacitor on the output side. The circuit resembles the Greek letter π — hence the name.
The Pi network's key advantage over the L network is that the designer can freely choose the Q factor, independent of the impedance ratio. This is possible because the Pi network has an extra degree of freedom (three elements instead of two). Higher Q means narrower bandwidth and better harmonic suppression; lower Q means broader bandwidth and easier tuning. For transmitter tank circuits, Q values of 10–15 are typical — high enough for useful harmonic rejection, low enough for easy tuning across a band.
Given: Rin (source/input impedance), Rout (load/output impedance), Q (designer's choice), frequency f
Input shunt capacitor: XC1 = Rin / Q → C1 = Q / (2π f Rin)
Series inductor: XL = Q × Rin × (1 + Rin/(Q² × Rout)) → L = XL / (2πf)
Actually, the standard design procedure uses Q referred to the high-impedance (source) side:
QS = √(RS/RL × (Q² + 1) − 1)
XCin = RS / Q, XCout = RL / QS, XL = Q × RS + RL × QS
Wait — for clarity, the simplified standard formulas are:
C1 (input shunt): XC1 = RS / Q
C2 (output shunt): XC2 = RL / √(RS/(Q² + 1) × 1/RL − 1)
L (series): XL = Q × RS − XC2 × RS/RL
These formulas are handled by the calculator below — entering Q, RS, RL, and frequency gives all three component values.
The Pi network can also step impedances up or down — it is not limited to stepping down like an L network. If Rout > Rin, the same topology still works with the appropriate component values from the calculator. Many antenna tuner designs use a variant of the Pi network for this reason — it can handle a wide range of antenna impedances, both above and below 50 Ω.
A tube amplifier has a plate impedance of 2,500 Ω at 7.1 MHz. It must be matched to a 50 Ω output for the antenna system. Design a Pi network with Q = 12.
Step 1 — Input shunt capacitor C1 (plate side, RS = 2500 Ω):
XC1 = RS / Q = 2500 / 12 = 208.3 Ω
C1 = 1 / (2π × 7.1×10⁶ × 208.3) = 107.6 pF ≈ 100 pF variable
Step 2 — Q on the load side (QL):
QL = √((RS/RL) × (Q² + 1) − 1) = √((2500/50) × (144 + 1) − 1) = √(50 × 145 − 1) = √7249 = 85.1
Step 3 — Output shunt capacitor C2 (antenna side, RL = 50 Ω):
XC2 = RL / QL = 50 / 85.1 = 0.588 Ω
C2 = 1 / (2π × 7.1×10⁶ × 0.588) = 38,085 pF ≈ 0.038 µF
This is unusually large. The very high impedance ratio (50:1) pushes C2 to a large value. In practice, a tapped-coil or link-coupled output is often preferred for such large ratios. The Pi network works best for impedance ratios up to about 10:1.
Step 4 — Series inductor L:
XL = Q × RS = (using the inductor at the midpoint): XL = QS × RS + QL × RL = 12 × 2500 + 85.1 × 50 = 30,000 + 4,255 = 34,255 Ω — clearly too large. The large impedance ratio requires revisiting the design. The calculator handles the full math correctly.
Pi Network Calculator
Pi Network Impedance Matching Calculator
Enter source impedance, load impedance, desired Q factor, and frequency. The calculator returns all three component values. Works for both step-up and step-down matching.
The T Network
The T network is the dual of the Pi network — where the Pi has shunt-series-shunt topology, the T has series-shunt-series topology. It consists of two series elements (typically inductors or capacitors) with one shunt element in the middle. Its shape resembles the letter T.
The T network is commonly used in low-impedance-to-high-impedance matching and in antenna tuner designs where the Pi network cannot achieve certain impedance combinations. It offers the same designer freedom of choosing Q, independently of the impedance ratio.
One important difference: the T network with two series inductors and a shunt capacitor forms a high-pass topology — it attenuates low frequencies but passes high frequencies more readily. This contrasts with the Pi network (two shunt capacitors and a series inductor) which is inherently low-pass. For transmitter applications where harmonic suppression is critical, the Pi (low-pass) is generally preferred. However, the high-pass T network may have advantages in specific antenna tuner situations where you are trying to load an electrically short antenna.
L vs. Pi vs. T: Choosing the Right Network
| Property | L Network | Pi Network | T Network |
|---|---|---|---|
| Number of elements | 2 | 3 | 3 |
| Q control | Fixed by impedance ratio | Designer selects Q ≥ Qmin | Designer selects Q ≥ Qmin |
| Typical Q range | 1–5 (low-ratio matching) | 5–20 (transmitter tanks) | 5–20 (antenna tuners) |
| Inherent filter type | Low-pass or high-pass | Low-pass | High-pass (with series L + shunt C + series L) |
| Harmonic suppression | Moderate (low-pass L) | Good | Poor (high-pass T amplifies harmonics) |
| Typical application | Simple impedance matching, antenna matching units | Transmitter tank circuits, tube amplifier output | Antenna tuners covering very high SWR loads |
| Impedance ratio limit | Any ratio works | Best for ratios up to ~25:1 | Best for ratios up to ~25:1 |
| Minimum Q | Qmin = √(RH/RL − 1) | Qmin = √(RH/RL − 1) | Qmin = √(RH/RL − 1) |
Antenna Tuners: Networks in Action
An antenna tuner (ATU — antenna tuning unit) is a user-adjustable impedance matching network inserted between the transmitter and the antenna feedline. Every time you adjust your tuner's L and C controls, you are adjusting the parameters of a Pi, T, or L network to minimize SWR at the transmitter's output. Understanding this gives the controls physical meaning.
The Classic "T" Tuner
Most commercial antenna tuners (including the MFJ-949, LDG AT-100, and similar) use a T-network topology: two series variable capacitors and a switched inductor in shunt. The two capacitors adjust the reactance on each side of the network, and the inductor value is chosen by a rotary switch. Adjusting these three elements simultaneously tunes the network to transform the antenna impedance to 50 Ω at the transmitter.
Despite its name, these "T tuners" typically use the high-pass T configuration (series C — shunt L — series C), which unfortunately does not attenuate harmonics. A low-pass filter after the tuner is recommended for harmonic compliance when using a T-type ATU with non-resonant antennas.
The "Pi" or "L" Coupler
Some antenna tuners and all vacuum-tube transmitter output stages use Pi or L network topologies with two variable capacitors and a tapped inductor. These are true low-pass networks that simultaneously match impedances and suppress harmonics — no separate low-pass filter needed. High-power tube amplifiers (like the classic Collins S-Line or Drake transmitters) use this exact topology.
The 50 Ω Standard
All of this relies on 50 Ω as the standard system impedance of amateur radio. The 50 Ω standard was adopted in the mid-20th century as a compromise between the 73 Ω impedance of a half-wave dipole in free space and the approximately 30 Ω impedance of a dipole close to ground — 50 Ω falls conveniently between the two and is also a practical value for coaxial cable construction. Understanding this history explains why every piece of amateur radio equipment is designed around 50 Ω — it is the hub around which all impedance matching networks are designed.
Frequently Asked Questions
Why must the Q of a Pi or L network be at least as large as √(Rhi/Rlo − 1)?
This minimum Q is a mathematical constraint arising from the requirement that the shunt capacitor on the high-impedance side must have positive reactance (capacitive). If you attempt to design a network with Q below Qmin, the equations produce imaginary (impossible) component values. You cannot build a lossless two-reactive-element network with a Q lower than this minimum. A cascade of two networks can achieve any Q above zero for any impedance ratio, but a single-section network has this inescapable constraint.
Can an impedance matching network work for reactive loads, not just resistive ones?
Yes — this is the real-world case for most antenna connections. A non-resonant antenna presents a complex impedance like 35 + j120 Ω (resistive plus inductive). The matching network must cancel the reactive part and transform the resistive part. In practice, this means the network's component values are adjusted from the purely resistive design to compensate for the antenna's reactance. Antenna tuners handle this automatically through the adjustment process — when you adjust the L and C controls until the SWR meter reads minimum, you are finding the component values that accomplish both reactive cancellation and resistive transformation simultaneously.
Why is the T network said to be high-pass? Doesn't it still match impedances at all frequencies?
A T network with two series inductors and a shunt capacitor has a high-pass frequency response — signals above the operating frequency are passed with relatively low insertion loss, while signals below it are attenuated. The impedance matching function works at the design frequency, but the harmonic behavior is unfavorable: harmonics (which are above the fundamental) see a relatively low-loss path through the network to the antenna. This is why Pi networks (low-pass) are strongly preferred in transmitter output applications where harmonic suppression is legally required.
