Power Rails and Ground Symbols

Power and ground are present in every electronic circuit, but schematics rarely draw a wire all the way from every component back to the battery or power supply. Instead, they use a set of standardized symbols and labels that tell you how everything connects without filling the diagram with dozens of long lines. Understanding these symbols is essential for reading any real-world schematic.

Why Symbols Instead of Wires

Consider a circuit with twenty ICs. Each one needs a +5 V supply and a ground connection. If every supply wire were drawn from a single point back to each IC, the schematic would be a tangled mess. Instead, a short line ending with a standardized symbol is placed next to every IC supply pin, and the reader understands that all identical symbols are connected together.

This convention makes schematics much cleaner without losing any information. The connection is implied by the shared symbol, not by a drawn wire.

The Three Ground Symbols

Three distinct ground symbols appear on schematics. They look similar but have different meanings:

Earth ground (safety ground)

Earth ground is drawn as a series of three horizontal lines, each slightly shorter than the one above, arranged like a downward-pointing triangle or fan. The connection labelled earth ground is physically connected to the earth — either through the safety ground wire or through a ground rod driven into the soil. In AC line voltage equipment this is the green wire (or green/yellow in some countries). Earth ground is the safety reference for line voltage-powered equipment.

Chassis ground

Chassis ground is drawn as a series of short downward lines resembling a comb, or sometimes as an inverted triangle with a horizontal line through its point. It represents a connection to the metal enclosure (chassis) of the equipment. The chassis acts as a common reference for the circuit and also provides shielding. In properly designed equipment, chassis ground and earth ground connect together at one point.

Signal ground (common)

Signal ground — sometimes labelled GND or common — is drawn as a downward-pointing solid triangle or a single horizontal bar. It is the zero-volt reference for the electronic circuit itself. In battery-powered equipment it is simply the negative terminal of the battery. In line voltage-powered equipment it may or may not be connected to earth or chassis ground, depending on the design.

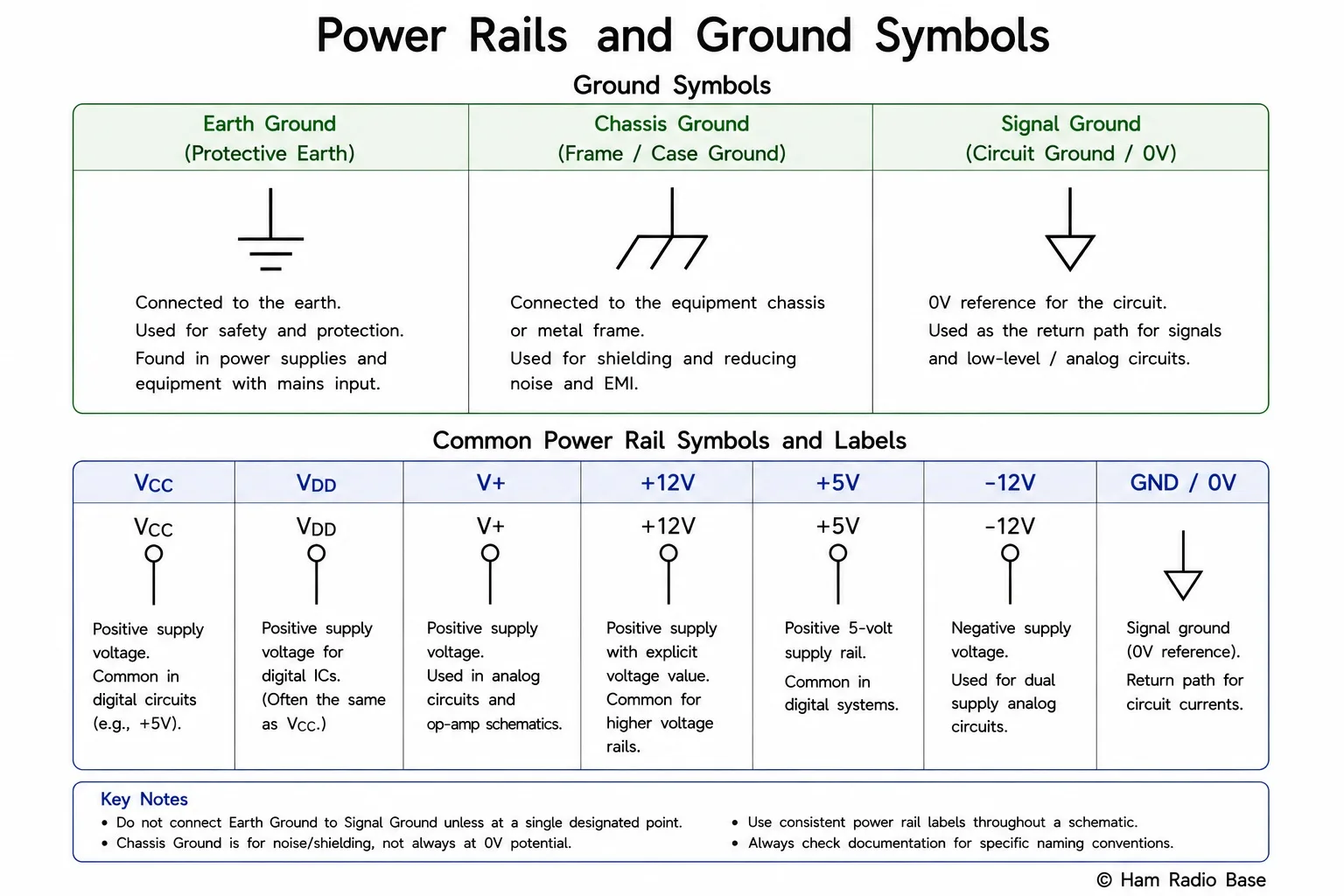

Fig 1 — The three ground symbols (left) and common supply rail label styles (right). Both appear frequently on real schematics.

View Larger

Positive Supply Rail Notation

Positive supply voltages are labelled at the end of a short wire stub rather than drawn all the way back to the supply. Common labels include:

The label appears at the end of a short wire stub, often with a small arrow or bar pointing upward, indicating that positive voltage is applied there. All components with the same label share the same supply connection.

Split Supplies and Negative Rails

Op-amps and some audio amplifier circuits need both a positive and a negative supply rail — called a split supply or dual supply. In a ±15 V split supply, the positive rail is +15 V, the negative rail is −15 V and the signal ground sits at 0 V midway between them.

The negative rail is labelled V−, VSS, −12V or −15V in the same way as the positive rail. The ground symbol (0 V reference) is placed between the positive and negative rails. When tracing a schematic with a split supply, remember that an op-amp output can swing both above and below 0 V — which is why split supplies are used in audio amplifiers that need to amplify both positive and negative excursions of the signal.

Net Labels

A net is simply a group of wires and component pins that are all connected together — they form one electrical node. Net labels give a name to a net without drawing any wire.

A net label appears as a short text string (for example, RF_IN, IF_OUT, AUDIO) attached to a wire stub. Any two wire stubs with the same net label are electrically connected, even if they appear on opposite sides of the diagram or even on different schematic sheets in a multi-sheet design.

Net labels are used for:

• Power rails (VCC, GND) — as described above
• Connecting signals between sections of a large schematic without drawing wires across the entire diagram
• Marking test points (for example, TP1, TP2) so that an oscilloscope probe can be connected to the labelled node
• Interface signals between sub-circuits (SPI_CLK, TX_DATA, etc.)

Decoupling and Bypass Capacitors

Almost every IC on a schematic will have one or more small capacitors connected between its supply pin and ground. These are called decoupling or bypass capacitors. They are not part of the main signal path — their purpose is to keep the supply voltage stable at the IC pin by providing a local reservoir of charge that can supply the brief current spikes needed when the IC switches.

On a schematic, decoupling capacitors appear as a capacitor symbol with one end on the supply net label and the other end on the ground symbol. They are typically 100 nF (ceramic) in value and are placed physically close to the IC on the PCB. They are present on almost every schematic you will encounter in digital and RF electronics, so recognising them quickly avoids confusion with coupling or filter capacitors.

Power Flags and Supply Pins

Many ICs have supply and ground pins that are not shown explicitly on the schematic body — they are assumed to be connected to the supply labels. This is especially common for logic gates and op-amps. When reading a schematic, always check the datasheet to confirm which pins are supply and ground, because an IC without a supply connection will not work even if the schematic symbol looks correct.

Some schematic tools (KiCad, for example) require a special "power flag" symbol to tell the design-rule checker that a net is a supply — without it, the tool incorrectly reports the supply as undriven. If you see a small flag-shaped symbol attached to a power net label, it is a tool-specific annotation and carries no physical meaning.
