Q Factor and Bandwidth
Q factor and bandwidth are two of the most frequently cited specifications in amateur radio — they appear in transceiver reviews, filter comparisons, antenna tuner specifications, and crystal oscillator data sheets. Yet many operators use these terms without a full understanding of what they mean, how they are measured, or what controls them. This lesson closes that gap completely.
You have already seen Q and bandwidth in the context of series and parallel resonant circuits. This lesson takes a broader and deeper look: where Q comes from physically, the critical distinction between unloaded and loaded Q, how insertion loss relates to Q, and how to choose the right Q for any radio application. These concepts underpin everything from your receiver's selectivity to the efficiency of your antenna system.

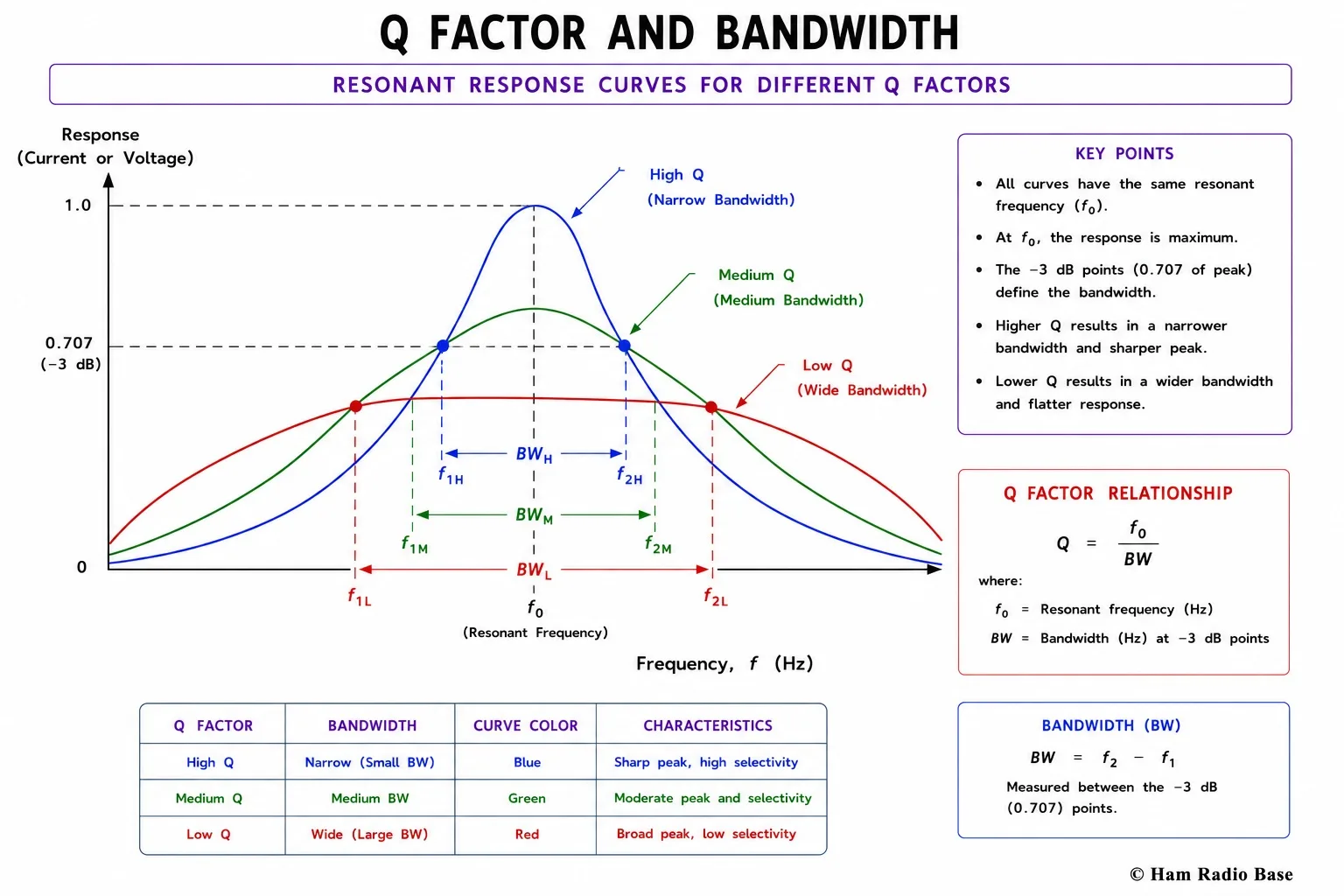

Three resonant circuits with the same f0 but different Q factors. High Q (narrow peak) selects one frequency while rejecting adjacent signals. Low Q (wide peak) accepts a broad range of frequencies. Both high and low Q have valid applications — the choice depends on what the circuit must do.
View LargerQ as an Energy Ratio
The letter Q stands for Quality factor, but the underlying concept is an energy ratio. Q is defined as:
Q = 2π × (Energy stored in circuit) / (Energy dissipated per cycle)
= 2π × (Peak reactive energy) / (Energy lost to resistance per cycle)
This definition is universal — it applies to mechanical resonators (tuning forks, springs), acoustic resonators (musical instrument bodies), optical resonators (laser cavities), and electronic resonators (LC circuits, crystals). The mathematics is identical in every case.
In a practical sense, Q measures how many times the stored energy circulates through the resonant system before being dissipated. A circuit with Q = 100 circulates its stored energy approximately 100/(2π) ≈ 16 times before that energy is dissipated. A crystal with Q = 100,000 circulates its stored energy about 16,000 times — which is why crystal oscillators can maintain frequency with extraordinary precision over millions of cycles.
The energy ratio definition also reveals why high Q is difficult to achieve in practice: it requires a resonator with very low loss. Every source of resistance — wire resistance, core losses, skin effect, radiation resistance — dissipates energy and reduces Q. The quest for higher Q is fundamentally a quest for lower loss, which is why RF coil design is a specialized art involving careful wire selection, core material choice, and winding geometry.
Q Formulas: All Forms Explained
Q can be expressed in several equivalent forms, each useful in different calculation contexts. Understanding when to use each form is a practical skill for circuit design.
Series Circuit Q
Qseries = XL / RS = ω0L / RS = 1 / (ω0CRS)
= (1/RS) × √(L/C)
Use the series Q formula when you know the inductor's series resistance and want to predict circuit selectivity. The formula XL/RS is the most intuitive: a coil with 200 Ω reactance and 2 Ω series resistance has Q = 100.
Parallel Circuit Q
Qparallel = RD / XL = RD / (ω0L) = ω0CRD
= RD × √(C/L)
Use the parallel Q formula when you know (or want to find) the dynamic resistance of a tank circuit. Since RD = Q² × RS for the same inductor, both formulas give the same numerical Q.
Q from Bandwidth Measurement
Q = f0 / BW3dB
Rearranging: BW3dB = f0 / Q
This is the most useful form for measuring Q experimentally. You measure f0 and the −3 dB bandwidth with a signal generator and voltmeter or oscilloscope, then calculate Q directly. This measured Q is the loaded Q — it includes all loading effects from connected circuits.
Q from Energy Definition
Q = ω0 × (Energy stored) / (Power dissipated)
= ω0 × Wstored / Pdissipated
This form is rarely used in calculation but is important for understanding Q conceptually and for deriving the other formulas from first principles.
Q for Individual Inductors and Capacitors
Individual components also have Q specifications, independent of any resonant circuit they might be placed in:
| Component | Q Formula | Interpretation |
|---|---|---|
| Inductor | QL = XL / RS = ωL / RS | Ratio of reactance to series resistance at the specified frequency |
| Capacitor | QC = XC / RS = 1 / (ωCRS) | Reciprocal of dissipation factor (DF); good capacitors have Q > 1000 |
In most resonant circuits, the inductor limits the circuit Q because inductors have much higher series resistance relative to their reactance than capacitors. A good air-core inductor might have Q = 200 at 10 MHz; a good RF capacitor easily achieves Q = 5000 or higher. The component with the lowest individual Q dominates the circuit Q.
Calculator: Q from R, L, and Frequency
Q Factor Calculator (from R, L, and Frequency)
Enter the inductor's series resistance, inductance, and the operating frequency to calculate Q. Also shows XL, XC (at resonance), and dynamic resistance.
Calculator: Bandwidth from Q and Resonant Frequency
Bandwidth Calculator (from Q and Resonant Frequency)
Enter the resonant frequency and Q factor to calculate the −3 dB bandwidth and the upper and lower half-power frequencies.
Unloaded Q, Loaded Q, and Operational Q
One of the most practically important distinctions in resonant circuit design is between unloaded Q (QU) and loaded Q (QL). Failing to understand the difference leads to confusion when measured performance does not match theoretical predictions.
Unloaded Q (QU)
The unloaded Q is the Q of the resonant circuit with no external load connected — determined only by the internal losses of the inductor and capacitor. It is the intrinsic Q of the circuit elements themselves. Unloaded Q is always the highest Q the circuit can achieve; connecting any load can only reduce it.
QU = XL / RS, where RS is the total series resistance of the inductor and capacitor (capacitor contribution is usually negligible).
Loaded Q (QL)
The loaded Q is the Q measured when the circuit is connected to its driving source and load. The source impedance and load impedance both appear in parallel with the tank circuit (for parallel resonant configurations) or in series with the resonant circuit (for series configurations), effectively adding resistance and reducing Q.
1/QL = 1/QU + 1/Qext
where Qext = Rext / XL (for parallel circuit with external resistance Rext)
Equivalently: QL = Rparallel(total) / XL
where Rparallel(total) includes RD, source impedance, and load impedance all in parallel
Operational Q
In some texts, operational Q refers to the Q under normal operating conditions — including the driving source resistance and the actual load — as opposed to the Q measured under a specific test condition. It is essentially equivalent to loaded Q in most contexts.
A parallel tank circuit has QU = 150 at 14.2 MHz. It is driven by a 50 Ω source through a matching network and loads a 1 kΩ circuit. The coupling is arranged so that the effective source impedance across the tank is 20 kΩ and the load impedance is 20 kΩ. Find QL and bandwidth.
Step 1 — XL: At QU = 150, RD(unloaded) is very high. Let's find XL from QU and the dynamic resistance. If L = 1 µH: XL = 2π × 14.2×10⁶ × 10⁻⁶ = 89.2 Ω, RS = XL/QU = 89.2/150 = 0.595 Ω, RD = QU² × RS = 22500 × 0.595 = 13,388 Ω
Step 2 — Total parallel resistance with source and load:
1/Rtotal = 1/13,388 + 1/20,000 + 1/20,000 = 74.7×10⁻⁶ + 50×10⁻⁶ + 50×10⁻⁶ = 174.7×10⁻⁶
Rtotal = 1/174.7×10⁻⁶ = 5,724 Ω
Step 3 — Loaded Q:
QL = Rtotal / XL = 5,724 / 89.2 = 64.2
Step 4 — Loaded bandwidth:
BW = 14,200,000 / 64.2 = 221,183 Hz ≈ 221 kHz
Interpretation: The unloaded Q of 150 has been reduced to 64 by connecting source and load — a reduction to 43% of QU. Bandwidth has correspondingly increased from ~95 kHz (unloaded) to 221 kHz (loaded). This is the inevitable trade-off: connecting any load to a resonant circuit degrades its selectivity. Impedance transformation networks are used to minimize this effect by keeping the coupled impedances as high as possible.
Insertion Loss and Q
When a resonant circuit is inserted into a signal path, it introduces insertion loss at the center frequency — even when perfectly matched to the source and load impedances. This loss arises because the resonant circuit's internal resistance (which determines Q) dissipates some of the signal power. Insertion loss is the price paid for selectivity.
IL (dB) = 20 log10(QU / (QU − QL))
Alternatively: IL = 20 log10(1 / (1 − QL/QU))
where QU = unloaded Q, QL = loaded Q
This formula reveals an important truth: insertion loss is determined by the ratio QL/QU. When QL is much smaller than QU (lightly coupled to source and load), insertion loss is low but selectivity is poor. When QL approaches QU (heavily coupled), selectivity is excellent but insertion loss becomes unacceptably high.
| QL/QU Ratio | Insertion Loss | Selectivity | Practical Use |
|---|---|---|---|
| 0.1 (QL = 0.1 × QU) | ~0.9 dB | Poor | Pre-selector, wideband amplifier |
| 0.3 | ~3.1 dB | Moderate | IF amplifier, tuned stage |
| 0.5 | ~6.0 dB | Good | Bandpass filter |
| 0.7 | ~10.5 dB | Very good | Narrow IF filter (if loss is acceptable) |
| 0.9 | ~20 dB | Excellent | Impractical for most applications |
The practical takeaway: for a single resonant circuit used as a bandpass filter, QL/QU ratios between 0.3 and 0.5 are typical. Multiple coupled resonators (as in a multi-section IF filter) can achieve high selectivity with lower insertion loss per stage because each stage contributes a portion of the total selectivity.
Q in Amateur Radio Practice
Receiver Selectivity
The IF filter in your receiver is the primary determinant of selectivity — how well the receiver rejects signals on adjacent channels. SSB receivers typically use filters with 2.4–3.0 kHz bandwidth. For a 455 kHz IF, this requires Q = 455,000 / 2,700 ≈ 168. LC circuits at this frequency have Q values well below this, so crystal or ceramic filters are used — they achieve the required Q through the extremely low acoustic losses of quartz or ceramic resonators.
Transmitter Harmonic Suppression
The tank circuit Q in your transmitter determines initial harmonic suppression before the output low-pass filter. FCC Part 97 requires at least 40 dB of harmonic suppression. Tank Q of 10–15 provides 15–20 dB at the second harmonic, and the low-pass filter provides the remaining attenuation. Knowing this lets you understand why both a good tank circuit and a good low-pass filter are needed — neither alone is sufficient for typical QRP and QRO designs.
Antenna Tuner Efficiency
An antenna tuner (ATU) contains resonant elements, and these elements have a Q that determines how much transmitter power is wasted as heat in the tuner. A tuner with Q = 5 at the operating frequency might waste 10–15% of transmitter power internally. A tuner with Q = 50 wastes only about 1–2%. This is why high-quality ATUs use large, air-wound inductors with high Q rather than small ferrite-core inductors.
Measuring Q in the Shack
You can measure the Q of any resonant circuit you build using only a signal generator and an oscilloscope or AC voltmeter:
- Tune the generator to f0 (maximum output from the circuit)
- Record the output voltage Vmax
- Find f1 (lower frequency where V drops to 0.707 × Vmax)
- Find f2 (upper frequency where V drops to 0.707 × Vmax)
- Calculate BW = f2 − f1
- Q = f0 / BW
This gives you the loaded Q — the Q under actual operating conditions. To estimate unloaded Q, you can measure Q with progressively lighter coupling to the test circuit until Q stops increasing — the limiting value is close to QU.
You build a 40-meter bandpass filter and measure: Vmax at f0 = 7.050 MHz; output drops to 0.707 × Vmax at f1 = 7.008 MHz and f2 = 7.092 MHz. Find QL and compare to the 40-meter SSB phone subband (7.125–7.300 MHz).
Step 1 — Bandwidth:
BW = 7.092 − 7.008 = 0.084 MHz = 84 kHz
Step 2 — Loaded Q:
QL = f0 / BW = 7.050 / 0.084 = 83.9 ≈ 84
Step 3 — Interpretation:
The 40-meter band is 300 kHz wide (7.0–7.3 MHz). A bandwidth of 84 kHz passes about 28% of the band — useful as a pre-selector to reduce out-of-band interference, but not narrow enough to resolve individual SSB signals (which need 2.4–3 kHz). This filter would work well as a front-end preselector for a 40-meter receiver, reducing interference from broadcast stations on adjacent bands.
Frequently Asked Questions
Why does connecting a load always reduce Q rather than potentially increasing it?
Q measures the ratio of stored energy to dissipated energy. The inductor and capacitor store energy; resistance dissipates it. Connecting a load resistance to a resonant circuit adds another dissipation path — it can only increase the rate at which stored energy is removed, never decrease it. No passive load can add energy back into the circuit, so Q can never be increased by loading. Only reducing the internal resistance of the inductor can raise QU.
Is higher Q always better?
Not always. Higher Q means narrower bandwidth, which can be a problem. A receiver IF filter that is too narrow distorts SSB voice and cuts off CW sidebands. An antenna tuner with very high Q is very sensitive to component values and harder to tune precisely. A transmitter tank circuit with extremely high Q may not allow enough bandwidth for full carrier deviation on AM or FM signals. The goal is the right Q for the application — high enough for adequate selectivity, low enough for adequate bandwidth and ease of use.
What is the Q of a typical ham radio whip antenna?
A full-size resonant antenna has Q in the range of 7–15, which is why antennas have very broad bandwidth (an 80-meter dipole covers the entire 80-meter band with SWR below 2:1 from about 3.4–4.0 MHz). Electrically short antennas have higher Q (narrower bandwidth) because the reactive impedance is much larger relative to the radiation resistance. A mobile HF whip might have Q = 50–200, requiring retuning when moving across a band — which is why remote-controlled antenna tuners are valuable for mobile operation.
