Reading Datasheets and Specifications
Every electronic component comes with a datasheet — a technical document published by the manufacturer that tells you everything you need to know to use that component correctly. Datasheets can look intimidating at first: dense tables of numbers, graphs with multiple curves, cryptic parameter names and long strings of conditions. Once you understand the structure, though, they become the most useful reference documents in electronics. This lesson shows you how to read them confidently.
- What a datasheet is and where to find one
- Standard sections of a datasheet
- Absolute maximum ratings
- Electrical characteristics table
- Understanding min / typ / max
- Test conditions — the fine print
- Pinout diagrams and package codes
- Reading graphs
- RF-specific parameters
- Practical tips for real-world use
What a datasheet is and where to find one
A datasheet (also called a data sheet or specification sheet) is the manufacturer's authoritative description of a component. It defines the component's electrical behaviour, safe operating limits, physical dimensions, and recommended usage. Datasheets are the primary reference when:
- Choosing a component for a design
- Calculating the operating point of a circuit
- Checking whether a component can handle a particular voltage, current or temperature
- Identifying pinouts before soldering
- Comparing alternatives from different manufacturers
Datasheets are freely available. Search for the part number plus "datasheet" on any search engine, or use manufacturer websites and component distributor sites. Always use the datasheet for the exact part number you have, including the suffix — a 2N3904 and a 2N3906 are different transistors, and a 78L05 and a 7805 are different regulators.
Standard sections of a datasheet
While layout varies between manufacturers, most datasheets follow a common structure:
| Section | What it contains |
|---|---|
| Description / Features | Brief overview of what the component does, key specifications highlighted as bullet points |
| Applications | Suggested uses — useful for confirming you have the right part |
| Absolute Maximum Ratings | Hard limits that must never be exceeded under any circumstance |
| Electrical Characteristics | Performance parameters measured under defined test conditions — the main technical table |
| Pinout / Package Information | Diagram showing which pin does what; mechanical dimensions |
| Application Circuits | Recommended circuit configurations, often with component values |
| Typical Performance Curves | Graphs showing how parameters change with temperature, frequency, supply voltage, etc. |
Absolute maximum ratings
This is the most important section to read before applying power to anything. Absolute maximum ratings define the limits beyond which the component will be damaged. Exceeding them — even briefly — can destroy the device. There is no safety margin built in above the absolute maximum: the numbers mean exactly what they say.
Common parameters in the absolute maximum ratings section include:
- VCC max / VDD max — maximum supply voltage
- Vin max — maximum input voltage (may apply individually to each input pin)
- Iout max — maximum output current
- PD — maximum power dissipation (often with a derating curve for temperature)
- TJ max — maximum junction temperature for semiconductor devices
- Tstg — storage temperature range
- ESD — electrostatic discharge immunity (how much static voltage the device can survive)
Electrical characteristics table
This is the main performance table. It lists the parameters you actually care about for your design: voltage thresholds, current consumption, gain, frequency response, output drive capability, and so on. Each row is a single parameter with its symbol, the conditions under which it was measured, and its min/typ/max values.
Parameters are often grouped by function. For a logic IC, you might see sections for: DC characteristics (input/output voltage levels, supply current), AC characteristics (propagation delay, rise and fall times), and sometimes power consumption figures for different operating modes.
Understanding min / typ / max
Almost every row in an electrical characteristics table has three columns: Min, Typ, and Max. Understanding what each means is crucial for reliable circuit design.
| Column | Meaning | How to use it |
|---|---|---|
| Min | The minimum guaranteed value across all units, all temperatures, entire production life | Use this for worst-case design when you need the parameter to be at least this value (e.g. minimum output current, minimum gain) |
| Typ | A typical measured value — the median or mean of a sample. Not guaranteed. | Useful for estimating normal behaviour, but do not design to typical values alone |
| Max | The maximum guaranteed value across all units and conditions | Use this for worst-case design when you need the parameter to be no more than this value (e.g. maximum current consumption, maximum propagation delay) |
A common mistake is designing to the typical value and being surprised when a batch of components or a cold day causes problems. For robust designs, always check the worst case against both the min and max columns, and make sure your circuit works correctly at both extremes.
Some parameters have a dash (—) for min or max. A dash for minimum means "no lower limit guaranteed" (the actual minimum may vary); a dash for maximum means "no upper limit guaranteed." Neither means zero or infinity — it means the manufacturer does not specify that bound.

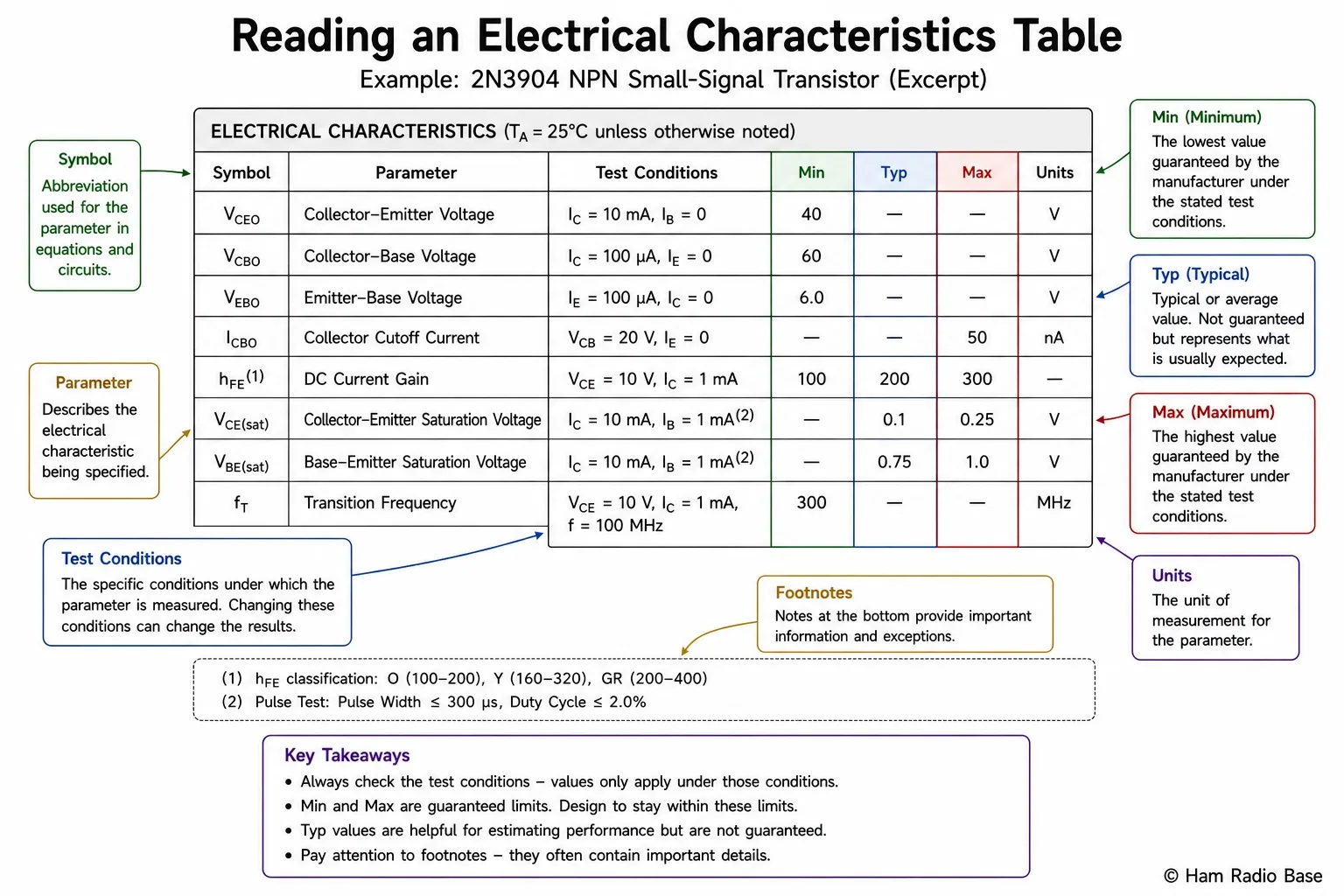

A typical electrical characteristics table. Always check the test conditions column — a specified value only applies under the exact conditions stated. Design to min and max, not to the typical figure.
View LargerTest conditions — the fine print
Every row in the electrical characteristics table has test conditions — typically printed in a column or as a footnote. These describe the exact circuit configuration, temperature, supply voltage, and load at which the measurement was taken. The specified value only applies under those exact conditions.
Always check whether the test condition matches your operating conditions. If it does not, use the graphs to estimate the actual value at your operating point, or if precision matters, measure it in your own circuit.
Pinout diagrams and package codes
The pinout section shows which physical pin on the component connects to which function. Getting this wrong destroys components, so always verify before soldering. Pinouts are shown as a diagram with pins numbered, and a table cross-referencing the pin number to its function.
The same device may be available in multiple packages — DIP (through-hole), SOT-23 (small SMD), TO-92 (plastic transistor), TO-220 (power transistor), and many others. Each package has its own pinout. A 2N2222 in a TO-92 package has its leads in a different order than a 2N2222A in a TO-18 metal can. Always identify the package you have and use the correct pinout for it.
Package codes appear as suffixes or separate ordering codes. Common examples:
- N or P suffix: DIP (Dual In-line Package) — through-hole
- D or SO suffix: SOIC (Small Outline IC) — surface mount
- A suffix: often indicates a different performance grade or package variant
Reading graphs
Typical performance curves show how a parameter changes with an operating variable. Common graphs include:
- Gain vs frequency — how much gain the device provides at different frequencies; useful for checking whether it is still useful at your operating frequency
- Output power vs supply voltage — relevant for amplifiers and regulators
- Current consumption vs temperature — for battery-powered designs
- Safe operating area (SOA) — a region on a voltage-vs-current plot showing which combinations the device can handle safely; common for power transistors
Graphs often show multiple curves for different temperatures or operating conditions. Read the legend carefully before assuming which curve applies to your situation.
RF-specific parameters
For RF transistors, amplifier ICs, and mixer chips, you will encounter parameters not found in general-purpose component datasheets:
| Parameter | Symbol | What it means |
|---|---|---|
| Gain flatness | ΔG | How much the gain varies across the specified frequency range (smaller is better) |
| Noise figure | NF | How much noise the device adds to the signal, in dB. Smaller is better for LNAs and receive amplifiers. |
| 1 dB compression point | P1dB or IP1dB | The input power level at which gain has dropped by 1 dB from its small-signal value — a measure of how hard the amplifier can be driven before it clips |
| Third-order intercept point | IP3 or IIP3 | A figure of merit for linearity — higher is better. Expressed in dBm at the input (IIP3) or output (OIP3). |
| Return loss / VSWR | S11 | How well the input or output port is matched to 50 Ω. Higher return loss (in dB) means a better match. |
| S-parameters | S11, S21, S12, S22 | Scattering parameters describing gain, impedance and reverse isolation as functions of frequency. S21 is forward gain; S11 and S22 are input and output reflection. |
| Saturated output power | Psat | The maximum output power the device can produce, regardless of drive level. Beyond this, more input does not produce more output. |
Practical tips for real-world use
- Always get the datasheet for the exact part you have. Suffixes and date codes matter. A 7805 and a UA7805 may be from different manufacturers with slightly different characteristics.
- Check the revision number. Datasheets are updated. If you find two versions of the same document online, use the one with the higher revision number or the more recent date.
- Design to min/max, not typical. Your circuit must work correctly with any unit from the full production spread.
- Check test conditions before trusting a number. A gain figure measured at a different frequency or supply voltage than your design may not apply.
- Look at the application circuits. Manufacturers often show the best-practice configuration, including decoupling capacitors, feedback components, and recommended layout practices.
- The absolute maximum ratings are not derating guidelines. They are the destruction threshold. Derate your operating conditions to 50–80% of the max to ensure long-term reliability.
- Check the errata. For complex ICs, manufacturers sometimes publish errata documents listing known errors in the datasheet or the silicon itself.
Frequently Asked Questions
What happens if I exceed an absolute maximum rating briefly?
The component may fail immediately, or it may appear to work but have degraded parameters. Semiconductor junctions that are stressed beyond their absolute maximum ratings suffer oxide breakdown, junction damage, or electromigration that reduces reliability even if the device does not fail outright. "Briefly" is not a margin — the absolute maximum rating applies even for transient pulses, unless a separate pulse rating is stated.
Why do some cells show "—" instead of a number?
A dash means the manufacturer does not guarantee a value for that bound. For a minimum dash, the actual minimum may be zero or may vary unpredictably. For a maximum dash, the actual maximum is not controlled. This is different from zero. Do not assume a missing minimum means the value can be any positive number — it means you cannot rely on it being above any threshold.
Can I use a component outside its specified frequency range?
Sometimes, but with no guarantees. The datasheet only guarantees performance within the specified range. Outside it, gain may drop, noise may increase, impedance may shift, and stability may be affected. For critical RF work, always use components specified for your operating frequency. For experimental work, testing the actual behaviour is the only way to know.
