Reading Digital Meters
The digital multimeter (DMM) replaced the analog meter as the standard workshop instrument because it is faster to read, more accurate, requires no parallax correction, and stores the reading on demand. But digital displays have their own notation, their own quirks, and their own failure modes. Understanding what the display actually tells you — and what it cannot tell you — makes you a much more effective user of what is probably the most-used instrument in your shack.
Digit Notation and Counts
A digital multimeter is described by the number of digits it can display. The notation uses a half-digit to indicate whether the leading digit is limited:

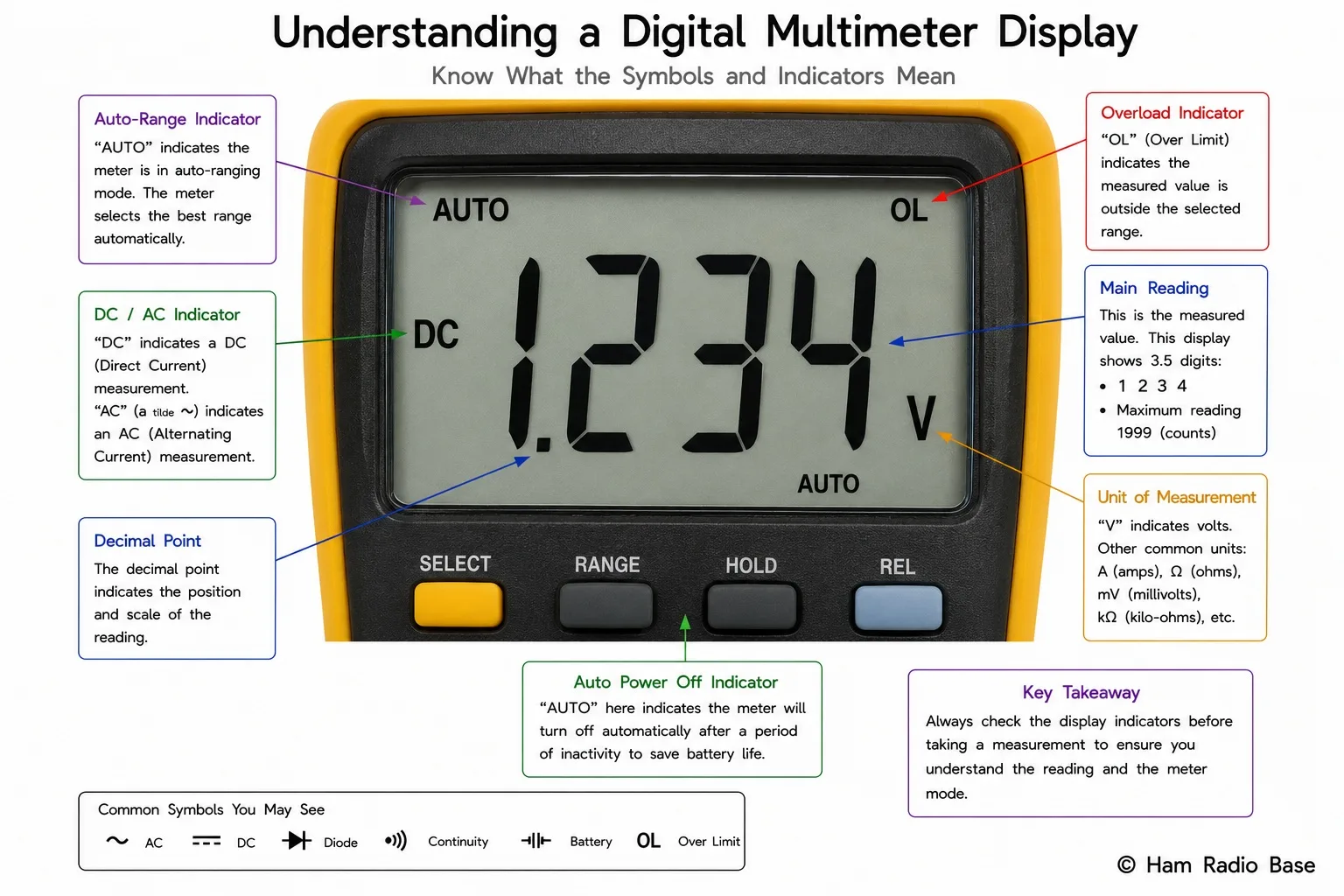

A typical 3½-digit DMM display. The leading digit can only be 0 or 1 (half digit), giving a maximum reading of 1999. The decimal point shifts automatically when ranging. OL appears when the input exceeds the range.
View Larger| Notation | Max reading | Full-range count | Typical use |
|---|---|---|---|
| 3½ digit | 1999 | 2000 | General purpose, entry to mid-range meters |
| 4 digit | 9999 | 10000 | Mid-range, good for voltage measurement |
| 4½ digit | 19999 | 20000 | Professional, lab grade |
| 5½ digit | 199999 | 200000 | Bench multimeter, calibration work |
A 3½-digit meter displaying on the 200 V range can show any value from 000.0 to 199.9 V (the leading digit can only be 0 or 1, giving a maximum of 1999 counts, displayed as 199.9). This is the most common type and is perfectly adequate for ham radio work.
The count is the maximum number of discrete steps the display can show. A 2000-count meter on a 200 mV range resolves to 0.1 mV per count. On a 200 V range the same meter resolves to 0.1 V per count. Higher count means finer resolution within each range.
OL — Overload Indication
When the measured value exceeds the selected range, the display shows OL (overload) — sometimes written as 1 on cheaper meters, or OVER or OFL on others. OL means: "the reading is higher than I can display on this range — switch to a higher range or check your connections."
OL is not a fault. It is the meter politely telling you to try again on the correct range. On an auto-ranging meter, OL appears briefly while the meter is hunting for the right range. On a manual-ranging meter, OL means you have started on too low a range — remember the golden rule: start high and work down.
Auto-Ranging vs Manual Ranging
Most modern DMMs are auto-ranging: the meter internally measures the input, selects the most appropriate range, and displays the result with the correct decimal point. You simply select the function (V, A, Ω) and the meter does the rest.
Advantages of auto-ranging:
- No need to know the approximate value before measuring — just connect and read
- Automatically adjusts when a value changes significantly (useful for checking a battery as it discharges)
- Eliminates errors from selecting the wrong range
Disadvantages of auto-ranging:
- Slower to settle — the meter must test the input before selecting the best range, which can take 1–2 seconds
- The decimal point position changes as the range switches, which can briefly confuse the reader
- Not suitable for rapidly changing signals where a fixed range would settle faster
Manual-ranging is preferred when you know approximately what you are measuring and need the fastest possible update speed. It also prevents the annoying range-switching that can occur when a measurement fluctuates near a range boundary.
Resolution vs Accuracy
These two concepts are frequently confused:
- Resolution is the smallest change in the reading the meter can display. A 3½-digit meter on the 20 V range has a resolution of 0.01 V — it can tell you the reading changed from 12.34 V to 12.35 V.
- Accuracy is how close the displayed value is to the true value. Typical accuracy for a mid-range DMM is ±(0.5% of reading + 2 counts). This means a reading of 12.34 V could actually be anywhere from about 12.22 V to 12.46 V after accounting for the stated uncertainty.
High resolution does not imply high accuracy. A meter displaying 12.348 V is not necessarily accurate to the millivolt — it just has finer display steps. Accuracy is determined by the quality of the internal reference voltage and the analog-to-digital converter.
Uncertainty = (0.5% × 12.34) + (2 × 0.01) = 0.062 + 0.02 = ±0.082 V
True value is between 12.26 V and 12.42 V — a range of 0.16 V, despite the display showing 0.01 V resolution.
Display Functions
Most DMMs include extra functions accessible from dedicated buttons:
| Function | Button label | What it does | Ham radio use |
|---|---|---|---|
| Hold | HOLD | Freezes the current reading on the display | Capturing a reading in an awkward position where you cannot watch the display while probing |
| Min/Max | MIN MAX | Records and displays the minimum and maximum reading since the function was activated | Finding the highest voltage on a power supply under varying load, or the lowest resistance in a search |
| Relative (REL) | REL or ZERO | Stores the current reading as a reference zero; subsequent readings show the difference from that reference | Measuring resistance of a connection relative to the test lead resistance, or noting voltage changes from a reference level |
| Auto-hold | AUTO HOLD | Automatically holds a stable reading when the probes are lifted from the circuit | Single-handed probing when you need to see the reading after removing the probes |
What the Display Shows
Beyond the main numerical reading, the LCD annunciators (small symbols) around the main digits carry important information:
- AC / DC: Indicates whether the meter is in AC or DC mode. Never assume — always check the annunciator matches your circuit.
- − (minus) sign: Appears when the measured voltage is reversed relative to probe polarity (red is at a lower potential than black). On DC voltage measurements this is normal and just means reverse the probes if you want a positive reading.
- Auto / Manual: Indicates auto-ranging or manual range mode on meters that support both.
- HOLD: Confirms the Hold function is active and the display is frozen.
- Battery low: A battery symbol or "BATT" warns that the internal battery needs replacing. Replace it before trusting measurements — a weak battery does not usually cause wrong readings in modern DMMs (the reference voltage is regulated) but it will cause the display to dim or fail.
Hands-On Experiment
⚖ Experiment: Auto-Range vs Manual Range and the Min/Max Function
This experiment demonstrates the range-switching behavior of auto-ranging, the resolution difference between ranges, and the Min/Max function — using nothing more than a 9 V battery, a potentiometer (or a fixed resistor divider), and your multimeter.
- Digital multimeter
- 9 V battery
- 10 kΩ potentiometer (or two fixed resistors: 4.7 kΩ and 4.7 kΩ)
- Connecting wires
- Connect the 9 V battery across the outer terminals of the potentiometer (or across the two fixed resistors in series). Connect your multimeter across the wiper and one outer terminal (or across one resistor).
- Set the multimeter to auto-ranging DC voltage. Slowly rotate the potentiometer from one end to the other. Watch the display — notice it briefly shows OL or blanks as it switches ranges. The decimal point shifts as the range changes.
- Switch to manual ranging on the 20 V range. Rotate the potentiometer again. The display now settles immediately with no range switching, but the resolution is only 0.01 V. Switch to the 2 V range when the wiper gives a reading below 2 V — notice the resolution improves to 0.001 V.
- Press the Min/Max button with the meter back on auto-range and the battery connected. Slowly vary the potentiometer for 30 seconds. Then press Min/Max repeatedly to cycle through the minimum, maximum and current readings. Note the peak and trough voltages.
Auto-ranging is convenient but visibly slow when the reading crosses a range boundary. Manual ranging is instant but requires you to know approximately what you are measuring. Min/Max captures the extremes without you having to watch the display continuously — useful when probing a circuit where conditions vary.
Frequently Asked Questions
What does "3½ digit" actually mean?
It means the meter has three full digits (0–9) and one leading half-digit that can only be 0 or 1. So the maximum reading is 1999. The "½" refers to this limited leading digit. A 4½-digit meter has a leading digit limited to 0 or 1, giving a maximum reading of 19999.
Why does my meter show a negative reading when I measure a battery?
The red probe (positive) is connected to the negative terminal of the battery, or the black probe to the positive terminal. On DC voltage the meter shows a minus sign to indicate the polarity is reversed relative to the probe connections. The magnitude is still correct — simply swap the probes to get a positive reading.
Is a high-count meter always more accurate?
Not necessarily. Count (or digit) specification describes resolution — the smallest change the meter can display. Accuracy depends on the quality of the internal reference and ADC. A cheap 6000-count meter might be less accurate than a well-designed 2000-count instrument from a quality manufacturer. Always check the accuracy specification (±% rdg ± counts) rather than just the digit count when comparing meters.
My meter keeps switching ranges on an auto-ranging AC measurement. Why?
AC voltage readings can fluctuate slightly due to line regulation variations, and the meter may straddle a range boundary. Switch to manual range at the level that gives a reading in the upper half of the scale to stop the hunting. If the signal is genuinely varying rapidly, use Min/Max to capture the extremes.
Test Your Knowledge
Answer the questions below to check your understanding. Every answer can be found in the lesson above.
