RMS, Peak and Peak-to-Peak Values

When someone says a signal is "3 volts AC," what exactly do they mean? The voltage is constantly changing — swinging from positive to negative and back again thousands of times per second. Which point in that swing do we call "3 volts"? The answer depends on what the measurement is for. Engineers use three different ways to express the amplitude of an AC signal — RMS, peak, and peak-to-peak — each suited to a different purpose. Confusing them leads to errors in circuit design, incorrect power calculations, and mismatched component ratings.

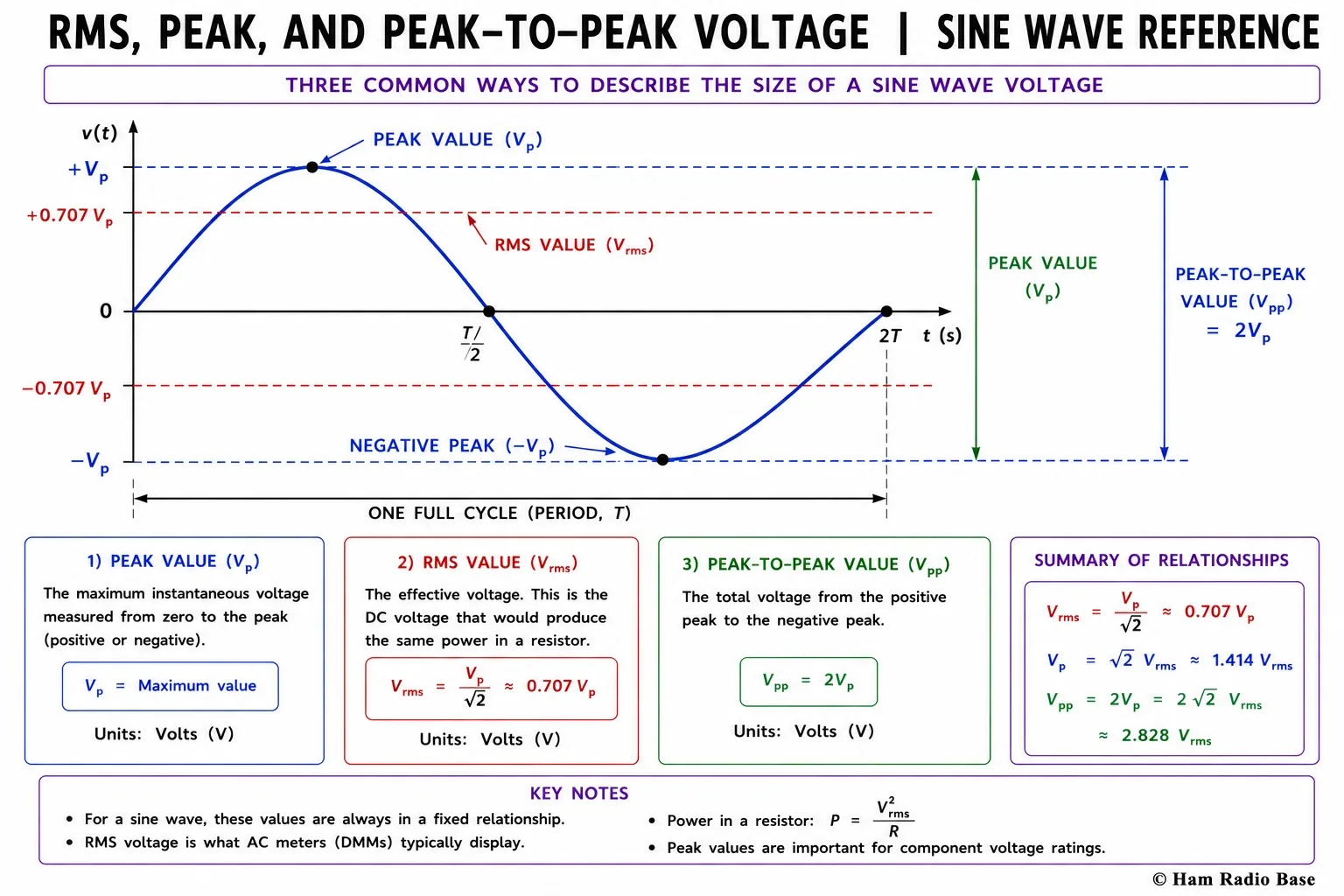

A sine wave showing all three amplitude measures. V_peak is the maximum excursion from zero. V_pp is the total swing from most negative to most positive. V_rms (0.707 × V_peak) is the DC-equivalent heating value.

View Larger

The Problem with "AC Voltage"

A DC voltage of 12 V is simple: it stays at 12 V all the time. To describe it, one number is enough. An AC voltage is different — at any instant it could be at its positive peak, passing through zero on the way down, at its negative peak, or anywhere in between. If you connect a voltmeter to an AC source and it reads "120 V," which 120 V does it mean?

The answer requires agreeing on a standard measure. Historically, three measures have proven useful for different purposes, and electrical engineers use all three routinely. Understanding which measure a specification or instrument uses is not optional — it is fundamental to avoiding expensive mistakes in circuit design and component selection.

Peak Value

The peak value (V_peak, also written V_p or V_max) is the maximum amplitude the waveform reaches, measured from the zero reference line to the crest of the waveform. For a symmetric sine wave, the positive and negative peaks have equal magnitude, so we usually refer to a single peak value with the understanding that the negative peak is the same magnitude.

Peak voltage is what determines whether a component will be destroyed. A capacitor rated at 50 V will be damaged if the AC signal across it has a peak voltage exceeding 50 V — even if the RMS voltage is only 35 V. This is why component voltage ratings must always be compared against the peak voltage, not the RMS voltage.

Oscilloscopes measure peak voltage directly. When you look at a waveform on a scope screen and measure from the baseline to the top of the waveform, you are reading the peak voltage. This makes the scope more useful than a multimeter for checking component voltage stress in high-voltage circuits.

Peak-to-Peak Value

The peak-to-peak value (V_pp, also written V_p-p) is the total voltage swing — from the most negative point of the waveform to the most positive point. For a symmetric sine wave:

The peak-to-peak value is the most natural measurement to take from an oscilloscope, because you measure from the bottom of the waveform to the top without needing to find the zero-volt baseline. Many scope measurements are stated in peak-to-peak form for this reason.

In digital electronics, peak-to-peak voltage is critical because it determines whether a signal will properly toggle a logic input. A 3.3 V logic system requires signals that swing between 0 V and 3.3 V — a peak-to-peak swing of 3.3 V. An AC-coupled amplifier's output might have a much larger peak-to-peak swing with the midpoint sitting at a DC bias voltage rather than at ground.

RMS Value — The Power-Equivalent Value

The root-mean-square (RMS) value is the most important measure for power calculations, and it is what your multimeter reports. The RMS voltage of an AC signal is defined as the DC voltage that would deliver exactly the same amount of power to a resistive load.

To understand where RMS comes from, think about it step by step. Power in a resistor is P = V²/R. For a DC circuit this is simple. For an AC circuit, the instantaneous power varies continuously as the voltage swings up and down. To find the average power, you need the average of V² (not the average of V, which would be zero for a symmetric sine wave). Take the average of V², then take the square root to get back to a voltage quantity — that is the root of the mean of the square, or RMS.

For a sine wave specifically, the mathematical derivation gives a simple result:

This 0.707 factor is worth memorizing — it appears constantly in AC circuit calculations. It means the RMS value of a sine wave is about 70.7% of its peak value. Conversely, the peak value is about 141% (√2 times) the RMS value.

Conversion Formulas

The following table summarizes all six conversion directions between the three amplitude measures, for sine waves specifically:

The crest factor of a waveform is the ratio of its peak value to its RMS value. For a sine wave, the crest factor is √2 ≈ 1.414. A square wave has a crest factor of exactly 1 (since the peak and RMS are the same). Knowing the crest factor is important when using non-true-RMS meters, as discussed below.

RMS / Peak / Peak-to-Peak Calculator

Which Value to Use and When

The three amplitude measures are each correct — they just describe different aspects of the same waveform. The key is knowing which one a specification or instrument is referring to.

Use RMS for power calculations. Power = V_rms² / R. If you use peak or peak-to-peak voltage in the power formula without converting to RMS first, you will get the wrong answer. Your multimeter reads RMS (for true-RMS meters — see below). AC power specifications are always in RMS. When a transmitter is rated at "100 watts," the output voltage is the RMS voltage that produces 100 W into the rated load impedance.

Use peak for component voltage ratings. A capacitor, transistor, diode, or any other component must withstand the peak voltage, not the RMS voltage. If the peak voltage exceeds the component's voltage rating, the component may fail — even if the RMS voltage appears safe.

Use peak-to-peak when reading oscilloscope displays. It is the easiest measurement to take from a scope screen. Once you have V_pp, divide by 2√2 to get RMS, or divide by 2 to get V_peak.

True-RMS vs. Average-Responding Meters

Not all multimeters measure RMS accurately for non-sine waveforms. The difference matters more than most beginners realize.

Average-responding meters (most inexpensive multimeters) measure the average of the rectified AC voltage and then multiply by 1.111 (which is the ratio of RMS to average for a sine wave) to display an approximate RMS reading. This gives exactly the correct answer for sine waves, but can be significantly wrong for square waves, pulse trains, or any distorted waveform. A square wave at 10 V RMS would be misread as approximately 11.1 V by an average-responding meter.

True-RMS meters compute the actual root-mean-square value by squaring the instantaneous voltages, averaging, and taking the square root — the mathematically correct operation. They report correct RMS for any waveform shape. For ham radio work — where signals may be pulsed, clipped, or distorted — a true-RMS meter gives reliable readings. Most bench-grade meters (Fluke 87, Klein CL800, etc.) are true-RMS; most basic meters sold at hardware stores are not.

Ham Radio Applications

Understanding these three amplitude measures connects directly to several practical ham radio situations:

Transmitter power output. RF power into 50 ohms is P = V_rms² / 50. To check your 100 W transmitter with an oscilloscope, calculate the expected peak-to-peak voltage: V_rms = √(100 × 50) = 70.7 V; V_peak = 70.7 × 1.414 = 100 V; V_pp = 200 V. If your scope shows 200 V peak-to-peak across the dummy load, the transmitter is delivering exactly 100 W.

Peak Envelope Power (PEP). For SSB transmissions, the carrier power varies with audio modulation. PEP is measured at the peak of the modulation envelope — the highest instantaneous power. Regulations specify PEP, not average power, for SSB. A typical SSB transceiver running 100 W PEP will have average power much lower, depending on the audio content.

Capacitor selection in power supplies. If you are building a power supply for a 12 V regulated output, the transformer secondary might be 12 V RMS. After rectification (a 0.7 V diode drop) the peak voltage reaching the filter capacitors is 12 × √2 − 0.7 = 16.3 V. The filter capacitors must be rated for at least 25 V, with 35 V as a sensible safety margin.

Signal generator output levels. When connecting a signal generator to a receiver for sensitivity testing, the generator's output is typically specified in dBm or in µV RMS into 50 ohms. A signal of 1 µV RMS at 50 ohms corresponds to a power level of −107 dBm — near the noise floor of a good HF receiver.
