Signal Injection
Your own ears are one of the best, cheapest, and most sensitive pieces of test equipment in your toolbox. Signal injection is a troubleshooting technique built around exactly that fact: instead of measuring voltages or waveforms with an instrument, you deliberately introduce a small test signal at a chosen point inside a receiver and listen for it to come out the speaker. If you hear it, every stage between your injection point and the speaker is doing its job. If you do not, the fault lies somewhere in that path.
This lesson covers the classic technique of injecting signals stage by stage, working backward from the speaker toward the antenna, using a simple test signal source. It is one of the oldest troubleshooting techniques in radio servicing — it predates the oscilloscope being a common bench tool — and it remains extremely useful today precisely because it requires almost no equipment and works on nearly any receiver, vintage or modern.

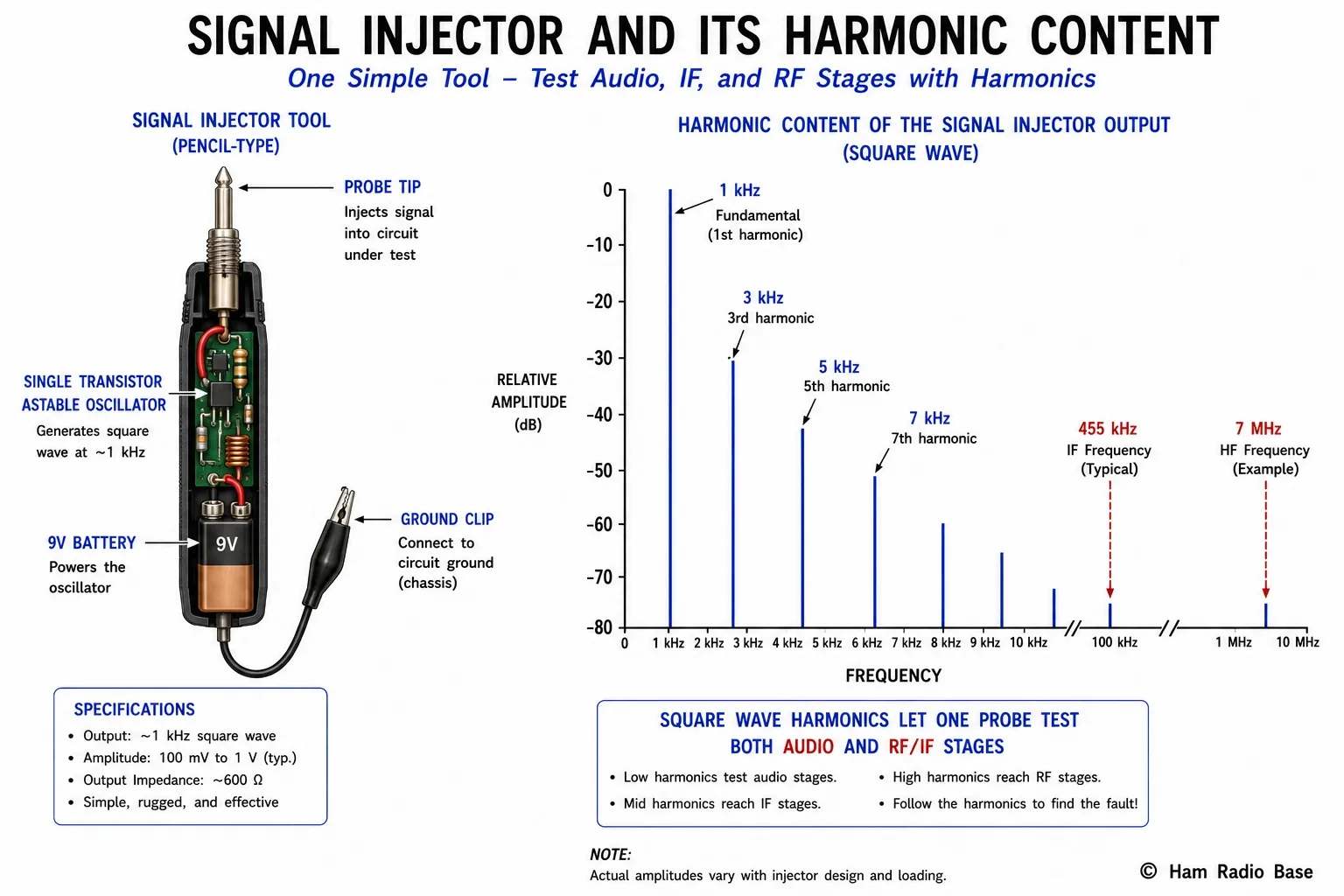

A signal injector's square-wave output is rich in harmonics, letting one simple tool test both audio and RF stages.
View LargerWhat Signal Injection Is
At its simplest, signal injection means connecting a small, known test signal to the input of a specific stage inside a circuit and observing whether the circuit's final output responds correctly. The "final output" you observe is almost always something cheap and immediate to check — the speaker, a meter, a light — rather than another internal measurement, which is what makes injection so quick to apply with minimal equipment.
The technique works because of the same chain logic used in M21B: a healthy stage will pass an appropriately chosen test signal through to its output, and every healthy stage after it will continue passing that signal onward, ultimately producing a result you can hear or see. If a stage between your injection point and the final output has failed, the test signal goes in but never comes out — the chain is broken at or before the point where you stopped hearing the result.
Why You Work Backward From the Speaker
Signal injection in a receiver is performed in the opposite direction to the normal flow of signal — you begin at the stage closest to the speaker (the audio output stage) and inject there first, then move backward one stage at a time toward the antenna input, injecting at each stage's input and listening at the speaker every time.
This reversed order exists for a very practical reason: you must first prove your "detector" — your own ears at the speaker — is itself working, before you can trust a negative result from any stage further back. If you injected at the front end first and heard nothing, you would not know whether the front end was actually faulty, or whether the fault was actually in the audio output stage and the front-end injection was perfectly fine. By starting at the very last stage and confirming you hear the injected tone, you establish a trustworthy baseline. Each subsequent injection point, moving backward, adds exactly one more stage to the chain between the injection point and your ear. As soon as an injection fails to produce sound — when the previous, closer injection point succeeded — you have isolated the fault to the one stage between those two test points.
| Injection Point (working backward) | Stages Between Injection Point and Speaker | Result if Healthy |
|---|---|---|
| Audio power amp input | 1 (power amp only) | Tone heard, loud |
| Audio preamp input | 2 (preamp + power amp) | Tone heard |
| Detector output / AF input | 3 | Tone heard |
| IF amplifier input | 4 (requires modulated IF signal) | Tone heard (demodulated) |
| Mixer / RF amp input | 5-6 (requires RF-frequency signal) | Tone heard (down-converted then demodulated) |
The Signal Injector Tool
A dedicated signal injector is a small pencil-shaped or handheld instrument containing a simple relaxation or astable oscillator (often built around a single low-cost IC or even just a couple of transistors) that produces a square wave, typically somewhere in the 700 Hz to 1 kHz range, at low output level. The square wave shape is the deliberate design choice that makes the tool so versatile: a square wave is mathematically rich in odd harmonics extending up into the megahertz range, so even though the fundamental oscillation is an audio tone, the same probe also outputs usable energy at many higher frequencies simultaneously. This lets a single, inexpensive tool inject a recognizable test signal into audio stages (using the fundamental) and into RF stages (using one of the higher harmonics that happens to fall near the receiver's operating frequency or IF), without needing a calibrated, tunable signal generator for routine fault-finding.
If you do not own a dedicated signal injector, a basic audio function generator set to produce a square or sine wave in the 400 Hz to 1 kHz range covers the audio-stage portion of the technique perfectly well, and an RF signal generator (covered in Module 17) extends the same logic cleanly into IF and RF stages with a precisely known frequency and level, which is preferable when available. The dedicated pencil-style injector's main advantage is convenience and cost, not precision.
Step-by-Step Injection Procedure
- Confirm the baseline. Inject at the very last stage before the speaker (the audio power amplifier input) and confirm you hear the test tone clearly. If you do not hear anything here, the fault is in the power amplifier or speaker itself — stop and investigate that stage directly rather than continuing backward.
- Move one stage backward. Inject at the input of the next stage upstream (for example, the audio preamp input) and listen again.
- Compare to the previous result. If the tone is still present and roughly similar in clarity/level, that stage is healthy — move backward again. If the tone disappears, is severely distorted, or is far weaker than expected, you have found your suspect: the stage between this injection point and the previous one.
- Cross into the RF/IF domain carefully. Once you reach the detector and the chain continues backward into the IF and RF stages, switch your injected signal from a plain audio tone to a modulated RF or IF-frequency signal that the detector can demodulate — injecting a raw audio tone into an IF amplifier input produces nothing useful, because that stage does not respond to audio frequencies at all (with one exception: the higher harmonics of a square-wave injector, as discussed above, may coincidentally contain usable RF/IF energy even from an audio-range fundamental).
- Isolate and confirm. Once narrowed to one suspect stage, proceed to signal tracing (M21D), in-circuit voltage measurement (M21F), or substitution (M21E) to pinpoint the failed component within that stage.
Choosing the Right Signal and Level
Two mistakes account for nearly all confusing results in signal injection: using the wrong type of signal for the stage being tested, and using too much signal level.
Signal type: Audio stages need an audio-frequency signal (a few hundred hertz to a few kilohertz is fine — the exact tone does not matter, only that you can recognize it). IF and RF stages need a signal at or near their operating frequency, and because the detector demodulates AM, SSB, or FM, the injected RF/IF signal generally needs to carry some form of modulation (or at least be present at a level the AGC and detector will respond to) for it to produce an audible result rather than dead silence even in a healthy stage. A pure, unmodulated RF carrier injected directly at an AM detector typically still produces an audible "thump" or change in background noise as it appears and disappears, which is often sufficient confirmation even without true modulation.
Signal level: Start at the lowest output level your injector or generator provides and increase only as needed. Front-end stages — RF amplifiers, mixers, and especially sensitive preamplifier transistors or MOSFETs — can be desensitized, overloaded, or in rare cases damaged by an injected signal that is far stronger than the tiny signals (often microvolts) they are designed to handle from an antenna. A signal injector's typical output, a few hundred millivolts to a few volts depending on the design, is enormous compared to a normal received signal and must be attenuated (or simply not injected directly into the most sensitive front-end node) when working that far back in the chain.
Safety and Equipment Precautions
Disconnect the antenna before injecting RF or IF signals into a receiver, both to avoid the injected signal radiating (however weakly) and causing interference to other stations, and to prevent a real off-air signal from interfering with your test and producing a confusing result. If the receiver shares circuitry with a transmitter (as in any transceiver), make absolutely certain the PTT is not engaged and the unit is in receive mode before connecting any test equipment to internal RF stages — injecting a signal generator's output into a circuit that suddenly keys into transmit can damage the generator, the radio, or both.
Worked Example: Weak, Distorted Receive Audio
Injection 1 (audio power amp input): Injecting a 1 kHz tone here produces a loud, clean tone at the speaker. Conclusion: the audio power amplifier and speaker are healthy.
Injection 2 (audio preamp input): Injecting the same tone here produces a tone at the speaker, but it is noticeably weaker and slightly distorted compared to Injection 1 — matching the original symptom. Conclusion: the fault is in the audio preamp stage itself (the stage between this point and the previous, healthy result).
Further investigation: Moving to in-circuit voltage measurements (M21F) on the audio preamp transistor reveals its collector voltage is far closer to the supply rail than the manufacturer's service data specifies, indicating the transistor is barely conducting — consistent with a degraded transistor or an incorrect (drifted) bias resistor value starving the stage of proper bias current, which would explain both the low gain (weak audio) and the distortion (operating near cutoff clips the waveform).
Result: Two injections, performed in under five minutes with no equipment beyond a simple audio injector and the radio's own speaker, isolated a vague "weak, distorted audio" complaint to a single stage and a specific likely cause, ready for confirmation by substitution or further measurement.
⚖ Experiment: Build and Use a Simple Audio Signal Injector
This experiment has you build the simplest possible signal injector — a single-transistor audio oscillator — and use it to test a small audio amplifier circuit, directly applying the backward-injection procedure from this lesson.
- A small NPN transistor (2N3904 or similar), one 0.01 µF capacitor, one 100 kΩ resistor, and one 1 kΩ resistor (a simple relaxation oscillator)
- A 9 V battery
- A small audio amplifier circuit or a powered computer speaker with a 3.5 mm jack you can probe (many practice kits include a simple LM386-based audio amp — this works well as the "receiver" under test)
- A breadboard, jumper wires, and a probe lead with an alligator clip
- Build a simple single-transistor relaxation oscillator on the breadboard, producing an audible buzzing tone at its output lead (many beginner electronics references show this exact circuit as a "code practice oscillator" — the same circuit works perfectly as a signal injector).
- Confirm the oscillator produces a clear tone by touching its output lead briefly and listening through headphones connected directly to it.
- Connect the injector's output (through a small coupling capacitor, around 0.1 µF, to avoid loading down DC bias points) to the input of your test amplifier's final stage. Confirm you hear the tone from the speaker.
- Move the injection point one stage further back (if your test amplifier has more than one stage) and confirm the tone is still present.
- Deliberately disconnect or short one component in an earlier stage (with the circuit powered down first), then repeat the injection sequence from the output backward and observe exactly where the tone disappears.
With the circuit healthy, injecting at any stage should produce the test tone at the speaker, growing louder as you inject closer to the output (fewer stages of attenuation/loss between injection point and speaker, or simply less amplification remaining ahead of the signal). After introducing the fault, the tone should disappear (or change dramatically) specifically at the injection point corresponding to the stage you disabled, while injection points after that stage (closer to the speaker) continue to work normally — directly demonstrating the backward-isolation logic this lesson describes.
Frequently Asked Questions
Why not just inject at the antenna input and work forward instead?
You can, but working forward removes the advantage of first confirming your detector (your ears at the speaker) is trustworthy. If you inject at the antenna and hear nothing, you do not yet know whether the fault is in the front end or simply in the audio output stage you have not tested yet. Starting at the back and moving forward (backward through the signal chain) eliminates that ambiguity from the very first test.
Can signal injection be used on transmitters as well as receivers?
Yes, with care. A low-level audio tone can be injected at the microphone input and traced forward (using signal tracing or a scope) through the transmit audio chain, modulator, and up-conversion stages. Injecting directly into a power amplifier stage or into the antenna line is not appropriate for this technique and carries real risk of equipment damage — those stages are tested using the wattmeter, dummy load, and scope techniques covered in later lessons.
What if I inject a signal and hear something, but it sounds wrong rather than completely absent?
A present-but-distorted, present-but-weak, or present-but-noisy result is still useful evidence — it tells you the stage between your current and previous injection point is degraded rather than completely dead. This is exactly what happened in the worked example, where weak and distorted audio (rather than silence) pointed to a transistor operating with incorrect bias rather than a fully open or shorted component.
Is a dedicated signal injector tool necessary, or can I improvise one?
A dedicated injector is convenient but not strictly necessary. Any audio function generator covers the audio-stage portion of the technique, and many hams successfully improvise with a simple oscillator circuit, as shown in the experiment above. For RF and IF stages, a proper signal generator (Module 17) gives far more reliable, controllable results than relying on a square-wave injector's higher harmonics.
