Soldering Iron Selection
The soldering iron is the single most important tool in your electronics workshop, yet it is also the one that beginners get wrong most often. Walk into any ham radio club and you will find veterans cringing as a newcomer attacks a delicate PCB with a 15-watt pencil iron that can never get the joint hot enough, or with a 200-watt gun meant for sheet metal. Either extreme produces bad joints and damaged equipment. Understanding how heat transfer actually works — and what an iron must do to make a reliable joint — will guide every buying decision and every technique decision you make from here forward.
A soldering iron does not "glue" metal together. It heats two metal surfaces — a PCB copper pad and a component lead — hot enough that a third metal (solder) flows between them and forms a genuine metallurgical bond. Everything about iron selection flows from that single fact: the iron must reliably deliver enough heat to the joint, fast enough, without holding the joint so hot for so long that it damages the surrounding materials.
Why Iron Selection Matters
To understand why iron selection is so critical, you first need to understand what a soldering iron is actually trying to accomplish at the physics level. Common 63/37 tin-lead solder melts at exactly 183°C. The solder cannot flow and wet the copper surfaces until the joint itself — the pad on the PCB and the lead of the component — has been heated to at least that temperature. The iron does not apply solder directly; the iron heats the joint, and then the joint melts the solder when you touch the wire to it. If you reverse this and melt the solder on the iron tip and dab it onto a cold joint, you get a cold joint every time.
This means the iron must first transfer its heat into the joint mass. That transfer happens through direct contact between the tip and the metal surfaces involved. The speed of transfer depends on two things: the temperature difference between the tip and the joint (the greater the difference, the faster heat flows), and the thermal mass of the joint itself (how much heat energy is required to raise it to soldering temperature). A tiny 0402 SMD resistor pad has almost no thermal mass and will reach soldering temperature in under a second. The center pin of a PL-259 coax connector is a cylinder of solid brass several millimeters thick, surrounded by more brass, and it will absorb an enormous amount of heat before it gets hot enough to melt solder.
The danger on the other side is sustained over-temperature. PCB copper pads are bonded to the fiberglass substrate with an adhesive layer. Sustained temperatures above roughly 300°C will delaminate that adhesive, lifting the pad permanently off the board. A lifted pad is one of the most frustrating repair situations in electronics — once it is gone, the trace underneath is broken and you must bridge it with fine wire. Too much heat applied too slowly (which is what happens when an underpowered iron struggles to heat a joint) is actually more damaging than getting in and out quickly with an iron that has adequate thermal reserve.

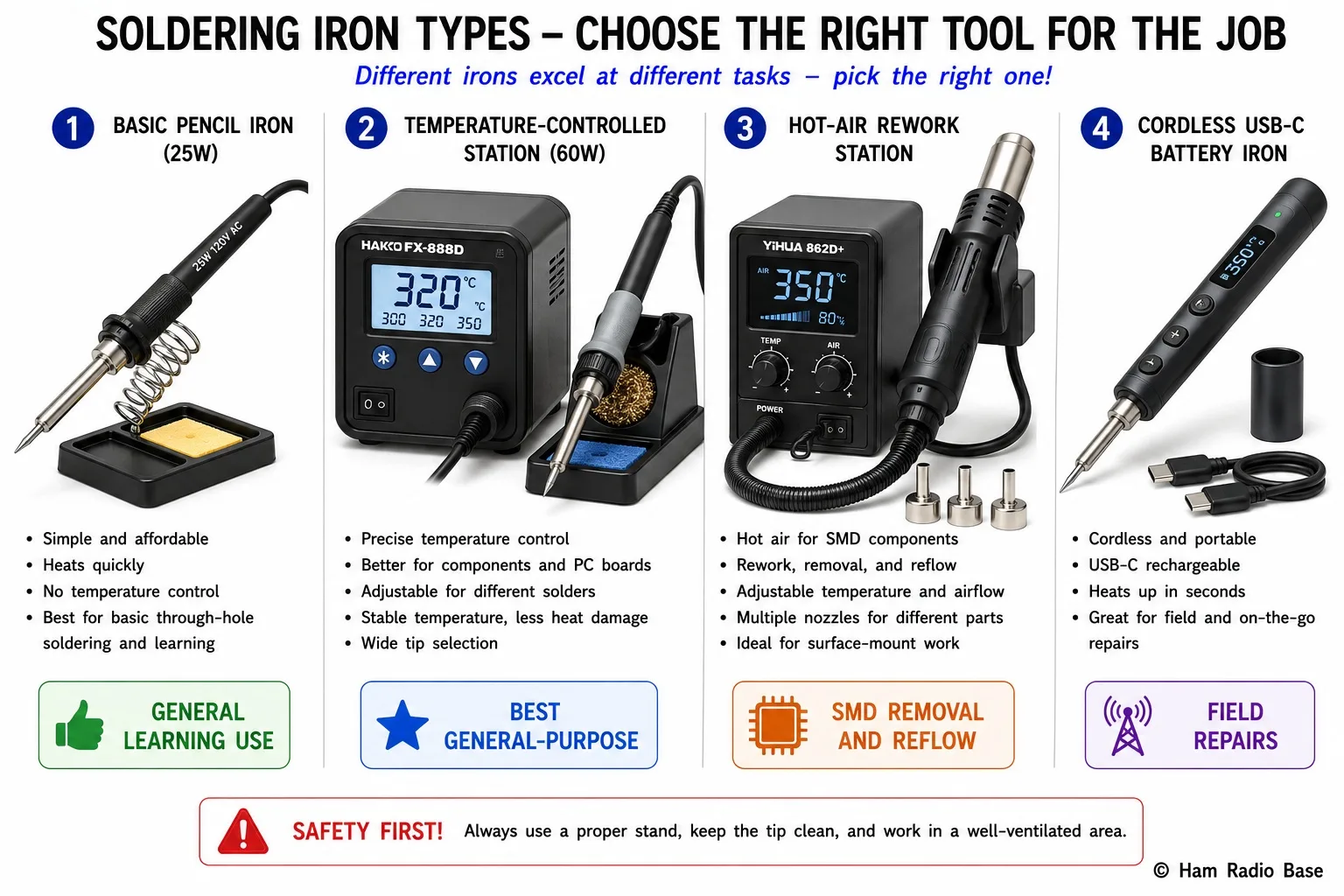

The four main soldering iron types used in ham radio electronics work. From left: basic pencil iron (25W fixed, general learning use), temperature-controlled station (50–70W with digital display, best general-purpose), hot-air rework station (250–450°C airstream, SMD removal and reflow), and cordless battery iron (field repairs, limited run time).
View LargerIron Types Explained
1. Simple Pencil Iron (Unregulated)
The humble pencil iron is what most beginners buy first because it costs $10–$20 and is available at any hardware store. It is a resistive heating element inside a cylindrical barrel, with a metal tip at one end and a mains cord at the other. When you plug it in, it heats up. When you touch it to a joint, it cools down slightly. That is the extent of its sophistication — there is no feedback, no regulation, no way to set a target temperature.
A 25-watt unregulated pencil iron runs at a tip temperature somewhere around 380–420°C when not in use, which is higher than you actually want for delicate through-hole work. However, because it has almost no thermal reserve (the heating element is small and the tip mass is small), the moment it touches a joint the temperature drops significantly. On a large joint like a connector, it may never recover enough heat to flow solder properly. The student who touches this iron to a PCB pad and waits and waits while pressing harder and harder — and then wonders why the pad lifted — is experiencing exactly this problem.
A simple pencil iron is not useless. For learning the physical motions of soldering on large through-hole components, for occasional single joints, or for desoldering work where you apply flux paste and are less sensitive to temperature variation, a pencil iron can serve. But for any serious ham radio construction work — kit building, PCB repair, connector assembly — you will quickly outgrow it and be better served by the next category.
2. Temperature-Controlled Station
A temperature-controlled soldering station is the correct tool for virtually all ham radio bench work. The station consists of a power supply/controller unit (the base station) and a lightweight handpiece (the iron). The base station monitors the actual tip temperature via a thermocouple built into the tip and continuously adjusts power to maintain the temperature you set. This is what electronics professionals around the world use every day.
Popular models include the Hakko FX-888D, Weller WES51, and the more affordable Pinecil (a USB-C powered unit using the same TS100/TS101 tip series). A good station runs 50–70 watts at the heating element. At idle it maintains your set temperature precisely. The moment you touch the tip to a cold joint, the controller senses the temperature drop and immediately ramps up power to compensate. The result is that the tip recovers quickly and the joint gets adequate heat before you have been sitting there long enough to damage the board.
A temperature-controlled station also lets you dial in the correct temperature for the solder alloy you are using (around 315–325°C for 63/37 leaded solder, 340–360°C for lead-free SAC305) and for the task at hand. You can reduce the temperature for sensitive SMD components and increase it for heavy connector work. The interchangeable tip system means you can keep a set of tip shapes for different jobs. For a ham radio builder, a good soldering station is a one-time purchase that will last decades with proper care.
3. Hot-Air Rework Station
A hot-air rework station heats components with a directed stream of hot air rather than a physical tip. This makes it essential for tasks that a conventional iron cannot handle: removing multi-pin SMD ICs whose leads are too numerous and too closely spaced to desolder one at a time, reflowing solder paste on boards you are building yourself, and replacing SMD components without risk of physical damage from a heavy tip.
The handpiece contains a heating element and a small fan. Temperature is set in the range of 250–450°C and airflow is adjustable from roughly 10 to 120 liters per minute. Different nozzle shapes attach to the handpiece for different applications — a narrow nozzle for single components, a wide nozzle for a larger area, a chip-specific nozzle that concentrates heat evenly around a QFP or BGA package.
For ham radio builders, a hot-air station becomes essential as soon as you work with modern surface-mount equipment. Many current-production transceiver modules use SMD components so small and densely packed that a conventional iron is simply the wrong tool. A combined station offering both a conventional iron handpiece and a hot-air handpiece (such as the Hakko FR-300 or Yihua 862D+) is a practical and cost-effective choice for the serious ham radio bench.
4. Cordless Battery Iron
Cordless battery-powered irons — including gas-cartridge types and modern USB-C models like the Pinecil — provide the convenience of portability. In a ham radio context they are useful for antenna connector work in the field, for portable operations where you need to repair a connector at the mast base, or for any situation where running a line cord is impractical.
The trade-off is power. Most cordless irons deliver 20–30 watts in practice, limiting them to light through-hole work and small connector joints. They are not suitable for sustained bench work, where the relatively small battery or gas cartridge would be exhausted quickly and the thermal reserve is insufficient for heavy connections. For field repairs on a PL-259 connector — which requires significant heat — a gas-cartridge iron with adequate BTU output is a better choice than a USB-C model.
5. Soldering Tweezers and SMD Rework Stations
Soldering tweezers have two heated tips that clamp against a component from both sides simultaneously. This makes them ideal for removing two-lead SMD components (0402 and 0603 resistors and capacitors) without disturbing adjacent parts. The heat reaches both pads simultaneously, allowing the component to be lifted cleanly the moment both joints melt. A dedicated SMD rework station with heated tweezers costs $30–$80 and pays for itself the first time it saves an SMD repair job that would otherwise require an hour of careful hot-air work.
Wattage, Temperature and Thermal Reserve
Two numbers matter when evaluating a soldering iron: the wattage of the heating element and the temperature at the tip. Beginners often confuse these or treat them as interchangeable. They are not. Understanding the difference will explain why a high-wattage iron at a moderate temperature beats a low-wattage iron running at maximum temperature.
Tip temperature is the steady-state temperature the iron maintains when not touching anything. Wattage determines how much thermal energy the iron can deliver per second (1 watt = 1 joule per second) and therefore how quickly it can recover from the temperature drop when it contacts a cold joint. An iron with high wattage and a large tip mass is said to have high thermal reserve — it has a lot of stored heat energy that can flow into the joint quickly without the tip temperature dropping below soldering temperature.
A standard PL-259 coaxial connector has a center pin and shell with a combined thermal mass of approximately 8 grams of brass (specific heat capacity ≈ 0.39 J/g·°C). To raise the joint from room temperature (20°C) to soldering temperature (200°C) requires:
Energy = mass × specific heat × temperature rise
Energy = 8 g × 0.39 J/(g·°C) × (200 − 20)°C = 8 × 0.39 × 180 ≈ 562 joules
A 25-watt iron delivers 25 joules per second. Assuming perfect heat transfer (unrealistic, but illustrative), this would take 562 / 25 ≈ 22 seconds of full contact. In practice, much of the iron's heat is lost to the air during this time, and the tip temperature drops well below the solder's melting point in the first few seconds.
A 60-watt iron delivers 60 joules per second, reaching working temperature in ≈ 9 seconds with much less tip temperature drop. In practice a good 60-watt station with a large chisel tip will flow solder on a PL-259 in 3–5 seconds because the tip has significant stored thermal mass in addition to the 60-watt recovery rate.
For very heavy connectors like SO-239 chassis-mount sockets, an 80–100W station or a dedicated soldering gun is recommended. The gun's transformer can deliver short bursts of very high wattage — it is not designed for precise temperature-controlled work but excels at heating large thermal masses quickly.
For most through-hole and SMD work, a 50-60W temperature-controlled station set to 315–350°C is the right tool. Lead-free SAC305 solder requires 20–30°C higher tip temperature because it melts at 217°C rather than 183°C — set your station to 340–360°C when using lead-free. Anderson Powerpole connectors (common in ham radio power distribution) need around 350°C and a chisel tip because of their silver-plated copper contacts and relatively large mass. PL-259 connectors genuinely benefit from a larger iron or higher wattage.
One practical rule: if you find yourself pressing harder on the iron, waiting more than 3–4 seconds for solder to flow, or seeing the solder ball up without flowing smoothly onto the joint, the iron is underpowered for that task. The correct response is to use a larger tip, a higher wattage iron, or both — not to turn the temperature up to maximum on a low-wattage iron, which will overheat the tip itself without improving thermal delivery to the joint.
Tip Types and Their Applications

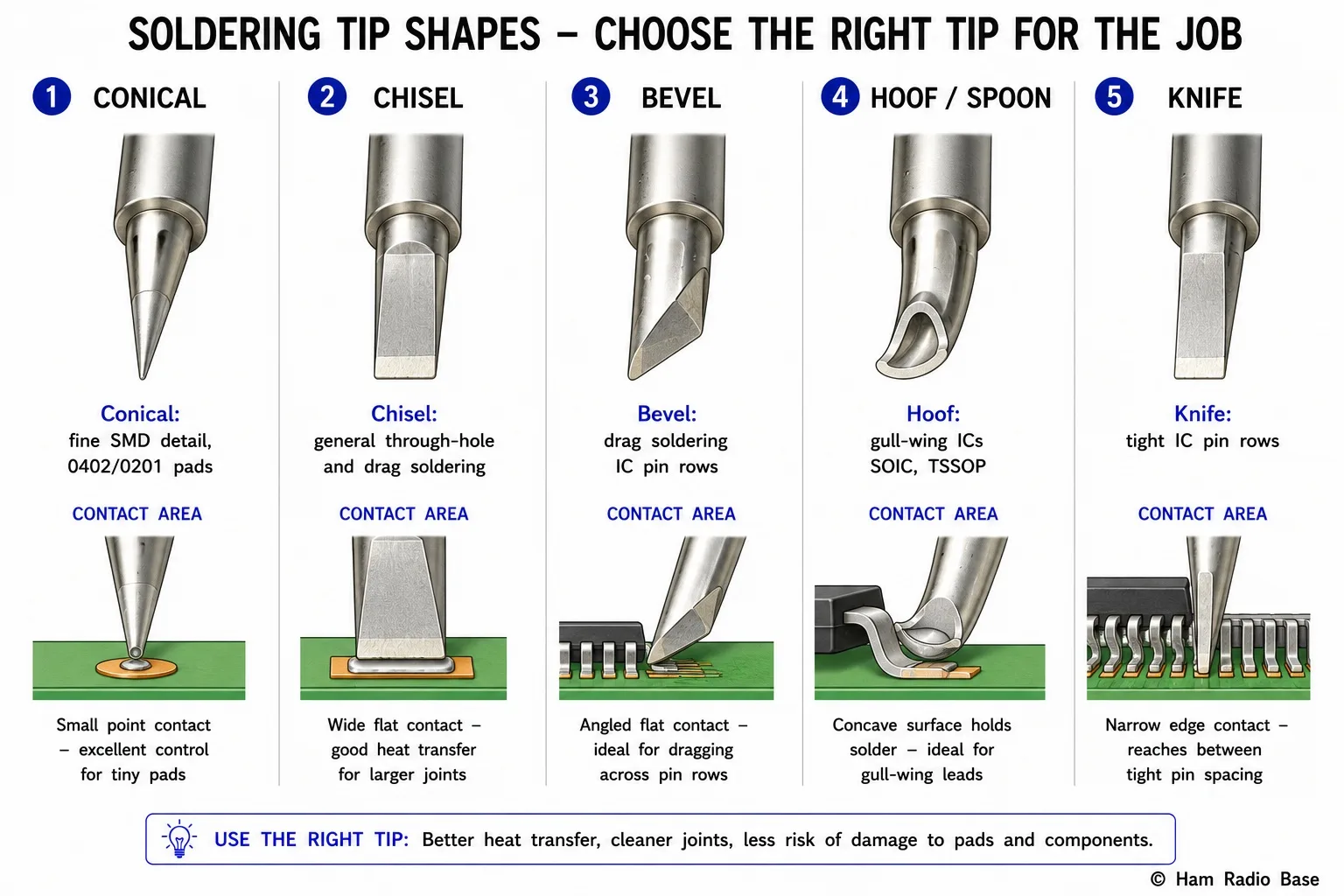

The five primary soldering tip shapes and their contact geometries. The conical tip concentrates heat at a point; the chisel and bevel tips offer large flat contact areas for efficient heat transfer to pads and connector pins; the hoof tip holds a small solder reservoir for drag soldering gull-wing ICs; the knife tip accesses tight pin rows.
View LargerThe shape of the soldering tip determines how efficiently heat transfers from the iron to the joint. The fundamental principle is contact area: a larger contact area between tip and work means faster heat transfer. A needle point touching a wide pad transfers heat slowly because the contact area is tiny. A flat chisel tip resting along a pad transfers heat quickly because the contact area is large.
Conical (Needle) Tip
The conical tip tapers to a fine point. Its advantage is precision — it can reach into very tight spaces and touch a single pad on a dense SMD board without disturbing neighboring components. Its disadvantage is poor heat transfer: the tiny contact area means heat flows slowly into the work, requiring a higher tip temperature to compensate or a longer dwell time on the joint. Use conical tips for 0402 and 0201 SMD component work where physical access to a single pad in a crowded area is the primary concern. Do not use conical tips for large connectors or heavy through-hole joints where a chisel would do the job in a quarter of the time.
Chisel Tip
The chisel tip has a flat rectangular end, like a miniature screwdriver tip. It is the most versatile shape and the one you should have on your iron for 80% of ham radio work. The flat face rests against a pad at the same time the side edge touches the lead, maximizing contact area and thus heat transfer rate. Chisel tips come in various widths — a 1.6mm chisel for through-hole resistors and DIP ICs, a 3–4mm chisel for connector work, a 0.8mm chisel for finer SMD work. If you buy one set of replacement tips for your station, start with two or three chisel widths.
Bevel (45°) Tip
The bevel tip is essentially a chisel cut at a 45-degree angle. The angled face creates a natural reservoir that holds a small amount of solder, and the long edge of the cut makes excellent contact with a row of SMD IC pins. This makes it ideal for drag soldering — a technique where you apply a small amount of solder to the tip, apply flux to the IC pins, and then drag the tip along the row of pins in one smooth motion. The solder bridges initially across all the pins, then surface tension and the wick effect (aided by flux) pulls the solder away from the spaces between pins, leaving each pin individually soldered. With practice and a bevel tip, a 20-pin SOIC can be soldered in under 10 seconds.
Hoof (Spoon) Tip
The hoof tip is a concave curved tip that acts as a small ladle, holding a larger reservoir of solder. It is the preferred tip for gull-wing IC packages — SOIC, TSSOP, QFP — where you need to simultaneously wet multiple closely spaced leads. You load the hoof with solder, apply flux to the IC, and use the loaded tip to sweep across the leads. The solder flows from the reservoir onto the leads with the help of the flux. This gives more control over solder volume than a bevel tip and works well for fine-pitch packages down to about 0.65mm pin pitch.
Knife Tip
The knife tip is a narrow wedge shape, like the cutting edge of a blade. It is designed for access to very tight rows of IC pins where neither the chisel nor the bevel will fit cleanly. In practice the knife tip requires more skill to use effectively than the chisel or bevel, and for most amateur-level SMD work the bevel or hoof will serve better. The knife tip finds most use in professional board-level repair work on fine-pitch devices in very confined areas.
Tip Care and Maintenance
A quality Hakko or Weller tip costs $8–$20. Proper care extends its life from years to decades. Poor care reduces it to weeks. The two enemies of tip longevity are oxidation and abrasion. Understanding both will save you a great deal of money and frustration.
The working surface of a quality tip is not bare copper. It is copper underneath, plated with iron for hardness and durability, then plated with tin or tin-lead at the very tip surface to promote wetting. When you clean the tip, you are cleaning the thin tin surface layer. If you use abrasives — steel wool, sandpaper, a file — you remove that tin layer and eventually cut through the iron plating into the copper beneath. At that point the tip is destroyed; it will never tin properly again and must be replaced.
The correct cleaning tools are a brass wool coil (sold as "tip cleaners" by Hakko, Weller, and generic brands) or a damp cellulose sponge. Brass wool is strongly preferred because it cleans by mechanical wiping action without dropping the tip temperature. A damp sponge works but every time you press the hot tip into the wet sponge you lose 20–30°C of tip temperature from thermal shock — not ideal when you are trying to maintain consistent soldering temperature. A combined tip cleaner holder with brass wool and a small sponge gives you the best of both.
The most important tip care habit is tinning. Every time you heat the iron, apply solder to the tip before you do anything else. Every time you finish a joint, apply a small dab of fresh solder to the tip before moving to the next. At the end of your session, clean the tip thoroughly, then apply a generous coat of solder to the entire working surface and leave it there. This "storage tinning" protects the tin surface from oxidizing while the iron cools, and means the tip is ready to work the moment you plug the iron in next time.
If your tip has turned dull gray or black and will not accept solder despite wiping, the tip surface has oxidized. Try a commercial tip activator (tip tinner/refresher) — a paste compound containing flux and tin powder. Press the cold tip into the paste, then heat the iron and work the paste into the tip surface. In mild oxidation cases this will restore the tip. If the tip has turned black and pitted, however, it has oxidized through to the copper and is past recovery. Replace it. Genuine Hakko and Weller tips last 6–18 months with correct care. Generic tips from discount suppliers often fail in weeks due to poor plating quality.
Choosing for Ham Radio Work
The following table covers virtually every soldering task a ham radio builder or repairer will encounter. Use it as a quick reference when setting up for a job. The temperature recommendations are for 63/37 leaded solder; add 20–25°C for lead-free SAC305.
| Task | Recommended Iron | Best Tip | Temperature (63/37) |
|---|---|---|---|
| SMD 0402/0603 passives | 50W temperature-controlled station | Conical or bevel | 315°C |
| SMD SOIC-8 / SOIC-16 ICs | 50W temperature-controlled station | Hoof or bevel | 315–325°C |
| Through-hole resistors, capacitors, diodes | 50W temperature-controlled station | Chisel 1.6mm | 315–325°C |
| Through-hole IC sockets (DIP-8 to DIP-40) | 50W temperature-controlled station | Chisel 1.6mm | 315°C |
| SMD component removal (multi-pin ICs) | Hot-air rework station | 4mm nozzle | 340°C air, medium flow |
| PCB pad repair, lifted pad re-bonding | Hot-air station or fine iron | Conical or 3mm nozzle | 280–300°C |
| PL-259 coaxial connectors | 80W station or soldering gun | Chisel 4mm | 375°C |
| SO-239 chassis-mount connectors | 80–100W station or soldering gun | Chisel 4–6mm | 375–400°C |
| Anderson Powerpole connectors | 50W temperature-controlled station | Chisel 3mm | 350°C |
| SMA and N-type RF connectors | 60W temperature-controlled station | Chisel 2–3mm | 350°C |
| Terminal strips and barrier blocks | 50W temperature-controlled station | Chisel 2–3mm | 340°C |
| Heavy cable lugs (battery cables) | Propane/butane torch | N/A | N/A — torch work |
A few items deserve additional comment. The PL-259 connector is the most common ham radio connector and also the one that causes the most frustration for builders with inadequate irons. The standard approach is to use a large chisel tip, apply flux to the connector shell and the coax braid, bring the iron to 375°C, and hold the tip firmly against the connector shell for 3–4 seconds before applying solder. If you are waiting more than 5 seconds and the solder is not flowing freely, your iron does not have adequate thermal reserve for this job. A 60W station can handle PL-259 work if the tip is large and clean; a 25W pencil iron cannot.
Anderson Powerpole connectors are used extensively in portable and emergency communications (EmComm) work. They are silver-plated copper with a mechanical contact area that requires solder to fill a small cavity. A 50W station set to 350°C with a medium chisel tip, working quickly, will fill the cavity cleanly. These connectors are not designed to tolerate sustained heat — get in, fill the cavity in under 5 seconds, and remove the iron.
Experiment: Observing Tip Temperature Recovery
⚖ Experiment: Thermal Reserve and Recovery Time
This experiment demonstrates why wattage matters more than tip temperature setting. You will observe how quickly a tip recovers from contact with a large heat sink, and why a high-wattage iron outperforms a low-wattage iron even when both are set to the same temperature.
- Temperature-controlled soldering station (any 40–70W model)
- A length of 12 AWG or 14 AWG copper wire, approximately 15cm (6 inches)
- Optional: an inexpensive thermocouple thermometer (type K) to measure tip temperature directly
- A watch or phone timer
- Solder (63/37 or 60/40 rosin core)
- Set the station to 325°C. Allow it to reach temperature — most stations indicate ready with a light or by showing the set temperature on their display.
- Tin the tip: apply a small amount of solder to ensure the tip surface is clean and coated.
- Touch the soldering tip to the copper wire at the midpoint. Apply light pressure and hold it there — do not add solder. Start timing.
- After 3 seconds, attempt to melt a fresh piece of solder wire on the copper wire at the contact point (not on the iron). Does the solder flow?
- Remove the iron and observe how the tip looks — has it oxidized (gone gray/dull) from the heat demand?
- Now try reducing the set temperature to 280°C, wait for the iron to cool to that setting, and repeat steps 3–4. Note the difference in time required to melt the solder.
- If you have access to a second, lower-wattage iron (e.g., a 25W pencil iron), repeat the experiment and compare recovery time by watching how long it takes for the solder to re-flow after you move the iron away and touch it to the wire again.
At 325°C with a 50W+ station, the copper wire reaches soldering temperature in 3–4 seconds and solder flows cleanly from the wire itself (not from the iron). This is correct technique: the work melts the solder. At 280°C, the same wire takes longer or may never get quite hot enough for reliable flow. A low-wattage pencil iron at maximum temperature will allow you to touch the wire, but the tip temperature drops rapidly and recovery is slow — the solder either does not flow or flows weakly. This directly demonstrates why a temperature-controlled high-wattage station produces better results than a hot but underpowered pencil iron.
Frequently Asked Questions
Is a $10 pencil iron acceptable for a complete beginner?
It can work for the very first practice joints on large, forgiving through-hole components — but it will frustrate you quickly and can cause real damage to real equipment. The most common beginner mistake is attempting PCB work or connector assembly with a cheap unregulated iron and then concluding that "soldering is hard." It is not hard; it is just that the wrong tool makes it feel that way. A budget temperature-controlled station such as the Pinecil (USB-C, TS80 tip compatible) or the TS101 can be had for $25–$40 and is vastly superior to a $10 pencil iron. If money is genuinely a constraint, a 30W Weller pencil iron with a chisel tip is better than a 15W toy iron — at least the chisel tip improves heat transfer.
Why does the solder ball up on the iron tip instead of flowing onto the joint?
This is almost always a wetting failure, and the cause is usually one of three things. First, the joint is not hot enough — you are applying solder to a cold or insufficiently heated pad/lead, and the solder has nowhere to flow to, so it sits as a ball. Always heat the joint for 1–2 seconds before touching the solder wire to it. Second, there is oxide contamination on the joint surfaces — old PCBs, oxidized leads, or contaminated pads will not wet without flux; apply a small amount of liquid or gel flux and try again. Third, the tip itself may be oxidized and not transferring heat properly — a black or dull gray tip that will not tin is a sign you need to clean or replace it. A bright, tinned tip that you press firmly against the pad and the lead simultaneously will flow solder cleanly within 1–3 seconds on any normal through-hole joint.
Why do my PCB pads keep lifting?
Lifted pads are caused by one or more of: too much sustained heat, a poorly bonded pad on a low-quality PCB, or mechanical stress (wiggling a component while the solder is still partly molten). The most common cause is an underpowered iron that cannot heat the joint quickly — so the builder holds the iron in place for 10, 15, even 20 seconds trying to get the solder to flow, all the while baking the adhesive layer underneath the copper foil. The fix is to use an iron with adequate thermal reserve so you can make the joint in 2–3 seconds and move on. On old or cheap PCBs the adhesive is already weakened; apply extra flux, work fast, and do not apply excessive pressure with the iron tip.
How do I know when it is time to replace a soldering tip?
A tip needs replacement when it can no longer be tinned even after using tip activator paste. The visual sign is a black or heavily pitted surface that does not accept solder — fresh solder rolls off or beads up on the tip instead of coating it. A correctly functioning tip should take on a bright, silvery tin coating the moment you apply solder. Physical damage — a deep groove worn into the tip face, or the tip having been filed or sanded through the iron plating into the copper below — also requires replacement. On well-cared-for tips, this typically happens after 6–18 months of regular use. On tips that are repeatedly left on at high temperature without tinning, it can happen in weeks. When in doubt, a fresh tip for a quality station costs less than $10 and makes a remarkable difference in how well it solders.
Can I use a soldering gun for PCB work?
No. A soldering gun — the trigger-operated transformer type — delivers a short burst of very high current through a wire loop tip. It can reach working temperature in seconds and is useful for large connectors, cable lugs, and sheet metal work. However, it has no temperature control, delivers far more heat than a PCB can tolerate, and its tip geometry is unsuitable for fine work. Additionally, the transformer in some soldering guns generates a strong magnetic field at the tip, which can magnetize or damage sensitive components. Keep the gun for coax connector and heavy cable work; use a temperature-controlled station for everything on a PCB.
Test Your Knowledge
Answer the questions below to check your understanding. Every answer can be found in the lesson above.
