Why Test Equipment Matters
Imagine wiring up a simple circuit and finding it does not work. Is the battery flat? Is a connection broken? Is the component faulty? Has the wrong resistor value been fitted? Without test equipment you can only guess. With a multimeter you can answer every one of those questions in under a minute. Test equipment is the difference between electronics and electronics with evidence — and evidence is what separates a productive work session from an afternoon of frustration.
Measurement and Amateur Radio
Every licensed amateur radio operator has a duty to ensure their transmissions comply with the terms of their license — correct frequency, correct power, no spurious emissions. Verifying these things requires measurement. But test equipment is equally important during construction and repair: checking a power supply delivers 13.8 V and not 14.5 V before connecting a radio to it, verifying a coax braid is continuous before climbing a tower to fix an antenna, confirming a new transistor is not shorted before soldering it in. These are not exotic tasks — they arise every time you work on radio equipment.
Test equipment also accelerates learning. When you measure the voltage at various points in a circuit and see that it matches what the theory predicts, the theory becomes real and memorable. When a reading does not match, the discrepancy teaches you something. Measurement turns abstract circuit diagrams into observable physical reality.
Essential Instruments

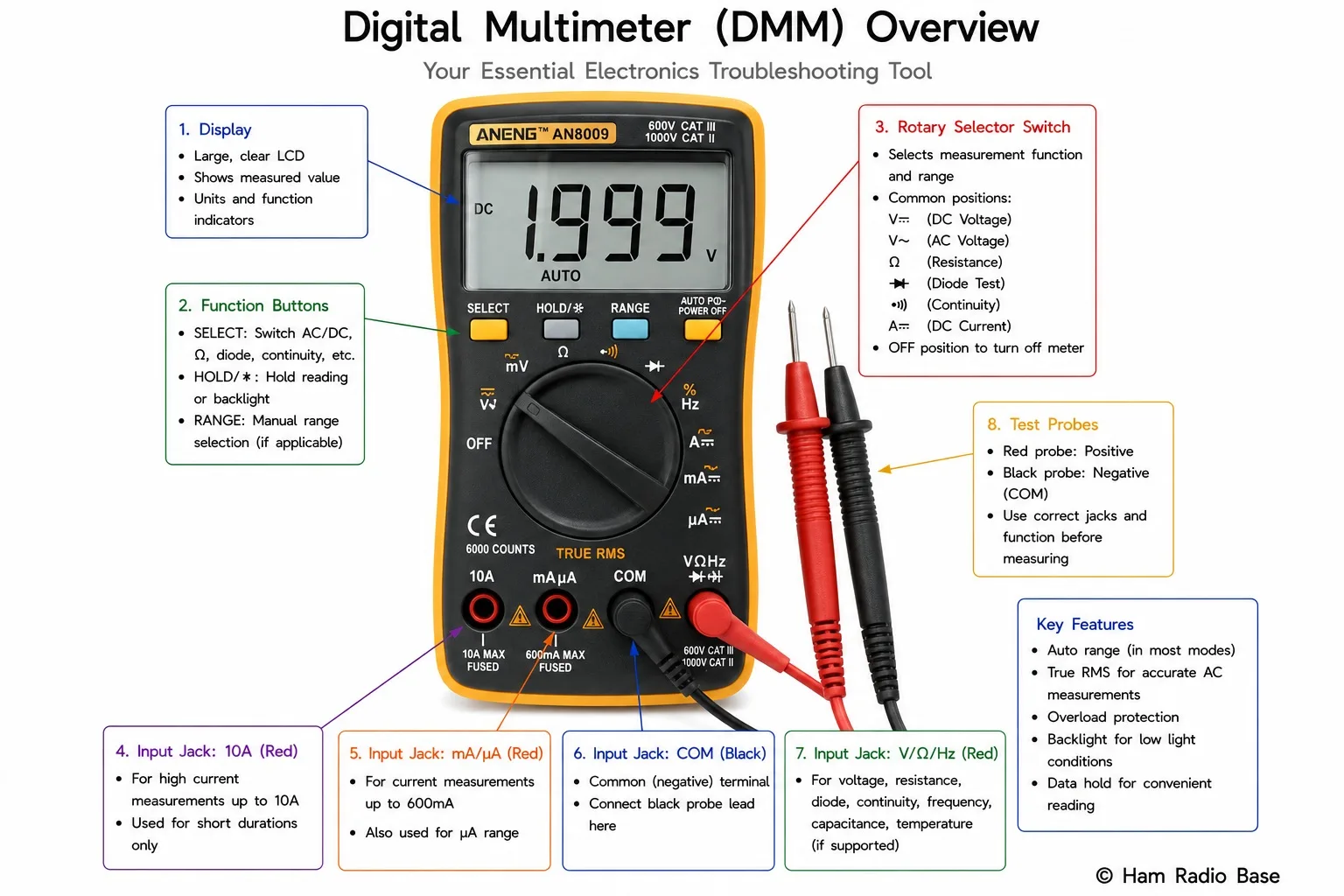

A modern digital multimeter with auto-ranging. The rotary selector groups functions by type: DC voltage, AC voltage, resistance, current, diode test and continuity. The red probe goes to the V/Ω jack for voltage and resistance, the A or mA jack for current.
View LargerA beginner ham needs three instruments above all others:
1. A digital multimeter (DMM)
The DMM is the universal instrument. It measures voltage (DC and AC), current (DC and AC), resistance, continuity and diode forward voltage. A basic auto-ranging meter costing $20–$40 handles almost everything you need for constructing and servicing radio equipment up to HF. Buy one with CAT II or CAT III safety ratings so the leads are suitable for line voltage-connected work.
2. A dummy load
A dummy load is a 50 Ω resistive termination that looks like a perfectly matched antenna to your transmitter. You connect it instead of an antenna when testing or tuning, so that RF energy is dissipated as heat rather than radiated. Using a dummy load is good practice whenever you are testing a transmitter — it prevents you from causing interference and puts no strain on other stations.
3. An SWR meter or RF wattmeter
An SWR (Standing Wave Ratio) meter sits in line between your transmitter and antenna. It shows you how well the antenna is matched to the feedline. A perfectly matched system shows 1:1 SWR; a badly mismatched antenna might show 3:1 or more, meaning power is being reflected back into the transmitter. RF wattmeters extend this by showing actual transmitted power in watts and allowing you to verify you are within your license power limits.
| Instrument | What it measures | Priority | Typical cost |
|---|---|---|---|
| Digital multimeter | Voltage, current, resistance, continuity, diodes | Essential — buy first | $20–$80 |
| Dummy load (100 W) | Absorbs RF power safely, 50 Ω | Essential before transmitting | $30–$80 or build your own |
| SWR / wattmeter | Standing wave ratio, forward/reflected power | Essential for antenna work | $30–$120 |
| Oscilloscope (entry) | Waveform shape, frequency, amplitude vs time | Very useful — buy later | $80–$300 (DSO) |
| Antenna analyzer | Impedance, SWR and resonant frequency vs frequency | Useful for antenna building | $80–$400 |
Multimeter Functions at a Glance
The rotary range selector on a multimeter groups related measurement functions together. Learning what each section does will make you confident to pick up any unfamiliar meter and use it correctly.
| Selector position | Symbol(s) | What it measures | Probe jacks |
|---|---|---|---|
| DC Voltage | V⎓ or VDC | Battery voltages, power supply rails, signal levels | COM and V/Ω |
| AC Voltage | V~ or VAC | Line voltage, transformer secondary, audio signals | COM and V/Ω |
| DC Current | A⎓ or mA⎓ | Current draw of circuits, battery discharge rate | COM and A (or mA) |
| AC Current | A~ or mA~ | Line current, transformer current | COM and A |
| Resistance | Ω | Resistor values, coil and cable continuity | COM and V/Ω |
| Diode test | ▶| (diode symbol) | Forward voltage of diodes and LEDs | COM and V/Ω |
| Continuity | )) (speaker symbol) | Short circuits, wiring continuity — beeps if <30–50 Ω | COM and V/Ω |
| Capacitance | F or ⊣⊢ | Capacitor value check | COM and V/Ω or dedicated CX jack |
Understanding the Range Selector
On a manual-ranging meter, each function is split into several sub-ranges. The range you choose sets the maximum reading the meter can show. If you measure a 9 V battery on the 2 V range, the display will show OL (overload) because 9 V exceeds the 2 V maximum. If you measure it on the 200 V range, you get a valid reading but poor resolution — you might only see "9" rather than "9.02".
The golden rule for manual-ranging meters: start high, work down. Begin on the highest range available for the function you are measuring. If the reading is much lower than the range, switch down to the next range to gain more decimal places. Stop when the reading has at least two significant digits.
Step 1: Select DC Voltage, 200 V range → reading shows 009 (valid but poor resolution)
Step 2: Switch to 20 V range → reading shows 9.01 (much better)
Step 3: Switch to 2 V range → display shows OL (overload — 9 V exceeds 2 V max)
Stay on the 20 V range — it gives the best valid reading.
Auto-ranging meters do this automatically. They test the input and select the most appropriate range internally, then display the result with the correct decimal point. Auto-ranging is more convenient but is slower to settle and can confuse beginners when the decimal point suddenly shifts. Most modern DMMs are auto-ranging.
Test Lead Care and Probe Safety
The weak point of any multimeter is its test leads. Budget leads often have thin insulation, springy banana plugs that do not seat firmly, and probes that flex near the tip — causing intermittent connections exactly when you need a reliable reading. If your meter came with cheap leads, upgrade them early. Look for leads rated to at least CAT II, 600 V.
- Inspect leads before every session. Check for cracked insulation, bare copper near the probe tip, or loose banana plug connections. Damaged leads are a shock hazard.
- Never exceed the rated voltage. The probe insulation and the meter input circuits are designed for a specific maximum. The voltage rating printed on the probe, not the meter body, is the limit.
- Keep probe tips short. Long probe tips increase the risk of shorting adjacent pins on a PCB. Many probes have replaceable tips — fit the shortest appropriate tip for close-spaced work.
- Store leads coiled, not folded. Tight folds crack insulation over time. Loosely coil them around the meter or in a pouch.
Test Equipment in a Ham Shack
Here is how the instruments you will learn in this module fit into real amateur radio operation:
- Before first power-on: Use the DMM to verify the power supply voltage is correct and within tolerance before connecting any radio. Check polarity. Measure the fuse current after power-on.
- Building a kit: Use the DMM to verify correct component placement and solder joint continuity as you build, rather than waiting until the end to discover a problem.
- Antenna tuning: Connect an SWR meter between the transceiver and feedline. Key up on low power into the dummy load first, then switch to the antenna and adjust the tuner until SWR is below 2:1.
- Checking transmit power: Use a wattmeter to confirm you are within your license power limits and to verify the output stage is healthy — a sudden drop in power often signals a failing transistor.
- Tracing a fault: A dead radio is diagnosed by measuring voltages at key points in the signal chain. The DMM identifies where a supply rail is missing, where a transistor has no bias voltage, or where a connection has gone open-circuit.
Frequently Asked Questions
What multimeter should I buy as a first instrument?
A mid-range auto-ranging DMM from a reputable brand (Fluke, Uni-T, Brymen, Meterman) rated CAT II or CAT III, with a 10 MΩ input impedance on voltage ranges and a fused current input. A 3½-digit display is sufficient for most ham radio work. Spend slightly more on quality leads rather than the cheapest option — it is the leads that typically fail first and cause dangerous situations.
Can I use a cheap multimeter for line voltage?
Technically yes, if it is rated for line voltage (CAT II minimum), but cheap meters often have inadequate protection. A meter marketed at under $10 almost certainly has underrated components behind the line voltage input. For measuring line voltage and anything connected directly to the supply, use a CAT II rated meter with genuine rated leads. For measuring inside line voltage equipment, CAT III is the correct category.
Do I need a separate SWR meter if my transceiver has one built in?
Built-in SWR meters are convenient but are often less accurate than dedicated in-line meters, particularly at the high-SWR end of the scale where protection circuits act. A dedicated in-line meter also lets you measure SWR at the feedline input independent of the radio, which is more informative when diagnosing feedline faults. That said, for casual operating the built-in meter is usually sufficient.
Is it dangerous to measure voltage with the circuit powered on?
For low-voltage circuits (under about 50 V DC or 25 V AC) the risk is minimal with sensible technique and properly rated leads. Above these thresholds, hazards increase significantly. Line voltage is lethal. Always use one-handed technique at high voltages, ensure your leads are rated for the voltage, and never reach inside line voltage-connected equipment without first verifying the relevant capacitors are discharged.
Test Your Knowledge
Answer the questions below to check your understanding. Every answer can be found in the lesson above.
