Wire Gauge and Current Capacity

Every electrical wire in your station is a resistor and a potential fire hazard. That might sound alarmist, but it is simply physics: any conductor with resistance dissipates power as heat when current flows through it, and if you force more current through a wire than it is designed to carry, that heat can melt the insulation, start a fire, or at the very least rob your transceiver of the voltage it needs to transmit at full power.

Choosing the right wire gauge for every application in your station — from the thin hookup wire connecting a PTT button to the radio's circuit board, all the way up to the heavy cable running from a switching power supply to a 100-watt HF transceiver — is one of the most practical and consequential decisions you will make as a ham operator. Undersize the wire and you get voltage drop, heat, and potential fire. Oversize it and you waste money and end up with cabling that is stiff and difficult to route.

This lesson covers the American Wire Gauge (AWG) system, current capacity (ampacity) tables, the voltage drop calculation every ham should be able to do in their head, PCB trace width for circuit board power wiring, fusing rules, and the different wire types used in radio construction. By the end you will be able to calculate the correct wire size for any power run in your station with confidence.

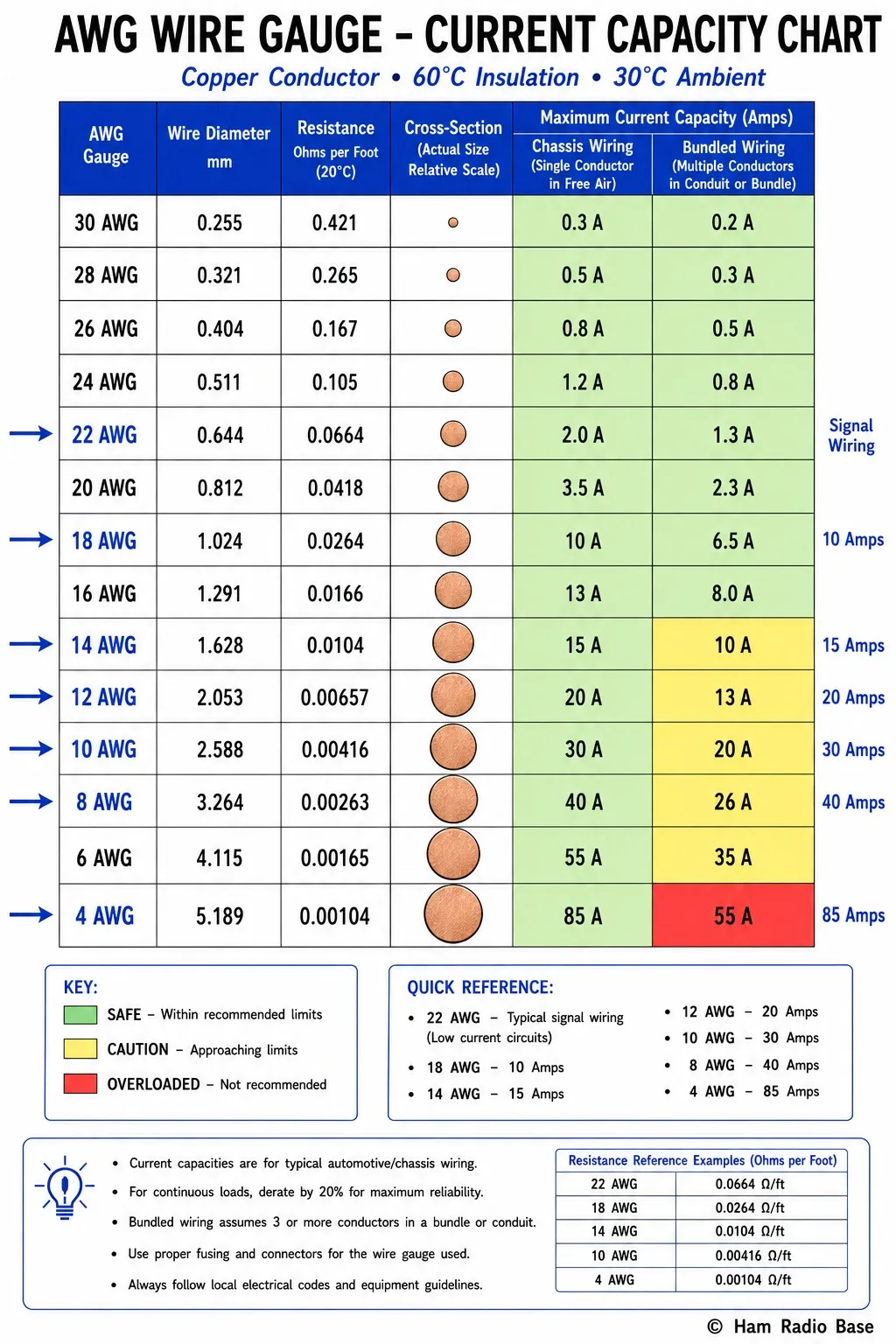

AWG wire current capacity reference. Larger AWG numbers mean thinner wire and lower current capacity. Key ham radio sizes are highlighted.

View Larger

The AWG System

AWG stands for American Wire Gauge. It is the standard wire sizing system used in the United States and in most professional ham radio wiring work. The system defines a conductor's diameter in a specific mathematical sequence — and the rule that trips up most beginners is that a larger AWG number means a smaller, thinner wire. AWG 4 is about the diameter of a thick pencil; AWG 30 is finer than a human hair. The system extends from 0000 (written as 4/0, the largest commonly used gauge) down to 40 AWG or finer for the smallest wire.

The reason for this backward numbering dates back to the original wire drawing process: wire was drawn through a series of progressively smaller dies, and the AWG number roughly indicates how many times the wire was drawn. More draws = smaller diameter = higher number. You do not need to memorize the history — just remember: higher number, thinner wire.

The wire's cross-sectional area is what matters electrically. A larger cross-section means more metal for electrons to flow through, which means lower resistance per unit length, which means less voltage drop and less heat for a given current. Double the cross-sectional area (which happens approximately every three AWG steps) and the resistance per foot is halved.

Wire Diameter and Resistance per Foot

The table below lists the wire gauges most commonly used in ham radio work. The resistance values are for copper conductor at 20°C (68°F) — resistance increases slightly as wire heats up, which is one reason derated ampacity values are conservative.

Stranded vs. Solid Wire

Wire comes in two constructions: solid (a single conductor) and stranded (many fine conductors twisted together). For ham radio station wiring, stranded wire is almost always the right choice. Here is why:

Solid wire is stiff. It can handle being pulled through conduit and stapled to a wall, and it is fine for permanent in-wall electrical wiring (like the NM-B cable used in house construction). But if you repeatedly bend solid wire — which happens every time you move equipment, route a cable around a corner, or plug and unplug — it will eventually work-harden and crack at the bend point. A cracked conductor inside a thick insulation jacket is a failure that is almost impossible to find and can cause intermittent problems or heat.

Stranded wire flexes easily without fatigue because the individual fine strands can move relative to each other. A power lead from your transceiver to your power supply will be moved, pulled, and repositioned many times over the life of your station. Use stranded wire. For permanently installed runs inside conduit or along a wall, solid wire is acceptable, but stranded is still preferred for any connection that may be handled or moved.

For a given AWG number, stranded and solid wire have essentially the same ampacity and resistance per foot — the AWG number specifies the total cross-sectional area of the conductor, regardless of whether it is one solid piece or many strands twisted together.

Current Capacity (Ampacity)

Ampacity is the maximum continuous current that a wire can safely carry without exceeding the temperature rating of its insulation. It is not the current at which the wire melts or catches fire — it is a safe, conservative limit defined by how much the wire heats above ambient temperature under continuous load.

Why does current cause heating? Because the wire has resistance, and power dissipated as heat equals I² × R. Double the current and the heat generated quadruples (because current is squared). This is why ampacity ratings drop steeply as wire gauge decreases: a small increase in current through a thin wire causes a much larger temperature rise than the same current increase in a thick wire.

Factors That Affect Ampacity

Wire gauge: Larger cross-section means more thermal mass and lower resistance, so less heat per ampere. A thicker wire runs cooler at any given current.

Insulation temperature rating: PVC insulation is commonly rated to 60°C. THHN wire (the common type for in-wall electrical work) is rated to 90°C. Silicone insulation can tolerate 200°C. The higher the insulation's temperature rating, the more current the wire can carry before the insulation is damaged — the conductor itself is the same, but you have more thermal headroom before damage occurs.

Ambient temperature: Ampacity tables are usually specified for 30°C (86°F) ambient. If your station runs in a hot environment — a shed in summer, a vehicle in direct sun — you must derate the ampacity. For every 10°C above 30°C ambient, derate by roughly 10%.

Bundling: When multiple wires are bundled together in a harness or routed through a tight conduit, they cannot dissipate heat individually — each wire is surrounded by other warm wires. The NEC requires derating bundled wires. For four or more current-carrying conductors in a bundle, derate to 80% of the listed ampacity. For seven to nine conductors, derate to 70%. This matters when you run a multi-wire harness behind a rack of equipment.

NEC Ampacity Table (60°C insulation, 30°C ambient, copper conductor)

Note the difference between "NEC Ampacity" and "Chassis Wiring" values. The NEC values are conservative, designed for wire installed inside walls, conduit, or other enclosed spaces where heat dissipation is limited. Chassis wiring ampacity is quoted by wire manufacturers for open wiring inside equipment — the wire is exposed to moving air and dissipates heat more easily. For radio shack power wiring, the NEC values are the appropriate conservative choice. For internal equipment wiring on a workbench, chassis wiring values are reasonable.

Ham Radio Current Requirements

To apply these numbers correctly, you need to know what your equipment actually draws. A 100-watt HF transceiver at 13.8 V supply typically draws:

• Receive: approximately 1.5–3 A (the receiver and DSP circuitry)
• Standby/idle: approximately 1–2 A
• Transmit (100W PEP SSB): approximately 20–22 A peak
• Transmit (100W FM or CW): approximately 20–22 A continuous

The calculation: P = V × I, so I = P / V = 100 W / 13.8 V = 7.25 A at 100% efficiency. In practice, a linear PA in a transceiver is roughly 50–60% efficient at HF, so the DC current from the supply is higher than the RF output divided by supply voltage would imply. Most 100-watt transceivers specify a 20–25 A peak current draw at full power. Always check the manufacturer's spec sheet for your specific radio.

This means the power run from your supply to a 100-watt transceiver must be rated for at least 20–22 A continuously. That eliminates 14 AWG (15 A limit) and makes 12 AWG the minimum by ampacity alone. But ampacity is only half the story — voltage drop is often the more critical constraint.

Voltage Drop Calculations

Ampacity tells you whether the wire will overheat. Voltage drop tells you whether your radio will receive enough voltage to operate correctly. These are separate concerns and both must be checked.

The physics is Ohm's Law applied to the wire itself: the wire has resistance, current flows through it, and a voltage is dropped across that resistance. That voltage is subtracted from what the power supply puts out — so the radio sees a lower voltage than the supply provides.

The Round-Trip Rule

This is the most common mistake people make when calculating wire voltage drop: they forget that current must flow from the supply to the radio through the positive wire, and then back to the supply through the negative wire. Both conductors have resistance. Both conductors contribute to the total voltage drop. So if your power supply is 15 feet from your transceiver, the total conductor length you must use in your calculation is 2 × 15 = 30 feet.

The formula is:

Worked Example 1: Too Much Drop (14 AWG)

Worked Example 2: Still Marginal (10 AWG)

Worked Example 3: Correct Choice (8 AWG)

The 3% Rule

Many ham radio references (and the ARRL Handbook) use a 3% voltage drop guideline: the total voltage drop in the power wiring should not exceed 3% of the supply voltage. At 13.8 V, 3% equals 0.414 V. This is a practical guideline, not a law, but it is a good starting point.

The definitive constraint is your transceiver's minimum operating voltage, which you will find in the owner's manual or specification sheet. ICOM, Kenwood, and Yaesu 100-watt transceivers typically specify a minimum supply voltage of 13.0 to 13.5 V DC. If your wiring causes the radio to see 12.28 V at full-power transmit (as in Example 1 above), you are below the minimum spec and the radio will behave unpredictably.

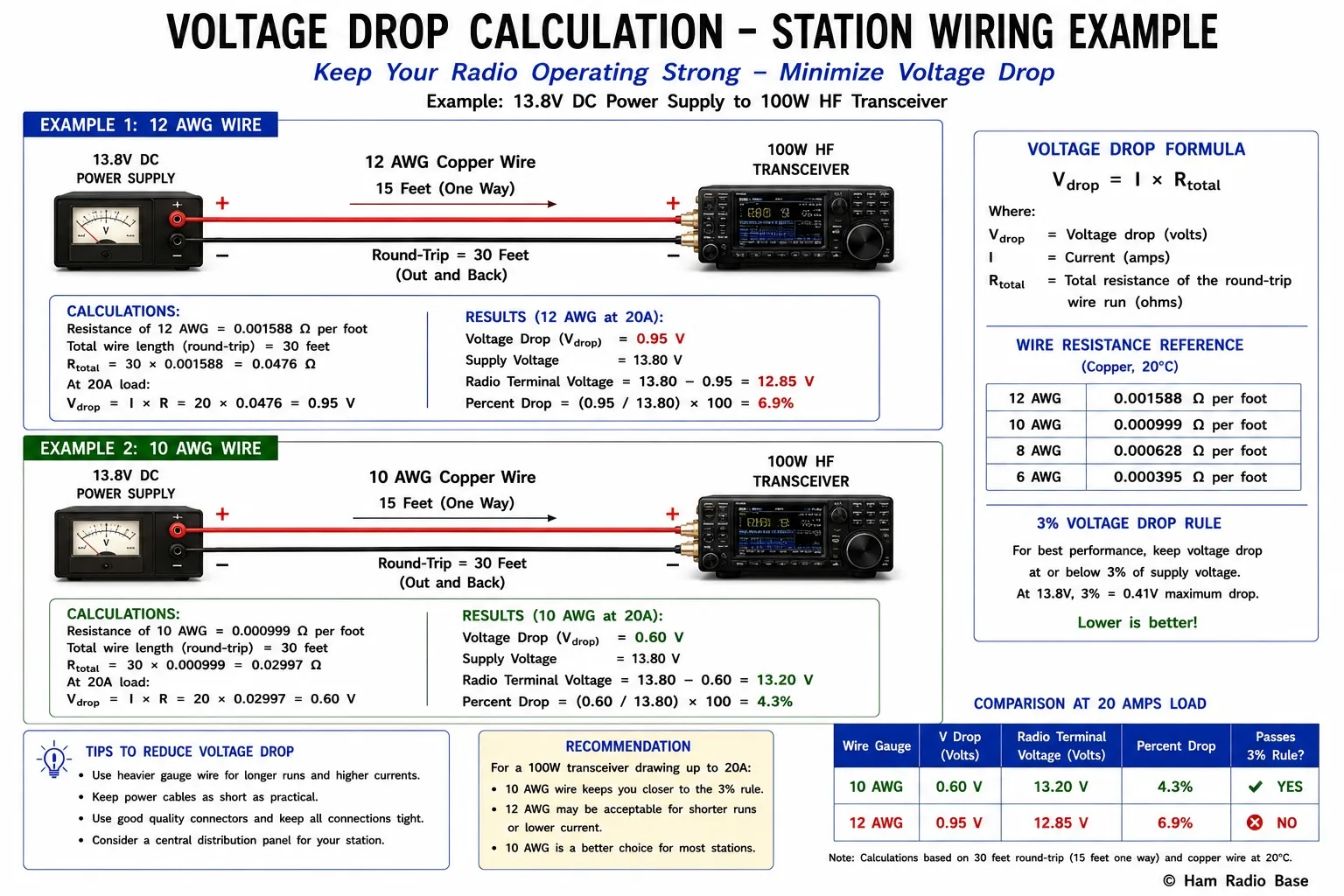

Voltage drop comparison for a 15-foot (one-way) power run at 20 A. The total round-trip length is 30 feet. Upgrading from 12 AWG to 10 AWG reduces the drop from 0.95 V to 0.60 V.

View Larger

Practical Voltage Drop Summary Table

The lesson from this table: for a standard 100-watt station with a 15-foot power run, 8 AWG is the minimum correct choice. If your power supply is further away — 25 feet, 30 feet — you will need to step up to 6 AWG to stay inside the 3% limit at full transmit power.

Calculator 1: Wire Current Capacity and Voltage Drop

PCB Trace Width and Current

When you build a circuit on a printed circuit board (PCB), the copper traces on the board serve as the wires. A trace that is too narrow for the current it carries will heat up, just like an undersized wire — but in a PCB the consequences are more severe because the trace is embedded in or on the surface of a board material that can burn, delaminate, or catch fire if overloaded.

The industry standard for determining minimum PCB trace widths is IPC-2221, published by the IPC (Association Connecting Electronics Industries). This standard provides formulas and charts based on decades of empirical data about copper trace heating under current load.

Key PCB Variables

Copper weight: PCB copper is specified by weight per square foot. The most common is 1 oz copper (approximately 35 µm or 1.4 mils thick). 2 oz copper (70 µm, 2.8 mils thick) is used for power circuits. Heavier copper can carry more current at a given trace width because the cross-sectional area is proportionally larger.

External vs. internal traces: Traces on the outer layers of a PCB (top and bottom) can dissipate heat into the air around them. Internal traces on inner layers of a multi-layer board are surrounded by the board material, which is a good thermal insulator. Internal traces therefore heat up more for a given current and require wider traces than external ones.

Allowable temperature rise (ΔT): The IPC-2221 formula calculates the trace width required to keep the trace temperature rise above ambient below a specified limit. A ΔT of 10°C is commonly used as the design target for commercial work. If you can tolerate a higher temperature rise (say 20°C or 30°C), you can use a narrower trace — but this is only acceptable if the board and nearby components can handle the elevated temperature.

The IPC-2221 Formula

The IPC-2221 formula for trace width (in mils) is:

Practical Trace Width Reference

For quick reference, these are the minimum trace widths for external traces on 1 oz copper at a 10°C temperature rise — a common conservative design target:

The practical lesson for ham radio PCB builders: for signal traces (under 100 mA), the minimum fabrication width of your PCB house (typically 0.1–0.15 mm) is fine. For power supply traces carrying more than 1 A, calculate the required width. For traces carrying 5 A or more, you should use 2 oz copper, increase trace width further, or add a short wire jumper (soldered directly across the trace) for very high currents.

Calculator 2: PCB Trace Width

Fusing Rules

A fuse is a deliberately weak point in a circuit that melts and opens the circuit before the wiring or equipment is damaged by a fault. Every positive power conductor — with the sole exception of very short runs already protected by an upstream fuse — should be fused as close to the power source as possible.

The Fundamental Fusing Rule

Fuse the wire, not the load. This is the single most important principle. A 12 AWG wire has a 20 A ampacity rating. If you connect a 15 A load to it and install a 15 A fuse, the fuse will protect the load, but if the wire shorts to ground downstream of the fuse, up to 15 A will flow through the short — and 15 A through a short circuit fault can easily start a fire before the fuse blows. The correct approach: use a 20 A fuse to protect the 12 AWG wire. If you want additional protection for the 15 A load, add a second, smaller fuse close to that load. The primary fuse must always protect the wire ampacity.

In practical station wiring: when you run 8 AWG wire (50 A ampacity) from your power supply to a distribution block, fuse that run with a 50 A fuse close to the power supply. Branch feeds from the distribution block are individually fused according to the gauge of each branch wire.

Fuse Placement

Position the fuse as close to the positive terminal of the power source as possible. For a battery-fed station, the National Electrical Code (NEC) requires the fuse within 18 inches of the battery positive terminal for cables not enclosed in conduit. The ARRL Handbook and most vehicle wiring guides agree with this requirement. The reason: any length of unfused conductor is a potential fire hazard if it contacts a ground fault before the fuse.

If you run a cable from a battery in one location to equipment in another, the fuse should be within 18 inches of the battery terminal, not at the equipment end. A cable fire from a fault at the midpoint of a long run would be unprotected by a fuse at the load end.

Should You Fuse the Ground (Negative) Conductor?

No. Never fuse the negative/ground return conductor. Here is why: if the ground fuse opens (blows), the equipment chassis becomes isolated from the supply ground. If the supply ground and equipment chassis are referenced to different ground points (very common in stations with separate RF and DC grounds), the equipment chassis can float to a dangerous voltage with respect to other grounded items. Additionally, an open ground creates a fault condition where fault currents cannot return to the supply, potentially energizing the equipment chassis. The positive conductor fuse protects both the supply and the wiring; the negative wire should be sized identically to the positive wire and left unfused.

Fuse Types Used in Ham Radio

Anderson Powerpole Connectors

The Anderson Powerpole connector is the ARRL and ARES/RACES standard for station power distribution. These are genderless, color-coded connectors that mate in any orientation. The 30 A and 45 A versions are most common for radio use. The standard color code is red for positive (right when the latch is facing up) and black for negative.

Anderson Powerpoles are used at the output of power supplies, on power cables to transceivers, on jump cables for emergency portable operation, and in ARES/RACES standardized go-kit wiring. Because they are genderless, any two properly wired Powerpole connectors will mate correctly — which is critical when equipment from different operators must interconnect quickly in an emergency.

Wire Types for Ham Radio Use

The conductor material and insulation type of a wire have significant effects on its suitability for different applications. Most general-purpose station wiring uses one of a handful of standard types, but there are specialized options that are worth knowing for specific tasks.

Stranded Copper (Standard)

Stranded copper with PVC insulation is the workhorse of station wiring. It is flexible, affordable, widely available at hardware stores and amateur radio suppliers, and adequate for all DC power wiring at temperatures up to 60–80°C. Most power supply leads, accessory cables, and control wiring use this type. For power leads, look for wire marketed as "power wire," "automotive wire," or "marine wire" — these are typically rated for slightly higher temperatures and have more robust insulation than basic hookup wire from an electronics distributor.

Silver-Plated Copper

At radio frequencies, current does not flow uniformly through the entire conductor cross-section. Instead, it flows mostly in a thin layer at the surface of the conductor — a phenomenon called the skin effect. The depth of this layer decreases as frequency increases. At HF frequencies (3–30 MHz), the skin depth in copper is on the order of 0.01–0.04 mm. At VHF and UHF, it is even thinner.

Silver has slightly lower resistivity than copper (the best common conductor after copper). When wire is silver-plated, the RF current flows through the silver surface layer rather than the copper core, reducing the effective resistance at high frequencies. Use silver-plated stranded wire for internal RF jumpers, coil leads in resonant circuits, and connections to the input/output terminals of RF stages. For DC and audio wiring, plain copper is fully adequate and silver-plating provides no benefit.

PTFE (Teflon) Insulation

PTFE (polytetrafluoroethylene), commonly known by the brand name Teflon, is an exceptional insulating material. It handles temperatures from −200°C to +260°C, has extremely low dielectric loss (important at RF), and is virtually unaffected by solvents, flux, and cleaning agents. PTFE-insulated wire is expensive but worth using in RF-sensitive locations — near power amplifier transistors, in coil forms for tuned circuits, and for any lead that must tolerate high temperatures from nearby components. PTFE-insulated coaxial cable (RG-142, RG-400) is standard for high-power and high-temperature applications inside transmitters.

Silicone Insulation

Silicone rubber insulation is extremely flexible even at low temperatures, heat-resistant to 200°C, and mechanically tough. It is the preferred insulation for wiring near the power amplifier stage of a transmitter, where transistors and transformers can reach 80–120°C even in normal operation. Silicone wire is also used in kits for high-power amplifiers and in close-proximity wiring inside toroidal transformers where flexibility and heat tolerance both matter. It is more expensive than PVC but not as costly as PTFE, making it a reasonable upgrade for temperature-critical locations without a large cost penalty.

Ring Terminals and High-Current Connections

For connections to battery terminals, power supply output terminals, and high-current bus bars, ring terminals are the standard. A ring terminal is a metal lug with a circular hole for a bolt on one end and a barrel that accepts the wire on the other.

The critical rule: always crimp ring terminals for high-current connections. Do not rely on solder alone. Here is why: solder wicks into the strands of the wire during the soldering process, stiffening the junction between the terminal and the flexible wire. Under vibration and thermal cycling (both of which are constant in vehicle-mounted and portable stations), this stiffened region acts as a stress riser and can crack at the edge of the solder — leaving a high-resistance joint inside the insulation sleeve that is nearly impossible to detect visually. A properly crimped ring terminal uses mechanical deformation to cold-weld the wire strands to the terminal barrel, creating a gas-tight connection that is mechanically and electrically superior to solder.

Use the correct hex crimp die for the wire gauge — the die must match the terminal's specified wire range. A ratcheting crimp tool that will not release until the crimp is complete ensures a consistent, full-strength crimp every time. If you wish to solder after crimping for additional corrosion protection, that is acceptable, but the crimp must be made first and must be structurally sound before any solder is applied.
