Build a 6m Yagi Antenna
When the 6m band opens via sporadic-E or F2 propagation, having a directional Yagi pointed at the active path transforms the operating experience. Where a halo or dipole hears activity, a 3-element Yagi works it — and where a 3-element Yagi works it marginally, a 5-element Yagi works it comfortably. The 6-metre wavelength produces Yagi dimensions that are physically manageable — a 3-element 6m Yagi has a 10-foot boom and 9-foot elements, while a 5-element version uses an 18-foot boom with the same element length. Both are buildable from standard aluminium tubing hardware and mountable on a medium-duty rotator. This guide covers element dimensions for both 3-element and 5-element designs based on the well-validated YO3DAC Yagi Mechanical design, boom and element construction from aluminium tubing, feedpoint matching with a gamma or beta match, balance point calculation, and complete installation for a permanent 6m station.
6m Yagi Design Principles
A 6m Yagi follows the same design principles as HF and UHF Yagis — driven element, reflector, and directors. At 50 MHz several practical factors shape the design choices:
3-Element vs 5-Element — Choosing the Right Size
The choice between a 3-element and 5-element 6m Yagi depends primarily on available space and the rotator system. Both are excellent antennas — the 5-element is not always the right choice:
Feedpoint Matching — Gamma Match vs Beta Match
The 6m Yagi's driven element presents approximately 25–30 Ω — well below the 50 Ω of standard coax. Two matching methods are most commonly used for homebrew 6m Yagis:
Mechanical Construction — 6m Specific Considerations
At 50 MHz, element and boom dimensions are large enough to introduce practical mechanical challenges not present at VHF/UHF:
- Element sag: 9.8-ft aluminium elements in 1/2-inch tubing sag approximately 3–4 inches at the tips under gravity — this sag is acceptable for a horizontal Yagi but reduces the effective element length slightly. Heavier 3/4-inch tubing sags less but increases total antenna weight.
- Boom flex: a 10-ft boom in 1-inch square aluminium sags about 1 inch at mid-span under element loads — negligible. An 18-ft boom in 1-inch square may sag 3–4 inches at mid-span — add a truss line from the mast attachment point to the boom ends to prevent this.
- Element through-boom mounting: elements are typically mounted through the boom using U-bolts and saddle clamps, or through-mounted with stainless bolts. Through-mounting requires a boom correction to element lengths — adjust using the Yagi calculator with the actual boom diameter.
- Element-to-boom insulation: for a beta match or hairpin match, the driven element must be insulated from the boom. Use plastic saddle clamps or PTFE plate insulators at the driven element boom mount.
- Balance point: the boom balance point for mast attachment is not at the boom centre — it is displaced toward the heavier element end (typically the reflector end). Find the balance point by balancing the completed boom on a rope before mounting.
| Element | 3-el: length (inches) | 3-el: position (inches from refl) | 5-el: length (inches) | 5-el: position (inches from refl) | Notes |
|---|---|---|---|---|---|
| Reflector | 116.0 | 0 | 116.0 | 0 | ~5% longer than driven element |
| Driven element | 110.5 | 46.0 | 110.5 | 46.0 | Feedpoint at centre; insulated from boom |
| Director 1 | 104.5 | 118.0 | 104.5 | 118.0 | ~5% shorter than driven element |
| Director 2 | — | — | 102.5 | 136.0 inches | Slightly shorter than D1; close spacing |
| Director 3 | — | — | 101.0 | 216.0 inches | Last director; longest spacing from D2 |
| Total boom | 118 in (9.8 ft) | 216 in (18.0 ft) | Plus 6-inch overhang each end = 10.8 ft / 19 ft |
6m Yagi Calculator
Dimensions for 1/2-inch OD aluminium elements on 1-inch square aluminium boom, boom correction applied, design frequency 50.150 MHz. Always verify against a Yagi calculator (YO3DAC or similar) before cutting. Element lengths may need final trimming of ±1 inch after assembly.
Materials for a 3-element 6m Yagi beam for 50 MHz

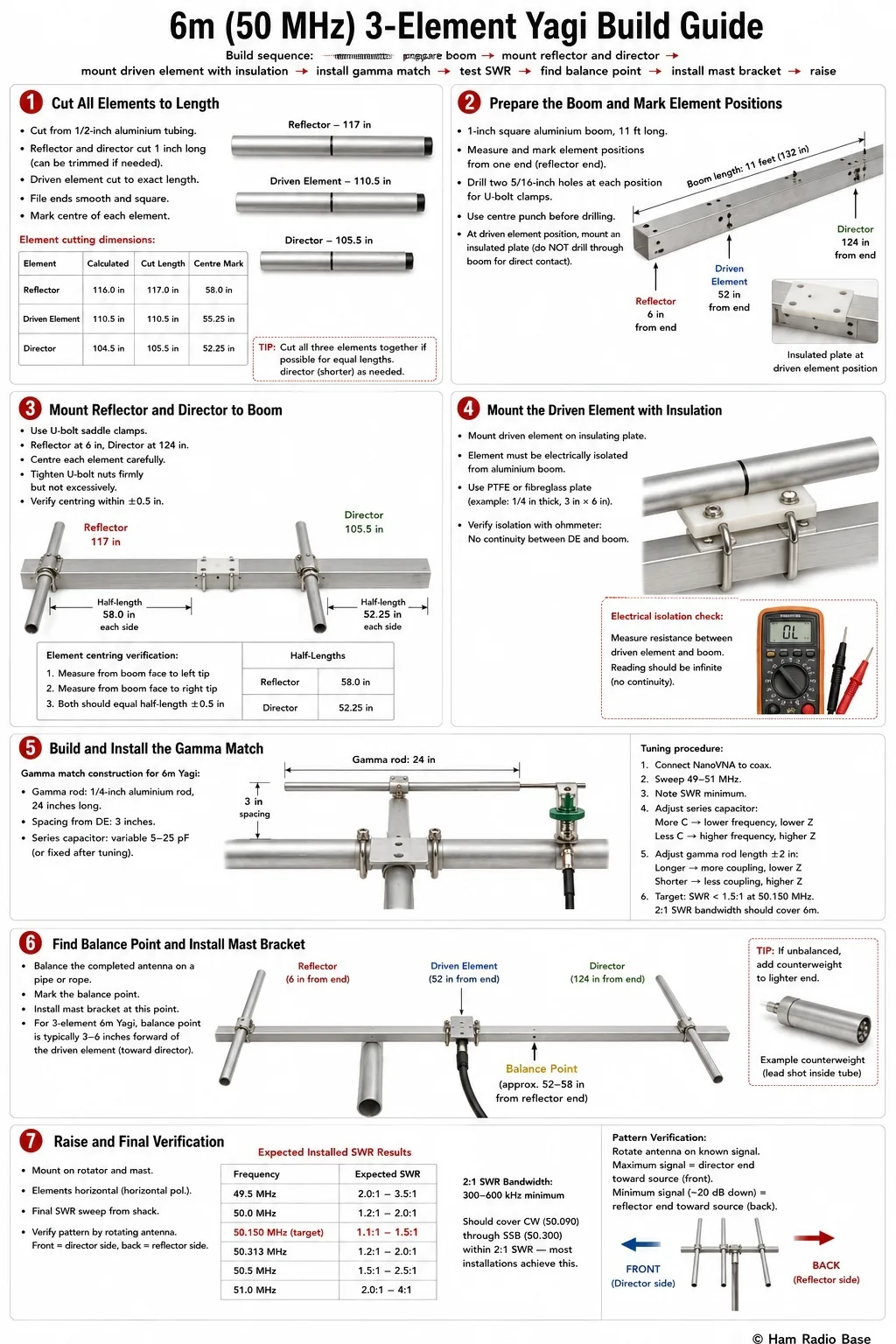

![[finished 6m yagi style antenna]](/images/antenna/ham-radio-build-6m-yagi.webp)
Building the 3-Element 6m Yagi
Build sequence: cut all elements → prepare boom → mount reflector and director → mount driven element with insulation → install gamma match → test SWR → find balance point → install mast bracket → raise. At 6m, element length tolerance is ±0.5 inches — far more forgiving than at 23cm. A tape measure and hacksaw are sufficient tools.
Cut All Elements to Length
Cut the three elements from 1/2-inch aluminium tubing using a hacksaw or pipe cutter. Measure twice and cut once — at 6m a 1-inch error in element length shifts resonance by approximately 500 kHz, which is correctable by the gamma match but best avoided. Cut the reflector and director slightly long (add 1 inch) as they can be trimmed if needed; cut the driven element to exact length as it is more easily adjusted by the gamma match:
Prepare the Boom and Mark Element Positions
Cut the 1-inch square aluminium boom to 11 feet. Mark the element positions using a tape measure from one end (the reflector end): reflector at 6 inches from the end, driven element at 52 inches from the reflector position (46 + 6 = 52 inches from the boom end), and director at 118 inches from the reflector (118 + 6 = 124 inches from the boom end).
At each element position, drill two 5/16-inch holes through the boom face for the U-bolt saddle clamp hardware. Space the two holes to match your U-bolt spacing (typically 1.5–2 inches apart). All holes should be perfectly centred on the boom face — use a centre punch before drilling to prevent the bit from walking on the square aluminium surface.
Mount Reflector and Director to Boom
Mount the reflector and director using standard U-bolt saddle clamps directly to the boom at their marked positions. The reflector and director are parasitic elements — they can make direct electrical contact with the boom through the mounting hardware. Centre each element carefully: measure from the boom face to each tip on both sides with a tape measure — both tips should be within 0.5 inches of the calculated half-length.
Tighten the U-bolt nuts firmly but not excessively — aluminium tubes can deform if over-tightened. Snug plus a quarter turn is adequate. Once tightened, the elements should not rotate or slide along the boom when tugged.
Mount the Driven Element with Insulation
Mount the driven element on the insulating plate at the driven element boom position. The driven element must be electrically isolated from the conductive aluminium boom — any metal contact between the driven element and the boom provides an unwanted ground path that disturbs the feedpoint impedance and prevents the matching network from working correctly.
Several insulation approaches work at 6m. The simplest: use a 1/4-inch PTFE or fibreglass plate (3 inches × 6 inches) as a spacer between the element clamp and the boom face. The clamp hardware passes through the PTFE plate to the boom without contacting the element. Verify electrical isolation with an ohmmeter: there should be no continuity between the driven element tubing and the boom.
Build and Install the Gamma Match
The gamma match is the most common feedpoint matching method for a 6m Yagi — adjustable in the field, no separate balun winding required (the gamma inherently provides some common-mode suppression), and proven over decades of use. Build the gamma from a section of 1/4-inch aluminium rod parallel to the driven element:
Find Balance Point and Install Mast Bracket
Before mounting the mast bracket, find the actual balance point of the completed boom — where it balances horizontally on a fulcrum without rotating. For a 3-element 6m Yagi, the balance point is typically 3–6 inches forward of the driven element position (toward the director end), because the reflector end of the boom is slightly longer than the director end.
Balance the completed boom (with all elements mounted) on a rope or pipe and mark where it balances. Mount the mast-to-boom bracket at this exact point. A boom that is not balanced at the mast mounting point places a continuous torque load on the rotator — reducing rotator life and potentially causing rotation errors:
Raise and Final Verification
Mount the Yagi on the rotator and mast system. Orient it horizontally with elements horizontal (horizontal polarisation is standard for 6m DX on SSB/CW). Perform a final SWR sweep from 49–51 MHz from the shack end of the coax:
5-Element Additional Construction Notes
The 5-element 6m Yagi follows the same construction procedure as the 3-element with these additional considerations:
- Boom truss: an 18-ft boom in 1-inch square aluminium sags 3–4 inches at mid-span under element weight in warm weather. Add a rope truss from the mast attachment point to each boom end — this tensions the boom straight and is standard practice on any boom over 14 ft.
- Director 2 and 3 spacing: Director 2 is closely spaced behind Director 1 (only 18 inches separation from the table above) while Director 3 is widely spaced further forward. This progressive spacing is intentional in optimised Yagi designs — do not equalise the spacing.
- Balance point shift: a 5-element design has more mass toward the director end. The balance point shifts forward compared to the 3-element. Expect the balance point to be 3–8 inches forward of the driven element position.
- Wind load: a 5-element 6m Yagi presents significantly more wind load than the 3-element — approximately 2× the windage area. A medium-duty rotator (Ham-IV, G-1000) and a robust mast are recommended. At high wind sites, add fibreglass guy wires from the boom tips to the mast to prevent oscillation.
- Gamma match: the same gamma match dimensions work for both 3 and 5-element designs. The feedpoint impedance is similar for both (25–30 Ω) so the matching procedure is unchanged.
Operating the 6m Yagi — Practical Tips
A 6m Yagi is only as effective as the operator's ability to point it at active propagation paths. Some practical guidance:
- Know your compass: mark the rotator controller indicator with compass points (N, NE, E, SE, etc.). For a US station, Europe is northeast (~45°), Japan is northwest (~315°), South America is south (~180°). These bearings should be second nature — during a brief sporadic-E opening you need to rotate without delay.
- DX cluster monitoring: PSKReporter and DX cluster show 6m openings in real time. Set up an alert for 6m spots during the May–August sporadic-E season. An opening to Europe from the east coast US typically lasts 15–45 minutes — worth interrupting whatever else you are doing.
- Calling frequency etiquette: 50.150 MHz is the international DX calling frequency for SSB. Make a quick call, complete the contact if someone answers, and move up a few kHz to work the other side. During major openings the calling frequency gets crowded quickly.
- FT8 on 6m: the 6m FT8 frequency is 50.313 MHz. During band openings, FT8 traffic appears minutes before SSB operators notice the band is open — monitoring 50.313 MHz on WSJT-X while the Yagi points toward Europe provides early warning of openings before they are obvious on SSB.
- Combining with a halo: connect both the halo and the Yagi to a coax switch. Default to the halo for passive monitoring; switch to the Yagi and rotate toward the active path when an opening is confirmed.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| High SWR across entire band — no minimum | Driven element shorted to boom; or open circuit at gamma match connection | Ohmmeter between DE and boom — should read open circuit; check gamma capacitor and coax connections | Verify DE insulation from boom; rebuild DE mounting with PTFE insulator; re-solder gamma connections |
| SWR minimum at correct frequency but SWR at minimum is 3:1 or higher | Gamma match not providing enough impedance transformation; rod length or capacitance wrong | Measure feedpoint impedance with NanoVNA — note R and X at 50.150 MHz | Lengthen gamma rod for more coupling (lowers impedance); adjust series capacitor to null reactance |
| SWR minimum shifted above 51 MHz | All elements slightly short; or boom correction not applied | Measure each element half-length; compare to table values | Add 1-inch extensions to reflector tips and director tips; retest; alternatively accept the shift — SWR at 51 MHz is still usable for most operating |
| Good SWR but pattern bidirectional — no front-to-back | Reflector and director reversed — antenna built backwards | Note which end of the boom the reflector is on (longest element) and which the director is on (shortest); should be: Refl → DE → Dir from back to front | Rotate antenna 180° on the mast — the front is the director side, not the reflector side |
| SWR good on ground, shifts significantly when raised | Ground proximity affected feedpoint impedance during ground-level testing; normal shift of 100–300 kHz when raised | Compare SWR at 3 ft vs 30 ft height | Re-tune gamma capacitor with antenna at installed height; small shifts are normal and expected when moving from ground level to operating height |
| RF in shack — feedback in audio on 6m | Common-mode current on coax; no or inadequate choke balun | RF tingle on equipment chassis; SWR changes when touching coax | Add 1:1 current choke balun (8 turns RG-8X through FT-240-31) at feedpoint AND at shack coax entry |
| Boom sags visibly — elements drooping | Boom span too long without truss for the tubing wall thickness used | Sight along boom from end — visible sag confirms problem | Add rope truss from mast mount to boom ends; for 5-element, this is essential and should be built in from the start |
How much difference does a 5-element make over a 3-element on 6m?
In practice, 3 dBd — meaning signals that are S4 on the 3-element are S5 on the 5-element, and contacts that are marginal on the 3-element are comfortable on the 5-element. During a strong sporadic-E opening with strong signals, the difference is barely noticeable — both work everyone. During a weak or short opening with marginal signals, the 3 dB difference matters considerably. The 5-element justifies itself primarily for weak-signal work: meteor scatter, EME attempts, and the marginal paths that occur at the edges of a sporadic-E opening or during poor F2 conditions. For casual sporadic-E operation and working the stations that appear during openings, a 3-element fully competes.
Can I use the 6m Yagi on other bands?
On 2m (144 MHz) the 6m Yagi's elements are approximately 3× too long — they present very high SWR and the beam pattern would be meaningless. On 10m (28.5 MHz) the elements are roughly 57% of the correct length — the Yagi would resonate somewhere below 10m with an ATU, but gain would be very poor compared to a 10m antenna. The 6m Yagi is a single-band antenna and should not be used on other bands. If multi-band beam coverage from one structure is needed, a hex beam (see the hex beam guide) is designed for exactly this application on 20m through 6m simultaneously.
What rotator do I need for a 6m Yagi?
A 3-element 6m Yagi weighs approximately 8–10 lbs with hardware and has modest wind loading — any light-duty rotator (Yaesu G-450, CDE Ham-III, Alliance HD-73) handles it comfortably. A 5-element adds weight and significantly increases wind load — use a medium-duty rotator (Yaesu G-1000, Ham-IV, CDE TR-44) for a 5-element in a windy location. The rotator selection is more about wind loading than weight for these antenna sizes. Check the rotator manufacturer's maximum wind area specification and compare it against your antenna's wind area at your local maximum wind speed.
How high should I mount the 6m Yagi?
For 6m DX via sporadic-E and F2, height matters less than for VHF terrestrial work because signals arrive from overhead ionospheric paths — elevation angles of 10–30° rather than near-horizontal. A 6m Yagi at 30 ft works essentially as well as one at 60 ft for E-skip DX. For meteor scatter (near-horizontal paths) and EME, height follows normal rules — higher is better. A practical target: mount as high as your mast and rotator support system allows. Getting on 6m with a Yagi at 25 ft is far more rewarding than waiting until you can build a 60-ft tower. The antenna design matters far more than an extra 20 ft of height on 6m.
Is the gamma match or beta match better for 6m?
Both work well. The gamma match is more adjustable in the field and forgives slight element length errors by allowing capacitance adjustment — if you cut elements slightly long or short, the gamma match can usually still be tuned to 50 Ω. The beta (hairpin) match is more repeatable and stable once tuned — a correctly dimensioned hairpin match provides a stable SWR without any adjustable components, making it preferred for a permanent installation where repeatability matters. For a first homebrew build where exact element lengths are uncertain, the gamma match is more forgiving. For operators building to published dimensions with confidence in their measurements, the beta match produces a cleaner permanent installation.
When does 6m usually open via sporadic-E?
Sporadic-E on 6m is most frequent in the Northern Hemisphere from late May through early August, with a secondary peak in December–January. Peak activity in North America typically runs from late May through mid-July, with openings to Europe (from the eastern US), within the US, and occasionally to South America or the Pacific. The openings are unpredictable in timing and direction — they can appear and disappear within 15 minutes. Solar cycle affects F2 propagation on 6m significantly (more F2 near solar maximum) but has little effect on sporadic-E frequency. The DX cluster and PSKReporter are the best real-time indicators of 6m sporadic-E activity from your region.
