Build a 70cm Slim Jim Antenna
The Slim Jim — J-pole Integrated Match — is a deceptively simple wire antenna that delivers genuine gain over a quarter-wave vertical from a single piece of 300 Ω twin-lead or ladder line. On 70cm (432–440 MHz), a Slim Jim is just 20 inches tall, weighs a few ounces, costs under $5 in materials, and produces approximately 3 dBd gain with an omnidirectional vertically polarised pattern — making it one of the best value-per-performance antennas in amateur radio. Originally described for 2m use, the Slim Jim scales directly to 70cm with proportionally shorter dimensions. This guide covers the J-pole and Slim Jim operating principle, exact dimensions for 70cm and the wider 432–440 MHz allocation, construction from 300 Ω TV twin-lead, feedpoint tapping, PVC housing, and SWR verification for a permanently mounted base station antenna.
From J-Pole to Slim Jim
The J-pole and Slim Jim are closely related — both use an end-fed half-wave radiator matched to coax via a quarter-wave matching stub. Understanding the J-pole first makes the Slim Jim clear:
Why the Slim Jim Outperforms a Simple Vertical
A standard quarter-wave vertical radiates with a radiation pattern that includes significant high-angle radiation — energy going mostly upward rather than toward the horizon. The Slim Jim's half-wave radiating element and specific feed arrangement produces a lower radiation angle, concentrating more energy toward the horizon where it is useful for terrestrial communication:
Velocity Factor — Critical for Slim Jim Dimensions
The Slim Jim is built from 300 Ω TV twin-lead, and the dimensions must account for the velocity factor (VF) of this feedline — the ratio of signal propagation speed in the cable versus free space. Getting the VF wrong produces an antenna that resonates at the wrong frequency:
Slim Jim vs J-Pole vs Flower Pot vs Collinear
Several related vertical antennas compete in the 70cm base station category — understanding their differences helps choose the right antenna for specific needs:
- Slim Jim (~3 dBd): lowest cost, smallest size, easiest to build, good gain. Best for operators who want a permanent 70cm base station antenna for minimal investment. Ideal for remote sites, emergency kits, and fixed station 70cm.
- J-pole (2–3 dBd): can be built from copper pipe for greater mechanical robustness. Similar gain to Slim Jim, slightly larger diameter. The 2m copper pipe J-pole is a classic homebrew design; on 70cm the smaller copper pipe dimensions make it trickier to work with — twin-lead (Slim Jim) is more practical at this frequency.
- Flower pot (3–4 dBd): a hidden coaxial collinear design where the antenna is concealed inside a PVC pipe that looks like a flower pot or pipe. Similar gain to Slim Jim; better weatherproofing but more complex to build. Covered in a separate guide on hamradiobase.
- Collinear (5–7 dBd): multiple in-phase elements produce higher gain than any of the above. More complex to build, taller structure. For a permanent base station where maximum repeater reach is needed, the collinear (covered separately) outperforms the Slim Jim by 2–4 dBd.
- Best choice for most operators: the Slim Jim for a quick, inexpensive, effective 70cm antenna; the collinear for a permanent high-performance installation.
| Parameter | Dimension (inches) | Dimension (mm) | Notes |
|---|---|---|---|
| Half-wave radiator section | 11.15 | 283 | Upper section of twin-lead; top is open circuit |
| Quarter-wave matching stub | 5.57 | 141 | Lower section; bottom is short-circuit (conductors joined) |
| Total antenna height | 16.72 | 425 | From shorted bottom to open top |
| Feedpoint tap — from bottom | 0.5–1.0 | 13–25 | Initial position; adjust for SWR minimum; typically 15–20mm from shorted end |
| Twin-lead spacing (300 Ω) | ~0.5 | ~12 | Fixed by the twin-lead construction; do not alter |
| Total twin-lead length needed | 18.0 | 457 | 17 inches for antenna plus 1 inch trim allowance |
| Short circuit at bottom | Solder both conductors together | Hard short between both conductors at bottom end | |
| Open circuit at top | Leave both conductors open | No connection at the top — both conductors left open |
Materials for a 70cm Slim Jim for 432–440 MHz — one of the simplest and most cost-effective VHF/UHF antennas

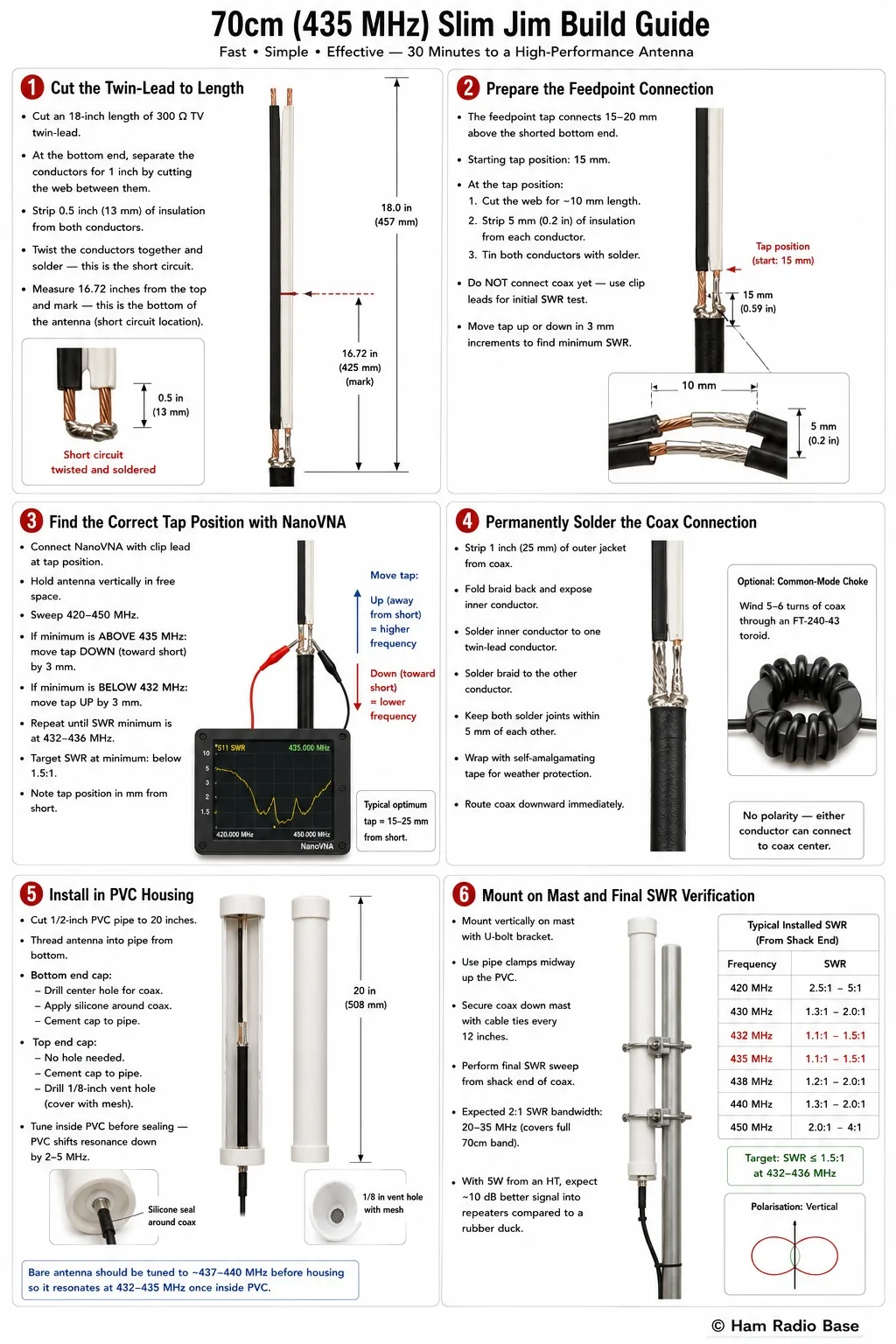

Building the 70cm Slim Jim
The 70cm Slim Jim is one of the fastest antenna builds in this guide library — 30 minutes from start to SWR verification. The only critical step is finding the correct feedpoint tap position, which takes 5–10 minutes with a NanoVNA. Build without housing first, verify SWR, then install in the PVC housing.
Cut the Twin-Lead to Length
Cut an 18-inch length of 300 Ω TV twin-lead — this gives the 16.72-inch antenna plus approximately 1.3 inches for error correction and the shorted bottom connection. Use sharp scissors or a knife and cut cleanly perpendicular to the conductors. At the bottom end, separate the two conductors for about 1 inch by cutting the web between them with a knife, then strip the insulation from both conductors for about 0.5 inches and twist them together — this is the short circuit at the bottom of the matching stub.
Solder the twisted conductors together at the bottom. This solder joint is the short circuit that defines the bottom of the matching stub — it must be a clean, low-resistance connection. Apply rosin-core flux and use a hot iron to get a bright solder joint with no cold-solder dullness.
Prepare the Feedpoint Connection
The coax feedpoint connects to the two conductors of the twin-lead matching stub at a point approximately 15–20mm above the shorted bottom end. At this tap point, the coax centre conductor connects to one twin-lead conductor and the coax shield connects to the other. At 70cm the exact tap position is the key variable — it must be found empirically with the NanoVNA rather than cut to a fixed calculated value:
Find the Correct Tap Position with NanoVNA
Before housing the antenna in PVC, find the exact tap position that gives minimum SWR at 432–435 MHz. Hold the antenna vertically in free space — away from metal surfaces, your body, and the floor. Connect the NanoVNA to the coax at the tap point and sweep 420–450 MHz:
Permanently Solder the Coax Connection
Once the correct tap position is confirmed by NanoVNA measurement, permanently solder the coax to the twin-lead at that position. Strip the coax — 1 inch of outer jacket, then fold back the braid shield, exposing the inner conductor. Solder the inner conductor to one twin-lead conductor and the braid to the other. Keep the connection compact — both solder joints should be within 5mm of each other at the tap position:
Install in PVC Housing
Once the bare Slim Jim is working correctly, install it in the PVC pipe housing for weather protection and mechanical rigidity. Cut the 1/2-inch PVC pipe to 20 inches. Thread the Slim Jim assembly into the pipe from the bottom — the twin-lead runs up through the pipe with the shorted bottom at the pipe's lower end and the open top near the top of the pipe:
Mount on Mast and Final SWR Verification
Mount the sealed PVC Slim Jim on the mast using a bracket and U-bolts. Mount vertically — any lean affects the omnidirectional pattern. The PVC pipe should extend slightly above the mast top for clearance. Route the coax from the base of the PVC pipe down the mast, securing with cable ties every 12 inches.
Perform a final NanoVNA sweep from the shack end of the coax. The installed SWR will differ slightly from the bench measurement due to the vertical installation environment, but both should show SWR well below 2:1 across the 432–440 MHz 70cm allocation:
Improving the Basic Slim Jim
The basic twin-lead Slim Jim works excellently as described, but several improvements are worth considering for a permanent base station installation:
- Copper wire Slim Jim: instead of flat TV twin-lead, build the Slim Jim from two parallel copper wires held apart by short PTFE or fibreglass spacers every 3–4 inches. This uses bare copper wire with known VF of 1.00 (or close to it), eliminating the VF uncertainty of commercial twin-lead and allowing more accurate dimension calculation. The copper wire version is also more robust than the flat ribbon.
- Larger diameter housing: a 3/4-inch or 1-inch PVC housing instead of 1/2-inch provides more air gap around the twin-lead, reducing the PVC's dielectric loading effect on the antenna. Less frequency shift after housing means less correction needed during tuning.
- N-type connector: for a permanent installation, use an N-type chassis connector at the base of the PVC housing instead of a PL-259. At 432 MHz the difference is small but measurable — N-type adds under 0.05 dB while PL-259 adds 0.2–0.3 dB at 432 MHz.
- Weather tape over base cap: seal the bottom end cap junction with self-amalgamating tape over the PVC cement joint. Water infiltration through a poorly cemented joint degrades the antenna over time as moisture on the twin-lead shifts the resonant frequency and increases loss.
Slim Jim for APRS, Packet, and D-STAR on 70cm
The 70cm Slim Jim is particularly well-suited for digital mode applications that require a fixed omnidirectional antenna:
- APRS on 70cm: the 70cm APRS frequency in most regions is 432.500 MHz or 439.0125 MHz (APRS Internet-linked). The Slim Jim's 20+ MHz SWR bandwidth covers both frequencies from one antenna, and its 3 dBd gain significantly extends the range of APRS packets compared to a simple quarter-wave.
- D-STAR and digital repeaters: most 70cm D-STAR repeaters are in the 438–440 MHz range. The Slim Jim provides good coverage for D-STAR digital voice at a fraction of the cost of a commercial whip antenna.
- Packet radio and WIRES-X: the Slim Jim's omnidirectional coverage makes it ideal for node antennas in repeater linking systems — receiving stations from all directions equally without any rotation requirement.
- Remote stations: a Slim Jim's light weight, low cost, and simple construction make it the preferred antenna for remote APRS digipeaters, packet nodes, and internet gateway stations mounted on buildings, towers, or poles where space and weight are at a premium.
- Emergency Go-Kit: a Slim Jim rolled up on a spool of coax weighs under 50 grams and provides immediate 70cm antenna capability deployable in minutes from any mast, tree branch, or tape attachment on a building wall.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| High SWR across entire 70cm sweep — no minimum | Open or short circuit at incorrect location; or twin-lead conductors crossed at feedpoint | Verify bottom solder joint is a hard short between both conductors; verify top is completely open; check coax connections at tap | Resolder bottom short circuit; verify open top; rebuild coax tap connection ensuring centre goes to one conductor and shield to the other |
| SWR minimum 15–20 MHz above target | Twin-lead VF higher than assumed 0.82; or antenna cut too short | Calculate VF from actual resonant frequency; measure total antenna height vs calculated 16.72 inches | Rebuild with slightly longer twin-lead; or move tap further from short (toward top) by 3mm increments |
| SWR minimum 15–20 MHz below target | Twin-lead VF lower than assumed; or antenna cut too long | Measure actual antenna height vs 16.72 inches; calculate actual VF | Trim 3mm from the TOP of the twin-lead (shortens the half-wave section) and re-test; do not trim the shorted bottom |
| SWR minimum at correct frequency but SWR value is 3:1 or higher | Tap position not optimised; or coax braid and centre connected to same twin-lead conductor | Verify coax polarity at tap — centre and shield must go to DIFFERENT conductors; recheck tap height | If coax polarity is correct, adjust tap position in 2mm steps while monitoring SWR minimum value; if SWR minimum is above 2:1 regardless of tap position, rebuild — twin-lead may be damaged |
| SWR shifts significantly after housing in PVC | PVC dielectric constant lowering resonant frequency — expected and normal | Compare SWR minimum frequency bare vs housed; expect 2–5 MHz downshift | Tune bare antenna to 437–440 MHz; the PVC housing will shift it down to 432–435 MHz. Or tune inside unsealed housing before sealing. |
| Good SWR but poor performance — short range on 70cm | Coax run too long without LMR-400; or common-mode current on coax degrading pattern | Measure SWR at antenna vs at shack — large difference indicates feedline loss; check for RF on coax chassis | Replace RG-58 with LMR-400 for runs over 30 ft; add ferrite choke (5 turns through FT-240-43) at feedpoint |
How much better is a Slim Jim than a rubber duck antenna?
The improvement is dramatic — typically 10–15 dB better in signal-to-noise ratio when the Slim Jim is at height compared to a rubber duck on a handheld. A rubber duck antenna on a handheld at waist level might deliver 0 dBd into a repeater; the Slim Jim at 20 ft with its 3 dBd gain and height advantage adds 3 dBd antenna gain plus approximately 6–10 dB of height gain depending on terrain — a total improvement of 9–13 dB. In practical terms, contacts that are barely possible with the rubber duck are comfortable with the Slim Jim, and contacts that are impossible become possible. This is why installing a Slim Jim at home immediately transforms 70cm handheld operation.
Can I use the same Slim Jim for both 432 MHz and 440 MHz?
Yes — the Slim Jim's 2:1 SWR bandwidth is typically 20–35 MHz, which easily covers the full 70cm amateur allocation from 430–440 MHz. A Slim Jim tuned to 435 MHz as the centre frequency will show SWR under 2:1 at both 430 MHz (weak-signal CW and SSB) and 440 MHz (FM repeaters and digital). In most countries the 70cm allocation is narrower (430–440 MHz) and a single Slim Jim covers it completely. The only scenario where it might not cover both ends of your regional allocation is if your country has an unusually wide 70cm allocation (some European countries have 430–450 MHz) — in that case, two Slim Jims with different resonant frequencies or a collinear might be more appropriate.
What power can the twin-lead Slim Jim handle?
A 70cm Slim Jim built from standard 300 Ω TV twin-lead handles 50–75W continuous without concern. The twin-lead conductors are typically 22–24 AWG wire — this handles 50W at 432 MHz comfortably with minimal heating. At 100W continuous (digital modes, RTTY) the thin conductors begin to warm slightly and the dielectric insulation of the twin-lead experiences modest RF stress. For stations running over 75W consistently on 70cm, a copper-wire Slim Jim with heavier gauge wire (18–16 AWG) and solid PTFE spacers is more robust. For the vast majority of amateur 70cm applications (up to 50W FM and digital), standard twin-lead is entirely adequate.
Why does the PVC housing shift the resonant frequency?
PVC has a dielectric constant of approximately 3.0–3.5, compared to 1.0 for air. When the antenna is inside the PVC pipe, the electric field between the two twin-lead conductors passes through PVC rather than air. This increases the effective capacitance of the transmission line structure, which electrically lengthens the antenna — the same physical length becomes electrically longer when surrounded by higher-dielectric material. The result is a downward shift in resonant frequency of approximately 2–5 MHz at 70cm. This is predictable and compensated for by tuning with the housing in place, or by pre-tuning the bare antenna 3–5 MHz above the target frequency before housing.
Does the Slim Jim need a ground plane?
No — this is one of the Slim Jim's key advantages over a simple quarter-wave ground plane antenna. The J-pole/Slim Jim matching stub provides the return current path internally, eliminating the need for external radials or a ground plane. The antenna can be mounted at the top of a non-conductive mast without any surrounding metal. This makes the Slim Jim ideal for mounting on fibreglass poles, wooden masts, or PVC structures where there is no metal ground plane available. The lack of ground plane requirement also means the Slim Jim's performance is not affected by poor ground conductivity or by installation height above ground the way a quarter-wave monopole's performance can be.
Can I build a Slim Jim for 2m using the same method?
Yes — the Slim Jim scales directly to 2m with proportionally longer dimensions. For 146 MHz the antenna is approximately 50 inches tall using 300 Ω twin-lead (VF 0.82). The half-wave section is approximately 33 inches and the quarter-wave stub is approximately 16.5 inches, for a total of about 49.5 inches. The building procedure is identical — find the tap position with a NanoVNA and tune for SWR minimum at 146 MHz. The 2m Slim Jim is one of the most popular homebrew VHF antennas and dozens of published designs exist with exact dimensions. The hamradiobase 2m Slim Jim build guide covers this in detail.
