Build a 2-Meter Slim Jim Antenna
The Slim Jim is a close relative of the J-pole with one important difference in radiation behavior — its J-shaped matching stub is folded back alongside the radiating element in a configuration that produces a slightly lower radiation angle than a standard J-pole. Originally described by Fred Judd G2BCX in Practical Wireless and popularized in the UK and Australia, the Slim Jim has become a favorite building project for operators who want a lightweight, portable, high-performance 2m antenna that can be built from a 5-foot piece of 450 Ω ladder line in about an hour. This guide covers the dimensions, construction, feedpoint adjustment, and practical deployment of a 2m Slim Jim for both fixed and portable use.
Slim Jim vs J-Pole — The Key Difference
The Slim Jim and J-pole share the same basic topology — a half-wave radiator matched by a quarter-wave stub — but the Slim Jim folds the stub in a different orientation:
Honest Gain Assessment — Setting Expectations
The Slim Jim is sometimes advertised with gain figures of 5–6 dBd — significantly above a standard J-pole or dipole. This figure requires scrutiny:
Why Build a Slim Jim Instead of a J-Pole?
Both antennas perform similarly — the choice between them is primarily practical:
- Slim Jim advantages: built from a single piece of 450 Ω ladder line with scissors and a soldering iron — no pipe cutting, no torch, no plumbing fittings. Weighs under 2 oz. Packs into a shirt pocket. Deploys in 2 minutes from any tree branch, window frame, or ceiling hook. Costs $6–8 in materials. Ideal for emergency kits, portable operation, and travel.
- J-pole advantages: rigid self-supporting structure that mounts on a mast permanently. Weathers better than ladder line (copper oxide patina is protective; ladder line's plastic insulation degrades in UV over years). Better suited for a permanent fixed outdoor installation that must survive years of weather.
- Use both: many operators have a copper pipe J-pole on the roof for everyday use and a Slim Jim in the emergency kit for portable and backup use. They are complementary, not competing — each is the better choice in its intended environment.
Ladder Line as Antenna Material
450 Ω open-wire ladder line (window line) is the standard material for Slim Jim construction. Understanding its properties helps with both construction and troubleshooting:
| Section | Length (inches) | Length (mm) | Notes |
|---|---|---|---|
| Total ladder line piece | 58.0 in | 1473 mm | Starting length — includes trim allowance |
| Half-wave radiating section | 38.0 in | 965 mm | Upper section; both conductors active; top shorted |
| Quarter-wave matching stub section | 19.0 in | 483 mm | Lower section; one conductor forms stub; bottom shorted |
| Gap (feedpoint notch) in one conductor | 0.5–1.0 in | 13–25 mm | Cut in one conductor at the junction between sections |
| Short circuit at top (both conductors joined) | — | — | Solder bridge across both conductors at very top |
| Short circuit at bottom (both conductors joined) | — | — | Solder bridge across both conductors at very bottom |
| Feedpoint tap position | 1.5–2.5 in above bottom short | 38–64 mm | Adjust for minimum SWR — same as J-pole tap tuning |
Vhf Slimjim Calculator
Materials for a 2m Slim Jim from 450 Ω ladder line

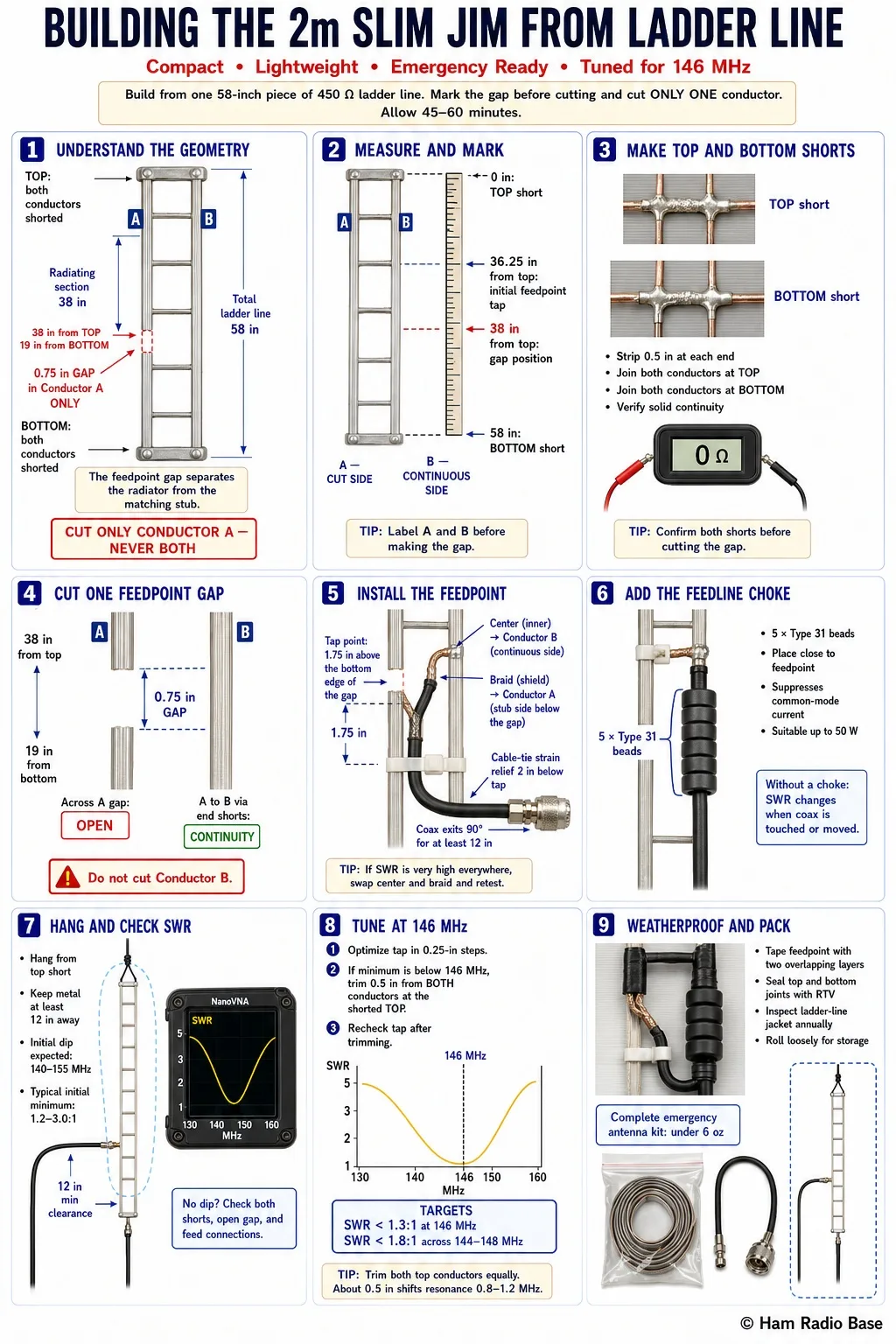

Building the 2m Slim Jim from Ladder Line
This build takes 45–60 minutes with basic tools. The most important step is correctly identifying which conductor to cut for the feedpoint gap — cutting the wrong conductor prevents the antenna from working. Read through all steps before starting and identify the feedpoint gap position on the physical piece of ladder line before making any cuts.
Understand the Slim Jim Geometry Before Cutting
The Slim Jim is built from a single rectangular piece of ladder line. Both conductors run the full length, but one conductor has a gap cut into it at the junction between the radiating section and the matching stub section. Lay the ladder line flat and visualize the antenna before making any marks:
Measure and Mark the Antenna
Cut a 58-inch piece of 450 Ω ladder line. Lay it flat on a clean work surface. At the top end (one end), place a mark on both conductors at 0 inches. At 38 inches from the top, place a mark across both conductors — this is the feedpoint junction. At 58 inches, the bottom end of the piece is marked.
Create the Top and Bottom Short Circuits
At the top end of the ladder line, solder a bridge between the two conductors — strip 0.5 inches of insulation from each conductor at the very top, twist the bare ends together, and apply rosin-core solder. This short circuit at the top joins the two conductors at the top of the half-wave radiating section.
At the bottom end, repeat — strip 0.5 inches of insulation from each conductor, twist together, and solder. This short circuit at the bottom joins the two conductors at the bottom of the quarter-wave matching stub. After both shorts are made, the ladder line is a complete loop at the top and bottom with two parallel conductors running between them.
Cut the Feedpoint Gap in One Conductor
At the 38-inch mark from the top, cut conductor A (the one you designated for cutting) and remove a 0.5–1.0-inch section of conductor and insulation. This gap is the feedpoint of the antenna:
Install the Feedpoint Connector
The feedpoint connector (SO-239 or BNC) taps onto both conductors at a point 1.75 inches above the bottom edge of the gap (toward the bottom short circuit). This tap position gives the starting impedance transformation — fine adjustment is made by sliding the connection point up or down during tuning:
Install a Ferrite Choke on the Feedline
Thread 5 ferrite beads (type 31) onto the coax immediately below the feedpoint pigtail, or use a snap-on ferrite clamp at the same location. At 146 MHz, common-mode current on the feedline outer braid can be significant and affects the antenna pattern measurably. The ferrite choke suppresses this current:
Mount and Perform Initial SWR Check
Hang the antenna vertically from its top short-circuit bridge. Use a nylon cord tied through a small hole in the ladder line at the very top, or clip the top short-circuit bridge to an overhead anchor. The antenna must hang freely and vertically with no metal objects within 12 inches of any part of the ladder line.
Connect the NanoVNA to the feedpoint connector. Sweep 130–160 MHz and look for the SWR minimum:
Tune the Feedpoint Position and Radiator Length
The tuning procedure mirrors the single-band J-pole — optimize the feedpoint tap position first, then adjust the radiator length for the correct frequency:
Weatherproof and Prepare for Use
For a portable antenna, minimal weatherproofing is needed — the coax connections at the feedpoint should be wrapped in self-amalgamating tape to protect against moisture during outdoor use. For a semi-permanent outdoor installation:
- Apply a coat of clear acrylic spray lacquer to both conductors and the insulating jacket to slow UV degradation
- Wrap the feedpoint connection area (the coax pigtail attachment) with self-amalgamating tape — two full overlapping layers
- Cover the top and bottom short circuits with a drop of RTV silicone sealant to prevent moisture from wicking under the soldered joints
- Inspect the ladder line jacket annually — UV degradation causes the plastic jacket to become brittle and crack. Replace the antenna when significant cracking is visible.
For portable emergency kit use, roll the Slim Jim loosely and store in a small zip-lock bag with the NanoVNA and a 3-foot coax pigtail. A complete emergency 2m antenna kit weighs under 6 oz and fits in a coat pocket.
Emergency and EMCOMM Use
The Slim Jim's combination of light weight, low cost, and rapid deployment makes it an ideal emergency communication antenna:
- Deployment from any height: tie a nylon cord to the top short-circuit bridge and throw the cord over a tree branch, roof peak, or any elevated anchor. The antenna hangs vertically and is operational in under 2 minutes.
- Inside windows: hang the Slim Jim vertically inside a window or attach it to a window frame facing outward. Performance is noticeably reduced by window glass and nearby metal (window frames) but the antenna remains functional — substantially better than a rubber duck for repeater access from an emergency shelter.
- Vehicle use: attach the top of the Slim Jim to a vehicle roof rack or extend it through a cracked window, hanging vertically from the roof. For temporary mobile emergency use, this outperforms the rubber duck significantly.
- Battery-powered operation: the Slim Jim works equally well with handheld radios at QRP power. At 5W through a Slim Jim elevated 15 feet above the surrounding terrain, effective range for repeater access covers most metropolitan areas reliably.
Semi-Permanent Outdoor Installation
The Slim Jim can serve as a permanent outdoor antenna if protected from UV degradation. A common approach is to enclose the ladder line in a length of PVC conduit:
- PVC conduit housing: slide the completed Slim Jim inside a 1.5-inch OD PVC conduit that is open at both ends (allowing air circulation to prevent condensation). The conduit provides UV protection, mechanical support, and a clean professional appearance. Drill a 1/2-inch hole through the conduit wall at the feedpoint position for the coax pigtail to exit.
- Mounting: mount the PVC housing vertically on a standard antenna mast, TV antenna J-mount, or chimney bracket. The conduit's weight and wind resistance is small — any standard light antenna mount handles it.
- Cable routing: run the feedline coax inside the PVC conduit for its full length, exiting at the feedpoint hole. This protects the coax from UV and weather at the same time as protecting the ladder line antenna.
- Replacement: when the ladder line eventually needs replacement (typically after 3–5 years outdoor exposure), simply slide the old antenna out of the PVC housing and slide the new one in — no reinstallation of the mount hardware required.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| No SWR dip visible in 130–160 MHz sweep | Open circuit at top or bottom short, or feedpoint gap not fully open | Check continuity across top short and bottom short — should both read near 0 Ω; check gap — should be open circuit | Re-solder any cold joint at top or bottom; verify gap in conductor A is complete (no partial contact) |
| SWR minimum present but above 4:1 everywhere | Feedpoint polarity reversed — center and shield swapped | Swap coax center and shield at feedpoint connection and re-measure | Unsolder and reverse feedpoint connections; if SWR improves, polarity was reversed |
| SWR varies when coax is moved or touched | No ferrite choke on feedline — common-mode current flowing | Move coax while watching SWR — change confirms common-mode current | Install 5 type-31 ferrite beads on coax immediately below feedpoint; alternatively use snap-on ferrite clamp |
| SWR minimum correct but minimum SWR above 2.5:1 | Tap position not at optimum impedance point | Move tap connection up 0.25 inch and re-measure; compare to current position | Iterate tap in 0.25-inch steps; optimal tap typically produces SWR below 1.5:1 |
| SWR minimum at correct frequency but pattern distorted | Antenna not hanging vertically, or metal objects near antenna | Check antenna orientation — must be vertical; remove metal objects within 12 inches | Ensure free-hanging vertical orientation; if near building, add spacer to keep antenna 6+ inches from wall |
| Performance degrades over months outdoors | UV degradation of ladder line jacket — conductors exposed | Visually inspect ladder line — cracking or brittleness of the plastic jacket | Replace antenna with fresh ladder line; apply lacquer to new antenna for UV protection |
Is the Slim Jim really better than a J-pole?
Electrically, they perform identically in practice — both produce approximately 2 dBd of gain and omnidirectional vertical polarization on 2m. The Slim Jim's theoretical advantage (claimed slightly lower radiation angle) is real but small — in practical operating conditions the difference is not audible. The Slim Jim's genuine advantages are its construction simplicity, low cost, and portability. The J-pole's advantages are mechanical durability and suitability for permanent outdoor installation. Choose the Slim Jim when you want the fastest, cheapest, most portable 2m antenna. Choose the copper pipe J-pole when you want a permanent installation that will last a decade without maintenance.
Can I use 300 Ω twin-lead instead of 450 Ω ladder line?
Yes — 300 Ω TV twin-lead produces a functional Slim Jim, but with two differences from 450 Ω ladder line. First, the characteristic impedance is lower, which shifts the feedpoint tap position slightly — the 50 Ω tap point moves slightly lower on the stub, typically 1.0–1.5 inches above the bottom short rather than 1.75 inches. Second, 300 Ω twin-lead is a flat, flat ribbon with a solid plastic jacket rather than the open-air window construction of ladder line — this slightly lowers its velocity factor and requires slightly shorter dimensions than the 450 Ω version. Start with the same dimensions, measure with the NanoVNA, and tune the feedpoint tap and trim from the top as needed. The 300 Ω version is somewhat less weather-resistant than 450 Ω ladder line but is widely available and costs even less.
Can I build a Slim Jim for 70cm?
Yes — scale all dimensions by the ratio 146/446 = 0.327. The total length becomes 58 × 0.327 = 19 inches, the radiating section becomes 38 × 0.327 = 12.4 inches, and the stub section becomes 19 × 0.327 = 6.2 inches. The feedpoint tap starts at 1.75 × 0.327 = 0.57 inches (approximately 9/16 inch) above the bottom short. At 70cm the dimensions are tight and the feedpoint adjustments are sensitive — small movements produce large SWR changes. A 70cm Slim Jim from ladder line works well and packs very compactly, but requires careful measurement and NanoVNA verification at each adjustment step.
Why is the ladder line Slim Jim preferred for portable use over a copper pipe antenna?
Three practical reasons dominate: weight (under 2 oz vs 8+ oz for copper pipe), packability (rolls flat into a shirt pocket vs requires a carrying case for the copper pipe version), and deployment speed (hang from a cord in 60 seconds vs assemble and mount a pipe antenna in 10+ minutes). In an emergency situation where an amateur needs to establish communications quickly with what is in their go-bag, the Slim Jim is operable before the J-pole builder has finished unscrewing the bottom cap. Performance is essentially identical, so the practical advantages of the ladder line version for portable use are compelling. The only scenario where copper pipe wins for portable use is vehicle-portable operation where the rigid pipe can be clamped to a roof rack — the flexible ladder line cannot self-support without an external mast.
Does the antenna need to be mounted away from a wall?
Yes — the J-pole and Slim Jim are omnidirectional antennas, and placing them against a wall significantly disrupts this pattern on the wall side. As a practical rule, keep the antenna at least 6 inches from any building wall or metal surface. The RF near-field extends approximately one wavelength (80 inches at 146 MHz) from the antenna, but significant detuning from nearby conductors occurs within 12–18 inches. For mounting on a building wall, use a standoff spacer (a short horizontal PVC pipe attached to the wall, with the antenna hanging from the standoff end) that holds the antenna at least 12 inches away from the wall surface. This recovers most of the lost omnidirectionality and significantly improves performance compared to a wall-mounted antenna with no standoff.
What is the best support material for hanging a Slim Jim?
Non-conductive materials are essential — fiberglass or PVC poles, nylon cord, and wooden dowels are all appropriate. A metal mast or support within 6 inches of the ladder line changes the antenna's impedance noticeably and reduces performance. The most practical portable support is a 10–15-foot fiberglass telescoping fishing pole — inexpensive, lightweight, and rigid enough to support the lightweight Slim Jim at height without guying. For a fixed installation, a standard 1-inch OD PVC pipe mast works well if the ladder line is kept parallel to it with 2–3 inch standoffs. The PVC pipe housing described in the portable deployment section is the cleanest fixed installation approach — it contains the antenna, protects it from weather, and provides the structural support in a single piece.
