Build an Attic & Stealth Dipole Antenna
HOA restrictions, apartment leases, rental agreements, and deed covenants prevent millions of licensed amateur radio operators from installing outdoor antennas. The attic dipole and stealth outdoor dipole are the most practical workarounds — both build on exactly the same dipole construction skills covered elsewhere in this guide series, but with specific adaptations for the constrained installation environment. This guide covers what attic and stealth installations cost in performance, how to minimize that loss, and how to build and tune an antenna that actually works within these restrictions.
What an Attic Antenna Actually Costs in Performance
An attic dipole works — hundreds of thousands of HOA-restricted operators make regular contacts on all HF bands from attic antennas. But it is never as good as the same antenna installed outdoors at meaningful height, and understanding the losses involved helps set appropriate expectations and optimize the installation:
In practical terms: an attic dipole at 100W is typically equivalent in signal strength to an outdoor dipole at 25–50W. On crowded bands and in pile-ups, this matters. For regular scheduled contacts, local nets, digital modes (FT8 handles low signal levels extremely well), and casual operating, attic antennas work well enough to provide genuine enjoyment and utility.
What Kills Attic Antenna Performance
Several specific construction materials dramatically reduce attic antenna performance. Identifying these before selecting the installation location can save significant frustration:
- Foil-backed insulation (radiant barrier): the single worst material for attic antennas. A foil layer in the roof or walls acts as a Faraday cage — RF cannot penetrate it. An antenna inside a foil-backed roof space is dramatically attenuated (10+ dB). Check the attic before committing to an attic installation.
- Metal roofing (standing seam, metal tile): severe RF attenuation and detunes any antenna below it. An attic under a metal roof is nearly unusable for HF.
- Metal roof decking or hurricane strapping: in many newer homes, hurricane straps and metal decking create a near-continuous metallic layer that attenuates RF almost as badly as a solid metal roof.
- Asphalt shingles without foil backing: modest attenuation of 1–3 dB — the best-case scenario for an attic antenna. Most older homes fall in this category.
- Clay or concrete tile: moderate attenuation of 2–5 dB from the dense material, plus the attic space is often shallower under tile roofs.
- Wood shake: very little attenuation — similar to asphalt shingles without foil. Good for attic antennas.
Attic vs Stealth Outdoor — Which Is Better
Many HOA-restricted operators face a choice between an attic installation and a careful stealth outdoor installation. The outdoor installation is almost always better — even thin wire at low outdoor height outperforms the same wire inside an attic because there is no building material absorbing the RF:
- Attic: completely invisible; no HOA risk; protected from weather; easier access for maintenance; limited by roof material losses; limited by available attic dimensions (often can't fit a full-size 80m or 40m dipole)
- Stealth outdoor: very low visibility; some HOA risk (depends on enforcement); exposed to weather; better RF performance (1–3 dB better than attic for same wire); can span full property for longer dipoles
- Best approach for most HOA situations: attempt stealth outdoor first (thin dark wire along fence lines, rooflines, or through trees). If HOA enforcement risk is too high, fall back to the attic. Reserve the attic for the bands where the stealth outdoor wire is too short to fit (80m dipole indoors runs 130 feet — won't fit in most attics, but an EFHW at 66 feet might).
Receive Noise in an Attic Installation
A major challenge for attic antennas that is often overlooked: the attic is inside the home's electrical environment. Every switching power supply, LED driver, solar inverter, router, and smart device in the house radiates RF noise — and an attic antenna sitting in the middle of this noise environment picks up all of it. This can make the received noise floor significantly higher than an outdoor antenna:
- Common symptoms: S3–S6 noise floor on all HF bands; noise that changes with appliance use; buzzing or hash that varies with time of day
- Mitigation 1 — Current choke at feedpoint: prevents the coax from carrying noise from the shack up to the antenna and vice versa. Essential for any attic antenna.
- Mitigation 2 — Ferrite on the coax at the shack entry: a second choke where the coax enters the operating area.
- Mitigation 3 — Identify and eliminate noise sources: plug-in filters on switching power supplies, replace noisy LED bulbs with quieter types, ferrite on router and device power supplies.
- Mitigation 4 — Use digital modes: FT8 operates 15–20 dB below the noise floor threshold for SSB — it transforms a marginal attic antenna into a fully functional station for many operators.
| Material | Typical HF attenuation | 14 MHz loss | 7 MHz loss | Attic antenna viability | Notes |
|---|---|---|---|---|---|
| Asphalt shingles (no foil) | 1–3 dB | ~2 dB | ~1 dB | Good | Best-case; most older homes |
| Wood shake shingles | 0.5–2 dB | ~1 dB | ~0.5 dB | Excellent | Minimal RF loss |
| Clay/concrete tile | 2–5 dB | ~4 dB | ~2 dB | Fair | Dense material; shallower attic space |
| Foil-backed insulation | 8–15 dB | ~12 dB | ~8 dB | Poor to unusable | Acts as partial Faraday cage |
| Metal roofing (steel/aluminum) | 15–30+ dB | >20 dB | >15 dB | Unusable | Do not attempt attic antenna |
| Hurricane straps/metal decking | 5–12 dB | ~8 dB | ~5 dB | Marginal | Common in newer construction; check before installing |
| Exterior masonry walls | 3–8 dB | ~6 dB | ~3 dB | Fair | Relevant for apartment/condo installations |
| Interior drywall only | <1 dB | <0.5 dB | <0.5 dB | Excellent | Attic without foil; or indoor wall antenna |
What Fits in a Typical Attic
Most residential attics are triangular spaces with the longest dimension along the house ridge. The available antenna length is constrained by this dimension. Before choosing an antenna type, measure the attic:
The practical conclusion: most attics accommodate 20m and higher bands in a straight dipole. 40m requires either a large attic or an EFHW (half the length for the same fundamental frequency). 80m in an attic almost always requires an EFHW or a significantly bent dipole.
Antenna Types Ranked for Attic Use
Not all antenna designs work equally well in an attic. The ranking from most to least suitable:
- Single-band dipole (best): simplest, most predictable, easiest to tune. Works well for any single band that fits the space. Start here.
- EFHW with 49:1 UNUN: covers multiple bands (40/20/15/10m or 80/40/20m) from half the wire length. The UNUN adds complexity but enables multi-band operation from a shorter wire.
- Fan dipole: multiple bands from one feedpoint. More complex to install in a confined attic space — the leg spreading required is awkward in a triangular attic space.
- Trapped dipole: multi-band but traps add weight and mechanical complexity that is awkward in an attic. The trap's heating effect in a warm attic can cause issues.
- OCFD/ZS6BKW: the matching section on the ZS6BKW and the asymmetric nature of the OCFD make routing in an attic more complex. Possible but not the first choice.
- Loop antennas: the magnetic loop (small tuned loop) is an excellent option for attics where even 20m dipole length won't fit — covers multiple HF bands from a 3-foot diameter structure. Covered in a separate guide.
Materials for an attic 40m EFHW covering 40m, 20m, 15m, and 10m

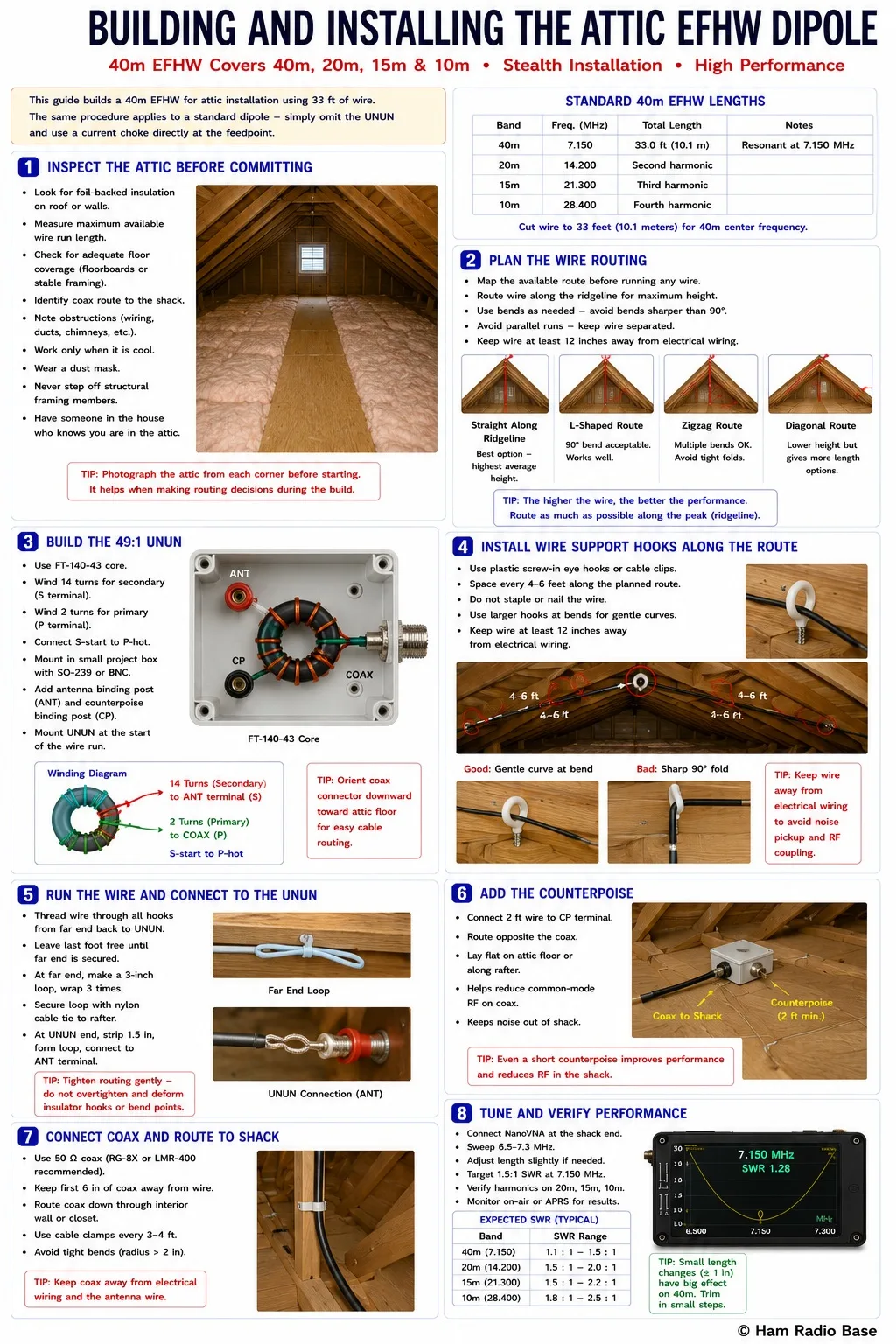

Building and Installing the Attic EFHW Dipole
This guide builds a 40m EFHW for attic installation — covering 40m, 20m, 15m, and 10m from a 33-foot wire. The same approach applies to a standard dipole — simply omit the UNUN and use a current choke directly at the feedpoint.
Inspect the Attic Before Committing
Put on old clothes, grab a headlamp, and spend 30 minutes in the attic before building anything. You need to know:
- Is there foil-backed insulation anywhere in the roof or walls? Look for shiny metallic surfaces on the underside of roof decking or on wall insulation. If yes, an attic antenna will perform poorly — reconsider the stealth outdoor option.
- What is the maximum available wire run length? Measure from one end of the attic to the other along the ridgeline, and diagonally if you need to fit a longer wire by routing it in multiple directions.
- Is there adequate floor coverage (floorboards, planks, or stable framing) for safe movement? Never step on attic insulation — it does not support weight and you will fall through the ceiling.
- Where can the coax run from the attic to the shack? Identify a path through interior walls or down through closets that avoids cutting exterior walls.
Plan the Wire Routing
Map the available wire path in the attic on paper before running any wire. For a 40m EFHW (33 feet of wire), the routing options in a typical 40-foot-ridge attic:
- Straight run along ridgeline: simplest, highest average height. The wire runs along the peak from one end of the attic to a point 33 feet away. Best option if it fits.
- L-shaped route: wire runs along the ridge for some distance, then bends 90° and runs down one rafter slope. The bend changes the antenna's electrical properties slightly but the antenna still works — just tune in the installed position.
- Zigzag route: wire runs along the ridge, bends, continues along a rafter, bends again. Multiple bends are acceptable. Avoid bends sharper than 90° and avoid the wire running back parallel to itself (parallel runs close together couple and change the antenna character).
- Diagonal route: wire runs diagonally across the attic floor from one corner to the far corner. Lower height but potentially longer available run.
Build the 49:1 UNUN
Build the UNUN using the FT-140-43 core following the same procedure as the portable EFHW guide: 14-turn secondary, 2-turn primary, autotransformer connection with S-start to P-hot. For an indoor installation, weatherproofing is less critical — a simple project box with a BNC or SO-239 connector and one binding post for the antenna wire is adequate. Include a second binding post for a counterpoise wire even in an attic installation — the counterpoise reduces common-mode problems.
Mount the UNUN at the point in the attic where the antenna wire begins — typically at one end of the planned wire run. Secure it to a rafter or ridge board with a small bracket and screws. The UNUN should be accessible from the attic access hatch for future maintenance.
Install Wire Support Hooks Along the Route
Do not staple or nail the antenna wire to the attic framing — metal staples detune the antenna at the contact points and damage the wire. Instead, use small plastic screw-in eye hooks or cable clips spaced every 4–6 feet along the planned wire route. Screw the hooks into rafter sides or the ridgeboard — not into the roof decking. Thread the wire through the hooks without stapling or kinking it.
At bend points, use a slightly larger hook that allows the wire to curve gently through the bend rather than folding sharply. A wire fold at 90° at a single support point is a stress concentration that fatigues the wire over time — a gentle curve over 12–18 inches of routing is far better mechanically.
Run the Wire and Connect to the UNUN
Thread the antenna wire through all the prepared hooks along the planned route, starting from the far end and working back toward the UNUN. Leave the last foot of wire unattached at the UNUN end until after the far end is secured — this prevents the wire from pulling free from hooks when you tension it.
At the far end of the wire, create a simple loop — fold the last 3 inches back on itself and wrap 3 times. Thread a nylon cable tie through the loop and around the nearest rafter or structural member. This provides the end support without any metal contact with the wire. At the UNUN end, strip 1.5 inches, form a loop, and connect to the ANT binding post.
Add the Counterpoise
Connect a 2-foot wire to the UNUN CP terminal. In an attic, the counterpoise can run in any direction along the framing — away from the antenna wire and perpendicular to the coax run. Secure it with a cable tie to a rafter. Alternatively, connect the CP terminal to a convenient ground reference: the coax shield at the operating position end of the coax (via the second current choke described in the next step) can serve as the counterpoise reference.
Run the Coax and Install Both Current Chokes
Run the coax from the UNUN downward through the attic floor, through the ceiling of the room below (typically through a closet or interior wall cavity), and to the operating position. Feed the coax through the attic floor by drilling a small hole through a ceiling joist between insulation batts — patch any insulation displaced during routing.
Install two current chokes: one at the UNUN output (already integrated if built per the portable EFHW guide), and a second choke at the point where the coax reaches the operating position. For the second choke, wind 5–6 turns of the coax through a Fair-Rite type 31 snap-on ferrite or FT-240-31 toroid. This double-choke approach is especially important for attic antennas where the coax runs through a noise-rich household environment on its way from the antenna to the radio.
Initial SWR Measurement — Expect Surprises
Connect the NanoVNA at the radio end of the coax. Sweep the target band. An attic antenna's resonance is significantly affected by surrounding materials, and the initial measurement almost certainly will not match any formula prediction:
Do not be alarmed by an initial resonance 150–250 kHz below the target — the surrounding dielectric materials load the wire and lower its resonant frequency. This is expected and corrected by trimming. The SWR minimum should still be below 2:1 at whatever frequency it falls — if it is above 3:1, check the UNUN wiring and counterpoise connection before trimming.
Trim to Target Frequency — In Place
Trim the wire while it is in the installed attic position. Removing the wire from the attic to trim it on the ground and then reinstalling changes the resonance because the surrounding materials that cause the loading will be absent during ground-level measurement. Trim in the attic:
- Lower the far end of the wire from its support hook to access the wire tip
- Cut the calculated trim amount from the wire tip — start with 1-inch increments for attic work
- Re-hook the wire and re-measure
- Repeat until resonance is at the target frequency
Measure All Covered Bands
Once 40m resonance is confirmed, sweep 20m, 15m, and 10m. Attic installations often show different harmonic SWR behavior than outdoor EFHW installations because the building materials affect the antenna's impedance at different frequencies differently. Typical results:
- 20m: usually the cleanest band after 40m — SWR typically 1.3–2.0:1
- 15m: more variable — may show good SWR (1.5–2.5:1) or may need the optional 100 pF capacitor across the UNUN
- 10m: most sensitive to installation geometry — SWR of 1.5–4:1 depending on the specific routing and surroundings
Use the radio's internal ATU for any band showing SWR above 2.5:1. An internal ATU can comfortably handle 3:1 SWR with minimal additional loss in the tuner — for attic antenna use where you are already accepting some efficiency reduction, this is an acceptable trade.
Address Noise Problems
If the received noise floor is unacceptably high after installation (S3 or higher on quiet bands like 20m or 15m where the attic antenna should be reasonably quiet), work through a systematic noise identification and reduction process:
- Identify the source: switch off circuit breakers one at a time (safely) while monitoring the noise floor. When the noise drops, you have identified the circuit feeding the noise source. Narrow it down to individual appliances by plugging them in one at a time.
- Ferrite on device power supplies: wrap the power cord 2–3 times through a Fair-Rite type 31 snap-on clamp at the device end. This suppresses the switching power supply noise from propagating back onto the household wiring.
- Replace noisy LED bulbs: some LED bulbs are significant HF noise sources. Replace suspect bulbs with higher-quality types or incandescent equivalents in fixtures near the antenna.
- Router and networking equipment: often significant noise sources. Move the router away from the operating position and add ferrite to its power supply lead.
- Accept some noise and use digital modes: FT8 and JS8Call operate in conditions where SSB is completely useless. Many attic antenna operators primarily use digital modes for this reason.
Verify On-Air Performance and Document
Use WSPR to verify on-air performance — transmit on 20m or 40m WSPR for 24 hours and examine the spots map. An attic antenna on 20m with 100W should receive spots from across the continent and often intercontinentally during band openings. If spots are limited to a few hundred miles only, reconsider the antenna installation (check for foil insulation, improve the current choke, add a second counterpoise wire).
Record: wire length after trimming, resonant frequency on each band, SWR on each band, WSPR results, and noise floor measurement (S-meter reading with no transmission on a quiet morning). Compare these baseline measurements periodically — a gradual worsening of noise floor or SWR indicates a developing problem (corroding connection, settling roof causing wire contact, new electrical device added) that can be identified and corrected before it becomes severe.
Stealth Wire Selection and Routing
A stealth outdoor dipole uses thin, dark-colored wire routed close to existing structures — fence lines, rooflines, gutters, trees — where it is difficult to notice from street level. Wire choice is the primary stealth enabler:
- #26–28 AWG stranded copper: nearly invisible at 20 feet when dark-colored. Available in brown, black, and dark green from specialty wire suppliers. For a 20m dipole, 33 feet of this gauge is barely visible against typical garden backgrounds.
- Dark green insulation: matches vegetation. Route along hedges, through trees, and over green backgrounds. Spring and summer foliage provides additional concealment.
- Brown or gray insulation: matches fence wood, house trim, and stone. Route along wood fences, board-on-board fencing, and brick or stone walls.
- Avoid bare (shiny) wire: bare copper is highly visible, especially in sunlight. Even enameled wire is preferable to bare wire for stealth.
- 3M Command outdoor hooks: removable, no permanent installation, weatherproof. Attach wire to walls, fences, or gutters without drilling. Entirely reversible if you move or if HOA compliance is required.
Stealth Installation Routes
The most effective stealth routes for common HOA properties:
- Along fence lines: a 33-foot wire running along a 6-foot wooden privacy fence is nearly invisible from street level. Attach with small clear plastic staples or cable tie loops around fence boards. Avoid the top board — visible from above.
- Through dense hedges: threading wire through established hedge rows provides excellent natural concealment. The hedge's growth will eventually envelop the wire further.
- Along rooflines: matching the wire color to the soffit and fascia allows a wire to run along the roofline with minimal visibility. Use Command hooks or small standoff insulators at 6-foot intervals.
- Up and across trees: a wire going from ground level up a tree trunk and across to another tree is functionally invisible from street level if it avoids the tree's silhouette outline.
- Flagpole: a vertical antenna disguised as a flagpole — one of the most visible yet least suspicious outdoor antenna installations. Feed at the base with an ATU.
Legal Considerations — PRB-1 and HOA Rules
US federal regulations offer some protection for amateur radio antenna installations:
- PRB-1 (1985 FCC ruling): requires state and local governments to reasonably accommodate amateur radio antenna installations. Does NOT apply to HOAs, private deed restrictions, or rental agreements — these are private contracts, not government regulations.
- PRB-1 limitations: while it prevents outright government prohibition, it still allows reasonable restrictions. It provides less protection than many operators believe.
- HOA rules: HOAs can and do enforce antenna restrictions. Before installing any outdoor antenna, obtain a copy of your CC&Rs and determine exactly what is prohibited. Some HOAs prohibit "visible antennas" — a wire along a fence may comply if it is not recognizable as a communications antenna. Others prohibit all installations.
- Rental agreements: renters typically cannot install permanent outdoor antennas. However, a temporary deployable antenna set up when operating and taken down afterward may be acceptable — consult the specific lease language.
- Best approach: when in doubt, ask the HOA board in writing for clarification about what is allowed. Many HOA boards are willing to permit small, unobtrusive wire antennas if asked politely before installation rather than after discovery.
Stealth Antenna Performance vs Attic
A stealth outdoor antenna consistently outperforms an attic antenna for the same wire length and band, even at the same physical height. The difference comes from the absence of building material absorption:
The practical conclusion: use stealth outdoor for bands where the wire fits at reasonable height along the fence or roofline. Use the attic for bands that are too long for the stealth outdoor route (80m dipole at 130 feet rarely fits on a suburban fence line, but an 80m EFHW at 66 feet often does).
Can I work DX with an attic antenna?
Yes — regularly. The 3–8 dB attic performance penalty is real but not fatal for DX. On 20m during a good band opening, an attic EFHW at 100W makes European contacts from the US East Coast. On 15m and 10m during high solar cycle conditions, attic operators routinely work worldwide DX. Digital modes (FT8) are particularly effective for attic antenna DX — FT8 works 15 dB below the threshold where SSB contacts become possible, effectively converting that 3–8 dB attic penalty from a major limitation to a minor one. Most active attic antenna DX operators primarily use FT8 for long-haul contacts and SSB for domestic contacts where the signal margin is more forgiving.
Will a metal roof completely prevent attic antenna operation?
Practically, yes for a standard attic antenna. A solid metal roof creates a Faraday cage effect that attenuates HF signals by 15–30 dB — effectively preventing meaningful HF operation from inside. If your home has a metal roof, the attic is not a viable HF antenna location. Your options are: stealth outdoor installations below the roofline (along fence lines, through bushes), portable antenna setups operated temporarily, or indoor antennas located away from the metal roof (a magnetic loop in a room interior, not near exterior walls). Do not waste time installing an HF antenna in an attic under a metal roof.
How do I route the coax from the attic to the shack without drilling exterior walls?
Interior wall routing is both invisible and permanent. The most common approach: run the coax from the attic UNUN through the attic floor into the top of an interior wall cavity, down through the wall to a low point where it exits at a wall plate in the room below. A fish tape (electrician's tool) or a stiff wire guide makes this feasible in most standard framing. The coax exits through a wall plate behind a bookcase or along a baseboard where it is invisible. An electrician can do this in an hour if you are not comfortable with the DIY approach. Alternatively: use a flat coax (Winegard or similar) that slides under a door or window — flat coax has slightly higher loss but avoids any wall penetration.
Does the antenna need to be level or can it be at any angle in the attic?
Any angle is fine electrically. A dipole or EFHW that slopes, bends, or runs at an angle in the attic still functions as an antenna — it just has a slightly different radiation pattern than a perfectly level installation. The attic's physical constraints almost always force some angle or bending. The key rules: avoid the wire running parallel to itself (if the wire doubles back, keep at least 18 inches of separation between the parallel sections), keep the wire at least 6 inches from all electrical wiring, and avoid direct contact with metal framing or metallic materials. Within these constraints, route the wire however the attic's physical shape permits.
What power level is safe for an attic antenna?
From an RF exposure standpoint, 100W into an attic antenna is generally considered safe for a properly installed attic dipole in a typical home — the RF energy is distributed along the wire and the power density at the living space below is low. However, if the living space ceiling is directly below the antenna (no intermediate floor), RF exposure at 100W should be calculated for the specific installation using the FCC's online exposure calculator or the ARRL RF Exposure Calculator. Most operators use QRP (5–25W) or low power (25–50W) for attic antennas out of an abundance of caution. There is no legal requirement to limit power below the FCC's Maximum Permissible Exposure (MPE) limits, but staying well below the limits is prudent and good operating practice in a residential environment.
Is an attic dipole better or worse than a commercial indoor magnetic loop?
Depends on the installation. On bands where a full-size dipole fits in the attic (20m and above for most homes), the dipole is significantly more efficient than a small magnetic loop — the dipole's larger radiating aperture and higher radiation resistance produce stronger signals. On 40m where the attic constrains the dipole to a bent or shortened configuration, a well-built magnetic loop may be competitive or superior. The magnetic loop's main advantage is its compact footprint (3–4 feet in diameter covers 40m through 15m) and its lower noise pickup due to its small aperture — useful in high-interference environments. A compact magnetic loop in a room interior can outperform a bent, cramped attic dipole on 40m in some installations. Consider both options and measure which performs better in your specific situation.
