Build an HF Magnetic Loop Antenna
The small transmitting magnetic loop — often called a mag loop or STL — is one of the most remarkable antennas in amateur radio. A properly built copper loop just 3 feet in diameter covers 40m through 15m with genuine efficiency, fits entirely indoors or on a balcony, requires no radial system, and operates independently of the feedline length. It is the antenna of choice for HOA-restricted operators, apartment dwellers, and anyone who needs multi-band HF capability from a very small physical footprint. This guide covers the physics, conductor selection, tuning capacitor design, coupling loop construction, support structure, and the tuning procedure for a fixed-station HF magnetic loop.
The Small Transmitting Loop — Fundamentals
A small transmitting magnetic loop operates on entirely different principles from a dipole or vertical. The loop circumference is typically less than λ/10 of the operating wavelength — electrically very small. At this size, the antenna by itself has extremely low radiation resistance (milliohms to a few ohms) and very high capacitive reactance. A large variable capacitor in series with the loop resonates it — tuning out the reactance and leaving only the radiation resistance and loss resistance at the feedpoint:
Why Conductor Size and Material Are Everything
Because radiation resistance is milliohms, the conductor loss resistance determines almost all of the antenna's efficiency. The Q of the loop — and therefore its efficiency — depends entirely on keeping conductor resistance as low as possible:
The Tuning Capacitor — Most Critical Component
The tuning capacitor resonates the loop and is subject to enormous voltage stress at even modest power levels. This is the component that most builders underestimate:
Bandwidth, Q, and What They Mean for Operating
The magnetic loop's high Q is both its strength (efficiency) and its operational challenge (very narrow bandwidth):
The narrow bandwidth is not a defect — it is a consequence of high Q, which is the same property that makes the antenna efficient. Operators who use magnetic loops routinely adapt to frequent retuning and find it becomes second nature within a few operating sessions.
| Loop diameter | Circumference | Conductor | Bands covered | Efficiency (20m) | Efficiency (40m) | Notes |
|---|---|---|---|---|---|---|
| 2 ft (0.61 m) | 6.3 ft | 3/4-inch copper pipe | 20m–10m | ~65% | Poor — too small | Compact but limited to higher bands |
| 3 ft (0.91 m) | 9.4 ft | 1-inch copper pipe | 40m–15m | ~80% | ~25–35% | Best practical size for indoor/balcony use |
| 3 ft (0.91 m) | 9.4 ft | 2-inch copper pipe | 40m–15m | ~87% | ~40–50% | Better 40m performance; heavier and more expensive |
| 4 ft (1.22 m) | 12.6 ft | 1-inch copper pipe | 40m–15m | ~85% | ~35–45% | Noticeably better 40m; still manageable indoors |
| 4 ft (1.22 m) | 12.6 ft | 2-inch copper pipe | 40m–10m | ~90% | ~55–65% | Serious 40m loop; heavy at ~12 lbs |
| 6 ft (1.83 m) | 18.8 ft | 2-inch copper pipe | 80m–10m | ~93% | ~70–80% | Outdoor/garden installation; approaches 80m usability |
Mag Loop Hf Calculator
Materials for a 3-ft diameter magnetic loop using 1-inch copper pipe — covers 40m through 15m
Air Variable Capacitor
The standard choice for a homebrew HF magnetic loop at QRP to low power levels. A surplus broadcast or transmitter variable capacitor with a voltage rating of 2–5 kV handles 100W on 20m and up comfortably. Key specifications to look for:
- Capacitance range: 15–120 pF covers 40m through 15m for a 3-ft loop. Too wide a range makes tuning very sensitive; too narrow leaves some bands uncovered.
- Voltage rating: minimum 2 kV for 100W on 20m; minimum 5 kV for 100W on 40m. Most surplus transmitter variables meet this — avoid receiver-type variables rated below 500V.
- Plate spacing: wider plate spacing = higher voltage rating. Look for 1–2mm minimum plate spacing for 100W operation.
- Contact quality: the rotor-to-frame contact must be low-resistance. Test with an ohmmeter across the terminals — should read under 0.1 Ω. Corroded contacts cause hot spots and failure.
- Sources: surplus electronics suppliers, hamfests, online auction sites. Jackson Brothers (UK) makes excellent new-production air variables. Russian surplus APC-series variables are widely available and well-regarded.
Butterfly (Split-Stator) Capacitor
The butterfly capacitor is the preferred design for a fixed-station magnetic loop — it avoids the sliding rotor contact that is the most common failure point of conventional air variables, and it is inherently balanced (both terminals float above ground, which is important for the magnetic loop circuit):
- How it works: two sets of fixed stator plates, interleaved with rotor plates. Rotation simultaneously increases capacitance on one side while decreasing it on the other — the total capacitance between the two terminals varies smoothly with rotation.
- No sliding contact: the rotor is connected to neither terminal — the RF current flows only through the fixed stator plates and bearings. This eliminates the variable-contact-resistance problem of conventional air variables.
- Balanced configuration: the two terminals are symmetrical, which suits the balanced nature of the magnetic loop perfectly.
- Homebrew option: a butterfly capacitor can be built from two ganged sections of a standard air variable wired back-to-back. Several online designs show this construction using salvaged broadcast variable capacitors.
- Commercial sources: MFJ, Kenwood (surplus), and various specialty suppliers sell butterfly variables. They are more expensive than surplus air variables but worth the premium for a permanent installation.

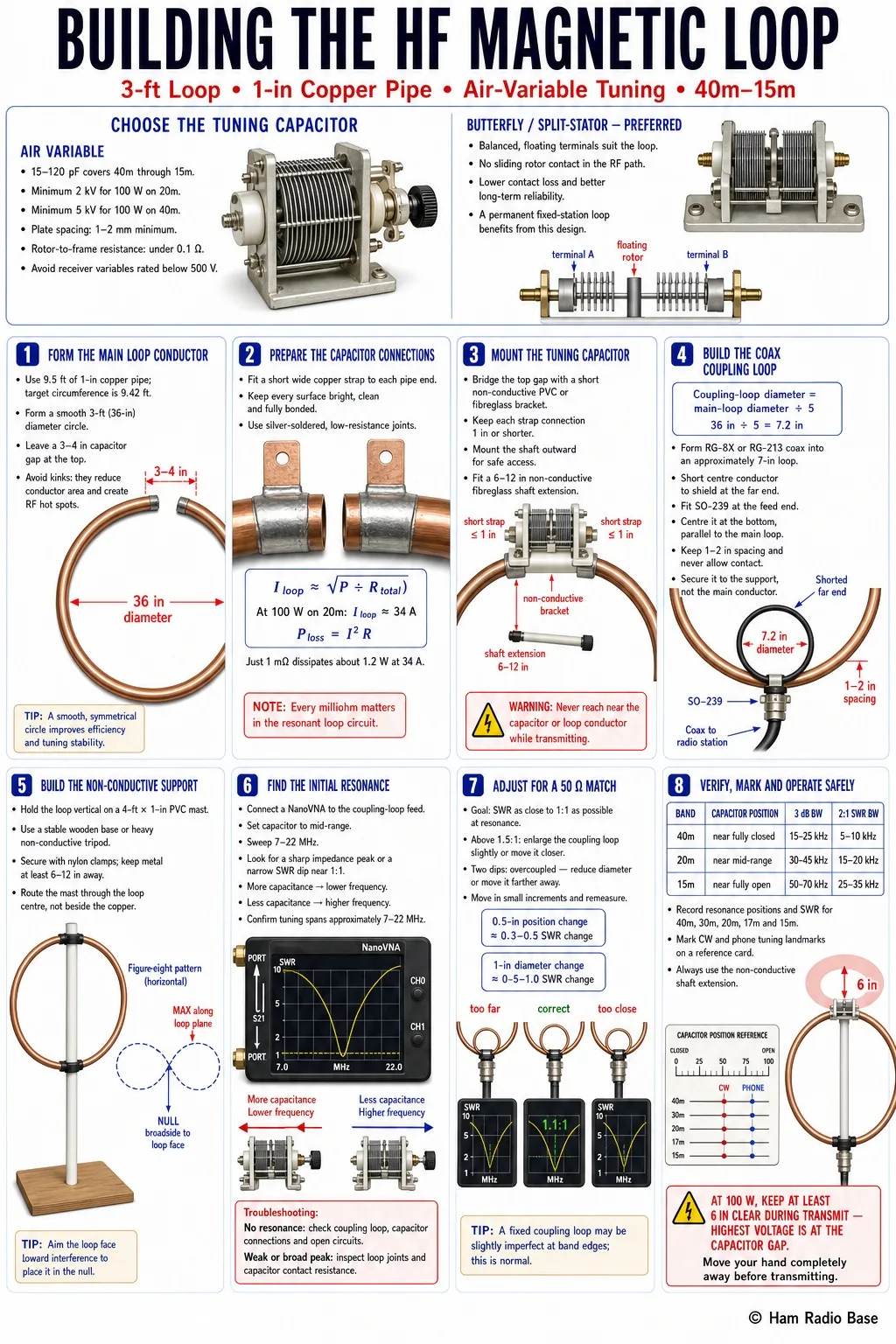

Building the HF Magnetic Loop
This guide builds a 3-ft diameter loop using 1-inch copper pipe with an air variable tuning capacitor. The coupling loop uses a small coax loop for broadband matching without adjustment. Work cleanly — every connection in a magnetic loop matters more than in any other antenna type.
Bend the Main Loop Conductor
Cut the 1-inch copper pipe to 9.5 feet — slightly longer than the target circumference of 9.42 feet (π × 3 ft) to allow for the gap where the capacitor connects. Use a proper pipe bender to form the loop — do not attempt to bend copper pipe by hand or over a knee. A kinked bend reduces the effective conductor cross-section at the kink and creates a local resistance hot spot that degrades efficiency and can overheat at power.
Form the pipe into a circle using the bender progressively — make gentle, overlapping bends working around the circumference rather than trying to form a sharp curve at any single point. A 3-foot diameter circle requires approximately 10–12 individual bending operations spaced evenly around the circumference. The result should be a smooth circular shape with both ends pointing toward each other at the top of the loop, leaving a 3–4 inch gap where the capacitor will connect.
Prepare the Capacitor Connection Points
Solder a short copper strap (or wide copper braid flattened to a strap) to the end of each pipe section at the capacitor gap. The strap provides a flat, solderable surface for connecting the capacitor terminals. Use silver solder and a propane torch — standard rosin-core solder has too high a resistance for the RF currents flowing at the capacitor connection, which can reach tens of amperes at 100W.
Mount the Tuning Capacitor
Mount the variable capacitor between the two pipe ends at the gap. The capacitor must be mechanically secure — it will experience vibration from handling and from RF forces at power. Mount it to a short non-conductive bracket (PVC or fiberglass board) that bridges the gap between the pipe ends, with the capacitor terminals connected to the copper straps on each pipe end.
The connection from each capacitor terminal to the pipe end must be as short as possible — 1 inch or less. Every extra inch of connection wire or strap adds resistance and inductance to the critical capacitor-loop junction. Avoid using terminal screws and wire leads — solder the strap directly to the capacitor terminal plate where possible.
Build the Coupling Loop
The coupling loop transfers RF energy from the coax feedline into the main loop via magnetic coupling — like the primary winding of a transformer. It must be sized for 50 Ω impedance matching and positioned at the bottom of the main loop, opposite the capacitor:
Mount the coupling loop at the bottom center of the main loop, parallel to it, with 1–2 inches of spacing between the coupling loop conductor and the main loop conductor. Do not let the coupling loop touch the main loop — even brief contact dramatically detunes the antenna. Secure the coupling loop to the support structure, not to the main loop itself.
Build the Support Structure
The support structure must hold the loop vertically, keep it stable during operation, and be entirely non-conductive near the loop conductor. Metal support structures within 6–12 inches of the loop conductor detune the antenna and increase losses — use PVC, wood, fiberglass, or nylon hardware throughout.
A simple effective support: a 4-foot length of 1-inch PVC pipe as a vertical mast, secured to a wooden base or heavy camera tripod. The loop attaches to the top of the PVC mast with two non-conductive hose clamps or nylon zip ties. The PVC mast must not touch the loop conductor — route it through the center of the loop plane rather than along the conductor itself.
Connect Coax and Perform Initial Resonance Check
Connect the coax from the coupling loop to the NanoVNA. Connect the NanoVNA ground to the coax shield. Sweep 7–22 MHz and look for the resonance peak — the magnetic loop resonance appears as a sharp impedance peak (not an SWR minimum — the display mode matters here). Use the NanoVNA's impedance or return loss display rather than the SWR display for clearer identification of the resonance.
Adjust the Coupling Loop for 50 Ω Match
The coupling loop diameter controls the impedance at resonance. The goal is SWR of 1:1 (or as close as achievable) at resonance. Adjust the coupling loop position and diameter to achieve this:
- SWR at resonance above 1.5:1: the coupling loop is too small or too far from the main loop — increase coupling loop diameter slightly or move it closer to the main loop
- SWR at resonance shows two dips rather than one: the coupling loop is too large or too close — overcoupling. Reduce coupling loop diameter or move it further from the main loop
- SWR at resonance is exactly 1:1: correct coupling — do not change anything
Verify Performance and Establish Tuning Landmarks
Once resonance and coupling are confirmed, verify the loop's performance characteristics. Key measurements to record:
Mark or photograph the capacitor dial position at resonance for each band's CW and phone segments. These landmarks allow quick band changes without re-measuring. Tape a small reference card to the loop support with the capacitor positions for common operating frequencies — this eliminates the need to retune from scratch when changing bands.
Indoor Installation
The magnetic loop excels indoors — it is the only practical HF transmitting antenna for many apartment and HOA-restricted operators:
- Position away from metal structures: keep the loop at least 2–3 feet from metal window frames, radiators, conduit, and appliances. Metal objects within the loop's near-field distort the field pattern and add loss. A loop in the center of a room away from walls performs better than one flush against a wall.
- Height above floor: a loop on the floor performs worse than one elevated 3–4 feet — the floor (especially concrete) adds ground losses. A tripod or stand raising the loop center to waist height is a meaningful improvement.
- Orientation for noise rejection: rotate the loop to null out noise sources. The figure-eight null pattern is highly effective at rejecting noise from a specific direction — a noise source directly broadside to the loop is attenuated 20+ dB. This is the magnetic loop's most significant receive advantage over an omnidirectional antenna in a noisy indoor environment.
- Nearby furniture: wood, fabric, and plastic furniture within 1–2 feet causes negligible detuning. Metal furniture within 12 inches causes measurable detuning and SWR change — maintain distance from metal-framed desks and shelving.
Balcony and Outdoor Installation
A magnetic loop on a balcony or in a small outdoor space outperforms the same loop indoors due to absence of building material absorption and greater distance from metal structures:
- Weatherproofing the capacitor: the tuning capacitor is the only weather-sensitive component. Enclose the capacitor in a weatherproof ABS or polycarbonate box with a sealed shaft entry. Seal around the shaft with a rubber grommet and silicone sealant. Condensation inside the capacitor enclosure shorts the plates — include a small desiccant pack and renew it annually.
- Remote tuning for outdoor use: a balcony loop with a manual capacitor requires going outside to tune. A small 12V DC motor geared to the capacitor shaft, controlled by a two-wire cable to the shack, provides remote tuning — one of the most practical upgrades for a permanent outdoor magnetic loop installation.
- Wind loading: a 3-ft loop presents modest wind load but the pipe can flex in high winds. Secure the loop to a rigid support with at least two attachment points. In high-wind environments, a heavier support mast or wall-mounting bracket prevents the loop from oscillating, which would shift resonance continuously.
- Galvanic protection: copper pipe weathers to a patina that does not significantly increase resistance. The solder joints and capacitor connections are the most vulnerable points — inspect annually and re-clean and re-solder any joints showing green oxidation.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| No resonance visible anywhere in sweep | Open circuit in main loop or coupling loop connection fault | Check DC continuity around the full main loop through the capacitor; check coupling loop ends | Re-solder any suspect joint; verify coupling loop short at far end; check capacitor terminal connections |
| Resonance visible but very broad — Q appears low | High-resistance joint in main loop or capacitor contact corrosion | Measure DC resistance around full loop — should be under 0.05 Ω; check each joint individually | Re-clean and re-solder all joints with silver solder; clean capacitor rotor contact; check capacitor shaft bearing |
| SWR at resonance is 3:1 or higher — won't match | Coupling loop wrong size or position | Measure SWR at resonance while slowly moving coupling loop closer and farther from main loop | Adjust coupling loop distance until SWR at resonance drops below 1.5:1; then fine-tune loop diameter |
| Two SWR dips instead of one sharp dip | Overcoupling — coupling loop too large or too close | Move coupling loop farther from main loop — dips should merge into one as coupling reduces | Reduce coupling loop diameter by 1 inch, or increase spacing from main loop |
| Resonance shifts when hand approaches loop | Normal — body capacitance detunes the high-Q loop | This is expected behavior confirming high Q | Use non-conductive tuning shaft extension; tune and then move hand away before transmitting |
| Capacitor arcs or overheats at 100W | Plate spacing too small for operating voltage or contact resistance high | Listen for arcing during transmit; check capacitor plates for burn marks | Reduce power to QRP level; replace capacitor with higher-voltage-rated unit; clean all contacts |
| Loop works on 20m but poor results on 40m | Normal — efficiency drops significantly on 40m for a 3-ft loop | Use WSPR to compare — expect 3–6 dB lower spots on 40m vs 20m | Accept lower 40m efficiency or upgrade to larger loop (4 ft) or heavier conductor (2-inch pipe) |
Can a magnetic loop really work for DX from indoors?
Yes — regularly and reliably on 20m and 15m at modest power. On 20m during a good band opening, an indoor magnetic loop at 100W makes European and Pacific contacts from the continental US. Digital modes (FT8) are particularly effective — the loop's efficiency on 20m is 75–85% with good construction, which means only 1–1.5 dB of signal is lost versus an outdoor dipole. FT8's 15 dB advantage over SSB more than compensates. Many operators use an indoor magnetic loop as their primary HF antenna and work 100+ DXCC entities with it over a few years. On 40m the efficiency drops to 25–40% for a 3-ft loop — still usable for FT8 and CW but noticeably inferior to outdoor alternatives.
Why does the resonance shift when I move my hand near the loop?
The human body has significant capacitance — typically 100–200 pF to ground. When your hand approaches the main loop conductor, this body capacitance adds to the circuit and shifts the resonant frequency downward. This effect is strongest near the capacitor end of the loop (where the voltage is highest) and minimal at the bottom of the loop (where the voltage is lowest and the current is highest). The solution is a non-conductive shaft extension on the tuning capacitor — tune the loop, withdraw your hand completely, then transmit. For a motorized remote-tuning setup, this effect disappears entirely since your hand never approaches the loop during operation.
What is the maximum power a homebrew magnetic loop can handle?
The limiting factor is the tuning capacitor voltage rating, not the conductor. For a 3-ft loop with a 5 kV air variable capacitor, 150W on 20m is typically safe — the peak capacitor voltage at 150W is approximately 1300V, well within the 5 kV rating. On 40m at 100W the same loop sees approximately 2000–3000V across the capacitor, which approaches the limits of a 5 kV capacitor and requires careful construction. For QRP operation (5–10W), any air variable capacitor with a voltage rating above 500V is safe on all bands. The safest approach for high-power indoor loops: use a vacuum variable capacitor rated 10–15 kV, which handles legal limit power on all bands without concern.
Does the magnetic loop need to be oriented vertically?
Vertical orientation is standard for the reasons most operators want: a vertically oriented loop has a figure-eight pattern in the horizontal plane with the nulls broadside to the loop face, allowing interference rejection by rotating the loop. It also has a low-angle radiation component similar to a vertical antenna. A horizontally oriented loop radiates primarily straight up — useful for NVIS (regional) communication but poor for DX. For most HF operators, vertical orientation is clearly preferable. The loop can also be tilted to any angle — tilting it 45° gives a compromise between vertical and horizontal radiation patterns, which some operators find useful for combining DX and regional coverage from one antenna position.
Is aluminum pipe acceptable instead of copper?
Aluminum works but is inferior to copper for a magnetic loop. Aluminum's resistivity is approximately 60% higher than copper at DC, and the skin effect at HF means the ratio worsens slightly at frequency. An aluminum loop of the same diameter and wall thickness as a copper loop has roughly 1.6× higher loss resistance, reducing efficiency by 2–3 dB. This is a meaningful penalty for an antenna where every fraction of a dB matters. Aluminum is acceptable for a first experimental loop or a very large loop (6 ft+) where the efficiency reduction is less significant relative to the large conductor surface area. For a serious permanent installation, copper pipe is worth the additional cost.
How do I add remote motorized tuning?
A small 12V DC gearmotor (50–100 RPM output) coupled to the capacitor shaft via a flexible coupler provides smooth remote tuning. Mount the motor on a non-conductive bracket at the capacitor — keep all motor metal parts at least 3 inches from the main loop conductor. Run two control wires from the motor back to the shack. A simple momentary toggle switch with a center-off position (two normally-open contacts) controls tuning direction. A reduction gear ratio that gives one full capacitor revolution per 10–20 seconds of motor run provides fine enough frequency control for comfortable single-frequency tuning. Add an SWR meter or the radio's built-in SWR indication to the shack panel — tune until SWR is minimum, then stop. The combination of motorized tuning and a visible SWR indicator transforms the magnetic loop operating experience from occasional frustration to smooth, intuitive band changing.
