Build a 2-Meter J-Pole Antenna
The copper pipe J-pole is one of the most satisfying first antenna builds in amateur radio — a weekend project that costs under $20 in materials, requires only basic plumbing skills, and produces a vertical omnidirectional antenna with genuine gain over a quarter-wave ground plane. The J-pole's end-fed design places the feedpoint at the base of the antenna on the matching stub, keeping the radiating portion fully vertical and free of ground plane influence. Mounted outside at any reasonable height, a copper J-pole dramatically outperforms the rubber duck antenna on any handheld radio and holds its own against commercial mobile antennas. This guide builds a 2m J-pole from 1/2-inch copper water pipe, tuned for the full 144–148 MHz 2m band.
J-Pole Fundamentals
The J-pole is an end-fed half-wave antenna matched by a quarter-wave parallel stub. The name comes from the antenna's J-shaped profile — the long radiating element (half-wave) and the short matching stub (quarter-wave) joined at the bottom. The stub acts as a matching transformer, converting the high impedance at the end of the half-wave radiator to 50 Ω at the feedpoint tap:
Why the J-Pole Outperforms a Quarter-Wave Ground Plane
The J-pole has a small gain advantage over a quarter-wave vertical because it is a half-wave antenna — a half-wave radiator concentrates more energy toward the horizon compared to a quarter-wave element:
Copper Pipe vs Other Materials
The J-pole can be built from several materials, each with different performance and durability characteristics:
- 1/2-inch copper pipe (Type L): the classic homebrew J-pole material. Heavy, durable, solderable, self-weatherproofing (copper oxide patina). Holds shape permanently. Best long-term outdoor performance. Cost: ~$8–12 for the pipe. Soldering required.
- 450 Ω ladder line (window line): a popular simple construction — the two conductors of ladder line form the two elements naturally. Very lightweight and flexible. Performance identical to copper pipe. Weaker mechanically — not self-supporting for mounting without a supporting mast. Best for portable use.
- Aluminum tubing: lightweight, rigid, no soldering required. Connections made with clamps and Noalox. Slightly higher loss than copper but negligible at 2m. Good choice for a permanent mast-mounted installation where weight matters.
- 300 Ω twin-lead: the simplest construction — fold a single piece of twin lead into a J shape. Less durable than copper but works and can be built in 20 minutes with scissors and a marker. Excellent for emergency/portable use.
The Feedpoint Tap — Most Critical Adjustment
The J-pole feedpoint is a sliding tap on the matching stub — the coax connects at a specific position on the stub that produces 50 Ω impedance. This tap position is the primary tuning adjustment:
| Section | Length (inches) | Length (mm) | Notes |
|---|---|---|---|
| Half-wave radiator (long element) | 40.0 in | 1016 mm | Starting length — trim 0.5 in at a time for tuning |
| Quarter-wave matching stub (short element) | 19.5 in | 495 mm | Fixed — do not trim; stub length sets band coverage |
| Short-circuit bar (bottom bridge) | ~1.5 in | ~38 mm | Connects long and short elements at bottom; must be copper |
| Gap between element tops | ~1.0 in | ~25 mm | Not critical — 0.75 to 1.25 inches all work |
| Feedpoint tap starting position | 1.5–2.0 in above short bar | 38–51 mm | Tune by sliding connector up/down stub for minimum SWR |
| Total antenna height | ~60.5 in (5.04 ft) | ~1537 mm | Radiator + gap + stub bottom bridge |

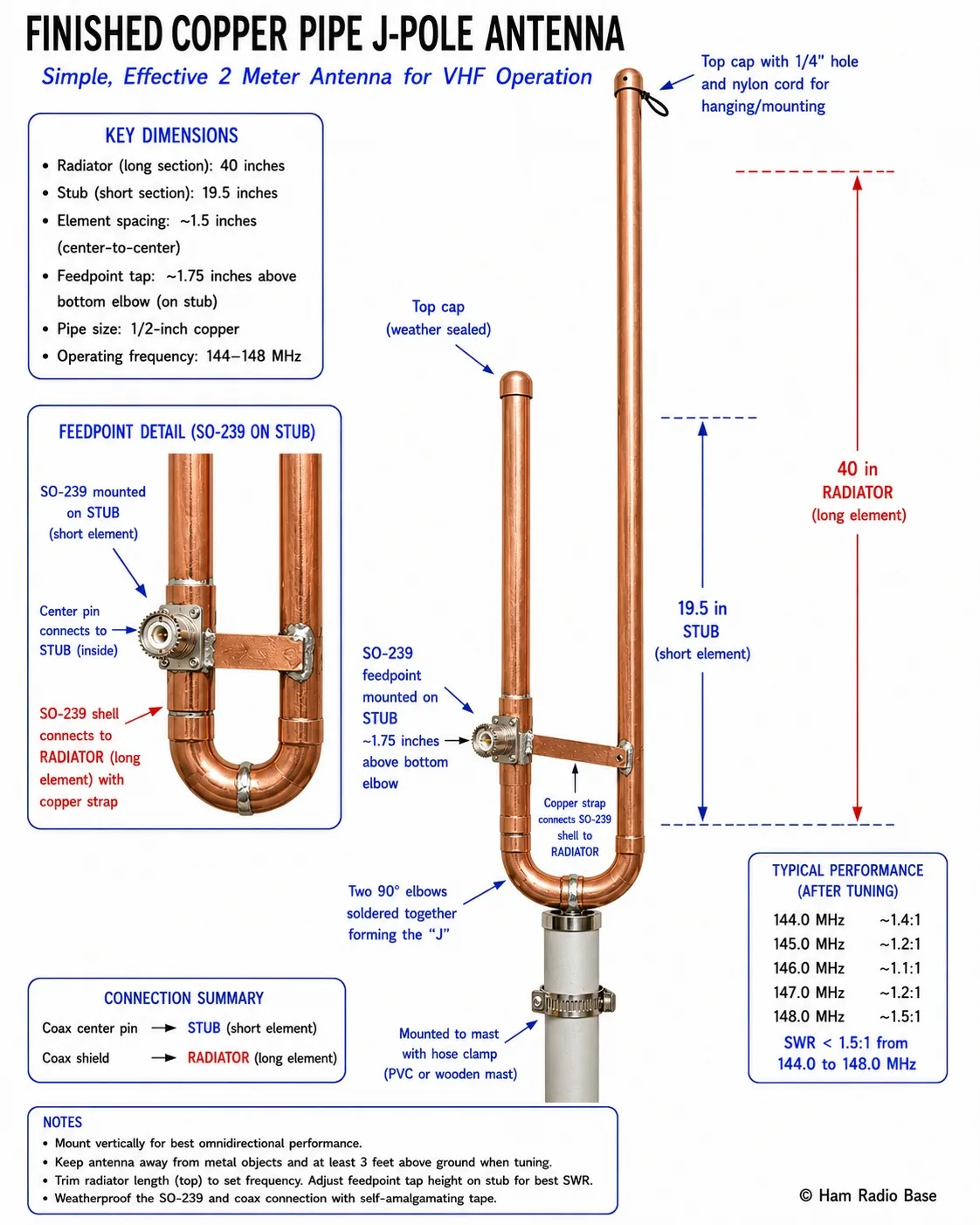

Vhf Jpole Calculator
Materials for a 2m J-pole from 1/2-inch copper water pipe
Building the Copper Pipe J-Pole
This is a genuine beginner-friendly build. If you have never soldered copper pipe before, practice on a scrap joint first — copper pipe soldering is a learnable skill and this project requires only four joints. The feedpoint connector installation and SWR tuning are the most important steps.
Cut the Pipe to Length
From a 5-foot length of 1/2-inch copper pipe, cut two sections:
Prepare and Solder the Bottom Assembly
The bottom of the J-pole joins the two pipe sections with two 90° elbows joined directly to each other (one elbow's street end inserted into the other's socket), forming a U-turn so the stub and radiator run parallel — this is what creates the characteristic J shape. Clean all pipe ends and fitting sockets with sandpaper and wire brush before soldering — copper must be bright and shiny for solder to flow properly:
- Clean the bottom 1 inch of both pipe sections, both elbow sockets, and the street-end/socket connection between the two elbows with 120-grit sandpaper
- Apply flux to all cleaned surfaces — inside the elbow sockets and outside the pipe ends and street ends
- Insert the short stub into one elbow and the long radiator into the other, then join the two elbows together to form the U-bend. The two pipes end up parallel and approximately 1.5 inches apart (center-to-center for 1/2-inch pipe plus the elbow width)
- Heat each joint with the propane torch until the flux begins to smoke, then apply solder to the joint (not to the flame). The solder should flow into the joint by capillary action. Apply solder around the full circumference of each joint — there are three joints in this assembly: stub-to-elbow, radiator-to-elbow, and elbow-to-elbow.
- Allow to cool undisturbed for 2 minutes before handling
Solder End Caps on Element Tops
Solder end caps on both the top of the radiator (long element) and the top of the stub (short element). The end caps seal the pipe tops against water ingress and provide a clean appearance. Clean, flux, and solder each end cap the same way as the bottom elbow. Allow to cool before moving.
Drill the Feedpoint Hole and Install the SO-239
The feedpoint SO-239 mounts on the short stub (matching section). The feedpoint position is approximately 1.5–2 inches above the bottom elbow (the short-circuit bar). This is the starting position — it will be adjusted slightly during tuning:
Initial SWR Measurement
Connect the NanoVNA to the SO-239. Hold the antenna vertically, away from metal structures, at least 3 feet above any ground surface. Sweep 130–160 MHz:
Optimize Tap Position and Trim Radiator
The J-pole tuning is a two-step iterative process — optimize the tap, then adjust frequency, then re-optimize the tap:
Secure the Feedpoint and Weatherproof
Once the optimal tap position is found, permanently secure the SO-239. If the connector was temporarily mounted with a nut and washer, solder the center pin wire lead to the pipe interior and apply RTV sealant around the connector body where it passes through the pipe wall. Wrap self-amalgamating tape over the PL-259/SO-239 coax connection — two full overlapping layers from below the connector body, up over the junction, and back down.
The copper pipe itself needs no weatherproofing — copper naturally forms a green patina (copper oxide) that protects the metal from further corrosion without degrading electrical performance. The only points that need sealing are the feedpoint connector (to prevent water ingress through the pipe wall hole) and the coax connector junction (to prevent water wicking into the coax under the braid).
Mount at Operating Height
The J-pole must be mounted vertically for correct omnidirectional operation. Tilting the antenna more than 10° from vertical visibly distorts the radiation pattern. Mounting options:
- PVC mast: slide the J-pole's bottom elbow over a 1/2-inch OD wooden dowel or PVC pipe mast and secure with a hose clamp. Simple and inexpensive for any height up to 20 feet.
- TV antenna mast clamp: attach the J-pole to an existing mast, chimney mount, or eave mount using a TV antenna J-mount bracket. Most TV antenna hardware fits 1/2-inch copper pipe with an adapter.
- Window-pass cable: for an apartment or rental installation, route the coax from the J-pole through a window using a flat window coax feedthrough — the J-pole mounts outside on the window frame with a hose clamp, and the coax passes under the window sash into the room.
Every additional foot of height above the local clutter (rooftops, trees) increases effective range. A J-pole on a 20-foot push-up mast outperforms the same J-pole at 8 feet by a meaningful margin for simplex contacts and repeater access from hilly terrain. Mount it as high as practical within your installation constraints.
Building from 450 Ω Ladder Line
The ladder line J-pole is electrically identical to the copper pipe version but built from a single piece of 450 Ω window line (ladder line). It weighs under 2 oz, stores in a pocket, and can be built in 30 minutes with scissors and a soldering iron:
Ladder Line vs Copper Pipe — When to Choose Each
- Copper pipe: permanent outdoor installation, high-power operation, aesthetic appearance, maximum mechanical durability. Worth the extra cost and soldering time for a fixed station antenna.
- Ladder line: portable use, emergency kit, rapid deployment, travel. Packs into a sandwich bag. Can be hung from any tree branch or eave hook in seconds. Performance is identical to copper pipe.
- Power handling: copper pipe J-pole handles legal limit power easily. Ladder line J-pole handles 100W continuously without issue; at legal limit the thin ladder line conductors can heat slightly at the feedpoint tap — acceptable for intermittent high-power use but not for extended 100% duty cycle digital mode operation at 1500W.
- Band-switching: neither version is easily retuned between bands — the J-pole is inherently a single-band antenna. For 70cm operation, a separate 70cm J-pole is needed. The dual-band J-pole guide (next in this series) addresses this specifically.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| SWR high everywhere — no dip visible in 130–160 MHz | Feedpoint connection fault — coax center not contacting stub | Measure DC resistance from coax center to stub — should be near 0 Ω (direct connection) | Re-solder feedpoint center pin connection; verify center pin contacts stub interior |
| SWR dip present but minimum SWR above 3:1 | Tap position too high or too low on stub | Note minimum SWR value and frequency; move tap down 1/4 inch and re-measure | Iterate tap position in 1/4-inch steps; if SWR improves moving down, continue; if it worsens, move up |
| SWR minimum correct but at wrong frequency (10+ MHz off) | Radiator length significantly wrong | Measure actual radiator length — compare to 40 inches target | If too long (freq too low): trim radiator in 0.5-inch steps; if too short (freq too high): cannot extend easily — cut new radiator |
| SWR increases when coax is moved or touched | Common-mode current on coax — coax acting as part of antenna | Move the coax while watching SWR — if SWR changes with coax position, common-mode current is present | Add 5 ferrite beads (type 31) on feedline coax near the feedpoint; or wind 3 turns of coax through a type-43 toroid |
| SWR fine initially but rises after outdoor exposure | Water ingress at feedpoint connector or coax connection | Dry the feedpoint and re-measure — improvement confirms water ingress | Re-seal feedpoint connector with RTV; re-wrap coax connection with self-amalgamating tape |
| Antenna mounted correctly but range is poor | Height too low, coax too lossy, or radio power issue | Compare signal reports vs known stations on the same band with known antennas | Increase mounting height; upgrade coax from RG-58 to RG-8X or LMR-400; verify radio transmit power |
Does the J-pole need a ground plane or radials?
No — this is one of the J-pole's primary advantages over a quarter-wave vertical. The matching stub section provides the electrical ground reference for the antenna, eliminating the need for radials entirely. The J-pole can be mounted anywhere — on a wooden mast, a fiberglass pole, a tree branch, or the side of a building — without any radial wires. This makes installation far simpler than a quarter-wave vertical, which requires at least two or three radials for efficient operation. The feedpoint tap on the stub handles the impedance matching that radials would otherwise contribute to in a ground-plane antenna.
Does the coax length matter for J-pole operation?
The coax length has no effect on the J-pole's resonant frequency or radiation pattern, provided a current choke (ferrite beads or wound coax choke) is installed at the feedpoint to prevent common-mode current from flowing on the outside of the coax braid. Without the choke, the coax effectively becomes part of the antenna — varying its length shifts the SWR and distorts the pattern. With a proper choke installed, any coax length from 3 feet to 200 feet works equally well electrically. The practical limit is coax loss — use RG-8X for runs under 50 feet and LMR-400 for longer runs to keep feedline losses below 1 dB at 146 MHz.
Can I mount the J-pole horizontally for horizontal polarization?
Technically yes — the J-pole can be mounted at any angle and will radiate in the polarization of the radiating element. However, the J-pole is optimized for and almost exclusively used vertically, because vertical polarization is the standard for VHF FM operation and repeater access. Mounting horizontally would produce horizontal polarization suitable for SSB weak-signal work, but the J-pole's omnidirectional pattern (which is an asset for FM repeater access) becomes a donut-shaped pattern in the horizontal plane — with a null directly above and below the antenna. For horizontal polarization SSB weak-signal work, a horizontal dipole or Yagi is a better choice than a horizontally mounted J-pole.
How far can I expect to work with a J-pole?
Range depends primarily on antenna height, the terrain between stations, and whether you are using repeaters or simplex. On simplex from a J-pole at 30 feet, reliable mobile-to-fixed contacts of 20–50 miles are typical over flat terrain. Through a well-situated hilltop repeater, 100–200 miles of coverage is achievable with a 5W handheld connected to a J-pole via low-loss coax. During tropospheric ducting events (common on summer evenings), simplex contacts of 200+ miles become possible. The J-pole's 2 dBd gain over a dipole is real and provides approximately 1.5–2 S-unit improvement in signal reports compared to a simple quarter-wave vertical — a meaningful improvement that expands the reliable operating range by 20–30%.
Can this design be scaled for other bands?
Yes — the J-pole dimensions scale directly with frequency. For 70cm (440 MHz), divide all dimensions by approximately 3 (the ratio of 440/146). The resulting 70cm J-pole has a radiator of about 13 inches and a stub of about 6.5 inches — easily built from 1/4-inch copper pipe or even thick aluminum rod. For 1.25m (222 MHz), scale by the ratio 222/146. For 6m (52 MHz), scale up by 146/52 — the resulting antenna is about 8 feet tall, buildable from 3/4-inch copper pipe. The same feedpoint tuning procedure applies at every frequency: optimize tap position for minimum SWR, then adjust element lengths for the target frequency center.
Is the J-pole better than a commercial rubber duck or mag-mount antenna?
Yes, significantly — for a fixed home installation. A quality rubber duck antenna on a handheld is typically −3 to −5 dBd (worse than a dipole) due to its short loading coil design and body capacitance effects. A commercial 5/8-wave mag-mount antenna on a vehicle roof is approximately 1 dBd above a dipole. The J-pole at 2 dBd above dipole is better than a mag-mount by approximately 3 dB and better than a rubber duck by 5–7 dB. At these VHF signal levels, a 5–7 dB improvement is the difference between hearing a repeater as barely audible and hearing it as a full-quieting signal — a dramatic practical improvement from a $18 antenna build.
