E6C: Digital ICs

Digital integrated circuits form the logic backbone of modern radio equipment — from microcontrollers in transceivers to SDR signal processing. Understanding the families of digital ICs, how comparators work, what tri-state logic provides, and how to read logic gate symbols is essential knowledge for the Extra class license.

This lesson covers comparator behavior, IC logic families, programmable logic devices, pull-up/pull-down resistors, and the schematic symbols for NAND, NOR, and NOT gates shown in Figure E6-3.

Comparators and Hysteresis

A comparator is an op-amp configured to compare two voltages. When the input signal crosses a reference voltage threshold, the comparator's output switches from one rail to the other. This is called a threshold crossing — the comparator changes its output state whenever the input crosses the reference level.

A real-world signal near the threshold is rarely perfectly clean. Noise can cause the input to cross back and forth rapidly, producing multiple unwanted output transitions — a condition called chatter. Hysteresis solves this problem by creating two different threshold levels: one for the rising edge and one for the falling edge. The output only changes state when the input has moved far enough past the previous threshold to exceed the new one. This gap between the two thresholds is the hysteresis band, and it effectively prevents input noise from causing unstable output signals.

Tri-State Logic

Standard digital logic outputs can drive two states: logic 0 (low voltage) or logic 1 (high voltage). Tri-state logic adds a third state: high impedance. When a tri-state output is placed in the high-impedance state, it disconnects electrically from the bus, neither sourcing nor sinking current.

Tri-state outputs are essential for shared buses where multiple devices must be able to place data on the same set of wires without conflicting. Each device asserts its output only when it is its turn, and releases to high impedance otherwise.

Digital IC Families

Several families of digital ICs have been developed, each with different speed, power, and noise characteristics:

• CMOS (Complementary Metal-Oxide-Semiconductor): The lowest power consumption of any standard digital family. CMOS gates draw current only during switching transitions, so static power consumption is very low. CMOS also has excellent noise immunity because its switching threshold is approximately half the supply voltage — midway between the logic levels — making it difficult for noise to trigger false switching. The noise margin extends equally above and below the switching point.
• BiCMOS: A hybrid technology that combines CMOS and bipolar transistor elements on the same chip. The advantage is that it gets the high input impedance characteristic of CMOS (which minimizes loading on signal sources) combined with the low output impedance characteristic of bipolar transistors (which allows driving heavier loads at higher speed).
• Schottky TTL: A faster variant of standard TTL, but with higher power consumption than CMOS.
• ECL (Emitter-Coupled Logic): Very fast switching, but with the highest power consumption of common logic families.
• NMOS: Uses only N-channel FETs; higher power than CMOS but simpler to fabricate.

Pull-Up and Pull-Down Resistors

When a digital input or output is left unconnected — an open circuit — its voltage is undefined. It may float to any value, causing unpredictable behavior. A pull-up or pull-down resistor establishes a defined voltage at that node by connecting it to the supply rail (pull-up to positive supply) or to ground (pull-down).

These resistors ensure the line defaults to a known logic level when nothing is actively driving it. Pull-ups and pull-downs are commonly used with open-drain and open-collector outputs, switch inputs, and bus lines where devices may not always be actively driving.

Programmable Logic: FPGAs

A field-programmable gate array (FPGA) is an integrated circuit that contains an array of programmable logic blocks, interconnects, and I/O cells. Unlike fixed-function ICs, FPGAs can be reconfigured after manufacture to implement almost any digital logic function.

FPGAs are designed and configured using hardware description language (HDL) — most commonly VHDL or Verilog. The designer describes the desired circuit behavior in HDL, and synthesis tools compile that description into a configuration bitstream that programs the FPGA. This is fundamentally different from software programming; HDL describes parallel hardware structures, not sequential instructions.

FPGAs appear in modern SDR transceivers, high-speed signal processing, digital filter implementations, and anywhere a custom digital hardware solution is needed without the cost of custom silicon.

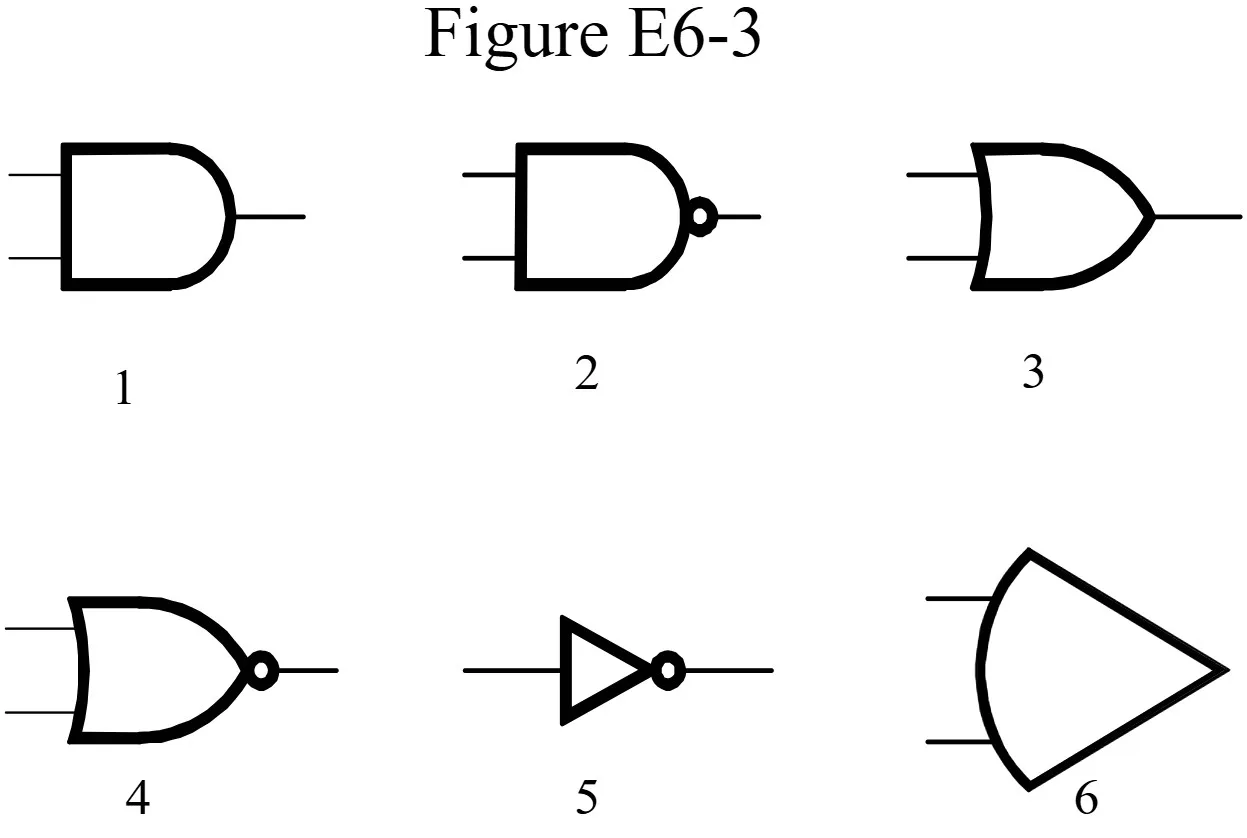

Logic Gate Symbols: Figure E6-3

Figure E6-3 shows schematic symbols for common logic gates. Three exam questions ask you to identify specific gate symbols from this figure.

The key symbols to recognize:

• NAND gate: An AND gate body with a small circle (bubble) at the output, indicating inversion. The bubble signals that the output is the complement of AND. In Figure E6-3, this is symbol 2.
• NOR gate: An OR gate body with a bubble at the output, indicating the complement of OR. In Figure E6-3, this is symbol 4.
• NOT gate (inversion): A triangle with a bubble at the output — the simplest gate, which inverts a single input. This represents the NOT operation. In Figure E6-3, this is symbol 5.

The bubble is the key visual indicator of inversion. Wherever you see it on a gate symbol, the output (or occasionally input) is inverted from the standard operation of that gate shape.
