Baofeng BF-888S Beginner’s Guide: Setup, Operation and Software
channel-only UHF analog handheld. US operating context.
Start with the right model and station

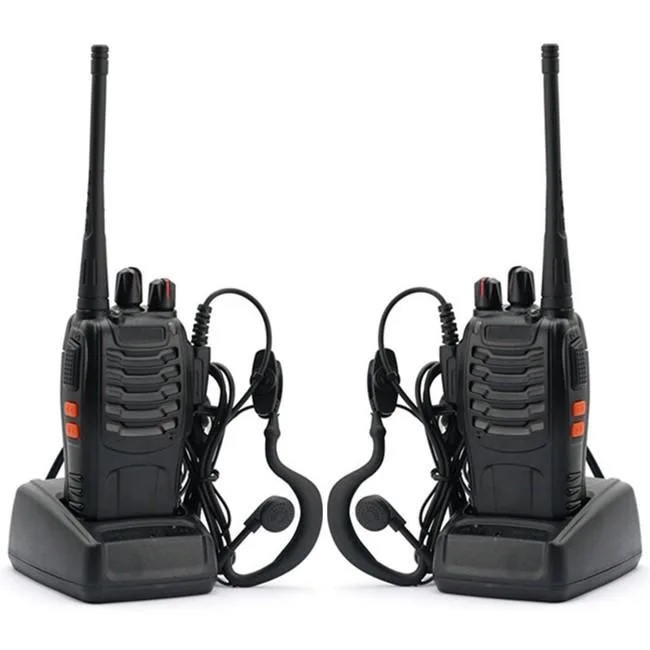

The Baofeng BF-888S is a channel-only UHF analog handheld. This is a channel-only UHF radio: it has no keypad for entering a frequency. The channel number selects a programmed record, not a universal frequency.
Work through receive, one controlled transmission and one saved working configuration before adding automation. Your radio’s receive coverage is not a statement of your transmit privileges. Regional versions and installed options can change coverage and available functions.
For US operation, use the frequencies and modes your authorization permits, listen before transmitting and identify as required. Keep antennas clear of people and electrical lines. Assess RF exposure with a method appropriate to the installation; do not treat an SWR measurement as a safety assessment.
Baofeng model specifications, manuals and supported accessories.
Important BF-888S setup differences
- Read and preserve all 16 channels before editing. Use an explicitly supported BF-888S CPS/CHIRP profile and the model’s K-plug programming cable.
- Factory channel numbers and matching tone numbers do not establish a suitable local operating plan. Program authorized frequencies deliberately, then label what each knob position actually does.
- Check the receive and transmit fields independently in the programmer. For a repeater, its output is your receive frequency and its input is your transmit frequency.
- This is single-band analog UHF equipment. It cannot acquire VHF or digital voice by loading a different radio image.
- Use the specified battery and charger. Keep the alarm and VOX disabled while confirming a simple push-to-talk channel.
Prepare the station before powering up
- Exact-model manual and a way to save a configuration backup.
- Antenna and feed system matched to the operating band; correct connectors and supported strain relief.
- The exact manufacturer-specified power source, leads and protective devices for this model.
- A rated dummy load or other appropriate controlled test arrangement for transmitter checks.
- For software, the exact-model programmer or supported CAT application, its required driver and the documented data cable or memory-card method.
Read the power specification for this exact model instead of copying an AC/DC supply rating from another radio. Check cable polarity and connector type with power off. Install a mobile only where it cannot interfere with vehicle controls or airbags; operate its menus while parked.
First start: build a repeatable receive baseline
- Inspect the antenna connector, power lead or battery, and accessory covers with the radio off. Resolve visible damage before continuing.
- Connect the correct antenna and approved power arrangement. Support external cables so they do not lever on a portable radio’s connectors.
- Turn the radio on with audio low, raise volume gently and set squelch/RF gain appropriately. Confirm the selected channel-knob position and its programmed purpose.
- Select the programmed channel for a known receive signal. Verify clear audio before changing advanced filtering, digital routing or computer settings.
- Read and save the working channel configuration in the model-matched CPS before experimenting. Keep an untouched copy off the radio.
For a dual-receiver radio, prove one receiver before enabling dual watch. For a separate-head radio, confirm the head/RF-unit link before diagnosing the antenna. For a handheld, test a charged battery before attaching programming accessories.
Program one repeater correctly before importing a list
- Find a current local repeater listing and verify it with the owner or local club where possible. Record output frequency, input frequency or offset, analog/digital mode and required access tone. Do not infer permission or activity from a database entry alone.
- In the exact-model CPS, select the intended channel record. Enter the repeater output as receive frequency and its actual input as transmit frequency. This radio has no keypad VFO: these fields are edited on the computer.
- Verify the resulting transmit frequency in the CPS against the actual listing. Do not assume that selecting a channel number automatically supplies a regional offset. Write only after both frequency fields match the intended plan.
- Set the required transmit CTCSS tone or DTCS code. Tone encode sends the repeater access tone. Receive tone squelch can hide a perfectly usable signal, so leave decoding off initially unless the system requires it. A tone does not encrypt a conversation.
- Store the result in an unused memory and give it a recognizable name. Recall the memory, then inspect frequency, offset and tone again. A successful save is different from a correct saved setting.
- Listen for activity and identify on a clear opportunity. Ask for an audio report. Receiving the repeater does not prove your signal reaches its input. Avoid repeated unidentified test bursts.
For simplex, transmit and receive use the same authorized channel; remove an inherited repeater shift and access tone unless your coordinated use actually needs them. Never use a demonstration frequency as a universal local channel.
Build a useful memory plan
Start with a small bank of verified local channels instead of loading every repeater in the country. Suggested groups are home area, travel corridor, club/net channels and receive-only channels where lawful. Name entries consistently so you can recognize the system while parked or on foot.
- Keep separate records for receive frequency, transmit frequency, tone, mode and source date. A short channel name cannot hold all those details.
- Use scan exclusions for persistently busy channels when appropriate; a scan that always stops on a carrier may appear broken.
- Use only lawful transmit channels. Wide receive coverage and the ability to type a frequency do not grant authority to transmit there.
- After a bulk import, check at least a simplex entry, a negative-offset repeater, a positive-offset repeater and any unusual split. Verify against the source rather than comparing one copied file with another.
Do not replace an existing working channel plan until you have a recoverable backup. For a borrowed or club radio, preserve the owner’s configuration and agree on the intended change.
Programming software: read, save, edit, verify
- Install the exact-model programmer and its supported driver from the official source. Manufacturer software, RT Systems and CHIRP are different products; support for a similar model does not establish support for yours.
- Choose the documented cable or card workflow. A USB charging connector, a serial programming cable and a USB audio device do different jobs. Confirm which connection the software expects.
- Read the target radio first, or create the model-specific card file using the radio’s documented save procedure. Save an untouched original and an editable copy with the model, date and purpose in their names.
- Edit a small set of channels. Review frequency units, shift, tone encode/decode, mode, names and scan settings. Import records into the target model’s file rather than cross-writing an entire image from another radio.
- Write the small test set using stable power. Wait for the documented completion state and leave the radio connected until the process finishes.
- Read back or recall the edited memories and compare them against the intended entries. Test receive first, then perform authorized identified transmissions. Only then expand to the rest of the plan.
If communication fails, check cable seating, the installed driver, actual port, software model selection and the radio’s required transfer state. Do not repeatedly try different model profiles until something accepts a write.
First contact, clear audio and practical range
Hold a handheld naturally with the antenna clear of your body as the manufacturer directs; use the microphone position specified for the supplied microphone. For a mobile, speak at a normal level and ask another operator for a plain-language audio report. Shouting usually adds distortion rather than useful range.
Start with the lowest power that reliably supports the contact. If you hear a repeater but cannot reach it, inspect offset, tone, antenna connection and location before increasing power. A move away from a wall or to a clearer safe position can matter more than the next power setting.
Long-range claims require context: terrain, height, antenna, coax, interference and the other station dominate outcomes. No handheld has one guaranteed operating radius. Save the configuration that actually worked at your location.
Scanning without missing the conversation
Confirm each memory works when selected directly before scanning it. Set squelch only high enough to suppress background noise. Excess squelch can hide weak stations; too little may stop scanning on noise. Use the model’s documented resume mode to decide whether scanning continues after a pause or waits for the signal to disappear.
For a first net, stop scanning and stay on the net channel. Dual receive, priority watch and broadcast reception can compete for your attention. Learn one function at a time so you know why the receiver is changing or muting.
What computer software can and cannot add
A memory programmer organizes radio settings; it does not add a missing modulation mode. An analog FM radio does not acquire D-STAR, C4FM or DMR through a new channel file. Conversely, a D-STAR handheld’s USB connection is not automatically an HF digital-mode sound card.
Packet/APRS or Winlink over FM requires a complete compatible modem/audio/PTT path and a suitable local channel or gateway. Before buying an interface, verify connector pinout, signal levels, PTT method and the chosen modem’s requirements. Do not connect random speaker and microphone cables assuming they provide isolation or correct levels.
Prove receive audio, modem decoding, transmit keying and clean modulation separately. Avoid automatic beacons or unattended gateway settings while learning. Keep position reporting disabled until you deliberately choose to share it.
Choose the correct BF-888S vendor CPS or supported CHIRP BF-888S profile workflow
The model-matched starting point is BF-888S vendor CPS or supported CHIRP BF-888S profile. Obtain software, instructions and supported connection details from the linked model support section. Check its operating-system requirements; an archived download is not a promise that every modern OS is supported.
Follow the read/save/edit/write/read-back sequence above. A commercial RT Systems tutorial uses its own programmer and cable requirements. CHIRP support must be confirmed for the exact radio and installed release; related model names do not establish compatibility.
CHIRP: build a small plan in the target radio’s image
- Install the current official CHIRP release and consult its supported-radio list for the exact model, including suffix. Connect the supported cable and note the actual serial port.
- Choose Download From Radio. Confirm the vendor and exact model, follow the displayed connection instructions, and save the result immediately as an untouched original.
- Save a working copy. Enter one verified local simplex memory and one repeater memory. Check receive frequency, duplex/offset or split, tone mode, tone value, bandwidth and power.
- Import channel records into this target image when moving a plan from another model. Do not open another radio’s full image and upload it as a shortcut.
- Use supported transmit-inhibit settings for receive-only entries. Do not assume a channel name such as LISTEN prevents transmission. Verify the actual recalled behavior without transmitting on that service.
- Upload the small plan with stable battery power, wait for completion, then download again and compare the edited entries. Test receive before an authorized identified transmit test.
If CHIRP rejects an identification or firmware mismatch, stop and review its exact-model support guidance. Do not force a different driver, edit model identifiers or use a stranger’s factory image. A CSV file carries channel records; it is not a full recovery backup.
Troubleshooting without losing a working setup
- No sound: check volume, squelch, headphones, selected operating side and antenna. A muted receiver is not automatically a hardware failure.
- Can hear but cannot be heard: verify transmit frequency, tone, mode, power source and antenna. Test with one known station and identify properly.
- Programming cannot connect: confirm exact model, cable, port, driver and transfer state. Close other programs that may own the interface.
- Wrong frequencies after import: check units, region, split/offset and the target file. Stop transmitting until the recalled settings match the intended plan.
- Unexpected transmit: stop software or release PTT, return to receive and inspect VOX, serial-line keying and automatic functions before resuming.
- Reset or shutdown on transmit: inspect battery condition or DC voltage under load, connectors and cable sizing. Do not bypass protective fuses.
Write down the symptom, last known working state and one change at a time. Make a backup before a reset; a reset removes evidence about the original cause and may erase valuable memories.
Backups, updates and long-term ownership
Keep at least two copies of the original and current configuration in separate locations. Record the model suffix, region, serial number privately, installed options, firmware and programmer version. Do not put credentials, personal contact lists or location history into public example files.
For firmware work, download only the exact model’s release from the manufacturer, read its prerequisites and recovery instructions, and provide the required stable power. A similarly named radio’s firmware is not an upgrade path. Check batteries and cables first; do not start an update immediately before an event.
Inspect antenna and accessory connectors, strain relief, battery contacts or DC leads, and cooling paths regularly. Follow the manual for cleaning and water exposure. Dry equipment before opening covers or charging; a weather rating is not permission to ignore connector protection.
For a used purchase, ask for a receive demonstration, authorized low-power transmit test into a suitable load, memory recall and computer communication where supported. Confirm what options and cables are included. Do not mistake missing software or an unsupported cable for a failed radio.
Watch radio and software demonstrations
These videos demonstrate the named model or an explicitly documented shared software task. Older firmware and application interfaces may differ. Use the current manual when instructions conflict; example frequencies and device names are not your station settings.
Program a BF-888S
Exact model memory-programming demonstration. Use your own authorized channel plan and save the original radio file first.
Frequently asked questions
Which manual and programmer should I use?
Use the exact BF-888S model and regional version. Start with BF-888S vendor CPS or supported CHIRP BF-888S profile or an application that explicitly documents compatibility.
Should I copy a video’s frequency or port number?
No. Use your authorized local operating plan and actual computer device names. Videos demonstrate a workflow, not universal settings.
What should I do before resetting the radio?
Save a configuration backup, record the symptom and test one variable at a time. A reset can erase useful settings and evidence.
Can an image from a similar radio be written to this one?
Do not cross-write a complete configuration image from a different model. Read the target radio first and import supported records into its own file.
