Icom IC-7700 Beginner’s Guide: Setup, Operation and Software
HF/6-meter flagship base station. US operating context.
Start with the right model and station

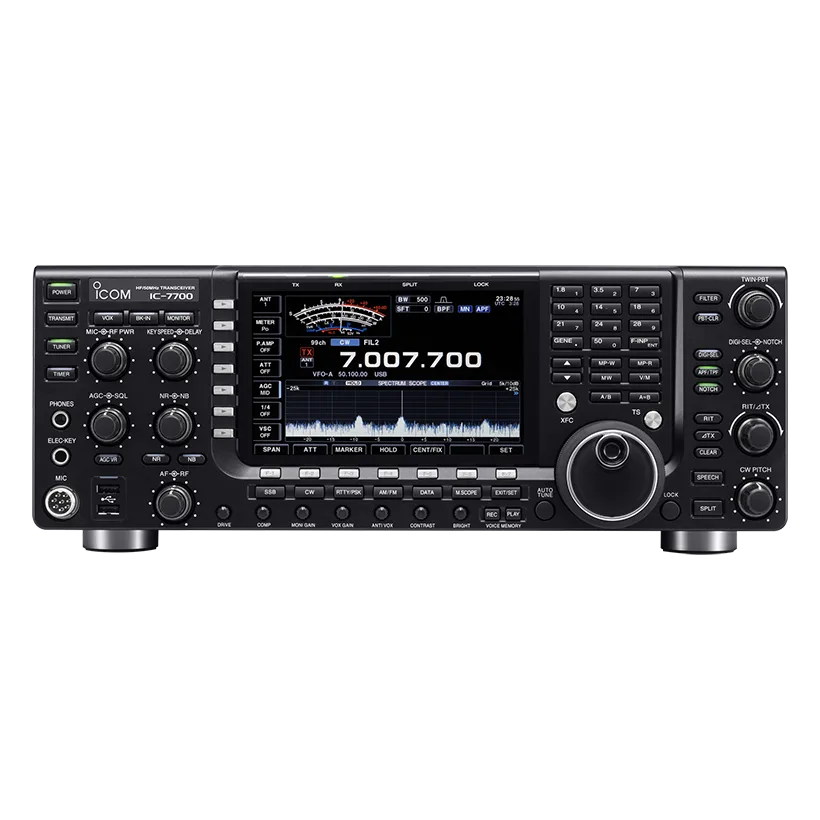

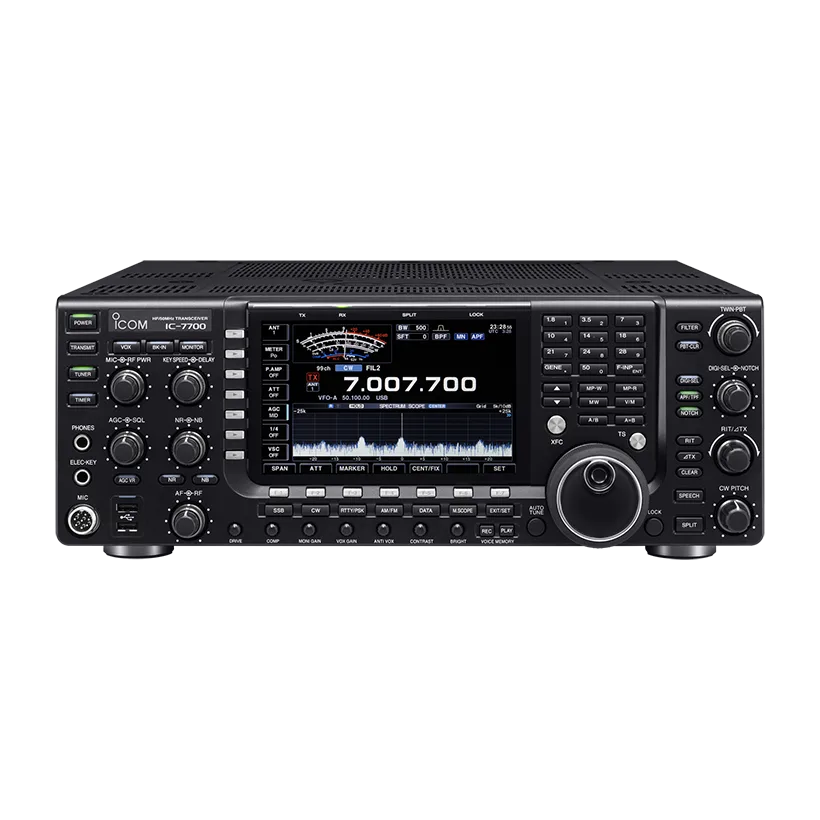

The Icom IC-7700 is a HF/6-meter flagship base station. The 7700 is a high-performance single-receiver station; it is not a dual independent-receiver 7800.
Work through receive, one controlled transmission and one saved working configuration before adding automation. Your radio’s receive coverage is not a statement of your transmit privileges. Regional versions and installed options can change coverage and available functions.
For US operation, use the frequencies and modes your authorization permits, listen before transmitting and identify as required. Keep antennas clear of people and electrical lines. Assess RF exposure with a method appropriate to the installation; do not treat an SWR measurement as a safety assessment.
Icom model specifications, manuals and supported accessories.
Important IC-7700 setup differences
- Use the specified AC power arrangement and protective earth. Do not copy a compact mobile radio’s DC wiring.
- USB memory/peripheral sockets do not make this model a built-in USB audio sound card. Use the documented CI-V control interface and a compatible external or optical audio arrangement.
- A direct RS-232 connection to a CI-V jack is not appropriate. Use an interface designed for the radio’s CI-V electrical levels.
- Save the supported configuration backup to USB memory before updates. Check firmware and installed options against this exact model.
Prepare the station before powering up
- Exact-model manual and a way to save a configuration backup.
- Antenna and feed system matched to the operating band; correct connectors and supported strain relief.
- The exact manufacturer-specified power source, leads and protective devices for this model.
- A rated dummy load or other appropriate controlled test arrangement for transmitter checks.
- For software, the exact-model programmer or supported CAT application, its required driver and the documented data cable or memory-card method.
Read the power specification for this exact model instead of copying an AC/DC supply rating from another radio. Check cable polarity and connector type with power off. Install a mobile only where it cannot interfere with vehicle controls or airbags; operate its menus while parked.
First start: build a repeatable receive baseline
- Inspect the antenna connector, power lead or battery, and accessory covers with the radio off. Resolve visible damage before continuing.
- Connect the correct antenna and approved power arrangement. Support external cables so they do not lever on a portable radio’s connectors.
- Turn the radio on with audio low, raise volume gently and set squelch/RF gain appropriately. Confirm the active operating side and mode.
- Tune a known receive signal in a supported band. Verify clear audio before changing advanced filtering, digital routing or computer settings.
- Save or record the working state using the documented backup method before experimenting. Keep an untouched copy off the radio.
For a dual-receiver radio, prove one receiver before enabling dual watch. For a separate-head radio, confirm the head/RF-unit link before diagnosing the antenna. For a handheld, test a charged battery before attaching programming accessories.
Create a model-specific computer profile
Start from the IC-7700 manual’s computer/USB section. Record the actual serial interfaces, audio device names, selected data input, baud and CI-V settings. Do not copy the original IC-7300’s address or a COM number from a video. A supported exact-model profile must agree with the radio’s configured identity.
Test CAT with transmission disabled, then verify receive audio and finally a short controlled low-power transmit test. Preserve normal microphone routing for voice. If a program lacks a documented profile for your model, update or consult the software’s support instructions rather than guessing another model.
Understand the controls by the job they do
- VFO / memory: VFO is free tuning; memories recall saved settings. Check which you are using if tuning behaves unexpectedly.
- A/B and SPLIT: split can separate receive and transmit frequencies. Leave it off for ordinary first contacts, and verify both frequencies before answering a station working split.
- RIT: offsets reception without normally moving transmit frequency. Clear it when comparing software and radio displays.
- RF POWER: sets the output ceiling. An SSB power meter follows speech peaks; little indicated output while you are silent is normal.
- MIC GAIN / USB modulation: microphone gain belongs to voice input. USB modulation and computer playback level govern computer audio.
- P.AMP / ATT: extra gain can help weak signals, but attenuation can improve an overloaded receiver. A brighter waterfall is not automatically better reception.
- NB / NR / NOTCH: try one processing tool at a time. Excess noise reduction can turn intelligible speech into watery audio.
- SWR / ALC: SWR concerns the transmitter load; ALC concerns transmit level control. Neither measures contact range.
Your first voice contact
- Check the antenna and band. Choose a permitted clear frequency and start at low power. If SWR is unexpectedly high, stop and inspect the feedline and antenna. Do not repeatedly transmit into a fault.
- Use the tuner appropriately. A compatible tuner matches a limited load range; it cannot repair broken coax or remove feedline loss. Use an external tuner if this model has no internal tuner. Follow the manual’s procedure on a clear frequency. A failed tune is a reason to investigate, not to force another long transmission.
- Establish normal microphone audio. Select ordinary SSB, keep compression off initially and speak normally. Adjust microphone gain using the manual’s ALC instructions and obtain an independent audio report.
- Listen before calling. Ask whether the frequency is in use, or answer a station calling CQ. Give your call sign clearly, release PTT and leave room for the response. Do not transmit over an existing conversation.
- Record the result. Note call sign, UTC, band, mode and settings. If the report is distorted audio, reduce processing and check the selected input before increasing power.
Begin with reliable local or strong stations. A difficult DX contact introduces propagation and pileup variables before you know whether your station is behaving normally.
CW without accidental transmission
Begin by listening in CW mode. Set a comfortable pitch, tune the signal and narrow the filter only enough to separate adjacent stations. You can learn reception without transmitting.
Before connecting a key or paddle, disable transmit break-in. Select the matching key/keyer type and a slow practice speed, and verify the plug wiring against both manuals. Practice without RF, then test at low power into a rated dummy load. Enable break-in only when you intend to transmit. CAT frequency control is not automatically CW keying; use the documented keying method for your logger and interface.
USB: separate control from sound
This model uses its documented CI-V control interface and a separate compatible audio/PTT arrangement. A USB memory socket is not a built-in USB sound card. Use a CI-V interface with the correct electrical levels; do not directly wire RS-232 signals to a CI-V jack.
Test computer control, receive audio, PTT and transmit modulation as separate functions. Follow the exact accessory connector pinout, interface isolation and signal-level requirements.
WSJT-X: FT8/FT4 from receive to first contact
- Identity: install the official release for your operating system and enter your call sign and grid. Leave Enable Tx off.
- Radio: select a current, supported exact-model profile for IC-7700, its actual serial port, matching baud and CAT PTT. Test CAT; confirm a software frequency change reaches the radio.
- Audio: select the external interface input/output, not your laptop microphone or speakers. Select Data/Pkt mode behavior and confirm the radio enters its intended USB data mode.
- Receive: synchronize the computer clock through its normal time service. Confirm the selected mode/frequency matches the activity. Set input level without clipping and pass the needed audio range through the radio filter. Decode several cycles.
- Low-power transmit test: use a rated dummy load. Keep compression off, start with low computer audio and key only briefly. Raise drive gently while watching RF and ALC; avoid heavy ALC and distorted output. Confirm immediate return to receive.
- On-air operation: connect the verified antenna with power off. Check the complete transmitted signal fits within your authorized segment, including audio offset. Configure Rig or Fake It split as supported and verify the resulting transmit frequency. Start modestly and monitor temperature during repeated cycles.
- Finish: disable transmission, confirm receive state and save your working settings.
Do not try to fix a blank waterfall with more transmit power. A waterfall proves audio activity, not correct clock timing or successful decoding.
JS8Call: a separate application and mode
Close WSJT-X before letting JS8Call directly open the same serial port. Configure identity, the IC-7700 profile, matched baud, CAT PTT and the radio’s audio devices. Verify receive and control again; settings are not automatically shared.
Keep automatic heartbeats, replies and unattended transmission disabled during setup. Decode traffic first, then try a short supervised directed exchange. Treat transmitted text and location as information other listeners can receive. Use the release-matched guide: development documentation may describe features not present in your installed version.
fldigi + flrig: let one program own the serial port
Configure flrig using its IC-7700 instructions and confirm frequency tracking. Then let fldigi use flrig for control while fldigi uses the external interface audio device for sound. Do not simultaneously enable a second direct CAT backend against the same port.
Select the intended mode, decode a known signal, then check a short low-power transmission into the dummy load. Save the audio configuration. Review macros before using them: replace sample call signs and remove information you do not intend to transmit. Audio PSK/RTTY through SSB and true FSK keying are different methods; do not apply an FSK wiring recipe to an audio-only configuration.
Winlink Express + VARA HF: email, then RF
Establish the Winlink account and test message handling through a Telnet session using the official quick start. That isolates account and addressing problems. Telnet success is an Internet test, not a radio-link test.
Select a VARA HF session and install/configure the matching modem. Choose the external interface audio devices and configure session radio control for the actual serial port and matched rate. Keep other direct CAT programs closed. Use the linked model-specific reference for the session-specific settings. VARA FM is not a substitute for VARA HF.
Update gateway information, select an appropriate authorized band, listen and send a short plain-text test. Check dial frequency and occupied bandwidth before connecting. If it fails, distinguish no control, no audio, a busy channel and no remote response. A geographically close gateway is not always the easiest HF path. Do not assume amateur RF email is confidential; follow current Winlink guidance and applicable operating rules.
Logging and N1MM Logger+ integration
Begin with one contact and verify call sign, UTC, band, mode and power in the log. Keep native database backups as well as ADIF interchange exports before a large import or merge.
Configure the IC-7700 control port in N1MM and confirm frequency/mode tracking. For WSJT-X integration, follow N1MM’s documented workflow rather than independently opening the physical port in both programs. Configure UDP exchange after basic radio operation works and verify one QSO produces one correct log entry. Contest exchanges, categories and assisted-operation rules depend on the contest; defaults are not a substitute for reading its rules.
Troubleshooting by symptom
| Symptom | Next check |
|---|---|
| No receiver sound | Check AF, squelch, headphones and antenna. Return to a recorded receive baseline. |
| CAT fails | Check actual serial device, matched baud/address and competing port owners. Test with one application. |
| CAT works; blank waterfall | Check audio input, permission, mute and recording level. Inspect the OS input meter on a known signal. |
| Waterfall but no decodes | Check clock, mode, working frequency, clipping and receive filter. |
| PTT works; little RF | Check transmit audio device, data input routing and actual audio drive. Use a short dummy-load test. |
| Transmits when software opens | Stop the application and restore receive. Inspect RTS/DTR assignments, VOX and automatic functions before reconnecting. |
| USB drops on transmit | Compare low power into a dummy load against the antenna. Investigate DC voltage drop, connectors and common-mode RF. |
| Voice stopped after digital work | Return to normal SSB and restore the recorded microphone input. |
| High SWR or failed tune | Stop transmitting. Inspect antenna, band choice and feedline; do not repeatedly force tuning. |
| Digital signal sounds distorted | Reduce audio drive and processing. Inspect ALC and obtain an independent report. |
Change one variable at a time and record the result. A factory reset comes after backup and diagnosis, not before.
Useful tricks and recovery habits
- Keep a settings sheet: serial device, baud, audio names, input routing, firmware, application versions and normal power.
- Save voice and digital baselines: use dated backups and explain their differences.
- Prefer the same USB port: this reduces device-renaming surprises; still recheck names after updates.
- Try less gain: compare preamp, attenuation and filter settings before adding processing.
- Separate RF from software: a dummy-load comparison can reveal antenna-related interference without randomly changing every menu.
- End in receive: stop automatic transmissions and confirm PTT is released before leaving the station.
Before firmware work, save settings using the documented backup/export method and keep a separate copy. Use only exact-model firmware, a stable power source and the applicable update instructions. The linked page documents a particular release and its backup process; check Icom for the current applicable release rather than assuming that linked version is newest.
Buying a used IC-7700
Ask for the exact model/region, firmware version, supplied microphone and specified power lead. Request a demonstration of reception, display and control operation, low-power transmit into a proper load, tuner operation where fitted, computer control and external-interface audio. Inspect antenna and power connectors and check cooling operation.
Do not judge SSB transmit health by a power meter while the operator is silent. Do not blindly import the previous owner’s settings: document their working state first, then configure your own station. A missing accessory or a worn connector can matter more than a cosmetic scratch.
Watch radio and software demonstrations
These videos demonstrate the named model or an explicitly documented shared software task. Older firmware and application interfaces may differ. Use the current manual when instructions conflict; example frequencies and device names are not your station settings.
A Detailed Overview of the IC-7700
Model-specific demonstration. Use the exact-model manual and current software requirements; do not copy sample frequencies, computer ports or undocumented modifications.
Frequently asked questions
Which manual and programmer should I use?
Use the exact IC-7700 model and regional version. Start with exact-model CI-V/CAT applications or an application that explicitly documents compatibility.
Should I copy a video’s frequency or port number?
No. Use your authorized local operating plan and actual computer device names. Videos demonstrate a workflow, not universal settings.
What should I do before resetting the radio?
Save a configuration backup, record the symptom and test one variable at a time. A reset can erase useful settings and evidence.
Can an image from a similar radio be written to this one?
Do not cross-write a complete configuration image from a different model. Read the target radio first and import supported records into its own file.
