Icom ID-31A Beginner’s Guide: Setup, Operation and Software

Start with the right model and station

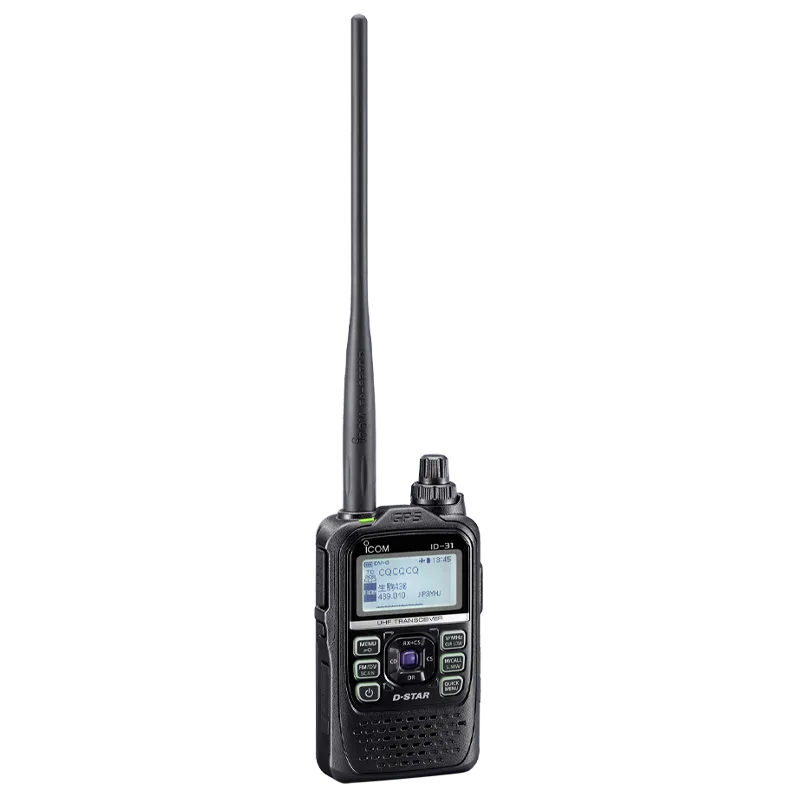

The Icom ID-31A is a 70-centimeter FM/D-STAR handheld. The original ID-31A is a UHF-only handheld. It does not transmit on 2 meters and is different from a later PLUS version.

Work through receive, one controlled transmission and one saved working configuration before adding automation. Your radio’s receive coverage is not a statement of your transmit privileges. Regional versions and installed options can change coverage and available functions.

For US operation, use the frequencies and modes your authorization permits, listen before transmitting and identify as required. Keep antennas clear of people and electrical lines. Assess RF exposure with a method appropriate to the installation; do not treat an SWR measurement as a safety assessment.

Icom model specifications, manuals and supported accessories.

Important ID-31A setup differences

• Use CS-31 and the original ID-31A/E documentation. A PLUS-model file or update is not automatically compatible.
• Save settings, memory data and repeater lists before updating. The documented original firmware procedure uses the specified data cable, not a microSD update shortcut.
• Set your own call sign and begin with a local UHF FM or DV test before building a gateway route.
• A GPS position and the nearest-repeater list depend on valid position data and an accurate local repeater list.

Prepare the station before powering up

• Exact-model manual and a way to save a configuration backup.
• Antenna and feed system matched to the operating band; correct connectors and supported strain relief.
• The exact manufacturer-specified power source, leads and protective devices for this model.
• A rated dummy load or other appropriate controlled test arrangement for transmitter checks.
• For software, the exact-model programmer or supported CAT application, its required driver and the documented data cable or memory-card method.

Read the power specification for this exact model instead of copying an AC/DC supply rating from another radio. Check cable polarity and connector type with power off. Install a mobile only where it cannot interfere with vehicle controls or airbags; operate its menus while parked.

First start: build a repeatable receive baseline

1. Inspect the antenna connector, power lead or battery, and accessory covers with the radio off. Resolve visible damage before continuing.
2. Connect the correct antenna and approved power arrangement. Support external cables so they do not lever on a portable radio’s connectors.
3. Turn the radio on with audio low, raise volume gently and set squelch/RF gain appropriately. Confirm the active operating side and mode.
4. Tune a known receive signal in a supported band. Verify clear audio before changing advanced filtering, digital routing or computer settings.
5. Save or record the working state using the documented backup method before experimenting. Keep an untouched copy off the radio.

For a dual-receiver radio, prove one receiver before enabling dual watch. For a separate-head radio, confirm the head/RF-unit link before diagnosing the antenna. For a handheld, test a charged battery before attaching programming accessories.

Program one repeater correctly before importing a list

1. Find a current local repeater listing and verify it with the owner or local club where possible. Record output frequency, input frequency or offset, analog/digital mode and required access tone. Do not infer permission or activity from a database entry alone.
2. Select the intended operating side or main band. Enter the repeater output as your receive frequency, choose analog FM for an analog repeater and leave dual-watch distractions off during the first test.
3. Set the offset direction and amount from the actual listing. The radio transmits on the repeater input and receives its output. Verify the resulting transmit frequency before making a call; an automatic regional offset is not proof it is correct.
4. Set the required transmit CTCSS tone or DTCS code. Tone encode sends the repeater access tone. Receive tone squelch can hide a perfectly usable signal, so leave decoding off initially unless the system requires it. A tone does not encrypt a conversation.
5. Store the result in an unused memory and give it a recognizable name. Recall the memory, then inspect frequency, offset and tone again. A successful save is different from a correct saved setting.
6. Listen for activity and identify on a clear opportunity. Ask for an audio report. Receiving the repeater does not prove your signal reaches its input. Avoid repeated unidentified test bursts.

For simplex, transmit and receive use the same authorized channel; remove an inherited repeater shift and access tone unless your coordinated use actually needs them. Never use a demonstration frequency as a universal local channel.

Build a useful memory plan

Start with a small bank of verified local channels instead of loading every repeater in the country. Suggested groups are home area, travel corridor, club/net channels and receive-only channels where lawful. Name entries consistently so you can recognize the system while parked or on foot.

• Keep separate records for receive frequency, transmit frequency, tone, mode and source date. A short channel name cannot hold all those details.
• Use scan exclusions for persistently busy channels when appropriate; a scan that always stops on a carrier may appear broken.
• Use only lawful transmit channels. Wide receive coverage and the ability to type a frequency do not grant authority to transmit there.
• After a bulk import, check at least a simplex entry, a negative-offset repeater, a positive-offset repeater and any unusual split. Verify against the source rather than comparing one copied file with another.

Do not replace an existing working channel plan until you have a recoverable backup. For a borrowed or club radio, preserve the owner’s configuration and agree on the intended change.

Programming software: read, save, edit, verify

1. Install the exact-model programmer and its supported driver from the official source. Icom CS software, RT Systems and CHIRP are different products; support for a similar model does not establish support for yours.
2. Choose the documented cable or card workflow. A USB charging connector, a serial programming cable and a USB audio device do different jobs. Confirm which connection the software expects.
3. Read the target radio first, or create the model-specific card file using the radio’s documented save procedure. Save an untouched original and an editable copy with the model, date and purpose in their names.
4. Edit a small set of channels. Review frequency units, shift, tone encode/decode, mode, names and scan settings. Import records into the target model’s file rather than cross-writing an entire image from another radio.
5. Write the small test set using stable power. Wait for the documented completion state and leave the radio connected until the process finishes.
6. Read back or recall the edited memories and compare them against the intended entries. Test receive first, then perform authorized identified transmissions. Only then expand to the rest of the plan.

If communication fails, check cable seating, the installed driver, actual port, software model selection and the radio’s required transfer state. Do not repeatedly try different model profiles until something accepts a write.

First contact, clear audio and practical range

Hold a handheld naturally with the antenna clear of your body as the manufacturer directs; use the microphone position specified for the supplied microphone. For a mobile, speak at a normal level and ask another operator for a plain-language audio report. Shouting usually adds distortion rather than useful range.

Start with the lowest power that reliably supports the contact. If you hear a repeater but cannot reach it, inspect offset, tone, antenna connection and location before increasing power. A move away from a wall or to a clearer safe position can matter more than the next power setting.

Long-range claims require context: terrain, height, antenna, coax, interference and the other station dominate outcomes. No handheld has one guaranteed operating radius. Save the configuration that actually worked at your location.

Scanning without missing the conversation

Confirm each memory works when selected directly before scanning it. Set squelch only high enough to suppress background noise. Excess squelch can hide weak stations; too little may stop scanning on noise. Use the model’s documented resume mode to decide whether scanning continues after a pause or waits for the signal to disappear.

For a first net, stop scanning and stay on the net channel. Dual receive, priority watch and broadcast reception can compete for your attention. Learn one function at a time so you know why the receiver is changing or muting.

What computer software can and cannot add

A memory programmer organizes radio settings; it does not add a missing modulation mode. An analog FM radio does not acquire D-STAR, C4FM or DMR through a new channel file. Conversely, a D-STAR handheld’s USB connection is not automatically an HF digital-mode sound card.

Packet/APRS or Winlink over FM requires a complete compatible modem/audio/PTT path and a suitable local channel or gateway. Before buying an interface, verify connector pinout, signal levels, PTT method and the chosen modem’s requirements. Do not connect random speaker and microphone cables assuming they provide isolation or correct levels.

Prove receive audio, modem decoding, transmit keying and clean modulation separately. Avoid automatic beacons or unattended gateway settings while learning. Keep position reporting disabled until you deliberately choose to share it.

Choose the correct CS-31 workflow

The model-matched starting point is CS-31. Obtain software, instructions and supported connection details from the linked Icom support section. Check its operating-system requirements; an archived download is not a promise that every modern OS is supported.

Follow the read/save/edit/write/read-back sequence above. A commercial RT Systems tutorial uses its own programmer and cable requirements, even when it illustrates the same channel-planning concept. CHIRP support must be confirmed for the exact radio and installed CHIRP release; do not assume all Icom models are supported.

D-STAR: build a local route before a gateway route

D-STAR DV is a digital voice mode. Analog FM, DV simplex and DR repeater operation are different configurations. Start with a known local D-STAR station or repeater and confirm the expected band and mode. A digital icon does not mean a gateway destination is correct.

1. Enter your own valid call sign in MY using the model’s documented call-sign screen. Check the actual saved entry rather than relying on an imported example.
2. For DR operation select the local FROM repeater. Confirm its location, band and current frequency data. GPS-based nearest-repeater results depend on a valid position and an accurate repeater list.
3. Select the intended TO destination. A local call, reflector link command and gateway call are not interchangeable. Begin with the local workflow recommended by the repeater operator.
4. When using a gateway, complete any required network registration and follow its procedures. Receiving the repeater locally does not prove registration, Internet connectivity or routing.
5. After a successful test, save a named working route and document its purpose. Return to local operation before trying another destination so you can diagnose each change.

A hotspot is additional equipment and needs its own coordinated frequency, protocol and network settings. A D-STAR radio cannot simply join a Fusion or DMR system because both are called digital. Terminal/access-point features also depend on the exact model and its supporting software.

Troubleshooting without losing a working setup

• No sound: check volume, squelch, headphones, selected operating side and antenna. A muted receiver is not automatically a hardware failure.
• Can hear but cannot be heard: verify transmit frequency, tone, mode, power source and antenna. Test with one known station and identify properly.
• Programming cannot connect: confirm exact model, cable, port, driver and transfer state. Close other programs that may own the interface.
• Wrong frequencies after import: check units, region, split/offset and the target file. Stop transmitting until the recalled settings match the intended plan.
• Unexpected transmit: stop software or release PTT, return to receive and inspect VOX, serial-line keying and automatic functions before resuming.
• Reset or shutdown on transmit: inspect battery condition or DC voltage under load, connectors and cable sizing. Do not bypass protective fuses.

Write down the symptom, last known working state and one change at a time. Make a backup before a reset; a reset removes evidence about the original cause and may erase valuable memories.

Backups, updates and long-term ownership

Keep at least two copies of the original and current configuration in separate locations. Record the model suffix, region, serial number privately, installed options, firmware and programmer version. Do not put credentials, personal contact lists or location history into public example files.

For firmware work, download only the exact model’s release from the manufacturer, read its prerequisites and recovery instructions, and provide the required stable power. A similarly named radio’s firmware is not an upgrade path. Check batteries and cables first; do not start an update immediately before an event.

Inspect antenna and accessory connectors, strain relief, battery contacts or DC leads, and cooling paths regularly. Follow the manual for cleaning and water exposure. Dry equipment before opening covers or charging; a weather rating is not permission to ignore connector protection.

For a used purchase, ask for a receive demonstration, authorized low-power transmit test into a suitable load, memory recall and computer communication where supported. Confirm what options and cables are included. Do not mistake missing software or an unsupported cable for a failed radio.

Watch radio and software demonstrations

These videos demonstrate the named model or an explicitly documented shared software task. Older firmware and application interfaces may differ. Use the current manual when instructions conflict; example frequencies and device names are not your station settings.

Frequently asked questions

Model manuals and software references

Research checked October 21, 2026. Manufacturer and software-project references are the authority for exact supported versions and accessories.

1. Icom ID-31A specifications and downloads
2. Repeater offset reference
3. Tone encode versus decode
