Yaesu FTX-1 optima Beginner’s Guide: Setup, Operation and Software

Start with the right model and station

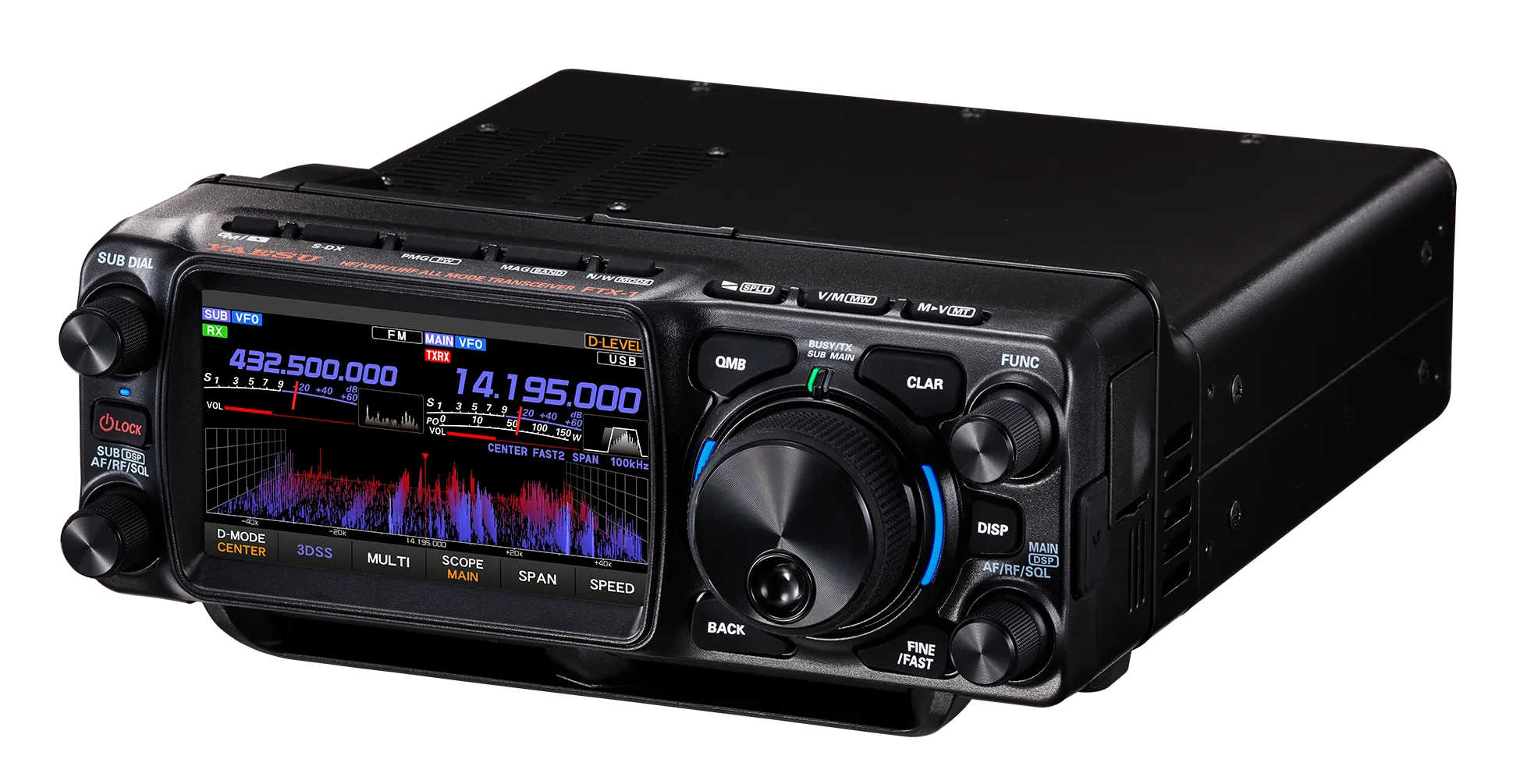

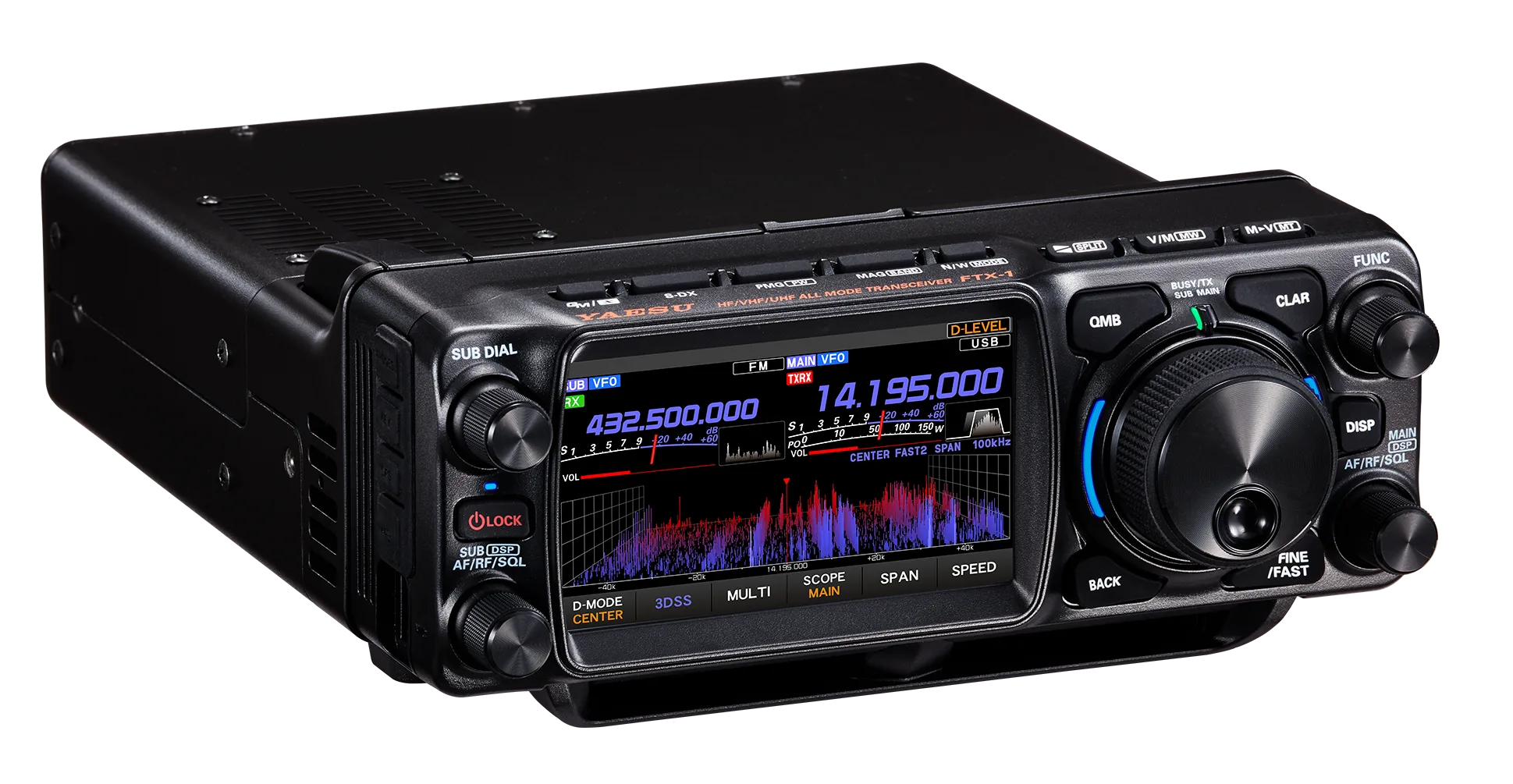

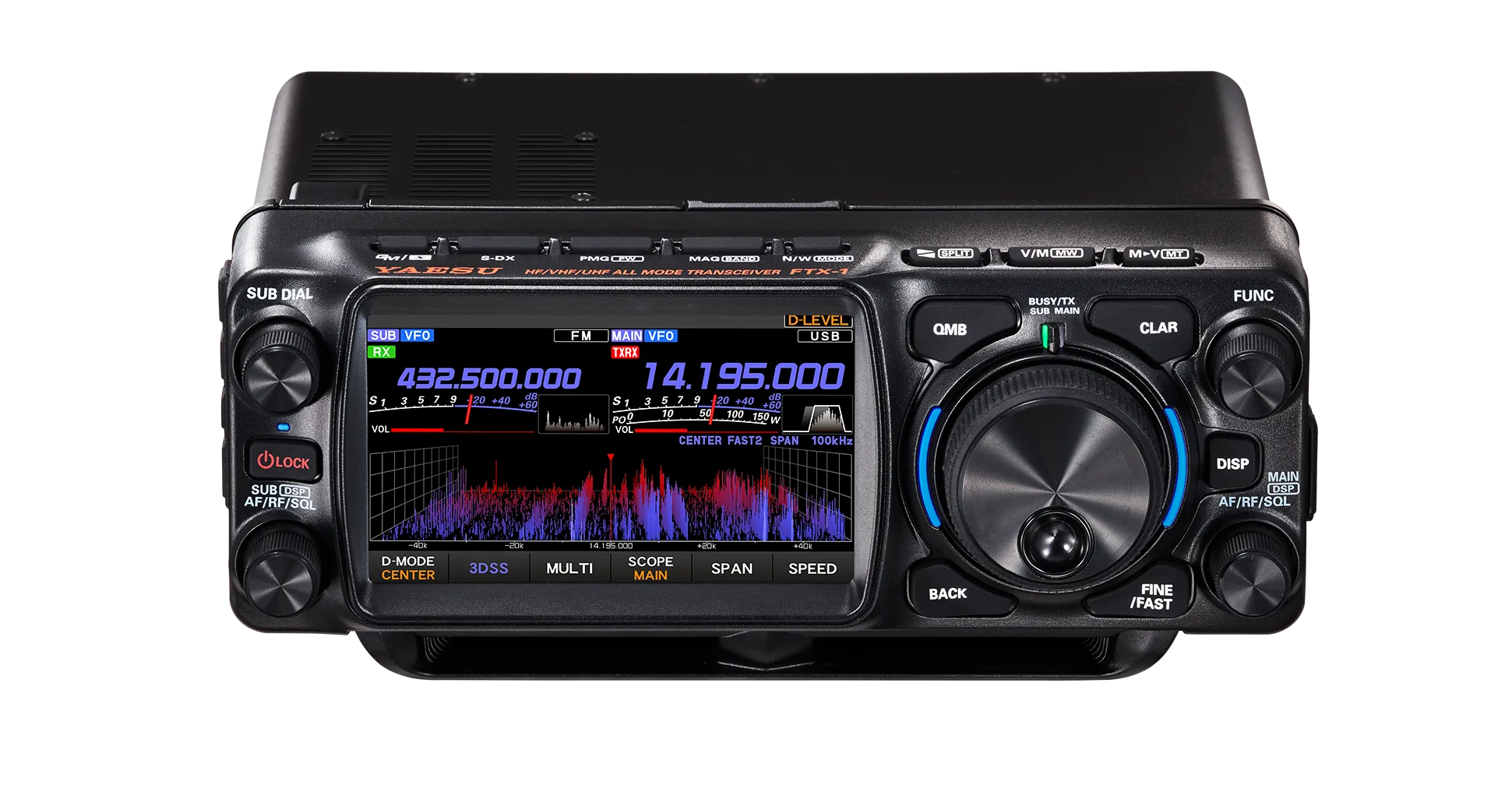

The Yaesu FTX-1 optima is a HF/VHF/UHF all-mode station with a detachable SPA-1 amplifier. This package combines the same portable Field Head with the SPA-1 station amplifier. Station power, antenna routing and tuner selection change when the amplifier is attached.

Work through receive, one controlled transmission and one saved working configuration before adding automation. Your radio’s receive coverage is not a statement of your transmit privileges. Regional versions and installed options can change coverage and available functions.

For US operation, use the frequencies and modes your authorization permits, listen before transmitting and identify as required. Keep antennas clear of people and electrical lines. Assess RF exposure with a method appropriate to the installation; do not treat an SWR measurement as a safety assessment.

Yaesu model specifications, manuals and supported accessories.

Important FTX-1 optima setup differences

• The SPA-1 provides up to 100 W on HF/6 m and 50 W on 2 m/70 cm; it is not a 100 W amplifier on every band.
• Power down and follow the attachment procedure before joining or separating the Field Head and SPA-1. Check the RF output and antenna selected for the band before transmitting.
• The SPA-1 includes an HF/6 m tuner. Follow the manual and select the documented OPTION tuner setting for this arrangement; do not treat it as a VHF/UHF antenna matching solution.
• Use the computer USB-C connection for documented CAT and audio functions. The battery charging USB-C socket is a separate connection. Select USB as the modulation source in the mode group being used, and restore microphone routing for voice.
• Install the official virtual COM driver before assigning CAT ports. Use an exact FTX-1 application profile and matching baud settings. For memory management start with ADMS-19; verify the current release and supported OS on the manufacturer page.

Prepare the station before powering up

• Exact-model manual and a way to save a configuration backup.
• Antenna and feed system matched to the operating band; correct connectors and supported strain relief.
• The exact manufacturer-specified power source, leads and protective devices for this model.
• A rated dummy load or other appropriate controlled test arrangement for transmitter checks.
• For software, the exact-model programmer or supported CAT application, its required driver and the documented data cable or memory-card method.

Read the power specification for this exact model instead of copying an AC/DC supply rating from another radio. Check cable polarity and connector type with power off. Install a mobile only where it cannot interfere with vehicle controls or airbags; operate its menus while parked.

First start: build a repeatable receive baseline

1. Inspect the antenna connector, power lead or battery, and accessory covers with the radio off. Resolve visible damage before continuing.
2. Connect the correct antenna and approved power arrangement. Support external cables so they do not lever on a portable radio’s connectors.
3. Turn the radio on with audio low, raise volume gently and set squelch/RF gain appropriately. Confirm the active operating side and mode.
4. Tune a known receive signal in a supported band. Verify clear audio before changing advanced filtering, digital routing or computer settings.
5. Save or record the working state using the documented backup method before experimenting. Keep an untouched copy off the radio.

For a dual-receiver radio, prove one receiver before enabling dual watch. For a separate-head radio, confirm the head/RF-unit link before diagnosing the antenna. For a handheld, test a charged battery before attaching programming accessories.

Create a model-specific computer profile

Start from the FTX-1 optima manual’s computer/USB section. Record the actual serial interfaces, audio device names, selected data input, baud and CAT/PTT settings. Use the actual port and a documented exact-model configuration. A supported exact-model profile must agree with the radio’s configured identity.

Test CAT with transmission disabled, then verify receive audio and finally a short controlled low-power transmit test. Preserve normal microphone routing for voice. If a program lacks a documented profile for your model, update or consult the software’s support instructions rather than guessing another model.

Understand the controls by the job they do

• VFO / memory: VFO is free tuning; memories recall saved settings. Check which you are using if tuning behaves unexpectedly.
• A/B and SPLIT: split can separate receive and transmit frequencies. Leave it off for ordinary first contacts, and verify both frequencies before answering a station working split.
• CLAR (clarifier): offsets reception without normally moving transmit frequency. Clear it when comparing software and radio displays.
• RF POWER: sets the output ceiling. An SSB power meter follows speech peaks; little indicated output while you are silent is normal.
• MIC GAIN / USB modulation: microphone gain belongs to voice input. USB modulation and computer playback level govern computer audio.
• P.AMP / ATT: extra gain can help weak signals, but attenuation can improve an overloaded receiver. A brighter waterfall is not automatically better reception.
• NB / NR / NOTCH: try one processing tool at a time. Excess noise reduction can turn intelligible speech into watery audio.
• SWR / ALC: SWR concerns the transmitter load; ALC concerns transmit level control. Neither measures contact range.

Your first voice contact

1. Check the antenna and band. Choose a permitted clear frequency and start at low power. If SWR is unexpectedly high, stop and inspect the feedline and antenna. Do not repeatedly transmit into a fault.
2. Use the tuner appropriately. A compatible tuner matches a limited load range; it cannot repair broken coax or remove feedline loss. Use an external tuner if this model has no internal tuner. Follow the manual’s procedure on a clear frequency. A failed tune is a reason to investigate, not to force another long transmission.
3. Establish normal microphone audio. Select ordinary SSB, keep compression off initially and speak normally. Adjust microphone gain using the manual’s ALC instructions and obtain an independent audio report.
4. Listen before calling. Ask whether the frequency is in use, or answer a station calling CQ. Give your call sign clearly, release PTT and leave room for the response. Do not transmit over an existing conversation.
5. Record the result. Note call sign, UTC, band, mode and settings. If the report is distorted audio, reduce processing and check the selected input before increasing power.

Begin with reliable local or strong stations. A difficult DX contact introduces propagation and pileup variables before you know whether your station is behaving normally.

CW without accidental transmission

Begin by listening in CW mode. Set a comfortable pitch, tune the signal and narrow the filter only enough to separate adjacent stations. You can learn reception without transmitting.

Before connecting a key or paddle, disable transmit break-in. Select the matching key/keyer type and a slow practice speed, and verify the plug wiring against both manuals. Practice without RF, then test at low power into a rated dummy load. Enable break-in only when you intend to transmit. CAT frequency control is not automatically CW keying; use the documented keying method for your logger and interface.

USB: separate control from sound

On a documented USB control/audio connection, separate these jobs: CAT/CAT commands change frequency and mode; receive audio goes to the decoder; transmit audio goes from the application into the radio. PTT keys the transmitter. Passing Test CAT does not prove that any audio path works.

Use Yaesu’s model-matched driver and follow its installation order. Identify the actual serial device and radio audio input/output in your operating system. Write them down. Someone else’s COM number is not your station’s required number. Close competing radio programs during the first test.

Keep system notification sounds on normal computer speakers, not the radio output. Disable enhancement or automatic level processing on radio audio where available. Recheck selected devices after reconnecting USB, changing docks or updating the operating system.

WSJT-X: FT8/FT4 from receive to first contact

1. Identity: install the official release for your operating system and enter your call sign and grid. Leave Enable Tx off.
2. Radio: select a current, supported exact-model profile for FTX-1 optima, its actual serial port, matching baud and CAT PTT. Test CAT; confirm a software frequency change reaches the radio.
3. Audio: select the radio’s USB input/output, not your laptop microphone or speakers. Select Data/Pkt mode behavior and confirm the radio enters its intended USB data mode.
4. Receive: synchronize the computer clock through its normal time service. Confirm the selected mode/frequency matches the activity. Set input level without clipping and pass the needed audio range through the radio filter. Decode several cycles.
5. Low-power transmit test: use a rated dummy load. Keep compression off, start with low computer audio and key only briefly. Raise drive gently while watching RF and ALC; avoid heavy ALC and distorted output. Confirm immediate return to receive.
6. On-air operation: connect the verified antenna with power off. Check the complete transmitted signal fits within your authorized segment, including audio offset. Configure Rig or Fake It split as supported and verify the resulting transmit frequency. Start modestly and monitor temperature during repeated cycles.
7. Finish: disable transmission, confirm receive state and save your working settings.

Do not try to fix a blank waterfall with more transmit power. A waterfall proves audio activity, not correct clock timing or successful decoding.

JS8Call: a separate application and mode

Close WSJT-X before letting JS8Call directly open the same serial port. Configure identity, the FTX-1 optima profile, matched baud, CAT PTT and the radio’s audio devices. Verify receive and control again; settings are not automatically shared.

Keep automatic heartbeats, replies and unattended transmission disabled during setup. Decode traffic first, then try a short supervised directed exchange. Treat transmitted text and location as information other listeners can receive. Use the release-matched guide: development documentation may describe features not present in your installed version.

fldigi + flrig: let one program own the serial port

Configure flrig using its FTX-1 optima instructions and confirm frequency tracking. Then let fldigi use flrig for control while fldigi uses the radio USB audio device for sound. Do not simultaneously enable a second direct CAT backend against the same port.

Select the intended mode, decode a known signal, then check a short low-power transmission into the dummy load. Save the audio configuration. Review macros before using them: replace sample call signs and remove information you do not intend to transmit. Audio PSK/RTTY through SSB and true FSK keying are different methods; do not apply an FSK wiring recipe to an audio-only configuration.

Winlink Express + VARA HF: email, then RF

Establish the Winlink account and test message handling through a Telnet session using the official quick start. That isolates account and addressing problems. Telnet success is an Internet test, not a radio-link test.

Select a VARA HF session and install/configure the matching modem. Choose the FTX-1 optima USB audio devices and configure session radio control for the actual serial port and matched rate. Keep other direct CAT programs closed. Use the linked model-specific reference for the session-specific settings. VARA FM is not a substitute for VARA HF.

Update gateway information, select an appropriate authorized band, listen and send a short plain-text test. Check dial frequency and occupied bandwidth before connecting. If it fails, distinguish no control, no audio, a busy channel and no remote response. A geographically close gateway is not always the easiest HF path. Do not assume amateur RF email is confidential; follow current Winlink guidance and applicable operating rules.

Logging and N1MM Logger+ integration

Begin with one contact and verify call sign, UTC, band, mode and power in the log. Keep native database backups as well as ADIF interchange exports before a large import or merge.

Configure the FTX-1 optima control port in N1MM and confirm frequency/mode tracking. For WSJT-X integration, follow N1MM’s documented workflow rather than independently opening the physical port in both programs. Configure UDP exchange after basic radio operation works and verify one QSO produces one correct log entry. Contest exchanges, categories and assisted-operation rules depend on the contest; defaults are not a substitute for reading its rules.

Troubleshooting by symptom

Change one variable at a time and record the result. A factory reset comes after backup and diagnosis, not before.

Useful tricks and recovery habits

• Keep a settings sheet: serial device, baud, audio names, input routing, firmware, application versions and normal power.
• Save voice and digital baselines: use dated backups and explain their differences.
• Prefer the same USB port: this reduces device-renaming surprises; still recheck names after updates.
• Try less gain: compare preamp, attenuation and filter settings before adding processing.
• Separate RF from software: a dummy-load comparison can reveal antenna-related interference without randomly changing every menu.
• End in receive: stop automatic transmissions and confirm PTT is released before leaving the station.

Before firmware work, save settings using the documented backup/export method and keep a separate copy. Use only exact-model firmware, a stable power source and the applicable update instructions. The linked page documents a particular release and its backup process; check Yaesu for the current applicable release rather than assuming that linked version is newest.

Buying a used FTX-1 optima

Ask for the exact model/region, firmware version, supplied microphone and specified power lead. Request a demonstration of reception, display and control operation, low-power transmit into a proper load, any installed external tuner and documented computer control/audio. Inspect antenna and power connectors and check cooling operation.

Do not judge SSB transmit health by a power meter while the operator is silent. Do not blindly import the previous owner’s settings: document their working state first, then configure your own station. A missing accessory or a worn connector can matter more than a cosmetic scratch.

Program one repeater correctly before importing a list

1. Find a current local repeater listing and verify it with the owner or local club where possible. Record output frequency, input frequency or offset, analog/digital mode and required access tone. Do not infer permission or activity from a database entry alone.
2. Select the intended operating side or main band. Enter the repeater output as your receive frequency, choose analog FM for an analog repeater and leave dual-watch distractions off during the first test.
3. Set the offset direction and amount from the actual listing. The radio transmits on the repeater input and receives its output. Verify the resulting transmit frequency before making a call; an automatic regional offset is not proof it is correct.
4. Set the required transmit CTCSS tone or DTCS code. Tone encode sends the repeater access tone. Receive tone squelch can hide a perfectly usable signal, so leave decoding off initially unless the system requires it. A tone does not encrypt a conversation.
5. Store the result in an unused memory and give it a recognizable name. Recall the memory, then inspect frequency, offset and tone again. A successful save is different from a correct saved setting.
6. Listen for activity and identify on a clear opportunity. Ask for an audio report. Receiving the repeater does not prove your signal reaches its input. Avoid repeated unidentified test bursts.

For simplex, transmit and receive use the same authorized channel; remove an inherited repeater shift and access tone unless your coordinated use actually needs them. Never use a demonstration frequency as a universal local channel.

Build a useful memory plan

Start with a small bank of verified local channels instead of loading every repeater in the country. Suggested groups are home area, travel corridor, club/net channels and receive-only channels where lawful. Name entries consistently so you can recognize the system while parked or on foot.

• Keep separate records for receive frequency, transmit frequency, tone, mode and source date. A short channel name cannot hold all those details.
• Use scan exclusions for persistently busy channels when appropriate; a scan that always stops on a carrier may appear broken.
• Use only lawful transmit channels. Wide receive coverage and the ability to type a frequency do not grant authority to transmit there.
• After a bulk import, check at least a simplex entry, a negative-offset repeater, a positive-offset repeater and any unusual split. Verify against the source rather than comparing one copied file with another.

Do not replace an existing working channel plan until you have a recoverable backup. For a borrowed or club radio, preserve the owner’s configuration and agree on the intended change.

Programming software: read, save, edit, verify

1. Install the exact-model programmer and its supported driver from the official source. Manufacturer software, RT Systems and CHIRP are different products; support for a similar model does not establish support for yours.
2. Choose the documented cable or card workflow. A USB charging connector, a serial programming cable and a USB audio device do different jobs. Confirm which connection the software expects.
3. Read the target radio first, or create the model-specific card file using the radio’s documented save procedure. Save an untouched original and an editable copy with the model, date and purpose in their names.
4. Edit a small set of channels. Review frequency units, shift, tone encode/decode, mode, names and scan settings. Import records into the target model’s file rather than cross-writing an entire image from another radio.
5. Write the small test set using stable power. Wait for the documented completion state and leave the radio connected until the process finishes.
6. Read back or recall the edited memories and compare them against the intended entries. Test receive first, then perform authorized identified transmissions. Only then expand to the rest of the plan.

If communication fails, check cable seating, the installed driver, actual port, software model selection and the radio’s required transfer state. Do not repeatedly try different model profiles until something accepts a write.

C4FM, AMS and WIRES-X: separate the workflows

Prove an analog FM memory first, then select C4FM for a known compatible digital system. Automatic Mode Select can help reception, but verify the actual transmit mode and any required DG-ID settings before calling.

A native WIRES-X node, a local Fusion repeater and an off-brand hotspot are different arrangements. Many hotspots connect to YSF/FCS reflectors rather than the WIRES-X network. Use the instructions for the network and equipment you actually have; do not assume the WIRES-X button provides the same functions everywhere.

Configure your call sign and review digital routing while stationary. Start with a local test and a known destination before saving a working configuration. APRS, where this model provides it, is a separate feature with its own channel and position-reporting settings.
