Antenna Tuners
The antenna tuner — more correctly called an antenna tuning unit or ATU — is probably the most misunderstood piece of equipment in the ham radio shack. Many operators believe it makes a poor antenna work like a good one. It does not. Others believe it is always needed to use an antenna. It is not. Understanding exactly what an antenna tuner does and does not do is essential for making smart decisions about your station and not wasting power or money on a false sense of security. This lesson gives you a clear, honest picture of what a tuner actually accomplishes.

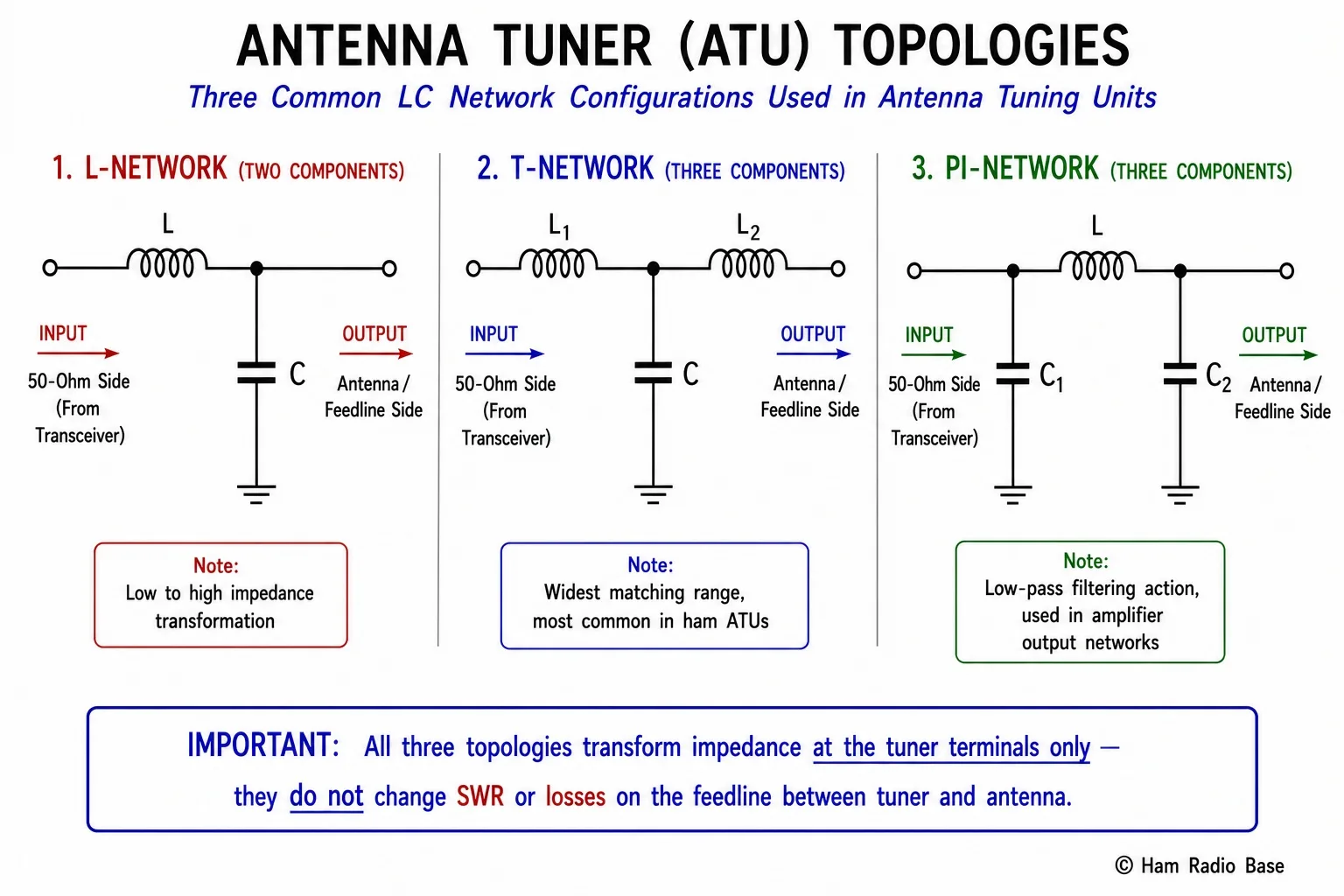

The three most common ATU circuit topologies: L-network (two components), T-network (three components), and Pi-network (three components). Each has different impedance matching range and Q characteristics.
View LargerWhat an Antenna Tuner Actually Does
An antenna tuner is an impedance matching network. It is a collection of inductors and capacitors that can be adjusted to transform one impedance to another. Specifically, it transforms the impedance seen at its output terminal (which is whatever impedance the feedline presents, determined by the antenna system) to a 50-ohm resistive load at its input terminal, where the transceiver is connected.
This is the complete description of what an ATU does: it transforms impedance at the tuner's terminals. That is all. It makes the transceiver see 50 ohms. It makes the transceiver happy. The transceiver's SWR meter reads 1:1. But what happens beyond the tuner — down the feedline toward the antenna — is a separate matter entirely.
The tuner does not change the SWR on the feedline between the tuner and the antenna. It cannot. The SWR on the coax between the tuner and the antenna is determined by the antenna's feedpoint impedance relative to the coax's characteristic impedance (50 ohms). If the antenna's feedpoint is 200 ohms and you are using 50-ohm coax, the SWR on that coax is 200/50 = 4:1. Installing a tuner at the radio end of the coax and adjusting it to give a 1:1 SWR at the transceiver does not change the 4:1 SWR on the coax — it just makes the transceiver see a matched load. The 4:1 SWR on the coax remains, with its associated higher feedline losses, reflections, and currents.
The Most Common Misconception
Let us work through a concrete example to make this unmistakably clear. You have a 40-meter dipole (resonant at 7.150 MHz) and you want to use it on 20 meters (14.150 MHz). The dipole's feedpoint on 20 meters is not 73 ohms — it is some complex impedance with both resistance and reactance, perhaps 110 + j200 ohms. The SWR on your 50-ohm coaxial cable will be very high — perhaps 7:1 or more, depending on the exact frequency and coax length.
You install a tuner at the radio end. You tune it to 1:1 SWR. The transceiver now delivers full power without complaint. But the 7:1 SWR is still present on the entire length of coax between the tuner and the antenna. If that coax is 100 feet of RG-58, its nominal loss at 14 MHz is about 2.5 dB per 100 feet at SWR 1:1. At 7:1 SWR, the additional matched-mismatch loss adds about 2–3 dB more, giving total losses of 4.5–5.5 dB. Without the tuner, the transceiver would see 7:1 SWR and power-back — but the loss in the coax would be the same whether you tuner-matched it or not.
The power reaching the antenna is determined by (transmitter power) − (feedline loss). The feedline loss depends on SWR and cable type/length. The tuner affects neither. Installing a tuner at the shack end does not recover any power lost in a high-SWR feedline.
The exception: An ATU installed at the antenna feedpoint (or very close to it) is different. There, the tuner transforms the antenna's impedance to 50 ohms before the signal enters the feedline. This results in low SWR on the entire feedline from the remote tuner back to the transceiver, which minimizes feedline losses. Remote antenna tuners (like the LDG Z-11 Pro used with an antenna), or antenna tuning units built into the base of a vertical, operate in this beneficial mode.
The L-Network
The L-network is the simplest ATU topology, using just two components — typically one inductor and one capacitor arranged in an L-shape (one in series, one in shunt). The L-network can only match impedances in one direction: it transforms from a high impedance to a lower impedance, or from a low impedance to a higher impedance, depending on which configuration is used (high-pass or low-pass L).
The L-network is efficient because it has only two reactive components, each of which has some loss. With fewer components than T or Pi networks, the total stored energy is lower and therefore fewer losses per cycle. For matching a dipole at its resonant frequency (73 ohms to 50 ohms, a mild mismatch), an L-network is excellent. For more extreme impedance transformations, the component values become impractical.
L-networks are commonly used as balun transformers (1:4, 1:9, etc.) and are the standard ATU topology in many portable and QRP antenna systems. The LDG auto-tuner series and many simple homebrew matching units use L-network configurations.
The T-Network
The T-network uses three components — typically two series inductors (or an inductor and a capacitor) with a shunt capacitor, forming a T shape. It is the most common ATU topology in commercial high-power shack ATUs (like the MFJ-949 and similar units) because of its wide impedance matching range. The T-network can match a very wide range of impedances, from near-short to near-open, making it flexible for use with many different antenna and feedline combinations.
The T-network's drawback is efficiency. Because of its topology, the T-network operates at a higher internal Q than the L-network for the same transformation ratio. Higher internal Q means more circulating energy and more losses in the inductor's winding resistance and capacitor's dielectric. For difficult matches (large SWR at the tuner's output), the T-network loss can be 1–3 dB or more, which is significant. For easy matches (low SWR at the tuner output), losses are small.
Commercial T-network ATUs typically achieve 85–95% efficiency (0.6 to 0.7 dB loss) for moderate mismatch ratios and lower efficiency for extreme mismatches. For a 1:1 SWR at the input and output (a tuner connected between two matched 50-ohm systems), a well-made T-network tuner may have less than 0.3 dB loss.
The Pi-Network
The Pi-network (so named because the circuit diagram resembles the Greek letter π) uses two shunt capacitors and one series inductor. It is the standard output matching network in traditional vacuum tube amplifiers, where it transforms the high plate impedance of the amplifier tube to the 50-ohm load. In a standalone ATU role, the Pi-network offers similar matching range to the T-network but with different Q characteristics and a low-pass filtering action that reduces harmonics.
The Pi-network is less commonly found in standalone shack ATUs (T-networks dominate) but appears in amplifier output networks. Some specialized ATUs use Pi configurations for their harmonic suppression properties.
Balanced ATUs for Open-Wire Feeders
When using an antenna fed with open-wire feedline (300-ohm twin-lead, 450-ohm window line, or 600-ohm open-wire feeder), the feedline is balanced — it carries equal and opposite currents on its two conductors. A standard T-network ATU is unbalanced — its input and output are single-ended relative to ground.
Connecting a balanced feedline to an unbalanced ATU without a balun creates common-mode current problems: the two conductors of the feedline are driven at different potentials relative to ground, current flows on the outside of the feedline rather than differentially, and the feedline can radiate and carry RF into the shack. The solution is to use either a balanced ATU or to add a 1:1 current balun (choke balun) at the ATU's output.
True balanced ATUs (like the classic link-coupled tuner, or modern balanced designs from Palstar and others) have a balanced output that drives the two feedline conductors at equal and opposite voltages relative to ground. They are the ideal choice for open-wire feeder systems. Alternatively, many operators use a standard T-network ATU with a good 1:1 balun or balanced coupler at the output — this works well and is more affordable.
The combination of a resonant dipole or multi-band antenna with an open-wire feeder run to a balanced ATU in the shack is one of the most effective and flexible multi-band antenna systems for HF. The low loss of open-wire feedline (typically 0.1–0.5 dB per 100 feet) combined with the ability to tune to any impedance at any frequency provides excellent performance across a wide frequency range. This is why the G5RV, ZS6BKW, and similar antennas have remained popular despite their apparent complexity.
ATU Losses
ATU losses depend on the matching topology, the quality of the components (especially the inductor Q), and the severity of the mismatch being corrected. Here are approximate figures for a well-made commercial T-network ATU:
| SWR at ATU output (into antenna/feedline) | Typical ATU loss (T-network) | Power reaching antenna vs no tuner |
|---|---|---|
| 1:1 (antenna already matched) | <0.3 dB | 93%+ — negligible difference |
| 2:1 (mild mismatch) | 0.3–0.5 dB | 88–93% — small loss |
| 4:1 (moderate mismatch) | 0.5–1.0 dB | 79–88% — noticeable but acceptable |
| 10:1 (severe mismatch) | 1.0–2.0 dB | 63–79% — significant |
| 20:1 (extreme mismatch) | 2.0–4.0 dB | 40–63% — poor; address the antenna problem instead |
These are ATU losses alone, not including the feedline losses at high SWR. The total system loss (ATU + feedline) for extreme mismatch situations can easily exceed 6–10 dB, leaving you with a tiny fraction of your transmitter power actually arriving at the antenna. This is why using an ATU to compensate for a seriously mismatched antenna is not a substitute for fixing the antenna problem.
When to Use an ATU
An ATU genuinely helps in these situations:
- Multi-band operation with a single dipole: A dipole resonant on 40 meters can be used on 15, 20, and 10 meters (its harmonic bands) with low-SWR feedline loss if tuned through an ATU. On the harmonic bands, the dipole has a usable but not ideal impedance that the ATU corrects. On non-harmonic bands (like 17 meters or 30 meters), the SWR on a short coax run may be acceptable with an ATU.
- Dipole operated across a wide frequency range: A 40-meter dipole used from 7.0 to 7.3 MHz does not need a tuner (its 2:1 SWR bandwidth covers this range), but if you want to use it on adjacent bands with short feedline, an ATU extends the useful range.
- Open-wire feeder systems: A multi-band antenna (like the classic G5RV) fed with 300 or 450-ohm ladder line presents a wide range of impedances at the shack end across different bands. An ATU with balanced output corrects this across all bands. This is one of the best practical uses of an ATU.
- End-fed antennas: End-fed half-wave (EFHW) antennas require a 49:1 or 64:1 matching transformer — this is a form of ATU integrated into the antenna system. Variable ATUs at the shack end are sometimes used for fine-tuning or on-frequency optimization.
- Remote-mounted ATU at the antenna feedpoint: This is the most effective use of an ATU. All feedline from the remote tuner back to the shack is at low SWR; the ATU just compensates for the antenna's non-resonant impedance at the feedpoint. This minimizes feedline losses entirely.
When You Do Not Need an ATU
You do not need an ATU when:
- Your antenna is resonant on the band you are using: A properly cut dipole on its design band, a quarter-wave vertical with a good radial system, or any resonant antenna with reasonable feedpoint impedance (50–75 ohms) connected to 50-ohm coax does not need a tuner. The SWR is low enough that the transceiver operates happily and feedline losses are minimal.
- Your transceiver's SWR tolerance covers the antenna's SWR: Most modern transceivers tolerate up to 2:1–3:1 SWR without backing off power (many have internal matching circuits that handle 3:1 SWR). A dipole has 1.46:1 SWR at resonance with 50-ohm coax — no tuner needed.
- You have a short feedline run: Even with a 4:1 SWR, 25 feet of RG-213 at 14 MHz has only about 0.5 dB of total loss (matched loss ≈ 0.2 dB, SWR additional ≈ 0.3 dB). Adding a tuner may add more than it saves in this case.
Auto-Tuners
Automatic antenna tuners (auto-tuners) perform the same impedance transformation as manual tuners, but with motor-driven components controlled by a microprocessor that automatically searches for the minimum SWR setting. Most modern transceivers include internal auto-tuners with a matching range of up to 3:1 SWR. External auto-tuners (like the LDG AT-100 or Icom AH-4) extend this range to 10:1 or more.
Auto-tuners are enormously convenient — they find the best match in seconds without manual adjustment. However, they share all the limitations of any ATU: they match the transceiver to a 50-ohm presentation, but do not change the SWR on the feedline between the tuner and the antenna. The same caveats about feedline loss and extreme mismatch apply.
A remote auto-tuner placed at the antenna feedpoint (like the Icom AH-4, LDG Z-817H for portable use, or various commercial installations) is the ideal configuration. The auto-tuner is triggered from the shack over a control line; it tunes the antenna impedance to 50 ohms at the feedpoint. The entire feedline run from there to the radio is then at 1:1 SWR, giving the best possible feedline efficiency and minimum loss. This is the configuration serious operators use when maximum performance from a non-resonant antenna is needed.
- An ATU is an impedance matching network — it transforms whatever impedance the feedline presents into 50 ohms for the transceiver. Nothing more.
- A shack-end ATU does NOT reduce SWR or losses on the feedline between the tuner and the antenna. Those remain unchanged.
- The T-network is the most common ATU topology due to wide matching range. The L-network is more efficient for moderate mismatches.
- ATU losses range from <0.3 dB for a near-matched load to 2–4 dB for extreme mismatches.
- The most effective use of an ATU is remote-mounted at the antenna feedpoint, giving low SWR on the entire feedline run.
- Open-wire feeder plus balanced ATU is one of the best multi-band HF antenna systems, allowing operation on any band with low feedline loss.
- You don't need a tuner for a resonant antenna operating on its design band with short, low-loss feedline.
Frequently Asked Questions
My tuner shows 1:1 SWR but my signal is weak. Does that mean the tuner is helping?
The 1:1 reading at the tuner means the tuner is presenting 50 ohms to your transceiver — so the radio is working normally. But that tells you nothing about how much power reaches the antenna. If there is a long run of coax at high SWR between the tuner and the antenna, significant power is being lost as heat in the cable. The signal being weak is more likely due to feedline loss or a fundamentally inefficient antenna (perhaps too short, too close to the ground, or in a poor location). The tuner is "helping" the radio deliver full power — but where that power goes after leaving the tuner is a different question. Check your feedline for loss, and compare your antenna to a known reference like a dipole at good height.
Can an ATU make a random length wire work on any band?
Yes, within limits. A random-length wire has an unknown and variable impedance across bands. If the tuner can transform that impedance to 50 ohms, the system will work. However: the feedline SWR is still whatever it was before the tuner; the wire itself may have poor efficiency (if it is very short for the band); and on some bands the impedance may be outside the tuner's matching range (some T-network tuners struggle with very low resistance loads, under 5 ohms, which happen on specific bands with specific wire lengths). Random wire antennas work best with a good earth ground or counterpoise at the tuner to provide the return current path. They are a viable portable antenna approach but never as efficient as a resonant antenna on its design band.
My transceiver has a built-in tuner. Do I still need an external ATU?
It depends on your antenna and operating plans. Built-in tuners in most modern transceivers match up to about 3:1 SWR — they handle the common situation of a near-resonant antenna that is slightly off-frequency. For a well-chosen antenna (a dipole on its primary band, a resonant vertical), the internal tuner is sufficient and an external ATU is unnecessary. If you want to use multiple bands with a single antenna, use an off-center-fed or end-fed multi-band design, or use open-wire feedline with an external balanced ATU — the built-in tuner typically lacks the matching range and balanced output for these applications. External ATUs become necessary for extreme impedance transformations or for balanced feedline systems.
Does tuning an ATU improve my received signal as well as my transmitted signal?
Yes — by reciprocity, the same impedance matching that helps your transmitter deliver full power to the antenna also helps the receive system. A well-matched receive path delivers more of the received signal to the receiver's front end with less loss in the feedline and matching network. In practice, for receive, the noise added by a lossy system (the ATU itself adding noise at 300K temperature) is generally small compared to external noise on HF bands. The biggest benefit is feedline loss: on receive, a high-SWR feedline loses signal just as it loses transmit power. A properly matched system with low feedline loss improves signal-to-noise ratio on receive, which is especially noticeable on the quieter HF bands (10, 12, 15, 17 meters) where man-made noise is lower.
