Antenna Loading
In a perfect world, every antenna would be full size — cut to the exact resonant length for every band it needs to cover. In the real world, mobile operators cannot carry a 40-foot whip on their car, apartment dwellers cannot string a 130-foot dipole, and SOTA climbers cannot lug a full-size antenna to every summit. Loading is the technique that allows an antenna to be electrically shortened to whatever physical constraints allow, while maintaining the ability to resonate and radiate on the desired frequency. It comes with a cost in efficiency that is always worth understanding before choosing a compromise antenna design.

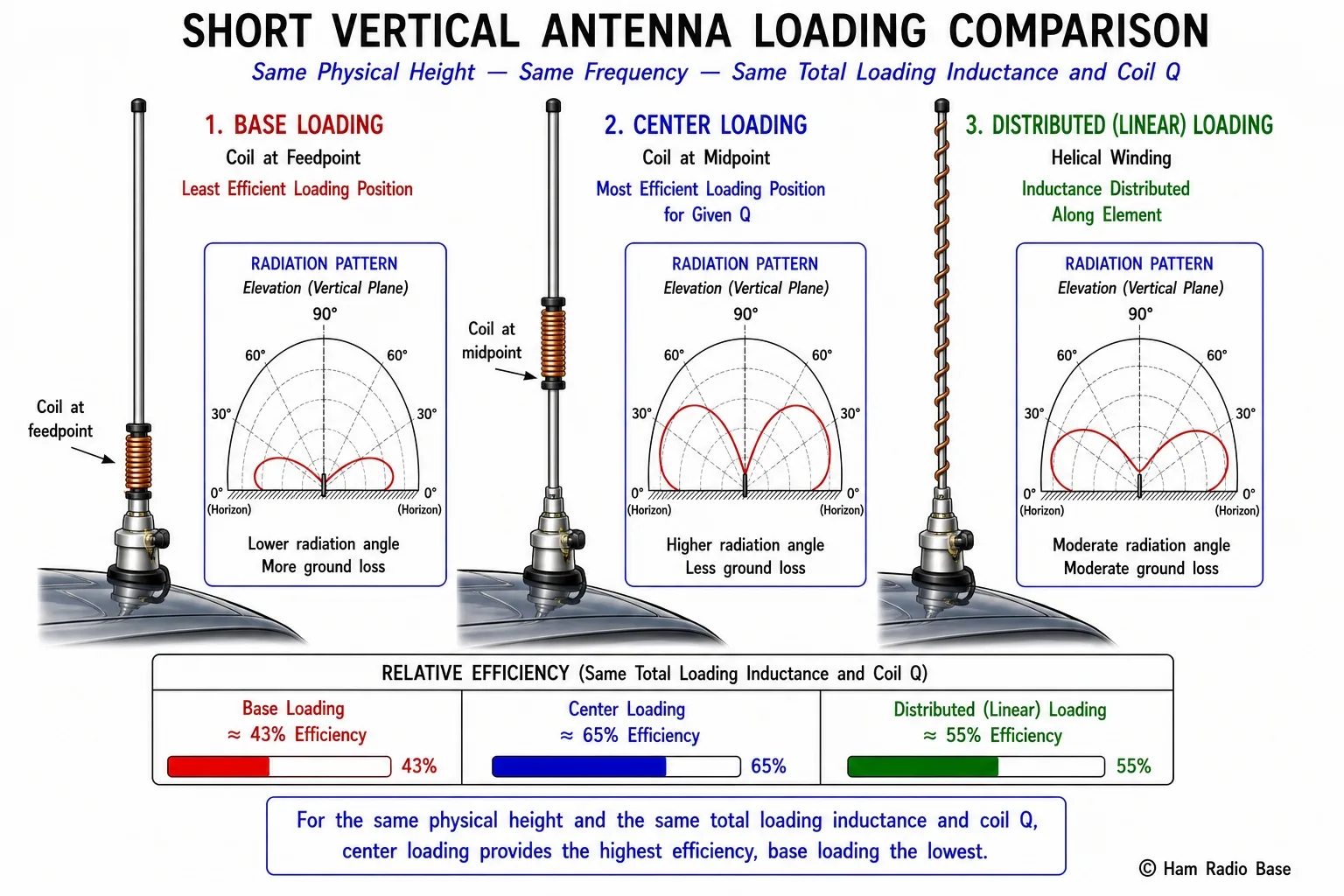

The three main loading configurations: base loading (coil at bottom), center loading (coil at midpoint), and linear/distributed loading (helix along full length). Center loading is most efficient for a given coil Q.
View LargerWhy Short Antennas Need Loading
A short antenna — one that is significantly less than a half-wavelength long — is not resonant. At resonance, the feedpoint impedance is purely resistive (no reactance). Off resonance, the feedpoint presents both resistance and reactance. For an antenna that is too short, the reactance is capacitive: the feedpoint looks like a negative reactance (or in other words, a capacitor) in series with the radiation and loss resistances.
A transmitter driving a capacitive reactance will produce much higher feedline currents to try to force power into the capacitive load, but the transmitter's output network is not designed to handle a severely reactive load — it will either reflect power back (high SWR) or limit output (if the transmitter has SWR protection). In either case, you will not be feeding the antenna efficiently.
The solution is to add a series inductance — a loading coil — that cancels the capacitive reactance. When the coil's inductive reactance (XL = 2πfL) equals the capacitive reactance of the short antenna (XC), the two cancel and the antenna system is resonant. The feedpoint then sees only the resistive component — radiation resistance plus loss resistance — and the transmitter can deliver power efficiently.
The analogy is straightforward: a short antenna is like a spring that is too stiff (too much capacitive reactance). The loading coil is like a spring in series that is too flexible (inductive reactance). Together they balance out, and the system resonates. The price you pay is that energy oscillates in and out of the LC system every cycle — some is lost as heat in the coil's winding resistance. The higher the required inductance (the shorter the antenna), the more energy is stored in the coil, and the more energy is lost per cycle.
The Loading Coil
A loading coil is simply an inductor wound with appropriate inductance to resonate the shortened antenna at the desired frequency. The required inductance depends on how short the antenna is: the shorter the antenna, the higher the capacitive reactance to cancel, and therefore the larger the inductance needed.
Loading coils for HF mobile antennas are typically large — several hundred to several thousand microhenries for low-band work (40, 80, 160 meters). They are wound on high-quality forms using thick wire (often 12 or 14 AWG) with careful pitch optimization to achieve the highest possible Q. The coil Q is the ratio of the coil's reactance to its series resistance: Q = XL / Rcoil. A high Q coil has low resistance relative to its reactance, meaning low loss. A low Q coil wastes more of the antenna's input power as heat in the coil windings.
Rloss(coil) = XL / Q
Where XL is the coil's inductive reactance and Q is the coil's quality factor.
Lower Q = higher loss resistance = lower antenna efficiency.
Base Loading
Base loading places the loading coil at the very bottom of the antenna, at the feedpoint. The coil is at the base of the vertical element, immediately above the mounting point. This is the simplest loading arrangement and was historically common because it places the coil close to the transmitter for easy adjustment.
The problem with base loading is that the coil is located where the current in a natural half-wave antenna would be maximum — at the feedpoint. By substituting a coil for antenna wire at this point, you are replacing the most effective radiating section of the antenna (the high-current section) with a coil that mostly stores and returns energy rather than radiating it. The result is that the equivalent radiation resistance seen at the feedpoint is very low, and the loss resistance of the coil dominates. Efficiency suffers more than with other loading positions.
Base loading is still widely used in commercial HF mobile antennas because of its mechanical simplicity and easy tuning — the coil can be made variable by using a motor-driven tapping point. Many commercial antenna systems for 75/80-meter mobile operation use base loading because it allows remote tuning of the coil tap from the driver's seat. The efficiency penalty is accepted as a trade-off for convenience.
Center Loading
Center loading places the loading coil at approximately the midpoint of the antenna — at the center of a vertical, halfway up. At this position, the coil is at a point where the current distribution in a natural full-length antenna would be around 70% of its maximum. More current flows through the coil, which means more of the input power is delivered to the antenna above the coil and radiated.
Center loading is significantly more efficient than base loading for the same coil Q. The reason is that the upper half of the antenna — above the loading coil — sees a higher current distribution and radiates more effectively. The radiation resistance is higher (you are feeding the antenna at a higher-current point effectively), while the coil loss remains the same. The ratio of radiation to loss is better, so efficiency is higher.
As a rough rule of thumb: for the same physical antenna and the same loading coil, center loading typically improves efficiency by 2–4 dB compared to base loading on the lower HF bands (40, 80 meters). This is a substantial improvement — the equivalent of increasing transmit power by 1.5 to 2.5 times. For serious HF mobile or portable operation, center loading is the preferred design.
Distributed (Linear) Loading
Instead of concentrating the loading inductance in one location (a discrete coil), distributed loading (also called linear loading) spreads the inductance throughout the antenna by making the antenna conductor itself into a helix — a coil-shaped wire rather than a straight wire. The helical winding has inductance per unit length, which adds to the natural capacitance of the element structure and allows a shorter physical length to achieve resonance.
Distributed loading trades efficiency for compactness. A helical antenna is always less efficient than a full-size antenna — the distributed inductance has resistive loss per unit length, just like the concentrated coil — but the efficiency is often comparable to center loading with a good-quality coil, and the mechanical simplicity can be attractive. Some commercial mobile antennas (like the Hamstick series) use distributed loading throughout their length.
A special case of distributed loading is the "linear loaded" antenna, where the loading is achieved not by helical winding but by folding a parallel section of wire back alongside the radiating element. This creates a distributed capacitive loading effect without a coil, and can be very efficient (very low loss) because there is no resistive loss element involved — only wire.
Loading Coil Q and Efficiency
The Q factor of the loading coil is the single most important parameter for a shortened antenna's efficiency. A coil with higher Q has lower loss resistance for the same reactance, which means more of the input power goes to radiation and less goes to heat. The efficiency improvement from doubling the coil Q is often 3–6 dB — a very significant improvement.
Factors that increase loading coil Q:
- Larger wire diameter: Lower skin-effect resistance at RF. Silver or gold plating can further reduce surface resistance.
- Larger coil diameter: A coil with larger diameter for a given inductance has lower resistance because the wire length per unit inductance is longer and the coupling between adjacent turns is different.
- Optimal pitch (turns per inch): Too close together increases inter-turn capacitance and reduces effective Q. Too far apart increases wire length unnecessarily. Approximately 1 wire-diameter spacing between turns is a good starting point.
- Low-loss coil form: The coil must be wound on a material that is not lossy at RF. PVC plastic is lossy and should not be used. PTFE (Teflon), acrylic, polypropylene, or air-wound coils are better choices.
- No metallic objects near the coil: The metal mounting hardware, antenna tube, and vehicle body all interact with the coil's magnetic field. Positioning the coil away from metal (at a center position up the antenna) reduces this interaction and improves Q.
Typical Q values: A commercial loaded mobile antenna coil might have Q = 100–200. A carefully designed and positioned homebrew loading coil can achieve Q = 300–500. Commercial "high-efficiency" antennas often quote Q values of 200–400. These values translate directly into efficiency:
Assume a 10-foot mobile antenna on 40 meters, with center loading. Estimated radiation resistance Rrad ≈ 3 ohms. Loading coil required reactance XL ≈ 400 ohms.
Coil loss resistance = XL / Q
- Q = 100: Rcoil = 400/100 = 4 Ω. Efficiency = 3/(3+4) = 43%. At 100W, ~43W radiated.
- Q = 200: Rcoil = 400/200 = 2 Ω. Efficiency = 3/(3+2) = 60%. At 100W, ~60W radiated.
- Q = 400: Rcoil = 400/400 = 1 Ω. Efficiency = 3/(3+1) = 75%. At 100W, ~75W radiated.
Going from Q=100 to Q=400 improves efficiency from 43% to 75% — a gain of about 2.4 dB. That improvement is equivalent to going from 100 watts to about 174 watts at the Q=100 efficiency. A better coil pays off handsomely.
Worked Example: 40-Meter Mobile Antenna
A mobile operator wants to operate on 40 meters (7.150 MHz) with a physically limited antenna of 8 feet total length. What loading coil inductance is needed?
The full-size quarter-wave for 40 meters = 234/7.150 = 32.7 feet. The antenna is 8 feet — only 24% of the required length. This is a severely short antenna.
The capacitive reactance of the short antenna can be estimated. For a vertical antenna of height h over a ground plane, the reactance is approximately:
For a rough estimate, the required loading coil reactance for an 8-foot antenna on 40 meters is approximately 700–900 ohms (the exact value depends on the antenna's conductor diameter and the presence of any mast or vehicle body, and should be determined by measurement). For this example, assume Xneeded ≈ 800 ohms.
Required inductance L = X / (2πf) = 800 / (2π × 7.150 × 10⁶) = 800 / 44,924,000 = 17.8 μH
This is a substantial coil — roughly 20–30 turns of 12 AWG wire wound on a 3-inch diameter former with half-inch pitch would give approximately 18 μH. The coil diameter, wire size, and form material determine the Q. The radiation resistance for an 8-foot antenna on 40 meters (8/32.7 = 0.245 of quarter wave) is very roughly (0.245)² × 36 ≈ 2.2 ohms — very low, making Q critical for any usable efficiency.
Trap Antennas: Multi-Band Loading
A trap antenna uses resonant LC circuits (traps) inserted at specific points along a dipole or vertical to allow multi-band operation with a single antenna. At the frequency where a trap is resonant, the trap presents very high impedance — effectively an open circuit — which electrically disconnects the outer portion of the antenna on that band. At lower frequencies, the trap is below resonance and presents inductive reactance — it acts as a loading coil for the outer portion of the antenna, allowing the full antenna length to resonate on lower bands.
A common example is a 20/40 meter trap dipole: traps are positioned at the 20-meter half-wave point from the center. On 20 meters, the traps are resonant and the antenna is electrically a standard 20-meter half-wave dipole, ignoring the wire beyond the traps. On 40 meters, the traps are below resonance and act as loading coils for the wire sections beyond them, allowing the full-length antenna to resonate on 40 meters.
Trap antennas are a compact multi-band solution but come with trade-offs. The traps have finite Q and add loss to every band where they operate in the inductive mode (all bands below the trap resonant frequency). Additionally, the bandwidth on each band is typically narrower than a simple dipole — the traps make the antenna somewhat more frequency-sensitive. Commercial trap verticals and trap dipoles are very popular because of their convenience, and their efficiency is adequate for general HF operation, though always somewhat lower than full-size antennas.
Practical Advice on Shortened Antennas
Loading works, but it always comes at a cost. Here is a framework for making good decisions about shortened antennas:
1. Use as much wire as possible. Every additional inch of physical antenna length reduces the required loading coil inductance, reduces coil loss resistance, and raises the radiation resistance. Adding a top hat (a horizontal radial at the antenna tip) or a capacity hat (a spoke arrangement at the top) reduces the needed loading by effectively lengthening the antenna electrically without adding physical height. Even a small top hat can improve efficiency noticeably.
2. Position loading at the center, not the base. Center loading is 2–4 dB more efficient than base loading for the same coil Q on severely shortened HF antennas. The extra mechanical complexity of a center-loaded design is almost always worth it.
3. Maximize coil Q. Use large-diameter wire (12 AWG minimum, 10 AWG better), the largest practical coil diameter, a low-loss form material, and optimal pitch. A well-wound homebrew coil often outperforms cheap commercial designs. Check that coil Q specifications from manufacturers are measured at the actual operating frequency — Q varies with frequency.
4. Accept the efficiency penalty honestly. A 10-foot 80-meter mobile antenna might be 10–20% efficient (−7 to −10 dB). Running 100 watts into it is equivalent to running 10–20 watts into a full-size antenna. Knowing this, you can make an honest assessment of what contacts are possible and avoid frustration when the antenna does not perform like a 130-foot dipole.
5. Use an antenna analyzer to check resonance. Always tune a loaded antenna to resonance at its installed location. The vehicle body, nearby metal, and the ground beneath the antenna all affect the resonant frequency. An antenna that resonated perfectly at your workbench may need retuning when installed on the car. A well-resonated short antenna is much better than a slightly off-resonance one.
- A short antenna presents capacitive reactance at its feedpoint. A loading coil adds inductive reactance to cancel it, achieving resonance.
- Base loading (coil at feedpoint) is simple but least efficient — the coil replaces the highest-current section of the antenna.
- Center loading (coil at midpoint) is significantly more efficient — typically 2–4 dB better than base loading for the same coil Q.
- Distributed (linear) loading spreads inductance throughout the element length.
- Coil loss resistance = XL/Q. Higher Q coils produce higher efficiency. Doubling Q approximately halves coil losses.
- Trap antennas use resonant LC circuits to switch effective antenna length between bands. They add some loss on each loaded band.
Frequently Asked Questions
Can I put a loading coil on a 2-meter Yagi director to make it shorter?
Not usefully. Loading coils in Yagi elements are not practical at VHF and UHF because the element lengths are already short, and the coil losses become extreme relative to the radiation resistance at those frequencies. The required loading coil would have very high reactance and very low Q at 146 MHz or higher, making the system essentially unusable. At VHF and UHF, full-size elements are always used. Shortening is only done mechanically (using smaller-diameter tubing to reduce weight) not electrically. Loading coils are essentially an HF technique.
My commercial HF mobile antenna is rated for 200 watts. Does that mean it is efficient?
Not necessarily. The 200-watt power rating tells you how much power the antenna can handle without burning out the loading coil — it is a thermal rating, not an efficiency specification. A loading coil rated for 200 watts could be 30% efficient (wasting 140 watts as heat) or 80% efficient (wasting only 40 watts). The power rating must be high enough to handle the waste heat, not just the radiated power. Always look for the antenna's efficiency specification or Q factor — those tell you what fraction of your power is actually being radiated. High power ratings can sometimes hide very inefficient designs that are simply built with a more robust coil to survive their own heat dissipation.
Does a top hat really help? It seems like a trivial amount of metal.
A top hat (or capacity hat) helps more than you might expect. By adding conductors at the tip of the antenna, you add end-effect capacitance that increases the electrical length of the antenna without adding physical height. This reduces the capacitive reactance that the loading coil must cancel, allowing a smaller (and therefore higher-Q, lower-loss) coil to achieve resonance. For a severely shortened antenna on 40 or 80 meters, a simple top hat of 4 spokes, each 18–24 inches long, can reduce the required loading coil inductance by 30–50%. That reduction in inductance drops the coil loss resistance proportionally, giving a measurable efficiency improvement of 1–3 dB. The mechanical complication is worth it for any serious mobile HF installation on 40 meters or lower.
