Battery Charging

Your radio station is only as reliable as its power source, and a portable or emergency station is only as good as its batteries. Whether you are activating a summit for SOTA, staffing a communications post during an ARES exercise, or keeping your shack running through a grid outage, the ability to charge batteries correctly — and safely — is a fundamental skill for every ham radio operator.

Battery charging sounds simple, but the details matter enormously. Different battery chemistries require completely different charging voltages, charging methods, and termination criteria. Using a lead-acid charger on a lithium battery can overcharge it and cause a fire. Using a lithium charger on a lead-acid battery will undercharge it and shorten its life. Even within the same chemistry, a cheap charger without proper termination logic will slowly destroy an expensive battery pack.

This lesson covers the four main battery types you will encounter in ham radio — lead-acid, LiFePO4, Li-ion, and NiMH — explains exactly how each is charged, shows you how to calculate charge times, and walks through the practical power planning needed for a real portable station.

Why Charging Matters for Ham Radio

Amateur radio operators depend on batteries in three main contexts. First, portable operations: SOTA (Summits on the Air) activators routinely carry a 3–5 kg radio, antenna, and battery to a mountaintop and operate for several hours on battery alone. A miscalculated or poorly charged battery pack can mean a failed activation or a very long walk back to civilization. Second, emergency communications: when a disaster strikes and utility power is unavailable, the radio operator who can keep a station running is providing a critical community service. The ARRL Field Day exercise specifically tests whether clubs can operate 24 hours with no utility power. Third, general portable use: operating from a park, a boat, or a campsite is far more enjoyable when you do not have to worry about whether your battery will last the afternoon.

In all of these scenarios, the ability to charge batteries efficiently and correctly — and to plan how long a given battery will last — is as important as knowing how to tune your antenna or operate your transceiver. A battery charged incorrectly will have reduced capacity, shorter life, and in some cases can become a safety hazard. This lesson gives you the complete technical foundation to charge any battery you encounter in ham radio service correctly.

Battery Chemistry Overview

Four battery chemistries dominate ham radio portable and emergency use. They differ enormously in how they must be charged, and confusing them can cause serious damage or hazards. The table below summarizes the key parameters before we dive into the details of each.

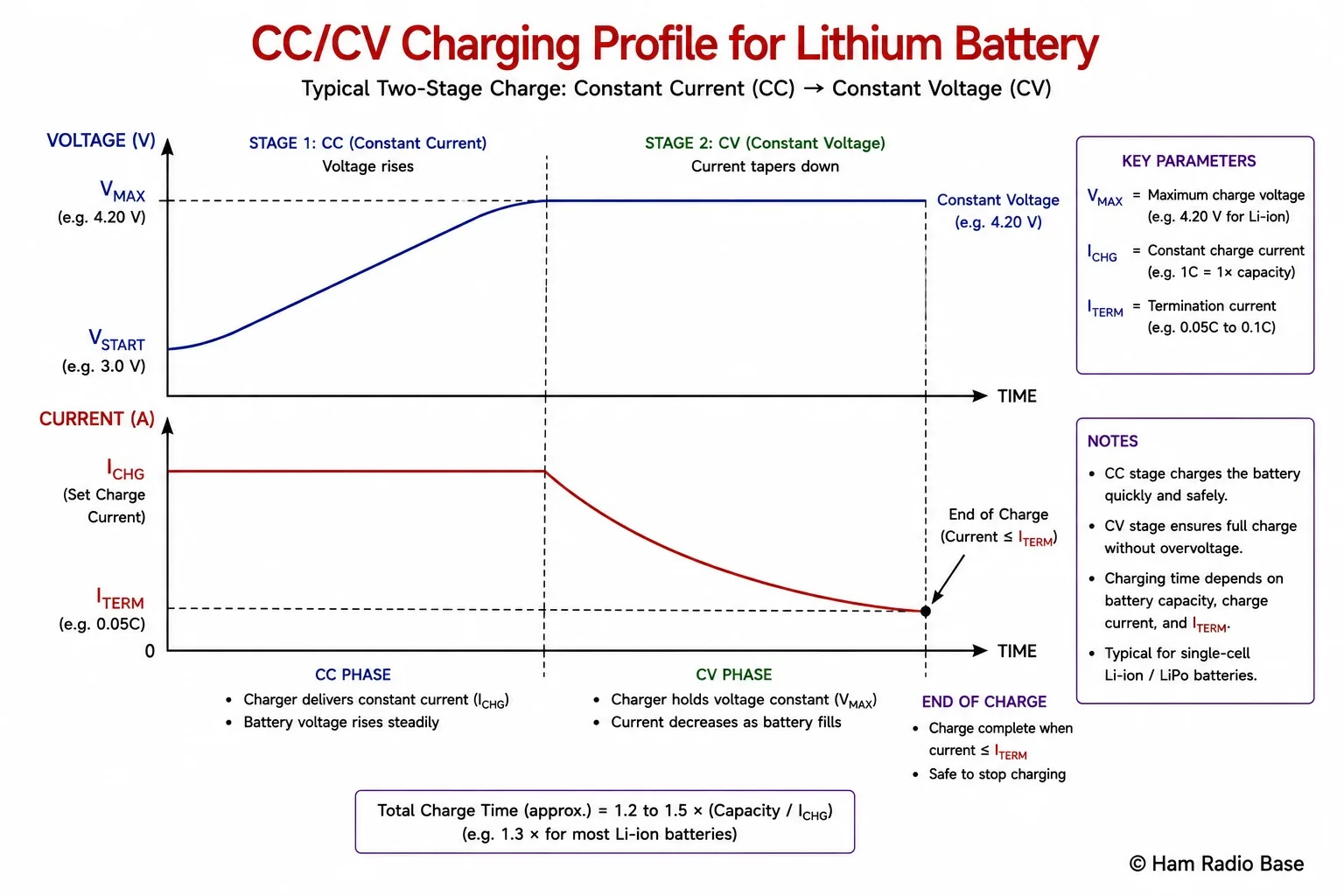

The CC/CV charging profile used by lithium batteries. During the constant-current (CC) phase the voltage rises steadily. When it reaches the target voltage the charger holds that voltage constant (CV phase) while the current decays. Charging ends when the current drops below a low threshold (typically 0.05C), indicating the cell is full.

View Larger

Lead-Acid Battery Charging

The lead-acid battery is the oldest rechargeable battery chemistry still in mass production, and it remains the default choice for ham radio emergency and base-station use because it is inexpensive, tolerates abuse, and can deliver the high instantaneous currents needed to key a 100 W transceiver. The chemistry is simple: lead dioxide positive plates, sponge lead negative plates, and sulfuric acid electrolyte. During discharge, both plates convert to lead sulfate. During charging, the process reverses.

The most important concept for lead-acid charging is that the battery needs a three-stage process, not a simple constant-voltage connection. A direct connection to 13.8 V will eventually charge the battery but will never fully charge it, will not prevent self-discharge, and — if held there indefinitely at the wrong voltage — can cause gassing and electrolyte loss.

Stage 1: Bulk Charge (Constant Current)

In the bulk stage, the charger delivers its maximum rated current into the battery. The terminal voltage rises steadily as the cells charge. This stage is responsible for delivering approximately 80% of the battery's total capacity. For a 12 V lead-acid battery, the charger holds the current constant until the terminal voltage reaches 14.4 V (2.4 V per cell × 6 cells). The maximum safe charge current is typically C/10 to C/5 — that is, 10–20% of the battery's amp-hour rating. A 100 Ah battery should not be charged faster than 20 A (C/5) in normal service, though some manufacturers allow up to C/3 for brief periods.

Stage 2: Absorb Charge (Constant Voltage)

When the terminal voltage reaches 14.4 V, the charger transitions to constant voltage (CV) mode. It holds 14.4 V while the battery continues to absorb charge — now at a declining current rate as the cells fill. This absorb phase tops up the remaining 20% of capacity and ensures complete sulfate reversal. The absorb phase is complete when the charging current has fallen to approximately 0.02C (2% of the battery's Ah rating). For a 100 Ah battery, that means waiting until current drops to about 2 A. This can take 1–3 hours after the initial bulk phase. Rushing through the absorb phase by ending charge early is the primary cause of chronic undercharging and premature sulfation, which permanently reduces battery capacity.

Stage 3: Float Charge (Continuous Low Voltage)

Once fully charged, the charger drops the voltage to a lower float value — typically 13.5–13.8 V (2.25–2.30 V per cell) — and holds it there indefinitely. At float voltage, the current drawn is just enough to counteract the battery's natural self-discharge rate. This keeps the battery at 100% charge without overcharging it. A properly connected float charger can keep a lead-acid battery at full charge for months or years. This is how uninterruptible power supplies (UPS) and permanently connected emergency power systems work.

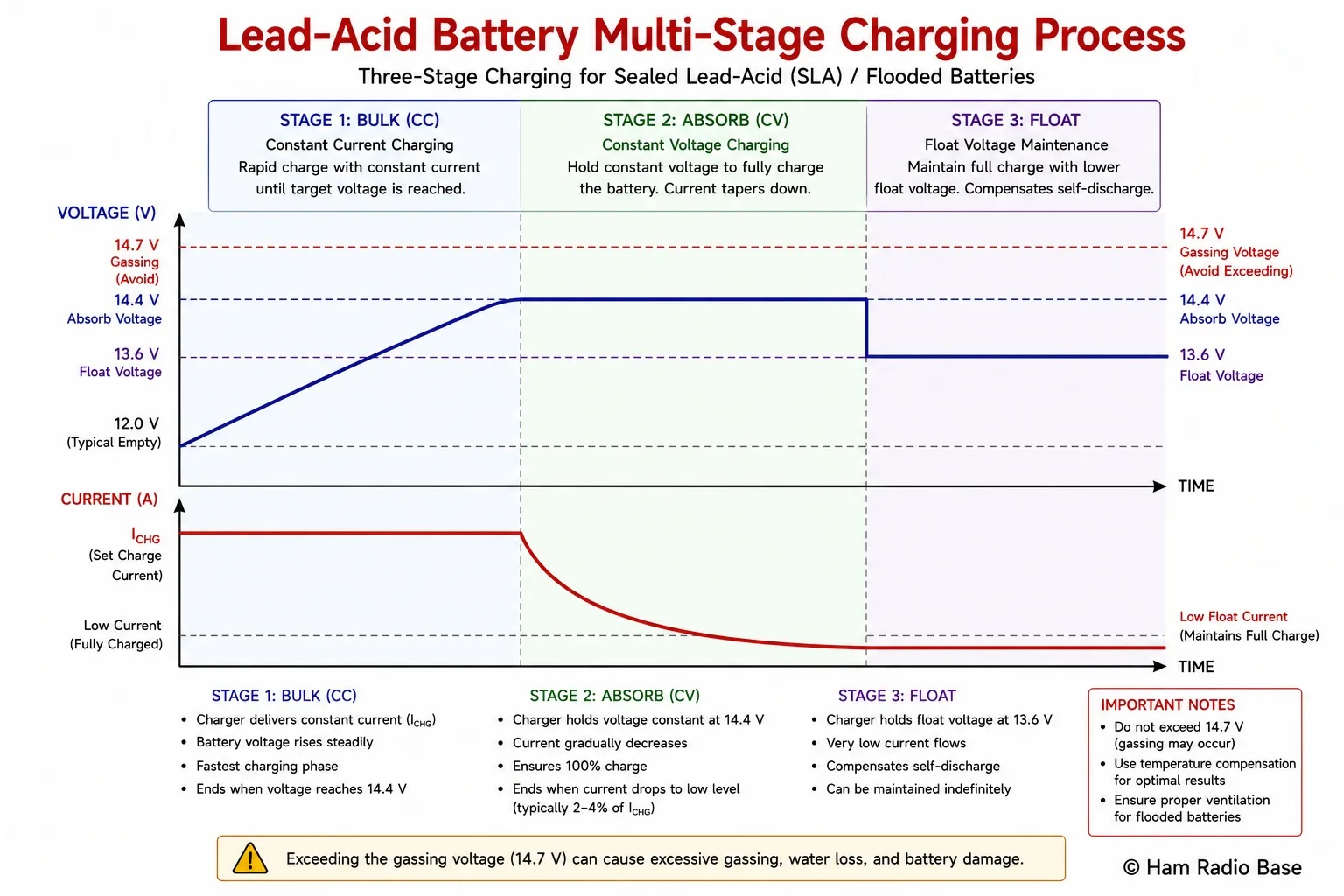

Three-stage lead-acid charging profile. Voltage rises freely during the bulk (CC) phase, is held at 14.4 V during absorb, and drops to 13.6 V for indefinite float maintenance. The gassing threshold at 14.7 V must never be exceeded for more than brief equalization charges on flooded batteries.

View Larger

Practical Lead-Acid Chargers for Ham Radio

Smart multi-stage chargers are inexpensive and essential. The Battery Tender Jr (1.25 A) and the NOCO Genius series (1 A, 5 A, and 10 A models) are favorites in the ham radio community. These chargers automatically cycle through bulk, absorb, and float stages and can be left connected indefinitely. Avoid automotive-style "trickle chargers" that deliver a fixed low current with no voltage termination — these will eventually overcharge and gas the battery.

Discharge depth matters significantly for lead-acid longevity. Lead-acid batteries have dramatically longer cycle life when kept above 50% state of charge. Regularly discharging to 80% depth of discharge (DoD) will cut the cycle life roughly in half compared to shallow cycling. For an emergency power battery that you want to last 10 years, plan to use only 30–50% of its rated capacity per cycle. This is in sharp contrast to LiFePO4, which can be routinely discharged to 80% DoD without significant life penalty.

LiFePO4 (Lithium Iron Phosphate) Charging

LiFePO4 is the lithium chemistry most commonly adopted by ham radio operators for portable operation, and for good reason. Its flat discharge curve holds voltage nearly constant from 100% to 20% state of charge — the radio operates at full power until the battery is almost depleted. Its cycle life of 2,000–4,000 cycles at 80% DoD dwarfs lead-acid. It is significantly lighter for the same capacity. And unlike other lithium chemistries, LiFePO4 does not catch fire if overcharged or punctured — it is the safest lithium option available.

A "12 V" LiFePO4 battery pack is actually a 4-cell series pack (4S). Each cell has a nominal voltage of 3.2 V, giving 12.8 V nominal for the pack. The full-charge voltage is 3.65 V per cell, or 14.6 V for the 4S pack. The low-voltage cutoff is typically 2.5 V per cell, or 10 V for the 4S pack.

CC/CV Charging for LiFePO4

LiFePO4 uses the same basic CC/CV method as other lithium chemistries. The charger delivers constant current — typically 0.5C to 1C — until the pack voltage reaches 14.6 V. It then holds 14.6 V (CV phase) while the current declines. Charging terminates when the current drops to approximately 0.05C. There is no float stage for LiFePO4 — once fully charged, the charger should switch off or drop to a very low maintenance voltage. Holding LiFePO4 at full charge voltage continuously accelerates degradation.

Battery Management System (BMS)

Every LiFePO4 pack sold for portable use contains a Battery Management System (BMS). The BMS monitors individual cell voltages and protects against overcharge (shuts off the charging circuit if any cell exceeds 3.65 V), over-discharge (disconnects the load if any cell drops below 2.5 V), overcurrent (shuts off for short-circuit protection), and overtemperature (disables charging below 0°C and disables discharge at extreme temperatures). The BMS is the reason LiFePO4 is so safe and easy to use — it prevents the one mistake that could damage the pack.

A quality BMS is transparent in normal use. You charge through it and draw power through it without knowing it is there. You only notice it when it trips — which tells you something was wrong. If your LiFePO4 pack suddenly refuses to charge or discharge, the BMS has likely tripped a protection circuit. Most reset automatically when the fault condition clears (voltage, temperature, etc.).

Li-Ion Charging

Standard lithium-ion batteries — the chemistry in laptop batteries, power tool packs, and many handheld radio battery packs — share the CC/CV charging method with LiFePO4 but use different voltage thresholds. The nominal cell voltage is 3.6–3.7 V, and the full-charge voltage is exactly 4.20 V per cell. This voltage limit is critical: exceeding 4.25 V per cell on a standard Li-ion cell risks thermal runaway.

Thermal runaway is the catastrophic failure mode unique to high-energy-density lithium chemistries: the cell heats, the heat accelerates the chemical reaction, which generates more heat in a self-sustaining cycle that can result in fire or explosion. The conditions that cause thermal runaway are overcharging beyond 4.25 V, physical puncture of the cell, internal short circuit, and extreme external heat. Modern Li-ion battery packs include a BMS precisely to prevent all of these conditions. Never attempt to charge a Li-ion cell with a homemade charger or a supply not specifically designed for the cell chemistry — the consequences of getting it wrong are serious.

For ham radio use, Li-ion cells appear primarily in commercial handheld radio battery packs (VHF/UHF HT batteries). These should always be charged using the manufacturer's charger or a charger explicitly rated for the specific pack. Aftermarket chargers are acceptable only if they implement the correct CC/CV profile to 4.2 V and have proper termination logic. Avoid charging any Li-ion pack unattended until you are confident in the charger's reliability.

NiMH Charging

Nickel-metal hydride batteries, standard AA and AAA cells, and pack batteries built from them are common in handheld ham radios. The Yaesu FT-60R, Kenwood TH-D74, and many other HTs accept AA NiMH cells in an optional tray. NiMH cells have a nominal voltage of 1.2 V per cell, rising to approximately 1.45 V when fully charged.

The clever aspect of NiMH charging is the termination method. Unlike lead-acid and lithium batteries where the charge voltage increases monotonically until a threshold is reached, a NiMH cell's terminal voltage actually decreases slightly when it reaches full charge (the delta-V, or –ΔV, effect). This voltage dip — typically 5–15 mV per cell — is what a smart NiMH charger detects to terminate the charge. Low-quality chargers that ignore this signal will continue charging, causing the cell to heat up and lose capacity.

A safe and simple alternative for NiMH is slow charging at C/10 (10% of the Ah rating). A 2,000 mAh AA cell charged at 200 mA for 14–16 hours will reach full charge without needing delta-V detection. This is the recommended method when you are using a basic charger or charging overnight. At the C/10 rate, NiMH cells tolerate mild overcharge and simply dissipate the excess energy as heat — they will be warm but not hot.

NiMH cells have notoriously high self-discharge rates. Standard NiMH cells lose 20–30% of their charge per month at room temperature — a freshly charged pack left on the shelf for a month may not have enough charge to work. For emergency communications use, always freshly charge your NiMH packs within 24 hours of deployment. Alternatively, use low-self-discharge (LSD) NiMH cells such as the Panasonic Eneloop, which retain 70–80% of their charge after one year of storage. These are strongly preferred for emergency kits.

Charge Time Calculation

Estimating how long a battery will take to charge is essential for portable operations. The basic formula assumes 100% efficiency, which is unrealistic — some energy is lost as heat during charging. The practical formula incorporates a charge efficiency factor, which is typically 85–95% depending on chemistry and charge rate:

For LiFePO4 and Li-ion, efficiency is higher — typically 97–99% — and there is no extended absorb phase. A 50 Ah LiFePO4 pack charged at 20 A (0.4C) will take approximately 50/20 = 2.5 hours to reach roughly 80% capacity in CC phase, with another 30–45 minutes for the CV taper to 100%.

Battery Management Systems

A Battery Management System is the electronic brain inside any modern lithium battery pack. It is a small circuit board that sits between the cells and the outside world — the charging connector and the load connector both connect through the BMS. Understanding what a BMS does helps you understand why lithium batteries are so safe in normal use, and what you should never do that might bypass or overwhelm the protection.

The BMS monitors individual cell voltages (not just total pack voltage) and triggers protective actions if any cell goes out of range. This is critical because lithium cells in series can become unbalanced over time — one cell may charge faster or discharge faster than its neighbors. Without per-cell monitoring, the pack could appear to be at a safe total voltage while an individual cell is dangerously over- or under-charged. Quality BMS boards include a cell balancing circuit that slowly equalizes cell voltages during charging by bleeding a small current from the more highly charged cells.

The protective functions of a BMS include: overcharge protection (disconnects the charger if any cell exceeds 3.65 V for LiFePO4 or 4.25 V for Li-ion); over-discharge protection (disconnects the load if any cell drops below 2.5 V for LiFePO4 or 3.0 V for Li-ion); overcurrent protection (shuts off if current exceeds the rated maximum, protecting against short circuits); and thermal protection (disables charging below 0°C, since lithium plating occurs when charging cold cells, and disables all functions above 60–80°C).

For lead-acid batteries, a BMS is optional but beneficial in sophisticated installations. A simple voltage-based low-voltage disconnect relay or electronic switch can protect a lead-acid battery from over-discharge — a useful addition to any unattended emergency station that must protect itself against a deeply discharged battery.

Charging from a Vehicle's Electrical System

Many ham radio portable operators carry their battery bank in their vehicle and charge it while driving. A vehicle's alternator produces 13.6–14.8 V at the battery terminals, varying with engine speed and electrical load. This voltage range is acceptable for a lead-acid battery being maintained at float, and can push a partially discharged lead-acid battery through a partial bulk charge while driving.

The situation is more complicated for LiFePO4 batteries in a secondary "house" bank. Simply connecting a LiFePO4 pack in parallel with the vehicle's lead-acid starter battery is generally not recommended, because the different chemistry characteristics mean the two batteries will not share current well, and the vehicle's charging system is not designed to perform the proper CC/CV-to-14.6 V profile needed to fully charge LiFePO4.

The correct solution is a DC-to-DC battery-to-battery (B2B) charger, sometimes called an isolator charger. A B2B charger accepts the vehicle's unregulated 12–14.8 V input, converts it to the correct multi-stage charging profile for whatever chemistry is in the secondary bank, and provides electrical isolation between the two batteries so the secondary load cannot drain the starter battery. Popular units include the Sterling Power BBW12, Victron Orion-Tr Smart, and Renogy DC-DC chargers. These cost $60–$200 but are the only correct solution for proper secondary battery charging while driving.

Ham Radio Power Planning

Before you can select and charge a battery for a portable or emergency operation, you need to know how much energy your station actually consumes. This is a straightforward calculation once you know the receive and transmit currents of your radio and your anticipated operating pattern.

The key takeaway from these calculations is that a 100 W HF transceiver running hard consumes energy at a prodigious rate. For sustained Field Day or ARES operation, a generator with a smart charger is the practical solution. For lightweight portable operation, a small QRP transceiver at 5–10 W changes the math dramatically — a 10 Ah LiFePO4 pack and a 20–40 W solar panel can sustain indefinite QRP operation in most climates.
