Solar Charging for Ham Shacks

A solar power system that keeps your station running when nothing else does is the hallmark of a well-prepared amateur radio operator. When a hurricane takes out the grid, when you are operating from a remote hilltop with no power hookup, or when you simply want to minimize your electricity costs at a remote repeater site, solar energy is the solution. The calculations involved are not difficult, but they need to be done correctly — an undersized solar system will frustrate you, and an oversized one will waste money you could spend on radio gear.

This lesson teaches you everything you need to size, wire, and operate a solar charging system for portable and emergency ham radio use. We start from how a solar panel converts sunlight to electricity, move through the two types of charge controllers and why the difference matters, and end with complete worked sizing examples for both a lightweight SOTA pack and a serious emergency HF station.

Why Solar for Ham Radio

SOTA (Summits on the Air) activators need a power source that weighs almost nothing and keeps working for hours at a time on a remote mountain. Emergency communications operators need a power source that works when the grid is down and keeps working for days. DXpeditioners need a power source they can carry on a boat or small aircraft to a remote island. In all of these scenarios, solar energy combined with a well-chosen battery bank is the answer.

Solar panels have no moving parts, require no fuel, produce no noise (critical for receiving weak signals), and their output is entirely predictable once you understand the calculations. A 50-watt panel and a 20 Ah LiFePO4 battery pack fit in a backpack and will sustain a QRP station indefinitely in most climates during summer. A 200-watt panel and a 100 Ah battery bank will run a 100 W HF transceiver for an entire ARES emergency deployment.

Solar Panel Basics

A solar panel is made of photovoltaic (PV) cells — typically silicon. Each cell is a p-n junction, just like the diodes and transistors you have already studied. When a photon from sunlight strikes the silicon, it transfers its energy to an electron, knocking it free of its atom. The internal electric field of the p-n junction pushes this electron toward the n-side, creating a voltage across the cell and a current that flows through an external circuit. This is the photovoltaic effect, discovered by Edmund Becquerel in 1839.

A single silicon cell produces about 0.5–0.6 V in sunlight. To reach useful voltages, cells are connected in series. A standard "12 V nominal" solar panel typically contains 36 cells in series, producing an open-circuit voltage of about 21 V — high enough to charge a 12 V battery through a charge controller.

Key Solar Panel Specifications

Every solar panel has a specification sheet listing five key electrical parameters, all measured under Standard Test Conditions (STC): 1,000 W/m² irradiance, 25°C cell temperature, and AM1.5 spectral distribution.

The maximum power point (MPP) is the single operating point on the panel's current-voltage (I-V) curve that produces the most power. At lower voltages (toward short circuit) the current is nearly constant but voltage is low, so power is low. At higher voltages (toward open circuit) the voltage is near maximum but current drops steeply, so power is again low. The MPP sits at the "knee" of the I-V curve — the sweet spot. An MPPT charge controller continuously finds and tracks this point.

Temperature Effects on Solar Panels

This is one of the most commonly misunderstood aspects of solar panels. The STC rating is at 25°C cell temperature — not air temperature. On a summer day with the panel lying flat in direct sun, the cell temperature easily reaches 60–75°C. At these temperatures, Voc decreases by approximately 0.5% per °C above STC.

Real-world panel output is typically 75–80% of the STC rated wattage when you account for heat, soiling, wiring losses, and angle errors. Always build this derating into your calculations — do not expect to consistently get 100 W out of a 100 W panel.

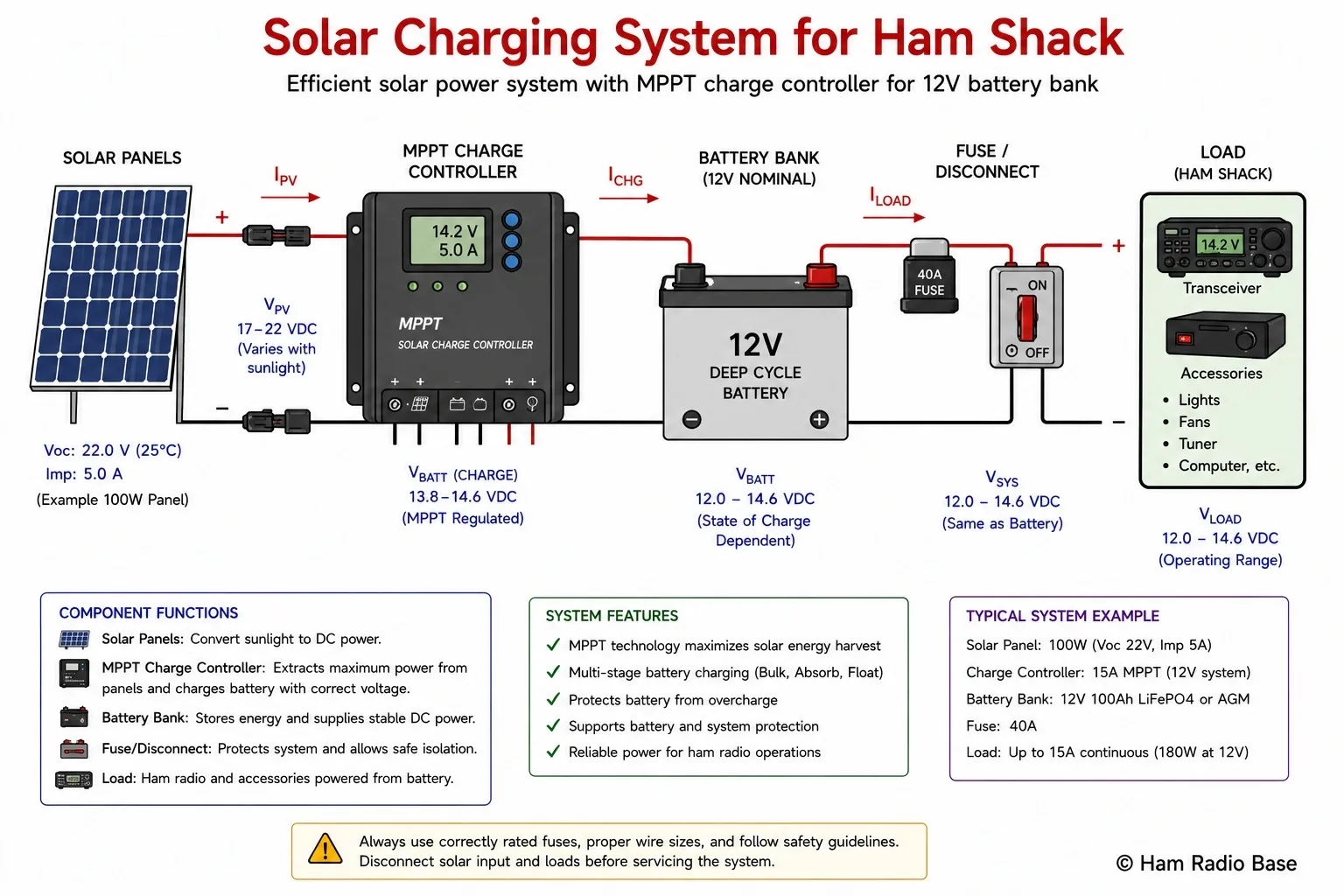

A complete solar charging system: panel with Voc and Imp labeled, MPPT charge controller providing correct multi-stage charging, battery bank, fused distribution to loads. Every connection point in a real system should be fused or protected.

View Larger

Peak Sun Hours

Peak sun hours is one of the most important — and most misunderstood — concepts in solar system sizing. A peak sun hour is not an hour of daylight. It is one hour of sunlight at exactly 1,000 W/m², which is the STC irradiance level at which panels are rated. In reality, the sun's intensity varies throughout the day: it is low at dawn and dusk, peaks around solar noon, and varies with clouds, haze, and season.

The peak sun hour figure represents the total daily solar energy divided by 1,000 W/m² — the equivalent number of hours at full intensity that would produce the same energy as the real daily profile. For example, a location that receives 5,000 Wh/m² per day of solar energy has 5.0 peak sun hours, even if the sun is actually up for 14 hours.

For portable operations where you may set up anywhere in the country, use 4.0–5.0 peak sun hours as a conservative planning figure. The NREL (National Renewable Energy Laboratory) provides a free online tool called PVWatts that gives precise values for any US location. For emergency planning, always use the winter figure or the lowest monthly figure for your region — the solar system must work in worst-case conditions, not just in August.

Charge Controller Types: PWM vs MPPT

The charge controller is the brains of the solar system. It sits between the solar panel and the battery, preventing overcharge, implementing the correct charging profile (bulk/absorb/float for lead-acid, CC/CV for lithium), and providing protection against reverse current at night. The two fundamental technologies are PWM and MPPT, and choosing between them affects both system efficiency and component selection.

PWM — Pulse Width Modulation Controllers

A PWM controller works by directly connecting the solar panel output to the battery through a switching transistor. To regulate charging, it rapidly switches the connection on and off — during "on" periods, panel current flows into the battery; during "off" periods, it is disconnected. The ratio of on-time to off-time (the duty cycle) is varied to control the average current and maintain the correct battery voltage.

The critical limitation of PWM is that it forces the panel to operate at the battery voltage, not at the panel's optimal Vmp. If the battery is at 12.5 V and the panel's Vmp is 17.8 V, the PWM controller throws away the voltage difference. The panel operates well below its maximum power point, and available power is wasted. A 100 W panel charging a 12 V battery at 12.5 V via PWM actually delivers only about 70 W — approximately 70% of its rated output.

PWM controllers are inexpensive (often $10–$30 for small systems) and perfectly adequate for simple, low-cost systems where the panel's Vmp is close to the battery voltage — for example, a 12 V nominal panel (Vmp ≈ 17–18 V) charging a 12 V lead-acid battery. The efficiency loss is significant but acceptable when the equipment cost savings matter.

MPPT — Maximum Power Point Tracking Controllers

An MPPT controller is fundamentally a DC-to-DC converter — it accepts the panel's full output voltage, uses a sophisticated algorithm (typically a "perturb and observe" or incremental conductance method) to find the panel's maximum power point, and converts that higher-voltage lower-current input to the lower-voltage higher-current output needed to charge the battery. The conversion efficiency of a good MPPT controller is 93–98%.

The practical benefit is significant. That same 100 W panel that delivers only 70 W via PWM can deliver 93–98 W via MPPT — a 30%+ improvement in harvested energy. The advantage is most pronounced in cold weather, where Voc (and Vmp) are elevated well above their STC values. A cold winter morning with Vmp at 22 V and a flat 12 V lead-acid battery can result in 50%+ more energy extraction with MPPT versus PWM.

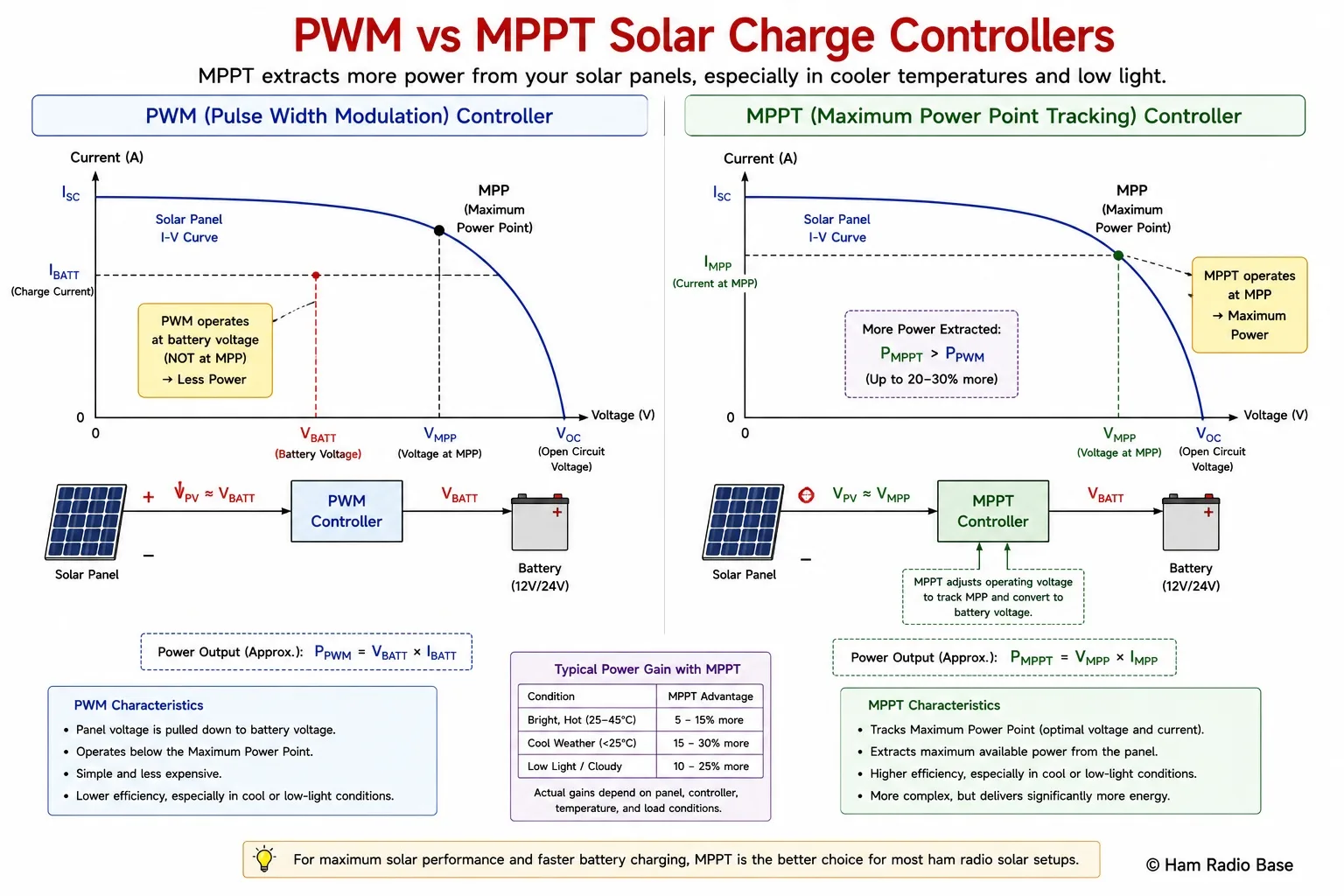

PWM forces the panel to operate at battery voltage, well below the maximum power point (MPP). MPPT tracks the MPP continuously and converts excess voltage to current, extracting significantly more power from the same panel — especially when panel Vmp greatly exceeds battery voltage.

View Larger

The rule of thumb: use MPPT for any 12 V system with panels larger than 100 W, for any system where the panel's Voc exceeds the battery voltage by more than 5–6 V, and for any system where efficiency matters (permanent installations, lightweight SOTA packs). Use PWM for simple, low-cost systems of 50 W or less where the panel is appropriately matched to the battery voltage.

MPPT controllers also have an important side benefit: they allow using a higher-voltage panel (such as a 24 V or 36 V nominal panel) to charge a 12 V battery bank. This is useful because higher-voltage panels can use thinner, lighter wiring over longer runs. The MPPT controller handles the voltage conversion. PWM controllers cannot do this — the panel and battery must be at similar nominal voltages.

Sizing the Solar Panel

The solar panel must be large enough to replenish the energy consumed each day during the available peak sun hours, accounting for system losses. The formula is straightforward:

Sizing the Battery Bank

The battery must store enough energy to power the station through periods without sunshine — either overnight or during consecutive cloudy days. The number of days you want to operate without solar charging is called the "days of autonomy."

Worked Example: Portable QRP HF Station

Let us size a complete solar system for a lightweight portable HF station suitable for SOTA activations and park operations. The radio is an Elecraft KX3 running 10 W output.

This is a genuinely portable, self-contained solar-powered HF station weighing under 2 kg for the power system alone. Operated in a sunny climate at 4–6 peak sun hours, the 20 W panel will produce 64–96 Wh per day — more than enough to replace the 38.6 Wh consumed, with surplus going into the battery for evening or cloudy-day operation. In most US locations during summer, this system will operate indefinitely without ever depleting the battery.

Worked Example: 100 W Emergency HF Station

Now let us size a system for serious emergency communications — an Icom IC-7300 or Kenwood TS-590 running up to 100 W output, used for an 8-hour daily operating shift during a disaster scenario where utility power is unavailable.

This is a serious, professional-grade emergency communications system. One 200 W panel and a 100 Ah LiFePO4 battery bank will sustain an 8-hour operating shift and recharge the battery for the next day's shift, as long as the sun shines for at least 4–5 hours. In an extended deployment during a winter storm in the Pacific Northwest where you might see only 2 peak sun hours, you would need a second panel or a backup generator for recharging.

Wiring and Safety

The wiring of a solar system handles significant DC currents at relatively low voltages. Unlike high-voltage AC wiring where small faults are obvious, a DC short circuit at low voltage can deliver enormous current silently and cause a fire. Every connection in a solar system must be protected by an appropriately sized fuse or circuit breaker.

Fusing

Place a fuse as close to the battery positive terminal as physically possible — within 12 inches (30 cm) is ideal. This protects the entire wiring system against a short circuit fault anywhere in the system. The fuse rating should be 125% of the maximum expected current, not more. For a 100 Ah battery powering a 20 A transceiver, a 30 A fuse at the battery is appropriate. Between the solar panel and the charge controller, fuse at 1.25× Isc of the panel.

Wire Gauge

Use the 3% voltage drop rule: the total voltage drop in the wiring should not exceed 3% of the system voltage. At 12 V, that is 0.36 V maximum from battery to load and back. For a 20 A load over a 6-foot (1.8 m) one-way run (12-foot / 3.6 m round trip), calculate the required wire size using the AWG current capacity tables. 10 AWG copper wire has a resistance of approximately 1.0 mΩ/ft; over 12 ft, the drop at 20 A is 20 A × 0.012 Ω = 0.24 V — acceptable. For longer runs or higher currents, step up to 8 AWG or 6 AWG.

Connectors

Anderson Powerpole connectors are the ARRL-recommended standard for portable and emergency power wiring in amateur radio. They are genderless (both sides of the connector are identical), color-coded (red positive, black negative), available in 15 A, 30 A, and 45 A ratings, and impossible to connect backwards once the contacts are inserted correctly. ARES and RACES organizations across the country standardize on Anderson Powerpoles, so any ham's equipment can plug into any other ham's power system without adapter cables.

For solar-to-controller connections, many panels use MC4 connectors — weatherproof, locking connectors designed for outdoor permanent installations. Use a proper MC4 crimping tool for reliable connections. Do not substitute generic connectors that may arc under the panel's voltage and current.

Grounding

Connect the negative terminal of the battery to the chassis of the radio equipment and to a ground rod driven into the earth if operating from a fixed location. This provides safety ground, reduces RF interference from the power system, and helps protect against lightning damage. Keep the ground connection short and use heavy wire (8 AWG or thicker). For portable operations without a ground rod, ensure the radio chassis connects to the battery negative so the transceiver's RF ground is properly referenced.

Monitoring and Troubleshooting

Modern MPPT charge controllers provide real-time display of solar input power, battery voltage, battery current, and accumulated daily energy (kWh). This data is invaluable for verifying that the system is working correctly and for troubleshooting problems.

A controller showing "0 W" from the panel on a sunny day indicates either a wiring fault (check fuses and connections), a panel fault (check that Voc measures correctly with a voltmeter across the panel output), or a mismatched voltage (panel Voc too low for the controller's minimum input). A controller showing the expected panel voltage but much less current than expected suggests soiling or partial shading.

Common problems and their causes: dirty panels can lose 10–15% of output — clean monthly with water and a soft cloth. Partial shading causes disproportionate power loss because all cells in a series string must carry the same current — one shadowed cell can drop the output of the entire string by 50% or more. Most modern panels include bypass diodes that limit this effect, but shading should still be avoided if at all possible. Corroded connections cause resistance, which causes voltage drops and power loss — inspect and clean all terminals annually and whenever performance seems degraded.

Low battery cutoff protects lead-acid batteries from destructive over-discharge. Set the load disconnect voltage on your charge controller to 11.5 V for 12 V lead-acid systems. Most MPPT controllers have this as a programmable parameter. The low-voltage cutoff ensures the battery never drops below 50% DoD during normal operation, dramatically extending its useful life.
