Beam Antennas

A beam antenna focuses radiated power into a preferred direction, giving it gain compared to a dipole. It is the ham radio equivalent of a spotlight versus a bare light bulb. With a 3-element Yagi pointed toward Europe, you effectively multiply your transmitter power by four or more times in that direction — without changing your transmitter at all. Beam antennas are the most effective single upgrade you can make to an HF or VHF station once you have good feedline and a resonant antenna. This lesson explains exactly how they achieve their gain, how the different antenna elements interact, and what the specifications like front-to-back ratio and element spacing actually mean.

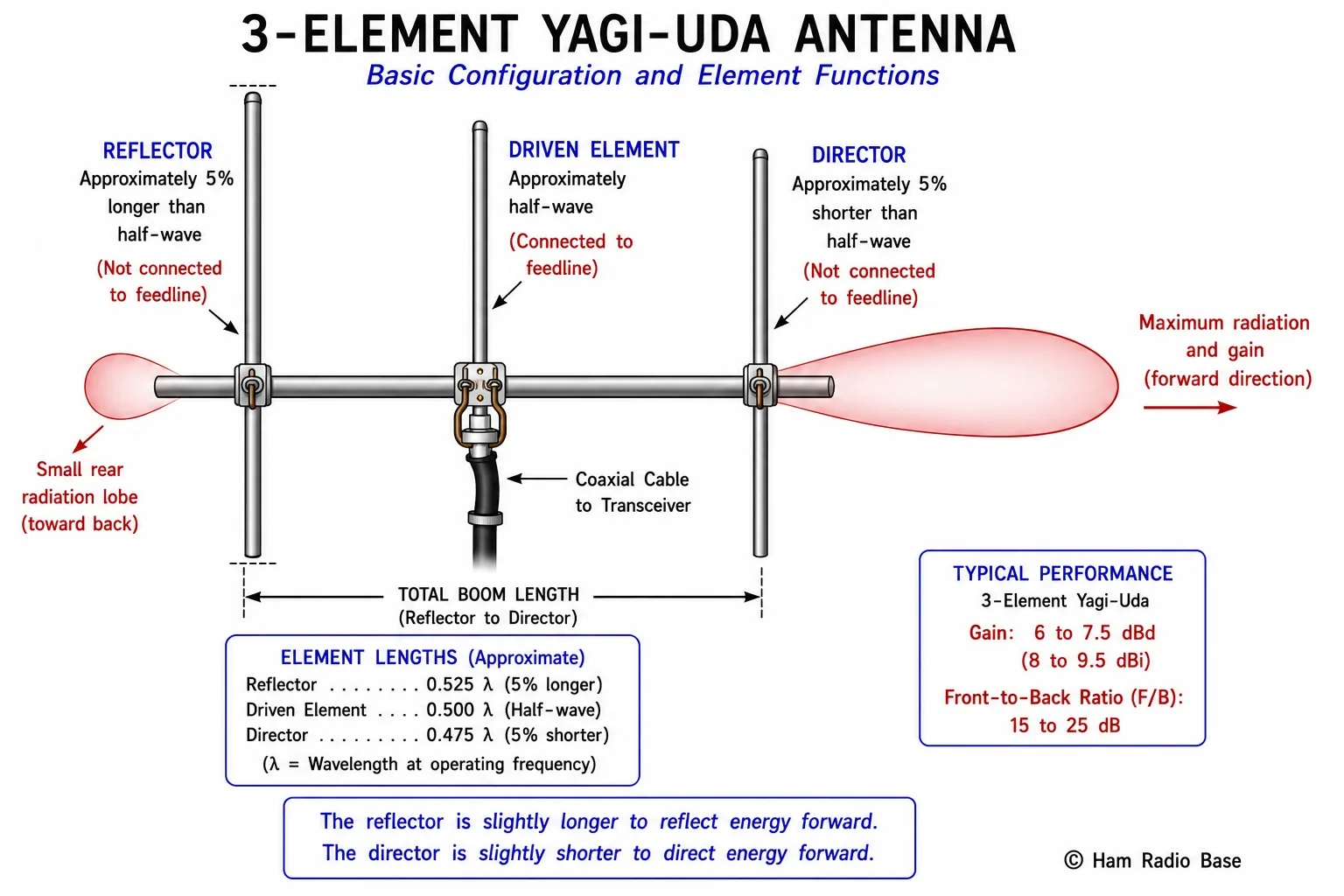

A 3-element Yagi-Uda antenna: the reflector (longest, behind the driven element) and the director (shortest, in front) shape the radiation pattern and produce forward gain.

View Larger

Parasitic Arrays: How Beam Gain Arises

The Yagi-Uda antenna (usually shortened to just "Yagi," after its Japanese inventors Hidetsugu Yagi and Shintaro Uda, who developed it in 1926) is a parasitic array. "Parasitic" means that only one element — the driven element — is directly connected to the feedline. All other elements are parasitic: they are not connected to anything, but they interact electromagnetically with the driven element through mutual coupling.

When the driven element radiates, it produces a near field that induces currents in the nearby parasitic elements. Those parasitic currents produce their own radiation, which adds to or subtracts from the driven element's radiation in different directions. The parasitic element lengths and positions are chosen so that the combined radiation from all elements adds constructively in one direction (the forward direction) and destructively in the opposite direction (the rearward direction). This constructive interference in one direction concentrates the power, producing gain.

Think of it like noise-canceling headphones in reverse. Noise-canceling technology creates anti-phase sound to cancel noise. In a Yagi, the parasitic elements are arranged so that the radiation toward the rear partially cancels (destructive interference), and the radiation toward the front is reinforced (constructive interference). The total power remains the same as from the driven element alone — but it is now concentrated into a beam rather than spread in all directions.

The key physical mechanism is mutual impedance between elements. When two antennas are close together (within a wavelength), the current induced in one by the other's radiation affects the current distribution, phase, and amplitude in both elements. By carefully choosing element lengths and spacings, antenna designers control this mutual coupling to achieve the desired beam pattern.

The Yagi-Uda Elements: Driver, Reflector, Director

The Driven Element

The driven element is the only element connected to the feedline. It is usually cut to approximately a half-wavelength — the same length as a simple dipole — though in a Yagi the presence of nearby parasitic elements shifts its resonant frequency slightly, so the driven element is often made slightly shorter or longer than the free-space half-wave formula predicts. The driven element is where all the RF power enters the antenna. In most Yagi designs, it is the element closest to the center of the boom, with the reflector behind it and the director(s) in front.

The Reflector

The reflector is placed behind the driven element (on the side away from the desired beam direction). It is approximately 5% longer than a half-wavelength — this extra length causes it to be electrically inductive at the operating frequency, which produces a phase shift in the induced current that reinforces forward radiation and reduces rear radiation.

Intuitively: the reflector catches radiation going rearward and re-radiates it forward (like a reflector in a flashlight sending lost light toward the front). In reality the mechanism is mutual coupling and interference, but the flashlight analogy captures the effect accurately. A Yagi with only a driven element and reflector (a 2-element Yagi) already produces about 3.5–4 dBd of gain and a noticeable front-to-back ratio of 10–15 dB.

The Director(s)

Directors are placed in front of the driven element, on the side toward the desired beam direction. They are approximately 5% shorter than a half-wavelength — the shorter length makes them electrically capacitive, producing a phase shift that reinforces forward radiation further. Directors act somewhat like lenses, pulling the beam forward. Adding directors increases gain but each additional director gives less improvement than the previous one — the law of diminishing returns applies.

Directors are all similar lengths to each other (each approximately 5% shorter than the operating half-wavelength) but they are not all identical. In optimized multi-element Yagis, the director lengths and spacings are individually optimized by computer modeling to maximize gain, front-to-back ratio, or bandwidth, depending on the design goal.

Element Lengths and Spacings

The following table gives approximate design starting points for a simple Yagi optimized for maximum gain. These are rough starting values — real antenna designs use computer modeling (EZNEC, YagiMax, etc.) to refine element dimensions for the specific goals and frequency:

Gain and Front-to-Back Ratio

Yagi antenna gain and front-to-back ratio are the two most important performance metrics. They are always specified together because there is a trade-off between them in antenna design — designs optimized for maximum gain tend to have moderate front-to-back ratio, and designs optimized for maximum front-to-back ratio tend to give up a little gain.

Gain is measured in dBd (relative to a dipole) or dBi (relative to isotropic, which is 2.15 dB more). For a Yagi, gain is always quoted in the maximum radiation direction — the forward direction.

Front-to-back ratio (F/B) is the ratio of the power radiated toward the front of the antenna to the power radiated toward the rear, expressed in decibels. A front-to-back ratio of 20 dB means the signal toward the front is 100 times stronger (in power terms) than the signal toward the rear. High front-to-back ratio reduces interference from unwanted stations that are behind the beam.

An important observation from this table: boom length determines gain more than element count. A 3-element Yagi with a long boom can achieve more gain than a 5-element Yagi with a short boom. This is because the parasitic interaction between elements extends over the entire boom length — a longer boom allows greater phase progression across the array, which produces more coherent addition in the forward direction.

Feedpoint Impedance

The feedpoint impedance of a Yagi driven element is significantly lower than the 73 ohms of a standalone dipole. The presence of nearby parasitic elements strongly couples to the driven element, changing its impedance. Typically, the feedpoint impedance of a 3-element Yagi driven element ranges from 10 to 30 ohms — too low for direct connection to 50-ohm coaxial cable.

Several methods are used to raise the feedpoint impedance to 50 ohms:

• Beta match (hairpin match): A shunt inductance (a short stub of wire parallel to the feedpoint) transforms the low impedance to 50 ohms. The driven element is slightly shortened from resonance to present a capacitive reactance, and the hairpin's inductance cancels it, leaving a pure resistance that is transformed to 50 ohms by the matching network geometry.
• Gamma match: A short rod attached to the driven element at an offset point from the feedpoint, connected to the coaxial center conductor, provides an impedance transformation. Common in commercial and homebrew Yagis.
• Folded dipole driven element: Using a folded dipole (which has 4× the impedance of a simple dipole) as the driven element raises the base impedance before the parasitic coupling reduces it, resulting in a feedpoint impedance closer to 50–300 ohms depending on the design. Commonly used with TV antennas and some VHF Yagis.
• Omega match: Similar to the gamma match but with a series capacitor for additional tuning.

Adding Elements: Diminishing Returns

Each additional director adds gain, but each successive director adds less gain than the previous one. The first director (creating a 3-element Yagi from a 2-element) adds about 2–3 dB. The second director adds about 1–1.5 dB. The third adds 0.8–1 dB. The tenth adds only 0.2–0.3 dB.

This diminishing return means that extremely long Yagis with many elements become impractical for most amateur use. The gain from a 10-element Yagi over a 6-element Yagi of the same boom length might be only 1–2 dB. The additional weight, mechanical complexity, and wind loading of the extra elements must be weighed against a marginal gain improvement. For most HF applications, a 3 or 4-element Yagi represents the best practical compromise.

For VHF and UHF EME (Earth-Moon-Earth) operation, where every dB matters and the antenna can be pointed at the moon mechanically without worrying about wind loading on a spinning antenna, long Yagis with 10–20 elements are practical and common. The modest size of VHF elements (each element for a 144 MHz Yagi is less than 1 meter long) makes long-boom Yagis more manageable than at HF.

Boom Length vs Element Count

A fundamental rule of Yagi design: given a fixed amount of aluminum tubing, you achieve more gain by using it as a longer boom with fewer elements than as a shorter boom with many elements. This is counter-intuitive but well established by antenna modeling.

Consider two 20-meter Yagis, both built from the same total amount of aluminum tube: Design A uses a 25-foot boom with a 3-element design. Design B uses a 10-foot boom with 7 elements packed close together. Design A will have more gain than Design B despite using fewer elements, because the longer boom allows more spatial separation between elements, enabling more coherent far-field pattern shaping. The 7-element short-boom antenna cannot achieve the gain of the 3-element long-boom antenna because the elements are too close together and interact weakly over a short physical span.

Log-Periodic Dipole Arrays (LPDA)

A log-periodic dipole array (LPDA) is a multi-element beam antenna with a specific mathematical relationship between element lengths, spacings, and feed phasing. Unlike the Yagi, where only one element is driven, all elements in an LPDA are driven — but they are driven through a phased feed network that causes the antenna to behave as if the active region is always the elements near resonance at the operating frequency.

As you change frequency, the active region shifts along the array — shorter elements take over at higher frequencies, longer elements at lower frequencies. This makes the LPDA broadband: its gain, impedance, and pattern remain relatively constant over a wide frequency range (typically a 2:1 to 10:1 frequency range, depending on the number of elements and design tau factor).

The typical LPDA offers 4–7 dBd of gain across its bandwidth — less than a narrow-band optimized Yagi, but useful when you need to cover multiple bands with one antenna. TV antennas are commonly LPDAs, covering the UHF TV bands. Ham radio operators sometimes use LPDAs for HF contest operation, where a single antenna needs to cover 14, 21, and 28 MHz without retuning.

Practical Beam Antenna Operation

A beam antenna must be pointed at the desired station to be useful. HF beams are typically mounted on a rotator — an electric motor assembly that turns the antenna mast in azimuth. Common rotator controllers allow pointing the beam in any compass direction, often within ±5 degrees. Knowing which direction to point the beam requires knowledge of the great circle bearing to the target location, which you can look up in any ham radio logging program or on various websites.

Beam height is critical. An HF Yagi mounted at less than one half-wavelength height will have most of its radiation at a high elevation angle — not useful for DX. The general recommendation is to mount HF beams at one wavelength or higher if possible. For a 20-meter Yagi, one wavelength is 21 meters (about 69 feet). Even half a wavelength (10 meters, 33 feet) provides useful low-angle radiation for DX contacts. This height requirement is why serious DX operators build tall towers.

Mechanical design is important but outside the scope of this lesson. A Yagi sees significant wind loading — a 3-element 20-meter Yagi might have 6 square feet or more of wind area. The boom, elements, mounting hardware, and rotator must all be designed to handle the expected wind loads for your location. Consult the rotator specification for maximum wind area and use appropriate tower hardware. Safety is paramount when working at height.
