Building Shack Accessories: Worked Examples

Homebrew projects fail differently than commercial transceivers. A new kit or scratch-built accessory has never worked correctly even once, so there is no "it used to work" baseline to compare against, and the most likely cause is almost always something introduced during construction itself — a wiring error, a misread component value, a cold joint, or a part installed backward — rather than a worn or aged component. This final lesson applies the full Module 21 toolkit to that specific situation: bringing up a freshly built accessory and finding out why it does not work exactly as expected, through four complete, realistic examples covering a dummy load, an antenna tuner, a digital-mode audio interface, and a code-practice oscillator kit.

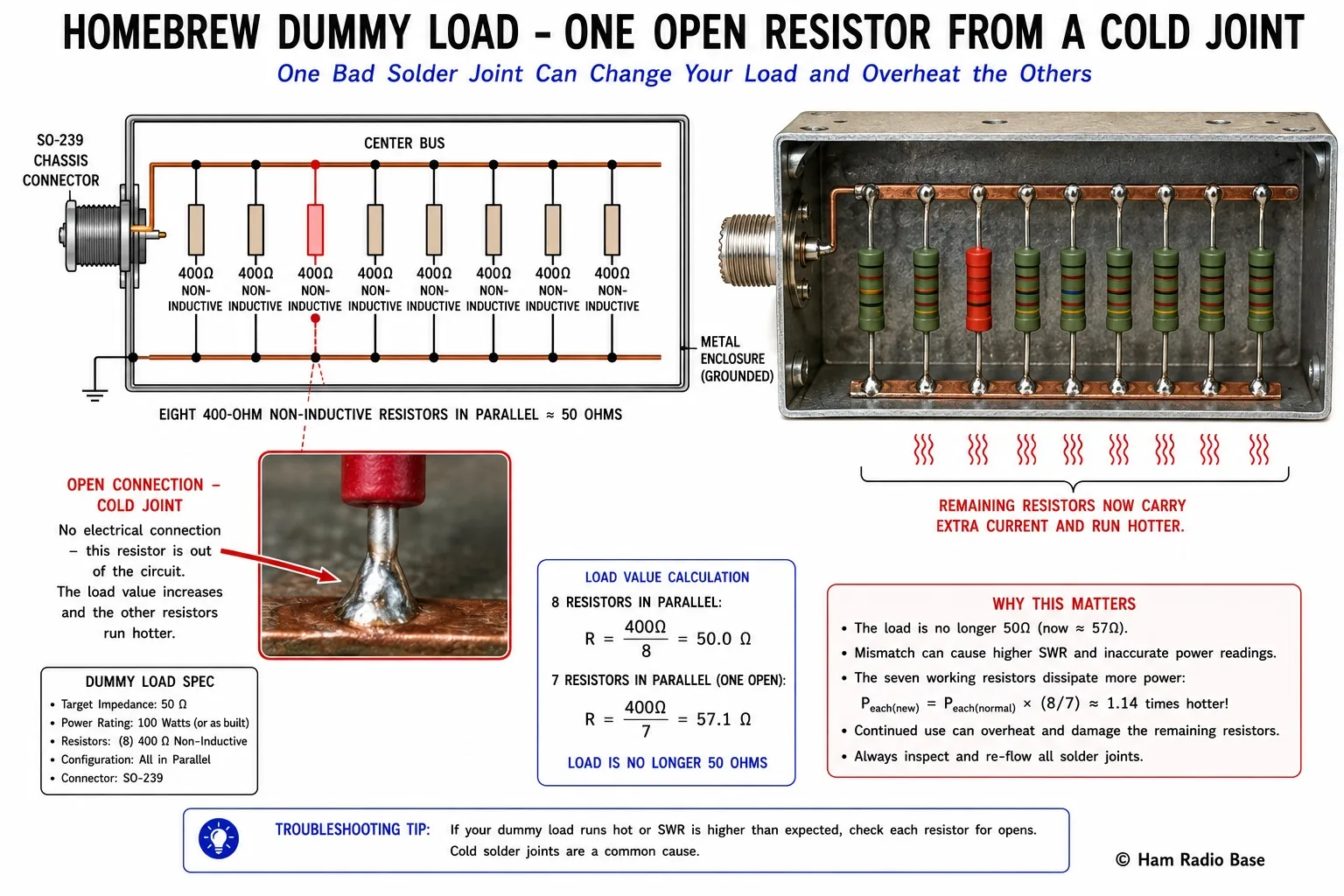

One open resistor in a parallel dummy load array raises both the total resistance and the current through every remaining resistor.

View Larger

Example 1: Homebrew Dummy Load Overheats and Reads High SWR

Initial complaint: A newly built 50 Ω dummy load, constructed from eight 400 Ω non-inductive resistors wired in parallel inside a metal enclosure (a standard, well-documented homebrew design — eight resistors of 400 Ω in parallel yield exactly 50 Ω), reads an SWR of 1.8:1 on the station's antenna analyzer instead of the expected near-1:1, and the enclosure gets noticeably hotter than expected during a brief test transmission at modest power.

Diagnosis

Step 1 (systematic method, M21A; most-likely-first for a new build): Since this unit has never worked correctly, a construction error is the leading hypothesis — most likely a wiring mistake or a bad joint, rather than a defective resistor, since the resistors were new and tested individually before installation.

Step 2 (predict, then measure, M21F): Eight 400 Ω resistors in parallel should measure 50.0 Ω exactly (1/Rtotal = 8 × 1/400 = 0.02, so Rtotal = 50 Ω). The builder measures the completed load's resistance directly with a multimeter (with the unit unpowered and disconnected from anything else) and reads 57.1 Ω instead.

Step 3 (working backward from the measurement): If seven resistors are working and one has failed open, the calculation becomes 1/Rtotal = 7 × 1/400 = 0.0175, giving Rtotal = 57.1 Ω — an exact match to the measured value, strongly suggesting exactly one of the eight resistors is open rather than a wiring error affecting the whole assembly.

Step 4 (visual inspection and continuity check, building on M21A and M21F): Under magnification, one resistor's solder joint at the enclosure's common ground bus shows a dull, grainy cold joint rather than the bright, concave fillets on the other seven. A continuity check across that one joint confirms an open connection.

Root cause: A single cold solder joint on one of the eight parallel resistors, made during original construction, left that resistor electrically disconnected. The remaining seven resistors, now carrying all the current that should have been shared across eight, ran measurably hotter than the original design intended — explaining both the SWR reading (wrong total resistance) and the excess heating (each remaining resistor dissipating more than its designed share of power).

Repair: Reflow the cold joint using proper soldering technique (Module 20), confirming a bright, concave fillet forms.

Verification: The completed load now measures 50.1 Ω (well within tolerance), and the antenna analyzer confirms an SWR of 1.02:1. A repeat test transmission shows normal, evenly distributed warming across all eight resistors.

Lessons learned: Predicting the exact expected value (M21F) and then working the math backward from the wrong measurement identified the failure mode (one open resistor, not a general fault) before a single component was touched — turning a vague "it's wrong" into "exactly one of eight is open" using nothing but arithmetic and a multimeter.

Example 2: Kit Antenna Tuner Cannot Find a Match on Some Bands

Initial complaint: A newly assembled manual antenna tuner kit, using a roller inductor and a dual variable capacitor in an L-network configuration, matches cleanly on 40 m and 20 m but cannot bring the SWR below 3:1 anywhere on 80 m, no matter how the controls are adjusted.

Diagnosis

Step 1 (systematic method, M21A): The fact that two bands work correctly and one does not points away from a wholesale wiring error (which would likely affect every band) and toward something specific to the range of inductance or capacitance needed for 80 m — the lowest frequency band attempted, which requires the most inductance and/or capacitance of any band in the tuner's range.

Step 2 (review the design against most-likely-first): An L-network's required inductance increases as frequency decreases, so 80 m operation depends on the roller inductor being able to reach its highest design value, and depends on the tap or wiring to the inductor being correct across its full range — both are reasonable construction-error suspects for a band-specific symptom.

Step 3 (substitution-style isolation by component, M21E logic adapted): The builder temporarily bypasses the capacitor section entirely (setting it to minimum capacitance, effectively isolating the inductor's contribution) and sweeps the roller inductor through its full range while watching the antenna analyzer. The displayed inductance value (read from the analyzer) never exceeds roughly 60% of the value the roller inductor's own published specification claims it should reach at full rotation.

Step 4 (visual and continuity inspection, M21A/M21F): Inspecting the roller inductor's wiring reveals the rolling contact wire is connected to a tap roughly 60% of the way along the coil's total winding, rather than to the end terminal that would allow the contact to traverse the coil's full length — a wiring mistake made during assembly, not a defective part.

Root cause: The roller inductor's traveling contact wire was connected to the wrong terminal during construction, limiting the usable inductance range to roughly 60% of the design value — enough range for 40 m and 20 m, which need less inductance, but not enough for 80 m, which needs the full range.

Repair: Re-terminate the roller contact wire to the correct end terminal per the kit's assembly diagram.

Verification: The roller inductor now sweeps its full published inductance range on the antenna analyzer, and the tuner achieves a clean match (SWR below 1.5:1) on 80 m as well as the previously working bands.

Lessons learned: A symptom that affects some bands but not others, in a multi-band device, is itself a powerful clue about which part of the circuit is involved — in this case pointing specifically at the component (the inductor) whose required range scales most directly with the band where the fault appeared, well before any wire was touched.

Example 3: Digital Mode Interface Injects Hum Into Transmitted Audio

Initial complaint: A homebrew USB sound card interface, built to connect a laptop to a transceiver for FT8 and other digital modes, works correctly for receiving and decoding, but other stations report a noticeable 60 Hz hum mixed into the operator's transmitted audio whenever the laptop is plugged into utility power during a contact; running the laptop on battery alone eliminates the hum completely.

Diagnosis

Step 1 (systematic method, M21A): The fact that the hum appears only when the laptop is connected to utility power, and disappears on battery power, is itself almost a complete diagnosis before any measurement — this is the classic signature of a ground loop, where two pieces of equipment (the laptop's power supply and the transceiver) are referenced to slightly different ground potentials, and the small voltage difference between them drives a 60 Hz (or 120 Hz) hum current through the audio interconnect.

Step 2 (confirm with the common faults catalog, M21H): Cross-referencing the Noise and Interference category from M21H confirms ground loop hum between station equipment as a listed, common cause matching this exact symptom pattern.

Step 3 (in-circuit measurement, M21F): With both the laptop (on utility power) and the transceiver powered and connected by their normal ground paths, a small AC voltage (around 300 mV) is measured between the laptop's chassis/ground reference and the transceiver's chassis ground — confirming a real potential difference exists between the two grounds, exactly the driving voltage for a ground loop hum current.

Step 4 (substitution-style fix, M21E logic): An audio isolation transformer (a small, inexpensive 600:600 Ω transformer commonly sold for exactly this purpose) is inserted in the audio path between the sound card interface and the transceiver's microphone/data input, breaking the direct DC and low-frequency AC ground connection between the two systems while still passing the audio signal through transformer coupling.

Root cause: A ground potential difference between the laptop (connected to utility power, referenced through its power supply and house wiring ground) and the transceiver (referenced through the station's own ground system) drove a small hum current through the audio cable's shield/ground connection, which the transceiver's microphone input amplified along with the desired digital-mode audio tones.

Repair: Install the audio isolation transformer permanently in the interface cable; additionally, per Module 19's guidance, verify both the laptop's power supply and the transceiver share a common station ground bus at a single point, reducing the underlying potential difference as well as blocking its effect.

Verification: Repeating the test with the laptop on utility power and the transceiver transmitting produces no audible hum, confirmed both by monitoring on a separate receiver and by on-air reports from other stations on subsequent contacts.

Lessons learned: The symptom's dependency on a single external condition (laptop power source) was itself most of the diagnosis; combining the common-faults catalog (M21H) with a direct in-circuit voltage measurement (M21F) confirmed the specific mechanism (a real, measurable ground potential difference) before any parts were purchased or installed; and the fix addressed both the symptom (isolation transformer) and, per good practice, the underlying cause (station grounding) rather than just the audible effect.

Example 4: Code Practice Oscillator Kit Produces a Weak, Distorted Tone

Initial complaint: A simple single-transistor code practice oscillator, built from a kit, produces a tone when the key is pressed, but the tone is much quieter than the kit's documentation describes and sounds rough/distorted rather than a clean tone.

Diagnosis

Step 1 (systematic method, M21A; most-likely-first for a new build): Since the circuit has never worked correctly, the builder's own assembly is the leading suspect — specifically, components that are easy to install backward or misread (electrolytic capacitors, which are polarized, and color-coded resistors, which are easy to misread) are checked first, before suspecting the transistor or the kit's design itself.

Step 2 (visual inspection against the assembly diagram): Comparing the populated board against the kit's printed assembly diagram, the single electrolytic capacitor coupling the oscillator stage to the speaker is found installed with its polarity stripe on the opposite side from what the diagram specifies.

Step 3 (predict, then measure, M21F): Rather than immediately desoldering the capacitor, the builder first measures the DC voltage across it in-circuit. A reversed electrolytic capacitor in this position would be expected to leak excessively under reverse bias (electrolytic capacitors are not designed to tolerate reverse voltage and conduct significantly when reverse-biased), which would explain both the weak tone (signal current leaking through the capacitor instead of reaching the speaker) and the distortion (a leaking capacitor does not couple AC signal cleanly). The measured voltage across the capacitor is much lower than expected for a healthy coupling capacitor in this position, consistent with exactly this leakage behavior.

Step 4 (repair and verify): The capacitor is desoldered, confirmed by visual inspection to be installed backward relative to the board's silkscreen polarity marking, and re-installed in the correct orientation.

Root cause: A polarized electrolytic capacitor was installed backward during assembly, causing it to leak current under reverse bias rather than coupling the AC tone signal cleanly to the speaker — a simple, easily made construction mistake rather than any component defect or design flaw in the kit.

Repair: Re-install the capacitor in the correct orientation per the silkscreen and assembly diagram.

Verification: The oscillator now produces a clean, full-volume tone matching the kit documentation's description, confirmed by listening and by comparing the output amplitude on a scope against the documented expected level.

Lessons learned: A weak, distorted result from a brand-new build pointed toward a specific, well-known construction mistake (reversed electrolytic polarity) rather than a component defect; comparing the populated board directly against the assembly diagram found the visible evidence in seconds; and a single in-circuit voltage measurement, taken before any desoldering, confirmed the hypothesis was consistent with the observed symptom before committing to the repair.

Lessons Learned Across All Four Examples

Three of the four examples in this lesson trace back to simple, well-known construction mistakes: a cold joint, a miswired tap, and a reversed capacitor. This is not a coincidence — it reflects the real-world statistics of homebrew troubleshooting, where a unit that has never worked is far more likely to contain a build error than a defective part. The fourth example, the ground loop, contained no wiring mistake at all, and is included specifically to show that not every fault in a "build" is a build error — some faults emerge only once two separately correct systems are connected together, which is itself an important troubleshooting lesson for anyone integrating a computer, an amplifier, and a transceiver into a single station.

This concludes Module 21. Every technique introduced — the systematic method, divide-and-conquer, signal injection, signal tracing, substitution, in-circuit measurement, and scope-based RF tracing — has now been applied across eight worked examples spanning commercial transceiver repair and homebrew construction troubleshooting. Module 22 turns to the safety knowledge that must accompany all of this hands-on work: electrical shock hazards, capacitor discharge danger, RF exposure, tower safety, and the other risks inherent in opening up radio equipment and working at the bench.
