Repairing a Transceiver: Worked Examples

This lesson is the payoff for everything covered in Module 21. Rather than introducing a new technique, it puts every technique from this module to work together on four complete, realistic transceiver repair scenarios — a receiver sensitivity problem, an intermittent thermal-related transmit fault, an audio quality complaint, and a frequency stability problem. Each example starts exactly the way a real repair starts: with a vague complaint and no idea what is wrong. By the end of each, you will see the systematic method, divide-and-conquer, signal injection or tracing, substitution, in-circuit measurement, and scope work all contributing to a single confident diagnosis.

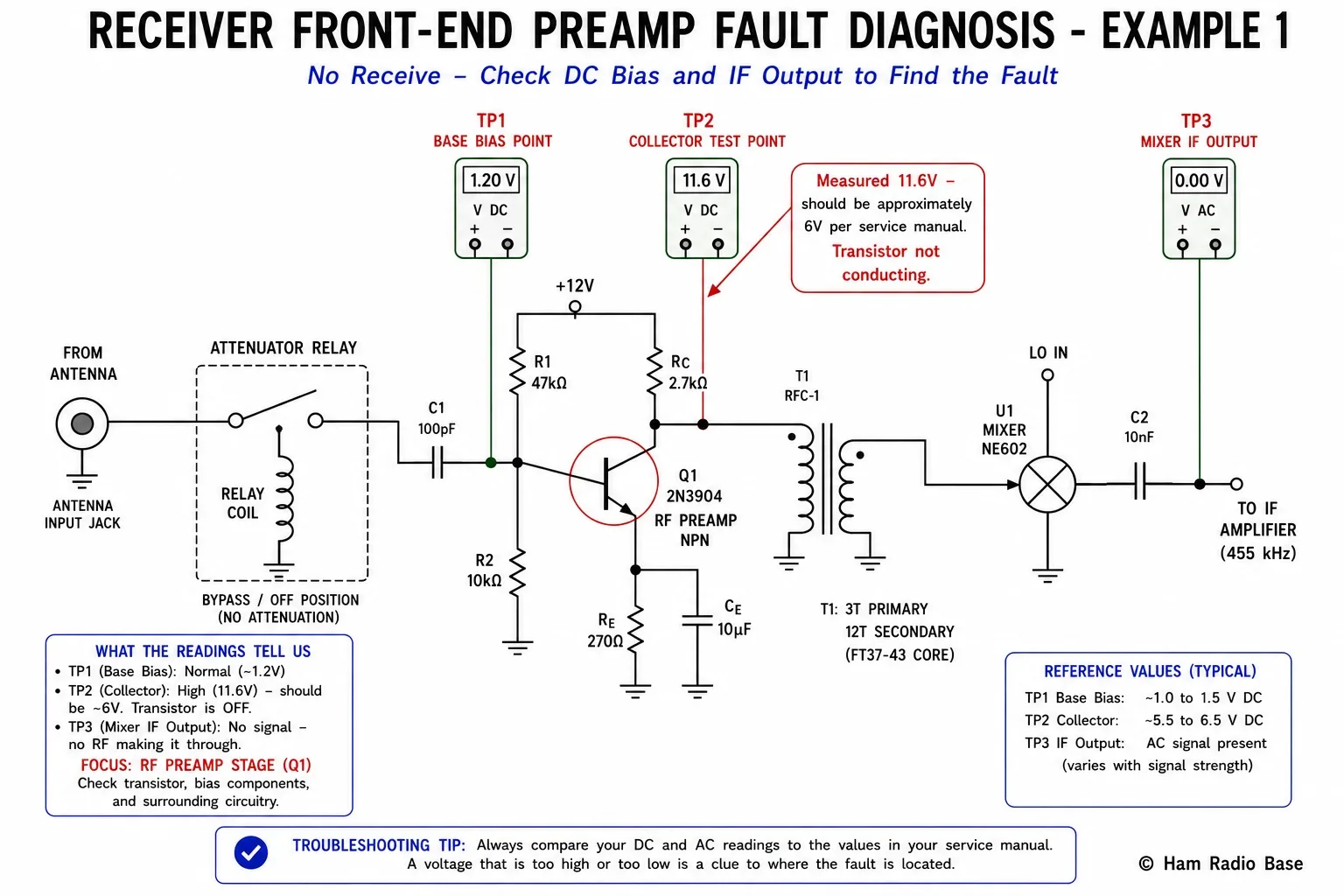

A preamp transistor with its collector voltage stuck near the supply rail is not conducting, explaining the loss of sensitivity in Example 1.

View Larger

Example 1: Receiver Has Lost Sensitivity to Weak Signals

Initial complaint: An operator reports that their HF transceiver used to easily copy weak DX stations, but over the past few weeks, only strong local stations are audible. The S-meter appears to respond to signals, but weaker readings than the operator remembers for the same stations.

Tools used: Multimeter, oscilloscope, signal generator, the radio's own front-end attenuator and preamp controls.

Diagnosis

Step 1 (systematic method, M21A): Gather information. The operator confirms the front-end preamp switch is turned on (it should boost sensitivity, not reduce it) and the attenuator is switched off. No recent drops, modifications, or storms were reported. The gradual, weeks-long onset (rather than sudden failure) is itself a clue, suggesting a slowly degrading component rather than a catastrophic event.

Step 2 (most-likely-cause-first, M21A): Before suspecting the preamp transistor itself, the antenna and feedline are checked first, since they are statistically more likely to fail gradually (corrosion, water ingress) than an internal semiconductor. A "radio or antenna" substitution test (M21E) is performed: a calibrated signal generator is connected directly to the antenna input at a known weak signal level, bypassing the antenna and feedline entirely.

Step 3 (result of substitution test): With the generator's known weak signal connected directly to the radio, the same reduced sensitivity is observed — ruling out the antenna and feedline. The fault is confirmed to be inside the radio's receive chain.

Step 4 (divide-and-conquer, M21B): With the generator providing a steady, known reference signal, the receive chain is split at the first mixer's output (the IF signal). A clean, correctly amplitude IF signal is present at this point with the preamp switched off, but does not increase by the expected amount when the preamp is switched on — the preamp stage itself appears to be contributing little or no gain.

Step 5 (in-circuit voltage measurement, M21F): The preamp transistor's collector voltage is measured and found sitting almost exactly at the supply rail voltage, rather than the mid-rail bias point documented in the service manual's alignment chart. A collector voltage pulled all the way to the rail, per the fault patterns in M21F, indicates the transistor is not conducting at all.

Step 6 (substitution, M21E): The preamp transistor is desoldered and a known-good replacement of the same part number is installed. Testing confirms the collector voltage now sits correctly at mid-rail, and the preamp switch now produces a clear, expected increase in signal strength.

Root cause: The preamp transistor had degraded over time (a slow beta decrease is a recognized long-term failure mode in some bipolar transistors, accelerated by years of exposure to occasional static or minor overdrive events from nearby strong signals or atmospheric static), gradually losing gain rather than failing all at once — consistent with the weeks-long onset the operator described.

Repair: Replace the preamp transistor; reflow the surrounding solder joints while access is already available as routine preventive maintenance.

Verification: The operator confirms over several days of normal operation that weak DX signals are audible again at the level remembered from before the fault developed.

Lessons learned: A gradual-onset symptom pointed toward a degrading component rather than a sudden failure; the radio-or-antenna substitution test eliminated half the system in one step; and a single in-circuit voltage reading, compared against the service manual's documented value, pinpointed the exact failed component without needing to test or replace anything else.

Example 2: Transmitter Loses Power During Long Transmissions

Initial complaint: A transceiver transmits at full rated power for the first one to two minutes of a contact, then power output drops noticeably, sometimes recovering after a pause. The radio's display shows no error code.

Tools used: Wattmeter and dummy load, multimeter, infrared thermometer (or simply careful touch-testing for heat, done cautiously and briefly).

Diagnosis

Step 1 (systematic method, M21A): The time-dependent nature of the fault (fine at first, degrades after sustained use) is the most important clue available before any measurement is even taken — it points strongly toward a thermal effect rather than a fixed component failure, since a hard component failure would not typically "heal" itself during a pause.

Step 2 (most-likely-cause-first): Cooling system components (fan, heat sink contact, thermal compound) are statistically more likely culprits for a thermal-pattern fault than the final amplifier transistors themselves, which are designed with a safety margin specifically to tolerate normal operating temperatures.

Step 3 (observation): With the cabinet opened (power disconnected first, per the safety guidance in M21A), the cooling fan is observed not to be spinning during a test transmission into a dummy load, even though the radio's automatic fan control should activate it well before the point where power reduction was observed.

Step 4 (in-circuit voltage measurement, M21F): With the radio powered and transmitting, the voltage at the fan's two leads is measured and found to be 0 V, even though the service manual indicates the fan control circuit should apply full supply voltage to the fan once the heat sink temperature sensor crosses its threshold.

Step 5 (substitution, M21E): The fan is briefly substituted with a known-good fan of the same specification, connected directly to a bench supply at the fan's rated voltage — it spins normally, confirming the fan itself is not the faulty part.

Step 6 (signal tracing toward the cause, M21D): Tracing backward from the fan connector toward the fan control transistor (a simple low-side switching transistor that grounds the fan's return path when commanded by the temperature sensor circuit) reveals the control transistor's collector never pulls low during a hot transmission, even though the base control signal from the temperature sensor circuit does correctly go high.

Root cause: The fan control transistor had failed in an open condition, so it could never complete the circuit to ground the fan despite receiving the correct command signal — the cooling system's "brain" was working, but its "muscle" was not, leaving the heat sink to passively cool by convection alone, which was insufficient during sustained transmission, triggering the radio's separate (undocumented in the display, but real) thermal power-reduction protection.

Repair: Replace the fan control transistor with the correct part number per the service manual.

Verification: A 20-minute continuous transmission test into a dummy load confirms the fan now activates at the expected temperature threshold and full rated power is sustained throughout.

Lessons learned: The time-dependent symptom pattern itself was diagnostic before a single measurement was taken; substitution confirmed a "obviously suspect" part (the fan) was actually healthy, redirecting the investigation toward its control circuit rather than wasting a replacement part; and the fault turned out to be in a support system (cooling) entirely separate from the RF circuitry that was originally suspected.

Example 3: Other Stations Report Muffled, Bass-Heavy Audio

Initial complaint: Several stations report that an operator's SSB audio sounds "muffled" and "boomy," lacking the crisp articulation expected from a properly adjusted transceiver, despite the operator not changing any settings recently.

Tools used: Oscilloscope, audio function generator, multimeter.

Diagnosis

Step 1 (systematic method, M21A): "Muffled and boomy" describes a frequency-response problem (excess low frequency content, deficient high frequency content) rather than a simple level or distortion problem, narrowing the search toward the speech processing/filtering stages specifically rather than the RF chain broadly.

Step 2 (signal tracing with a known input, M21D): A function generator is used to sweep a series of audio tones (300 Hz, 1000 Hz, 2500 Hz) into the microphone input one at a time, while observing the amplitude at the speech amplifier's output on a scope. The 300 Hz tone produces a normal amplitude; the 1000 Hz tone is noticeably attenuated compared to the service manual's documented frequency response curve; the 2500 Hz tone is attenuated even further, well beyond the expected gentle high-frequency roll-off a typical SSB transmit filter applies.

Step 3 (interpretation): A frequency response that favors low frequencies and rolls off high frequencies earlier and more steeply than the documented curve points toward a high-pass filter component (a coupling or filter capacitor) that has drifted to a higher capacitance value than its rated value, or a low-pass-acting component (a different capacitor, in parallel with the signal path) that has drifted to a lower-than-rated value — both changes shift a filter's cutoff frequency downward, cutting into the desired voice band from the top.

Step 4 (divide-and-conquer within the speech processing stage, M21B): The speech processing stage contains several RC filter sections in series. Testing at the midpoint of this sub-chain reveals the frequency response is still correct up to that point, narrowing the fault to the second half of the filter network.

Step 5 (in-circuit measurement and out-of-circuit verification, M21F and M21E): The suspect filter capacitor is identified from the schematic. Its in-circuit behavior is consistent with a value higher than its rating; it is desoldered and measured directly with a capacitance meter, confirming its actual value is roughly 70% higher than its marked value — consistent with a known aging failure mode in some types of electrolytic and certain ceramic capacitors, where capacitance drifts over years of operation, particularly when exposed to elevated temperature near other warm components.

Root cause: A drifted filter capacitor in the speech processing network, shifting the effective filter cutoff frequency downward and removing the higher-frequency consonant energy that gives speech its clarity and articulation, while passing relatively more low-frequency energy, producing the muffled, bass-heavy quality reported by other stations.

Repair: Replace the capacitor with a new part matching the original specification (value, voltage rating, and type).

Verification: Repeating the tone-sweep test confirms the frequency response now matches the documented curve within a reasonable tolerance, and on-air audio reports following the repair describe the transmitted audio as "clear" and "crisp" again.

Lessons learned: A purely qualitative complaint ("muffled and boomy") was translated into a specific, testable hypothesis (a frequency response shift) before any component-level investigation began; a simple tone sweep with a function generator and scope, rather than any RF test equipment at all, located the fault; and out-of-circuit verification with a capacitance meter (Module 5) confirmed the in-circuit evidence beyond reasonable doubt before any soldering took place.

Example 4: CW Signal Reported as "Chirpy" and Drifting

Initial complaint: Other CW operators report that an operator's signal "chirps" noticeably at the start of each dit and dah (a brief, audible pitch shift right as the key closes), and the signal also seems to drift upward in frequency over the course of a long CW contact.

Tools used: A second receiver tuned to monitor the signal, an oscilloscope, a multimeter, a frequency counter.

Diagnosis

Step 1 (systematic method, M21A; background knowledge): Chirp is a well-known, specific symptom in CW transmitters: it indicates the oscillator's frequency is shifting briefly at the exact moment of key-down, almost always because of a power supply or loading change at that instant — the keying action itself is disturbing the oscillator. The slower, longer-term upward drift over the course of a contact is a separate (though possibly related) symptom suggesting thermal effects.

Step 2 (signal tracing combined with the second receiver, M21D): Monitoring the transmitted signal on a separate, stable receiver while sending a slow series of dits confirms the chirp clearly — each dit begins at a slightly higher pitch than its steady-state tone, settling within a few milliseconds.

Step 3 (in-circuit voltage measurement during keying, M21F): Using an oscilloscope (not a simple DC meter, since the event is too fast to read on a DMM) connected to the oscillator stage's supply rail, triggered on the keying line, reveals a brief dip in the oscillator's supply voltage at the exact instant the key closes — consistent with the keyed stages (driver, PA) drawing a surge of current that briefly loads down a shared, inadequately regulated or under-decoupled supply rail feeding both the oscillator and the keyed amplifier stages.

Step 4 (root cause investigation for chirp): The oscillator's local supply decoupling capacitor (intended to hold the oscillator's voltage steady against exactly this kind of momentary load disturbance from other stages sharing the same rail) is found, by comparison against the schematic, to be a much smaller value than specified — consistent with an incorrect replacement part having been installed during an unrelated past repair, rather than a component failure.

Step 5 (separate investigation for slow upward drift): The slower drift is investigated independently, since it has a different time signature (minutes, not milliseconds) and is more consistent with the thermal drift behavior covered in Module 10. A check of the radio's internal temperature compensation circuit (if equipped) or simply allowing a longer warm-up period before operating is found to bring the drift within the manufacturer's specified warm-up drift figures — this part of the complaint turns out to be normal behavior, not a fault, once compared against the documented specification.

Root cause: Two separate findings: (1) chirp caused by an undersized decoupling capacitor on the oscillator's supply rail, installed incorrectly during a prior repair, allowing keying-induced supply transients to briefly pull the oscillator frequency; (2) the slower drift was within the manufacturer's documented normal warm-up specification and was not actually a fault.

Repair: Replace the undersized decoupling capacitor with the correct value and voltage rating specified in the schematic.

Verification: Repeating the keyed-dit monitoring test on a separate receiver shows no audible chirp. The operator is advised that the residual slow drift during the first several minutes of operation is normal and within specification, and is not something to "fix."

Lessons learned: Two superficially similar symptoms (a fast chirp and a slow drift) had two entirely different causes and time scales, and treating them as a single problem would have led to a confused investigation; an oscilloscope triggered on the keying line was the only tool capable of capturing the brief supply transient responsible for the chirp; and comparing the slower drift against the documented specification revealed that not everything a station reports as "wrong" actually is — sometimes the correct diagnosis is "this is normal."

Lessons Learned Across All Four Examples

Across all four examples, no fault was found by guessing or by replacing parts at random. Every one was found by combining a clear initial hypothesis (informed by the symptom pattern itself — gradual vs. sudden, time-dependent vs. constant, frequency-selective vs. broadband) with a specific, evidence-gathering test drawn from earlier lessons in this module. This is the entire point of Module 21: the techniques are not independent party tricks, they are a toolkit that combines fluidly once you have internalized when to reach for each one.
