Capacitor Discharge Danger
"It's just a capacitor, not a wall outlet" is one of the more dangerous sentences in electronics, because it treats a capacitor as something fundamentally less serious than a live circuit. A charged capacitor is, in every way that matters for safety, a tiny battery that can release its entire stored energy in a fraction of a second rather than over hours — and that speed, not the total energy alone, is exactly what makes it capable of a violent, injurious, or fatal discharge. This lesson gives you the formula to calculate exactly how much energy is stored, and the procedure to discharge it safely every time.

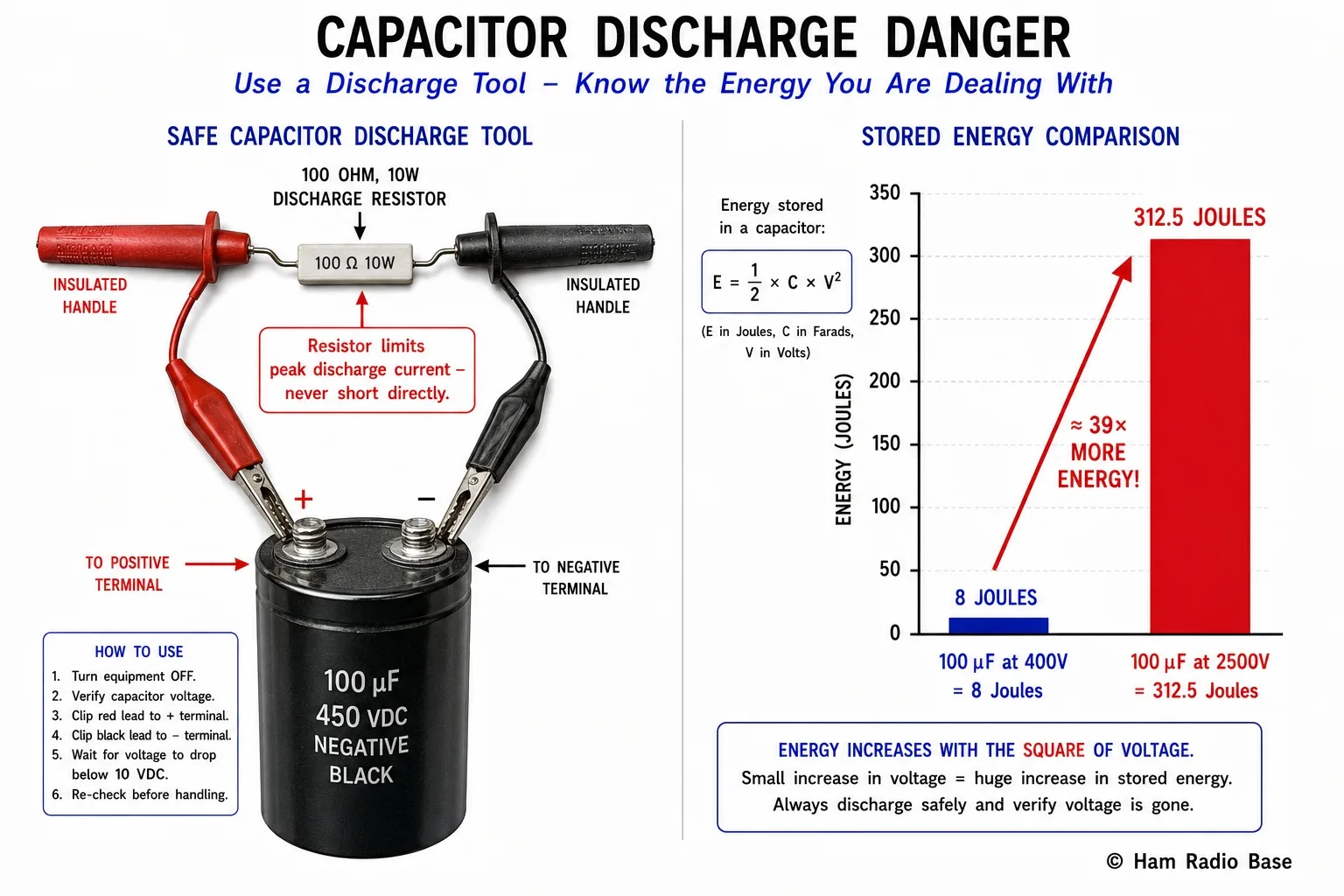

A proper discharge tool always includes a current-limiting resistor — never short a charged capacitor directly with a screwdriver.
View LargerStored Energy: E = ½CV²
A capacitor stores electrical energy in the electric field between its plates, and the amount of that energy depends on both its capacitance and the square of the voltage across it. The formula is:
E = ½ × C × V²
E = energy stored, in joules (J)
C = capacitance, in farads (F)
V = voltage across the capacitor, in volts (V)
The squared voltage term is the detail most people underestimate: doubling the voltage across a capacitor does not double the stored energy, it quadruples it. This is exactly why the high-voltage capacitor banks in tube amplifiers (covered in M22B) are so much more hazardous than a similarly-sized capacitor in a low-voltage circuit — the voltage difference is amplified by the square in the energy calculation.
Worked Examples: How Much Energy Is Really Stored
E = ½ × C × V²
E = 0.5 × (100 × 10-6 F) × (400 V)²
E = 0.5 × 0.0001 F × 160,000 V²
E = 8 joules
Eight joules delivered through the body in a fraction of a second is more than enough to cause a severe, painful shock, an involuntary muscle spasm strong enough to throw you backward into other equipment or off a ladder or stool, and burns at the contact points. This is not a "mild" amount of energy by any reasonable safety standard.
E = 0.5 × (100 × 10-6 F) × (2,500 V)²
E = 0.5 × 0.0001 F × 6,250,000 V²
E = 312.5 joules
For comparison, this is roughly the kinetic energy of a 1 kg object dropped from about 32 meters (over 100 feet). Delivered through a human body in milliseconds rather than absorbed by a controlled fall, this level of energy is squarely in the range associated with fatal electrical accidents, not merely painful ones.
Quadrupling the voltage (400 V to 2,500 V is roughly 6.25×, and 6.25² ≈ 39×) explains why the second example stores roughly 39 times more energy than the first despite using the identical capacitance value — the voltage-squared relationship dominates the comparison completely.
Why Filter Capacitors Stay Dangerous Long After Power Off
A capacitor's charge has nowhere to go unless a path exists for current to flow out of it. Simply switching off the equipment's power switch, or unplugging it from the wall, removes the source that was charging the capacitor — it does nothing whatsoever to discharge the energy already stored. Without a deliberate discharge path, a capacitor in a sealed, unused piece of equipment can theoretically hold a meaningful charge for very long periods, limited only by tiny leakage currents through the capacitor's own dielectric and any parallel resistance in the circuit.
Most well-designed equipment includes a bleed resistor — a resistor connected in parallel with the capacitor specifically to provide a slow, continuous discharge path, as covered with a worked calculation in M22A. But a bleed resistor is a deliberate design choice, not a law of physics: it can be omitted to save cost in cheap equipment, it can be sized for a discharge time of many seconds or even minutes (a genuine design trade-off against continuously wasting power), and it can fail open due to age or damage without any visible symptom at all — the capacitor will simply stay charged indefinitely with no outward sign that anything is wrong. You cannot tell whether a bleed resistor is intact just by looking at it.
Safe Discharge Procedure Using a Bleed Resistor
- Disconnect all power — unplug the equipment from the wall and remove any battery, exactly as covered in earlier lessons of this module.
- Wait a reasonable interval if the equipment has a documented bleed resistor and discharge time, but never rely on elapsed time alone as your only safety measure.
- Use a proper discharge tool: an insulated probe with a power resistor (commonly in the range of 10-100 Ω at several watts, sized for the voltage and capacitance involved) wired between two well-insulated leads, one of which is connected first to a known ground/chassis reference. Touch the resistor-equipped probe across the capacitor's terminals (or from the positive terminal to chassis ground, for a single-ended supply) and hold it in place for several seconds.
- Discharge every isolated capacitor or bank in the circuit — some designs include more than one capacitor or capacitor string that cannot all be reached from a single discharge point, particularly in equipment with multiple supply rails.
- Verify with a meter rated for the voltage present after discharging, before touching any terminal with your hands or an unrated tool — this is the same non-negotiable verification step introduced in M22A and M22B.
Dielectric Recovery: Why You Must Re-Check After Discharging
A subtle but important phenomenon called dielectric relaxation (sometimes informally called "capacitor recovery voltage" or "soakage") can cause a capacitor's terminal voltage to creep back up to a measurable, occasionally hazardous level minutes after an apparently complete discharge. This happens because the dielectric material between a capacitor's plates can absorb and slowly release a small amount of charge independently of the main charge that was just discharged — particularly in larger electrolytic capacitors of the type used in amplifier and power supply filter banks.
The practical safety implication is straightforward: discharge the capacitor, verify zero voltage, but do not consider the job permanently finished the instant the meter reads zero. Re-check the voltage again after a short wait (a minute or two) before extended hands-on work, and if you step away from a partially disassembled high-voltage supply for any length of time, re-verify before resuming work rather than assuming your earlier discharge is still holding.
If a Capacitor Discharge Accident Happens
The emergency response is the same as covered in M22A and M22B: do not touch the victim if contact with the source may still be ongoing, cut power at the source, separate the victim from the hazard using a non-conductive object if needed, call 911 for anything beyond a minor startle, and begin CPR if trained and the person is not breathing or has no pulse. Treat any burns from arcing or contact points as you would a thermal burn, and seek medical evaluation even if the person appears to recover quickly, since the abrupt, high-current nature of a capacitor discharge can cause internal effects that are not visible externally.
Frequently Asked Questions
Are small capacitors, like the ones in a low-voltage radio circuit, ever dangerous?
Most small, low-voltage capacitors (a few microfarads or less at 25 V or below, for example) store too little energy to pose a shock hazard, though they can still deliver a surprising, sharp jolt. The hazard discussed in this lesson scales up specifically with larger capacitance and, especially, higher voltage — filter capacitors in power supplies, amplifier plate supplies, and photoflash-style circuits are the categories that warrant this level of caution.
If my equipment has a bleed resistor, do I still need to verify with a meter?
Yes, always. A bleed resistor can fail open without any visible sign, and you have no way to confirm it is still functioning correctly just by looking at it or by trusting that it was working when the equipment was built. Meter verification is the only step in this entire procedure that actually confirms the capacitor is safe, rather than assuming it based on a design feature you cannot inspect by eye.
Why not just short the capacitor quickly with a screwdriver to be fast and simple?
A direct short releases the full stored energy almost instantly through whatever resistance happens to be in the path, which is extremely low for a screwdriver blade. This produces a violent arc, can weld or pit the screwdriver tip to the terminal, throws sparks and occasionally molten metal, and provides you with no control over the process at all. A resistor in the discharge path limits the peak current to a safe, controlled level while still fully discharging the capacitor within a reasonable time.
How is dielectric recovery different from the capacitor just not being fully discharged the first time?
An incomplete first discharge (for example, from a discharge resistor with too high a value, used for too short a time) leaves residual charge from the same population of charge that was originally stored. Dielectric recovery is a distinct, slower physical process in which the dielectric material itself releases previously absorbed charge after the main discharge is already complete — meaning the capacitor can show a genuine zero reading immediately after discharge and still develop a measurable voltage again afterward purely from this separate mechanism.
