RF Burns and RF Exposure
Every hazard covered so far in this module involves current flowing through your body via direct electrical contact. RF energy introduces a genuinely different mechanism: a transmitting antenna radiates electromagnetic energy into the surrounding space, and a body placed in that field absorbs some of that energy as heat, in much the same basic way a microwave oven heats food, without ever touching a single conductor. RF energy can also cause a very different kind of localized injury — a contact burn — when you touch an energized conductor while transmitting. This lesson covers both mechanisms: whole- or partial-body RF exposure, and point-contact RF burns.

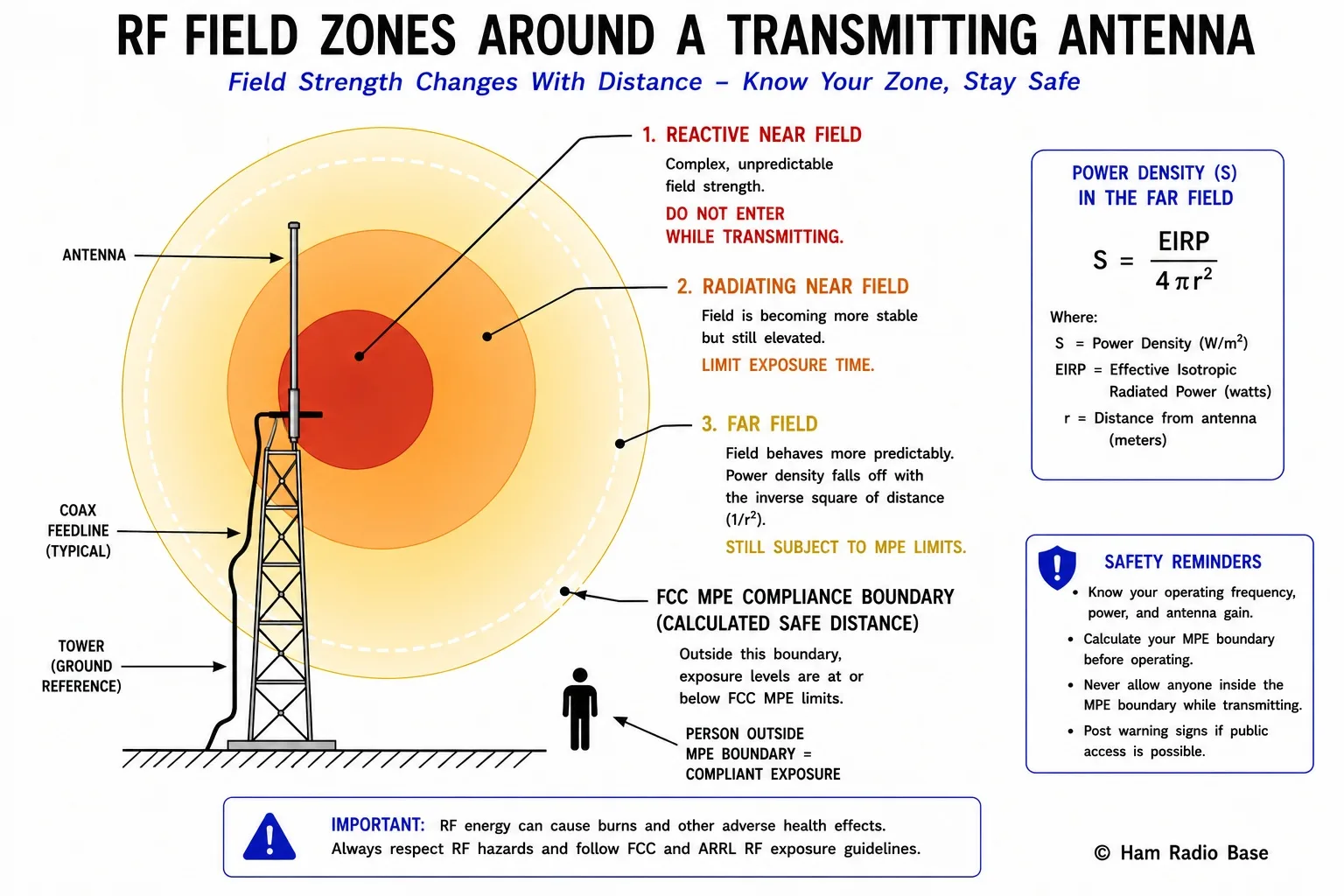

Field behavior near an antenna is complex and high-strength; only in the far field does power density fall predictably with distance.
View LargerNear-Field vs. Far-Field Exposure
The space around any transmitting antenna is conventionally divided into two regions that behave very differently. The near field — extending roughly out to one wavelength from a small antenna, and considerably further for larger or higher-gain antennas — is a region where the electric and magnetic field components do not yet have the simple, fixed relationship to each other that a fully formed radio wave has at a distance. Field strength in the near field can be very high immediately next to the antenna and does not fall off in the simple, predictable inverse-square pattern that governs distant exposure; it can also vary substantially over small changes in position. This is the region most relevant to anyone standing close to a tower-mounted antenna, leaning near a mobile whip, or reaching toward a beam element while the station is transmitting.
The far field begins at a distance that depends on the antenna's size and gain (commonly approximated as 2D²/λ for an antenna of largest dimension D, at wavelength λ), and is the region where the antenna's radiation has settled into a true, freely propagating electromagnetic wave. In the far field, power density falls off predictably with the square of distance from the antenna — double the distance, and the power density (and therefore exposure) drops to one quarter. This predictable relationship is what the FCC's standard RF exposure compliance calculations are built on, which is why those calculations specify a minimum safe distance rather than a single number that applies everywhere.
FCC RF Exposure Limits for Amateur Radio
The FCC defines Maximum Permissible Exposure (MPE) limits — the maximum RF field strength or power density a person may be exposed to — in two categories. Occupational/controlled exposure limits apply to amateur radio operators and members of their household who are aware of the RF exposure and can exercise some control over it; these limits are higher (more permissive) because the exposed individuals are assumed to understand the risk and to be able to limit their own exposure time and proximity. General population/uncontrolled exposure limits apply to anyone else who might be exposed without their knowledge or ability to control it — neighbors, visitors, or passersby — and these limits are set lower (more restrictive) precisely because that assumption of awareness and control does not apply.
| Frequency Range | Controlled (Occupational) Power Density | Uncontrolled (General Population) Power Density |
|---|---|---|
| 3-30 MHz (most HF bands) | Higher limit; increases at lower frequency | Lower limit; increases at lower frequency |
| 30-300 MHz (most restrictive band, includes 6m, 2m, 1.25m) | ~1.0 mW/cm² | ~0.2 mW/cm² |
| 300 MHz-1.5 GHz (includes 70cm, 33cm, 23cm) | Increases proportionally with frequency | Increases proportionally with frequency |
The 30-300 MHz range is deliberately the most restrictive because it overlaps with frequencies at which the human body, due to its size, absorbs RF energy especially efficiently (a resonance-related effect). This is exactly the range covering the popular 6 meter, 2 meter, and 1.25 meter amateur bands, which is why VHF stations — even modest-power ones — deserve careful attention to antenna placement and exposure evaluation.
FCC rules (47 CFR §97.13(c)) require amateur stations to perform a station evaluation demonstrating compliance with these MPE limits, accounting for transmitter power, antenna gain, height/distance to accessible areas, operating frequency, and the duty cycle of the mode in use — continuous-carrier digital modes and FM have a higher average duty cycle than SSB or CW, which raises the average exposure for the same peak power and therefore tightens the compliance distance required. The ARRL and FCC both publish tables and calculation worksheets that make this evaluation straightforward for typical amateur stations without requiring specialized equipment.
Worked Example: Compliance Distance From a VHF Antenna
Rearranging for r: r² = EIRP / (4π × S) = 500 W / (4π × 10 W/m²) = 500 / 125.7 = 3.98 m²
r = √3.98 ≈ 2.0 meters
At this EIRP, a person would need to remain at least about 2 meters from the antenna (in the far field) to stay within the controlled-exposure limit, and proportionally farther to satisfy the lower, uncontrolled-exposure limit that would apply if the antenna were accessible to neighbors or visitors. This is precisely why VHF/UHF antennas mounted close to where people stand or work — a rooftop accessible to others, a balcony-mounted vertical, or a mobile whip right next to the driver — require real, calculated attention rather than a casual assumption that "it's probably fine."
Antenna Proximity Hazards
Beyond the formal MPE compliance calculation, several everyday ham radio situations create avoidable RF proximity hazards. A mobile HF whip antenna mounted close to the vehicle, often just inches from the driver or a passenger's hand or head, can produce locally intense near-field exposure during transmission, particularly at higher power levels — keeping hands and body away from the antenna base and lower section while transmitting, and avoiding extended high-power operation with an antenna mounted unusually close to the operator, are both reasonable precautions. A beam or Yagi antenna on a tower, especially a high-gain design, concentrates near-field intensity directly in front of and around its elements; anyone working on or near such an antenna must have absolute certainty that the station cannot be keyed, through clear communication procedures covered fully in M22E.
RF Connector Burns
A loose, corroded, or poorly seated coaxial connector carrying significant RF power can arc or spark at the point of poor contact, and touching such a connector — or any exposed conductor carrying RF current — while the transmitter is keyed can produce an RF burn. RF burns have a distinctive and often misleading character: because RF current concentrates at sharp points and edges (a related effect to the skin effect covered in Module 20), the heating at a small contact point can be intense and deep relative to how minor the burn might initially look on the skin's surface. A burn that appears to be a small, unremarkable mark immediately after contact can prove to be considerably deeper and more serious than equivalent thermal burns of similar surface appearance.
The practical safety rule is simple and absolute: never touch an antenna connector, feedline shield or center conductor, tuner output terminal, or any other RF-carrying conductor while the transmitter could possibly be keyed — verify the radio is in receive mode, or better, physically disconnect or power down the transmitter, before touching any RF connection point during testing, tuning, or troubleshooting at the antenna or feedline.
If an RF Burn or Overexposure Happens
For a suspected RF burn: stop transmitting immediately, cool the affected area as you would any burn, and seek medical evaluation even if the visible injury looks minor, specifically because of the deeper-than-apparent tissue damage RF burns are known to cause. Do not assume a small mark means a small injury.
For a suspected RF overexposure incident (for example, someone working very close to a powered antenna for an extended period): remove the person from the field immediately by ceasing transmission, monitor for any symptoms (localized warmth, discomfort, or in rare significant cases other physical symptoms), and seek medical evaluation if any symptoms are present or if the exposure was prolonged and at high power. RF overexposure incidents at amateur power levels are rare specifically because compliance evaluations and the precautions in this lesson are designed to prevent them — which is exactly why those precautions are worth taking seriously rather than skipping as inconvenient paperwork.
Frequently Asked Questions
Do low-power QRP stations need to worry about RF exposure at all?
At a few watts, most amateur antenna installations easily satisfy MPE limits at any normally accessible distance, and a formal evaluation often confirms compliance trivially. However, "low power" is relative to antenna gain and proximity — a low-power station with a very close, high-gain antenna (a handheld radio's antenna pressed against the head, for example, at higher power settings) can still warrant attention, so power alone is not a complete substitute for checking the actual antenna and distance configuration.
Why are the controlled and uncontrolled MPE limits different for the same frequency?
The controlled (occupational) limit assumes the exposed person is aware of the RF field and can take action to limit their own exposure time or distance, as a licensed amateur and their informed household members can. The uncontrolled (general population) limit assumes no such awareness or control, so it is set more conservatively to protect people who may have no idea an RF field is present at all.
Why does duty cycle matter for RF exposure if the peak power is the same?
MPE compliance is based on average power over a defined averaging time, not instantaneous peak power, because biological heating effects depend on total absorbed energy over time. A mode that transmits continuously (FM, many digital modes) delivers more average power for the same peak output than a mode with natural gaps (SSB voice, CW), which is why continuous-carrier modes require a more conservative (greater) compliance distance at the same peak transmitter power.
How is an RF burn different from a normal heat burn from a soldering iron?
A soldering iron burn results from direct thermal contact and generally damages tissue roughly in proportion to the visible contact area and duration. An RF burn results from RF current concentrating intensely at a small contact point due to field effects, which can drive deep, localized heating that is disproportionate to how the burn appears on the surface — this is exactly why even a seemingly minor RF burn deserves medical evaluation.
Test Your Knowledge
Answer the questions below to check your understanding. Every answer can be found in the lesson above.
