Crystal Filters — Quartz IF Filters for Receiver Selectivity

Every time you tune across a crowded 40m SSB segment and hear clearly separated conversations rather than a wall of overlapping voices, you are benefiting from a crystal filter. The LC filters we covered in the previous lessons — Butterworth, Chebyshev, elliptical — are powerful tools for harmonic suppression and broad bandpass shaping. But for the narrow IF filtering that separates one 2.7 kHz SSB signal from another just 200 Hz away, an LC filter would require hundreds of poles and components. A crystal filter achieves the same performance with as few as four quartz crystals, because quartz resonators have a Q factor 100 to 1000 times higher than any practical wound inductor.

Crystal filters are at the heart of every serious HF receiver built in the last 70 years. The Elecraft K3, the Icom IC-7300, the Kenwood TS-590 — every one uses crystal or similar high-Q filters in the IF chain. Understanding how they work, what their specifications mean, and how to evaluate them when buying or building a radio makes you a much more informed operator and homebrew builder.

The Piezoelectric Effect

In 1880, Pierre and Jacques Curie discovered that certain crystals — most importantly quartz (silicon dioxide, SiO₂) — produce an electric charge when mechanically deformed, and conversely, deform physically when an electric field is applied. This is the piezoelectric effect (from the Greek "piezo," to squeeze).

A quartz crystal cut to precise dimensions will vibrate mechanically at a very specific frequency when an alternating voltage is applied across its faces. The vibration frequency is determined by the physical dimensions of the crystal blank — primarily its thickness — and the crystallographic angle at which it was cut. A crystal intended for 9 MHz operation is cut to exactly the right thickness so that its natural mechanical resonance falls at 9.000 MHz. The AT cut (a specific angle through the quartz lattice) is used for most radio-frequency crystals because it provides excellent temperature stability: AT-cut crystals shift only about ±0.3 ppm per degree Celsius near room temperature.

The key consequence of this mechanical resonance is that the crystal acts as an extremely high-Q electrical resonator. The mechanical vibration is very lightly damped — a crystal allowed to vibrate freely will continue oscillating for a very long time, which in the frequency domain corresponds to an extremely narrow bandwidth and very high Q. Values of Q = 10,000 to 100,000 are typical for unloaded quartz crystals, compared to Q = 100 to 400 for the best practical wound inductors at HF. This extraordinary Q is why crystal filters can achieve such sharp, narrow passbands with so few components.

Crystal Equivalent Circuit

The electrical behavior of a quartz crystal can be modeled with a remarkably simple equivalent circuit. The model has two parts:

• A motional arm (series branch): an inductor L_m, a capacitor C_m, and a resistor R_m connected in series. These represent the mechanical resonance of the crystal — the crystal's mass, compliance, and mechanical losses respectively. Typical values: L_m = 10–100 mH, C_m = 0.01–0.05 pF, R_m = 5–50 Ω.
• A parallel plate capacitance C_p (also called the package capacitance or shunt capacitance): the capacitance of the electrodes and holder, in parallel with the motional arm. Typical values: C_p = 3–7 pF.

The ratio C_p/C_m is typically around 200:1 to 400:1. This large ratio is fundamental to understanding crystal filter behavior — it determines the separation between the two resonant frequencies and the steepness of the filter skirts.

Quartz crystal equivalent circuit. The motional arm (L_m, C_m, R_m) models the mechanical resonance. C_p is the static electrode capacitance. The two resonances — series (f_s) and parallel (f_p) — fall very close together, separated by only a few kHz at HF frequencies.

View Larger

Series and Parallel Resonance

Because the crystal equivalent circuit has both a series path (the motional arm) and a parallel capacitance, it exhibits two distinct resonant frequencies, separated by only a small fraction of the nominal frequency.

Series resonance (f_s) occurs when the motional arm L_m and C_m resonate, presenting a low impedance (essentially only R_m) at the crystal terminals. At this frequency, the crystal allows maximum current to flow and presents minimum impedance:

Parallel resonance (f_p) occurs at a slightly higher frequency where the motional arm's net inductance resonates with C_p. At this frequency, the crystal presents maximum impedance. The separation between f_s and f_p is:

For a typical 9 MHz crystal with C_m = 0.020 pF and C_p = 5 pF:

Δf = 9 × 10⁶ × 0.020 / (2 × 5) = 9 × 10⁶ × 0.002 = 18,000 Hz = 18 kHz

The two resonances are separated by only 18 kHz out of 9 MHz — just 0.0002% of the nominal frequency. This incredibly narrow gap between two extreme impedance states (nearly short circuit at f_s, nearly open circuit at f_p) is the property that makes crystals such effective filter elements. By combining multiple crystals in a network, filter designers place the passband within this gap and use the steep impedance transitions at f_s and f_p to build the filter's sharp skirts.

Crystal Q Factor — Why It Matters

The unloaded Q of a quartz crystal is determined by the ratio of the motional inductance to the motional resistance and the resonant frequency:

For a 9 MHz crystal with L_m = 28 mH and R_m = 16 Ω:

Q = 2π × 9×10⁶ × 28×10⁻³ / 16 = 56,549×10³ / 16 = 99,000

A Q of nearly 100,000 is extraordinary. Compare this to a typical 9 MHz LC resonator: an inductor wound on a T68-2 toroid at 9 MHz might achieve Q = 250. The crystal has 400 times higher Q. In filter terms, higher Q means sharper skirts, lower insertion loss, and better shape factor for the same number of poles. A 4-crystal filter at 9 MHz can achieve a shape factor of 1.05:1 to 1.10:1 — better than a 20-pole LC filter.

The loaded Q of a crystal in a filter circuit is lower than the unloaded Q, because the termination resistances (the source and load impedances of the filter) add to the effective resistance. Typical loaded Q values in a well-designed crystal filter are 5,000 to 20,000 — still far higher than any LC alternative.

Crystal Filter Topologies

There are two fundamental circuit topologies used to build crystal bandpass filters for receiver IF stages: the ladder filter and the half-lattice filter. Both are in widespread use and have different practical tradeoffs.

The Ladder Crystal Filter

The ladder topology uses crystals as series elements alternating with shunt capacitors to ground, directly analogous to the LC ladder filters covered in earlier lessons. Each crystal is connected in series in the signal path, and small capacitors (typically 10–100 pF) are connected in shunt between each crystal.

In the ladder filter, all crystals are at (or very near) the same frequency — the center frequency of the desired passband. The shunt capacitors, combined with the crystal's C_p, shape the filter's passband and create the transmission zeros that produce the sharp skirts. The bandwidth of the filter is primarily controlled by the shunt capacitor values: larger capacitors produce a wider bandwidth, smaller capacitors produce a narrower one.

A practical 4-crystal ladder filter for a 9 MHz SSB receiver uses crystals at exactly 9.000 MHz and shunt capacitors of approximately 56 pF at each junction. This provides a 3 dB bandwidth of about 2.4 kHz and a shape factor near 1.5:1 at −60/−6 dB. Adding more crystals (6 or 8) improves the shape factor and ultimate rejection.

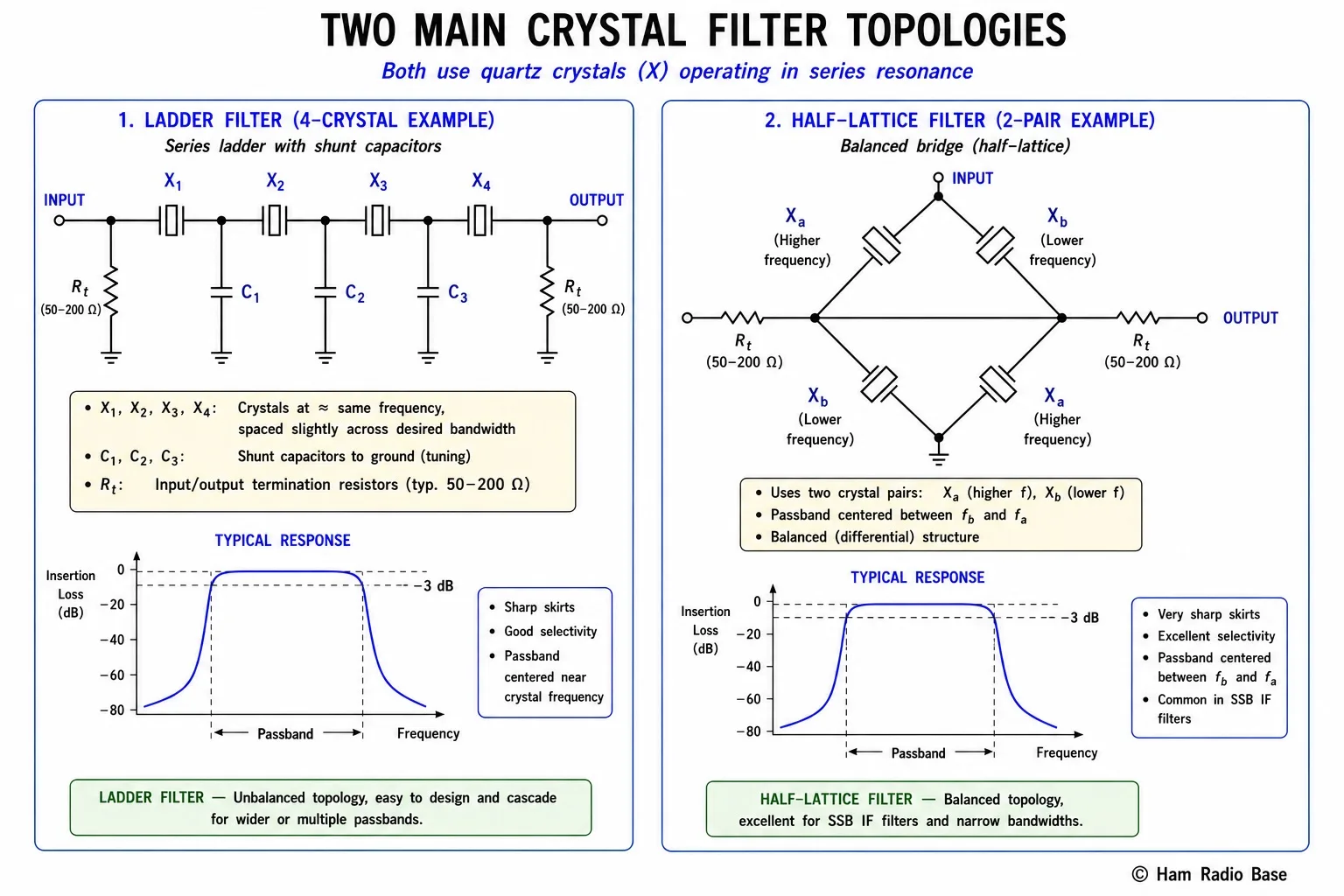

Ladder filter (top): series crystals alternating with shunt capacitors. Half-lattice filter (bottom): pairs of crystals at slightly different frequencies forming a balanced bridge. The half-lattice has better ultimate rejection; the ladder is simpler to build with fewer matched crystals.

View Larger

The Half-Lattice Crystal Filter

The half-lattice (also called a bridge crystal filter) uses pairs of crystals at slightly different frequencies — one crystal at the lower skirt frequency and one at the upper skirt frequency — connected in a balanced bridge configuration. The difference in frequency between the two crystals determines the passband bandwidth; the closer the two crystals, the narrower the filter.

The half-lattice's key advantage over the ladder filter is ultimate rejection: in an ideal balanced lattice, complete cancellation occurs at the transmission zeros, giving theoretically infinite rejection. In practice, imbalances between the crystal pairs limit ultimate rejection to 80–100 dB. This compares favorably to a ladder filter with the same number of crystals, which typically achieves 60–80 dB ultimate rejection.

The half-lattice requires crystals that are frequency-matched in pairs: the two crystals in each section must be at precisely specified different frequencies, which requires more careful crystal selection. The balanced structure also requires a phase-inverting element (a transformer or matched transistor pair) at each stage. For these reasons, the ladder topology is more commonly used in homebrewing, while the half-lattice appears in commercial receivers where the better ultimate rejection justifies the complexity.

Monolithic Crystal Filters

Modern commercial crystal filters — the kind sold as small, sealed rectangular cans and installed in commercial transceivers — are monolithic crystal filters (MCFs). In an MCF, multiple resonators are acoustically coupled to each other on a single quartz blank, and the entire multi-pole filter is packaged in a single 4- or 8-pin DIP or SMD package. The coupling between resonators on the same blank is far more precisely controlled than external LC coupling networks, resulting in extremely consistent filter characteristics from unit to unit. Most commercial HF transceivers use MCF technology for their IF filters.

Reading Crystal Filter Specifications

When selecting or evaluating a crystal filter, several key specifications appear on the datasheet. Here is how to read and compare them:

Worked Example: Reading a Filter Datasheet

Standard IF Filter Types for Ham Radio

Different operating modes require different filter bandwidths. Here is a guide to the standard crystal filter types used in ham radio receivers:

Many modern transceivers (Icom IC-7300, Yaesu FT-991A, Kenwood TS-890S) implement IF filtering entirely in DSP and do not use hardware crystal filters for the primary selectivity. The hardware filter in these radios is a wide "roofing filter" (typically 3 kHz to 15 kHz) that prevents strong nearby signals from saturating the analog-to-digital converter, while the final selectivity is implemented in the DSP. In these radios, the crystal filter's role is to prevent ADC overload, not to provide selectivity.

Older and some current high-performance radios (Elecraft K3, Ten-Tec Orion, Icom IC-7610) use hardware crystal filters for the primary IF selectivity and supplement them with DSP shaping. The advantage is that a hardware crystal filter protects the downstream electronics from strong nearby signals before any A/D conversion occurs, preventing a class of overload artifacts that DSP-only architectures can suffer from.

Selecting and Installing IF Filters

If your transceiver accepts optional plug-in IF filters (common on Kenwood, Yaesu, and some Icom models from the 1980s–2000s), selecting the right optional filter is straightforward but requires attention to three things:

1. Center frequency must match your radio's IF. A filter designed for 8.83 MHz will not work in a radio with a 9.00 MHz IF. Consult your radio's service manual to confirm the IF frequency — the main manual often states it, but the service manual is definitive. Common HF IFs include 455 kHz, 8.83 MHz, 9.00 MHz, 9.01 MHz, 10.695 MHz, and 10.7 MHz.

2. Termination impedance must match the radio's IF strip. A 500 Ω filter in a 50 Ω IF stage will work poorly — its insertion loss will be 5–10 dB higher than specified and the shape factor will be degraded. The radio's manual will specify the correct filter impedance.

3. Physical connector and package must be compatible. Optional filters plug into sockets on the IF board. Different manufacturers use different sockets; a Kenwood optional filter will not physically plug into a Yaesu radio. Always buy a filter made for or specified for your exact radio model, or verify the mechanical and electrical compatibility from the service manual.

Homebrewing Crystal Filters

Building your own crystal filter is one of the classic homebrewing projects for HF receivers. The key requirement is crystals matched in frequency: for a ladder filter, you need crystals all very close to the same frequency (within a few hundred hertz of each other); for a half-lattice, you need pairs at specific frequency offsets.

The starting point is buying a batch of crystals from a surplus supplier or ordering a matched set from a specialist vendor. Sort them by measuring each crystal's series resonant frequency with an RF bridge or oscillator circuit. Group crystals within 100 Hz of each other for use in the same filter. The tighter the matching, the flatter the passband ripple.

The shunt capacitor value is the primary bandwidth control. A starting formula for a ladder filter bandwidth:

In practice, start with the calculated value and adjust empirically. A spectrum analyzer or VNA gives the most direct measurement. If you only have a receiver and a signal generator, you can characterize the filter by connecting it between the generator and receiver's S-meter circuit and stepping the generator frequency across the passband while recording the S-meter readings.

The termination impedance for a homebrewed ladder crystal filter is usually in the range of 200–1500 Ω, depending on the crystal parameters and the number of poles. The formula for the termination resistance of a Chebyshev-approximation crystal ladder filter is:

This means the signal source driving the filter and the load following the filter should both present approximately 800 Ω. If your IF amplifier stage runs at a different impedance, a small toroidal transformer provides the match with minimal insertion loss.
