Helical and Cavity Filters — High-Q Resonators for VHF and UHF

At VHF and UHF, the world of filters changes fundamentally. Below 100 MHz, wound inductors on toroid cores make practical high-Q resonators. Above 100 MHz, the inductors become so small — a few turns, then fractions of a turn — that their resistance and stray capacitance dominate, making wound-inductor LC filters impractical for high-performance filtering. At these frequencies, the electromagnetic energy is stored not in coiled wire but in three-dimensional conducting structures: resonant cavities and helical resonators. These structures achieve Q values of 500 to 50,000, enabling the narrow, high-rejection bandpass filters that VHF and UHF repeater stations, amplifiers, and receivers require.

If you have ever seen a VHF or UHF repeater duplexer — that set of large aluminum cylinders connected with coaxial cables, mounted on the shelf above the repeater cabinet — you have seen cavity filters. Understanding how they work explains why they are so large, why they need tuning, and what the specifications mean when you are building or selecting filtering for a VHF station.

Why Wound-Coil Filters Fail Above 100 MHz

A resonant circuit requires an inductor and a capacitor. At 146 MHz (the 2m band), the required inductance for resonance with a practical capacitor value is very small. For a parallel resonant circuit with 5 pF of capacitance at 146 MHz:

L = 1 / ((2π × f)² × C) = 1 / ((2π × 146×10⁶)² × 5×10⁻¹²) = 238 nH

238 nH at 146 MHz corresponds to about 3 turns of wire on a 5 mm form — practically a single loop. At 432 MHz (70 cm band), the required inductance drops to 27 nH — less than half a turn. Such tiny inductors have very low Q because the resistance of even a short piece of wire is significant compared to the tiny inductive reactance, and because stray inductance and capacitance in the connecting leads become comparable to the resonator values.

The Q of a resonator falls dramatically as frequency increases in the wound-coil regime, roughly halving for each 4× frequency increase. A toroid inductor that achieves Q=200 at 10 MHz might only achieve Q=50 at 100 MHz and Q=10 at 500 MHz. For bandpass filter applications requiring steep skirts and low insertion loss, this is inadequate. The solution is to abandon wound inductors entirely and use structures where the electromagnetic fields store energy in three-dimensional space — resonant cavities.

Helical Resonators

A helical resonator is a coil of wire (or copper strip) wound inside a shielded metallic enclosure, with one end of the coil connected to the enclosure (grounded) and the other end open-circuited. The result is a quarter-wave transmission line resonator wound into a helix, which allows a resonant structure that is much more compact than a straight quarter-wave section of coaxial cable while still achieving very high Q.

The resonant frequency of a helical resonator depends on the diameter of the helix, the number of turns, the pitch (turns per inch), and the diameter of the enclosure. The Q factor is determined mainly by the conductor surface resistance and the ratio of the helix diameter to enclosure diameter. Optimal geometry (helix diameter ≈ 0.65 × enclosure diameter) gives Q values of 500–2000 at VHF frequencies.

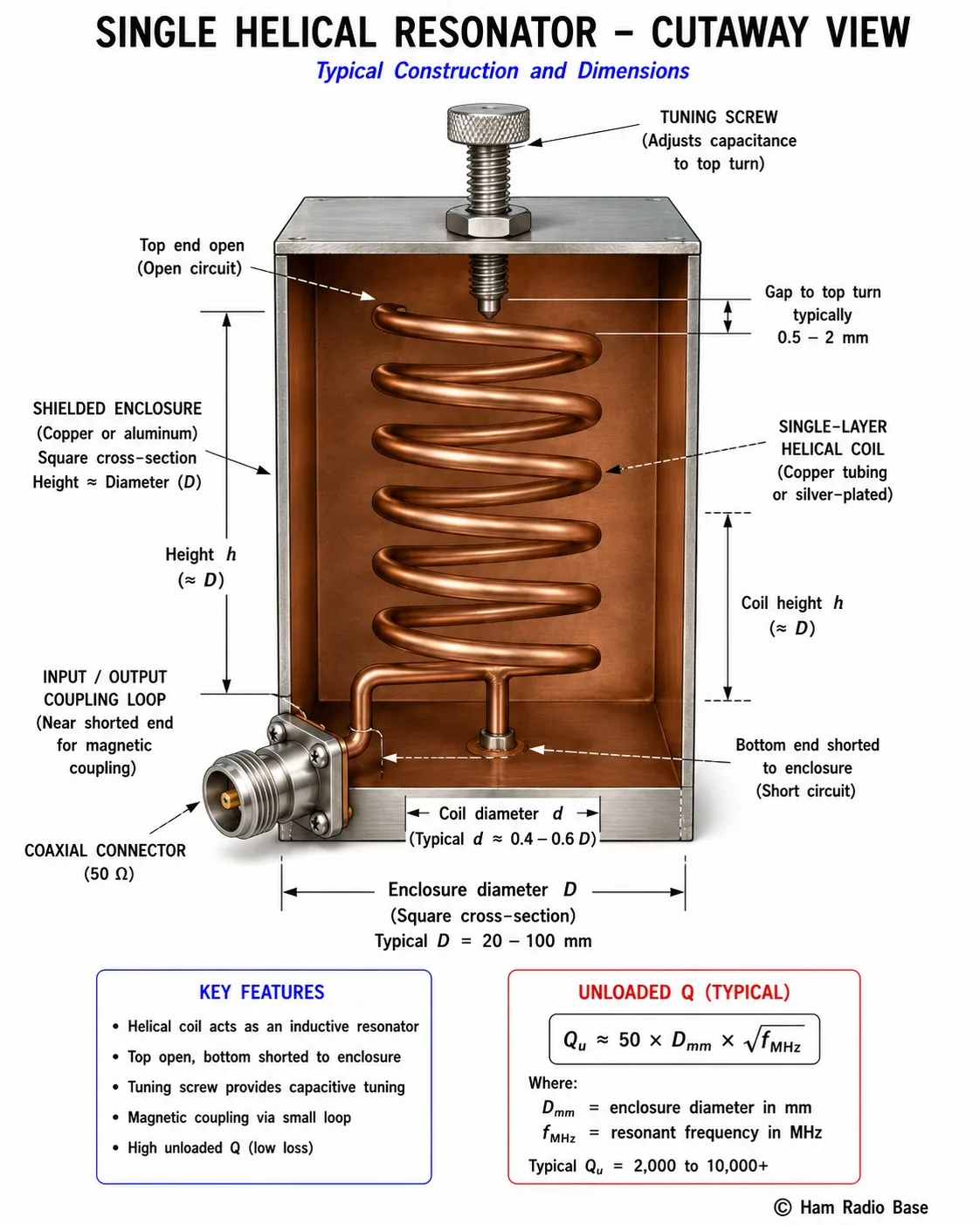

Helical resonator cross-section. The coil is wound inside a square metal enclosure with one end grounded. A tuning screw enters from the top to adjust the resonant frequency by capacitive loading. The coupling loop near the bottom injects or extracts energy from the resonator. Q values of 500–2000 are typical at 144–450 MHz.

View Larger

Helical resonator filters are widely used at 144 MHz (2m), 222 MHz (1.25m), and 432 MHz (70 cm). They are compact enough to build into handheld transceivers and small base stations, while providing far better Q than wound-core LC designs. A typical 144 MHz helical resonator occupies a cube approximately 40mm × 40mm × 40mm. A 6-resonator helical bandpass filter (three pairs for a duplexer) might fit in an enclosure 20 cm × 8 cm × 8 cm.

Helical Resonator Design Formulas

The following approximate formulas are useful for designing helical resonators. For a square enclosure of side D, helix diameter d (≈ 0.65D), helix length l, and turns N:

These formulas show the fundamental tradeoff: larger enclosures give lower resonant frequency but higher Q. To double the Q at the same frequency, you roughly double the enclosure size. This is why professional duplexer cavities for 146 MHz tend to be 3–4 inches (75–100 mm) in diameter.

Cavity Resonators

A cavity resonator is a completely enclosed metal box (or cylinder) in which electromagnetic fields resonate at specific frequencies determined by the cavity dimensions. The resonant cavity used in most ham radio VHF/UHF filters is not actually a closed cavity in the microwave sense — rather, it is a coaxial resonator: a cylinder inside a cylinder, resembling a fat section of coaxial cable that is short-circuited at one end and open (or tuned) at the other.

The most common type for 144–450 MHz repeater duplexers is the quarter-wave coaxial cavity: a center conductor approximately a quarter wavelength long (adjusted by a tuning disc or screw at the open end) inside a cylindrical outer conductor. The outer conductor is typically 3–6 inches (75–150 mm) in diameter; the center conductor is 1–2 inches (25–50 mm) in diameter. The cavity is grounded (short-circuited) at the bottom.

At the resonant frequency, the voltage is maximum at the open (tunable) top of the center conductor and zero at the shorted bottom, while the current distribution is reversed. This creates a standing electromagnetic wave inside the cavity. Because the energy is stored in the low-loss electric and magnetic fields within the cavity — not in a resistive wire — Q values of 2,000 to 20,000 are achievable at VHF/UHF.

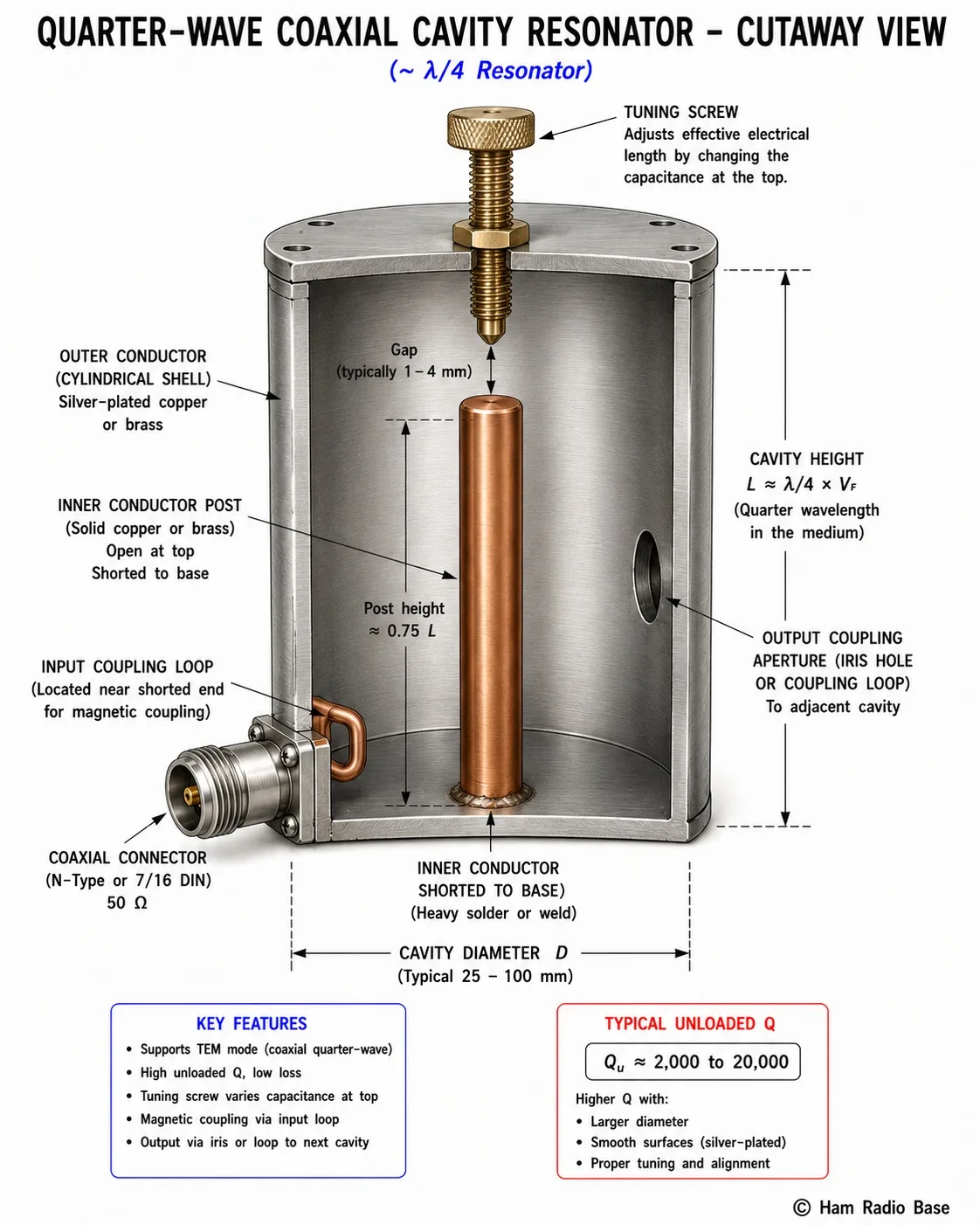

Quarter-wave coaxial cavity resonator. The inner conductor is approximately λ/4 long, short-circuited at the bottom. The tuning disc at the top adjusts resonant frequency. Coupling loops on the side inject and extract energy. Q of 3,000–10,000 is typical at 144 MHz, depending on cavity size and surface finish.

View Larger

Q Factor, Bandwidth, and Physical Size

The unloaded Q of a coaxial cavity resonator is directly related to its physical size. Larger cavities have lower surface resistance relative to stored energy, and therefore higher Q. For a quarter-wave coaxial cavity made of copper or silver-plated brass:

In practice, achieving Q of 90,000 at 146 MHz requires near-perfect silver plating on all surfaces and careful construction — more typical is Q = 5,000–15,000. The relationship between unloaded Q and achievable filter bandwidth is:

This very low insertion loss (well under 0.5 dB typically) is one reason cavity duplexers are preferred for repeater stations where transmit power is precious: the filter barely reduces the transmitted signal. LC filters of comparable selectivity at 146 MHz would have insertion losses of 3–6 dB, wasting a significant fraction of transmitter power.

Coupling Between Resonators

A single resonator is a sharp bandpass resonance, but its response rolls off symmetrically on both sides and has no flat passband. To create a useful filter — one with a flat passband and steep skirts — multiple resonators must be coupled together. The coupling method used in cavity and helical resonator filters is aperture coupling: a hole in the wall between adjacent cavities allows electromagnetic flux to pass between them, creating the inter-resonator coupling that produces the filter characteristic.

The bandwidth of the resulting bandpass filter is controlled by the size of the aperture: a larger aperture provides stronger coupling and wider bandwidth; a smaller aperture gives weaker coupling and narrower bandwidth. The coupling aperture is typically a circular or rectangular hole in the metal partition between adjacent resonators, sometimes loaded with a capacitive disc to reduce the aperture size required.

Coupling to the external transmission line (input and output ports) is achieved by a small loop antenna inside the cavity: a loop of wire or a small rectangular turn of copper strap, connected between the cavity connector and a ground point on the cavity wall. The orientation and size of the loop control the coupling coefficient.

Repeater Duplexers

A repeater simultaneously receives on one frequency and transmits on another. Without isolation between the transmitter and receiver, the transmitter's output would swamp the receiver, making simultaneous operation impossible. The duplexer provides this isolation by using pairs of bandpass filters — one tuned to pass (and reject everything else at) the transmit frequency, the other tuned to the receive frequency — connected to a common antenna port.

A typical 2m FM repeater operates with transmit and receive frequencies separated by 600 kHz (e.g., transmit 146.760 MHz, receive 146.160 MHz). The duplexer must simultaneously:

• Pass the transmit signal (146.760 MHz) from transmitter to antenna with low loss (<1 dB)
• Reject the transmit signal at the receiver input by at least 80–100 dB (to protect the receiver from the powerful transmitter)
• Pass the receive signal (146.160 MHz) from antenna to receiver with low loss (<1 dB)
• Reject the receive frequency at the transmitter output (to prevent transmitter noise from raising the noise floor at the receive frequency)

Achieving 80–100 dB of isolation between two frequencies separated by only 600 kHz out of 146 MHz (0.4% frequency offset) requires cavities with very high Q and careful tuning. A typical commercial repeater duplexer uses 6 cavities: three tuned as a notch/pass filter at the transmit frequency, three more as a notch/pass filter at the receive frequency. The cavities are connected in a bandpass-plus-notch configuration: each cavity provides both a bandpass response at one frequency and a deep notch at the other, and the effects stack multiplicatively when cavities are in series.

The 70 cm cavities are substantially smaller than 2m cavities because the quarter-wave length at 440 MHz is about one-third that at 146 MHz, and the tighter frequency separation requirement (relative) is offset by the smaller size. However, achieving 80 dB isolation at only 5 MHz separation (1.1% offset) from a 440 MHz fundamental still requires high-Q cavities carefully tuned.

Practical Considerations

Tuning Cavity Filters

Both helical and cavity resonator filters require periodic tuning. The resonant frequency of a cavity drifts with temperature (as the metal expands and contracts) and can shift over time as the tuning mechanisms settle or oxidize. For a repeater, this means checking and adjusting the duplexer tuning every one to two years in a stable indoor environment, or more frequently if the equipment experiences temperature extremes.

Tuning requires a spectrum analyzer, a signal source (or using the repeater's transmitter at reduced power), and a precision-attenuated path to the analyzer. The procedure involves adjusting each cavity's tuning screw to maximize passband response and minimize notch frequency in the correct locations, iterating between all cavities since they interact slightly.

Surface Finish and Materials

The Q of a cavity is directly proportional to the conductivity of its surface. For the highest Q, the inner surfaces should be silver-plated copper or silver-plated brass. Bare aluminum cavities (used in low-cost commercial duplexers) have lower conductivity, resulting in 20–30% lower Q and correspondingly higher insertion loss or lower isolation. Tarnish on silver or oxidation on copper reduces the effective surface conductivity; cavities intended for the highest performance are occasionally polished and re-plated.

Connector and Cable Quality

The connectors and interconnecting coaxial cables between cavities carry full transmitter power and must maintain low loss across the operating frequency range. Use high-quality N-type or 7/16 DIN connectors — not BNC or PL-259 connectors, which have significant loss and impedance discontinuity above 150 MHz. The interconnecting jumpers should be phase-matched (the same electrical length) when multiple signal paths exist. For a duplexer, the coaxial jumpers between the cavity chain and the antenna port should be kept as short as practical.
