Crystal Oscillators

A simple LC oscillator can drift by tens of kilohertz over an hour as its components warm up or as the power supply voltage changes. A quartz crystal oscillator, by contrast, can hold its frequency to within a few hertz over the same period — a stability improvement of several thousand times. This extraordinary precision, achieved by exploiting a property of quartz called the piezoelectric effect, made crystal oscillators the foundation of every channelized radio from the 1930s through today.

The Piezoelectric Effect — Why Quartz Resonates

The word piezoelectric comes from the Greek word for "press" — piezo. When you apply mechanical pressure to a piezoelectric crystal, electric charges appear on its surfaces. Conversely, when you apply a voltage across the crystal, it physically deforms — it bends, stretches, or contracts by a tiny amount proportional to the applied voltage. This two-way conversion between mechanical strain and electrical voltage is the piezoelectric effect.

Quartz (silicon dioxide, SiO₂) is one of the most common and best-performing piezoelectric materials. Its crystal structure has a highly ordered arrangement of silicon and oxygen atoms with no centre of symmetry — a requirement for piezoelectricity. When an alternating voltage is applied to a quartz crystal, it vibrates at the frequency of the applied voltage. If the applied frequency matches the crystal's natural mechanical resonant frequency, the vibration amplitude becomes very large — the crystal resonates.

Mechanical resonance in quartz is extremely stable and consistent. The resonant frequency is determined almost entirely by the crystal's dimensions and the cut angle (the angle at which the crystal blank is sliced from the mother crystal). Once manufactured, a quartz crystal's resonant frequency is fixed and essentially immune to the component value changes that cause LC oscillators to drift.

Quartz Crystal Structure and Cuts

A raw quartz crystal is hexagonal in cross-section. Crystal blanks — thin slices of quartz — are cut at specific angles to the crystal's natural axes to obtain the desired frequency-temperature behaviour. The cut angle determines how the resonant frequency changes with temperature (the temperature coefficient). Different cuts optimise for different properties:

The AT-cut is by far the most common for amateur radio applications. An AT-cut crystal at 25°C has its frequency at a turning point of the frequency-temperature curve, so small temperature changes cause only a quadratic (second-order) frequency shift rather than a linear one. This makes AT-cut crystals naturally stable over the typical indoor temperature range without any special temperature control.

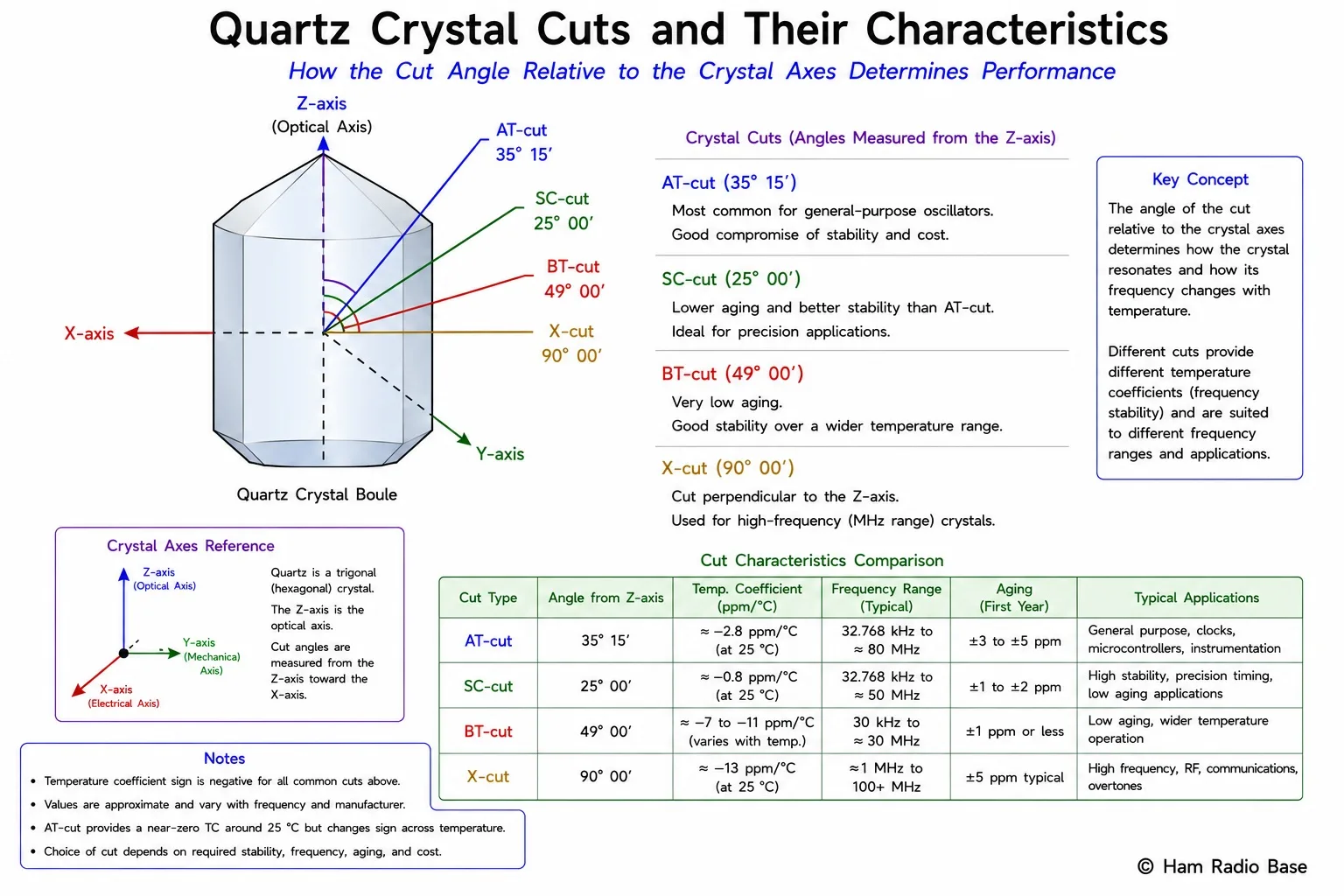

AT-cut quartz crystal: the blank is sliced at approximately 35°15' to the Z-axis of the quartz crystal, producing a temperature-stable resonator. Thin silver electrode coatings are deposited on the top and bottom faces to apply the oscillating voltage.

View Larger

The Crystal Equivalent Circuit

A quartz crystal can be modelled as an electrical circuit. This equivalent circuit reveals exactly why crystal resonators have such remarkable properties and why they behave so differently from simple LC circuits.

The crystal equivalent circuit has two parallel branches:

• Series branch (motional arm): A series combination of Ls (motional inductance, representing the vibrating mass of the crystal), Cs (motional capacitance, representing the crystal's mechanical stiffness), and Rs (series resistance, representing the crystal's internal damping losses).
• Parallel capacitance Cp: The static capacitance of the crystal package — the capacitance between the two electrodes with the crystal material as the dielectric. This is always present regardless of whether the crystal is vibrating.

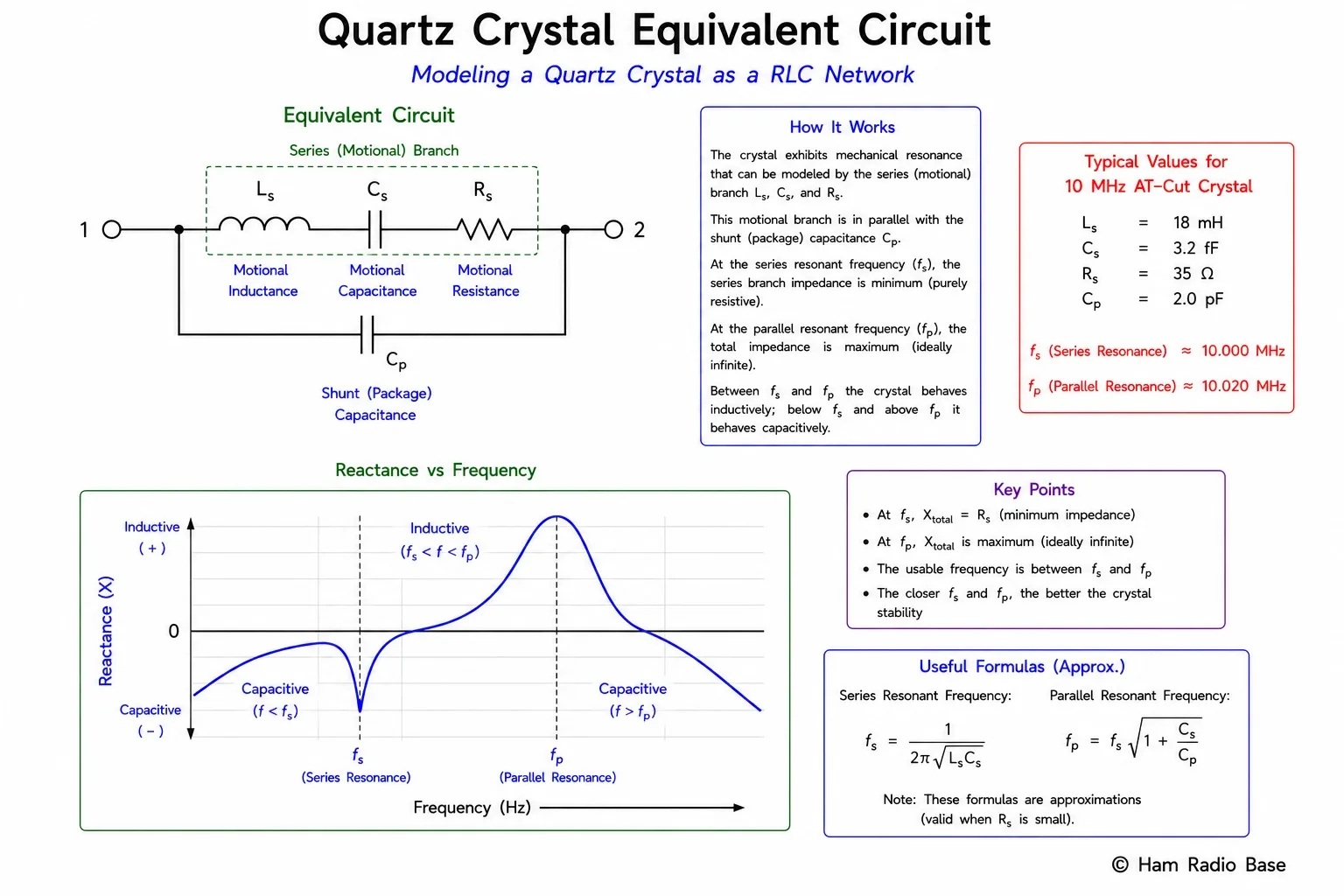

Crystal equivalent circuit: Ls, Cs, Rs form the motional arm modelling the mechanical vibration. Cp is the static electrode capacitance. The extreme ratio of Ls to Cs (millions of times larger than typical LC components) gives the crystal its exceptional Q and stability.

View Larger

The remarkable thing about these values is their extreme ratios. For a typical 10 MHz AT-cut crystal:

• Ls ≈ 10 mH (ten millihenries — thousands of times larger than any physically wound inductor at this frequency)
• Cs ≈ 0.01 pF (one hundredth of a picofarad — tiny)
• Rs ≈ 5–50 Ω
• Cp ≈ 3–10 pF

These values are not chosen by the designer — they are determined entirely by the physical dimensions of the crystal blank. The Q factor of this equivalent circuit is Q = (1/Rs) × √(Ls/Cs). For the values above: Q = (1/10) × √(10×10⁻³ / 0.01×10⁻¹²) = (0.1) × √(10⁹) = 0.1 × 31,623 = 3,162. Practical crystal Qs range from 10,000 to over 1,000,000 — orders of magnitude higher than any LC circuit.

Series and Parallel Resonance

The crystal equivalent circuit has two resonant frequencies:

Series resonance (fs): The frequency at which Ls and Cs resonate with each other. At this frequency the reactance of the series branch (Ls + Cs + Rs) is minimum — approximately Rs (the loss resistance only). The crystal looks almost like a short circuit (very low impedance). This is the fundamental mechanical resonant frequency of the crystal blank.

Parallel resonance (fp): The frequency at which the series branch (which looks inductive above fs) resonates with Cp. At this frequency the crystal presents a very high impedance (ideally infinite, limited by Rs). fp is always slightly higher than fs.

Crystal Oscillator Circuit Topologies

Several oscillator circuit topologies use crystals as the frequency-determining element. The most common for amateur radio are the Pierce, the Colpitts-crystal, and the Butler oscillator.

Pierce Oscillator

The Pierce oscillator is the most widely used crystal oscillator circuit, found in virtually every microcontroller, CMOS IC clock oscillator, and simple radio crystal oscillator. It is derived from the Colpitts oscillator: the crystal replaces the inductor in the Colpitts tank, and two capacitors (C1 and C2) connect from the crystal terminals to ground.

In the Pierce circuit, the crystal operates slightly above its series resonant frequency — where it appears inductive — and resonates with C1 and C2 in the same way the inductor resonated with C1 and C2 in the Colpitts. The "load capacitance" that the crystal sees (determined by C1 and C2 in series) is specified by the crystal manufacturer as the series load capacitance, typically 18 pF or 12 pF for standard crystals. Using the correct load capacitance ensures the crystal oscillates at exactly the marked frequency.

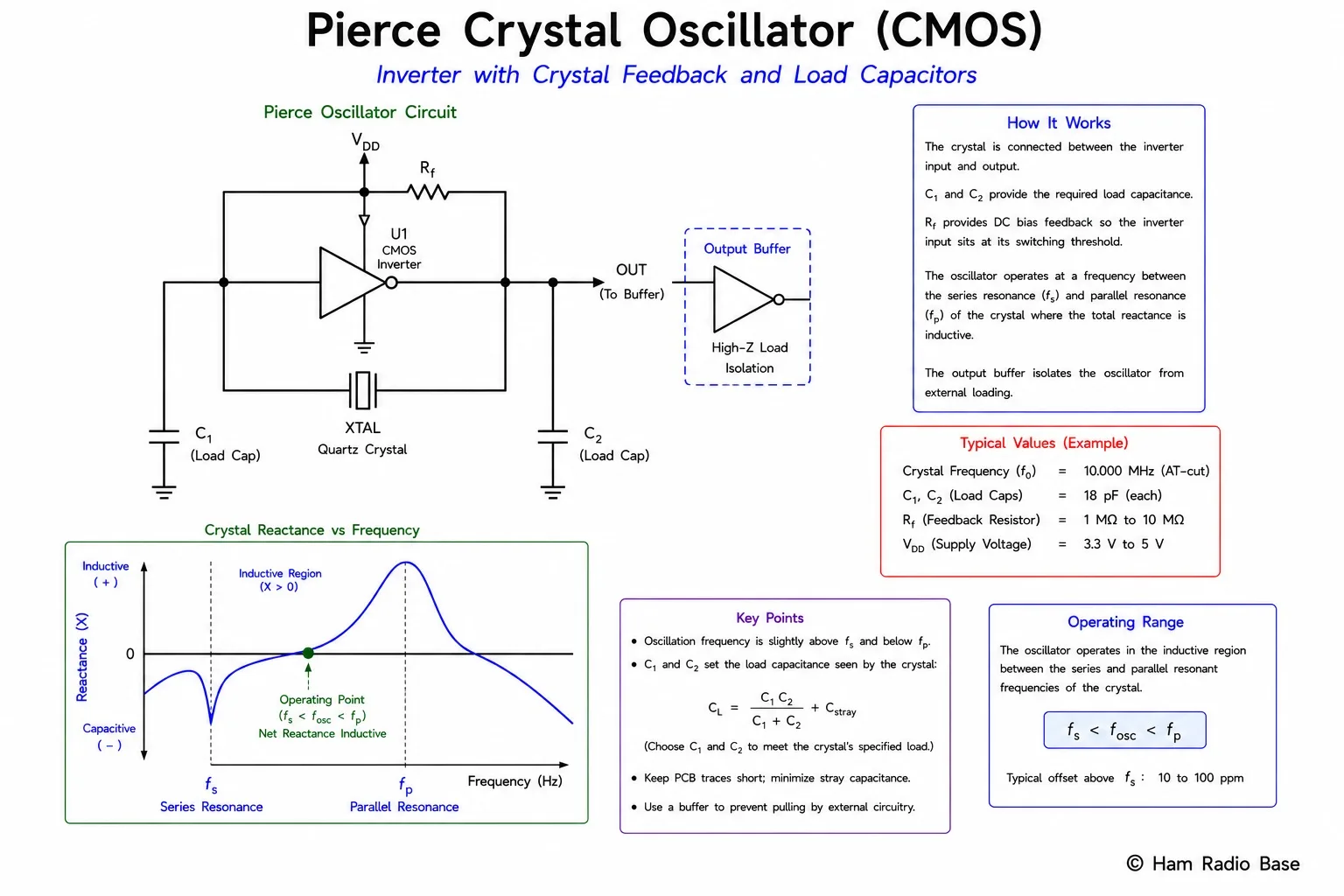

Pierce crystal oscillator — the most common crystal oscillator circuit. The CMOS inverter acts as an amplifier with 180° phase shift; the crystal and load capacitors C1 and C2 provide the remaining 180° needed for the Barkhausen phase condition.

View Larger

Butler Oscillator

The Butler oscillator uses the crystal in series mode — at precisely its series resonant frequency. A broadband transistor amplifier is connected in a loop, with the crystal (in series mode) in the feedback path. Only signals at the crystal's series resonant frequency pass through the crystal with low loss; all other frequencies are blocked. The loop gain is high enough to sustain oscillation only at the series resonant frequency.

The Butler circuit produces excellent frequency stability and is used in high-performance reference oscillators and VHF multiplier chains. It requires careful bias design to prevent the crystal from being overdriven — excessive drive power ages the crystal faster and degrades long-term stability.

Overtone Operation

The fundamental resonant frequency of an AT-cut crystal depends on its thickness — thinner crystals resonate at higher frequencies. At frequencies above about 25–30 MHz, the crystal blank becomes so thin that it is mechanically fragile and difficult to manufacture. To reach higher frequencies, crystals are operated on their overtones — odd multiples of the fundamental frequency.

A 10 MHz crystal has mechanical resonances at 10 MHz (fundamental), 30 MHz (3rd overtone), 50 MHz (5th overtone), and 70 MHz (7th overtone). By designing the oscillator to provide gain only near the 3rd overtone frequency, you can make a 30 MHz crystal oscillator using a 10 MHz crystal. This is why crystals are labelled "3rd overtone" or "5th overtone" — the crystal is designed and characterised specifically for operation on that overtone mode.

Important: a crystal marked for parallel-mode operation on its fundamental cannot simply be put in an overtone oscillator and work on the 3rd overtone. Overtone operation requires a resonant circuit (usually a tuned LC circuit) in the oscillator loop that provides gain near the overtone frequency but attenuates the fundamental. Without this, the oscillator may run on the fundamental instead of the intended overtone.

Crystal Accuracy Specifications

When choosing a crystal for a radio application, several specifications matter:

TCXO and OCXO — Temperature Stabilisation

For applications requiring better frequency stability than a plain crystal can provide, two technologies are used: temperature-compensated crystal oscillators (TCXOs) and oven-controlled crystal oscillators (OCXOs).

Temperature-Compensated Crystal Oscillator (TCXO)

A TCXO adds a temperature sensor (thermistor) and a compensation circuit to the crystal oscillator. The compensation circuit applies a correction voltage to a varactor diode (variable capacitor) that shifts the crystal frequency in the opposite direction to the crystal's natural temperature drift. The result is that temperature-induced frequency changes are reduced by a factor of 10 to 100 compared to an uncompensated crystal.

Typical TCXO stability: ±0.5 to ±2.5 ppm over 0°C to 70°C. This is good enough for precision frequency measurement, GPS receivers, and high-performance amateur transceivers. A TCXO is small, draws low current, and requires no warm-up time — it operates immediately on power-up. The Icom IC-7300, Yaesu FTDX-10, and most modern SDR dongles (when upgraded) use TCXO references for this reason.

Oven-Controlled Crystal Oscillator (OCXO)

An OCXO takes a different approach: instead of compensating for temperature drift, it eliminates the temperature variation by maintaining the crystal at a constant elevated temperature in a heated enclosure (an oven). The oven temperature is typically 75°C–90°C (well above any likely ambient temperature), controlled to within ±0.01°C by a precision temperature controller.

At constant temperature, the crystal's frequency is essentially constant. OCXO stability: ±0.001 to ±0.01 ppm over wide ambient temperature ranges — 10 to 100 times better than a TCXO. The tradeoff is power consumption (typically 1–5 W while the oven is warming up, 0.5–2 W in steady state) and warm-up time (5–15 minutes for the oven to reach temperature stability).

OCXOs are found in frequency standards, GPS-disciplined oscillators, high-end spectrum analyzers, and the reference oscillators of precision transceivers used for EME (earth-moon-earth) and other weak-signal work where frequency accuracy of better than 1 Hz is required at HF.

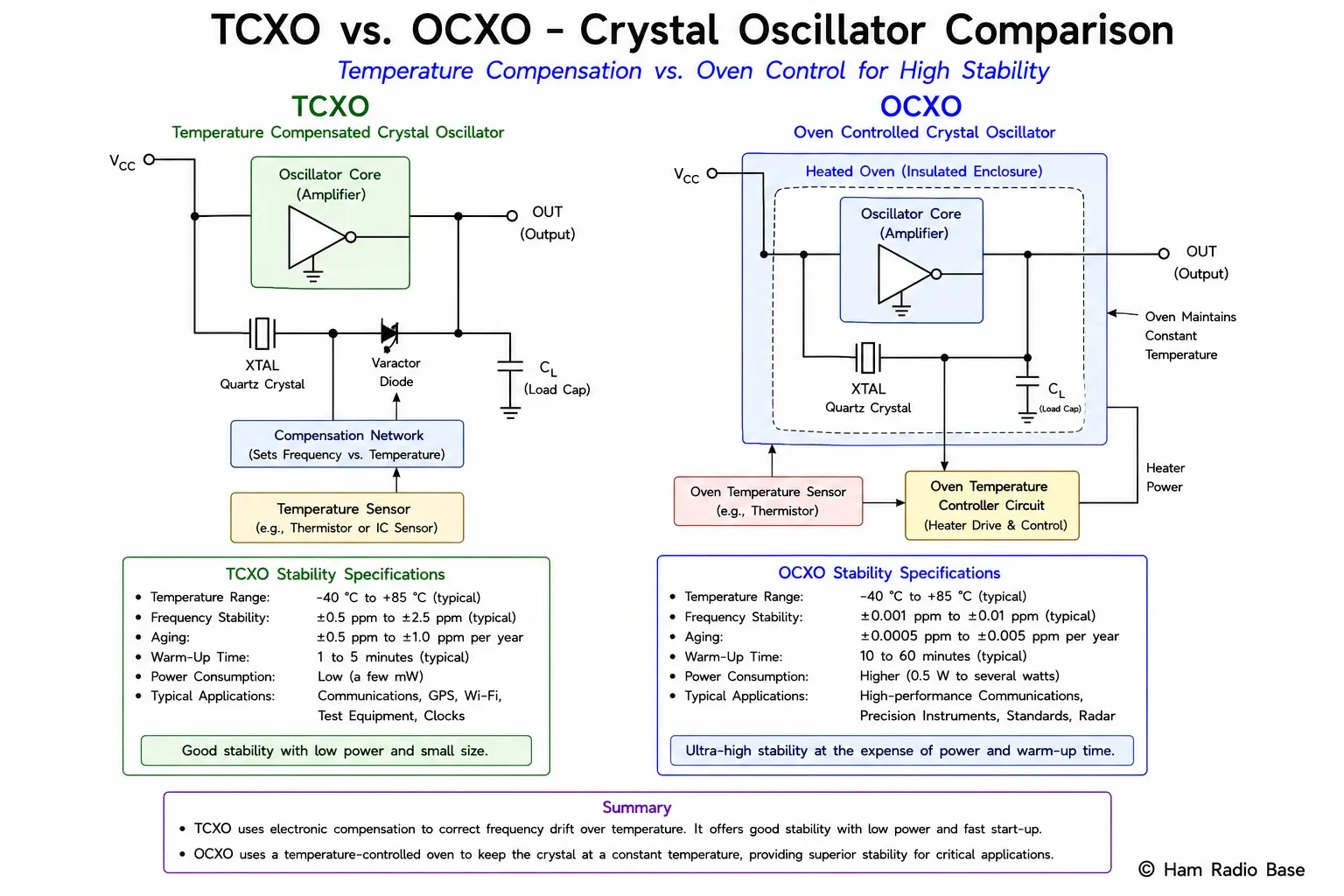

TCXO (left) compensates for temperature drift electronically using a varactor to adjust the crystal's load capacitance. OCXO (right) eliminates temperature variation entirely by maintaining the crystal in a constant-temperature oven, achieving much better stability at the cost of power consumption and warm-up time.

View Larger

Crystal Oscillators in Ham Radio Equipment

Crystal oscillators appear in almost every piece of amateur radio equipment. Knowing which type is used and why helps you understand your equipment's frequency accuracy and diagnose problems.

Channel crystal banks in older equipment: Radios from the 1950s through 1970s often used a bank of crystals — one per operating frequency — to cover the amateur bands in discrete channels. The radio had a crystal socket on the front panel. This is why you sometimes see old crystals labelled with specific frequencies at ham radio flea markets.

BFO crystal: In many older single-conversion superhet receivers, the beat frequency oscillator (BFO) is a crystal-controlled oscillator offset from the IF frequency to demodulate CW and SSB. Typically two crystals are used — one for upper sideband (USB) and one for lower sideband (LSB), switched by a front-panel control.

Reference oscillator in synthesized transceivers: Modern transceivers use a single precision crystal oscillator (sometimes a TCXO) as the reference for the entire frequency synthesis chain. The synthesizer divides this reference frequency to produce all operating frequencies. If the reference crystal is off by 1 ppm, every frequency the radio generates is off by the same 1 ppm.

GPS-disciplined oscillators (GPSDO): For the ultimate frequency accuracy, a GPSDO phase-locks a local OCXO to the timing signal from GPS satellites, which is ultimately referenced to atomic clocks accurate to 1 part in 10¹³. A GPSDO-equipped station can measure and transmit at frequencies accurate to better than 0.01 Hz at HF.
