VFO Stability and Drift

A variable frequency oscillator (VFO) gives you something a crystal oscillator cannot: the ability to tune continuously across a frequency range rather than snapping to a fixed channel. But this flexibility comes at a cost — LC VFOs drift. When you tune your homebrew rig to 7.100 MHz and come back ten minutes later to find it on 7.095 MHz, that is VFO drift at work. Understanding why VFOs drift — and the techniques used to minimise it — is essential for building or operating any variable-frequency radio.

What Is a VFO and Where Is It Used?

A variable frequency oscillator is any oscillator whose output frequency can be adjusted by the operator, typically over a range of at least several hundred kilohertz. The most common mechanism is a variable capacitor in the LC tank circuit — rotating the capacitor shaft changes the capacitance, which changes the resonant frequency, which changes the output frequency. This is how early radio receivers and transmitters worked: one tuning dial controlled a VFO that set the operating frequency.

In a superheterodyne receiver (the design used in virtually all modern transceivers), the VFO — now usually called the local oscillator (LO) — mixes with the incoming signal to produce the intermediate frequency (IF). If the incoming signal is at 7.2 MHz and the IF is 9 MHz, the LO must be at 7.2 + 9 = 16.2 MHz (or 9 - 7.2 = 1.8 MHz for a low-side injection). Tuning the receiver means tuning the LO frequency across the 9 MHz band: 16.0 to 16.35 MHz for the 40-meter band (7.0–7.35 MHz). Any drift in the LO frequency appears directly as drift in the received frequency — the signal you are listening to drifts across the IF passband and eventually disappears out the edge.

In a transmitter, the VFO determines the transmit frequency. A drifting transmitter is both annoying to contacts (they have to keep retuning to follow you) and potentially illegal if the drift carries you outside the band or into another operator's QSO.

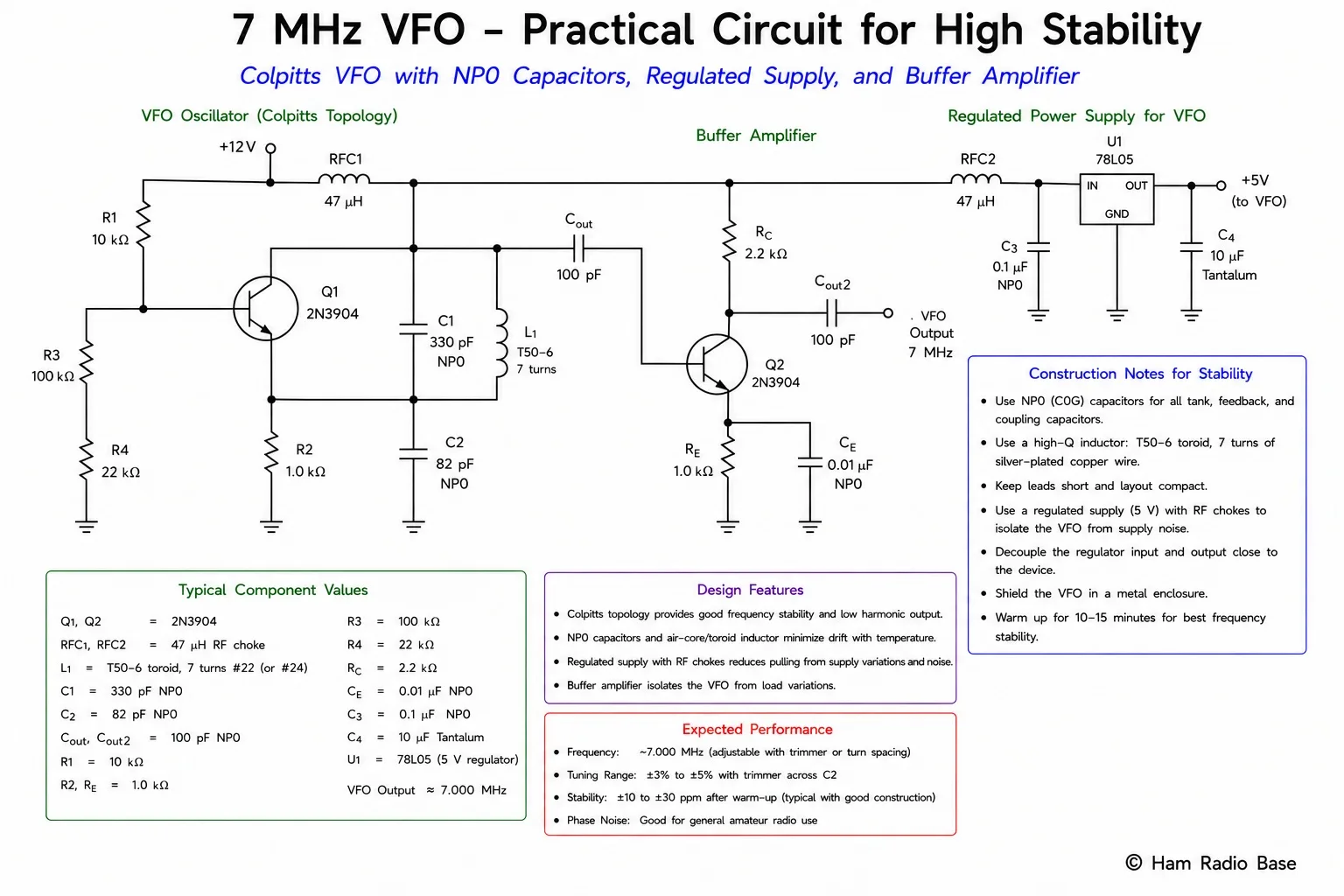

A practical VFO design incorporating the key stability elements: regulated supply, temperature-compensating capacitor, high-Q toroidal inductor, and an isolation buffer amplifier to prevent the load from pulling the frequency.

View Larger

The Causes of Frequency Drift

The resonant frequency of an LC tank is f = 1/(2π√LC). Any change in L or C produces a change in f. In a real circuit, several factors cause L and C to change over time:

1. Temperature change (dominant cause): All capacitors and inductors have a temperature coefficient — their value changes with temperature. When the circuit warms up after switch-on, or when the ambient temperature changes, L and C both change, shifting the frequency. Temperature is responsible for 80–95% of VFO drift in most practical circuits.

2. Supply voltage variation: The transistor in the oscillator has internal capacitances (collector-base junction capacitance, Ccb, and emitter-base junction capacitance, Ceb) that are part of the effective tank capacitance. These junction capacitances depend on the voltage across the junction. If the supply voltage changes, the junction voltages change, changing Ccb and Ceb, which shifts the frequency.

3. Mechanical vibration: Physical vibration causes the tank coil to flex, changing its inductance. Variable capacitors can rattle if not properly constructed. This is microphonics — addressed in detail in the next lesson.

4. Load variation: When the load impedance connected to the oscillator output changes — because you key the transmitter on and off, switch antenna loads, or connect different equipment — the load impedance reflects back through the buffer amplifier into the tank, slightly changing the effective Q and resonant frequency. This is called frequency pulling.

5. Component aging: Over many months and years, capacitor dielectrics settle slightly, inductor cores relax magnetically, and resistors drift in value. These are small effects compared to temperature, but they contribute to long-term drift.

Temperature Effects on Capacitors

Not all capacitors are equal in temperature stability. The dielectric material determines how much the capacitance changes with temperature, characterised by the temperature coefficient of capacitance (TCC). TCC is measured in ppm/°C (parts per million per degree Celsius).

The practical message is simple: use only NP0/C0G ceramics or silver-mica capacitors in VFO tanks. Any other ceramic type — X7R, Y5V, Z5U — will cause the VFO to drift unacceptably with temperature. The main tuning capacitor should be a high-quality air-variable capacitor (such as a surplus broadcast receiver capacitor), which has essentially zero TCC because the capacitance is determined by air-spaced metal plates that expand and contract equally.

Temperature Effects on Inductors

Inductors also drift with temperature, but the mechanisms are more complex:

Copper wire resistance: The resistance of copper increases about 0.4%/°C with temperature. This changes the Q of the inductor, which changes the effective reactance slightly — not a major frequency effect, but it does affect loop gain and can cause the oscillator to vary slightly in amplitude.

Dimensional changes: The wire, former, and core all expand slightly when heated. For an air-wound coil on a plastic former, the former typically expands more than the wire, spreading the turns apart and reducing the inductance (inductance decreases as turns move further apart). For a toroidal core, the core's permeability changes with temperature.

Core permeability changes: Ferrite and iron-powder core materials change their permeability (and therefore the inductance wound on them) with temperature. Iron-powder cores (such as the T50-6 red and T50-2 red cores used in toroidal inductors) have a positive temperature coefficient of permeability — inductance increases with temperature. Ferrite cores (fair-rite 77 and similar) have varying behaviour. Air-wound coils have zero core temperature coefficient but are bulkier.

The temperature coefficient of inductance for a toroidal inductor wound on a T50-6 core (iron powder, mix 6) is approximately +35 ppm/°C. For a T50-2 (mix 2, red): approximately +95 ppm/°C. This positive temperature coefficient of inductance can sometimes be exploited to partially cancel the negative temperature coefficient of a well-chosen capacitor.

Supply Voltage and Load Effects

The transistor's collector-base capacitance (Ccb) varies with the reverse bias voltage across the junction. A typical small-signal NPN transistor like a 2N3904 might have Ccb of 4 pF at 5 V collector-base voltage, decreasing to 3 pF at 10 V. In a 7 MHz oscillator with a 400 pF tank capacitance, this 1 pF change represents a 0.25% change in capacitance, which changes the frequency by 0.125% — a shift of about 8.75 kHz at 7 MHz. This is not negligible.

The cure is a well-regulated supply voltage. A three-terminal IC voltage regulator (such as the 78L08 for 8 V) keeps the supply to within ±0.1 V across a wide range of input voltage and load current. Combined with good bypass capacitors close to the oscillator circuit, this eliminates supply-induced drift almost completely.

Load pulling: Any reactive load connected to the oscillator output partially appears at the tank, changing the effective resonant frequency. A buffer amplifier with high input impedance (>>1 kΩ) and good reverse isolation (30 dB or better) prevents this. The buffer must be powered from the same regulated supply as the oscillator, and its input should be only loosely coupled to the tank (via a small coupling capacitor of 1–5 pF).

Construction Techniques for Stable VFOs

Good VFO construction is as much about mechanical engineering as electronics. Here are the key techniques used by experienced homebrew builders:

Mechanical rigidity: Mount all tank components on a rigid metal chassis or board — not on a flexible PCB that will flex when the box is moved. The variable capacitor must be solidly mounted with no wobble in the shaft bearing. Any mechanical play allows the capacitance to change with vibration and touch.

Thermal mass: Large, heavy components with high heat capacity warm and cool slowly. Using a heavy die-cast aluminum enclosure slows thermal transients, reducing drift rate during warm-up. Some builders deliberately add thermal mass to the inductor assembly.

Thermal isolation of the oscillator: Mount the oscillator section inside a separate inner shield can within the main enclosure. This inner can isolates the oscillator from heat sources (power transistors, transformers) and from convection currents caused by ventilation holes. The separate can also provides RF shielding.

Spacing components for airflow: Do not pack components tightly together. Allow air to circulate so temperature gradients within the oscillator are small. Components at different temperatures cause differential drift.

Temperature compensation: If the oscillator drifts consistently in one direction with temperature — typical behaviour — add a small-value temperature-coefficient capacitor in parallel with a tank capacitor to cancel the drift. For example, if the VFO drifts low with increasing temperature (indicating the effective capacitance is increasing with temperature), add a small N750 capacitor (negative temperature coefficient of −750 ppm/°C) to produce an equal and opposite frequency shift.

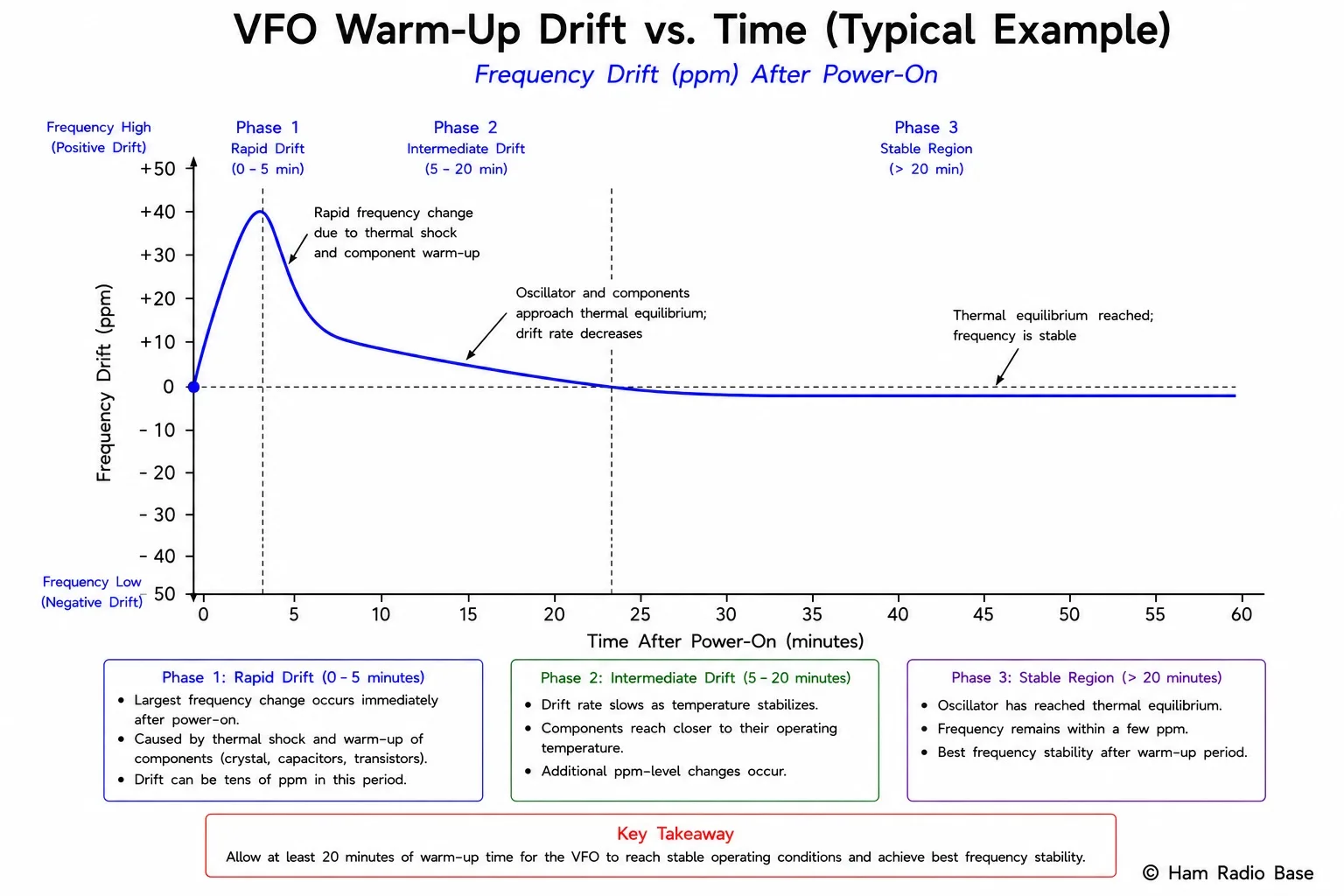

Typical VFO warm-up drift curve. The initial rapid drift during the first 5 minutes occurs as the transistor, inductor, and capacitors warm to operating temperature. Drift slows and stabilises after 15–20 minutes. Temperature compensation reduces the total drift but does not eliminate the warm-up transient.

View Larger

Warm-Up Drift and Long-Term Stability

VFO drift behaviour typically follows a characteristic pattern over time:

Initial rapid drift (0–5 minutes): The transistor's junction capacitances and the tank capacitors heat up quickly. This produces rapid frequency change — often 5–30 kHz in the first five minutes for an uncompensated circuit. The transistor warms fastest because it dissipates power internally.

Intermediate settling (5–20 minutes): The inductor, which has higher thermal mass, slowly reaches thermal equilibrium. The frequency drift slows but continues. The rate might be 1–5 kHz per minute.

Stable plateau (after 20 minutes): All components reach a stable temperature determined by the balance of internal power dissipation and heat flow to the environment. The frequency is now stable to within the noise and microphonic contribution. A well-designed VFO should be within 500 Hz of its final frequency after 30 minutes of warm-up.

The practical lesson is to allow VFO-equipped radios to warm up for at least 15–30 minutes before critical frequency work — calling CQ on a net frequency, participating in a contest, or making a contact that requires accurate frequency. This was standard operating practice in the era of discrete-component radios and remains relevant for homebrew equipment today.

VFOs in Modern Amateur Radio

Virtually all commercial amateur transceivers manufactured after about 1980 use PLL synthesizers or DDS systems instead of direct LC VFOs. These synthesized frequency sources inherit their stability from a precision crystal reference — they are essentially as stable as the reference crystal from the moment of switch-on, with no warm-up drift to speak of.

However, LC VFOs are alive and well in homebrew radio. The homebrew community builds QRP (low-power) CW transceivers, simple direct-conversion receivers, and regenerative receivers, many of which use simple VFO circuits for their elegant simplicity and the satisfaction of direct frequency control. Projects like the Rockmite, the BitX transceiver, and the BITX20/40 all use LC VFOs, as do hundreds of designs published in QST, ARRL Handbook, and online forums.

Understanding VFO drift is also valuable for diagnosing problems in older commercial equipment that may have drifting local oscillators, aging component values, or failed regulators. A transceiver that is drifting several kHz per hour may have a failing supply voltage regulator, an aging electrolytic capacitor that has drifted from its original value, or a bad solder joint that is changing resistance with temperature.
